Product Type	Digital thermo-hygrometer
Brand	TECHNOLINE
Model	WS 9470
Category	Climate control
Power supply	2 AAA 1.5V batteries (non-rechargeable)
Display	Indoor temperature and humidity
Temperature units	°C / °F (selectable)
Measuring range (temperature)	Not specified (indoor use)
Measuring range (humidity)	Not specified (indoor use)
Trend indicator	Directional arrows for temperature and humidity
Comfort indicator	LOW (dry), OK (comfortable), HIGH (humid)
Value memory	Min/Max over 24 h or all-time (selectable)
Calibration	Yes, for temperature and humidity (via Set button)
Calibrated display	"CALIBRATED" indication
Low battery indicator	Battery icon
Dimensions	Not specified
Weight	Not specified
Usage	Indoor only
Maintenance	Avoid water, shocks, dust, extreme temperatures
Safety	Do not open, do not throw into fire, keep batteries out of reach of children
Recycling	Compliant with WEEE regulations

Frequently Asked Questions - WS 9470 TECHNOLINE

How to install the batteries in the WS 9470?

Open the battery compartment on the back, insert 2 AAA 1.5V batteries respecting polarity (+/-), then close the compartment.

How to switch the temperature unit between °C and °F?

Press the °C/°F button to toggle between Celsius and Fahrenheit.

What do the trend arrows displayed mean?

The arrows indicate whether the temperature or humidity is rising (up arrow), stable (horizontal arrow), or falling (down arrow).

How to interpret the comfort level indicator?

A symbol near LOW means air too dry, near OK means comfortable, near HIGH means air too humid.

How to display the maximum and minimum values?

In normal mode, press the ▲ or ▼ button to toggle between 24-hour and all-time display.

How to manually reset the max/min values?

Press and hold the ▲ button to clear the high value, or the ▼ button to clear the low value, in the corresponding display mode.

How to calibrate the temperature and humidity?

Press SET for 3 seconds. The humidity flashes: adjust with ▲/▼, then press SET. The temperature flashes: adjust similarly, then press SET to confirm. The display will show CALIBRATED.

What to do if the low battery icon appears?

Replace both batteries with new ones as soon as possible. Use only non-rechargeable alkaline batteries.

Can I use this device outdoors?

No, the WS 9470 is designed for indoor use only. Avoid direct exposure to sunlight, moisture, or dust.

How to dispose of the device at the end of its life?

Do not dispose of it with household waste. Take it to a WEEE collection point or store in accordance with local regulations. Used batteries must be returned to a collection point.

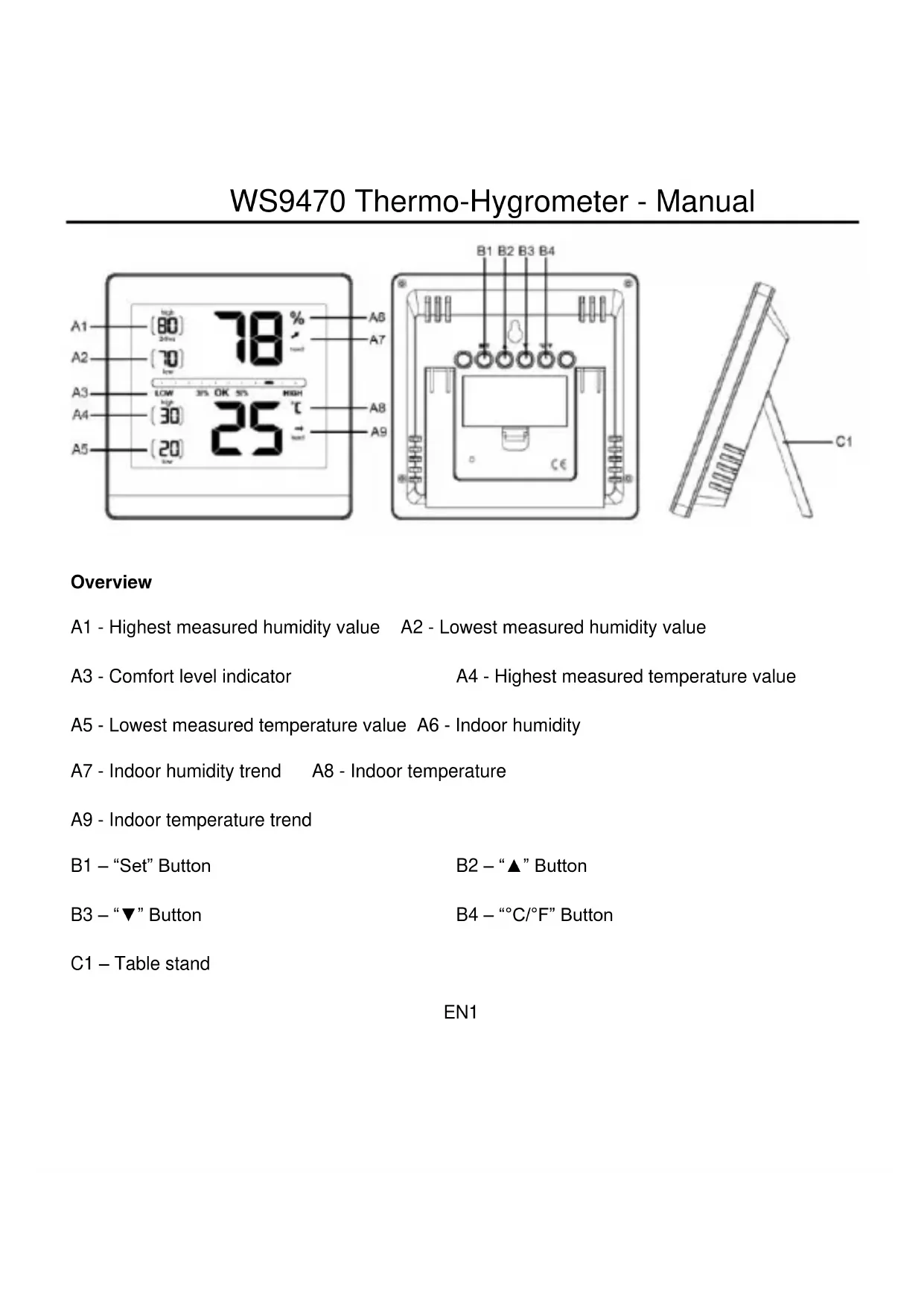

USER MANUAL WS 9470 TECHNOLINE

A1 high [80] 24ms 78 % low A2 [70] low A3 LOW 3% OK 5% HIGH high [30] 25 °C A4 A5 [20] low A6 A7 A8 A9 B1 B2 B3 B4 CE C1

Overview

A1 - Highest measured humidity value A2 - Lowest measured humidity value

A3 - Comfort level indicator A4 - Highest measured temperature value

A5 - Lowest measured temperature value A6 - Indoor humidity

A7 - Indoor humidity trend A8 - Indoor temperature

A9 - Indoor temperature trend

B1 – “Set” Button B2 – “▲” Button

B3 – “▼” Button B4 – “°C/°F” Button

C1 – Table stand

EN1

Getting started

• Open the battery compartment.
• Insert 2 x 1.5V AAA batteries, accordingly to correct +/- polarity as indicated in the battery compartment. The measured temperature and humidity will appear on the display.
• Close the battery compartment again.

Temperature display

Press the °C/°F button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

Trend indicator

The trend arrows indicate whether the values for temperature and humidity are currently increasing (arrow upwards), steady (arrow sideways) or decreasing (arrow downwards).

Comfort level

A marking appears on the display to indicate the comfort level:

Marking near LOW means that the environment is too dry.

EN2

Marking near OK means that the environment is comfortable.

Marking near HIGH means that the environment is too humid.

Maximum and minimum values

• There are two memory modes for the displayed highest and lowest values of high and low for temperature and humidity.
• Press the ▲ or ▼ button in normal mode view the 24hrs or all-time display mode of the maximum-minimum values.
• All-time mode: As soon as the station is active the maximum and minimum values will be stored.
• 24hrs mode:The maximum and minimum values will be reset every 24 hours(form the moment of activation).

Manual reset

• Press and hold the ▲ button in the respective displaymode to clear the recorded high reading.
• Press and hold the ▼ button in the respective display mode to clear the recorded low reading.

Calibration function

The thermo-hygromenter allows the user to calibrate the display of temperature and humidity measurements with an external,better reference source. The user can make adjustments to the temperature and humidity displays within the measuring range.

When replacing batteries the calibrated values are deleted automatically.

Calibration of the humidity and temperature display

• Press and hold the SET button for 3 seconds and the humidity flashes. Press the ▲ or ▼ button to correct the display of the humidity. CALIBRATED appears under humidity on the display.
• Press SET button shortly to confirm the changes and the temperature flashes. Press the ▲ or ▼ button to correct the display of the temperature. CALIBRATED appears under temperature on the display.
• Press SET button shortly to confirm the changes and exit the setting mode.

Note: CALIBRATED is shown on the display as long as the values stay calibrated.

Low battery icon

Change the batteries once the battery symbol appears on the display.

Precautions

- This unit is intended to be used only indoors.

• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.

- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed

by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This

applies to all countries of the European Union, and to other European countries with a separate waste collection system.
