MZ100233 - Measuring equipment ADE - Free user manual and instructions

Product type	Telescopic measuring rod
Brand	ADE
Model	MZ100233
Measurement range	600 - 2100 mm
Graduation	1 mm
Dimensions (W x H x D)	55 x 940 x 34 mm
Weight	Approx. 700 g
Material	Plastic and aluminum
Mounting	Wall mounting (mounting kit included)
Usage	Height measurement for adults and children
Package contents	Measuring rod, foot positioner, 2 spacers, 2 connecting screws, wall mounting kit (4 spacers, 2 screws, 2 S6 wall plugs), instruction manual
Safety	Fold down the tab after each measurement
Warranty	2 years (excluding removable parts and unauthorized opening)
Manufacturer	ADE Germany GmbH, 22143 Hamburg, Germany
Customer service	Tel. [phone], email [e-mail]
Batteries required	No
Maintenance	Clean with a soft dry cloth
Measurement type	Mechanical (direct reading on scale)
Recommended use	Professional (medical practices, etc.)

Frequently Asked Questions - MZ100233 ADE

How to mount the measuring rod on the wall?

To mount the rod on the wall, follow these steps: place the black spacers into the foot positioner, push it into the end of the rod, then choose a level location. Mark the holes, drill, insert the S6 wall plugs and screw the long screws with the round spacers between the rod and the wall.

What is the measurement range of the ADE MZ100233 measuring rod?

The measurement range is 600 to 2100 mm, with a graduation of 1 mm.

Is the measuring rod suitable for measuring children?

Yes, it can measure both adults and children. The foot positioner and sliding tab adapt to different sizes.

What to do if the measuring tab does not slide properly?

Check that the tab is not obstructed. If necessary, clean the rod with a dry cloth. If the problem persists, contact the manufacturer.

How to maintain the measuring rod?

Clean it regularly with a soft dry cloth. Avoid moisture and chemicals. Store in a dry place.

Does the warranty cover accidental damage?

No, the warranty does not cover damage caused by drops or misuse. It only covers material or manufacturing defects within 2 years of purchase.

Where can I find ADE customer service?

ADE Germany GmbH is located in Hamburg. You can contact them by phone at [phone] or by email at [e-mail]. Website: www.ade-germany.de.

Does the measuring rod require batteries?

No, the measuring rod is a mechanical instrument without batteries.

Can I use the measuring rod without mounting it on the wall?

The measuring rod is designed for wall mounting. Use without mounting is not recommended as it must be stable for accurate measurements.

What to do if the measuring rod does not measure correctly?

Ensure the rod is securely mounted and level. Check that the tab is in horizontal position and the person is standing straight. If the error persists, contact after-sales service.

USER MANUAL MZ100233 ADE

Telescopic Height Measuring Rod

Metal measuring tool with a vertical scale and handle, shown against a plain background (no text or symbols visible)

MZ10023-3-210420-Rev002-UM-de-e-fr-nl

Installation and use of height rod 5

Assorted dental and screw tools laid out on a white surface, including screws, clips, and caps (no text or symbols visible)

Installation and use of height rod

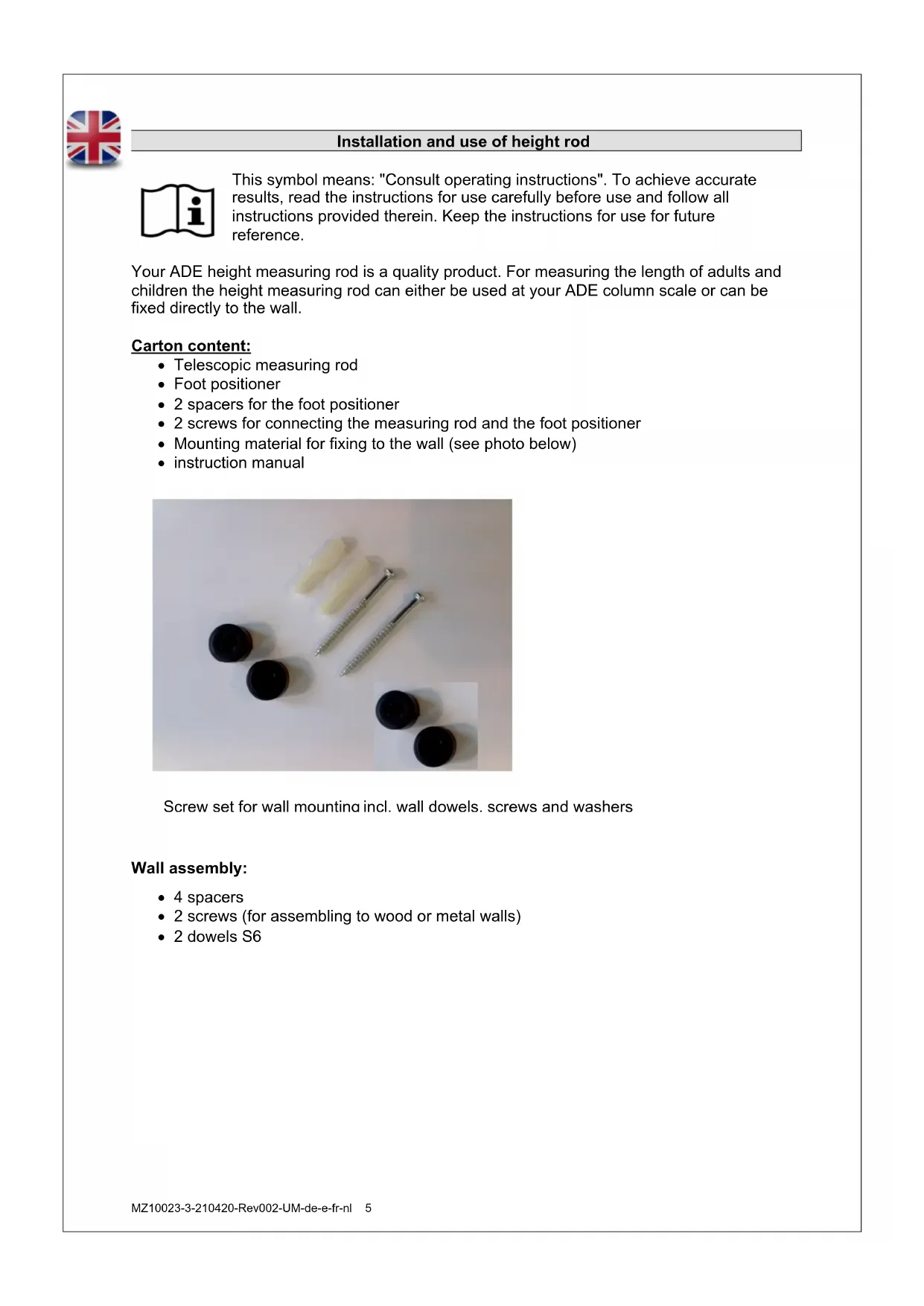

This symbol means: "Consult operating instructions". To achieve accurate results, read the instructions for use carefully before use and follow all instructions provided therein. Keep the instructions for use for future reference.

Your ADE height measuring rod is a quality product. For measuring the length of adults and children the height measuring rod can either be used at your ADE column scale or can be fixed directly to the wall.

Carton content:

• Telescopic measuring rod
- Foot positioner
• 2 spacers for the foot positioner
- 2 screws for connecting the measuring rod and the foot positioner
- Mounting material for fixing to the wall (see photo below)
- instruction manual

Assorted dental and screw tools including screws, pins, and caps arranged on a plain surface (no text or symbols visible)

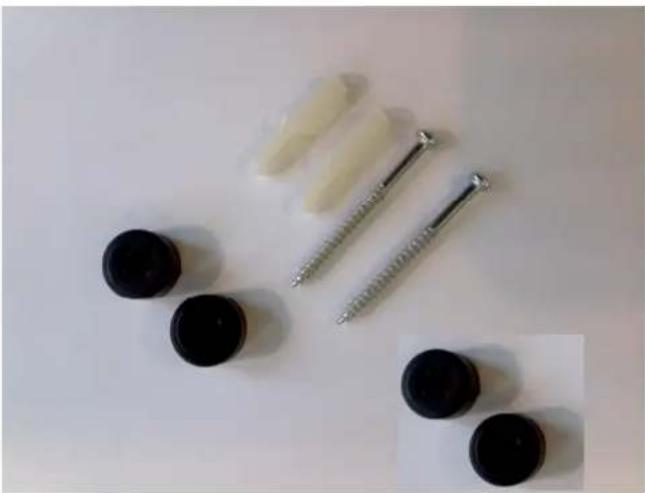

Screw set for wall mounting incl. wall dowels. screws and washers

Wall assembly:

• 4 spacers
• 2 screws (for assembling to wood or metal walls)
• 2 dowels S6

Installation

Assembling to the wall:

1) Place the black spacers into the open ends of the foot positioner. The spacer must be placed with the long distance piece on the side with the boreholes.

2) Push the foot positioner gently into the designated lower end of the measuring rod. Fix same with the two small screws.

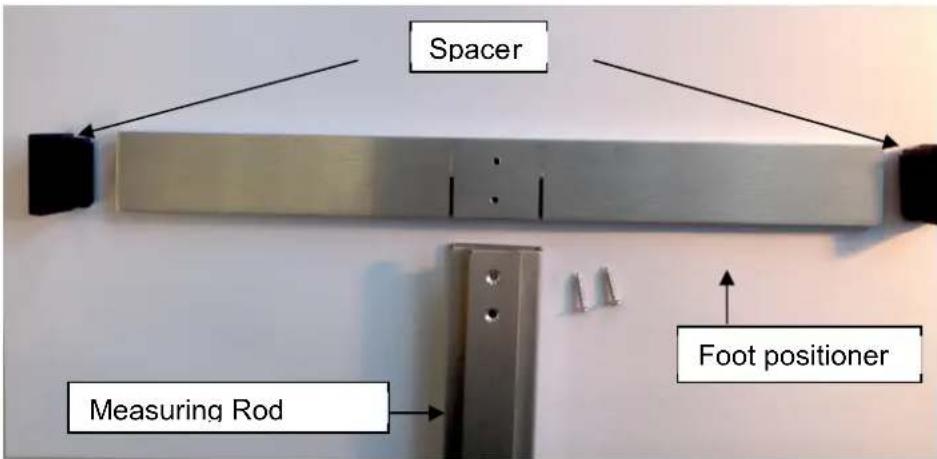

Spacer Measuring Rod Foot positioner

3) Select a plane and level location at the wall.

4) Pull out the measuring rod until both boreholes are free.

5) Place the measuring rod with a water-level vertical at the wall.

6) Mark the drill holes at the wall through the wholes at the measuring rod.

7) Drill using a matching drill bit.

8) Insert the two anchors into the wall.

9) Insert now the two long screws through the holes into the measuring rod.

10) Put the round spacers over the screws between the rod and the wall.

11) Screw the screws into the anchors very tightly.

12) The foot positioner must be supported against the wall by the two black spacers.

Safety advice

Follow the instructions of the Operating Manual.

After finishing the measurement make sure to fold the measuring tongue down to avoid danger of injury.

Operating Instructions

1) Adjust the measuring tongue to a horizontal position.
2) Slide the measuring tongue up to over the length of the person to be measured.
3) Place the person to be measured under the measuring tongue.
4) Slide the measuring tongue down to the person's head.
5) Take the result from the readout point.

Warranty – Liability

ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts – batteries, cables, mains units, rechargeable batteries etc. – are excluded. Warranty does not include natural wear, damages caused by incorrect or negligent handling, overuse or unsuitable or improper storage. The cost of transport will be borne by the customer should the equipment be located anywhere other than the customer's premises. In the event of transport damage, claims under warranty can be accepted subject to using the complete original packaging and the equipment secured the way it was packed and secured originally. All the packaging should therefore be retained.

Any warranty claim will be rejected if the equipment is opened by persons not authorized expressively by ADE to do so.

Customers abroad are kindly requested to contact their local dealer for any warranty claim, customer service and spare parts.

Technical Data

Measuring Range: 600 – 2100 mm

Graduation: 1 mm

Dimensions (WxHxD): 55 x 940 x 34 mm

Weight: approx. 700 g

Manufacturer: ADE Germany GmbH

Assorted dental and orthodontic hardware components including screws, pins, and caps on a plain white surface (no text or symbols visible)

Assorted dental implant components including screws, screws with plastic caps, and black-capped base plates (no text or symbols visible)
