Product type	Digital thermo-/hygrometer
Brand	ADE
Model	WS 1706 (white) / WS 1707 (black)
Dimensions	Approx. 80 x 80 x 12 mm
Power supply	1 CR2032 battery, 3 V
Temperature range	0 °C to 50 °C (32 °F - 122 °F)
Relative humidity range	20 % to 95 %
Display	Temperature, humidity, time, well-being index (smiley)
Main functions	Temperature and humidity measurement, well-being indicator, time setting, choice of °C/°F unit and 12/24h format
Start-up	Remove the insulating strip or insert the battery
Mounting	Fold-out stand or hanging eyelet for wall mounting
Maintenance and cleaning	Dust with a soft, dry cloth or wipe with a slightly damp cloth. Do not immerse.
Safety	Against battery ingestion (life-threatening), risk of explosion if battery replaced incorrectly, do not expose to heat or fire
Warranty	2 years (material or manufacturing defects)
Repairability	Repairs reserved for qualified workshop; no user modifications
Distributor	Waagen-Schmitt GmbH, Hamburg, Germany
Package contents	Thermo-/hygrometer, CR2032 battery, instruction manual

Frequently Asked Questions - WS 1706 ADE

How to set the time on the WS 1706 thermo/hygrometer?

Press the SET button until the time display flashes. Use the UP or DOWN buttons to set the hour, then press SET once. Set the minutes with UP or DOWN, then press SET to confirm.

How to change the temperature unit between °C and °F?

Press the DOWN button once to switch between Celsius (°C) and Fahrenheit (°F) display.

How to switch from 12h to 24h display?

Press the UP button once to toggle between 12-hour format (with AM/PM) and 24-hour format.

What to do if the screen shows nothing?

Check that the battery is inserted correctly (observe polarity +/-) and that it is not discharged. If necessary, replace the battery with a new CR2032. Remove the insulating strip if present.

How to reset the device?

Remove the battery, wait a few moments, then reinsert it correctly. You will then need to set the time again.

Which battery to use and how to replace it?

Use a CR2032 battery, 3 V. Open the battery compartment cover by turning it clockwise with a coin. Insert the battery with the positive pole facing up, under the retaining straps. Close the cover by turning it clockwise.

The well-being indicator (smiley) seems illogical, what to do?

The well-being indicator is based on the measured temperature and humidity. If the values seem abnormal, check that the device is not exposed to direct sunlight or a heat source. A reset may help.

Can I mount the device on the wall?

Yes, the device has a hanging eyelet on the back. Use it to fix the device to the wall with a suitable nail or screw.

How to clean the thermo/hygrometer?

Never immerse the device in water. Use a soft, dry cloth to dust, or a slightly damp cloth for stubborn dirt. Avoid abrasive products.

What to do in case of malfunction, for example a displayed temperature too high?

Check that the device is not directly exposed to sunlight or a heat source. If the problem persists, remove the battery and reinsert it after a few seconds. If nothing displays, change the battery.

USER MANUAL WS 1706 ADE

Bedienungsanleitung

WS 1706 | 1707

Operating instructions | Instrucciones de operación | Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

22089 Hamburg, Germany

Recycling symbol composed of five chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

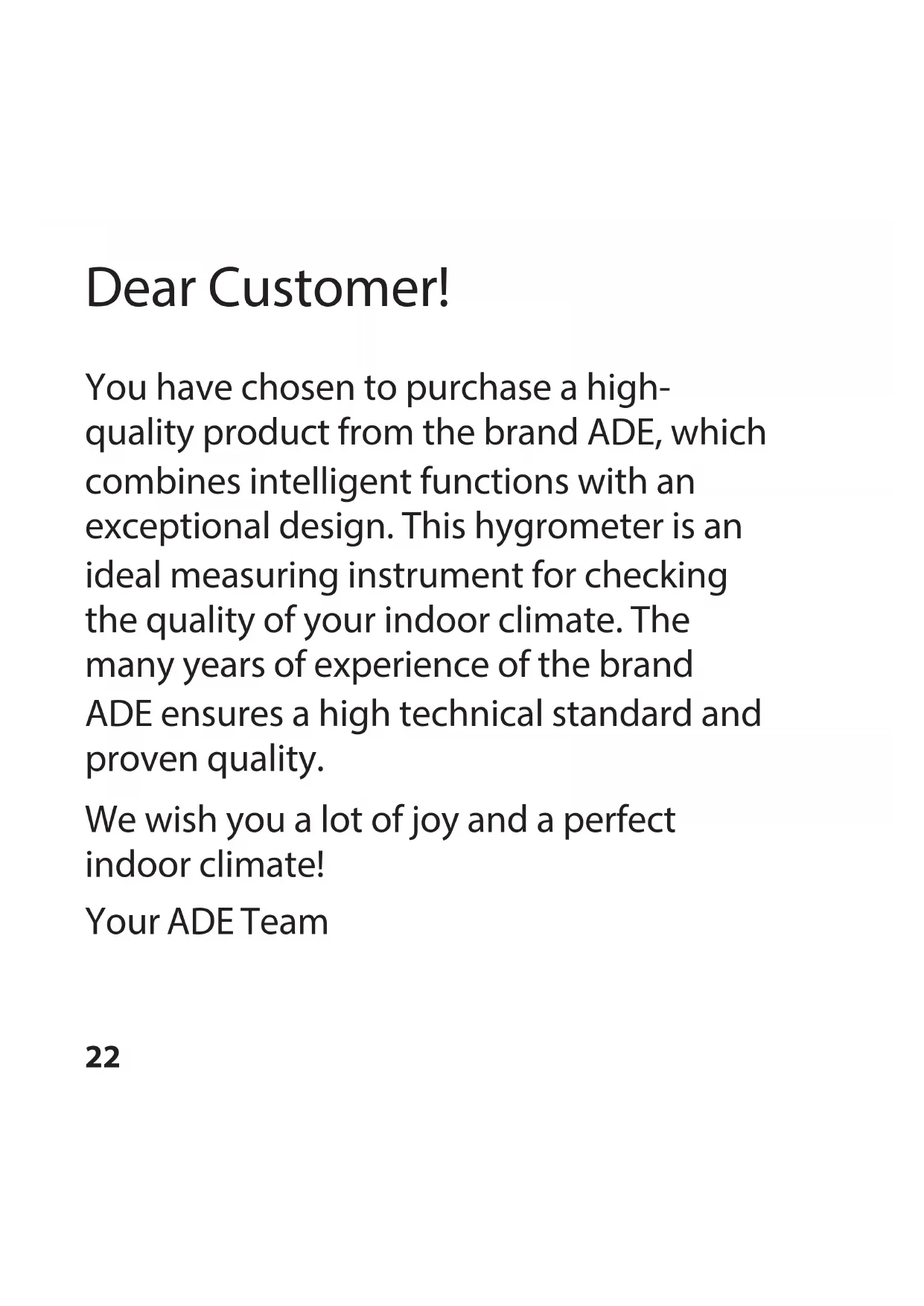

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. This hygrometer is an ideal measuring instrument for checking the quality of your indoor climate. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you a lot of joy and a perfect indoor climate!

Your ADE Team

Scope of delivery

• Thermometer/Hygrometer
• Battery type CR2032, 3 V—(1x)
• Operating Manual

General information

About this manual

Simple icon of a person using a laptop inside a circle (no text or symbols)

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word NOTE, warns against material damage.

Simple black information icon inside a circle (no text or symbols)

This symbol signifies additional information and general advice.

Table of Contents

Scope of delivery....23

General information....23

Intended Use....26

Safety....26

Overview 30

Start-up 32

Use 33

Fault and remedy ....37

Technical Data 37

Declaration of Conformity......38

Guarantee 39

Disposal 40

Intended Use

This thermometer/hygrometer is used to measure room temperature and humidity and thus to control the room climate. It is not suitable for commercial use.

Safety

• This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.
• Children must not play with the item.
• Cleaning and user maintenance must not be carried out by children, unless they

are 8 years of age or older and are being supervised.

- Batteries can be life-threatening. Therefore, keep batteries out of reach of small children. If the battery has been swallowed or has ended up in the body in any other way, seek medical help immediately. Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for children

- Keep children away from packaging material. Risk of choking if swallowed.

RISK of fire/burning and/or explosion

- There is a risk of explosion if batteries are replaced incorrectly. Replace batteries only with the same or equivalent battery type. Observe the “Technical Data”.

• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited.
  Otherwise there is an increased risk of explosion and leakage; furthermore, gases may escape!
• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, rinse the affected areas right away with plenty of clean water and consult a doctor immediately.

BEWARE of material damage

- Do not immerse the item in water or other liquids and protect it from strong shocks and vibrations.

- Remove the battery when it is exhausted or if you will not use the item for an extended period of time. This prevents damage that

may be caused by leakage.

• When inserting and changing batteries, pay attention to the correct polarity (+/-).
• Do not subject the batteries to extreme conditions by e.g. storing them on heaters or exposed to direct sunlight. Increased risk of leakage!
• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any modifications to the product. Repairs must only be carried out by a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

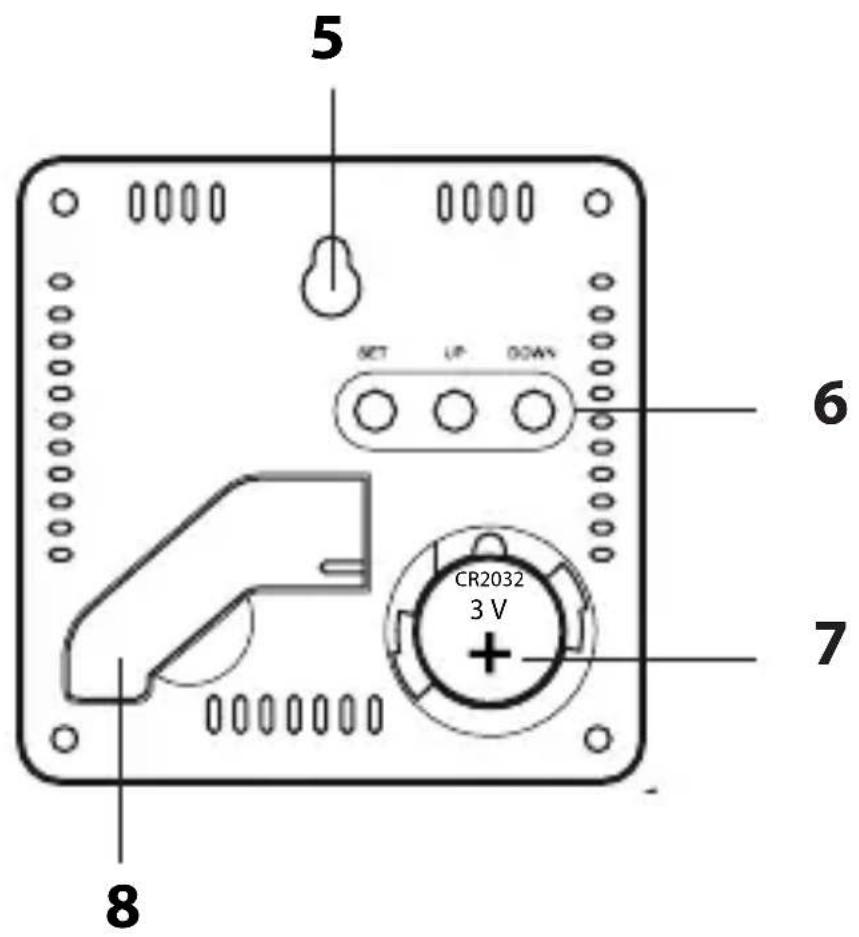

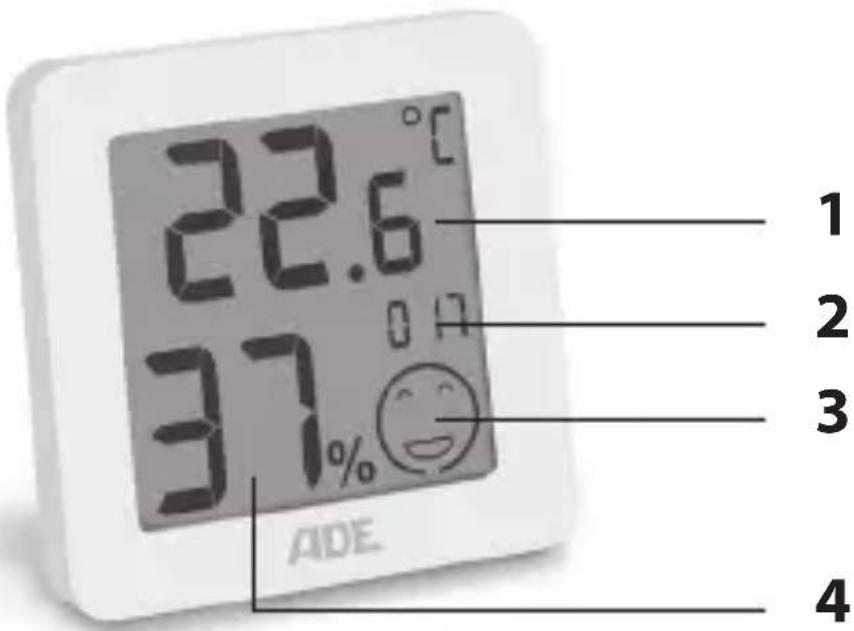

Overview

1 Temperature in °C or °F
2 Time (12 or 24 hour display)
3 Comfort indicator
4 Humidity in percentage

5 Hanging loop
6 SET, UP and DOWN control buttons
7 Battery compartment, 1x CR2032, 3 V
8 Fold out support foot

Start-up

Removing iso-strips

1. Turn the battery cover counterclockwise and remove it with a coin or similar object all the way to the stop.
2. Remove the iso-strip.
3. Place the battery compartment cover and turn it clockwise all the way to the stop.

Inserting/changing batteries

1. Turn the battery cover counterclockwise and remove it with a coin or similar object all the way to the stop.

2. Slide the battery (CR 2032) against the contact spring under the two metal retaining brackets and push downwards. The plus pole (+) must point upwards.

3. Place the battery compartment cover and turn it clockwise all the way to the stop. Suggestions for changing the battery:

4. The batteries must be changed when nothing is shown on the display.

5. Only use the battery type specified in the "Technical Data".
6. Dispose of old batteries in an environmentally friendly manner, see "Disposal".

Use

As soon as the thermometer/hygrometer is supplied with power, the display shows the following:

• Room temperature in °C
• Humidity in percentage
• Comfort indicator in the form of a smiley

■ Time (after manual setting)

Setting the time

1. Press SET until the hour indicator flashes.
2. Use UP or DOWN to set the hour.
3. Press SET 1x.
4. Use UP or DOWN to set the minute.
5. Press SET to exit.

Setting up the device

The device has a base and a hanging loop for wall mounting.

Change temperature unit

-Press the DOWN button 1x to display the temperature in °Celsius or °Fahrenheit.

Changing the time display (12-/24-hour)

-Press the UP button 1x to display the time in 12-hour (AM/PM) or 24-hour format.

Comfort indicator

The comfort indicator consists of temperature (T) and humidity (L).

T: very pleasant

L: very pleasant

T: pleasant

L: pleasant

T: a little too cool or warm

L: a little too dry or wet

T: too cold or warm

L: considerably too dry or wet

T: much too cold or hot

L: much too dry or wet

Resetting the thermometer/hygrometer

Only required if abnormal or apparently false values are displayed.

1. Remove the batteries and wait for a moment.
2. Insert the batteries correctly again (+/-).
3. Reset the time.

Cleaning

Do not immerse the item in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

- If necessary, dust the item with a soft, dry cloth or wipe it with a slightly moistened cloth.

Fault and remedy

No function.

- Battery empty or inserted the wrong way around?

Temperature indication appears too high.

- Check whether the thermometer/hygrometer is exposed to direct sunlight.

Technical Data

Model: Thermometer/Hygrometer

WS 1706 (white)

WS 1707 (black)

Battery: 1x CR2032, 3 V

Rated current: < 30 mA

Temperature: approx. 0 °C - 50 °C

approx. 32 °F - 122 °F

- Humidity: 20% - 95% (relative)

Dimensions: approx. 80 x 80 x 12 mm

Distributor (no service address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed

and improved. For this reason, design and

technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the thermometer/hygrometer WS 1706/1707 complies with EU directives 2014/30/EU and 2011/65/EU.

This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.

Hamburg, February 2019 Waagen-Schmitt GmbH

Guarantee

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
