CCX 010 - Hi-fi system AudioAffairs - Free user manual and instructions

Product Type	2.1 Sound System with Soundbar and Subwoofer
Model	CCX 010
Brand	AudioAffairs
Soundbar Dimensions (L x D x H)	Approx. 800 x 64 x 64 mm
Subwoofer Dimensions (L x D x H)	Approx. 465 x 95 x 255 mm
Soundbar Weight	Approx. 1.54 kg
Subwoofer Weight	Approx. 3.2 kg
Power Supply	230 V ~ 50 Hz
Maximum Power Consumption	Approx. 20 W
Standby Power Consumption	Less than 2 W
Audio Output Power	2 x 30 W + 60 W subwoofer
Wireless Connectivity	Bluetooth 4.2, Wi-Fi (IEEE 802.11 a/b/g/n/ac), Built-in Chromecast
Audio Inputs	HDMI ARC, OPTICAL, COAXIAL, AUX (3.5 mm jack)
Subwoofer Output	RCA connector
USB Port	For customer service only (SERVICE ONLY)
Remote Control	With CR2025 3 V battery (included)
Equalizer Modes	NEWS, MOVIE, MUSIC

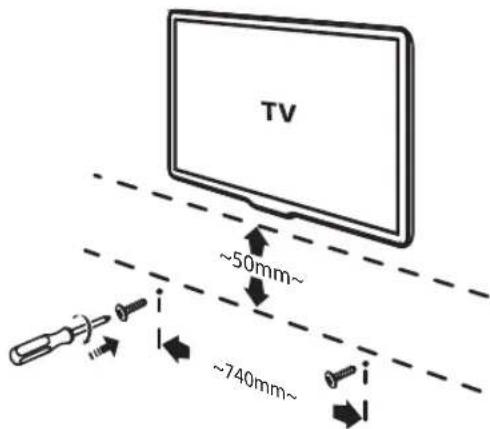

Wall Mounting	Possible, mounting brackets included (hole spacing 740 mm)
Operating Temperature	5 °C to 35 °C
Package Contents	Soundbar, subwoofer, remote control, EU and UK power cords, audio cables, wall mounting brackets, user manual
Warranty	24 months from date of purchase

Frequently Asked Questions - CCX 010 AudioAffairs

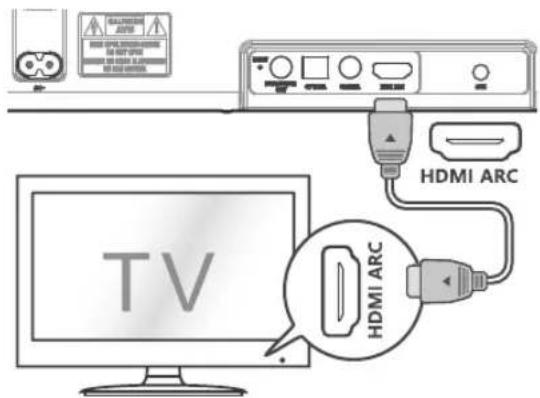

How to connect my CCX 010 system to my TV via HDMI ARC?

Make sure your TV has an HDMI ARC input and enable the ARC function in its menu. Connect an HDMI cable between the HDMI ARC output of the TV and the HDMI ARC input of the system. Press the HDMI ARC button on the remote control; the white LED should light up. If no sound is heard, set the TV audio output to PCM.

What to do if I have no sound with the CCX 010 system?

Check that the device is turned on and the volume is not muted (button MUTE). Make sure you have selected the correct input source (HDMI ARC, OPTICAL, COAXIAL, AUX, Bluetooth). Check the connections and, for HDMI ARC, verify that the TV is sending the audio signal correctly.

How to pair my smartphone with the system via Bluetooth?

Turn on the system, press the BT button on the remote control (the LED flashes blue). Enable Bluetooth on your smartphone and search for devices. Select AudioAffairsCCX010xxxx (the numbers correspond to the MAC address). A double beep confirms the connection and the LED becomes solid blue.

How to reset the system to factory settings?

During startup, press the RESET button located on the back of the device for about 5 seconds, until the LED flashes red. The system will restart as during the first startup. Bluetooth and Chromecast connections will need to be reconfigured.

Can I mount the soundbar on the wall? How?

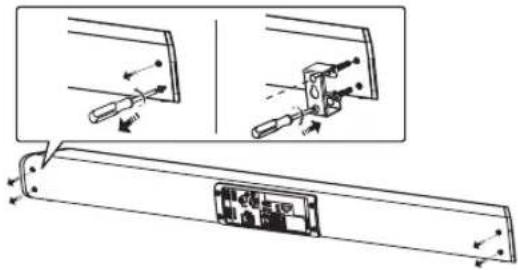

Yes, wall mounting brackets are included. Loosen the 4 side screws on the back of the soundbar, attach the brackets, then hang the soundbar on screws placed on the wall with a spacing of 740 mm and at least 50 mm below the TV. Make sure no pipes are in the wall.

How to clean the CCX 010 system?

Unplug the device. Use a soft, dry cloth, slightly damp if necessary. Never use solvents, alcohol or abrasive products that could damage the surface.

The system does not connect to Chromecast, what to do?

Check that your smartphone and the system are on the same Wi-Fi network and that Bluetooth is enabled. Install the Google Home app. Open it, tap the + icon in the top right, and follow the instructions. The system should appear under the name AudioAffairsCCX010xxxx. The solid white LED confirms the connection.

What is the range of the Bluetooth connection?

The maximum range is about 8 meters without obstacles. Thick walls or interference can reduce this distance. If the connection is unstable, bring the devices closer.

How to adjust the equalizer?

Press the EQ button on the remote control several times to switch between modes NEWS (green flashing LED), MOVIE (orange LED) and MUSIC (blue LED). Choose according to your content.

The system turns off by itself, is this normal?

Yes, to save energy, the system automatically goes into standby after about 15 minutes without an audio signal. To turn it back on, press the ⏻ button on the remote control or on the device. Can this function be disabled? No, it is mandatory according to regulations.

USER MANUAL CCX 010 AudioAffairs

Two black audio streaming devices, one rectangular and one rectangular, displayed against a white background (no text or symbols visible on the devices themselves)

Chromecast built-in

Google, Chromecast built-in, and Chromebook are trademarks of Google LLC (Limited Liability Company).

Technical line drawing of a rectangular device with a circular top and side legs, labeled with dimension 20 (no text or symbols beyond measurement markers)

20 Cinch-Stecker

DE

Line drawing of a desktop TV setup with a monitor and two speakers (no text or symbols)

Line drawing of a monitor with a base platform and two arrows pointing to its screen (no text or symbols)

1. Thank you for your confidence in our product! 39
2. General 39
3. Scope of supply 41
4. Safety instructions 41
5. Device overview 44
6. Setting up the device / wall mounting 48

6.1. Setting up 48

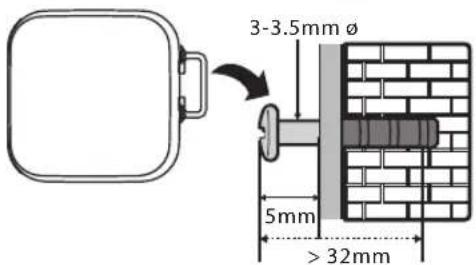

6.2. Wall mounting 49

1. Connecting external devices 50

7.1.HDMI ARC connection 50

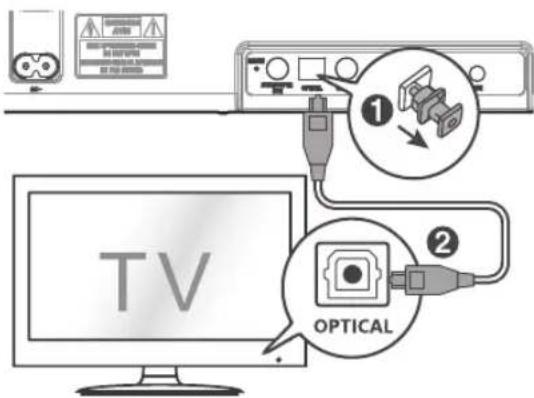

7.2. OPTICAL connection 51

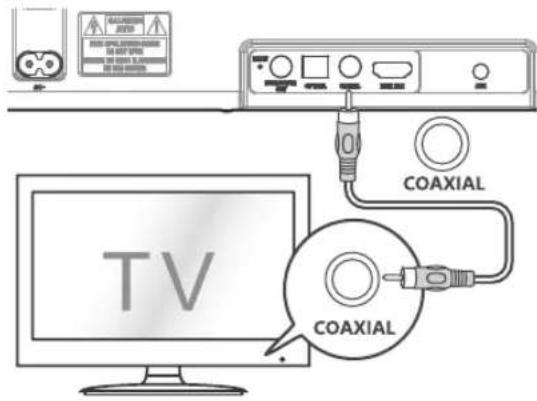

7.3.COAXIAL connection 52

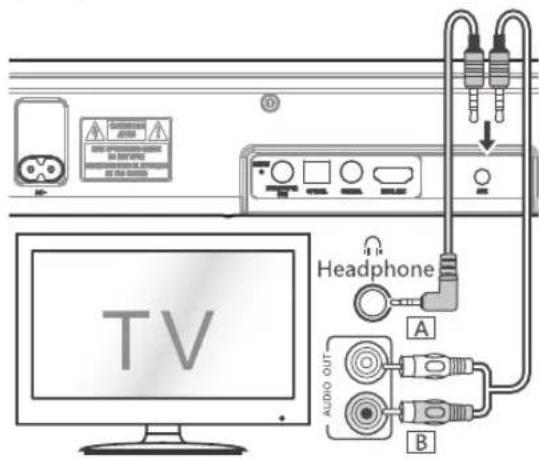

7.4. AUX connection 53
7.5. SERVICE ONLY 54

1. Power supply 54

2. Operation 55

9.1. Switching on and off with the power switch ....55
9.2. Accessing sources ....55
9.3. Controlling the volume ....56
9.4. Adjusting the equaliser ....56

1. Establishing a Bluetooth connection 57

2. Chromecast 59

3. Software update 61
4. Factory settings 61
5. Cleaning 61
6. Troubleshooting 62
7. Disposal 63
8. Technical specifications 64
9. Hotline 65
10. Warranty 66

2.1 Sound System

Thank you for your confidence in our

GB

1. THANK YOU FOR YOUR CONFIDENCE IN OUR PRODUCT!

We congratulate you on the purchase of your new 2.1 Sound System, and are convinced that you will be satisfied with this modern device.

In order to guarantee optimal functioning and performance from your 2.1 Sound System at all times, and to ensure your personal safety:

Before using the device for the first time, read through the operating instructions carefully and ensure you comply with the safety instructions!

Article 2.1 Sound System
Model CCX 010
Manual ID 05/18_CCX 010_V.2
Manufacturer Globaltronics GmbH & Co. KG Domstrasse 19 - 20095 Hamburg Germany
Web www.gt-support.de

2. GENERAL

Retaining the manual

• All activities in relation to using or servicing this device must only be performed in the manner described in these operating instructions.
• Keep these instructions for reference.
• If you pass the device on to someone else, please include these operating instructions.

Intended purpose

This device is ...

... an entertainment electronics device.
... suitable for the reception and playback of audio signals from external devices via HDMI ARC, COAXIAL, AUX and Bluetooth connections.
... suitable for audio playback via Chromecast enabled apps from devices networked in a WLAN network via the app "Google Home".

The device is intended for private use, and is not suitable for commercial use. Any other use or modification is excluded from the intended purpose.

GB

General 2.1 Sound System

Markings/symbols

If necessary, you will find the following warnings in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Notes on the declaration of conformity

Globaltronics GmbH hereby declares that this product is in compliance with the fundamental requirements and other relevant regulations of RED Directive 2014/53/EU, ErP Directive 2009/125/EC, Low Voltage Directive 2014/35/EU and ROHS Directive 2011/65/EC.

The complete declaration of conformity and these operating instructions in PDF format can be found on the Internet at www.gt-support.de.

Saving energy: fully automatic!

NOTE: new automatic shutdown system!

For reasons of statutory regulations regarding energy saving, this device has an automatic shutdown system. The device automatically switches over to standby mode if it has not received an audio signal for 15 minutes and has not been operated.

This symbol identifies the product as a device of protection class II. Devices with this protection class possess a reinforced or double insulation.

Rating plate

The rating plate with the technical details can be found on the back of the device.

Note on brand names

Google, Chromecast built-in, and Chromebook are trademarks of Google LLC (Limited Liability Company).

The Bluetooth ^® word mark and the Bluetooth logo are registered trademarks of the Bluetooth SIG, Inc. (Special Interest Group).

2.1 Sound System

GB

Scope of supply

3. SCOPE OF SUPPLY

• 2 . 1 S o u n d S y s t e m

- Remote control

- Battery type CR 2025, 3 V (already inserted)

• E U m a i n s l e a d

• U K m a i n s l e a d

• Audio cable 3.5 mm jack plug to 2x cinch plug

• Audio cable 3.5 mm jack plug with 1x angle plug

- 2 wall brackets

• 2 s c r e w s

- Operating instructions and warranty card

4. SAFETY INSTRUCTIONS

DANGER for children and people with disabilities

• Children must not play with packing material. Do not allow children to play with plastic bags. Danger! Risk of suffocation.

- This device can be used by children aged 8 and over and by people with reduced physical, sensory or intellectual abilities or lack of experience and knowledge, provided that they are supervised or have been instructed in the device's use and have understood the resulting hazards.

• Children must not play with the device. Cleaning and maintenance by the user must not be performed by children without supervision.

DANGER! Risk of electric shock due to moisture

- Protect the device from moisture, water drops and water splashes: there is a risk of receiving an electric shock. For example, never place vases or similar items full of liquid on or in the vicinity of the device.

- The device is not intended for operation in rooms with high humidity (e.g. bathrooms). Observe the ambient conditions specified in the technical data.

- Avoid foreign objects and liquids entering the device.

- Should liquids or foreign objects get into the device, remove the mains plug from the power socket immediately. Have the device checked before using it again.

GB

Safety instructions 2.1 Sound System

DANGER! Risk of electric shock

• If the mains lead or the device is damaged, immediately pull the mains plug out of the power socket.
• Do not use the device if there is visible damage to the casing or the mains lead.
• It is not permitted to make modifications to the device. Repairs to the casing and mains lead may only be carried out by the service centre. If the mains lead of this device is damaged, it must be replaced by a special power cable that is available from our service centre.
• Only connect the mains lead to a properly installed, easily accessible power socket. The power socket must still be easily accessible after connection.
• Lay all cables in such a way that they do not represent a tripping hazard.
• When setting up the device, make sure that the mains lead is not pinched or squeezed. Keep the mains lead away from hot surfaces and sharp edges.
• To disconnect the device completely from the mains, remove the mains plug from the power socket.
• Disconnect the mains plug from the power socket, ... ... when you are not using the device, ... if you want to clean the device and ... during thunderstorms.
• Never open the casing of the device - it does not contain any parts that require maintenance! When the casing is open, there is danger of death from electric shock.
  • The device is not disconnected from the power supply when it is switched off.

FIRE HAZARD

- Candles and other open flames must be kept away from the product at all times in order to prevent the spread of fire.

DANGER from batteries

• Keep new and old batteries out of the reach of children.
• Batteries can be life-threatening. Therefore you should store batteries and the remote control out of the reach of young children. If a battery has been swallowed, medical assistance must be sought immediately. Otherwise the person who swallowed it may experience serious internal burns within 2 hours, which may prove fatal.
• The battery must not be charged or reactivated by other means, nor may it be dismantled, thrown into a fire or short-circuited.

2.1 Sound System

GB

Safety instructions

• Clean the battery and device contacts before you insert the battery.
• There is a danger of explosion if the battery is not correctly replaced. Replace only with the same or an equivalent type.
• When inserting the battery, make sure the polarity is correct (+/-).
• Remove the battery from the remote control if you do not intend to use the remote control for a prolonged period. The battery might leak and damage the remote control.
• If the battery compartment will not close properly, stop using the remote control and keep it away from children.
• Do not subject the battery to extreme conditions, e.g. do not place the remote control on radiators or expose it to direct sunlight. Otherwise there is an increased danger of batteries leaking.
• Remove a flat battery immediately from the remote control! There is an increased danger of batteries leaking.
• If battery fluid has leaked out, avoid contact with the skin, eyes and mucous membranes. In the event of contact with the liquid, rinse the affected areas with copious amounts of clean water and consult a doctor immediately.

WARNING of accidents caused by incorrect set-up

• Do not place television sets or other devices that are heavier than 35 kg, and/or whose base size is larger than 46 x 25 cm, on top of the subwoofer.
  • Always place other devices centrally on the subwoofer so that they do not fall off. Please also note the drawing - see page 48.

WARNING! Risk of material damage

• If the device is moved from a cold location to a warm location, condensate may form inside the device. Leave the device switched off for a few hours.
• Place the device on a stable, level surface.
• Please ensure adequate ventilation around the device. Keep a distance of at least 10 cm on all sides. Do not cover the device (e.g. with magazines, tablecloths, curtains, etc.).
• Set up the device in such a way that it is not exposed to direct sunlight.
• The device is fitted with non-slip plastic feet. As furniture is coated with a variety of different varnishes and acrylics, and treated with different cleaning agents, it cannot be completely ruled out that components are contained in some of these substances that could damage and soften the plastic feet. If necessary, place a non-slip mat under the device.
• Use a soft, dry cloth for cleaning. Do not use any corrosive or abrasive cleaning agents. These could damage the surface of the device.

GB

Device overview 2.1 Sound System

5. DEVICE OVERVIEW

Device - Front

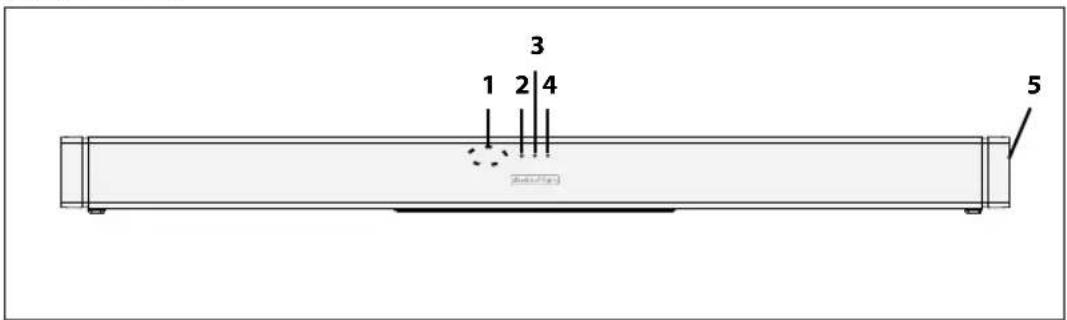

1 Infrared sensor
2 LED Standby mode: lights up in red
3 LED AUX: lights up in green

Bluetooth:

• Connection established: lights up in blue
• Searching for connection: flashing in blue

OPTICAL: lights up in orange

COAXIAL: lights up in purple

HDMI ARC: lights up in white

4 LED

Double flashes in white:device is in WLAN network setup mode

Lights up in white: device is in Chromecast mode

Double flashes in orange: software update

5 Lateral operating panel

2.1 Sound System

Device lateral operating panel

6 Select input source
7 Switch on / to standby mode
8 + Increase the volume
9 Switch to Bluetooth
10 - Reduce the volume

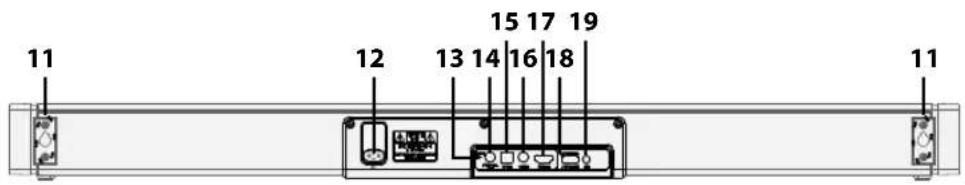

Device rear

11 Screws for wall bracket
12 AC\~ Connection for mains lead
13 RESET Press button for approx. 3 seconds to reset the device to factory settings.
14 SUBWOOFER Connection for the cinch plug of the subwoofer OUT
15 OPTICAL Connection for TOSLINK cable
16 COAXIAL Connection for cinch cable
17 HDMI ARC Connection for HDMI ARC cable
18 SERVICE ONLY Only for servicing: USB connection
19 AUX Connection for 3.5 mm jack cable

Technical line drawing of a rectangular device with a circular top and side legs, labeled with dimension 20 (no text or symbols beyond basic markings)

20 Cinch plug

2.1 Sound System

Remote control

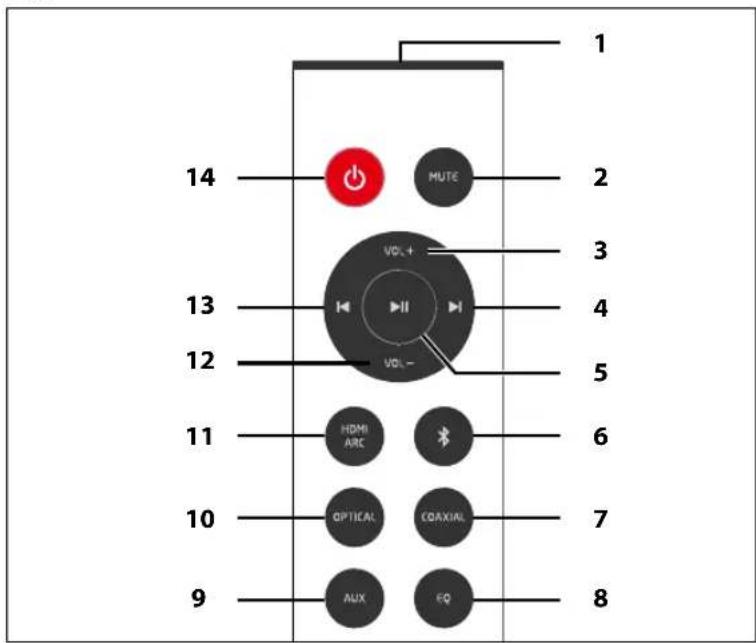

1 Infrared transmitter
2 M U T E Mute sound / switch to the adjusted volume
3 V O L + Increase the volume
4 ▶ When using Bluetooth: skip to next track
5 ▶II When using Bluetooth: Start/Pause / restart from Pause
6 Switch to Bluetooth

Keep pressed: establish/disconnect Bluetooth connection

7 COAXIAL Switch to COAXIAL input
8 E Q Select sound settings
9 A U X Switch to AUX input
10 OPTICAL Switch to OPTICAL input
11 HDMI ARC Switch to HDMI ARC input
12 VOL- Reduce the volume
131 When using Bluetooth: back to the beginning of the track (press 2x for previous track)
14 ⏻ Switch on / to standby mode

GB

Setting up the device / wall mounting 2.1 Sound System

6. SETTING UP THE DEVICE / WALL MOUNTING

• Completely remove all packaging components.
- Do not expose the device to extreme heat or moisture. Ensure that the device is well ventilated on all sides.

6.1 SETTING UP

DANGER! Do not expose the device to extreme heat or moisture. Ensure that the device is always well ventilated.

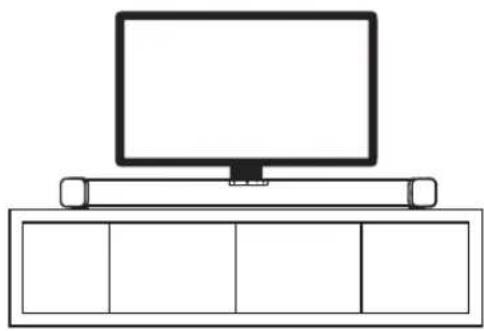

Line drawing of a desktop TV setup with a monitor and two speakers (no text or symbols)

• Always place the device on a level surface.
• Make sure that there is a power socket nearby.
- If you connect the device to a television, place the device as centrally as possible below the television.

CAUTION:

• Do not place a television or other devices on the subwoofer that are heavier than 35 kg.
• Do not place a television or other device on the subwoofer whose base is larger than 46 x 25 cm.
• Always place other devices centrally on the subwoofer so that they do not fall off. For this, please refer to the drawing below.

Line drawing of a monitor and its base unit (no text or symbols)

1. Decide where to place the 2.1 Sound System. Always make sure that ...

2. there is a power socket nearby;

3. there is enough space above, in case you want to place a television on the subwoofer;

4. a television and any other devices (e.g. set-top box, DVD player) can be set up nearby, in case you do not want/are unable to place them on the subwoofer.

5. Connect the source device(s) (see "Connecting external devices" on page 50). Always ensure that all devices are securely positioned.

GB

2.1 Sound System

Setting up the device / wall mounting

6.2 WALL MOUNTING

WARNING!

Please ensure the following when mounting on a wall:

• The fixing material must be matched to the properties of the wall. If necessary, use fixing material other than that supplied.
• Make sure that in the installation location there are no pipes or cables in the wall (e.g. electricity, water, gas).
• If necessary, have the wall mounting carried out by an expert.

1. Release the 4 screws at the sides on the back of the device.
2. Use these screws to attach the wall bracket to the device.

1. Drill 2 holes at the same height at a distance of 740 mm apart. The distance from the television mounted above should be at least 50 mm.

2. Insert the rawlplugs into the drill holes.

1. Tighten the screws in the rawlplugs. Only screw these in until the heads of the screws are at a distance of 5 mm from the wall.

2. Insert all of the cables used into the connections on the back of the device.

3. Connect the mains lead to the device.

4. Hang the device on the screws using the wall brackets.

GB

Connecting external devices 2.1 Sound System

7. CONNECTING EXTERNAL DEVICES

WARNING!

• Turn down the volume on the devices before you connect them to one another.
• Switch off all devices before you connect them to one another, and comply with the instructions for the devices that you wish to connect.

7.1 HDMI ARC CONNECTION

HDMI (ARC)

ARC stands for "Audio Return Channel" and means that audio signals can be transmitted in both directions. A device equipped with HDMI (ARC) can both receive and transmit audio signals.

HDMI (CEC)

CEC stands for "Consumer Electronics Control". If two or more CEC devices are connected to one another, then at least the basic functions such as switching on and off can be operated via a remote control.

Example: the 2.1 Sound System is connected via a CEC enabled HDMI cable to a CEC enabled television. If the television is now switched on with the television remote control, the 2.1 Sound System will also switch on. (However, the television must send and receive a signal. If, for example, the television is receiving the television signal via a set top box, this must also be switched on.)

In order to be able to use the ARC function, external devices that are connected to the 2.1 Sound System must also have an ARC enabled HDMI interface. In combination with an HDMI ARC enabled television, the sound can thus be sent to the 2.1 Sound System without an additional audio cable.

2.1 Sound System

GB

Connecting external devices

1. Check ...

... whether the external device has an HDMI ARC input.

... whether the ARC function can be used permanently on all HDMI connections on the external device or if the ARC function must be switched on first. Please refer to the manual of the external device.

1. If necessary, switch on the ARC function on the menu of the external device.
2. Use an HDMI cable to connect the HDMI ARC output of the external device to the HDMI ARC socket.
3. Press the button to turn on the 2.1 Sound System, and also turn on the external device.
4. For the playback press the HDMI ARC button on the remote control of the 2.1 Sound System. The LED lights up in white.
5. Then start playback on the external device. If the connection is correct, you can now control the sound of the 2.1 Sound System via the television remote control.

NOTE: if you do not hear any sound from the 2.1 Sound System after a few seconds, set the audio output to PCM on the menu of the television.

7.2 OPTICAL CONNECTION

To connect external devices to the OPTICAL socket, you need a TOSLINK cable. The cable is not included in the scope of supply.

1. Pull the protective cap out of the OPTICAL socket and remove any protective cap from the plugs of the TOSLINK cable.
2. Use a TOSLINK cable to connect the optical output of the external device with the OPTICAL socket.
3. Press the button to turn on the 2.1 Sound System, and also turn on the external device.

GB

Connecting external devices 2.1 Sound System

1. For playback, press the OPTICAL button on the remote control of the 2.1 Sound System. The LED lights up in orange.
2. Start playback on the connected device. The volume can be adjusted from the external device and via the 2.1 Sound System.

NOTE: it may be better to switch off the volume on the external device and listen to the sound only via the 2.1 Sound System.

1. Switch off both devices before disconnecting.

7.3 COAXIAL CONNECTION

NOTE: you may have to switch the sound output to the coaxial output on your television.

To connect external devices to the COAXIAL socket, you need a coaxial cable. The cable is not included in the scope of supply.

1. Use a coaxial cable to connect the coaxial output of the external device to the COAXIAL socket.
2. Press the ⏻ button to turn on the 2.1 Sound System, and also turn on the external device.
3. For playback, press the COAXIAL button on the remote control of the 2.1 Sound System. The LED lights up in purple.
4. Start playback on the connected device. The volume can be adjusted from the external device and via the 2.1 Sound System.

NOTE: it may be better to switch off the volume on the external device and listen to the sound only via the 2.1 Sound System.

1. Switch off both devices before disconnecting.

7.4 AUX CONNECTION

The AUX socket allows you, for example, to connect the headphones or stereo output of your television. The cable must have a 3.5 mm jack plug at one end for the AUX socket. Which plug needs to be on the other end depends on the audio output port of the external device. (An audio cable 3.5 mm jack plug to 2x cinch plug and an audio cable 3.5 mm jack plug with 1x angle plug are supplied.)

1. Use an audio cable to connect the audio output port of the external device to the AUX socket.
2. Press the button to turn on the 2.1 Sound System, and also turn on the external device.
3. For playback, press the AUX button on the remote control of the 2.1 Sound System. The LED lights up in green.
4. Start playback on the connected device.

The volume can be adjusted from the external device and via the 2.1 Sound System.

NOTES:

• It may be better to switch off the volume on the external device and listen to the sound only via the 2.1 Sound System.

• Some television sets switch off all sound outputs when a plug is inserted into the headphone socket.

• Switch off both devices before disconnecting.

NOTE: if the playback is distorted, this may be because the volume level on the external device is set too high. Turn down the volume on the external device, and instead increase the volume on the 2.1 Sound System.

GB

Power supply 2.1 Sound System

7.5 SERVICE ONLY

This USB port is only intended for servicing purposes, and is not suitable for charging the device.

8. POWER SUPPLY

Inserting/changing the battery of the remote control

DANGER! There is a danger of explosion if the battery is not correctly replaced.

Replace only with the same or an equivalent type.

NOTE: the remote control is supplied with an inserted battery. Pull the plastic strip out of the remote control before using it for the first time.

1. Remove the battery mount by pressing the spring on the battery compartment inwards in the direction of the arrow and pulling it out of the remote control.
2. Insert the battery (CR2025 3V) or replace the old battery with a new one. The positive pole (+) of the battery must point upwards.
3. Push the battery compartment back into the remote control.

Power supply connection

1. Connect all devices before you connect the power supply.
2. Insert the flat end of the mains plug into the connection AC\~ on the device.
3. Insert the mains plug into a readily accessible power socket whose voltage matches the voltage stated on the rating plate. The power socket must still be easily accessible after connection.

NOTE: to disconnect the device from the mains, pull the mains plug out of the power socket.

2.1 Sound System

GB

Operation

9. OPERATION

This section introduces the basic operation of the 2.1 Sound System.

All settings can be conveniently carried out with the remote control. The basic functions can also be carried out with the buttons on the device. Operation of the device in the instructions is usually described with the remote control.

9.1 SWITCHING ON AND OFF WITH THE POWER SWITCH

After the soundbar is connected to the power supply, the device switches itself to power saving mode (standby mode).

• The button on the remote control or the button on the device can be used to switch the soundbar to power saving mode (standby mode).
• From power saving mode, you can switch the device on by pressing the button. ⏻ It is in the mode most recently selected.
  • To disconnect the device from the mains, pull the mains plug out of the power socket.

NOTE: if the device does not receive a signal for approx. 15 minutes, it automatically switches itself to standby mode.

9.2 ACCESSING SOURCES

In order to switch to the different sound sources, use the remote control or the button on the device.

Sound source connected via	Press on the remote control	LED
HDMI ARC HDMI lights up in white
OPTICAL OPTICAL lights up in orange
COAXIAL	COAX	lights up in purple
AUX	AUX	lights up in green
Bluetooth connection	BT	• Connection established: lights up in blue• Searching for connection: flashing in blue

- Press the button on the device repeatedly until the flashes.

corresponding LED is lit/

GB

Operation 2.1 Sound System

9.3 CONTROLLING THE VOLUME

• Press the VOL +/- buttons to adjust the volume. If the maximum or minimum volume is reached, VOL MAX or VOL MIN appears in the display.
• Press the +/- buttons on the device to adjust the volume.
• Press the MUTE button to switch off the sound temporarily. Use the MUTE button or the VOL +/- buttons to switch the sound back on.

Sound and connection types

Depending on the connection you use to transmit the sound from the television to the 2.1 Sound System, it may only be possible to adjust the volume on the 2.1 Sound System, or this may also be possible on the television. This may also vary from one television to another.

- If you have an HDMI (ARC) television and this is connected to the 2.1 Sound System via an HDMI (ARC) cable, you can control the volume using the remote control of the television or the remote control of the 2.1 Sound System. In both cases, only the volume of the 2.1 Sound System is changed.

- If you have connected the AUX input to the television using an audio cable, always control the volume of the devices using their own remote controls.

9.4 ADJUSTING THE EQUALISER

To adjust the sound to your preferences, there are three different settings: NEWS, MOVIE and MUSIC.

Repeatedly press the button EQ, until the corresponding LED flashes as desired.

Equaliser LED
NEWS (for news) flashes green
MOVIE (for films) flashes orange
MUSIC (for music) flashes blue

2.1 Sound System

Establishing a Bluetooth connection

GB

10. ESTABLISHING A BLUETOOTH CONNECTION

Bluetooth radio technology makes it possible to wirelessly transmit data to devices equipped with this interface. For example, you can play music files stored on a Bluetooth enabled mobile device and play them back through the 2.1 Sound System. The range between the paired devices can be up to 8 metres.

1. Press the button to turn on the 2.1 Sound System, and also turn on the external device.
2. On the remote control, press the button. The LED flashes blue.

3. Activate the Bluetooth connection of the media playback device. The media play-back device will now search for devices to which it can connect.

4. The media playback device should now receive the device code AudioAffairsCCX010xxxx.

- Now use the media playback device to connect to the 2.1 Sound System. To do this, activate the notification AudioAffairsCCX010xxxx on the media playback device.

1. When the connection is established, two beeps are heard. The word "Connected" appears on the media playback device, for example. The LED on the 2.1 Sound System will be lit with a steady blue.

2. Start playback on the Bluetooth media playback device.

The volume can be adjusted from the external device and via the 2.1 Sound System.

Establishing a new Bluetooth connection

If you want to terminate a Bluetooth connection in order to connect a different Bluetooth device to the 2.1 Sound System, proceed as follows:

1. Press and hold down the button for approx. 2 seconds to terminate the existing connection and activate pairing mode. The LED flashes blue.

2. Activate the Bluetooth connection of the other media playback device and proceed as described above.

GB

Establishing a Bluetooth connection 2.1 Sound System

Terminating the Bluetooth connection

• Turn off one of the devices.
• On one of the connected devices, exit the Bluetooth mode.
• If the distance between the devices is more than 8 meters, the connection is interrupted.

NOTES:

• If you are asked to enter a code when pairing, use "0000". Enter this code using the media playback device.
• If the playback is distorted, this may be because the volume level on the media playback device is set too high. Turn down the volume on the media playback device, and instead increase the volume on the 2.1 Sound System.
• It may be the case that not all Bluetooth devices can be connected.

Controls

Function
Start	Press ▶II
Pause	Press ▶II: playback will stop
Next track Press	▶I
Restart track Press	◀1x
Previous track Press	◀2x

Telephone call function

If a smartphone has been connected to the 2.1 Sound System via Bluetooth, the music is muted when a call is received. The ring tone is played via the smartphone.

- Answer the call normally on your smartphone. The sound is played via the smartphone.

When the call is over, the media playback generally restarts automatically.

2.1 Sound System

GB

Chromecast

11. CHROMECAST

This function allows you to control the loudspeaker from a smartphone, tablet or laptop, in order to play sound from Chromecast enabled apps. To do this, the smartphone, tablet or laptop is connected to a loudspeaker on a WLAN network via the "Google Home" app.

NOTES:

• You can control this function from the following devices: iPhone or iPad, Android smartphone or tablet, laptop (Mac or Windows) or Chromebook.
• The function is not switched on for the 2.1 Sound System, after setting up the "Google Home" app, but rather using Chromecast enabled apps.
• Because of easier legibility, the procedure for a smartphone is described below.

Installing "Google Home" app

Install the "Google Home" app on the smartphone.

1. In the App Store (for Apple devices) or the Play Store (for Android devices), download the free "Google Home" app and install it.

2. Follow the installation instructions and make the initial settings.

Please note: for a successful connection with the loudspeaker, you need to give the "Google Home" app permission to access your location.

Connecting devices via WLAN

The smartphone now sets up the connection to the loudspeaker via the "Google Home" app.

Requirement:

• Both devices must be within the range of the same WLAN. This WLAN must be selected and activated on the smartphone.
• Bluetooth must be activated on the smartphone.

• The devices should be close together in order to establish a good Bluetooth connection.

• Plug the mains plug into a power socket and wait through the startup process, until the LED starts double-flashing rapidly.

• Open the "Google Home" app on the smartphone.

1. Tap on the icon in the top right corner. It will begin the search process for devices available on the network.

2. When the loudspeaker with the identification "AudioAffairsCCX010xxxx" is found, make the necessary settings in the app. Follow the instructions in the app. The setup process may take a few minutes.

GB

Chromecast 2.1 Sound System

You will know when the connection has been successfully established, both from a notification in the app and because the MODE LED lights up in white.

NOTES:

• xxxx in the identification gives the last 4 digits of the MAC address of the loudspeaker, which you can find on the back of the loudspeaker. You can use this marking to tell the difference between multiple loudspeakers of the same type.
• Using the "Google Home" app, you can change the name of the loudspeaker in the settings for the device, e.g. naming it after the room in which the loudspeaker is set up. Please note that this name change also changes the Bluetooth identification.

- If you have multiple loudspeakers integrated into the same network, you can group loudspeakers so that they playback the same stream. Tap on the icon in the top right corner of the "Google Home" app, and group the loudspeakers.

Controlling the loudspeaker via apps

When you have successfully connected the loudspeaker with your smartphone via "Google Home", you can control the loudspeaker via Chromecast enabled apps.

• The "Google Home" app displays apps that are Chromecast enabled.
• Controlling the loudspeaker works differently in the various apps. Learn how in the help function of the respective app.
• Look for the Chromecast symbol: Often this can be used to select the loudspeaker.
• Look for options such as "Available devices" or "Connect to a device".
• When you have successfully connected the loudspeaker to the app, you can control the functions start/pause and volume both on the smartphone and on the loudspeaker itself.

2.1 Sound System

Software update

12. SOFTWARE UPDATE

When the device is connected to a WLAN and new software is available, this will be downloaded and installed automatically.

• During the update, the LED will flash orange (double flashes).
• After the update is complete, the device will automatically restart.

13. FACTORY SETTINGS

In the event of malfunction, or in order to delete the old network settings, you can reset the device to factory settings.

1. While the 2.1 Sound System is switched on, press the RESET button on the back for approx. 5 seconds, until the LED flashes red.
2. The device will start with the start process, like the first time you switched it on.

NOTE: after resetting to factory settings, the connections for Chromecast and Bluetooth need to be set up all over again.

14. CLEANING

DANGER! Disconnect the device from the power supply before cleaning. Ensure that no liquid gets into the device.

CAUTION: solvents, alcohol, thinning agents etc. must never be used, as these can damage the surface of the device.

Do not use any corrosive or abrasive cleaning agents. These could damage the surface of the device.

Casing

Clean the casing with a damp cloth.

GB

Troubleshooting 2.1 Sound System

15. TROUBLESHOOTING

If your device fails to function as required, please try this checklist first. Perhaps it is just a small problem that you can resolve yourself.

DANGER! Do not attempt to repair the device yourself under any circumstances. If you cannot resolve the fault, please contact our service centre.

Fault Possible causes / action to be taken
No function	- Is the device switched off via the power switch?- Is the device connected to the mains power supply?
No sound	- Has the sound been muted on one of the connected devices?- Has the correct operating mode been selected?- Check the cables/Bluetooth connection.
No sound through the HDMI ARC connection	- Does your television use the ARC function?- On the menu of your television, do you have to switch over to the output of an ARC signal? Consult the instructions of your television.- Has the playback of the audio signal been set to PCM sound?
Controlling the loudspeaker from an app is not possible	- Is the app Chromecast enabled?- Is this version of the app Chromecast enabled?- Is the 2.1 Sound System in standby?- Are both devices within the range of a good quality WLAN?- Close and restart the app.- Look in the help function of the app.
No reaction to any type of button commands	- Is the remote control battery flat? Replace the battery if necessary.- In this rare case, the device requires a restart. Disconnect the device from the mains power supply for a few minutes before you switch it back on.- If necessary, reset the device to factory settings using the RESET button.
Loud buzzing noise	- Please check if all connecting cables are connected correctly.

GB

Disposal

2.1 Sound System

No Bluetooth connection

- Is your mobile device Bluetooth enabled?Read the operating instructions of the mobile device.- Check the settings.- Activate Bluetooth if necessary.- Check whether the 2.1 Sound System appears in the list of devices found. If not, reconnect the device.- Has the 2.1 Sound System already been connected to another Bluetooth device? Press the ➤ button to establish a new connection.

16. DISPOSAL

Old devices and batteries must not be disposed of in the normal domestic waste.

Keep the packaging if possible until the expiration of the warranty period. After that, please dispose of it in an environmentally friendly manner.

The device must be disposed of at a proper waste disposal facility, in accordance with the Waste Electrical & Electronic Equipment Directive 2012/19/EU. Plastics and electronic parts must be recycled.

Check with your local waste disposal company or authority.

Used batteries must be disposed of properly. For this purpose, retailers selling batteries and the municipal waste collection points provide containers for disposing of batteries.

As a consumer, you are legally obliged to return standard and rechargeable batteries to a collection point in your municipality, neighbourhood or to the retail trade.

It is only in this way that it is possible to dispose of standard and rechargeable batteries in a manner which is environmentally-friendly. Standard and rechargeable batteries which are marked with the letters listed contain the following harmful substances, among others: Cd (cadmium), Hg (mercury), Pb (lead).

GB

Technical specifications 2.1 Sound System

17. TECHNICAL SPECIFICATIONS

Electrical data
Mains voltage: 230 V ~ 50 Hz
Protection class: II	☐
Power consumption: In standby mode:	Maximum approx. 20 W< 2 W
Sound
Audio output port: 2x 30 W + 60	W subwoofer
WLAN
Data transfer rate: WLAN: max 4	33.3 Mbit/s
Encryption: WPA, WPA2 and WEP
Standards: IEEE 802.11 a/b/g/n/ac
Frequency range: 2.4 GHz: 2412-	2472 MHz5 GHz: 5180-5825 MHz
Transmitting power:	15 dBm (max.)
Bluetooth:	Bluetooth 4.2
Frequency range: 2402-2480 MHz
Transmitting power:	4 dBm (max.)
Connections
HDMI ARC OPTICAL COAXIAL AUX SUBWOOFER	HDMI ARC socketTOSLINK socketCinch socket3.5 mm jack socketCinch socket
USB	only for servicing purposes
Remote control
Battery:	1x CR2025 3V
LED class:	RG0
General
Dimensions (W x D x H): Subwoofer:	approx. 800 x 64 x 64 mmapprox. 465 x 95 x 255 mm
Ambient conditions:	Operating temperature: 5 °C - 35 °C
Weight:	Soundbar: approx. 1.54 kgSubwoofer: approx. 3.2 kg

Specifications subject to change without notice.

18. HOTLINE

If a technical problem occurs, please contact our hotline, as most errors can be corrected by this method without having to send in the device for repair.

If it is determined during the call that the device is actually defective, you will be asked to send us the device for repair, together with an exact description of the fault.

In this event, please include the fully completed Service Card (from the end of these instructions) and a copy of the proof of purchase.

Please note that you will be invoiced for unjustified complaints!

Thank you very much

Hotline:

00800 - 456 22 000 (free call)

free of charge - 365 days per year -

from Monday to Sunday

Email:

[e-mail]

[e-mail]

GB

Warranty 2.1 Sound System

19. WARRANTY

Dear Customer,

Thank you for selecting a product from our company. Our product corresponds to the legal requirements, and was manufactured with continuous quality control. The technical data correspond to the current state of the art at the time of printing. Specifications are subject to change without notice.

The warranty period for electronic devices corresponds to the statutory provisions at the time of purchase.

If a technical problem should unexpectedly occur with the device, please note the following points:

The guarantee and warranty period for your device are valid for 24 months after the purchase date. Please retain the proof of purchase for this purpose.

The guarantee and warranty relate only to defects that are attributable to manufacturing or material faults.

No guarantee or warranty can be accepted for damage caused by improper handling or improper interventions or for damage resulting from a lightning strike, overvoltage, power failures, fire or any other natural catastrophes. If the device should nevertheless be repaired, you will be given a cost estimate.

The guarantee and warranty also expire if the product has been modified or repaired by an unauthorised person, the serial number of the product has been changed or removed, the product has been / is used outside the scope of its intended use or if the warranty period has expired.

Please always retain the proof of purchase and the original packaging. If your product needs to be returned to the service centre and you do not have sufficient transport packaging, this can be sent to you for a charge.

If a technical problem occurs, please contact our hotline.

Within the framework of the warranty, we retain the right to repair the device or to replace it with a comparable device.

This warranty does not restrict your statutory rights.

GB

Warranty

2.1 Sound System

SERVICE CARD

Product data:

Model

Serial number

Purchase date

(as shown on enclosed receipt)

Owner data:

Name

Telephone number

Address

Email

Description of fault:

CUSTOMER SERVICE 67

00800 - 456 22 000

www.gt-support.de

2.1 Sound System

GB

Warranty

FR

Technical line drawing of a rectangular device with a circular top and side legs, labeled with dimension 20 (no text or symbols beyond measurement markers)

Line drawing of a desktop TV setup with a monitor and two speakers (no text or symbols)

Line drawing of a monitor and a rectangular electronic device with a dashed-line base (no text or symbols)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Technical line drawing of a rectangular device with a circular top and side legs, labeled with dimension 20 (no text or symbols beyond measurement markers)

Line drawing of a desktop TV setup with a monitor and two speakers (no text or symbols)

Simple line drawing of a monitor and a rectangular base with dashed lines indicating measurement or positioning (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view and internal components (no text or symbols)
