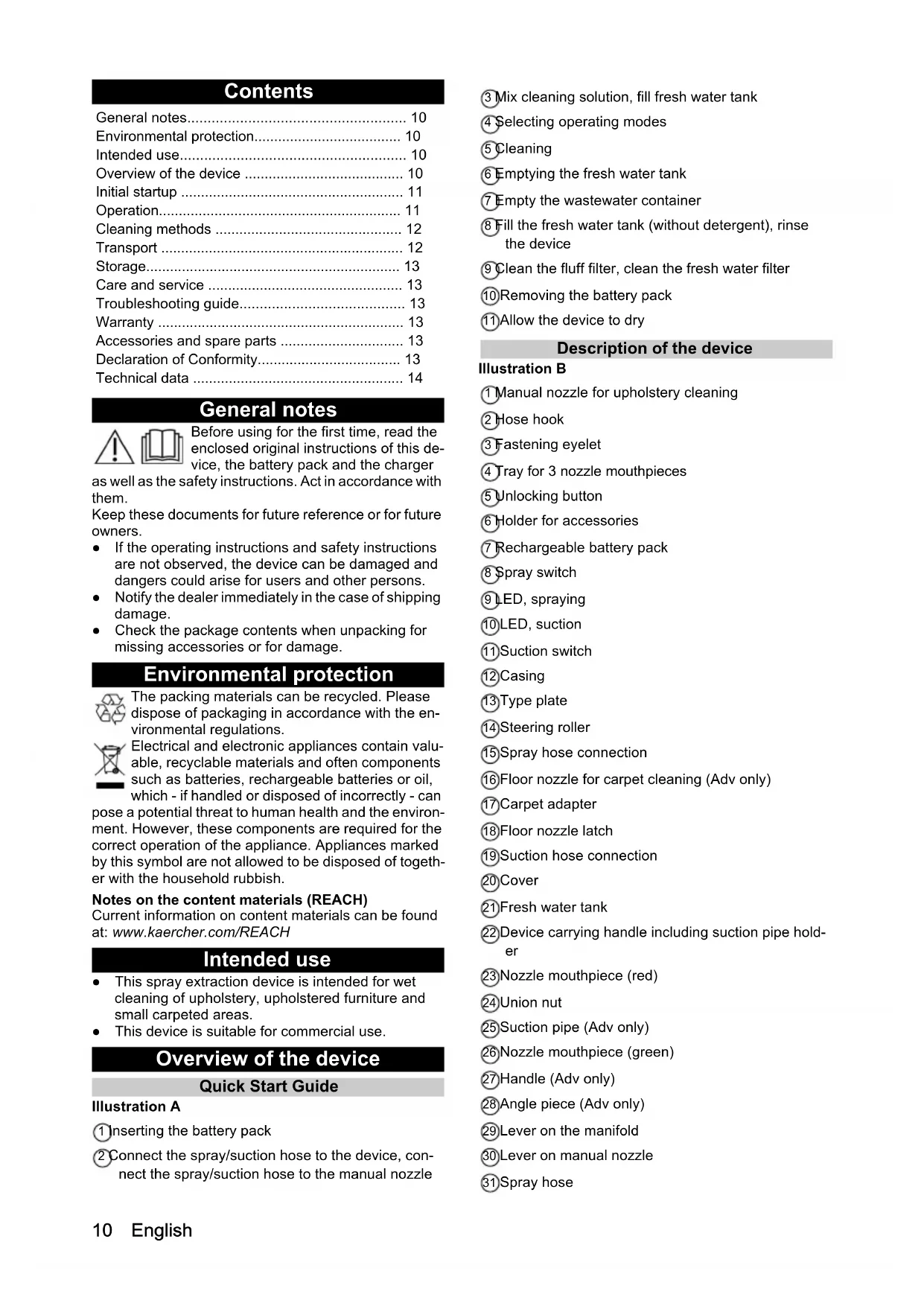

0,210 English Contents General notes Before using for the first time, read the enclosed original instructions of this de- vice, the battery pack and the charger as well as the safety instructions. Act in accordance with them. Keep these documents for future reference or for future owners. ● If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons. ● Notify the dealer immediately in the case of shipping damage. ● Check the package contents when unpacking for missing accessories or for damage. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Intended use ● This spray extraction device is intended for wet cleaning of upholstery, upholstered furniture and small carpeted areas. ● This device is suitable for commercial use. Overview of the device Quick Start Guide Illustration A 1 Inserting the battery pack 2 Connect the spray/suction hose to the device, con- nect the spray/suction hose to the manual nozzle 3 Mix cleaning solution, fill fresh water tank 4 Selecting operating modes 5 Cleaning 6 Emptying the fresh water tank 7 Empty the wastewater container 8 Fill the fresh water tank (without detergent), rinse the device 9 Clean the fluff filter, clean the fresh water filter 10 Removing the battery pack 11 Allow the device to dry Description of the device Illustration B 1 Manual nozzle for upholstery cleaning 2 Hose hook 3 Fastening eyelet 4 Tray for 3 nozzle mouthpieces 5 Unlocking button 6 Holder for accessories 7 Rechargeable battery pack 8 Spray switch 9 LED, spraying 10 LED, suction 11 Suction switch 12 Casing 13 Type plate 14 Steering roller 15 Spray hose connection 16 Floor nozzle for carpet cleaning (Adv only) 17 Carpet adapter 18 Floor nozzle latch 19 Suction hose connection 20 Cover 21 Fresh water tank 22 Device carrying handle including suction pipe hold-

1. Check hoses for damage before each startup.

Installing accessories

1. Adv only: Fit the suction pipe onto the floor nozzle

and hand-tighten the union nut on the floor nozzle.

3. Adv only: Fit the angle piece onto the suction pipe

and hand-tighten the union nut on the angle piece.

4. Connect the suction hose to the suction hose con-

nection on the device. Insert the spray hose cou- pling into the spray hose connection on the device and latch into place.

5. Connect the suction hose to the manual nozzle or

the elbow. Connect the spray hose coupling to the manual nozzle or angle piece and latch into place. Mixing the cleaning solution DANGER Danger from detergents Risk of injury and damage Observe all instructions that are included with the deter- gents used. Note Warm water (maximum 50 °C) increases the cleaning effect. Check the temperature resistance of the surface to be cleaned. Note Use detergents sparingly to conserve the environment.

1. Mix fresh water and detergent in a clean container

(concentration as specified for the detergent). Dis- solve the detergent in the water. Filling the fresh water tank

1. Pour the cleaning solution into the fresh water tank.

The filling level must not exceed the "MAX" mark. Defoaming agent Note Foam is generated in the wastewater container when cleaning previously shampooed carpets. Foaming can be prevented by adding defoaming agents.

1. Add defoaming agent (special accessory) to the

wastewater container. Inserting the battery pack

1. Slide the battery pack into the battery holder and

lock it in place. Charging the battery pack Note Read the operating instructions of the charger, especial- ly the safety instructions! Note Read the operating instructions of the battery pack, es- pecially the safety instructions! Note The battery pack is partially charged on delivery. Charge before use and when necessary. Note The battery pack can only be charged when it is re- moved.

1. Press the unlocking button and remove the battery

2. Charge the battery pack according to the operating

instructions of the charger and battery pack. Operation Switching on the device

1. Press the spray switch to switch on the spray pump.

The spray LED lights up.

2. Press the suction switch to switch on the suction tur-

bine. The suction LED lights up. Cleaning mode ATTENTION Danger from cleaning solution Risk of damage Before using the device, check the object to be cleaned for colour fastness and water resistance in an inconspic- uous place.

1. Remove loose dirt from the object to be cleaned.

2. Press the lever on the manual nozzle or angle piece

to spray the cleaning solution.

3. Run over the surface to be cleaned in overlapping

paths. Pull the nozzle backwards (do not push).

4. Adv only: When work is interrupted, the floor nozzle

can placed in the device carrying handle.

5. When changing the nozzle, the manual nozzle can

be inserted into the holder for accessories. Switching off the device

1. Switch off the spray switch and the suction switch.

The LEDs extinguish. Empty the wastewater container

1. Switch off the suction switch and the spray switch

when the wastewater container is full.

2. Remove the cover.

3. Remove the wastewater container from the device

stery noz- zle, short Puzzi 9/1 Bp12 English Emptying the fresh water tank

1. Switch off the device.

2. Briefly operate the lever on the manual nozzle or an-

gle piece to relieve pressure.

3. Disconnect the manual nozzle or angle piece from

the spray/suction hose.

4. Hang the suction hose in the fresh water tank.

5. Press the suction switch to switch on the suction tur-

6. Suck the fresh water tank empty and switch off the

7. Remove the cover.

8. Remove the wastewater container from the device

and empty it. Flushing the device

1. Connect the manual nozzle or angle piece (with suc-

tion pipe and floor nozzle) to the suction hose.

2. Connect the spray hose coupling to the manual noz-

zle or angle piece and latch into place.

3. Pour approximately 2 litres of tap water into the

fresh water tank. Do not add detergents.

4. Press the spray switch to switch on the spray pump.

5. Hold the manual or floor nozzle over a drain.

6. Operate the lever on the manual nozzle or angle

piece and flush the device for 1 to 2 minutes.

7. Switch off the device.

8. Remove the wastewater container from the device

and empty it. Each time after use

1. Flush the device.

2. Drain the wastewater container and clean it under

3. Empty the fresh water tank.

4. Clean the exterior of the device with a damp cloth.

5. To avoid unpleasant smells, remove all water from

the device before long downtimes.

6. Let the device dry thoroughly: Remove the cover or

move it to the side.

7. Clean the fluff filter and fresh water filter (see “Care

and maintenance”). Storing the device

1. Store the spray/suction hose and manual nozzle as

shown in the illustration. Illustration C

2. Store the device in a dry room and secure it against

unauthorised use. Cleaning methods Normal soiling

1. Spray and vacuum up the cleaning solution in one

step. Note Repeated vacuuming without spraying shortens the dry- ing time. Heavily soiling or stains

1. Apply cleaning solution with the suction turbine

switched off and let it work for 10 to 15 minutes.

2. Clean the area as with normal soiling.

1. Adv only: Fit the manual nozzle instead of the floor

2. Use less detergent for sensitive fabrics and spray

the surface at a distance of approx. 200 mm. Then only vacuum. Cleaning tips ● Spray heavily soiled areas in advance and allow the cleaning solution to work for 5 to 10 minutes. ● Always work from light to shadow (from window to door). ● Always work from the cleaned to the uncleaned ar- ea. ● The more sensitive the covering (oriental bridges, Berber, upholstery fabric) the lower the concentra- tion of detergent. ● Carpets with jute backs can shrink and bleed in col- our if the work is too wet. ● Brush wet pile carpets in the direction of the pile af- ter cleaning when wet (e.g. with a fibre brush or scrubber). ● Impregnating after wet cleaning prevents the textile from being quickly soiled again. ● To avoid pressure points or rust stains, do not walk on or furnish the cleaned area until after it has fully dried. ● To improve the cleaning result, rinse the object with clean water after using detergents. Detergent For further information, please request the product in- formation sheet and the EU safety data sheet for the rel- evant cleaning agent. Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transporta- tion.

1. Place the suction pipe on the carrying handle of the

device. Illustration D

2. When transporting the device in vehicles, secure it

to prevent it from slipping or overturning in accord- ance with the respective valid guidelines. Description Name Metering Order num- ber CarpetPro clean- er (0.8 kg) RM 760 powder 1 % 6.295-175.0 CarpetPro clean- er, iCapsol (16 piece) RM 760 tabs 2 tabs for 8 litres 6.295-850.0 CarpetPro clean- er, quick-drying (10 litre) RM 767 liq- uid

CarpetPro clean- er (10 litres) RM 764 liq- uid 1 % 6.295-854.0 CarpetPro im- pregnation (5 li- tres) RM 762 liq- uid 20 % 6.295-852.0 Defoaming (2.5 li- tres) RM 761 liq- uid

0.5 % 6.291-389.0English 13

Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. The device may only be stored indoors.

1. Press the unlocking button and remove the battery

pack to prevent discharge. Care and service DANGER Danger of electric shock Injuries due to touching live parts Switch off the device. Remove the battery pack. ● Regularly check the device-side contacts in the bat- tery holder for contamination and clean with a damp cloth if necessary. Do not use detergents. Clean the fluff filter

1. Remove the cover.

2. Remove the wastewater container from the device.

3. Pull out the fluff filter.

4. Regularly clean the fluff filter under running water. If

very dirty, open the frame and replace the fleece. Clean the fresh water filter

1. Unscrew the fresh water filter.

2. Clean the fresh water filter under running water.

2. Clean the nozzle mouthpiece.

Troubleshooting guide DANGER Danger of electric shock Injuries due to touching live parts Switch off the device. Remove the battery pack. Device not running

1. Charge the battery pack.

2. Insert the battery pack.

3. Check the battery pack for correct seating.

4. Switch on the device.

5. Allow the overheated board to cool down.

No water emitted from the nozzle

1. Fill up the fresh water tank.

2. Check the couplings on the spray hose for correct

4. Clean the fresh water filter.

5. Spray pump defective, contact customer service.

Single-sided spray jet

1. Clean the nozzle mouthpiece.

Poor suction performance

1. Check that the cover is seated correctly.

2. Clean the seal on the cover and the contact surface

3. Clean the fluff filter.

4. Check the suction hose for clogging; clean if neces-

sary. Spray pump is loud

1. Refill the fresh water tank.

Heavy foaming in the wastewater container

1. Add defoaming agent (special accessory) to the

wastewater container. Customer Service department If the malfunction cannot be corrected, the device must be checked by the Customer Service department. Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Spare parts list Only use KÄRCHER original battery packs, not non-re- chargeable batteries. Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in circu- lation by us. This declaration is invalidated by any chang- es made to the machine that are not approved by us. Product: Spray retraction device Type: 1.101-xxx Currently applicable EU Directives 2006/42/EC (+2009/127/EC) 2011/65/EU 2014/30/EU Harmonised standards used EN IEC 63000: 2018 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN 60335-1 EN 60335-2-68 EN 62233: 2008 National standards used

Description Order num- ber, spare part Item No., unpacked Battery pack Battery Pow- er+ 36/75 2.445-043.0 6.445-059.0 Battery pack Battery Pow- er+ 36/60 2.042-022.0 6.445-085.0 Battery pack Battery Pow- er 36/50 2.445-031.0 6.445-039.0 Quick charger Battery Power+ 36/60 (EU) 2.445-045.0 6.445-063.0 Quick charger Battery Power+ 36/60 (GB) 2.445-047.0 6.445-065.0 Quick charger Battery Power+ 36/60 (AU) 2.445-051.0 6.445-069.0 EU Declaration of Conformity14 English The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: [phone] Fax: [phone] Winnenden, 2020/10/01 We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construc- tion as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: Spray retraction device Type: 1.101-xxx Currently applicable UK Regulations S.I. 2008/1597 (as amended) S.I. 2012/3032 (as amended) S.I. 2016/1091 (as amended) Designated standards used EN IEC 63000: 2018 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN 60335-1 EN 60335-2-68 EN 62233: 2008 National standards used

The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: [phone] Fax: [phone] Winnenden, 2020/10/01 Technical data Subject to technical modifications. Declaration of Conformity (UK) Puzzi 9/1 Bp (Adv) (Pack) Electrical connection Battery pack nominal voltage V 36 DC Degree of protection IPX4 Protection class III Nominal power W 500 Maximum power W 575 Maximum fan motor power W 570 Blower motor nominal power W 550 Spray pump power W 4 Device performance data Fresh water filling quantity l 9 Wastewater filling quantity l 7 Air quantity (max.) l/s 57 Vacuum (max.) kPa (mbar) 15,0 (150) Spray pressure MPa 0,16 Spray pressure (max.) MPa 0,22 Spray volume l/min 0,55 Cleaning solution temperature (max.) °C 50 Operating time at full battery charge - Battery Power 36/50 bat- tery pack Minutes 23 Operating time at full battery charge - Battery Power+ 36/60 battery pack Minutes 27 Operating time at full battery charge - Battery Power+ 36/75 battery pack Minutes 35 Dimensions and weights Typical operating weight kg 10,2 Length x width x height mm 545 x 340 x
