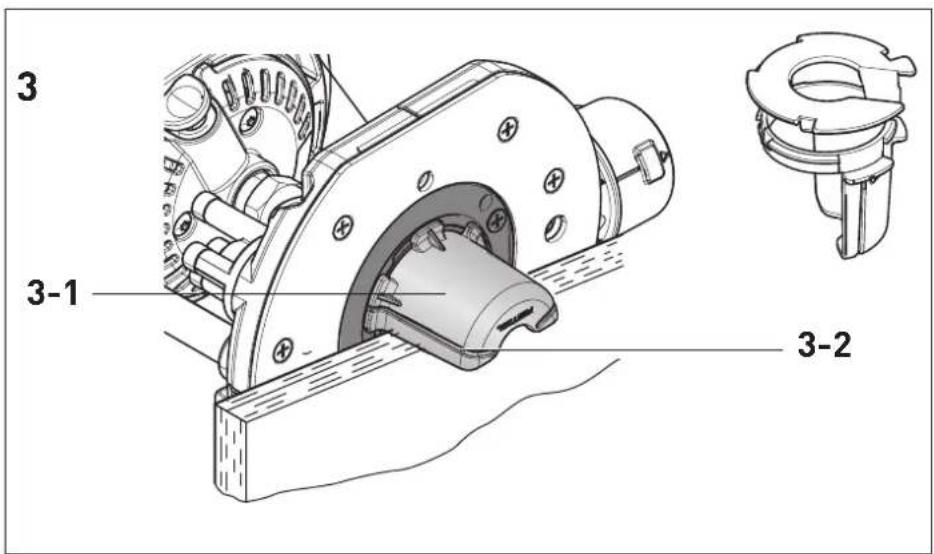

3 3-1 3-2

4
OF 1010 R

Mechanical assembly diagram showing a gear shift lever and housing component (no text or labels)

MFK 700 EQ

Mechanical assembly diagram showing a lever shift and gear mechanism (no text or labels)

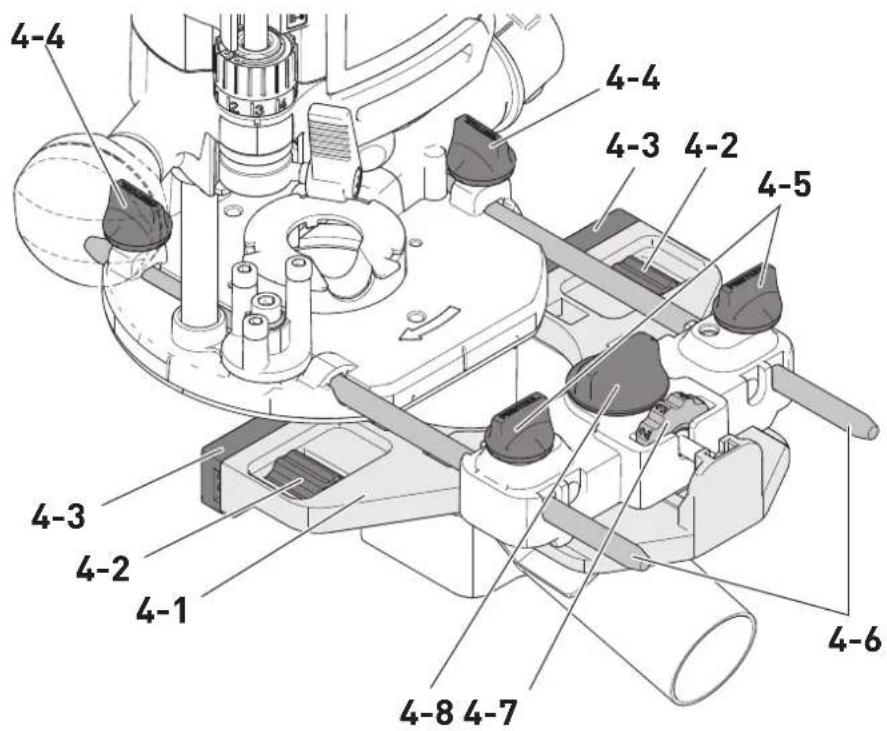

4-4 4-3 4-2 4-5 4-3 4-2 4-1 4-6 4-8 4-7

5

5-1 5-2 5-3

6 6-1

7 Y 7-1 7-2

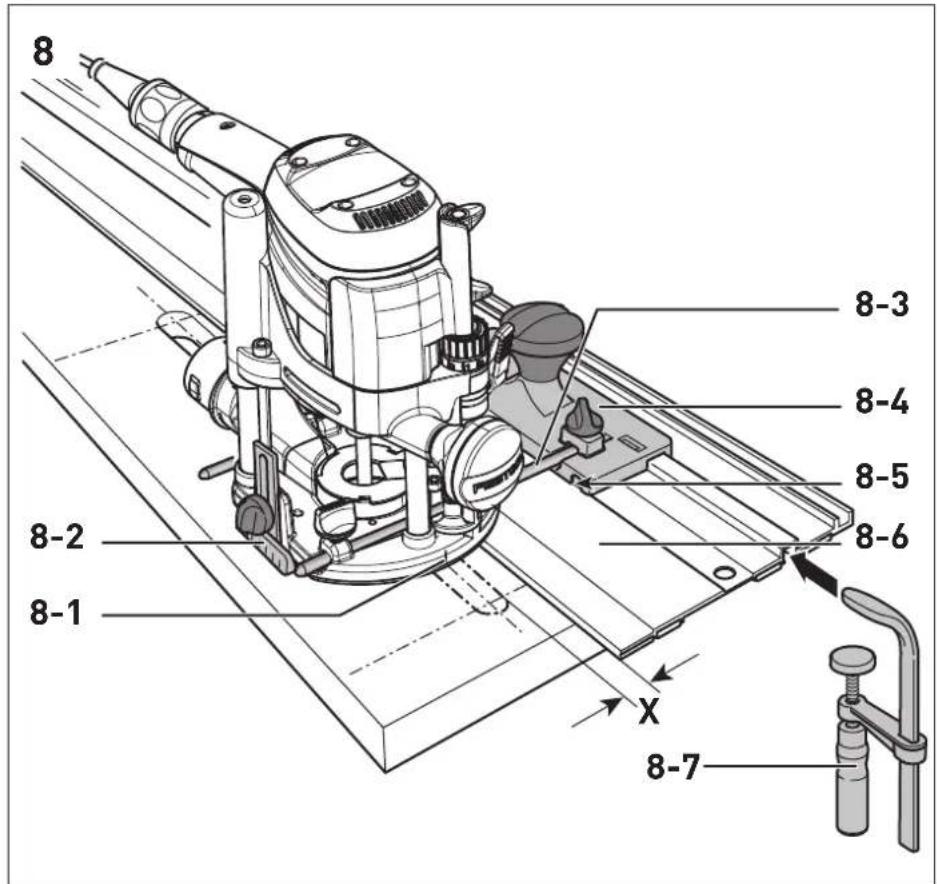

8 8-3 8-4 8-5 8-6 8-2 8-1 X 8-7

9 9-1 9-2 9-3 9-59-49-6 9-7

10 10-110-210-3 10-410-5

11 11-2 11-1 11-3

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany declare under our sole responsibility that the product(s):

Designation:

Designation of Type(s):

Serial number(s) 1):

Router

OF 1010 REBQ; OF 1010 REQ

10366390, 10419069

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597
S.I. 2016/1091
S.I. 2012/3032
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

• BS EN 62841-1:2015
• BS EN 62841-2-17:2017
• BS EN 55014-1:2017
• BS EN 55014-2:2015
• BS EN IEC 61000-3-2:2019
• BS EN 61000-3-3:2013
• BS EN IEC 63000:2018

1) in the specified serial number range (S-Nr.) from 400000000 - 499999999

Place and date of declaration: Wendlingen, 10.05.2021

Signed on behalf of and in name of Festool GmbH

pp^1.##8 Markus Stark

Markus Stark

Head of Productdevelopment

i. V.Q. Corandt

Ralf Brandt

Head of Productconformity

Oberfräse

Seriennummer *

Router

Serial number *

Défonceuse

N° de série *

(T-Nr.)

OF 1010 REBQ 10366390

OF 1010 REQ 10419069

de EU-Konformitätserklärung. Wir erklären in alleiniger Verantwortung, dass dieses Produkt mit allen relevanten Anforderungen folgender EU-Richtlinien übereinstimmt, und folgende Normen oder normative Dokumente zugrunde gelegt wurden:
en EU Declaration of Conformity. We declare under sole responsibility that this product complies with all the relevant requirements in the following EU Directives, and following standards and normative documents were applied:
fr Déclaration de conformité de l'UE. Nous déclarons, sous notre seule responsabilité, que ce produit satisfait à toutes les exigences pertinentes des directives UE suivantes et repose sur les normes ou documents normatifs suivants :
es Declaración UE de conformidad. Declaramos bajo nuestra responsabilidad que este producto cumple todos los requisitos relevantes de las siguientes directivas de la UE y que se han tomado como base las siguientes normas o documentos normativos:
it Dichiarazione di conformità UE. Dichiariamo sotto nostra unica responsabilità che il presente prodotto sia conforme a tutti i requisiti di rilevanza definiti dalle seguenti Direttive UE e che siano stati applicati le seguenti norme o i seguenti documenti normativi:
nl EU-conformiteitsverklaring. Wij verklaren en stellen ons ervoor verantwoordelijk dat dit product volledig voldoet aan alle volgende EU-richtlijnen en volgende normen of normatieve documenten daaraan ten grondslag gelegd werden:
SV EU-försäkran om överensstämmelse. Vi för- klarar på eget ansvar att denna produkt uppfyller alla relevanta krav enligt följande EU-direktiv och baseras på följande normer eller normgivande dokument:
fi EU-vaatimustenmukaisuusvakuutus. Vakuutamme yksinomaisella vastuulla, että tämä tuote täyttää seuraavien EU-direktiivien kaikki olennaiset vaatimukset ja se on seuraavien standardien tai standardiasia-kirjojen mukainen:
da EU-overensstemmelseserklæring. Vi erklærer med eneansvar, at dette produkt er i overensstemmelse med alle relevante krav i følgende EU-direktiver, og at følgende standarder eller normative dokumenter danner grundlag for det:
nb EU-samsvarserklæring. Vi erklærer under eneansvar at dette produktet oppfyller alle relevante krav i følgende EU-direktiver og at følgende standarder eller normative dokumenter er blitt lagt til grunn:

Head of Product Development

i.A.Q.B. and A

Ralf Brandt

Head of Product Conformity

1 Symbols....15
2 Safety warnings....15
3 Intended use....16
4 Technical data.... 16
5 Parts of the device....16
6 Commissioning....17
7 Settings....17
8 Working with the electric power tool......19
9 Service and maintenance....20
10 Accessories.... 21
11 Environment....21
12 General information....21

1 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

Wear ear protection.

Wear protective gloves when changing tools!

Wear a dust mask.

Wear protective goggles.

Pull out the mains plug

Do not dispose of it with domestic waste.

Safety class II

CE marking: Confirms the conformity of the power tool with the European Community directives.

Tip or advice

Handling instruction

Disconnecting the mains power cable

Connecting the mains power cable

UKCA marking: Confirms the conformity of the product with UK regulations.

2 Safety warnings

2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.2 Machine-specific safety notices

• Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.
• Only cutters provided by Festool for this purpose may be mounted on the power tool. The use of other cutters is prohibited due to the increased risk of injury.
• The maximum rotational speed specified on the tool must not be exceeded or the rotational speed range must be observed. Accessories that rotate faster than the permissible level can rupture.
• Wait until the power tool has come to a complete halt before placing it down. The insertion tool can get caught and lead to a loss of control of the power tool.
• In the case of materials to be processed which can become statically charged or lead to static charging, a dissipative overall system consisting of an antistatic suction hose (AS) and extraction mobile must be used.
• Do not clamp tools with an unsuitable shank diameter in the clamping collet.
• Only use cutters that meet standard EN 847-1. All Festool cutters meet these requirements.
• Ensure that the router bit is seated firmly and that it runs perfectly.
• The clamping collet and locking nut must not show any signs of damage

English

- Do not use cracked or deformed router bits.

Wear suitable personal protective equipment: Ear protection, safety goggles, a dust mask for work that generates dust.

- Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less.

2.3 Aluminium processing

When processing aluminium, the following measures must be taken for safety reasons:

• Install an upstream residual-current circuit breaker (RCD, PRCD).
• Connect the power tool to a suitable dust extractor with an antistatic suction hose.
• Regularly clean dust deposits from the motor housing on the power tool.

- Wear protective goggles.

2.4 Emission levels

The levels determined in accordance with EN 62841 are typically:

Sound pressure level L

$$ _ {\mathrm{PA}} = 9 2 \mathrm{dB(A)} $$

Sound power level L

$$ _ {\mathrm{WA}} = 1 0 3 \mathrm{dB(A)} $$

Uncertainty K = 3 dB

CAUTION

Noise generated when working Risk of damage to hearing

▶ Always use ear protection.

Vibration emission level a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 62841:

$$ a _ {h} = 5. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

$$ K = 2 \mathrm{m} / \mathrm{s} ^ {2} $$

The specified emission levels (vibration, noise)

• are used to compare machines.
• They are also used for making preliminary estimates regarding vibration and noise load during operation.
• They represent the primary applications of the power tool.

CAUTION

The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined.

▶ Assess the actual load during the entire operating cycle.
▶ Depending on the actual load, suitable protective measures must be defined in order to protect the operator.

3 Intended use

The router is designed for routing wood, plastics and wood-based materials.

If the cutters are used for the intended purpose outlined in the Festool Sales, they may also be used to machine aluminium and plasterboard.

The user is liable for improper or non-in-tended use.

4 Technical data

Router OF 1010 REBQ,
OF 1010 REQ

Power 1010 W
Speed 9500–23,000 rpm
Max. speed (no-load) 26,000 rpm
Quick depth adjustment	55 mm
Fine depth adjustment 8 mm
Drive shaft connecting thread	M16 x 1.5
Cutter diameter Max. 35 mm
Weight as per EPTA procedure 01:2014:	3.1 kg

5 Parts of the device

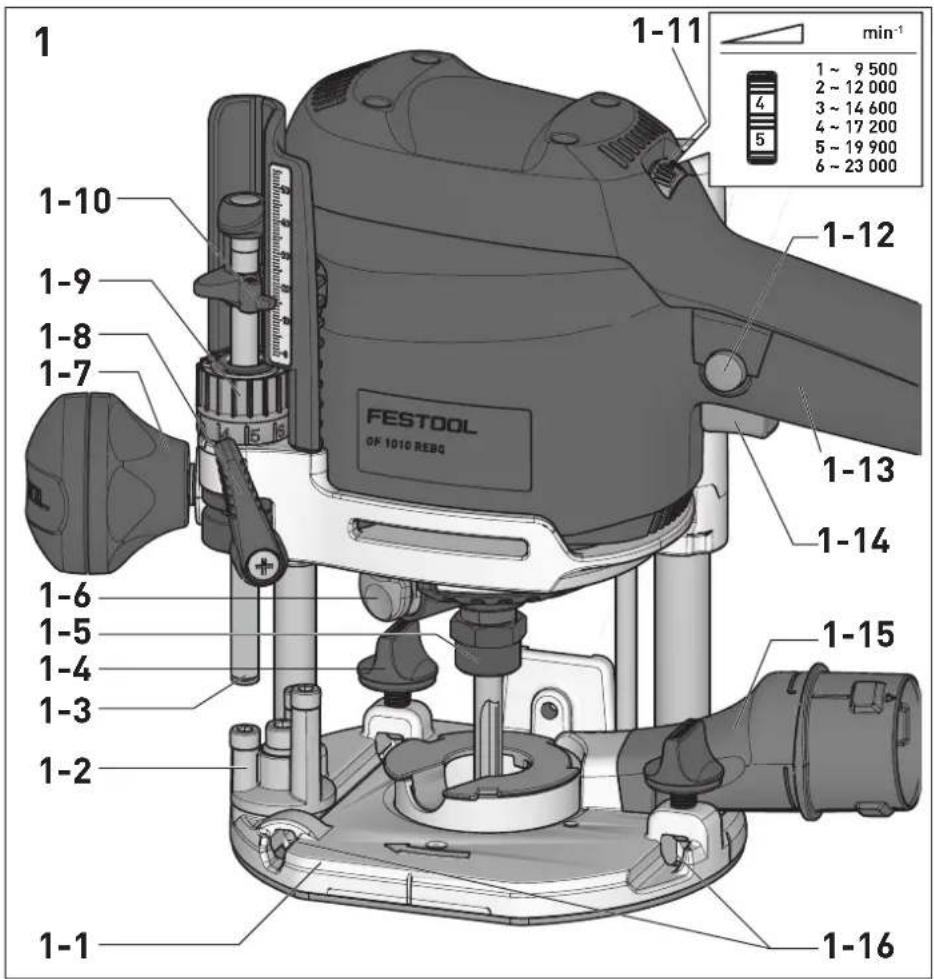

[1-1] Router table
[1-2] Stepped stop
[1-3] Depth stop
[1-4] Locking for trammel unit
[1-5] Nut
[1-6] Spindle stop
[1-7] Handle/Height adjustment
[1-8] Clamp lever

[1-9] Fine adjuster

[1-10] Depth stop indicator

[1-11] Speed adjusting wheel

[1-12] Locking button

[1-13] Handle

[1-14] On/off switch

[1-15] Extractor connector

[1-16] Grooves for guide bars/parallel side fence

The specified illustrations appear at the beginning of the Operating Instructions.

Accessories shown or described are not always included in the scope of delivery.

6 Commissioning

WARNING

Unauthorised voltage or frequency.

Risk of accidents

• The mains voltage and the frequency of the power source must correspond to the specifications on the name plate.
  ▶ In North America, only Festool machines with the voltage specifications 120 V / 60 Hz may be used.

CAUTION

Heating of the plug it connection if bayonet fitting is not completely locked

Risk of burns

▶ Before switching on the power tool, make sure that the bayonet fitting at the mains cable is closed fully and locked.

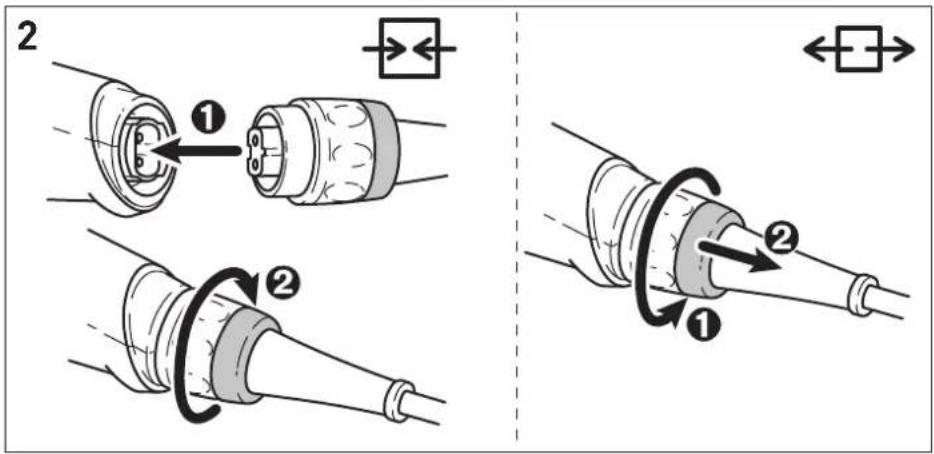

- Connect and disconnect the mains power cable [2].

6.1 Switching on/off

The switch [1-14] is an on/off switch (press = ON, release = OFF).

The on/off switch with the locking button [1-12] can be engaged to operate in continuous mode. Press the on/off switch again to release the lock.

7 Settings

WARNING

Risk of injury, electric shock

▶ Always disconnect the mains plug from the socket before performing any work on the machine.

7.1 Electronics

Speed adjustment

You can continuously adjust the speed within the speed range using the adjusting wheel [1-11] (see "Technical data").

This enables you to optimise the cutting speed to suit each surface.

Material Cutterdiameter [mm] Recom-

	3 - 14 15 - 25 26 - 35 Rotary controll setting	mended cutter material
Hardwood 6 - 4 5 - 3 3 - 1 HW (HSS)
Softwood 6 - 5 6 - 3 4 - 1 HSS (HW)
Laminated chipboard	6 - 5 6 - 3 4 - 2 HW
Plastic 6 - 4 5 - 3 2 - 1 HW
Aluminium	3 - 1 2 - 1 1 HSS (HW)
Plaster-board	2 - 1 1	1 HW

Temperature cut-out

Electronic temperature monitoring is integrated in order to protect against overheating (motor burnout). The safety electronics system switches off the motor before a critical motor temperature is reached. Let the machine cool down for approximately 3–5 minutes before using it and/or fully loading it again. The cool-down time is significantly reduced when the machine is running (no-load).

Restart protection

The built-in restart protection prevents the power tool from starting up again automatically if the power is disconnected when the on/off switch is pressed. In this case, the power tool must be switched off and then switched back on again.

Due to the built-in restart protection, the power tool cannot be switched on and off via an external switch module.

Brake

The OF 1010 REBQ has an electronic brake which brings the spindle with tool to a standstill within approx. 2 seconds of the tool being switched off.

7.2 Changing tools

CAUTION

Risk of injury from hot and sharp insertion tool

• Do not use any blunt or faulty insertion tools.
• Wear protective gloves when handling an insertion tool.

To change tools, place the power tool on its side.

Inserting the tool

• Insert the routing tool into the open collet as far as possible or at least up to the mark on the router shank.
  ▶ Turn the spindle until the spindle stop [1-6] engages when pressing and the spindle locks.
  ▶ Tighten the nut [1-5] using an open ended spanner (WAF 19).

Removing the tool

▶ Turn the spindle until the spindle stop [1-6] engages when pressing and the spindle locks.
▶ Undo the nut [1-5] using an open ended spanner (WAF 19) until you can feel resistance. Overcome the resistance by continuing to turn the open ended spanner.
▶ Remove the router.

7.3 Changing the collets

Collets are available for the following shaft diameters: 6.0 mm; 6.35 mm; 8.0 mm (See Festool catalogue or online at www.festool.com for the order numbers)

▶ Completely unscrew the nut [1-5] and remove it together with the collet.
▶ Only insert a new collet into the spindle if a nut is fitted and engaged.
▶ Gently screw in the nut. Do not tighten the nut if no cutter is inserted.

7.4 Setting the routing depth

The routing depth is set in three steps:

1. Set the zero point, see 7.5.
2. Specify the routing depth, see 7.6.
3. Clamp the routing depth, see 7.7.

7.5 Setting the zero point

▶ Release the clamp lever [1-8] so that the depth stop [1-3] can move freely.
- Position the router with the router table [1-1] on a level surface. Open the rotary knob [1-7] and push the power tool downwards until the cutter sits on the surface.

- Clamp the power tool in this position by closing the rotary knob [1-7].

▶ Press the depth stop [1-3] against one of the three fixed stops of the rotatable stepped stop [1-2].

A hex key can be used to individually adjust the height of each fixed stop.

▶ Push the indicator [1-10] downwards so that it points to 0 mm on the scale.

If the zero position is incorrect, this can be corrected using the screw on the indicator [1-10].

7.6 Specifying the routing depth

The required routing depth can be specified using either quick depth adjustment or fine depth adjustment.

Quick depth adjustment

▶ Pull the depth stop [1-3] upwards until the indicator [1-10] points to the required routing depth.
▶ Clamp the depth stop in this position using the clamp lever [1-8].

Fine depth adjustment

▶ Clamp the depth stop using the clamp lever [1-8].
▶ Set the required routing depth by turning the adjusting wheel [1-9].

i Turning the adjusting wheel by a mark changes the routing depth by 0.1 mm. A full rotation changes the routing depth by 1 mm. The maximum adjustment range for the adjusting wheel is 8 mm.

7.7 Clamping the routing depth

▶ Open the rotary knob [1-7] and push the power tool down until the depth stop touches the fixed stop.
- Clamp the power tool in this position by closing the rotary knob [1-7].

7.8 Dust extraction

WARNING

Heath hazard posed by dust

▶ Always work with an extractor.
▶ Comply with national regulations.

CAUTION! If an anti-static suction hose is not used, static charge may occur. The user may receive an electric shock and the electronics of the power tool may be damaged.

A Festool mobile dust extractor with a suction hose diameter of [1-15] or 36 mm (36 mm recommended due to the reduced risk of clogging) can be connected to the extractor connector [1-15] .

Chip deflector KSF-OF

The chip deflector KSF-OF ^[3] [3-1] consists of a hood and cover and improves the dust extraction efficiency when routing edges. The hood is installed in the same way as the copying ring, while the cover is attached on top.

A hacksaw can be used to cut along the grooves [3-2] of the guard and therefore make it smaller. The chip deflector can then be used for inner radii down to a minimum radius of 40 mm.

8 Working with the electric power tool

When working on the machine, observe all of the safety warnings that are listed at the start as well as the following rules:

• Only guide the power tool towards the workpiece when it is switched on.
• Always secure the workpiece in such a way that it cannot move during machining.
• When working, always hold the power tool with both hands on the handles [1-7] + [1-13]. This is a prerequisite for precise work and is essential for plunge-cutting. Plunge into the workpiece slowly and evenly.
• When routing, ensure that the power tool's feed direction is the same as the tool's cutting direction, see figure [7].

8.1 Freehand routing

Freehand routing is the method normally used for lettering or shapes, and for routing edges using cutters with a guide pin or ring.

8.2 Routing with a parallel side fence

For working parallel to the workpiece edge, the parallel side fence ^[4] [4-1] can be used.

- Clamp the two guide rods [4-6] to the parallel side fence using the two rotary knobs [4-5].

- Insert the guide rods into the grooves of the router table to the required extent and clamp them using the two rotary knobs [4-4].

Fine adjustment

▶ Open the rotary knob [4-8] to perform fine adjustment using the adjusting wheel [4-7].

(i) Each number on the adjusting wheel is equal to fine adjustment of 0.1 mm.

▶ Close the rotary knob [4-8] after performing fine adjustment.
▶ Set the two guidance jaws [4-3] so that they are approx. 5 mm mm from the cutter. To do so, open the two jaw fasteners [4-2] and close them after making an adjustment.

Dust extraction attachment

▶ As shown in figure [5], push the dust extraction attachment [5-1] from behind until it engages on the parallel side fence.

▶ To remove the dust extraction attachment, slightly lift the tabs [5-3].

① An extractor hose with a diameter of 27 mm mm or 36 mm mm can be connected to the extractor connector [5-2].

8.3 Routing with the FS guide system

The guide system (available as an accessory) makes it easier to route straight grooves.

• Secure the guide rail adapter [8-4] to the router table using the guide rods [8-3] of the parallel side fence.
• Secure the guide rail [8-6] to the workpiece using fastening clamps [8-7].
  Ensure that there is a safety distance X of (see figure [8]) 5 mm between the front edge of the guide rail and the cutter, or the groove.

English

• Place the guide rail adapter on the guide rail, as shown in figure [8]. To ensure that the router stop can be guided without play, use a screwdriver through the top openings [8-5] on the side to adjust the two guidance jaws.
  ▶ Tighten the height-adjustable support [8-2] on the threaded hole of the router table so that the underside of the router table is parallel to the workpiece surface.

When working with marking-up lines, the marks on the platen [8-1] and the scale on the support [8-2] show the centre axis of the cutter.

For a more precise setting, a fine adjustment is available as an accessory for the guide system.

8.4 Routing with the beam compasses

With the SZ-OF 1000 beam compasses (accessory) you can make circular cuts or segments of circles with diameters from 153 to 760 mm.

▶ The beam compasses are pushed into the front groove of the platen until the desired radius is set.
- Lock the beam compasses with the rotating knob [1-4].

To prevent the tip of the compasses from making a hole in the workpiece, fix a thin board at the centre point by means of double-sided adhesive tape.

8.5 Copy cutting

A copying ring or the copying device is used to exactly reproduce existing workpieces (accessories).

Copying ring

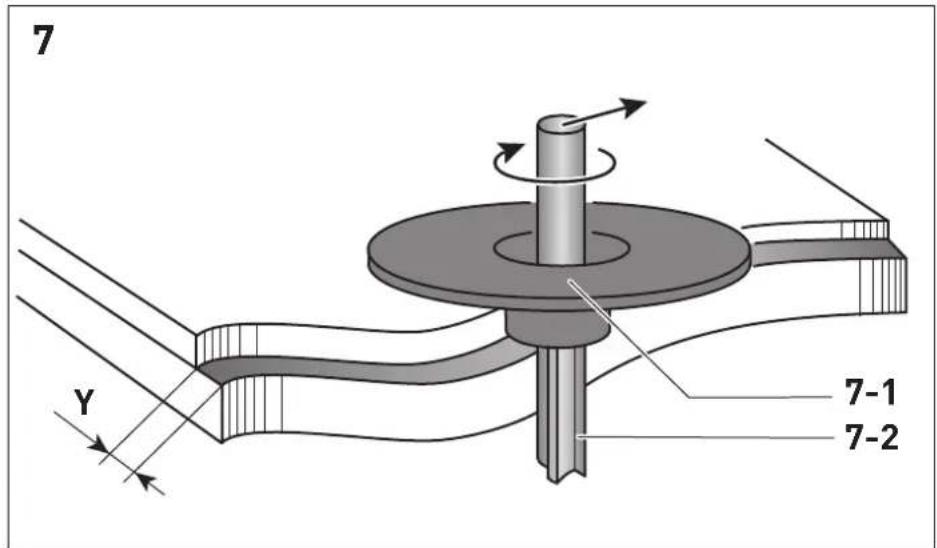

When choosing the size of the copying ring [7-1], ensure that the cutter [7-2] being used fits through its opening.

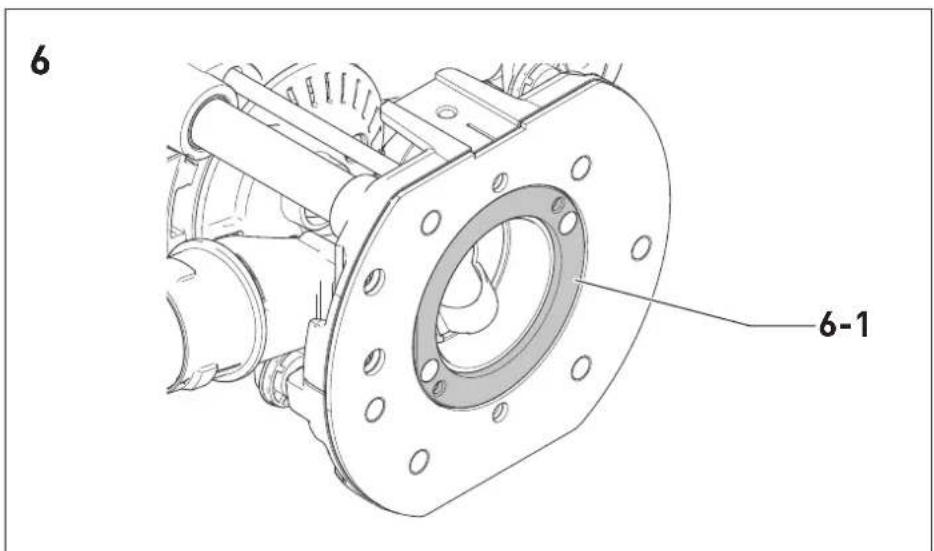

- Secure the copying ring to the router table from below in place of the covering ring [6-1].

Excess Y (figure [7]) of the workpiece to the template is calculated as follows:

Y = (copying ring diameter - cutter diameter)/2 The copying ring can be exactly centred with the ZD-OF centring mandrel (accessory).

Copying device

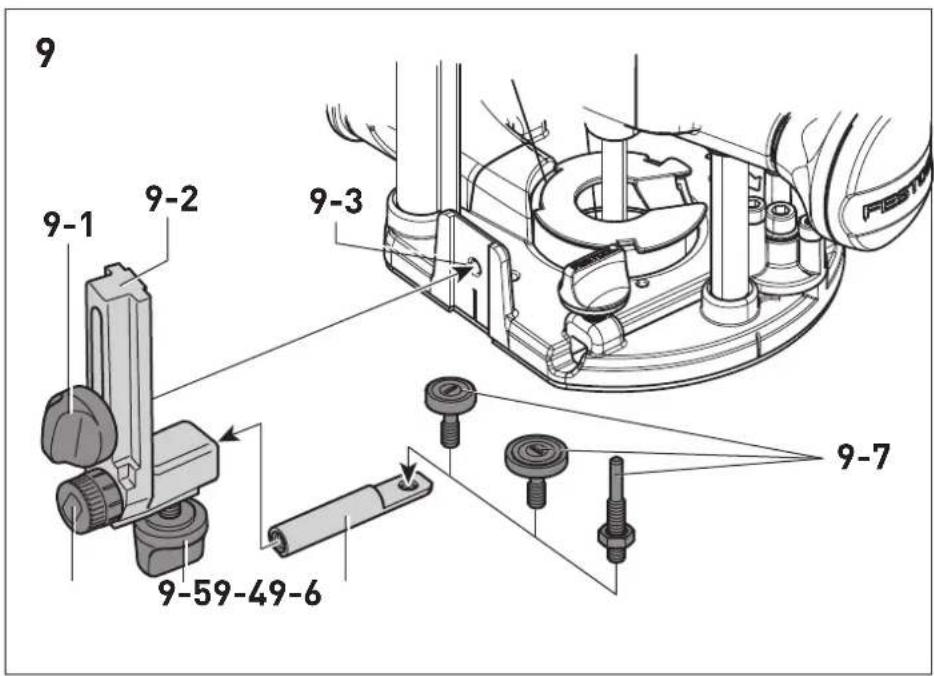

The copying device requires the angle arm WA-OF [9-2] and the copier scanning set KT-OF, consisting of a roller support [9-6] and three copying rollers [9-7].

▶ Use the rotary knob [9-1] to tighten the angle arm to the required height on the threaded hole [9-3].
▶ Fit a copying roller to the roller support and use the rotary knob [9-5] to tighten it on the angle arm. Make sure that the copying roller and the router have the same diameter.
The distance between the feeler roller and the cutter axis can be adjusted by turning the adjusting wheel [9-4].

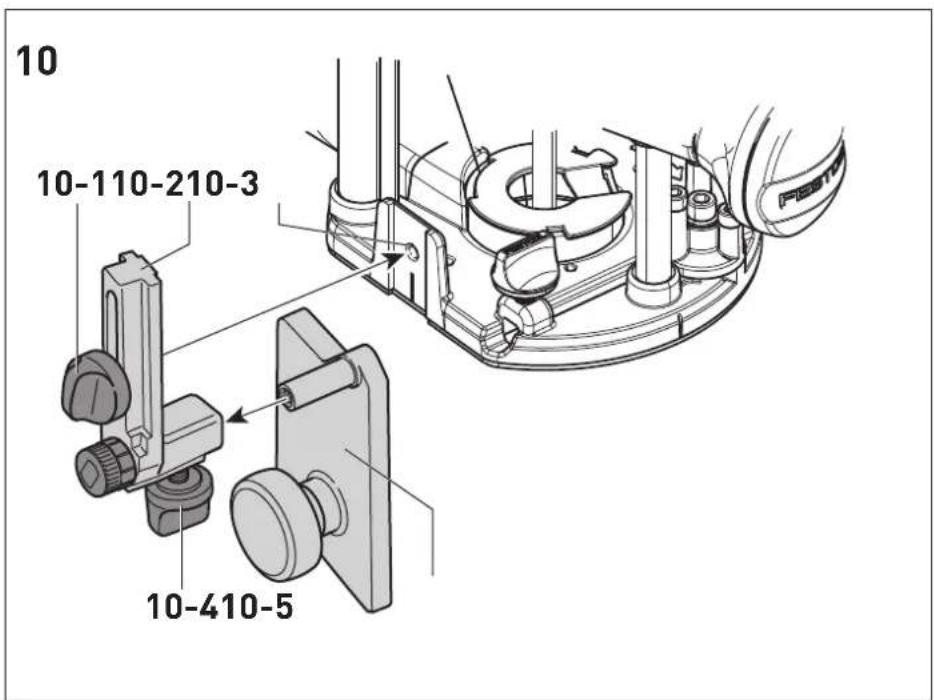

Protruding edge bands can be flush trimmed with the angle arm WA-OF [10-2] in connection with the guide plate UP-OF [10-5] (accessory).

• Screw the angle arm into the platen's threaded bore [10-1] with the rotating knob [10-3].
• Bolt the guide plate to the angle arm with the rotating knob [10-4].
  ▶ Adjust the milling depth so that this is equal to the thickness of the edge band + 2 mm.

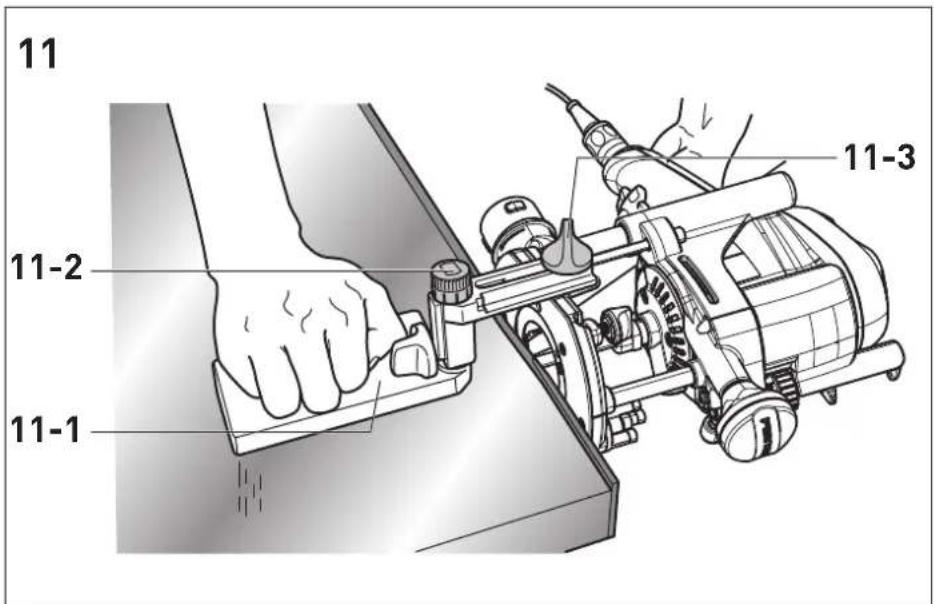

  ▶ Move the guide plate [11-1] as close as possible to the cutter by loosening the rotating knob [11-3].
  ▶ Adjust the depth of the guide plate with the adjusting wheel [11-2] so that during trimming a few decimillimetres of the edge band are left protruding which can then be sanded down by hand.

9 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always pull the mains plug from the socket before performing any servicing and maintenance work.
- All maintenance and repair work which requires the housing to be opened should always be carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops. Find the nearest address at:

www.festool.co.uk/service

Always use original Festool spare parts. Order no. at:

www.festool.co.uk/service

The tool is equipped with special self-disconnecting carbon brushes. If they wear out, the

power supply is disconnected automatically and the tool stops.

Observe the following instructions:

▶ Damaged safety devices and components must be repaired or replaced in a recognised specialist workshop, unless otherwise indicated in the operating instructions.
▶ To ensure constant air circulation, always keep the cooling air openings in the housing clean and free of blockages.

10 Accessories

Always use original Festool tools and accessories. Using low-quality tools or accessories from other manufacturers may increase the risk of injury and seriously unbalance the machine, decreasing the quality of the working results and accelerating power tool wear.

You can find the PO numbers for accessories and tools under www.festool.co.uk.

11 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe applicable national regulations.

In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

Information on collection points for proper disposal can be found at www.festool.co.uk/recycling.

Information on REACH: www.festool.co.uk/reach

12 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain

Sommaire

Dybde-hurtigindstilling

[1-9] Fininnstilling

[1-10] Viser for dybdeanlegg

[1-11] Reguleringshjul for turtall

[1-12] Låseknapp

[1-13] Håndtak

[1-14] Av/på-bryter

[1-15] Avsugsstuss

Plast 6-4 5-3 2-1 HW

Hliník 3-1 2-1 1 HSS (HW)

Sádrokarton 2-1 1 1 HW

Tepelná pojistka
