Inhaltsverzeichnis
5 Parts of the device....13
6 Battery pack.... 13
7 Settings....13
8 Working with the electric power tool....14
9 Service and maintenance....15
English
10 Accessories.... 15
11 Environment....15
12 General information....15
1 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

Wear ear protection.

Wear protective gloves when changing tools.

Wear a dust mask.

Wear protective goggles.

Inserting the battery pack.

Remove the battery pack.

Do not dispose of it with domestic waste.

CE conformity marking

Tool contains a chip which stores data. See section 12.2

Tip or advice

UKCA marking: Confirms the conformity of the product with UK regulations.
2 Safety warnings
2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications
provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. Follow the operating manual for the charger and the battery pack.
2.2 Machine-specific safety notices
- Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.
- Only operate the power tool with a properly installed guide table [1-1] and guard [1-10].
-
Only operate the power tool with a locked adjusting ring (see section 7.3).
-
Only fit the routing tools offered by Festool for this power tool. The use of other routing tools is prohibited due to the increased risk of injury.
- Only use routing tools that meet standard EN 847-1. All Festool routing tools meet these requirements.
- Used tools must be approved for speeds of at least 30000 rpm according to EN 847-1.
- Spindle [4-3] and screw [4-5] must not be damaged.
- Wear suitable personal protective equipment: Ear protection, safety goggles, a dust mask for work that generates dust.
- Do not use power supply units to operate cordless power tools. Only use the intended battery packs. Do not use third-party chargers to charge the battery packs. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents.
2.3 Safety warnings for routing tools
General
- Proceed with extreme care when unpacking, packing and handling the tool (e.g. installing it in the machine). There is a risk of injury from extremely sharp cutting edges!
- When handling the tool, wearing safety gloves provides a more secure hold of the tool and further reduces the risk of injury.
- Observe the safety warnings for your machine.
- Comply with the safety regulations that apply in your country.
- WARNING! Do not use tools with visible cracks or blunt or damaged cutting edges.
Installation and mounting
- Tools must be clamped in such a way that they cannot come loose during operation.
- Clamping or fixing nuts must be tightened using suitable keys, etc. and with the torque specified by the manufacturer.
- Do not lengthen the key or tighten by hitting with a hammer.
- The clamping surfaces must be cleaned to remove contamination, grease, oil and water.
- Clamping screws must be tightened according to the manufacturer's instructions.
Service and maintenance
- Always use original Festool spare parts.
- Repairs and sanding work may only be carried out by experts.
- The tool design must not be changed.
- For repairs and sanding work, see the additional instructions at www.festool.com.
- Deresinify and clean the tool regularly (cleaning agent with pH between 4.5 and 8).
- Blunt edges can be resharpened on the clamping surface to a minimum cutting edge thickness of 1 mm.
- Only transport the tool in suitable packaging – risk of injury!
2.4 Emission levels
The levels determined in accordance with EN 62841 are typically:
Sound pressure level L _PA = 82 dB(A)
Sound power level L _WA = 90 dB(A)
Uncertainty K = 3.0 dB


CAUTION
Noise emissions created while working with the power tool may damage your hearing.
▶ Always use ear protection.
Vibration emission level a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 62841:
$$ a _ {h} < 2. 5 \mathrm{m} / \mathrm{s} ^ {2} $$
$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$
The specified emission levels (vibration, noise)
- are used to compare machines.
- They are also used for making preliminary estimates regarding vibration and noise load during operation.
- They represent the primary applications of the power tool.

CAUTION
The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined.
- Assess the actual load during the entire operating cycle.
▶ Determine suitable safety measures depending on the actual load.
3 Intended use
The edge router is designed for flush trimming and profile routing wood, plastic and similar materials.
The user is liable for improper or non-intended use.
3.1 Routing tools
Type of feed
MAN (manual feed).
Speed
The maximum speed specified on the tool must not be exceeded and the speed range must be adhered to.
Materials
Wood, plastics. Observe the material information on the packaging.
Only qualified and experienced persons who are familiar with the tools are permitted to use them.
4 Technical data
Cordless edge router OFKC 500 EB
| Motor voltage 18 V | --- |
| Speed 10000-25000 rpm | |
| Max. speed (no-load) 25000 rpm |
Cordless edge router OFKC 500 EB
| Suitable battery packs Festool series | BP 18 ≥ 4 Ah |
| Max. diameter routing tool 27 mm | |
| Dust extraction connection diameter | 27 mm |
| Weight excl. battery pack 1.3 kg |
4.1 Routing tools
For technical data, see imprint on the routing tool.
5 Parts of the device

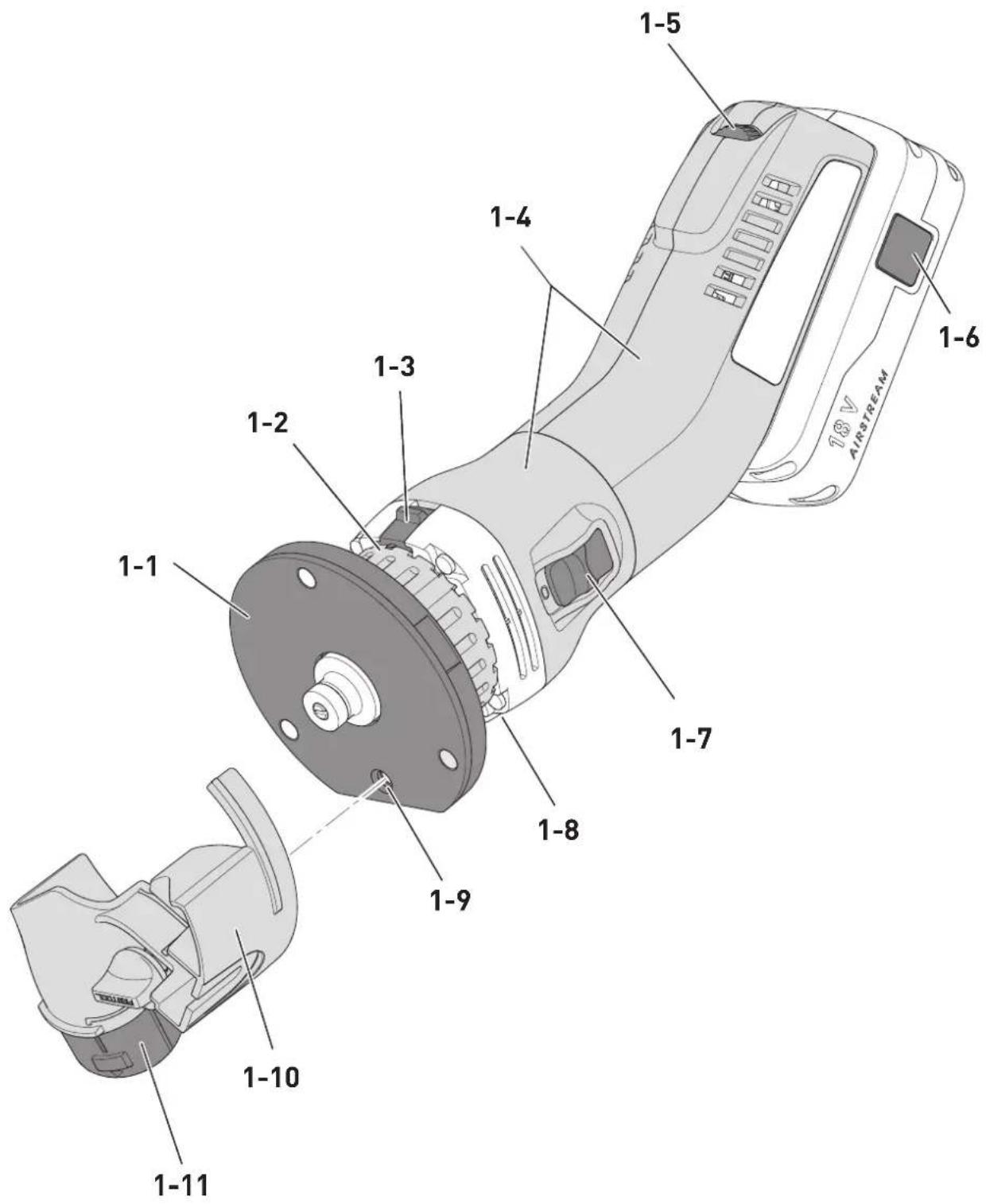

[1-1] Guide table
[1-2] Adjusting ring routing depth
[1-3] Locking slide routing depth
[1-4] Gripping surface
[1-5] Speed control
[1-6] Button for releasing the battery pack
[1-7] On/off switch
[1-8] Spindle stop locking button
[1-9] Guard fixture threaded hole
[1-10] Guard
[1-11] Extractor connector
The specified illustrations appear at the beginning of the Operating Instructions.
6 Battery pack
Before using the battery pack, check that the battery interface is clean. Any contamination of the battery interface may impair correct contact and lead to the contacts being damaged.
A faulty contact may result in the machine overheating or being damaged.

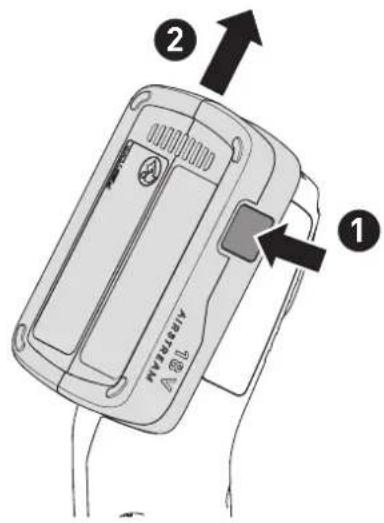

[2A] Remove the battery pack.

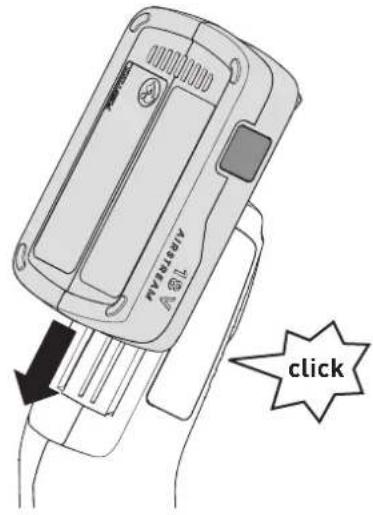

[2B] click Insert the battery pack until it clicks into place.
Further information about the charger and battery pack can be found in the corresponding operating manual.
7 Settings

WARNING
Risk of injury
- Remove the battery pack from the power tool before performing any work on the power tool.
7.1 Electronics
Speed control
You can use the adjusting wheel [1-5] to continuously adjust the speed within the speed range (see Section Technical data). This enables you to optimise the speed to suit the respective material. Please also note the specifications on the tools.
Scorch or melt marks on the material can be prevented through reducing the speed.
English
Temperature cut-out
The power tool switches off if it becomes too hot. It can only be switched on again once the power tool has cooled sufficiently.
Restart protection
The built-in restart protection prevents the power tool from starting up again automatically if the power is disconnected during continuous use. To put the power tool back into operation, it must first be switched off and then on again.
7.2 Festool app\*
The power tool can be configured with the Festool app. To do this, the battery pack used must be a Bluetooth® battery pack.
The battery pack is connected via Bluetooth ^® , see the operating manual for the battery pack.
* Not available in all countries.
7.3 Locking/unlocking adjusting ring
WARNING! Operate power tool only with locked adjusting ring [1-2].
Locking
▶ Push locking slide [1-3] forward.
Unlocking
▶ Push locking slide [1-3] backward.
7.4 Setting the routing depth
▶ Unlock adjusting ring [1-2].
▶ Larger routing depth: Turn adjusting ring in a clockwise direction.
Smaller routing depth: Turn adjusting ring in an anti-clockwise direction.
▶ Lock adjusting ring.
(i) Twist around a cut-out: Routing depth change = 0.1 mm

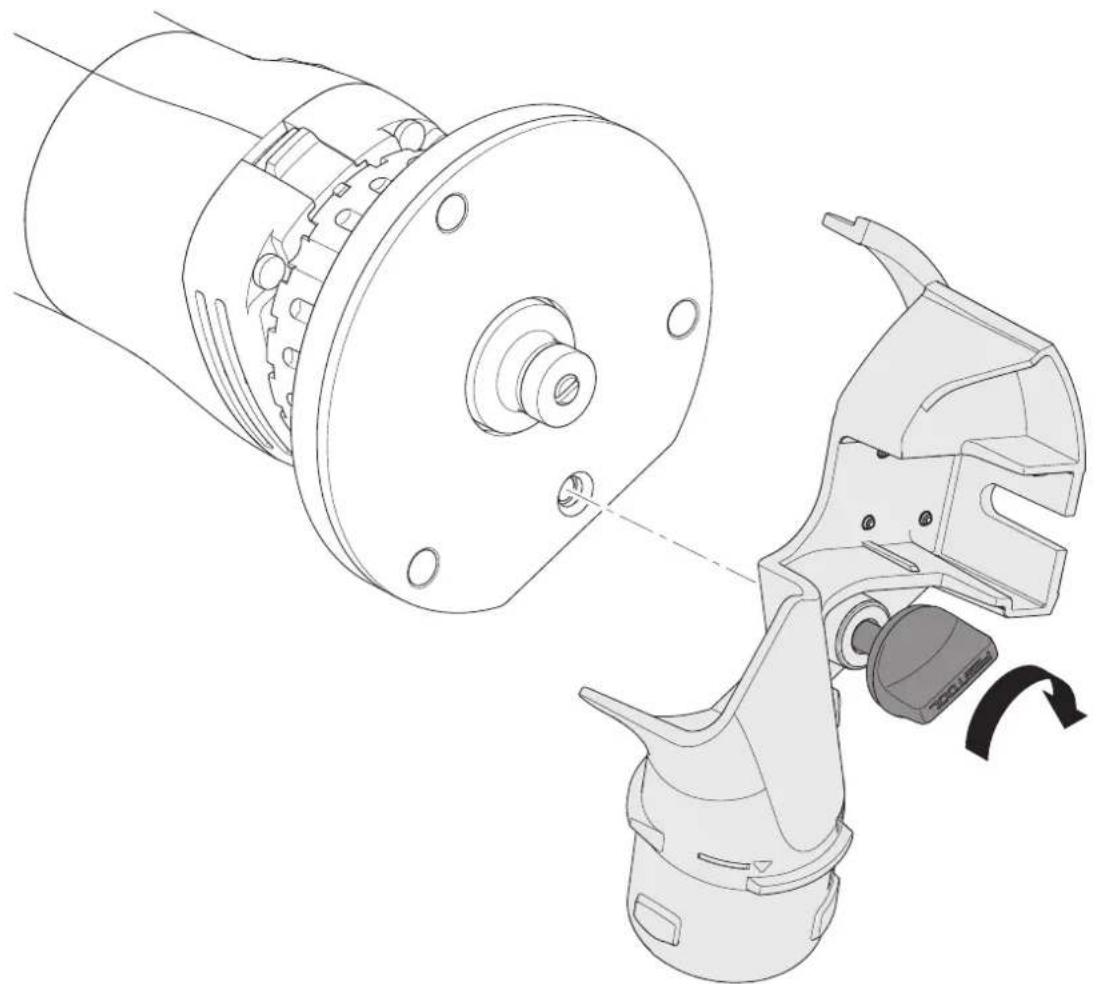

7.5 Fitting the guard [3]
▶ In order to fit the guard, remove the ball bearing brake [5].
7.6 Dust extraction

WARNING
Heath hazard posed by dust
▶ Always work with an extractor.
▶ Comply with national regulations.
A Festool mobile dust extractor with an extraction hose diameter of 27 mm should be connected at the extractor connector [1-11].
CAUTION! A static charge may build up if no antistatic suction hose is used. The user may receive an electric shock and the power tool's electronics may be damaged.
7.7 Changing routing tool


CAUTION
Risk of injury from hot and sharp tool.
▶ Do not use any blunt or faulty tools.
▶ Wear protective gloves when handling a tool.
▶ Unlock the adjusting ring [4-6].
▶ Turn the adjusting ring until the nose [4-2] of the locking button [4-1] is opposite a cut-out of the adjusting ring.
▶ Press the locking button and turn the routing tool [4-4] until the locking button engages, thereby locking the spindle. Press and hold the locking button.
▶ Undo the screw [4-5] on the ball bearing guide.
▶ Remove the routing tool [4-4].
▶ Insert the new routing tool.
- Place the screw [4-5] in the ball bearing guide and tighten.
▶ Release the locking button and lock the adjusting ring.
7.8 Fitting the ball bearing brake [5]
The high speed of the ball bearing guide can cause traces of burns on the workpiece. If this occurs, use the ball bearing brake.
With guard

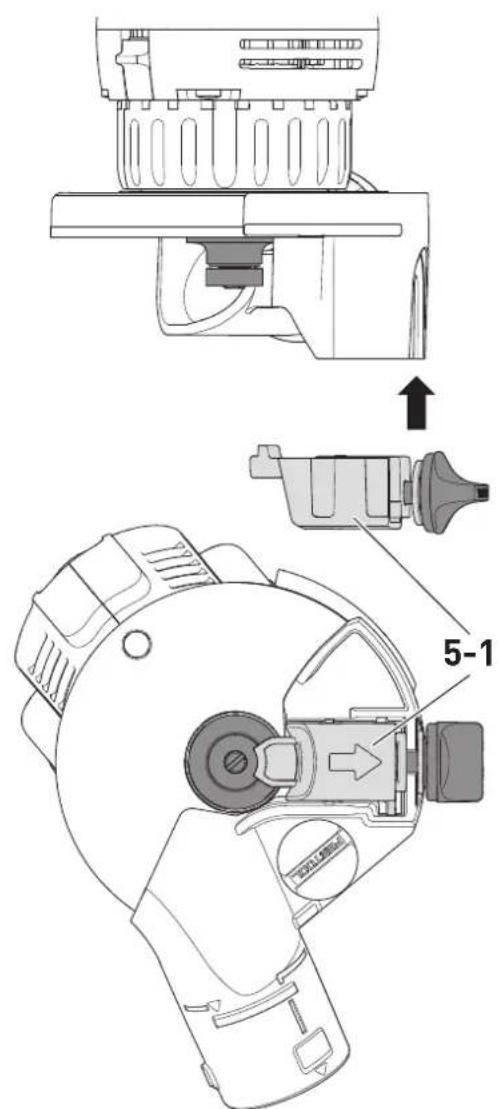

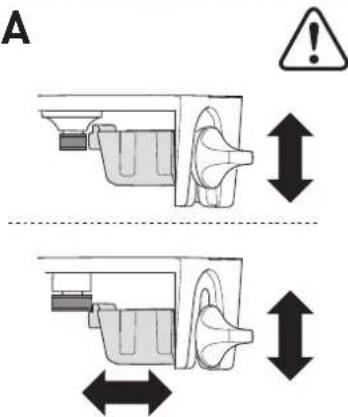

▶ Adjust the height of the ball bearing brake [5-1] to the height of the ball bearing guide (two stages [5A]).

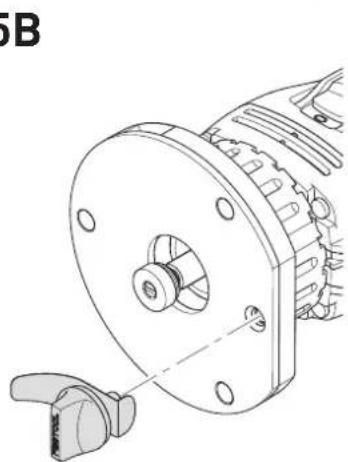

Without guard [5B]
8 Working with the electric power tool

When working on the machine, observe all of the safety warnings that are listed at the start as well as the following rules:
- Only guide the power tool towards the workpiece when it is switched on.
- Do not place your free hand near the insertion tool. Coming into contact with the insertion tool can cause injury.
- Wait until the power tool has come to a complete halt before placing it down. The insertion tool can get caught and lead to a loss of control of the power tool.
- When routing, ensure that the power tool's feed direction is the same as the tool's cutting direction.
8.1 Switching on/off
The switch [1-7] serves as an on/off switch (I = ON, 0 = OFF).
8.2 Routing
▶ Steadily guide the machine along the edge of the workpiece. Ensuring that the guiding table and the milling tool ball bearing are in contact with the workpiece at all times.
For flush trimming, use the ball bearing guide KLS-D22-OFK (accessory).
9 Service and maintenance

WARNING
Risk of injury, electric shock
▶ Always remove the battery pack from the power tool before performing any maintenance or service work.
▶ Any maintenance and repair work that requires the motor housing to be opened must only be carried out by an authorised service workshop.
Customer service and repairs must only be carried out by the manufacturer or service workshops. You must only use original Festool spare parts.
Further information: www.festool.co.uk/service
▶ Damaged safety devices and components must be repaired or replaced in a recognised specialist workshop, unless otherwise indicated in the operating instructions.
▶ To ensure constant air circulation, always keep the cooling air openings in the motor housing clean and free of blockages.
10 Accessories
You can find the PO numbers for accessories and tools under www.festool.co.uk.
11 Environment

Do not dispose of electrical devices, used batteries and battery packs in the household waste. Recycle devices, accessories and
packaging. Observe applicable national regulations.
Before disposing of used batteries, battery packs and lamps, separate them from the electrical device without destroying them. This means they can be recycled efficiently.
In accordance with the European Directive on waste electrical and electronic equipment and implementation
in national law, used electrical devices must be collected separately and handed in for environmentally friendly recycling.
Information on the collection points can be viewed at www.festool.com/environment.
Information on critical materials: www.festool.co.uk/reach
12 General information
12.1 Licence information
Licence information on any open source licences used in the product can be found in the Festool app* at Information > Power tool open source licenses.
* Not available in all countries.
Imported into the UK by
Festool UK Ltd
1 Anglo Saxon Way
Bury St Edmunds
IP30 9XH
Great Britain
12.2 Information on data privacy
The power tool contains a chip which automatically stores machine and operating data. The data saved cannot be traced back directly to an individual.
The data can be read in a contactless manner using special devices and shall only be used by Festool for fault diagnosis, repair and warranty processing and for quality improvement or enhancement of the power tool. The data shall not be used in any other way without the express consent of the customer.
12.3 Bluetooth®
The Bluetooth ^® word mark and the logos are registered trademarks of Bluetooth SIG, Inc.; they are used by TTS Tooltechnic Systems AG & Co. KG, and therefore by Festool, under licence.
Français
Sommaire
Incertitude K = 3,0 dB


ATTENTION
12.1 Informations relatives aux licences
Incertidumbre K = 3,0 dB
