VPM411 - Fan Bimar - Free user manual and instructions

Product type	Column fan
Brand	Bimar
Model	VPM411
Usage	Domestic, indoor ventilation
Available heights	123 cm (without intermediate column) or 170 cm (with intermediate column)
Power supply	Electrical mains (voltage per rating plate)
Speeds	3 speeds (low, medium, high)
Horizontal oscillation	Yes, selectable (right-left)
Vertical tilt	Yes, manual (up-horizontal-down)
Light indicator	Illuminated circle when operating
Assembly required	Yes, with base, columns and protective grille
Protective grille	Removable front grille
Materials	Metal and plastic
Cleaning	Soft damp cloth, do not immerse
Maintenance	Dust motor ventilation holes regularly
Safety	Do not use without grille or with damaged grille; do not insert objects
Thermal protection	Not specified
Repairability	Cord replacement by qualified professional
Spare parts	Contact manufacturer or after-sales service
Max ambient temperature	40°C
Weight	Not specified (estimated ~5 kg)
Dimensions (base)	Not specified

Frequently Asked Questions - VPM411 Bimar

How to assemble the Bimar VPM411 fan?

Follow the steps in Fig. 1: attach the lower column to the base with the screw, screw the intermediate column then the upper column. Insert the cord into the columns, connect the male/female pins and lock. Attach the fan head to the upper column with the screw. Finally, place the cord in the guide under the base and secure it with the plate and screws.

What speeds are available and how to use them?

The selector allows 3 speeds: 1 (low), 2 (medium), 3 (high). Turn the selector to the desired position. Horizontal oscillation is also activated via the selector (positions 1, 2, 3 with oscillation).

How to clean the fan without damaging it?

Always unplug the device before cleaning. Use a soft slightly damp cloth. Do not use abrasive or corrosive products. Do not immerse any part in water. Keep the motor ventilation holes free of dust.

Can I use the fan without the protective grille?

No, the fan must only be used with the protective grille properly assembled. Use without the grille poses a risk of injury.

How to adjust the vertical tilt?

The vertical tilt is adjusted manually by orienting the motor body upward, horizontal, or downward, as desired.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its technical support service, or a qualified person to avoid any risk. Do not use the device with a damaged cord.

Can the fan be used outdoors?

No, the device is designed for indoor use only. Do not expose the fan to weather elements (sun, rain, etc.).

How to store the fan when not in use?

Store it away from dust and humidity, ideally in its original packaging. Clean it before storage.

Can the device be used by children?

Children under 8 years should not use the device. Children 8 years and older may use it under supervision. Children must not play with the device and cleaning must not be done by children without supervision.

How to dispose of the fan at end of life?

Do not dispose of the device with household waste. In accordance with European Directive 2011/65/EU, drop it off at a selective collection center or return it to a retailer providing this service. The crossed-out wheelie bin symbol reminds you of this obligation.

USER MANUAL VPM411 Bimar

type VPM411 (mod.PURE)

Exploded view diagram of a mechanical component with no text or symbols

Technical line drawings of mechanical components including a rotating stand, ring assembly, and displacement device (no text or symbols)

Technical line drawing of a mechanical device with multiple views and mounting base (no text or symbols)

Indice/ reference dot

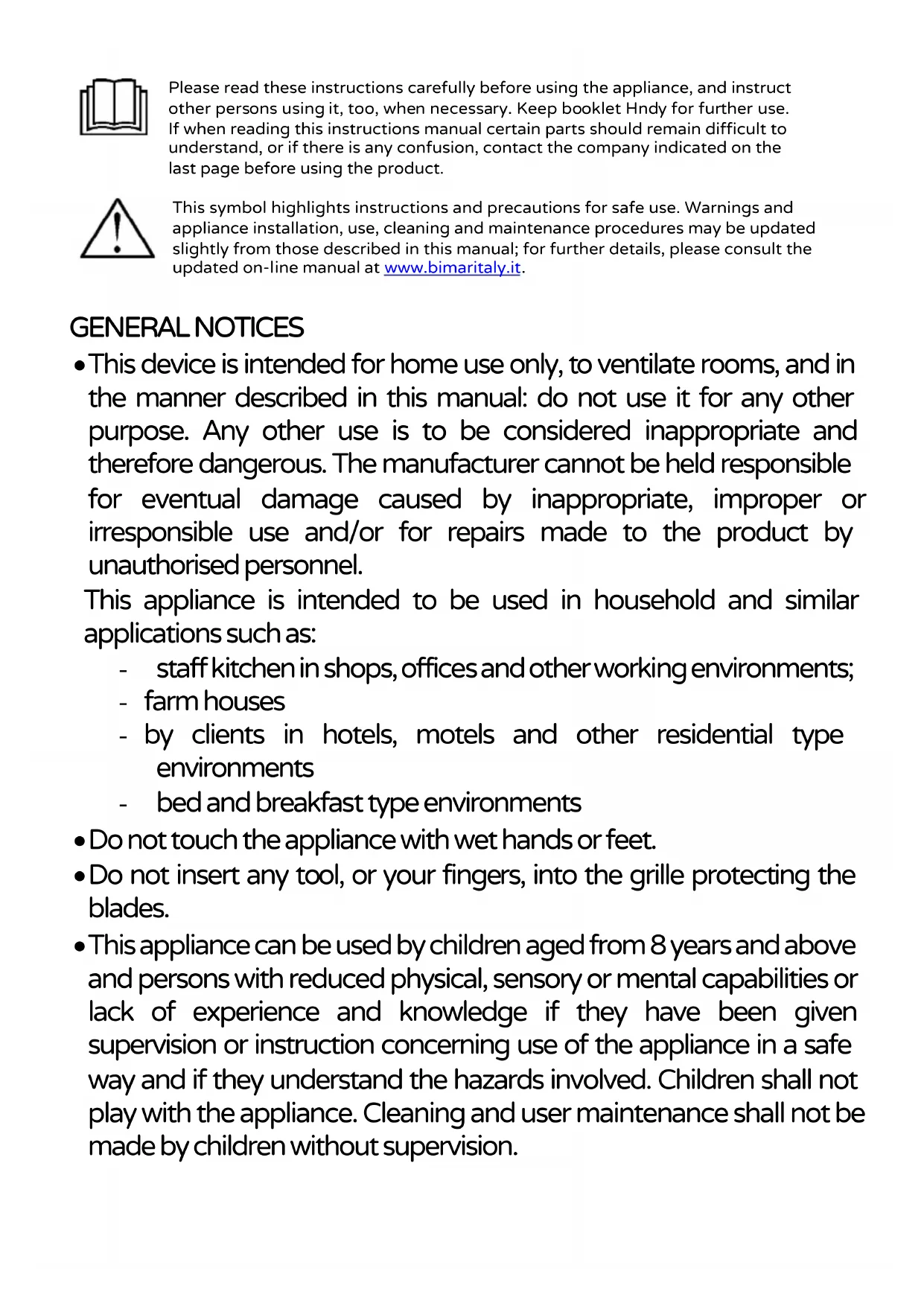

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet Hndy for further use. If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

GENERAL NOTICES

- This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for any other purpose. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Do not touch the appliance with wet hands or feet.

• Do not insert any tool, or your fingers, into the grille protecting the blades.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance can be used by children aged 8 and older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of the appliance and have understood the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years of age and are supervised.

- The appliance must be kept out of children’s reach.

- Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.

- Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.

- Always unplug the appliance before you assemble, disassemble or make adjustments to the appliance.

- Make sure that the propeller is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.

- Do not move the appliance when it is operating.

- Unplug the appliance when not in use.

- Do not use the device at room temperatures above 40 °C.

- Do not move the appliance when it is in function.

- Do not leave the device exposed to the weather (sun, rain, etc.).

- Do not pull on the cord to disconnect the plug from the socket.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.

- In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help: repairs made by unqualified persons can be dangerous and render void the warranty.

- Ensure that the fan is switched off from the supply mains before removing the guard.

INSTALLATION

• After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger. Attention: any stickers or advertising material applied to the grid removed before using the appliance. The manufacturer declines all responsibility in case this is not safe working practices will be respected.
• Before connecting the appliance, check that the voltage shown on the data plate matches that of your electricity, and that the electric plug is grounded. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
• Do not place the appliance near an open flame, cooking or other heating appliance.
• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Stand the appliance on a horizontal, flat surface; do not stand on a inclined plane (the appliance could upset).

ASSEMBLY

Attention: the fan can be used only when completely and correctly assembled, that is complete with its base and support and protection grid. If in doubt, have the appliance checked or assembled by a qualified professional person

Attention: always unplug the appliance before you assemble.

For assembly, refer to figure.

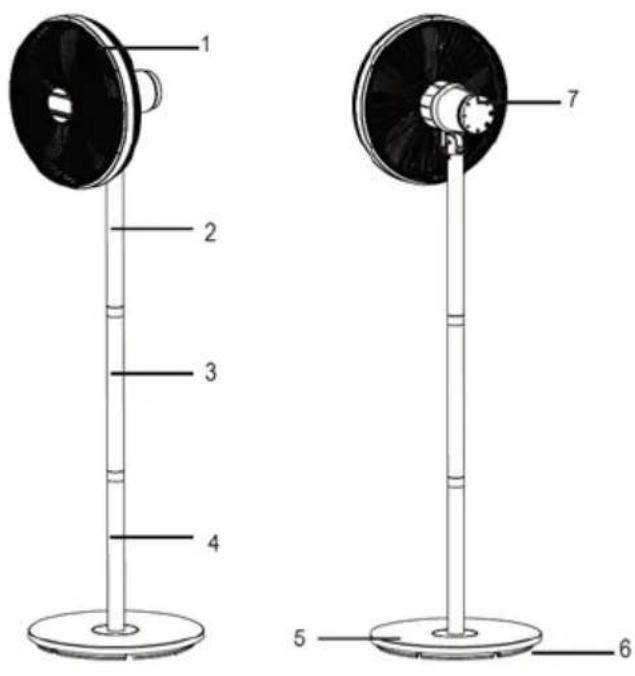

1 2 3 4 5 6 7

1) Front protective grille
2) Upper column
3) Middle column
4) Lower column
5) Base
6) Counter-weight
7) Selector switch

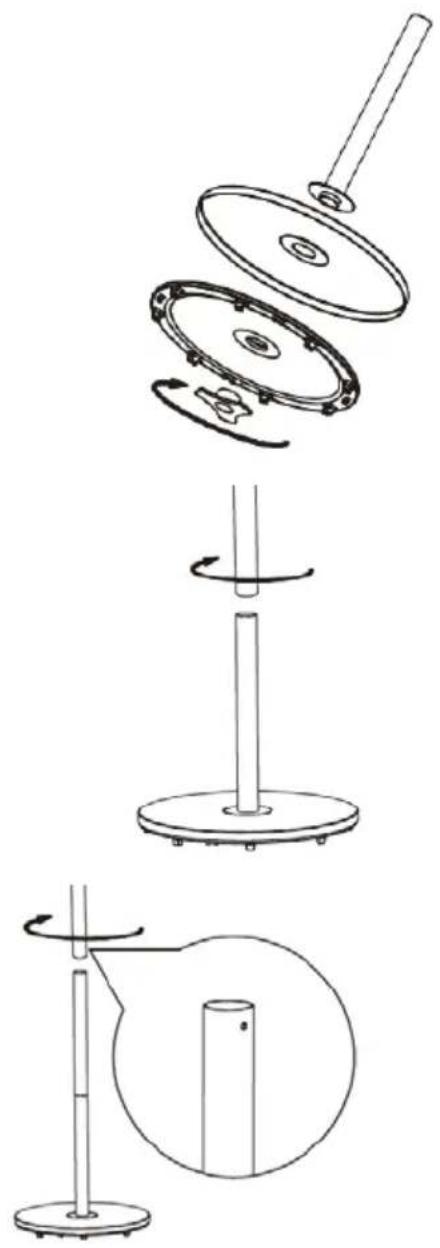

1) Fix the lower column (4) to the base and to the counter-weight (6), inserting it in its seat. Block it in place using the nut. At the end of the operation, check that the column and base are assembled solidly and correctly.

2) Screw the middle column (3) onto the lower column.

3) Screw the upper column (2) clockwise onto the middle column.

Exploded view diagram of a mechanical device showing internal components and rotation, with no text or symbols present.

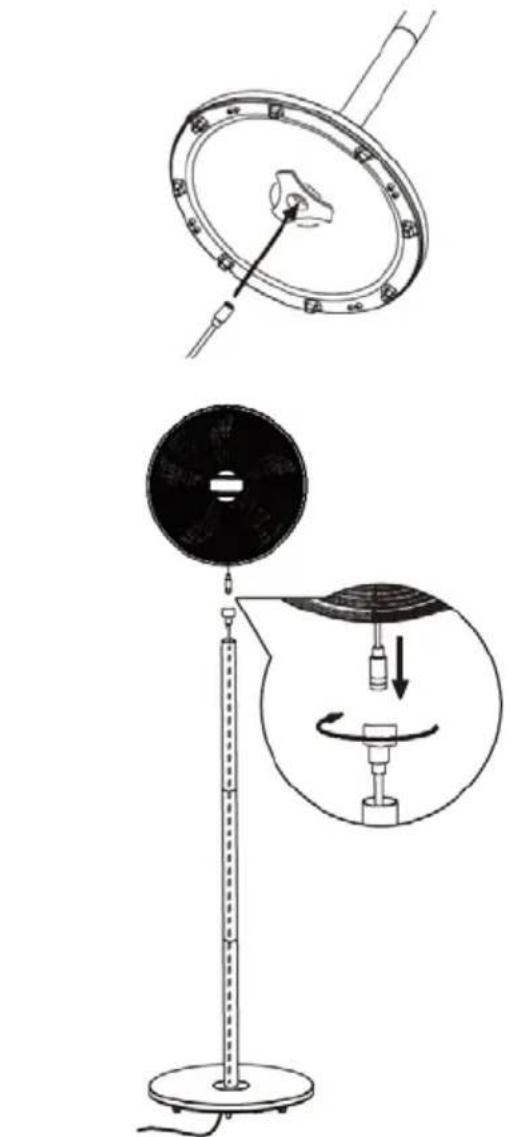

4) Insert the power cord into the lower, middle and upper columns so that the power plug is at the bottom.

5) Link the connector coming out from the upper tube to the connector coming out from the head of the fan and fix them by rotating the plastic nut.

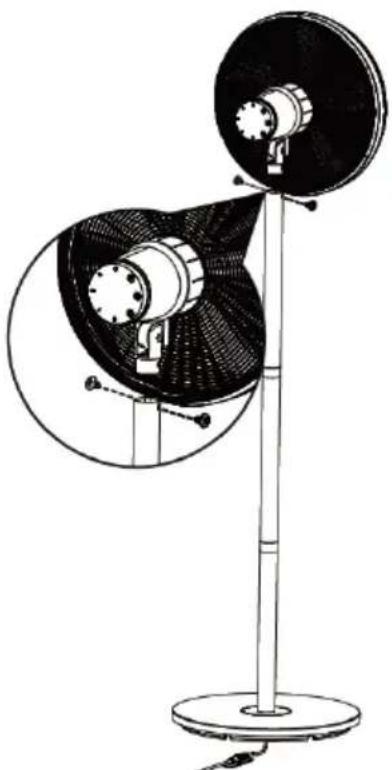

6) Insert the "fan head" on the upper column so that the two holes coincide and make certain it is blocked by tightening the screws clockwise and making certain they are tight. At the end of the operation, check that the fan head and the column are assembled solidly and correctly.

Technical diagram showing a mechanical device with a circular component and its internal structure, including a magnified view of the base (no text or symbols present)

Technical line drawing of a two-tiered industrial fan or fan assembly with circular components and a stand (no text or symbols)

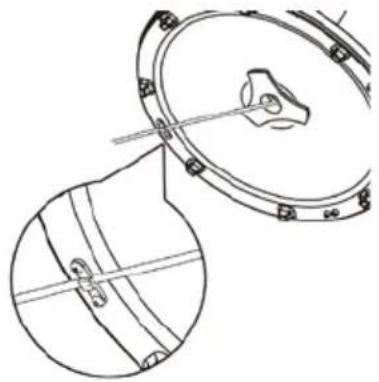

7) Turn the appliance over to the ground on a cloth or other soft surface (taking care not to damage or deform the heating unit, columns and base, so as not to compromise its proper functioning.); place the cord inside its slide on the bottom of the base and secure it by means of the fixing plate and the two screws supplied in its seat.

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

Reposition the appliance in an upright position

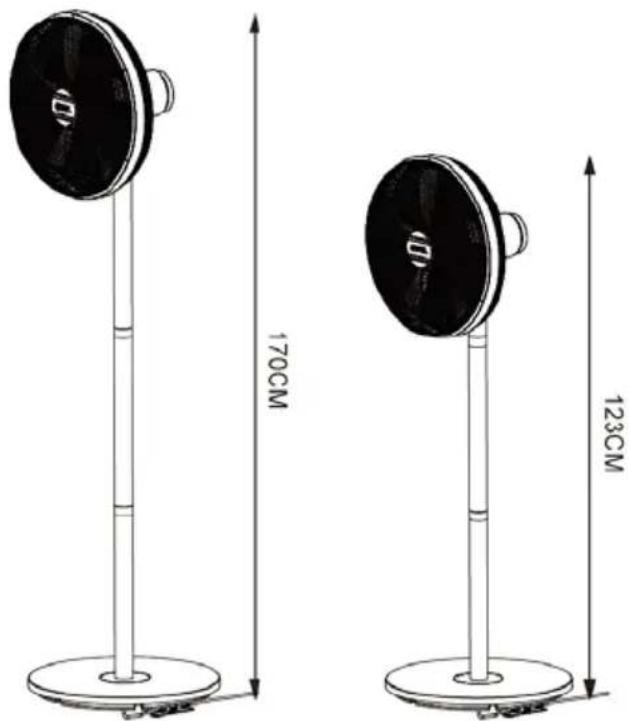

The fan can be installed at two heights depending on whether or not the middle tube is used.

If the smaller size (without Middle column) is needed please avoid the point 2 of assembly and proceed to connect the upper tube to the lower tube by screwing them together.

170cm 123cm

USE

Before using, check that the equipment is in good state, that the electric cord is not damaged. If the power cord is damaged, it must be replaced by the manufacturer of its technical service, or by a similarly qualified professional, to prevent any and all risk.

Insert the plug into the electric socket.

Fan: select the speed desired using the dedicated keys (7):

1 - Minimum speed 2 - Medium speed 3 - Maximum speed

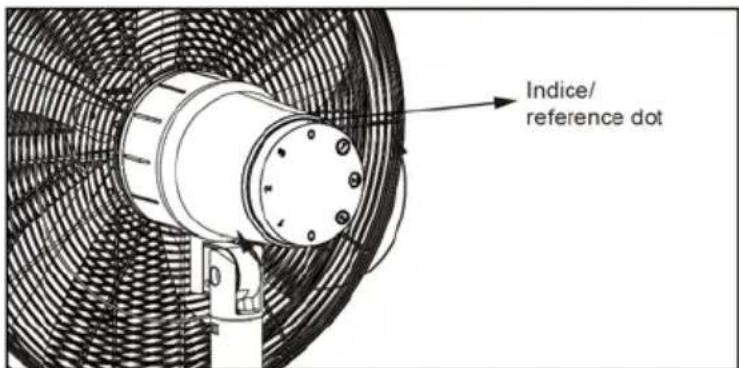

To activate oscillation (right-left) turn the knob clockwise to the position corresponding to the desired power setting:

Indice/ reference dot

① = Minimum speed. ② = Medium speed. ③ = Maximum speed

If the fan is working the light ring will be on; if the fan is off, the light ring will be off.

Vertical tilt (high-low): This is selected by tilting the motor body to the desired direction (high-horizontal-low).

To turn off the fan, press the selector switch into the "0" position and then remove the plug from the electric socket.

During long periods of inactivity, remove the plug from the electric socket.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.

• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the blade).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Exploded view diagram of a mechanical device showing internal components and rotation (no text or labels)

Technical line drawings of a mechanical device with components and assembly views (no text or symbols)

Technical line drawing of a mechanical device with multiple views and mounting base (no text or symbols)

Indice/ reference dot

Exploded view diagram of a mechanical device showing internal components and rotation arrows (no text or labels)

Technical line drawings of a floor lamp with mechanical components and a magnified inset showing the base view (no text or symbols present)

Technical line drawing of a mechanical component with circular features and mounting holes (no text or symbols)

Indice/ reference dot

Technical line drawings of mechanical components, including a rotating wheel and a circular component with a handle (no text or symbols)

Technical line drawings of a mechanical device with multiple views and components, no visible text or symbols

Indice/ reference dot
