IAN 323269 - LED string lights MELINERA - Free user manual and instructions
Find the device manual for free IAN 323269 MELINERA in PDF.
| Product type | LED string lights |
| Length of string | 70 m |
| Power cable length | 500 cm |
| Number of LEDs | 700 micro LEDs (warm white or multicolor depending on variant) |
| Total power | 7.2 W |
| Input voltage | 220-240 V ~, 50/60 Hz |
| Output voltage | 24 V ~ |
| Protection class | III (very low safety voltage) |
| Ingress protection | IP44 (protected against water splashes) |
| Lighting modes | 8 modes (Combination, Waves, Sequential, Si-Glow, Chase/Flash, Slow Fade, Twinkle/Flash, Fixed) |
| Brightness levels | 4 adjustable levels |
| Remote control | Infrared with CR2025 battery (included) |
| Timer | Yes, 6 h on / 18 h off cycle |
| Memory function | Yes, retains last mode and setting |
| Operating temperature | -10 °C to 75 °C |
| Warranty | 3 years |
| Usage | Indoor and outdoor (decorative, not ambient lighting) |
| Power supply | Power adapter model JT-EL/FC24V7.2W-H5-IP44 (supplied) |
| Remote control battery | CR2025 (Lithium 3V, included) |
| Repairability | LEDs not replaceable; do not open the casing |
| Cleaning | Dry cloth, do not use chemicals, do not immerse in water |
Frequently Asked Questions - IAN 323269 MELINERA
User questions about IAN 323269 MELINERA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your LED string lights in PDF format for free! Find your manual IAN 323269 - MELINERA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 323269 by MELINERA.
USER MANUAL IAN 323269 MELINERA
TRADIX GMBN A CO KG
Interpretation 10:132
2.转股代码
GROWANT
ServiceAddress:
100%
all service options, the dviator now appears in the corresponding page for
中
（）
Aeae aee eae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aeae aaee
①
[
n an yomuy fumigat yamagc. Fmory rupnng ng mnnnns o
(2)
eepnne eae
（）
[Tab]
C/Al/CH HEDichokd
Bodienognepity
AD = AC = 1
Gg/IE LED Fairy Light
Inlurhe meun 20
EP/PE Gtcaede 1mepnccs aLED
Mato
，
N/SE LEDlichtening
49
一
P
Instvka825-9
一
CZ ED atelny
Now
SK LEO sveleha refaz
Ndvod no oaslu 93
DE/AT/CH
DEATCH

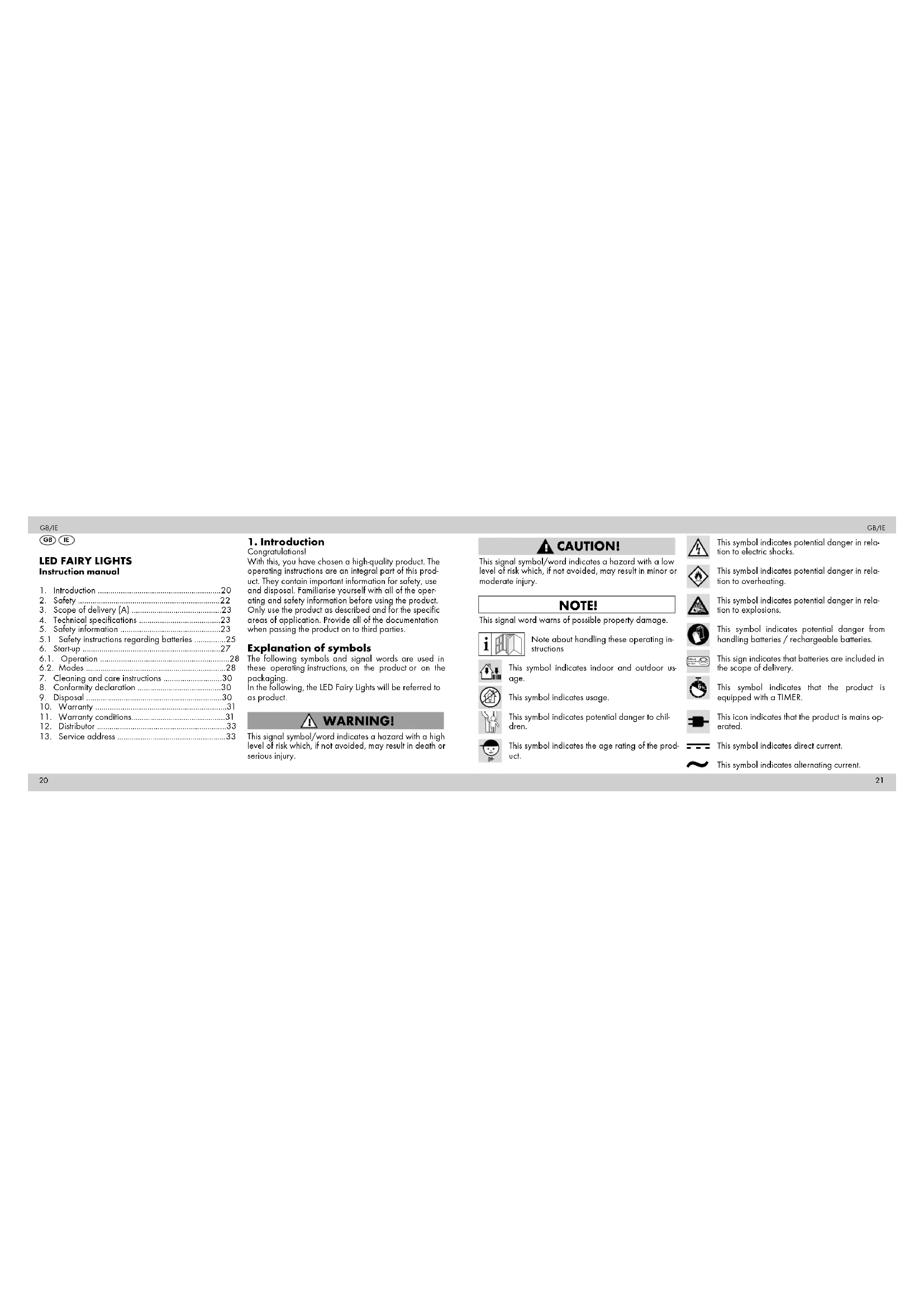

This symbol indicates an independent operating device.
Short-circuit proof safety transformer
This symbol indicates Protection Class IP44 (Protection against splashing water from all sides).
This symbol indicates protection class II.
This symbol indicates protection class III. SELV: safe extra-low voltage
This symbol indicates the polarity of the output socket.
These symbols inform you about the disposal of the packaging and product.
symbol provides information about the FSC rate.
Certified safety: Products marked with this symbol comply with the requirements of the German Product Safety Act (ProdSG).
Conformity declaration (see Chapter 8. Conformity declaration): Products that are marked with this symbol fulfil all applicable regulations of the European Economic Area.
2. Safety
Intended use
This product is intended for indoor and outdoor use.
This product is intended for decorative purposes only, and it is not suitable for household lighting.
WARNING!
Risk of injury
The product may not be used near liquids or in damp spaces. There is a risk of injury!
The product is not intended for commercial use. Different
use or a modification to the product are not deemed as intended use and may lead to risks, such as injuries and damage. The distributor assumes no liability for damage that results from improper use.

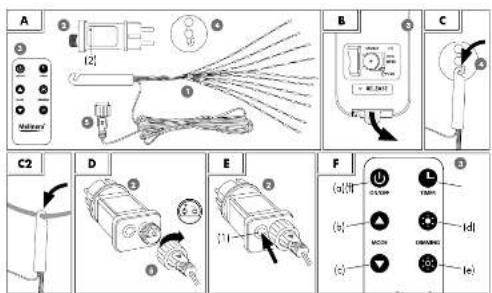

3. Scope of delivery (A)
1xLED light chain 1
1 x mains power adapter 2
1 x infrared remote control 3 [incl. CR2025 battery]
1 x operating instructions (not illustrated)
4. Technical specifications
Type:ED light chain Light 1000x1000
IAN323269_1901
Tradix Art. No.: 323269-19-A, -B, -C
32326919A,B:
700 Micro-LEDs (warm white LEDs)
323269-19-C
700 Micro-LEDs Jeach of 175 x red, green, yellow and
blue LEDs)
Total output: 7.2 W
Protection class: III
Protection type: IP44
The LED light chain can only be operated with the fol
lowing mains power adapter:
Mains power adapter
Model:JTEL/FC24V7.2W-H5-IP44
Input: 220-240 V
50-60 Hz
Output: 24 V
Protection class: II
8 lighting modes
Infrared remote control
Battery: CR2025 battery
3Y lithium
8 lighting modes
4 dimming levels
Timer
Long LED light chain: 70 m
Long power supply cable: 500 cm
Date of production: 06
Guarantee: 3 Years
5. Safety information
WARNING!
Risk of strangulation and suffoca
fionl
If children play with the product or the packaging, they could become caught in it and suffocate!
- Do not let children play with the product or the packaging.
Supervise children who are close to the product. - Keep the product and the packaging out of reach of children.
WARNING!
Risk of injury!
Not suitable for children under the age of 81 There is a risk of injury! Children from the age of 8, as well as people with impaired physical, sensory or mental capabilities or with a lack of experience on knowledge, must be supervised when using the product and/or be instructed regarding the safe use
The product can be instructed to grow and the date of the product is set. Children are not allowed to play with the product.
Maintenance and/or cleaning of the product is not allowed to be performed by children without supervi
Observe national regulations!
- Observe the applicable national requirements and regulations for the use and disposal of the product.
Pay attention to ambient conditions!
The product is not allowed to be used in temperatures
above 75^ and/or below-10°C.
WARNING!
Risk of injury!
Do not use in an explosive environment! There is a risk of injury!
- The product is not allowed to be used in an explosive [Ex] environment. The product is not approved for an environment, in which flammable liquids, gases or dust are present.
WARNING!
Risk of injury!
A defective product is not allowed to be used! There is a risk of injury!
Do not use the product in the case of malfunctions,
damage or defects. If you determine a defect on the product, remove the batteries from the device and have the product inspected and repaired, if necessary, before putting it into operation again.
- The LEDs are not replaceable. If the LEDs are defective, the product must be disposed of.
Significant danger can occur for the user in the case of improper repairs.
WARNING!
Risk of injury!
The product is not allowed to be
manipulated! There is a risk of injury from electric shock!
The casing must not be opened and the product must not be manipulated/modified under any circumstances. Manipulations/modifications can cause danger to life from electric shock. Manipulations/modifications are prohibited for approval reasons (CE).
Check voltages!
Make sure that the existing mains voltage corresponds to the specification on the rating place. Failure
to comply can lead to excessive heat development. The product must not be covered up during use.
Never touch the power plug with wet hands, if it is in operation.
The product may not be connected to the mains supply if it is still in its packaging.
WARNING!
Risk of injury!
There is a risk of injury from electric shock!
- The product may not be used without the properly fitted sealing rings.
5.1 Safety instructions regarding batteries
WARNING!
Fatal danger!
Batteries must not be swallowed! There is a risk of fatal injuries!
Batteries may be fatal if swallowed, so this article and its articles must be stored out of the reach
| 6. Start-up Before the start-up NOTE! | |
| First, remove all packaging materials from the product. | |
| WARNING! | |
| Injury risk! The power cable must not be used in a rolled-up state. Overheating risk! Lay out the power cable evenly. | |
| Infrared remote control start-up The battery of the infrared remote control is already inserted in a delivered state. Prior to initial start-up, pull out the safety strip as shown Fig. B. The infrared remote control is now ready to operate. | |
| Product positioning Place the product on an appropriate surface. Spread out the product according to your preferences. | |
| Drape the product into a glass container You can drope the product into a glass container to be |
until the product has been completely hung, laid out or dropped on a tree.
Insert plug into the output socket
Insert the plug of the product with the correct polarity into the outlet socket on the mains power adapter, refer to Fig. C.
NOTE!
For this, please pay attention to the recess and polarity in the outlet socket of the mains power adapter. Screw the union nut onto the plug, see Fig. C.
6.1. Operation
Mains power adapter
Insert the main power adapter into an easily accessible wall outlet. The product will illuminate in the last mode that was set.
To switch the product off, remove the mains power adapter from the wall outlet.
Infrared remote control NO
The mains power adapter is fitted with an infrared diode. Therefore, aim towards the mains power adaptor to use the infrared remote control.
To switch the product on, press the ON/OFF button (a), on the infrared remote control (see Fig. 3).
To switch the product off, press the ON/OFF button (a) again on the infrared remote control.
6.2. Modes
Mode selection on the mains power adapter (Fig. D)
If the product is switched on, you can use the button [1] on the mains power adapter to scroll through the following modes by consecutively pressing 1 x for each:
1.COMBINATION
2. IN WAVES
3.SEQUENTIAL
4.SLO-GIO
5.CHASING/FLASH
6.SLOW FADE
- TWINKLE/FLASH
- STEADY ON
Mode selection on the infrared remote control (Fig. E)
If the product is switched on, you can use both of the MODE buttons [b] + [c] on the infrared remote control to scroll forward and back through the following
modes: 1. COMPLIANT
1.COMBINATION
2.IN WAVES
3.SEQUENTIAL
4.SLO-GLO
5.CHASING/FLASH
6.SLOWFADE
7. TWINKLE/FLASH
8. STEADY ON
Dimmer function (Fig. E)
With both of the DIMMING buttons [d] + [e] on the infrared remote control, you can increase/reduce the brightness of the LEDs in 4 stages.
GB/IFGB
Timer function
The product is fitted with a timer function.
Activating/deactivating the timer function via the mains power adapter
If the product is switched on, you can use the button (1) on the mains power adapter by keeping the button pressed for a longer time (approx. 3 seconds) to activate the timer, and deactivate it again through a longer actuation (approx. 3 seconds).
Activate/deactivate timer function via infrared operation (Fig. F)
If you press the TIMER button (F) 1 × on the infrared remote control, the timer function will switch on. Press the button again to switch off the timer.
If the timer function is switched on, the product will switch off automatically after 6 hours.
After another 18 hours, the product will switch back on automatically.
If the product is not switched of manually, this daily cycle will repeat itself.
NOTE!
If the timer is active, a green LED will illuminate on the adapter, see Fig. A (2).
Memory function
The product has a memory function When it is switched off, the last settings used remain stored and are immediately available again the next time it is switched on.
7. Cleaning and care instructions
WARNING!
Risk of injury!
Before cleaning, you must remove the batteries from the battery compartment. The power plug must be disconnected before cleaning. There is a risk of electric shock!
only clean with a dry cloth
do not use any strong detergents and/or chemicals
- do not immerse in water
- store in a cool, dry place and protected from UV light
8. Conformity declaration
This device complies with the fundamental requirements and other relevant regulations of the European Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The complete original conformity declaration is available from the importer.
9. Disposal
Disposal of the packaging
The packaging and operating instructions are made of 100% environmentally friendly materials, which you may dispose of at local recycling centres.
Disposal of the product
The product may not be disposed of with normal household waste. Please find out about disposal options for the product from your local authority or town administration.
Disposal of the battery / rechargeable bat
- Defective or used rechargeable batteries have to be recycled in accordance with Directive
2006/66/EC and its amendments.
- Batteries and disposable batteries are not permitted to be disposed with household waste. They contain harmful heavy metals. Marking: Pb (= lead), Hg (= mercury), Cd (= cadmium). You are legally obligated to return used batteries and rechargeable batteries. After use, you can either return batteries to our point of sale or in the direct vicinity (e.g., with a retailer or in municipal collection centres) free of charge. Batteries and rechargeable batteries are marked with a crossed-out waste bin.
10. Warranty
Warranty from TRADIX GmbH & Co. KG Dear customer, the warranty on this product is 3 years from the purchase date. In the event of defects in this product, you are entitled to exercise your statutory rights against the seller of the product. These statutory rights are not limited by our warranty described in the following.
11. Warranty conditions
The warranty begins on the date of purchase. Please keep the original receipt. This document is required as
verification of the purchase.
If a material or manufacturing defect arises within three years from the purchase date of this product, the product will be repaired or replaced, as per our choice, at no charge to you. This warranty service requires the submission of the purchase receipt and the defective product within the three-year period and a short written description of the defect and when it arose.
If the defect is covered by our warranty, the repaired or a new product will be returned to you. The warranty period does not restart with the repair or replacement of the product.
Guarantee period and statutory claims for defects
The guarantee period will not be extended by the warranty. This also applies to replaced and repaired parts. Damage and defects which may possibly already exist upon purchase must be reported immediately after unpacking. After the guarantee period has expired, required repairs shall be subject to a charge.
Scope of guarantee
The device has been carefully produced under strict
quality guidelines and conscientiously inspected prior to delivery. The guarantee service applies to material or manufacturing faults. This guarantee does not extend to product parts, which are exposed to normal wear and tear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, battery packs or which are made of glass. This guarantee shall lapse, if the product is damages, not used properly or maintained properly. For proper use of the product, all of the instructions in the operating instructions must be precisely complied with. Purposes and actions, which are dissuaded from or warned about in the operating instructions must be avoided. The product is only intended for private and not commercial use. In the case of abusive and improper handling, use of force and with interventions, which are not performed by our authorised service branch, the guarantee shall lapse.
Processing in the case of a guarantee claim. To ensure quick processing of your concern, please follow the instructions below: Please have the till receipt and article number available (e.g.IAN 323269_1901) as proof of the pur
- You can find the article number on the rating plate on the product, as an engraving on the product, the title place of your instructions (bottom left) or the sticker on the back or underside of the product.
- If malfunctions or other defects occur, first contact the service department below by telephone or e-mail.
- You can then send a product that has been recorded as being defective, including the proof of purchase (till receipt) and stating what the defect is and when it occurred, postage-free to the service address provided to you.
On www.jidl-service.com, you can download these an many other manuals, product videos and installation software.
With this QR code, you can directly reach the Lidl Service website [www.lidl-service. com] and can open your operating instructions to be entering the article number [IAN] 323269_1901.
12. Distributor
Hotline: 00800 30012001 (free of charge, mobile networks may vary)
E-Mail:tradix-gb@teknihall.com
E-Mail: tradix- ie@teknihall.com
06/2019/PO31000451
