| Product type | LED light chain |
| Brand | Melinera |
| Model | HG05179A |
| Total length | Approx. 16 m (chain) + 10 m (power cord) |
| Number of LEDs | 1000 |
| Light color | Warm white (model HG05179A) |
| Operating voltage (chain) | 30 V DC |
| Supply voltage | 220-240 V ~, 50/60 Hz |
| Total power consumption | Approx. 7 W (with adapter) |
| Protection rating | IP44 (protected against water splashes) |
| Protection class | II (double insulation) |
| Light modes | 8 modes: Combination, In waves, Sequential, Slo-Glo, Chisel/Flash, Slow transition, Twinkle/Flash, Steady light |
| Timer function | Yes, 6 hours on, 18 hours off, auto repeat |
| Use | Indoor and outdoor (domestic use only) |
| LED replacement | Not possible (integrated non-replaceable LEDs) |
| Cleaning | Dry lint-free cloth, do not use water or solvents |
| Package contents | Light chain, power supply, instruction manual |
| Warranty | 3 years (from date of purchase) |
| Customer service France | Phone: 0800 919270, e-mail: owim@lidl.fr |
Frequently Asked Questions - HG05179A MELINERA
User questions about HG05179A MELINERA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your LED string lights in PDF format for free! Find your manual HG05179A - MELINERA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG05179A by MELINERA.
USER MANUAL HG05179A MELINERA
LED-GALAXIELICHTERKETTE/1000 LED FAIRY LIGHTS/GUIRLANDE GALAXIE A LED
DE AT CH
Operation and safety notes
NL BE
LED-LICHTKETTINGGALAXIE
GB/IEOperation and safety notesPage 11
LEDs:3V, 1000 LEDs x = =
List of pictograms used
Introduction
Proper use. Page 12
Description of parts and features.. Page 12
Technical data.. Page 12
Included items . Page 13
Safety information.. Page 13
Use
Timer function
Cleaning and care.. Page 14
Disposal
Warranty
Warranty claim procedure.. Page 15
Service Page 15

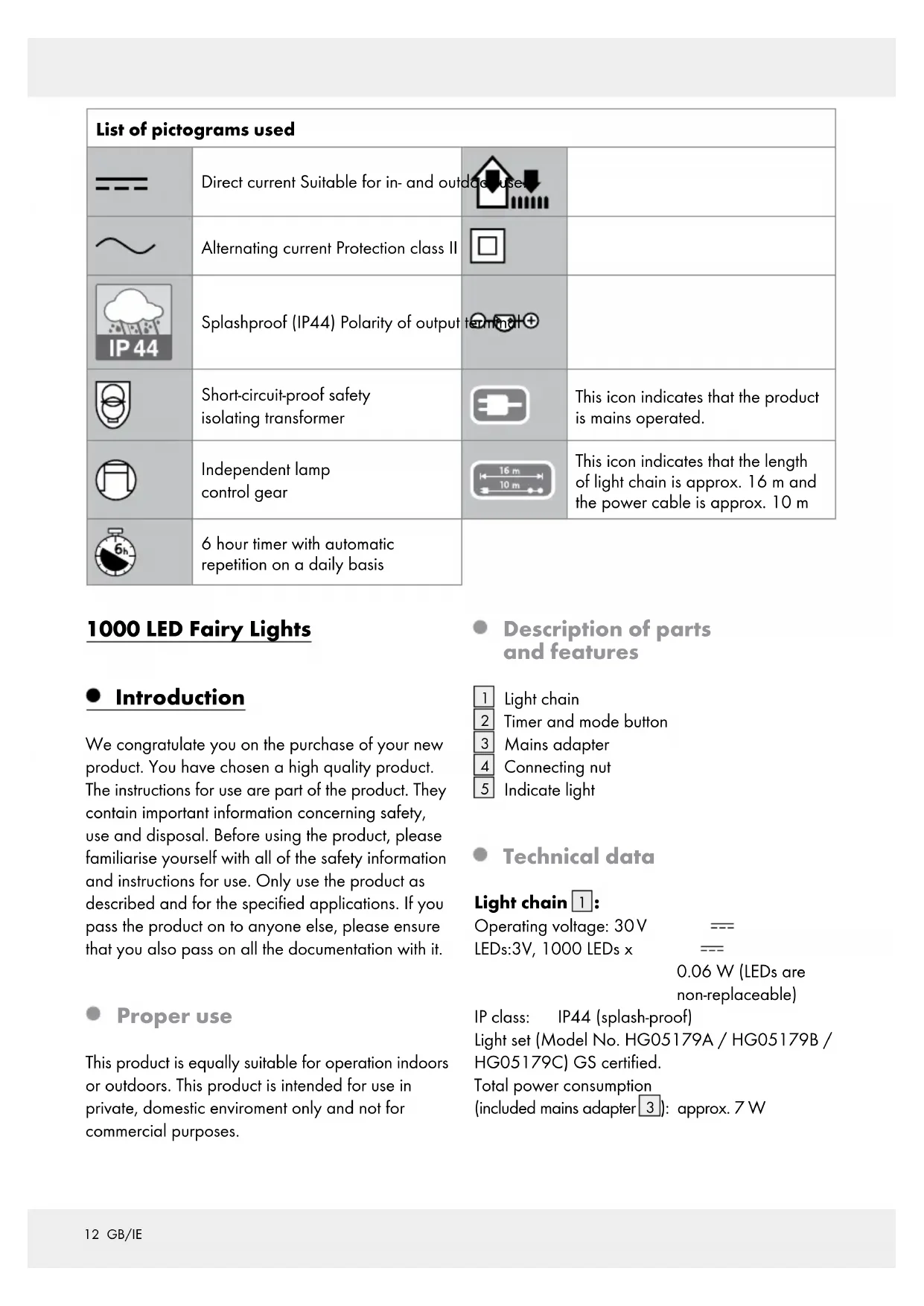

| List of pictograms used | |||
| = = = | Direct current Suitable for in- and outdoor use. | ||
| ~ | Alternating current Protection class II | ||
| Splashproof (IP44) Polarity of output terminal + | |||
| Short-circuit-proof safety isolating transformer | This icon indicates that the product is mains operated. | ||
| Independent lamp control gear | This icon indicates that the length of light chain is approx. 16 m and the power cable is approx. 10 m | ||
| 6 hour timer with automatic repetition on a daily basis | |||
1000 LED Fairy Lights
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Proper use
This product is equally suitable for operation indoors or outdoors. This product is intended for use in private, domestic enviroment only and not for commercial purposes.
Description of parts and features
1 Light chain
2 Timer and mode button
3 Mains adapter
4 Connecting nut
5 Indicate light
Technical data
Light chain 1:
Operating voltage: 30V
LEDs:3V, 1000 LEDs x
0.06 W (LEDs are non-replaceable)
IP class: IP44 (splash-proof)
Light set (Model No. HG05179A / HG05179B / HG05179C) GS certified.
Total power consumption (included mains adapter 3): approx. 7 W
Mains adapter 3:
Nom. voltage, primary: 220-240 V ~, 50/60 Hz
Nom. voltage, secondary: 30V = -300mA, 9W
Protection class:
IP class: IP44 (splash-proof)
Mains adapter (Model no. S090G300W8D) GS tested.
HG05179A: warm white
HG05179B: cool white
HG05179C: multi-color
- Included items
1 Light chain
1 Mains adapter
1 Operating instructions
Safety information
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
DAI 170NING!
DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!
Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.
This product is not a toy and should not be played with by children. Children are not able to understand the dangers that can occur when handling this product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Ensure that the product is installed by suitably experienced or qualified persons only.
CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.
Do not pull the product mains cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
Do not attach any other objects to the product.
Avoid the danger of death from electric shock!
Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V~).
Before connecting the product to the mains you should always check the product and the mains adapter for any damage.
Never use the product if you discover that it is damaged in any way.
This product's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.
This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced.
Only use the product with the supplied mains adapter for the type (Model No. S090G300W8D); all warranty claims will otherwise expire.
Never open any of the electrical parts or insert any kind of object into them.
Protect the mains cable from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.
Always unplug the mains adapter from the socket before installation, dismantling or cleaning.
Never touch the mains adapter or the product itself with wet hands.
The product must not be electrically connected to another set of lights.
If the product is not in use for any length of time (e.g. holidays), disconnect it from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
The product is only suited for use with the included mains adapter (Model No. S090G300W8D).
Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.
The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.
WARNING! This product must not be used without all gaskets being properly installed.
Do not operate the light chain in the packaging or when it is rolled up.
Use
Note: Remove all packaging materials from the product.
Note: The LEDs are connected in series. If one LED is defective, up to ten LEDs may not light up.
Insert the plug on end of the product into the socket of the mains adapter 3. Please screw down the connecting nut 4 clockwise.
Insert the mains adapter into the mains socket.
The light chain is switched on.
Press the Timer and mode button to switch to the next lighting mode. When you reach lighting mode 8, the next press of the Timer and mode button 2 switches the product back into lighting mode 1.
The light mode is listed as below:
- Combination
- In wave
- Sequential
- Slo-Glo
- Chasing/flash
- Slow fade
- Twinkle/flash
- Steady on
Pull the mains adapter out of the mains socket to switch off the light chain 1.
Timerfunction
To switch on the timer function, press and hold 2 second the Timer and mode button 2 after the product is connected to the socket of power supply. The indicate light 5 will light up when the timer function is activated.
The product lights glow permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
To switch off the timer function, press and hold the Timer and mode button 2 and the indicate light 5 will be turned off.
When the timer function is switched off, the product glows continuously. To switch off the product completely, the mains adapter 3 has to be unplugged from the socket.
Cleaning and care
CAUTION! DANGER OF ELECTRIC SHOCK!
First pull the mains adapter 3 out of the mains socket.
CAUTION! DANGER OF ELECTRIC SHOCK!
For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.
Do not use any solvents, petrol or similar items. This would damage the product.
Only a dry, lint-free cloth should be used for cleaning.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: owim@lidl.co.uk
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR / Min., (off peak))
E-Mail: owim@lidl.ie
CE IP44
Led's:3V,1000 led's x
