Product type	Balance bike for children
Brand	Playtive
Model	IAN 103989
Dimensions (L x W x H)	Approx. 86 x 43.5 x 56-60 cm
Weight	Approx. 3.3 kg
Maximum user weight	50 kg
Recommended age range	3 to 6 years (height 96-120 cm)
Adjustable seat height	Yes, from 36.5 to 46 cm
Adjustable handlebar height	Yes, from 56 to 60 cm
Brake	Front hand brake, adjustable
Frame material	Steel (estimated)
Wheels	Two solid wheels (EVA or rubber type)
Main features	Balance and steering learning, storage basket, bell, handlebar protector
Package contents	Frame, fork, front wheel, handlebar, seat, mudguard, basket, handlebar protector, bell, stickers, assembly tools
Assembly required	Yes, by an adult
Care and cleaning	Clean with clear water, dry, oil bearings every 3 months
Safety	Not suitable for children under 36 months, use under adult supervision, wear a helmet and sturdy shoes
Warranty	3 years (material and manufacturing defects)
Customer service France	Tel. [phone], Email: [e-mail]
Customer service Belgium	Tel. [phone] (0.15 EUR/min), Email: [e-mail]

Frequently Asked Questions - IAN 103989 Playtive

What is the recommended age for this balance bike?

This bike is designed for children aged 3 to 6 years, measuring between 96 and 120 cm, with a maximum weight of 50 kg.

How to install the front mudguard?

Attach the front mudguard (11) with the screw (12) and nut (13) to the fork (14). Ensure that the slot of the fork is oriented towards the long side of the mudguard.

How to adjust the seat height?

Lift the cover, loosen the nut, adjust the seat to the desired height (do not exceed the maximum height mark), then tighten the nut and replace the cover.

What is the maximum handlebar height?

The handlebar height is adjustable from 56 to 60 cm. Observe the maximum telescopic height mark.

How to maintain the bike?

Clean it with clear water (no aggressive products) and wipe it dry. Store it in a dry and temperate place. Every three months, add a drop of oil to the bearing bushings of the handlebar and wheels.

What safety equipment is recommended?

The child must always wear a helmet and sturdy shoes. Additional protective equipment (knee pads, elbow pads) is recommended.

How to adjust the braking force?

Press the brake lever (S1) in the direction of the arrow. Turn the adjusting nut (S2) to the left to reduce braking force, to the right to increase it. The rear wheel must turn freely when the brake is not applied.

Does the bike have a warranty?

Yes, a 3-year warranty from the date of purchase, valid for material and manufacturing defects. Keep the receipt.

Where can I find spare parts?

At www.delta-sport.com, under Service - Lidl spare parts service. You can also contact customer service at the numbers indicated (France: 0800 919270, Belgium: 070 270 171).

Can I use this bike on public roads?

No, this bike is intended for private use and must not be used on a traffic way. Use it in a safe area, away from stairs, slopes, and bodies of water.

USER MANUAL IAN 103989 Playtive

Illustration of a children's tricycle with bicycle basket and accessories, no visible text or symbols on the bike itself.

Instructions for use

58

SPRINGCYKEL

Bruksanvisning

FR BE

DRAISIENNE

Before reading, told out the illustration page and got to know all of the functions of your crit.

[Illegible]

GS/IE Instructions and Safety Notice Page 08

Fl. Kävtö in tvurgalisu-sheet Siv. 11

Technical diagram showing 16 steps of a mechanical assembly or repair procedure with labeled components and directional arrows.

GB IE

Contents/Parts Description 8

Technical Data 8

Intended Use 8

Safety Instructions 8-9

Risk of injury 8

Safety instructions for use 9

Assembly 9

Install mudguard 9

Install front wheel 9

Install frame 9

Install basket 9

Install handlebar 9

Install saddle 9

Install protective handlebar cushion ...... 9

Sticker set 9

Settings 10

Handlebar height 10

Saddle height 10

Brake 10

Care, storage, maintenance 10

Disposal Instructions 10

3 years warranty 10

SE

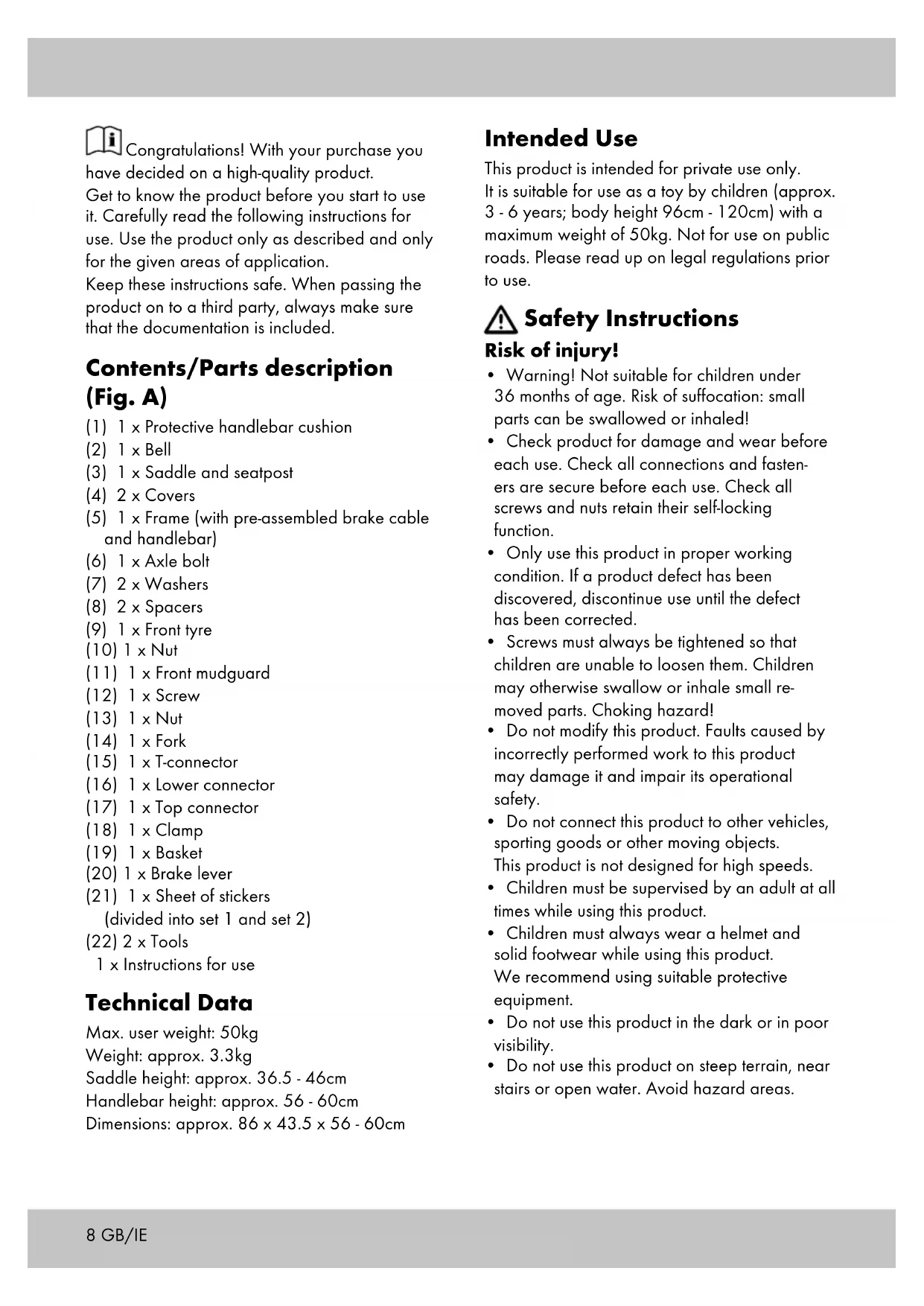

Congratulations! With your purchase you decided on a high-quality product.

Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application.

Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Contents/Parts description (Fig. A)

(1) 1 x Protective handlebar cushion
(2) 1 x Bell
(3) 1 x Saddle and seatpost
(4) 2 x Covers
(5) 1 x Frame (with pre-assembled brake cable and handlebar)
(6) 1 x Axle bolt
(7) 2 x Washers
(8) 2 x Spacers
(9) 1 x Front tyre
(10) 1 × Nut
(11) 1 x Front mudguard
(12) 1 x Screw
(13) 1 x Nut
(14) 1 x Fork
(15) 1 x T-connector
(16) 1 x Lower connector
(17) 1 x Top connector
(18) 1 x Clamp
(19) 1 x Basket
(20) 1 x Brake lever
(21) 1 x Sheet of stickers (divided into set 1 and set 2)
(22) 2 x Tools
1 x Instructions for use

Technical Data

Max. user weight: 50kg

Weight: approx. 3.3kg

Saddle height: approx. 36.5 - 46cm

Handlebar height: approx. 56 - 60cm

Dimensions: approx. 86 x 43.5 x 56 - 60cm

Intended Use

This product is intended for private use only. It is suitable for use as a toy by children (approx. 3 - 6 years; body height 96cm - 120cm) with a maximum weight of 50kg. Not for use on public roads. Please read up on legal regulations prior to use.

Safety Instructions

Risk of injury!

• Warning! Not suitable for children under 36 months of age. Risk of suffocation: small parts can be swallowed or inhaled!
• Check product for damage and wear before each use. Check all connections and fasteners are secure before each use. Check all screws and nuts retain their self-locking function.
• Only use this product in proper working condition. If a product defect has been discovered, discontinue use until the defect has been corrected.
• Screws must always be tightened so that children are unable to loosen them. Children may otherwise swallow or inhale small removed parts. Choking hazard!
• Do not modify this product. Faults caused by incorrectly performed work to this product may damage it and impair its operational safety.
• Do not connect this product to other vehicles, sporting goods or other moving objects. This product is not designed for high speeds.
  • Children must be supervised by an adult at all times while using this product.
• Children must always wear a helmet and solid footwear while using this product. We recommend using suitable protective equipment.
• Do not use this product in the dark or in poor visibility.
• Do not use this product on steep terrain, near stairs or open water. Avoid hazard areas.

Safety instructions for use

• Be aware that children are not always able to correctly assess their own abilities and certain dangerous situations. When distracted by games they are playing, children can get into hazardous situations beyond the distributor's/manufacturer's responsibility.
• Instruct children on the proper use of this product and alert them to potential risks.
• Children must be able to control braking at all times. Practice braking by foot and by brake before using the product.
• Smooth surfaces are slip hazards. Remember that using this product always involves the risk of collisions.

Assembly

CAUTION!

The product must always be assembled by an adult.

CAUTION!

Keep children away from the product and packing materials during assembly. Small parts which could be swallowed or inhaled and plastic bags may present choking hazards.

1. Install mudguard

Attach the front mudguard (11) to the fork (14) with screw (12) and nut (13) (Fig. B).

Ensure the slot on the fork is facing the longer side of the mudguard.

2. Install front wheel

Attach the front wheel (9) to the fork with 2x spacers (8), 2x washers (7) and the axle screw (6) (Fig. C).

3. Install the frame

3a) Attach the T-connector (15) to the fork (Fig. D).

Ensure the slot is facing the longer side of the mudguard.

3b) Attach the lower connector (16) to the fork (Fig. E).

Ensure it is slotted securely to the T-connector.

3c) Attach the frame (5) to the fork (Fig. F). Ensure it is slotted securely.

3d) Attach the top connector (17) to the fork (Fig. G).

4. Install basket

Attach the basket (19) to the fork (Fig. H).

5. Install handlebar

5a) Attach the clamp (18) to the fork (Fig. 1). Ensure slotted securely.
5b) Attach a cover (4) to the handle tube (Fig. J).
5c) Insert the handle tube into the fork (Fig. K).

Please note the maximum extension marking.

Use the tool (22) to tighten the nut on the clamp and slide the cover over the clamp.

6. Install saddle

6a) Attach a cover to the saddle with seatpost (3) (Fig. L).
6b) Insert the seatpost into the opening on the frame (Fig. M).

Please note the maximum extension marking.

Tighten the nut with the tool to secure the saddle, then slide the cover over the nut.

7. Install protective handlebar cushion

Attach the protective handlebar cushion (1) to the handlebar with the hook and loop fastener (Fig. N).

8. Sticker Set

Apply the sticker set 1 or set 2 (21) in the specified locations (Fig. O).

Settings

Handlebar height

Please note the maximum extension.

Slide up the cover. Loosen the clamp until you are able to slide the handlebar up and down and adjust the handlebar to the correct height. Tighten the clamp, then slide the cover over the clamp (Fig. P).

Saddle height

Note:

The seat is at the right height when the child is able to safely touch the ground with his/her feet.

Please note the maximum extension.

Slide up the cover. Loosen the nut until you are able to slide the seat up and down and adjust the seat to the correct height. Tighten the nut and slide the cover back down (Fig. Q).

Brake

Brake handle

The maximum distance from the handle to the brake handle is 60mm. Adjust the distance between the brake handle (20) and the handle by adjusting the locking screw (Fig. R).

Brake force

CAUTION!

The brake force must be adjusted so that the rear wheel runs freely when the brake lever is released and is blocked when applied.

Press the brake arm (S1) in the direction of the arrow. Turn the adjusting and locking nut (S2) counter clockwise to reduce the braking force, turn the adjusting and locking nut clockwise to increase the braking force (Fig. S).

Care, storage, maintenance

We recommend thoroughly cleaning the product with water after use.

IMPORTANT! Clean with water only, never with harsh cleaning agents. Wipe dry with a cleaning cloth. Always store the dry and clean product in a temperate room. Apply a drop of oil to the bearing bushings on the handlebar and wheels every 3 months.

Disposal Instructions

Please dispose of packaging and product in an environmentally friendly manner! Dispose of product through an approved disposal facility or through your local council. Please note the recycling regulations in your area.

3 years warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 103989

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service
