IAN 293617 - Balance bike Playtive - Free user manual and instructions

Product type	Balance bike
Brand	Playtive
Model	IAN 293617
Recommended age	3 to 6 years (height 96-120 cm)
Maximum user weight	50 kg
Bike weight	Approx. 3.3 kg
Seat height	36.5 to 46 cm
Handlebar height	56 to 60 cm
Dimensions	Approx. 85 x 44.5 x 56-60.5 cm (L x W x H)
Wheel diameter	Approx. 30 cm
Material	Steel frame, rubber tires
Brake	Hand brake with Bowden cable
Included accessories	Bell, basket, impact protection, stickers
Use	Private use, children's toy, do not use on public roads
Assembly	To be done by an adult, tools included
Care and cleaning	Clean with water, dry with a cloth, avoid harsh cleaners
Safety instructions	Wear a helmet and shoes, adult supervision, check before each use
Warranty	3 years from date of purchase
Customer service (Switzerland)	Phone [phone], email [e-mail]

Frequently Asked Questions - IAN 293617 Playtive

What is the recommended age for this balance bike?

This balance bike is designed for children aged 3 to 6 years, with a height of 96 to 120 cm. The maximum user weight is 50 kg.

How do I adjust the seat height?

Push the cover plate upwards, loosen the nut, adjust the seat to the desired height (the child should be able to place their feet flat), then tighten the nut and replace the cover plate.

How do I adjust the handlebar height?

Push the cover plate upwards, loosen the clamping collar, adjust the handlebar height (observe the maximum extension height), then tighten the collar and replace the cover plate.

How do I adjust the brake?

The distance between the grip and the brake lever must not exceed 60 mm. Adjust the braking force by turning the adjustment nut (S2): turn left to decrease, right to increase. Check that the rear wheel spins freely when the brake is released and locks when applied.

What accessories are included with the bike?

The bike comes with a bell, a basket, an impact protection for the handlebar, stickers (set 1 and set 2), and assembly tools.

How do I maintain the balance bike?

Clean it only with water and dry with a cloth. Do not use harsh cleaners. Store it in a dry, temperate place.

What safety instructions must be followed?

The child must always wear a helmet and closed-toe shoes. Do not use on public roads or in the dark. Avoid slopes, stairs, and water bodies. Adult supervision is essential. Check the condition of the bike before each use.

Can I use this bike on public roads?

No, this balance bike is not a vehicle as defined by the traffic code. It is intended for private use on private or secure grounds, under adult supervision.

What is the warranty period?

The product has a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep your receipt. For any claims, contact customer service.

How to contact customer service in Switzerland?

You can reach Swiss customer service by phone at 0842 665566 (CHF 0.08/min, mobile max. CHF 0.40/min) or by email at [e-mail].

USER MANUAL IAN 293617 Playtive

Black and white illustration of a bicycle with two wheels and a bicycle seat, no visible text or symbols on the bike itself.

LAUFRAD

DELTA-SPORT HANDELSKONITOR GMBH

Wergelurp € 0522397 Hungary

GERMANY

-

m

□□□□□

Instructions for use

IAN 293617IAN 293617

OF AT CH

FR IT OR

M M C

Before reading, told out the illustration page and got to know all of the functions of your unit.

GS Instructions and Safety Notice Page 21

A 19 1 Set 1 Set 2 18 17 4 16 3 4 5 15 14 13 12 11 10 7 6 9 8 7 6 B C D

Technical diagram showing 16 steps of bicycle wheel assembly with labeled components and directional arrows

DE AT CH

Package contents/Names of parts 21

Technical data 21

Intended use 21

Safety information 21-22

Risk of injury 21 - 22

Safety instructions for use 22

Assembly 22-23

Mounting the mudguard 22

Mounting the frame 22

Mounting the basket 22

Mounting the handlebars 22

Mounting the saddle 22

Mounting the front wheel 22-23

Attaching handlebar protection 23

Sticker sets 23

Settings 23

Handlebar height 23

Saddle height 23

Brake 23

Storage, cleaning 23

Disposal 23

Notes on the guarantee and

service handling 23 - 24

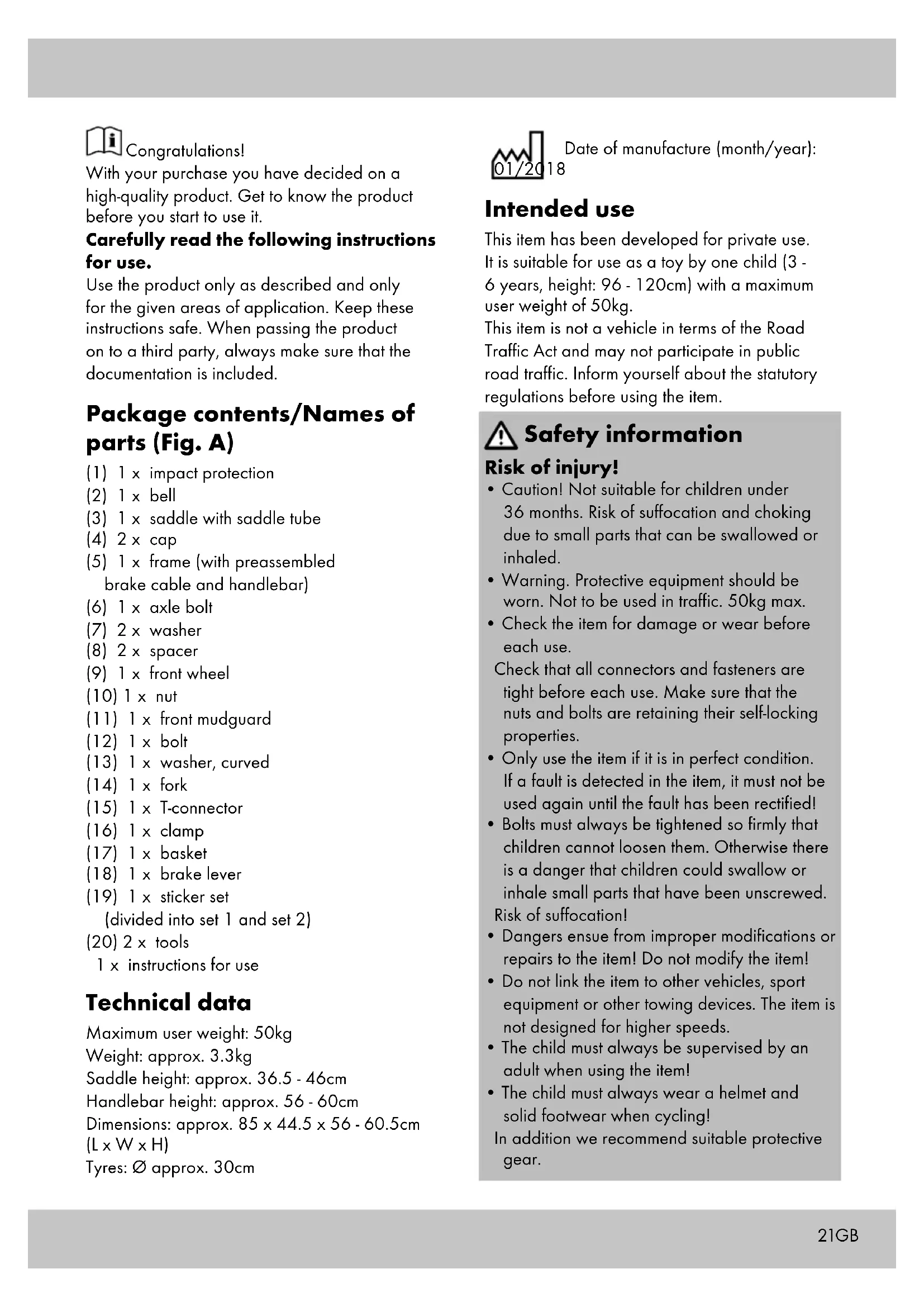

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Package contents/Names of parts (Fig. A)

(1) 1 x impact protection
(2) 1 x bell
(3) 1 x saddle with saddle tube
(4) 2 x cap
(5) 1 x frame (with preassembled brake cable and handlebar)
(6) 1 x axle bolt
(7) 2 x washer
(8) 2 x spacer
(9) 1 x front wheel
(10) 1 x nut
(11) 1 x front mudguard
(12) 1 x bolt
(13) 1 x washer, curved
(14) 1 x fork
(15) 1 x T-connector
(16) 1 x clamp
(17) 1 x basket
(18) 1 x brake lever
(19) 1 x sticker set (divided into set 1 and set 2)
(20) 2 x tools
1 x instructions for use

Technical data

Maximum user weight: 50kg

Weight: approx. 3.3kg

Saddle height: approx. 36.5 - 46cm

Handlebar height: approx. 56 - 60cm

Dimensions: approx. 85 x 44.5 x 56 - 60.5cm

$$ (L \times W \times H) $$

Tyres: ∅ approx. 30cm

Date of manufacture (month/year):

:

Intended use

This item has been developed for private use. It is suitable for use as a toy by one child (3 - 6 years, height: 96 - 120cm) with a maximum user weight of 50kg.

This item is not a vehicle in terms of the Road Traffic Act and may not participate in public road traffic. Inform yourself about the statutory regulations before using the item.

Safety information

Risk of injury!

• Caution! Not suitable for children under 36 months. Risk of suffocation and choking due to small parts that can be swallowed or inhaled.
• Warning. Protective equipment should be worn. Not to be used in traffic. 50kg max.
• Check the item for damage or wear before each use.

Check that all connectors and fasteners are tight before each use. Make sure that the nuts and bolts are retaining their self-locking properties.

• Only use the item if it is in perfect condition. If a fault is detected in the item, it must not be used again until the fault has been rectified!
• Bolts must always be tightened so firmly that children cannot loosen them. Otherwise there is a danger that children could swallow or inhale small parts that have been unscrewed. Risk of suffocation!

• Dangers ensue from improper modifications or repairs to the item! Do not modify the item!
- Do not link the item to other vehicles, sport equipment or other towing devices. The item is not designed for higher speeds.
- The child must always be supervised by an adult when using the item!
- The child must always wear a helmet and solid footwear when cycling! In addition we recommend suitable protective gear.

• The item may not be used in the dark or when there is poor visibility!
• The item may not be used on sloping ground, or in the vicinity of stairs or open water! Avoid danger areas!

Safety instructions for use

• Keep in mind that children often cannot correctly assess their own abilities and certain dangerous situations! Unforeseeable situations can arise due to children's play needs, for which the liability of the distributor/manufacturer is excluded.
• Teach the child how to handle the item properly and alert them to possible dangers!
• The child must be confident that they are always in control of slowing down and braking the item.
  Practice slowing down and braking with the feet as well as with the brake before using the item.
• There is a danger of slipping on slick surfaces! Bear in mind that there is always the danger of a fall when the item is being used.

Assembly

CAUTION!

Assembly of the item must always be carried out by an adult!

CAUTION!

Keep children away from the item and the packaging materials during assembly. Risk of suffocation and choking due to small parts that can be swallowed or inhaled and risk of suffocation due to plastic bags.

1. Mounting the mudguard

Attach the mudguard (11) to the fork (14), from below, with screw (12) and washer (13) (Fig. B).

Make sure that the curved washer is inserted with a positive-locking fit.

2. Mounting the frame

2a) Put the T-connector (15) onto the fork (Fig. D).

Make sure that the deepened notch is facing the longer side of the mudguard.

2b) Put the frame (5) onto the fork (Fig. E).

Make sure that the notch is put into the guide provided.

When mounting the fork to the frame, make sure that the longer part of the mudguard is under the frame and is facing the rear wheel.

3. Mounting the basket

Put the basket (17) onto the fork (Fig. F).

4. Mounting the handlebars

4a) Put the clamp (16) onto the fork (Fig. G). Make sure that the notch on the clamp fits into the guide at the basket.

4b) Put a cap (4) on the handlebar tube (Fig. I).
4c) Put the handlebar tube into the fork (Fig. K).
4d) Make sure that the brake Bowden cable is correctly routed to the handlebars (Fig. H).
4e) Guide the Bowden cable under the frame from left to right. Put the rubber plug into the opening provided on the lower side of the frame.
4f) Guide the Bowden cable under the basket before putting the handlebars into the fork.

Take note of the maximum extension height marked!

Tighten the nut on the clamp with the tool (20) and slide the cap over the clamp.

5. Mounting the saddle

5a) Put a cap on the saddle with the saddle tube (3) (Fig. J).
5b) Put the saddle tube into the slot on the frame (Fig. L).

Take note of the maximum extension height marked!

5c) Tighten the nut with the tool, to secure the saddle and then push the cap over the nut.

6. Mounting the front wheel

6a) Press the two spaces (8) into the rim of the front wheel (9).
6b) Attach the front wheel (9) to the fork with 2 washers (7) and the axle bolt (6) (Fig. C).
6c) Secure the axle bolt (6) with the appropriate nut (10).

Make sure that the nut is tightly screwed to the axle bolt.

7. Attaching handlebar protection

Mount the impact protection (1) to the handlebars by the Velcro fasteners (Fig. M).

8. Sticker sets

Stick the sticker set 1 or set 2 (19) on the positions specified (Fig. N).

Settings

Handlebar height

Observe the maximum extension height!

Push up the cap.

Loosen the clamp until the handlebars can be pushed up and down and then set the handlebars to the appropriate height.

Tighten the clamp again and then push the cap over the clamp (Fig. O).

Saddle height

Note:

The saddle height is set correctly if the child can reach the ground securely with their feet.

Observe the maximum extension height!

Push up the cap. Loosen the nut until the saddle can be pushed up or down. Set the saddle to the appropriate height, retighten the nut and push the cap down again (Fig. P).

Brake

Bowden cable

Make sure that the brake Bowden cable is correctly routed to the handlebars (Fig. H).

Brake lever

The distance from the grip to the brake lever must not exceed 60mm. Adjust the distance of the brake lever (18) to the grip by adjusting the stop screw (Fig. Q).

Braking force CAUTION!

The braking force must be set in such a way that the rear wheel spins freely when the brake lever is released and jams when the brake lever is tightened.

Press the brake arm (S1) in the direction of the arrow. Turn the adjuster and the lock nut (S2) to the left to reduce the braking force, and turn the adjuster and lock nut to the right to increase the braking force (Fig. R).

Storage, cleaning

Always store the product in clean and dry condition at room temperature.

Only use water to clean and wipe it dry with cleaning cloth.

IMPORTANT! Never clean the product with aggressive cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 293617

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]
