USER MANUAL IAN 334437 Livarno Lux

Set of assembly instructions and instructions for use

Milliampere AC a.c. Alternating voltage Switching cycles Polarity of the connection Light intensity

Ambient temperature Light temperature in Kelvin

Battery compartment cover

Button: Reduce brightness

Button: Increase brightness

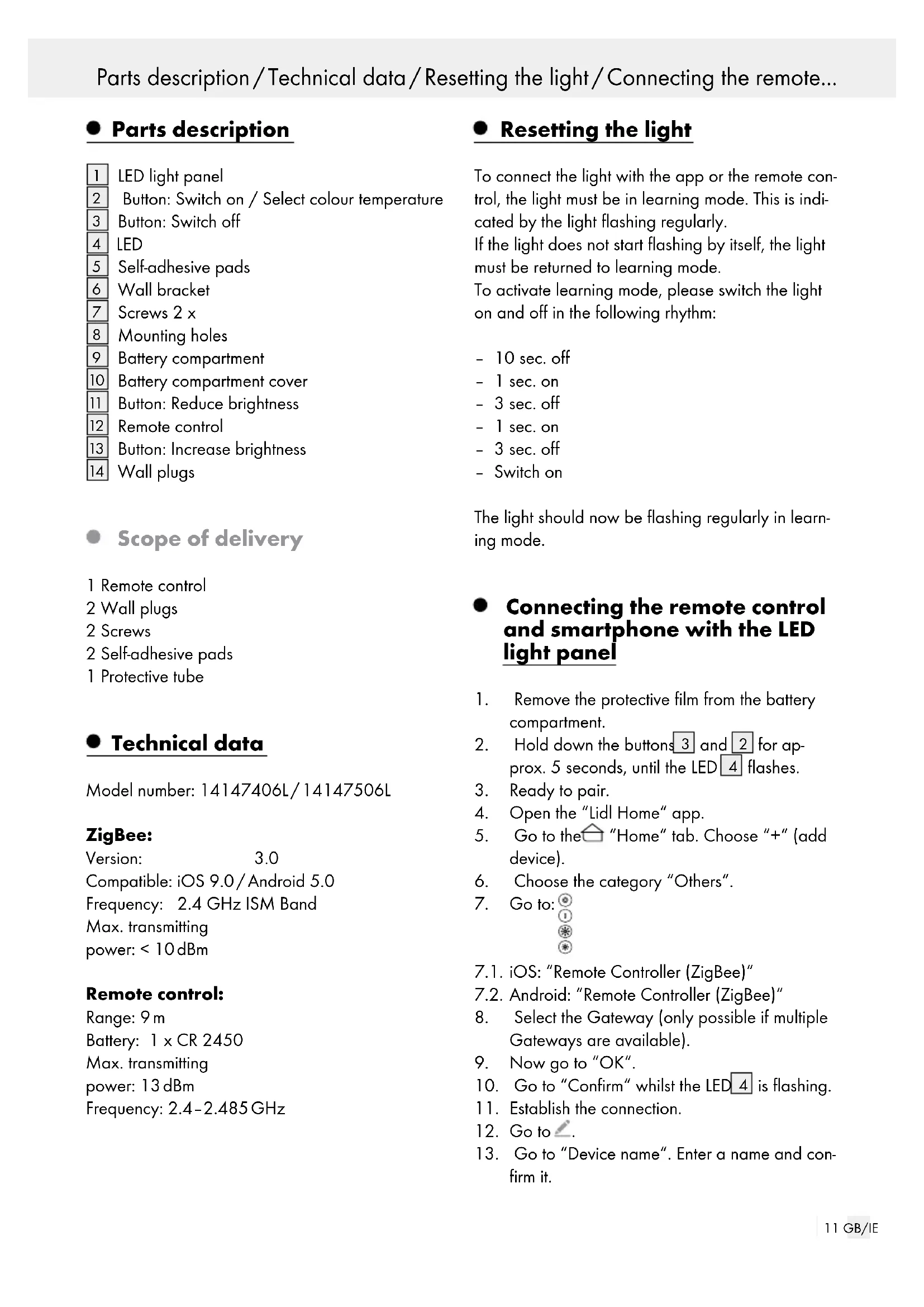

Wall plugs Scope of delivery 1 Remote control 2 Wall plugs 2 Screws 2 Self-adhesive pads 1 Protective tube Technical data Model number: 14147406L / 14147506L ZigBee: Version: 3.0 Compatible: iOS 9.0 / Android 5.0 Frequency: 2.4 GHz ISM Band Max. transmitting power: < 10 dBm Remote control: Range: 9 m Battery: 1 x CR 2450 Max. transmitting power: 13 dBm Frequency: 2.4‒2.485 GHz Resetting the light To connect the light with the app or the remote con- trol, the light must be in learning mode. This is indi- cated by the light flashing regularly. If the light does not start flashing by itself, the light must be returned to learning mode. To activate learning mode, please switch the light on and off in the following rhythm: – 10 sec. off – 1 sec. on – 3 sec. off – 1 sec. on – 3 sec. off – Switch on The light should now be flashing regularly in learn- ing mode. Connecting the remote control and smartphone with the LED light panel

1. Remove the protective film from the battery

for ap- prox. 5 seconds, until the LED

4. Open the “Lidl Home“ app.

8. Select the Gateway (only possible if multiple

10. Go to “Confirm“ whilst the LED

11. Establish the connection.

firm it. List of pictograms used12 GB/IE ... / Replacing the battery / Wall mounting... / Cleaning the remote control

14. Choose a room in order to specify the position

of the light. The chosen room will be shown in grey.

15. Click “Done“ to confirm.

16. The learning process is complete.

to return to the home screen. Disconnecting the remote control and smart phone

3. Choose one of the categories:

– ZigBee Gateway – LED light panel – Remote control

5. Go to “Remove device“.

6. Click “Confirm“ to proceed.

App functions Note: Make sure that you are always operating the current version of the app on your smartphone. Update the app if necessary. The following modes are available via app control Switching on and off – Remaining time: Set up a timer

: Switch on and off – Programme: Create schedules for when the lights should be switched on and off automatically White – Touch arc: Adjust light colour from 3,000 K to 6,000 K – Touch panel: Adjust light intensity from 1 % to 100 % Scene – Night: warm, soft light – Reading: neutral light – Working: cold white light – Leisure: bright, warm light – Adding a scene: to save custom-designed lighting setups Remote control functions Switch on

Select the colour temperature

Connecting the remote control with the LED light panel (without Gateway / App) Note: If you have previously connected the LED light panel

with the Gateway, you must reset the LED light panel

(see “Resetting the light“). You can control up to 30 LED ceiling lights in sync with one remote control. Only one remote control can be connected per light. Each light must be connected individually. Repeat the process for each individual light. Remove the protective film from the battery compartment

Switch the LED light panel

on. The LED light panel

will flash slowly. Wait 3 minutes until the LED light panel

stops flashing. Hold the remote control

close to the LED light panel

down for 3 seconds. The LED

should now start flashing. ... / App functions / Remote control functions / Connecting the remote ...13 GB/IE If the connection was successful, the LED

will light up for approx. 2 seconds. The LED light panel

flashes three times. Disconnecting the remote control from the LED light panel (without Gateway / App) Switch the light on. Hold the remote control

close to the LED light panel

down for 3 seconds. The LED

should now start flashing. If the disconnection was successful, the LED

will light up for approx. 2 seconds. The LED light panel

flashes three times. Replacing the battery

Remove the battery cover

Remove the drained battery. Insert a new bat- tery into the battery compartment

. The plus symbol (+) on the battery must be facing out- wards. Close the battery compartment cover

SHOCK! Be careful not to damage any cables or pipes when drilling. Use a voltage / metal detector. Mark the 2 drill holes using the holes

intended for the screws. Drill the holes. Insert the wall plugs

into the holes. Mount the wall bracket

If you want to attach the wall bracket

to a smooth surface, stick the enclosed self-adhesive pads

to the intended points on the wall bracket

Remove the protective film from the self-adhe- sive pads

in the chosen loca- tion. Cleaning the remote control Do not use solvents, petrol, etc. These would damage the remote control. Before cleaning, remove the battery from the battery compartment

Clean the remote control with a damp cloth. Replace the battery in the battery compartment after cleaning
