Product type	Retro desk lamp / Retro lamp
Brand	Livarno Lux
Model	IAN 288502
Article references	54687/54688/54693/54694 (E14) ; 54689/54691/54695/54696 (E27)
Dimensions (E14 models)	Height with arm at 90° : 29.5 cm ; upper arm length : 18.5 cm ; lower arm length : 22.5 cm ; lamp head : Ø 12.5 cm, length 15.5 cm
Dimensions (E27 models)	Maximum height approx. 23 cm ; lamp base 12 cm × 1.9 cm
Power supply	220–240 V~, 50/60 Hz
Bulb (E14 models)	LED, E14, 4 W, max. power 11 W
Bulb (E27 models)	LED, E27, 4 W, max. power 40 W
Protection class	II
Power cord length	160 cm
Switch	ON/OFF on power cord
Main functions	Adjustable lighting (adjustable head and arm) ; version with E14 or E27 socket
Assembly	Insert arm into base ; screw in bulb ; adjust inclination with locking screw
Maintenance and cleaning	Unplug before cleaning ; use a dry lint-free cloth ; do not use aggressive detergents
Safety	Do not cover ; do not look directly at light source ; risk of burns : let cool before handling
Spare parts and repairability	Replaceable LED bulb ; flexible cable replacement reserved for manufacturer ; locking screw for adjustment
General information	Indoor use exclusively ; 3-year warranty ; after-sales service : EGLO France / Belgium

Frequently Asked Questions - IAN 288502 Livarno Lux

How to assemble the Livarno Lux IAN 288502 lamp?

For E14 models (54687 etc.), push the lamp arm into the base receptacle until it clicks, making sure the cable comes out from the narrow side of the base. Then screw the bulb into the socket clockwise. For E27 models (54689 etc.), screw the bulb clockwise. Use the locking screw to adjust the head inclination.

Which bulb to use and how to replace it?

E14 models require an E14 LED bulb of 4 W max 11 W. E27 models require an E27 LED bulb of 4 W max 40 W. To replace, unplug the lamp, let it cool for 15 minutes, then unscrew the old bulb counterclockwise and screw in the new one clockwise.

Is the lamp dimmable?

No, the intensity of the LED lamp is not adjustable. The ON/OFF switch only turns it on and off.

How to clean the lamp safely?

Always unplug the lamp before cleaning. Let it cool completely. Use a dry lint-free cloth. Never use solvents, benzene, or aggressive detergents, and do not immerse the lamp in water.

What are the essential safety precautions?

Never cover the lamp (fire risk). Do not look directly at the light source with optical instruments. Do not leave the lamp on unattended. Before any handling, unplug and let cool. Use only in dry indoor areas.

Is the lamp suitable for children?

Yes, but under adult supervision. Children aged 8 and above can use it if informed of risks. Children must not play with the lamp. Cleaning must not be done by children without supervision.

What to do if the LED bulb stops working?

First check that the lamp is plugged in and the switch is on. If the bulb is defective, replace it with an identical LED bulb (same base and max power). If the problem persists, contact EGLO after-sales service.

How to dispose of the lamp at end of life?

Do not throw the lamp in household waste. Dispose of it at a recycling center or collection point for electrical and electronic equipment. Recyclable packaging (plastics, cardboard) should be sorted.

What is the warranty and how to activate it?

The lamp comes with a 3-year warranty from the date of purchase. Keep the receipt and the article reference (IAN 288502) as proof. In case of defect, return the item carefully packaged to EGLO after-sales service in France or Belgium.

Where to find Livarno Lux after-sales service?

In France: EGLO FRANCE LUMINAIRE SARL, Z.A. Jeune Bois, 2 Rue de la Martinique, F-68274 Wittenheim, Tel. [phone], [e-mail]. In Belgium: EGLO BELGIUM B.V.B.A., Antwerpsesteenweg 247, B-2950 KAPELEN, Tel. [phone], [e-mail].

USER MANUAL IAN 288502 Livarno Lux

Operation and Safety Notes

FR BE

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

D

Operation and Safety Notes

Page

5

Intended use.. 7
Scope of delivery.. 7
Parts Description.. 8
Technical Data . 8

Safety 9

Safety Notices.. 9

Operation

Mounting the light.. Page 11
Using the lamp . Page 11
Inserting / replacing the bulb.. Page 12

Maintenance and Cleaning

Disposal

Declaration of Conformity

Warranty/Service centre

Warranty. Page 14
Service address.. Page 15
Warranty card.. Page 16

List of pictograms used
i	Read the instructions!
	Safety instructions Instructions for use
	This light is only suitable for indoor use in dry and enclosed spaces.
V~	Volt (AC)
Hz	Hertz (mains frequency)
W	Watt (effective power)
	Safety class II
	Observe the warnings and safety notices!
	Accident hazard and risk of fatal injury for infants and children!
	Warning! Risk of electric shock!
	Warning - Hot surfaces!
	Not dimmable
	Disposition of the packaging and the product in an environ-mentally friendly manner!

Retro Desk Lamp / Retro Table Lamp

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to carefully read all the instructions for use. Fold out the page with

illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or the service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.

Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 Table Lamp
1 LED lamps

1 Operating instructions including warranty card

-PartsDescription

1 Lamp head
2 Lamp arm
3 Lamp base
4 Mains cable with

ON/OFF in-line switch

5 Socket
6 Illuminant
7 Locking screw

-TechnicalData

Item number: 54687/54688/54693/54694

Operating voltage: 220 - 240V 50 / 60Hz

Bulb: LED, E14, 4 W

Rated power max.: 11 W

Protection class: II/

Dimensions: Height at 90^ arm 29.5 cm, length of upper arm

18.5 cm, length of lower arm 22.5 cm, approx.
15.5 cm, lamp head 12.5 cm, length 15.5 cm

Mains lead: Length 160 cm

Item number: 54689/54691/54695/54696

Operating voltage: 220 - 240V 50 / 60Hz

Bulb: LED, E27, 4 W

Rated power max.: 40 W

Protection class: II/

Dimensions: Height max. approx. 23 cm, approx. 15.5 cm

Lamp base 12cm× 1.9cm

Mains lead: Length 160 cm

Distributor:

Edi Light GmbH, Heiligkreuz 22, A-6136 Pill, www.edi-light.com

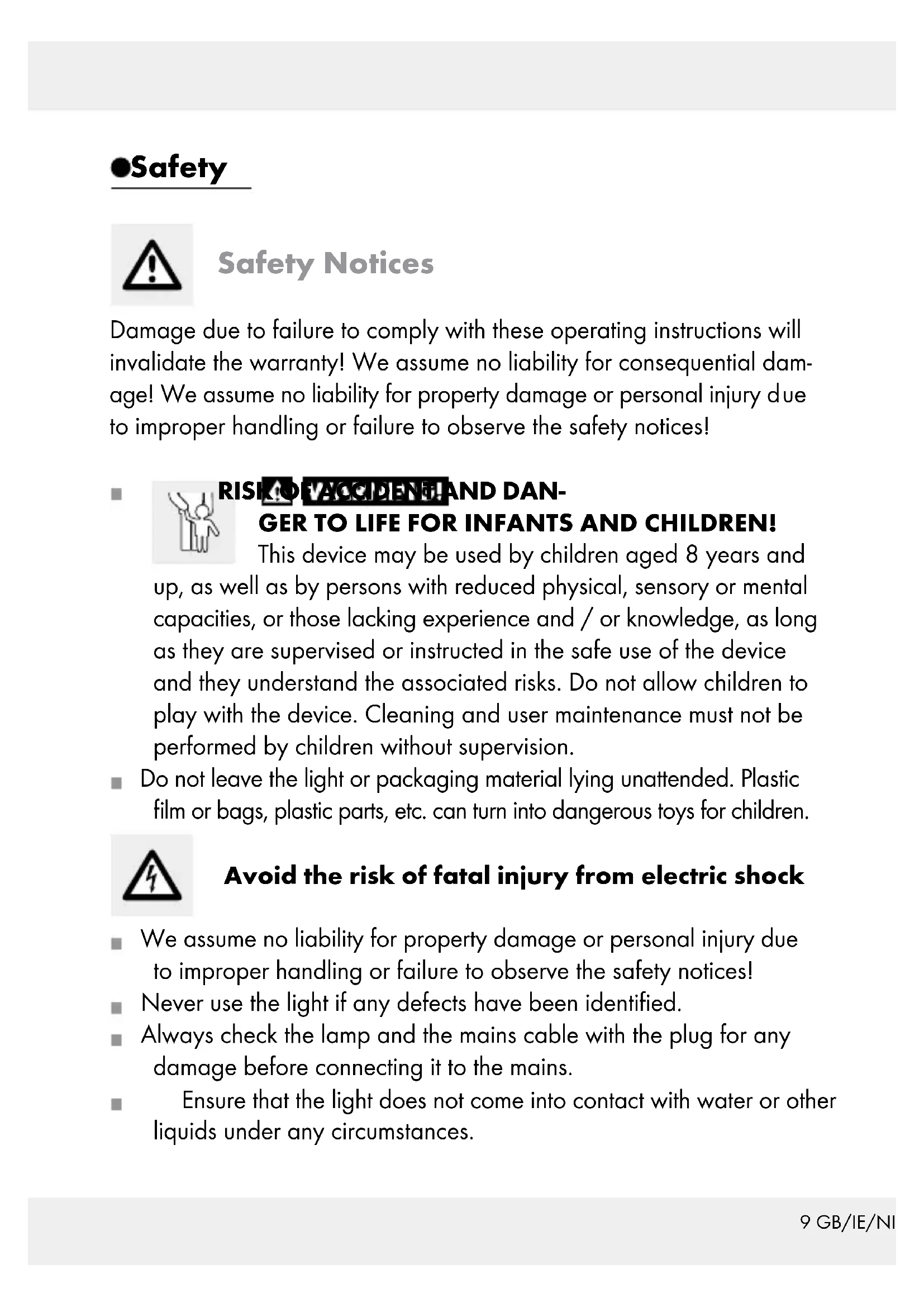

Safety Notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

RISK VACCIDEN! AND DAN

GER TO LIFE FOR INFANTS AND CHILDREN!

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

• Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
Never use the light if any defects have been identified.
Always check the lamp and the mains cable with the plug for any damage before connecting it to the mains.
Ensure that the light does not come into contact with water or other liquids under any circumstances.

• Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
  Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply!
  To prevent hazards, if the external flexible lead on this lamp is damaged it must be replaced by the manufacturer, its service representative or an equally qualified professional!
  Before use, verify the available mains voltage matches the voltage required for operating the light (220-240 V~, 50/60 Hz).

Preventing fire and injury hazards

CAUTION! RISK OF BURNS DUE TO HOT SUR

FACES! Ensure the light has been switched off and has cooled down before touching it to avoid burns. Lamps

become very hot.

Check each bulb for damage immediately after unpacking.

Replace defective bulbs with new ones immediately. Before replacing the bulb always remove the mains plug from the socket.

Allow the lamp to cool for at least 15 minutes before replacing a defective bulb.

Do not cover the lamp with objects. Fire can result from excessive heat development.

Position the lamp so it is protected from moisture and dirt.

Never leave the light unattended whilst in operation. Excessive heat can result in a fire.

The LED light is not dimmable.

• Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).

Operation

- Mounting the light

Remove the packaging materials.

Model 54687/54688/54693/54694

Insert the lamp arm 2 into the opening in the lamp base 3 until it locks into place (see Fig. B). Be sure the cable opening on the lamp arm 2 faces the narrow edge on the lamp base 3
Screw the illuminant 6 clockwise into the socket (see Fig. C).
Use the locking screw to adjust the tilt of the lamp head (see Fig. A).

Model 54689/54691/54695/54696

If the illuminant 6 is not yet installed, screw it clockwise into the socket.

Using the lamp

Completely unwrap the power cord 4
Insert the mains plug into the socket.
Turn the light on and off with the on / off switch.

Model 54687/54688/54693/54694

Adjust the lamp head 1 and the lamp arm 2 as desired.

- Inserting / replacing the bulb

WARNING! RISK OF ELECTRIC SHOCK! Unplug the mains plug from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

Turn the defective bulb 6 carefully anticlockwise out of the bulb socket 5.
Use a clean, lint-free cloth to replace a bulb.
Screw the lamp 6 clockwise into the socket 5.
Please refer to the chapter "Technical Data" to see which bulbs are required for the respective model.

- Maintenance and Cleaning

WARNING! RISK OF ELECTRIC SHOCK! Remove the mains plug from the socket before you clean the lamp.

WARNING! RISK OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with harsh detergents and never immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the lamp.
  Only use a dry, lint-free cloth for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets

the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

Warranty/Service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

-Serviceaddress

Great Britain/(North) Ireland

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton NN3 6UR

T: [phone]

E: [e-mail]

IAN 288502

Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone:

Item number/Description:

Purchase date/Point of purchase:

Description of the defect:

Date/Signature:

Non-warranty cases:

Please return the unrepaired item, carriage paid.

Please provide pricing. Repair the product against charge.
