USER MANUAL LSL 32 A2 Livarno Lux

Operation and safety notes

NL BE

LED-SCHIJNWERPER 30 W

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IEOperation and safety notesPage 13

List of pictograms used

Introduction

Intended use Page 14
Parts description.. Page 14
Technical data.. Page 14
Scope of delivery.. Page 15

Safety notices

Preparation.

Required tools Page 16

Prior to installation

Installation

Start-up Page 17

Aligning the motion detector . Page 17
Automatic operation Page 18

Cleaning and care

Disposal

Guarantee and service

Warranty declaration.. Page 18
Service address.. Page 19

Declaration of conformity

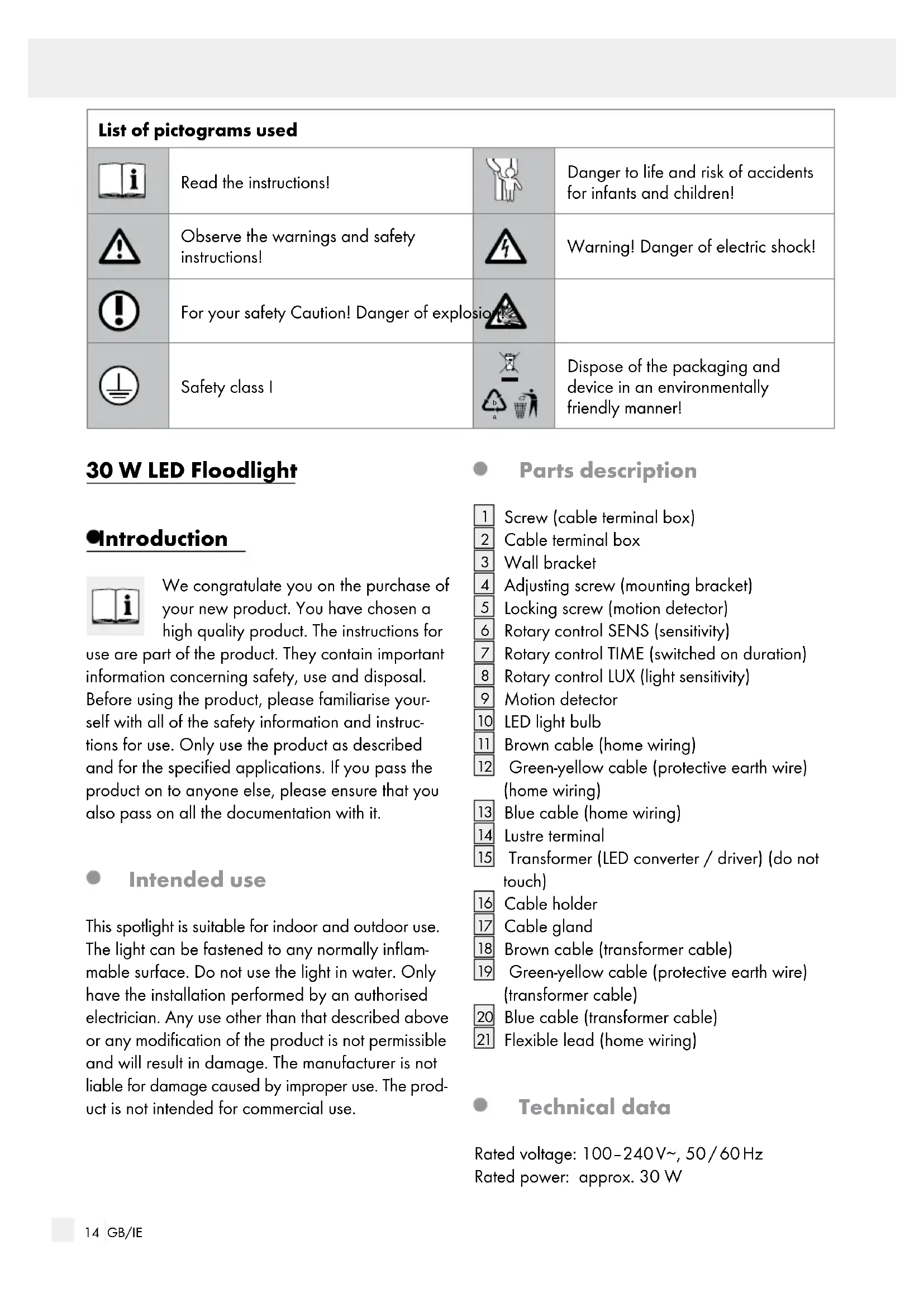

List of pictograms used
i	Read the instructions!		Danger to life and risk of accidents for infants and children!
!	Observe the warnings and safety instructions!		Warning! Danger of electric shock!
	For your safety Caution! Danger of explosion!
	Safety class I		Dispose of the packaging and device in an environmentally friendly manner!

30 W LED Floodlight

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for

use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This spotlight is suitable for indoor and outdoor use. The light can be fastened to any normally inflammable surface. Do not use the light in water. Only have the installation performed by an authorised electrician. Any use other than that described above or any modification of the product is not permissible and will result in damage. The manufacturer is not liable for damage caused by improper use. The product is not intended for commercial use.

Parts description

1 Screw (cable terminal box)
2 Cable terminal box
3 Wall bracket
4 Adjusting screw (mounting bracket)
5 Locking screw (motion detector)
6 Rotary control SENS (sensitivity)
7 Rotary control TIME (switched on duration)
8 Rotary control LUX (light sensitivity)
9 Motion detector
10 LED light bulb
11 Brown cable (home wiring)
12 Green-yellow cable (protective earth wire) (home wiring)
13 Blue cable (home wiring)
14 Lustre terminal
15 Transformer (LED converter / driver) (do not touch)
16 Cable holder
17 Cable gland
18 Brown cable (transformer cable)
19 Green-yellow cable (protective earth wire) (transformer cable)
20 Blue cable (transformer cable)
21 Flexible lead (home wiring)

Technical data

Rated voltage: 100 - 240V 50 / 60Hz

Rated power: approx. 30 W

Power factor: >0.9

Protection class: I/

Protection class: IP 44 (splash-proof)

Detection angle: approx. 180°

Luminous flux: approx. 2200 lumen

Colour temperature: approx. 5000 Kelvin

Switching cycles: approx. 30000

Maximum

projected area: 0.045 m²

Dimensions: 22.4 × 25.3 × 11.5 cm

Weight: 1460 g

Model no.: LSL 32 A2

Scope of delivery

1 LED Floodlight
2 ST8 screws (for wall mounting)
2 Washers (16× 8.4× 1.6cm)
2 Rawlplugs (for wall mounting)
1 Instructions for use

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN! Never

leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks.

• Never allow children to play with this device. Cleaning and user maintenance should not be performed by children without supervision.
  DANGER TO LIFE! During installation keep children away from the area in which you are working. A large number of screws and other small parts are included with delivery. These may prove life-threatening if swallowed or inhaled.

EXPLOSION HAZARD! Do not operate the light in potentially explosive environments containing flammours, gases or dusts.

Do not expose the light to direct sunlight, rain, snow or ice. The product may otherwise be damaged.
The light may be mounted to any normally inflammable surfaces.
The light is not suitable for continuous operation.

Avoid the risk of fatal injury from electric shock

Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Never use the light if any defects have been identified.
In the event of damage, repairs or other problems with the light, please contact the service centre or an electrician.
- Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Prior to installation, remove the fuse or switch off the circuit breaker 0 setting in the fuse box.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (100-240 V~).
Be careful not to damage lines during installation.

Prevent fire and injury hazards

■ RISK OF INJURY! Check every bulb and lampshade for damage immediately upon unpacking. Do not fit the light if the bulbs and / or

lampshades are faulty. In this case contact the service centre for a replacement.

DANGER OF ELECTRIC SHOCK! DANGER OF DAMAGE TO PROPERTY! RISK OF

INJURY! Please be sure not to drill into any electrical wiring, gas or water lines inside the wall. If necessary, use a cable detector before drill into the wall.

FIRE HAZARD! Fit the light so that it is at least 1 m away from the material to be illuminated. Excessive heat can result in a fire.
Broken glass must be replaced before using the light again.
The bulbs cannot be replaced.
Do not look directly into the light source (light bulb, LED etc.).
To prevent burns, verify the light is switched off and has cooled down for at least 15 minutes before touching it.

Safe working

Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
Always be attentive! Always pay attention to what you are doing and proceed with caution at all times. Never install the light if you are having difficulty concentrating or do not feel well.

Preparation

Required tools

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil/making tool
  Voltage tester

• Screwdriver

• Electric drill
• Drill bit
• Screws for wall mounting
• Rawlplugs
• Side cutting pliers
• Ladder
• Spirit level

Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.

Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box 0 position.
Use the voltage tester to verify the de-energised status.

When selecting the mounting location, pay attention to the following:

Ensure the area you wish to light will be lit. The LED spotlight can be adjusted vertically.
Be sure the motion detector covers the desired area.
Be sure the motion detector is not impacted by other light sources at night, e.g. yard or street lighting, as this could impair the function.

Installation

Wall mounting (Fig. C)

Prior to installation, remove the fuse or switch off the circuit breaker 0 setting in the fuse box.
Hold the wall bracket against the wall in the location you wish to mount it and mark the drill holes on the wall using the predrilled holes in the wall bracket 3. If necessary, use a spirit level.

Note: Mount the light at a height of approx.

2.5 m to guarantee full functionality of the motion detector.

CAUTION! RISK OF INJURY! Please refer to the operating instructions of your electric drill.

Now drill the mounting holes ( 12mm) .Be careful not to damage the supply line.
Insert the rawlplugs into the bores.
Insert the screws (ST8) into the washers.
Secure the wall bracket to the wall using the self-tapping screws.

Note: If the mounting position is higher than 3m , use an additional self-tapping screw and washer (not included).

After mounting, verify the wall bracket is securely fitted.
Open the cable terminal box by loosening the four screws 1.
Now insert the flexible supply cable (Type H05RN-F 3G 1.0 mm²) through the cable gland and into the cable terminal box. If the diameter of the flexible lead is slightly larger, we recommend using lubricating grease so you can pull the silicone sealing ring over the cable gland more easily.
Now connect the cab 12, 13 which protrude from the flexible lead 21 with the transformer cables 18, 19, 20 and therefore the transformer 15, using the lustre terminal 14. Then tighten the screws on the lustre terminal 14 (Fig. B).

Note: Make sure that you connect each the individual cable [11], [12], [13] correctly: live wire, black or brown = symbol L; neutral wire, blue = symbol N; protective earth wire, green-yellow, symbol .

Secure the flexible supply cable, type H05RN-F 3G 1.0mm^2 in the cable holder by tightening the screws.
Screw the cable gland 17 until it is watertight.
Close the cable terminal b using the four screws until it is watertight.
Replace the fuse or switch on the circuit breaker in the circuit breaker box.

The light is now ready for operation.

Notice:

If the lighting angle is not ideal, switch the light off and allow to cool down for 15 minutes. Loosen the adjusting screws with a screwdriver and readjust the lighting angle. Then tighten the adjusting screws.

Start-up

Note: The LED light has a motion detector 9 which responds to temperature changes. The motion detector works best in ambient temperatures below 20^ . A moving object with a temperature near the ambient temperature is difficult to detect.

Note: The control dials are located below the motion detector (Fig. A).

Note: The maximum range of the motion detector 9 is approx. 12m ,the detection radius is approx. 180^

Note: The horizontal directional angle of the motion detector 9 is approx. 130^ . The vertical directional angle of the motion detector is approx. 90^ .

Do not adjust the motion detector with force. The safety stops could break.

Aligning the motion detector

Note: The detection area must be well within range of the infrared beams from the motion detector. The view of the detection area must not be obstructed by objects such as plants etc. Infrared beams cannot pass through solid objects.

Note: The detection area should run transversely to the direction of passage and be kept as small as possible. A large detection area increases the risk of the light being switched on for irrelevant reasons.

1. First align the motion detector 9 horizontally.
2. Then loosen the locking screw (motion detector) 5 by turning it counter-clockwise.
3. Now align the motion detector 9 vertically and tighten the locking screw (motion detector) 5 clockwise.
4. Test your settings by walking slowly into the detection area. Repeat steps 1 to 3 until you achieve the desired result.

Automatic operation

- Cleaning and care

Adjusting the sensor sensitivity (SENS):

Adjust the sensor sensitivity to your preferences using the SENS rotary control 6.
Turn clockwise to increase the sensor sensitivity.
Turn counter-clockwise to decrease the sensor sensitivity.

Note: The further right the rotary control is turned, the more sensitive the motion detector will be, i.e. it will already respond to minor temperature changes within the detection range. If the sensitivity is set too high, even small animals or movement from leaves (from trees or shrubs) may already trigger the motion sensor, inadvertently activating the light.

CAUTION! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box 0 position.

Do not use solvents, petrol, etc. Otherwise the light will be damaged.
Never immerse the product in water.
- Do not use a garden hose or pressure washer to clean.
Allow the light to cool off completely.
Only use a dry, lint-free cloth for cleaning.

Adjusting the on duration (TIME):

Set the desired switch-on time of the lamp (5s± 5s - 10 ± 2) using the TIME rotary control.
Turn clockwise to increase the on time. Turn counter-clockwise to decrease the on time.

Adjusting the light sensitivity (LUX):

Set the desired light sensitivity using the LUX rotary control [8].
Turn clockwise to increase the light sensitivity. The light is more sensitive to changes in light intensity and switches to automatic mode sooner.
Turn counter-clockwise to decrease the light sensitivity. The light is less sensitive to changes in light intensity and takes longer to switch to automatic mode.

Note: If the LUX rotary control 8 is in the position, the motion detector will work 9 day and night. If the LUX rotary control 8 is in the position, the motion detector 9 will only work at night.

Note: Once the light has been activated by the motion detector 9, it will remain on for the set time. If new movement is detected during this time, the original period will be extended by this set amount of time.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Do not dispose of electric equipment in the household waste!

In accordance with European Directive 2012/19/EC relating to old electrical and electronic appliances and its translation into national law, used electrical equipment must be collected separately and recycled in an ecologically compatible way.

Contact your local council to find about the current options for the disposal of discarded electrical equipment.

- Guarantee and service

Warranty declaration

This product comes with a 3 year warranty from the date of purchase. Please keep your receipt as proof of purchase. The guarantee applies to material or manufacturing defects only. It does not cover wear items or damage caused by improper use. Any modifications will void the guarantee. This

warranty does not limit your legal rights. Please phone the service centre for guarantee claims. This is the only way to return your product free of charge.

Service address

Atlanta Electronics GmbH

Gernotstr. 18

44319 Dortmund,GERMANY

GB

[phone]

E-Mail: [e-mail]

IAN 314687

Please have your receipt and the article number (e.g. IAN 123456) ready as your proof of purchase when enquiring about your product.

Declaration of conformity

The CE mark was applied in accordance with the following European directives.

The relevant documents have been archived and can be requested as necessary.

2014/35/EU Low Voltage Directive

2014/30/EU EMC Directive

2011/65/EU (RoHS II)

2009/125/EC Ecodesign Directive

C∈IP44
