1132271401 - LED Spotlight Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	1132271401
Category	LED Projector
Product type	20 W LED spotlight with motion detector
Power consumption	20 W
Operating voltage	230 V~ 50 Hz
Bulb type	COB LED, 20 W (non-replaceable)
Protection rating	IP65 (dust-tight and protected against water jets)
Protection class	I
Motion detector range	Max. 8 m (adjustable)
Detection angle	Approx. 160° horizontally
LED beam angle	Approx. 110°
Recommended mounting height	1.8 to 2.5 m
Overall dimensions (W × H × D)	18 × 12.5 × 9.2 cm
Weight	Approx. 640 g
Remote control	Yes, with CR2025 battery (range approx. 12 m)
Remote control power supply	1 CR2025 lithium battery, 3 V
Main functions	Continuous light, motion detection, day/night modes, SOS, flash, timer
Settings	Sensitivity (25-100%), lighting duration (5 s to 24 h)
Package contents	LED spotlight, bracket, screws, wall plugs, remote control, battery, manual
Warranty	3 years
Maintenance	Clean with a slightly damp cloth and mild detergent, do not immerse
Bulb replacement	Not possible (non-replaceable bulb, product must be replaced)

Frequently Asked Questions - 1132271401 Livarno Lux

How to install the Livarno Lux 1132271401 spotlight?

Electrical installation must be carried out by a qualified electrician. Before starting, turn off the power at the circuit breaker. Use the bracket as a template to drill two Ø8 mm holes, insert the wall plugs and fix the bracket with the provided screws. Connect the wires (brown, blue, yellow-green) to a suitable terminal block. Then mount the spotlight onto the bracket and tighten the adjustment screws. Restore power.

How to use the remote control?

First remove the insulating strip from the battery compartment. The remote control works up to 12 m from the spotlight. Use the Mode buttons to turn on/off or select a mode (continuous light, night, day, SOS, flash). The Sensitivity buttons adjust the detector range (from 2 to 8 m) and the Time buttons the lighting duration (from 5 seconds to 24 hours). The spotlight confirms each command with a brief flash.

How to replace the remote control battery?

Turn the remote control over. Press the spring and slide out the battery holder. Replace the used battery with a CR2025 lithium battery, respecting the polarity (+/-) marked on the holder. Slide the holder back into the compartment.

Why is the spotlight not turning on?

Check that the power is restored and that the fuse or circuit breaker is in the on position. Make sure the remote control has a working battery and that no obstacles are blocking the signal. If the problem persists, the spotlight may be defective.

How to adjust the motion detector sensitivity?

First press the Night or Day button to activate the detector. Then use the Sensitivity buttons (on the remote control): 100% for 8 m, 75% for 6 m, 50% for 4 m, 25% for 2 m. The adjustment is confirmed by a flash.

What is the lifespan of the LED bulb?

The manual does not specify the exact lifespan, but COB LEDs generally have a long life (up to 50,000 hours). The bulb is not replaceable; if it stops working, the entire spotlight must be replaced.

Can I use this spotlight indoors and outdoors?

Yes, the spotlight is designed for indoor and outdoor spaces thanks to its IP65 protection rating. It is resistant to dust and water jets. However, avoid prolonged exposure to stagnant moisture.

How to clean the spotlight?

Before cleaning, turn off the power at the circuit breaker and allow the spotlight to cool for at least 15 minutes. Wipe it with a slightly damp lint-free cloth and mild detergent. Never immerse it. For the remote control, remove the battery and clean it with a dry or slightly damp cloth, then dry it.

What to do if the motion detector does not work properly?

Check that the detector is in Day or Night mode (via remote control). Ensure it is not aimed at heat sources (heating, air conditioning) or moving objects (trees, animals). The ideal mounting height is 1.8 to 2.5 m. Adjust the sensitivity or lighting duration.

What to do in case of malfunction during the warranty period?

Keep the original receipt as proof of purchase. The warranty is 3 years from the date of purchase. In case of material or manufacturing defects, contact the seller for free repair or replacement. The warranty does not cover damage due to incorrect use or wear parts (batteries).

USER MANUAL 1132271401 Livarno Lux

www.lidl-service.com PDF online

LED-STRAHLER 20W / 20W LED SPOTLIGHT / PROJECTEUR À LED 20W

DE AT CH

LED-STRAHLER20W

Assembly, operating and safety instructions

NL BE

LED-SPOT20W

Intended use......Page 23

Parts description......Page 23

Technical data......Page 24

Scope of delivery....Page 24

General safety instructions......Page 25

Safety instructions for batteries/rechargeable batteries ......Page 26

Before installation Page 28

Installation......Page 28

Operation Page 30

Mode buttons......Page 30

Sensitivity buttons....Page 31

Time buttons......Page 32

Replacing the battery Page 33

Cleaning and Care......Page 33

Disposal Page 34

Warranty Page 35

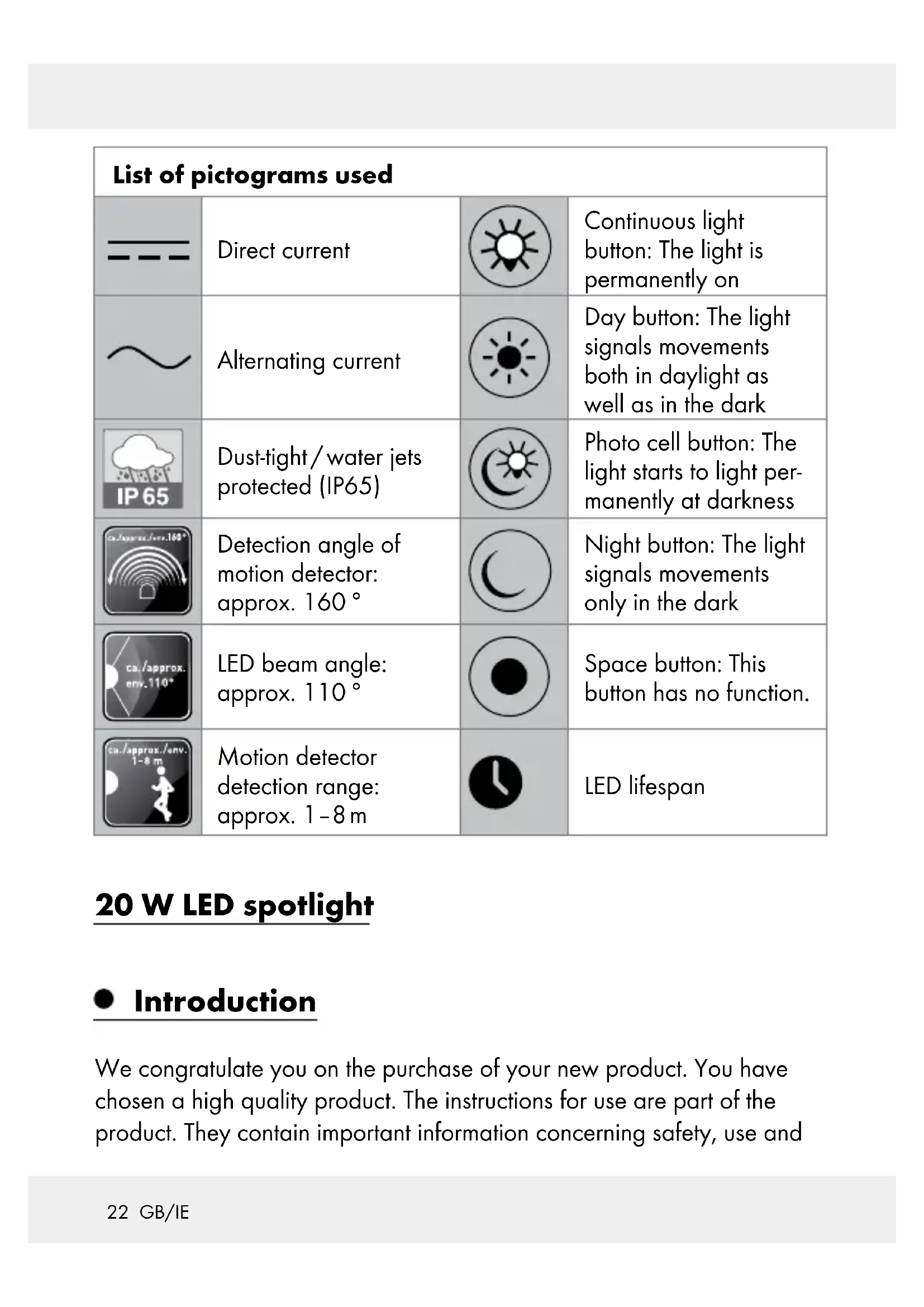

List of pictograms used
	Direct current		Continuous light button: The light is permanently on
	Alternating current		Day button: The light signals movements both in daylight as well as in the dark
	Dust-tight / water jets protected (IP65)		Photo cell button: The light starts to light permanently at darkness
	Detection angle of motion detector: approx. 160°		Night button: The light signals movements only in the dark
	LED beam angle: approx. 110°		Space button: This button has no function.
	Motion detector detection range: approx. 1-8 m		LED lifespan

20 W LED spotlight

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and

disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is intended to illuminate indoor and outdoor areas. This product is only intended for private use and is not suitable for commercial use or for use in other applications.

Partsdescription

1	Motion sensor
2	LED spotlight
3	Locking screw
4	Bracket
5	Outer conductor (brown)
6	Protective conductor(yellow-green)
7	Neutral conductor (blue)
8	Remote control
9	Sensitivity buttons
10	Time buttons
11	Mode buttons
12	SOS button
13	OFF button
14	FLASH button

* not included in the delivery

15	Space button
16	Night button
17	Photo cell button
18	Day button
19	Continuous light button
20	Spring
21	Battery sled
22	Battery compartment
23	House conductor terminal*
24	Terminal block*
25	Screws ∅ 5 x 50 mm
26	Wall plug ∅ 8 mm
27	Tooth lock washer
28	Flat washer
29	Spring washer

- Technicaldata

Operating voltage: 230V\~50 Hz

Total power consumption: 20 W

Illuminant (COB LED): 20W (non-replaceable)

Motion sensor: Range: max. 8 m (adjustable), detection

angle: approx. 160° horizontal

Protection class: I

Degree of protection: IP65 (dust-tight / water jets protected)

Weight: approx. 640 g

Overall dimension: 18 × 12.5 × 9.2 cm

Projected area: max. 18 x 12.5 cm

Mounting height: approx. 1.8–2.5 m

TÜV SÜD / GS certified

Remote control

Power supply: 3 V=

Battery: 1 x 3 V—; Type: CR2025 Lithium battery

Operation range: approx. 12 m from the product

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED spotlight 2 Flat washers

2 Wall plugs (∅ 8 mm) 2 Spring washers

2 Screws ( 5 x 50 mm) 2 Locking screws

1 Bracket 1 Remote control

2 Tooth lock washers

General safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

DANGER TO LIFE AND ACCIDENT HAZARD FOR

TODDLERS AND SMALL CHILDREN! Never leave

children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

■ DANGER OF SUFFOCATION! Children could swallow on small included parts (e.g. screws). Keep children away from the work area during assembly.

The illuminants are not replaceable.

If the illuminants fail at the end of their lives, the entire product must be replaced.

■ Only to be installed outside arm reach.

- Terminal block not included. Advice from a qualified person may be required during installation.

Danger to life by electric shock

■ Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage.
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~50 Hz). Otherwise do not install the product.

CAUTION! DANGER OF BURN INJURIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot.

FIRE HAZARD! Fit the product so that it is at least

1.0 m away from the material to be illuminated. Excessive heat can result in a fire.

CAUTION! RISK OF INJURY! Broken lamp glass must be replaced before any further use is made of the product.

Safetyinstructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

Never throw batteries / rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

■ WEAR PROTECTIVE GLOVES! Leaked or damaged

batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.

■ Remove the batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!

- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.

Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!

■ Remove exhausted batteries / rechargeable batteries from the product immediately.

- Before installation

Note: Remove all packaging materials from the product.

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the product and the connection regulations.

Before installation ensure that the circuit, to which the product will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
Use a voltage tester to verify the de-energised status.
The included mounting material (screw 25 and wall plugs 26) is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice.

- Installation

Make sure you will not be drilling into electrical, gas or water lines inside the wall. Use a power drill to drill the holes into the brick wall. Always observe all safety instructions for the power drill in the manual for the power drill. Death or injury due to electric shock may otherwise result.

When selecting the mounting location, pay attention to the following:

☐ Select a sturdy and vibration-free wall.
Keep a minimum distance of approx. 20 cm to other objects to ensure a good ventilation.
☐ Only mount the product in one direction. The "UP" label on the product resp. the arrow should be pointed upwards (see Fig. D).

Make sure that the LED spotlight illuminates the desired area. You can move the product vertically to adjust the angle.
Make sure the motion sensor covers the desired area. The motion sensor 1 has a maximum coverage range of 8 m, with a coverage angle of about 160° (depending on the mounting height - a height of 1.80-2.50 m is ideal).
Make sure the motion sensor is not illuminated at night by street lighting. This can influence its functioning.
Don't adjust the motion sensor onto trees, bushes or locations where animals could be easily detected. Do not adjust the motion sensor 1 to fan heaters, air conditioners, pools or other objects with fast-changing temperatures.
Use the bracket as a pattern to mark the drilling holes onto the wall. Ensure that there are no cables or wires in this area in the wall. Drill two holes ( 8 mm) and insert the wall plugs ^26 . Screw the bracket 4 with the help of the screws ^25 and check the tight fit. If necessary, isolate 6–8 mm from house conductor terminal ^23 . Connect the outer conductor 5, the neutral conductor 7 and the protective conductor 6 to the terminal block 24 of a properly installed junction box (see Fig. C).

Note: The connection cable type should be H05RN-F 3G 1.0 mm ^4 .

Note: The protective conductor 6 connection is to be used longer than the other conductors, so that it is the last one to tear off in the event of a breakage of the product.

☐ The used connection terminal must have at least the following specifications:

Type of connection terminal: With screws

Number of contacts: 3

Operating voltage: >230 V \~

Rated current: >1 A

☐ The connection terminal has to fulfill the requirements of the DIN EN 60998-2-1 or DIN EN 60995-2-2. The kind of connection has to fulfill the local and national requirements.

Note: The terminal block 24 is not included in the delivery.

Now attach the LED spotlight to the bracket 4 using the included locking screws 3, spring washers 29, flat washers 28 and tooth lock washers 27 (Fig. D).
Adjust the product into the desired direction. For this, you may need to slacken the locking screws 3 between the bracket 4 and the LED spotlight 2. After adjustment, tighten the locking screws 3 again, to ensure a secure hold.
After the fuse has been inserted or the fuse panel is switched on again, your product is ready for use.

Operation

You can operate the product by using the included remote control 8.

Note: Remove the insulating strip from the battery compartment 22 before using the remote control 8 for the first time.

Note: The product is preset to continuous light mode.

Mode buttons

You can use the Mode buttons 11 to

• switch the product on,
• select the lighting type,
• set, at which light intensity the product is being activated,
• switch the product off.

Hold the remote control 8 in front of the product and press one of the Mode buttons 11 with the desired function.

Mode button Function
SOS button 12	The light flashes SOS(3 x short, 3 x long, 3 x short).
Continuous light button 19	The light is permanently on.
FLASH button 14	The light flashes.
Space button 15	This button has no function.
Photo cell button 17	The light starts to light permanently at darkness.
Night Button 16	The light signals movements only in the dark.
Day button 18	The light signals movements both in daylight as well as in the dark.

☐ The product confirms the received signal from the remote control by a short flashing of the LED spotlight 2. The function is now set and the product is switched on.
☐ To switch off the product, press the OFF button. The product lights up shortly and then switches off.

Sensitivitybuttons

☐ Use the Sensitivity buttons to adjust the sensitivity of the motion sensor 1. The detection angle expands or decreases automatically with the selected sensitivity.

Press the night button 16 or the day button 18 to activate the motion sensor 1.
☐ Press one of the Sensitivity buttons 9 to adjust the sensitivity.

Sensitivity buttons	The LED spotlight 2 responds to movements within a radius of
100% Up to 8 Meter
75% Up to 6 Meter
50% Up to 4 Meter
25% Up to 2 Meter

The product confirms the received signal from the remote control by a short flashing of the LED spotlight 2. The sensitivity of the motion sensor 1 is now set.

Timebuttons

Use the Time button to set the length of time that the product will light up after being triggered by the motion sensor 1.
Press the night button 16 or the day button 18 to activate the motion sensor 1.

Press one of the Time buttons 10 with the desired lighting duration.

Time buttons Light duration
5S, 10S, 30S, 60S 5, 10, 30 or 60 Seconds
2M, 5M, 10M, 30M 2, 5, 10 or 30 Minutes
1H, 5H, 10H, 24H 1, 5, 10 or 24 Hours

☐ The product confirms the received signal from the remote control by a short flashing of the LED spotlight 2. The lighting duration is now set.

- Replacing the battery

Improperly changing the battery can cause damage. Remove an empty battery from the remote control.

Hold the remote control with the rear panel facing up (see Fig. B).

Press the spring ^20 toward the battery compartment 22 and pull the battery sled 21 out of the battery compartment 22.

Remove the battery.

☐ Insert a new 3-7 CR2025 battery into the battery sled ^21 . Ensure the correct polarity which is shown on the rear side of the remote control ^8 .

☐ Slide the battery sled back into the battery compartment 22.

- Cleaning and Care

■ CAUTION! The product becomes hot when it is switched on.

Allow the product to cool down completely before cleaning.

■ Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box.

■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.

☐ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.

After cleaning, replace the fuse or switch on the circuit breaker.

To clean the remote control, remove the battery from the battery compartment 22 (see chapter "Replacing the battery").
□ Clean the remote control with a soft, dry cloth.
If the dirt is stubborn, use a slightly moistened cloth. Then dry the remote control 8 well.
☐ Reinstall the battery.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your

proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP65
