| Product type | Outdoor halogen floodlight |
| Brand | Livarno Lux |
| Model | LSHB 150 B1 |
| Service voltage | 220-240 V ~, 50/60 Hz |
| Protection class | I (with earth connection) |
| Type of protection | IP44 (splash-proof) |
| Rated power | 120 W (halogen bulb) |
| Bulb | Halogen R7s - J78 (max. 150 W) |
| Luminous flux | 2200 lm +/-5% |
| Color temperature | approx. 3000 K +/-10% |
| Bulb lifespan | approx. 2000 hours / 8000 cycles |
| Detection angle | max. 180° |
| Detection range | max. 12 m (adjustable) |
| Adjustable lighting duration | approx. 10 s to 12 min |
| Max lit area | approx. 50 m² (mounting at 2 m height) |
| Dimensions (W x H x D) | approx. 39 x 112 x 86 mm |
| Weight | approx. 587 g |
| Operating position | vertical, floodlight on top, detector at bottom |
| Usage | Indoor and outdoor |
| Settings | TIME, SENS, LUX (screw under detector) |
| Warranty | 3 years |
| Cleaning | Dry, soft cloth, switch off power |
Frequently Asked Questions - LSHB 150 B1 Livarno Lux
User questions about LSHB 150 B1 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your LED Spotlight in PDF format for free! Find your manual LSHB 150 B1 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LSHB 150 B1 by Livarno Lux.
USER MANUAL LSHB 150 B1 Livarno Lux
- Intended use....20
- Supplied items....21
- Technical data....22
- Safety instructions ...... 23
- Copyright 26
- Prior to use 27
7.1. The correct installation location....27
7.2. Required tools....28
7.3. Prior to installation....28
7.4. Assembly....29 - First use ....30
8.1. Aligning the motion sensor ....30
8.2. Setting light time (TIME) 31
8.3. Adjusting sensor sensitivity (SENS) 31
8.4. Adjusting light sensitivity (LUX) 31 - Cleaning / maintenance....31
- Troubleshooting ....32
- Environmental and disposal information ....33
- Conformity information ....34
- Warranty and servicing advice....34

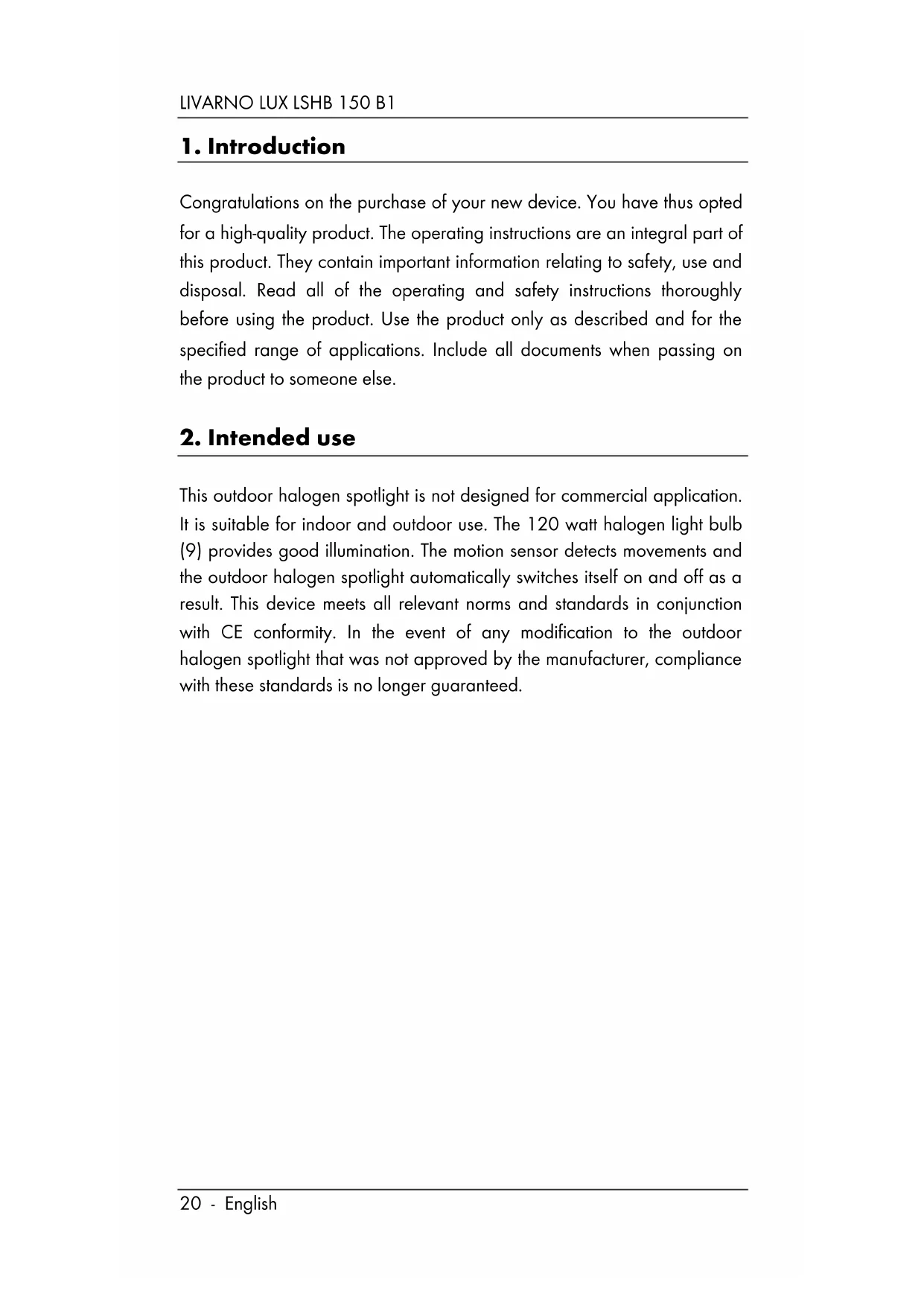

1. Introduction
Congratulations on the purchase of your new device. You have thus opted for a high-quality product. The operating instructions are an integral part of this product. They contain important information relating to safety, use and disposal. Read all of the operating and safety instructions thoroughly before using the product. Use the product only as described and for the specified range of applications. Include all documents when passing on the product to someone else.
2. Intended use
This outdoor halogen spotlight is not designed for commercial application. It is suitable for indoor and outdoor use. The 120 watt halogen light bulb (9) provides good illumination. The motion sensor detects movements and the outdoor halogen spotlight automatically switches itself on and off as a result. This device meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the outdoor halogen spotlight that was not approved by the manufacturer, compliance with these standards is no longer guaranteed.
3. Supplied items
• Outdoor halogen spotlight LSHB 150 B1
• 120 watt halogen light bulb
• Installation materials (2 screws and 2 plugs)
- Operating instructions and safety instructions
These operating instructions have a fold-out cover. The outdoor halogen spotlight is illustrated with numbers on the inside cover. The numbers indicate the following:
1 Screw (front pane)
2 Screw (wall bracket)
3 Cable junction box
4 Cable bushing
5 Screw connection (cable bushing)
6 Locking screw
7 Wall bracket
8 Motion sensor
9 Halogen light bulb
10 Front pane
11 Power cable (not supplied / home connection)
12 Screw terminal
13 LUX control
14 SENS control
15 TIME control
4. Technical data
Spotlight:
| Brand: | LIVARNO LUX |
| Model designation: LSHB 150 B1 | |
| Operating voltage: 220 - 240V ~, 50/60Hz | |
| Protection class: I (with earth conductor) | |
| Protection rating: IP44 (splashing water protection category) | |
| Operating position: vertical - spotlight at top, motion sensor at bottom | |
| Maximum projected light coverage: | approx. 50m^2 when installed at a height of approx. 2m |
| Dimensions (W x H x D): approx. 139 x 112 x 86mm | |
| Weight: | approx. 587g |
Halogen light bulb:
| Light bulb: halogen light bulb | R7s J78 |
| Energy efficiency class: C | |
| Service life: approx. 2000 hours / approx. 8000 switching cycles | |
| Luminous flux: 2200lm +/-5% | |
| Power: | 120 watts |
| Colour temperature: approx. | 3000K +/-10% |
Motion sensor:
| Sensor detection angle: | 180° max. |
| Detection range: | max. 12m (detection sensitivity can be set via control dial) |
| Light sensitivity: | can be set via control dial |
| Mechanical swivelling: | approx. 150° horizontal / approx. 180° vertical |
| Light time: | approx. 10 seconds +/- 5 seconds to 12 minutes +/- 1.5 minutes |
The technical data and design may be changed without notification.
5. Safety instructions
Before using this device for the first time, please read the following instructions carefully and take note of the safety warnings, even if you are familiar with the use of electronic devices. Store these operating instructions in a safe place for future reference. If you sell or pass on the device to someone else, be sure to always include these operating instructions as they are an integral part of the device.
WARNING! This symbol indicates important information for safe operation of the outdoor halogen spotlight and the safety of the user. Disregarding this information can lead to material damage and/or health hazards and even death.
Fire hazard: Attach the outdoor halogen spotlight at a distance of at least 1m from illuminated materials. Excessive heat generation can cause a fire.
Any cracked protective cover must be replaced.
The outdoor halogen spotlight has an earth conductor. The earth conductor (yellow/green) must be connected to the indicated terminal.
Electrical devices do not belong in the hands of children. Never allow children to use electrical devices unsupervised Children may not recognise potential risks. Always keep plastic packaging away from children. It poses a suffocation risk.
If you notice any smoke, unusual noises or strange odours, switch off the device immediately. In such cases, the device should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke,
however, consult a doctor. The inhalation of smoke can be harmful.
The housing of the outdoor halogen spotlight must not be damaged. There is a risk of an electric shock if the housing is damaged.
Do not use the outdoor halogen spotlight in potentially explosive environments which contain flammable gases, vapours or dust. It poses a risk of explosion.
Never open the housing of the outdoor halogen spotlight except to change the halogen light bulb. The circuit must be disconnected during all work on the outdoor halogen spotlight, even when changing the light bulb! There is a risk of an electric shock if the housing is open.
You must not hang any objects on the outdoor halogen spotlight. The housing is not designed to carry loads. Otherwise, the outdoor halogen spotlight could be damaged.
Never use such optical instruments as a magnifying glass to look directly into the light beam. This can lead to eye injuries. In the event of a suspected eye injury, consult a doctor immediately.
6. Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change.
7. Prior to use
Remove the outdoor halogen spotlight and the installation materials from the packaging.
Check the outdoor halogen spotlight for signs of damage. If it is damaged, the outdoor halogen spotlight must not be used.
Only use halogen light bulbs with R7s J78 base and a maximum power of 150 watts!
The halogen light bulb (9) is stored within the spotlight so that it can be transported safely. Loosen the screw (1) with a Phillips screwdriver and carefully open the front pane (10). Take the packaging with the halogen light bulb (9). Open the packaging, remove the halogen light bulb (9) and press it into one side of the bulb fitting in order to then insert it into the other side. When doing so, do not handle the halogen light bulb (9) by its glass body. The bulb should only ever be handled with a cloth. Close the front pane (10) now and tighten the screw (1) again.
7.1. The correct installation location
Select the installation location carefully and prepare well for the installation.
➢ Place all individual parts, required tools and installation material so they are well arranged and ready to hand.
The outdoor halogen spotlight may be mounted only on stable substrates, for example, brickwork.
Do not install the outdoor halogen spotlight above a heat source or in the immediate vicinity of other light sources. When selecting the installation location, also pay attention to the illustration [D] on the inside cover.
➢ Select the installation location so that the outdoor halogen spotlight is protected against wind, rain and dirt.
➢ Find out in advance which installation material is suitable for the installation location you selected. Suitable installation material for concrete is included with the outdoor halogen spotlight.
7.2. Required tools
The following tools are not supplied. This list can be used for orientation. The exact nature of the required tools depends on the individual on-site conditions.
Ladder
▶ Voltage tester
▶ Spirit level, folding ruler, pencil
Drill with drill bits
- Phillips screwdriver, flat-bladed screwdriver
➢ Spanner, combination pliers, side cutter
7.3. Prior to installation
The installation must be performed only by an authorised electrician!
The circuit must be switched off during the installation!
When drilling the holes, make sure that no cables or pipes in the wall are damaged.
Before installation, familiarise yourself with the individual parts of the outdoor halogen spotlight as well as the text and illustrations of these operating instructions and comply with them.
Make sure that the cable to which the outdoor halogen spotlight is to be connected is not live. To ensure that this is the case, remove the appropriate circuit fuse from your fuse box or switch the fuse to the "0" position.
Make sure that the cable is not live using a voltage tester!
7.4. Assembly
➢ Detach the wall bracket (7) from the outdoor halogen spotlight by removing the 2 screws (2) with a Phillips screwdriver. Note that the wall bracket (7) is attached on both sides with a screw (2), a spring washer and a nut. Keep these parts safe until you are ready to assemble them.
➢ Use the wall bracket (7) as a template to mark the two holes.
Then drill the two holes and attach the wall bracket (7) using the supplied wall plugs and screws or, depending on the installation location, using other suitable plugs and screws.
➢ Open the cable junction box (3) by loosening the four screws using a Phillips screwdriver and removing the cover.
Loosen the 2 screws on the strain relief within the cable junction box (3) with a Phillips screwdriver only to the extent that the power cable (11) can be subsequently fed through it.
➢ Loosen the screw connection (5) of the cable bushing (4), but do not completely unscrew it.
Remove approx. 5 to 8cm of the sheath of the power cable (11).
First, route the power cable (11) through the screw connection (5) and the cable bushing (4), and then through the strain relief in the cable junction box (3). When routing the power cable (11) through the cable bushing (4), an internal rubber seal must be penetrated. A slight resistance may thus be felt.
Fix the power cable (11) by tightening the 2 screws on the strain relief within the cable junction box (3). The end of the cable sheath must be in the strain relief for this purpose. Do not clamp the individual wires!
➢ Then tighten the previously loosened screw connection (5) of the cable bushing (4) in a clockwise direction. This ensures the sealing of the power cable (11).
Connect the stripped wire ends of the power cable (11) using the screw terminal (12). Make sure that the individual wires of the power cable (11) are connected correctly. Also pay attention in this context to the illustration [B] on the inside cover.
| Wire | Symbol | Designation |
| Black or brown L Phase | ||
| Blue | N | Neutral |
| Yellow/green |  | Earth conductor |
➢ Close the cable junction box (3) by screwing the cover again tightly with the four screws that you previously removed. A rubber seal which is integrated in the cover ensures the sealing of the cable junction box (3). Ensure that the rubber seal lies correctly in the groove provided in the cover.
Then attach the outdoor halogen spotlight to the wall bracket (7). To do so, use the previously removed screws (2), spring washers and nuts.
▶ Switch on the circuit.
8. First use
8.1. Aligning the motion sensor
Make sure that no movements that should not be detected (for example, on the pavements or streets) occur in the detection range of the motion sensor (8).
It is best if you set the light sensitivity of the motion sensor (8) during the lighting conditions when the outdoor halogen spotlight is supposed to be active.
- Align the motion sensor (8) so that it can capture the desired range as well as possible. The view must not be obstructed by objects or anything else.
- You can align the motion sensor (8) horizontally by turning it.
- To align the motion sensor (8) vertically, you must first loosen the locking screw (6). If the motion sensor (8) is located in the desired position, you must tighten the locking screw (6) again.
8.2. Setting light time (TIME)
You use the TIME control (15) at the bottom of the motion sensor (8) to set the light time (approx. 10 seconds to 12 minutes). Turn the TIME control (15) clockwise (+ direction) to increase the light time or anti-clockwise (- direction) to reduce the light time.
8.3. Adjusting sensor sensitivity (SENS)
You use the SENS control (14) at the bottom of the motion sensor (8) to adjust the sensor sensitivity. Turn the SENS control (14) clockwise (+ direction) to increase the sensitivity or anti-clockwise (- direction) to reduce the sensitivity. The higher the sensitivity, the greater the detection range (12 metres at the most).
8.4. Adjusting light sensitivity (LUX)
You use the LUX control (13) at the bottom of the motion sensor (8) to adjust the light sensitivity. Here, you set the lighting conditions to which the twilight sensor responds and thus the outdoor halogen spotlight is switched on or off.
Turn the LUX control (13) clockwise ( ^* direction) so that the motion sensor (8) responds to brighter lighting conditions.
Turn the LUX control (13) anti-clockwise ( direction) so that the motion sensor (8) responds to darker lighting conditions.
9. Cleaning / maintenance
Maintenance
The outdoor halogen spotlight does not contain any parts that require maintenance.
Replacing the light bulb
The circuit must be disconnected during all work on the outdoor halogen spotlight, even when changing the light bulb! There is a risk of an electric shock!
Only use halogen light bulbs with R7s J78 base and a maximum power of 150 watts!
Loosen the screw (1) with a Phillips screwdriver and carefully open the front pane (10). Press the halogen light bulb into one side of the bulb fitting in order to then remove it from the other side. Then, press a new halogen light bulb of the same design (see "Technical data" section) into one side of the bulb fitting in order to then insert it into the other side. When doing so, do not handle the halogen light bulb (9) by its glass body. The bulb should only ever be handled with a cloth. Close the front pane (10) now and tighten the screw (1) again.
Switch on the circuit again.
Cleaning
The circuit must be disconnected during all work on the outdoor halogen spotlight, even when cleaning it! There is a risk of an electric shock!
Ensure that no liquid can penetrate the housing of the outdoor halogen spotlight. There is a risk of an electric shock.
To clean the outdoor halogen spotlight, use a soft, dry cloth and never use any solvent or cleaner that would corrode the plastic materials. Use a slightly damp cloth for more stubborn dirt.
10. Troubleshooting
The light does not switch itself on
The motion sensor (8) is not aligned correctly. Correct the alignment.
The halogen light bulb (9) is faulty. Replace it.
The electrical connection is faulty. Get an authorised electrician to check the electrical connection.
The light switches on and off quickly
The sensor is disturbed by extraneous light or bright reflective surfaces. Remove the extraneous light source or the disturbing surfaces.
The light does not switch off
➢ Persons or objects are within the detection range of the motion sensor (8). Remove them.
The outdoor halogen spotlight moves in the wind, which continually triggers the motion sensor (8). Attach the outdoor halogen spotlight only to a stable installation location.
11. Environmental and disposal information
The device must not be disposed of with household or bulky waste. You can obtain information regarding collection points or collection times via your local administration or local disposal services.
Remember to protect the environment. Defective bulbs should not be disposed of with household waste. They must be taken to a collection point. You can obtain information regarding collection points via your local administration or local disposal services.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
12. Conformity information
CE
This device meets the basic requirements and other relevant regulations of the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. To obtain a complete EU Declaration of Conformity, send an e-mail to the following e-mail address: ce@targa.de
13. Warranty and servicing advice
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
Service
Phone: 020 - 70 49 04 03
E-Mail: service.GB@targa-online.com
Phone: 01-4370121
E-Mail: service.IE@targa-online.com
Phone: 027 78 11 03
E-Mail: service.MT@targa-online.com
Phone: 02 - 20 09 025
E-Mail: service.CY@targa-online.com
IAN: 274865
Manufacturer
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY
