USER MANUAL Vivian TS220X TOTO

Adjustable Wrench Screwdriver3 ENGLISH 3-3/4" [95mm] MAX.2-1/2" [65mm] MIN. FINISHED WALL

SURFACEMIN./MAX. MARKINGS

Screw Plaster Guard INCLUDED PARTS

• Actual product may vary in appearance depending on the model. Check to make sure that all these parts were included in your packaging: INSTALLATION PROCEDURE

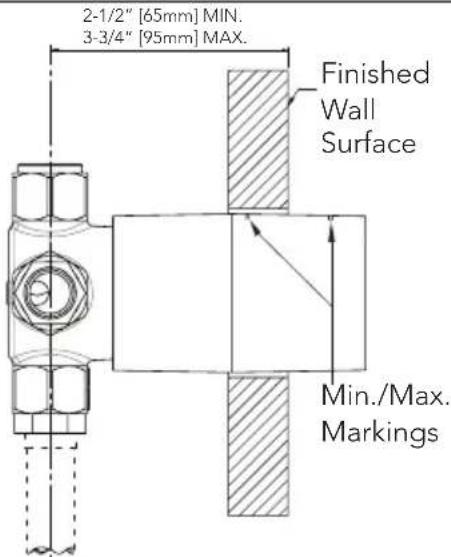

1. Confirm that the valve has been

installed properly. N OTE: The finished wall surface should be between the min and max markings on the plaster guard. See the TSMV installation manual for further information. Plaster GuardMin./Max.MarkingsFinished Wall Surface2-1/2” [65mm] MIN.3-3/4” [95mm] MAX.Screw

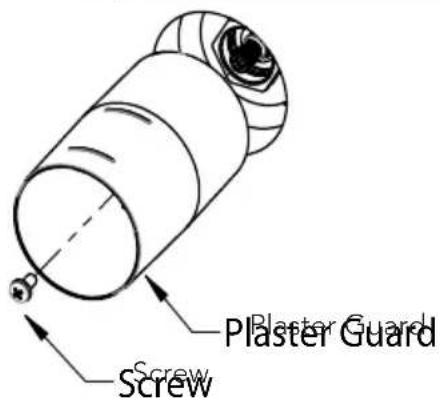

2. Remove the screw securing the

plaster guard to the valve body, then pull the plaster guard outwards to remove it. Handle Assembly* Escutcheon* Threaded Extension Adapter Collar Screw and Lock Washer4 ENGLISH

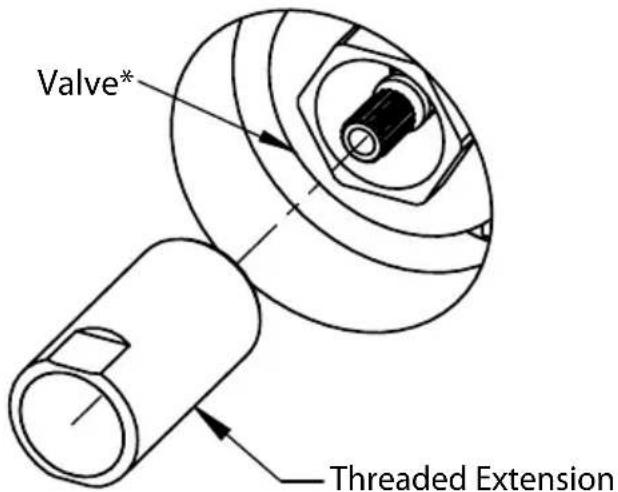

3. Use an adjustable wrench to

tighten the threaded extension into the valve.

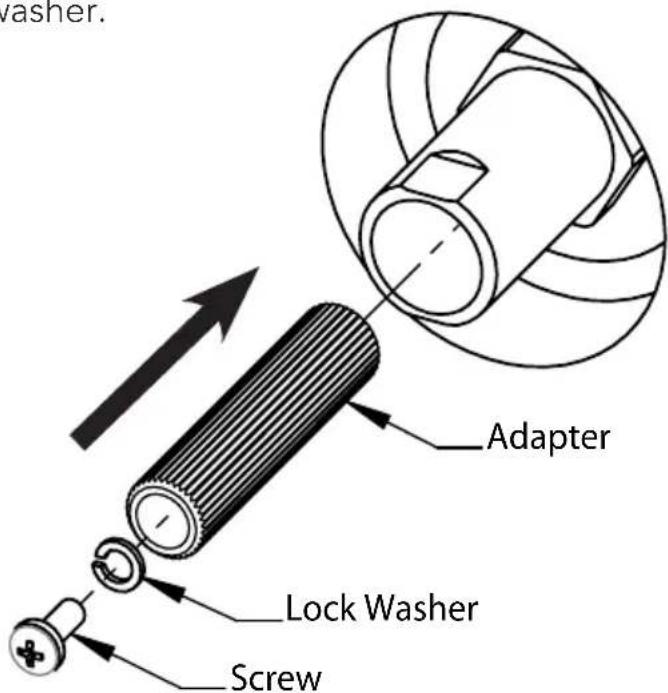

4. Secure adapter to the valve with

the included screw and lock washer. Installation Procedure (continued) Threaded Extension Valve* Adapter Lock Washer Screw

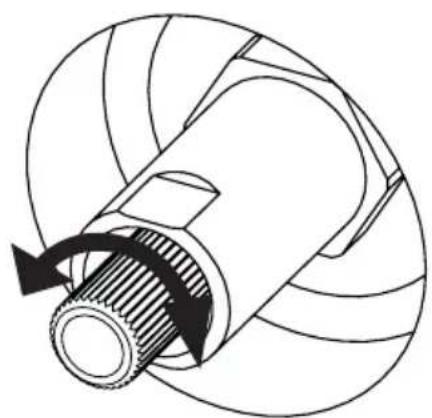

5. Turn the adapter manually until it

“clicks” into the center position.5 ENGLISH CARE & CLEANING Your new shower trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty. Installation Procedure (continued)

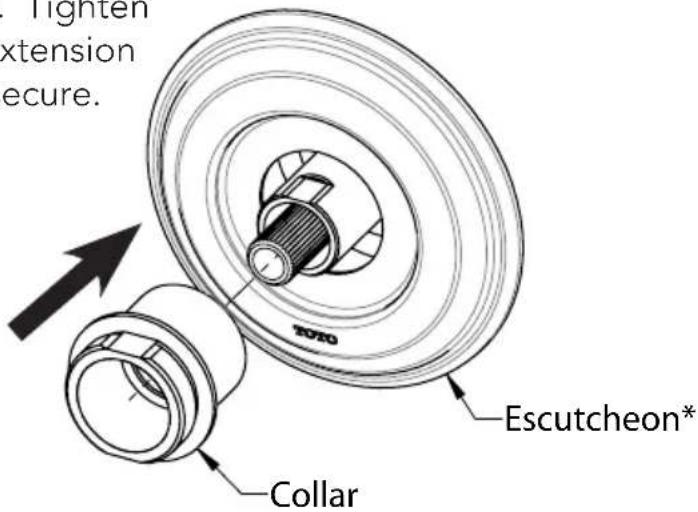

6. Hold the escutcheon against the wall with

the TOTO logo at the bottom. Tighten the collar onto the threaded extension with an adjustable wrench to secure.

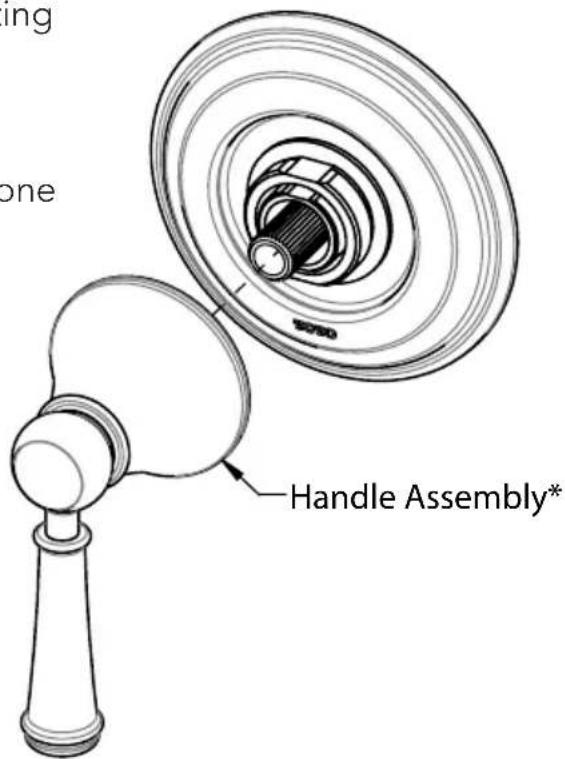

7. Slide handle assembly onto the adapter,

and tighten onto the collar by rotating handle base. If fine adjustment of handle position is desired, remove adapter, rotate one notch/tooth, and reinstall. Collar Escutcheon* Handle Assembly*6 ENGLISH WARRANTY

warrants its residential faucets and bathroom accessories (“Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.

2. TOTO’s obligations under this warranty are limited to repair, replacement or other appropriate

adjustment, at TOTO’s option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.

3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc. b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product. c. Damage or loss resulting from sediments or foreign matter contained in a water system. d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product. e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate. f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty

registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO

warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.

6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY

FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.

7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to

a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser’s location or pay to transport the Product to a service facility. THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO’S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT

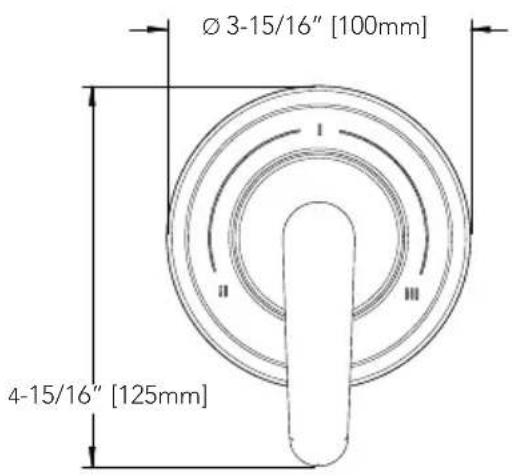

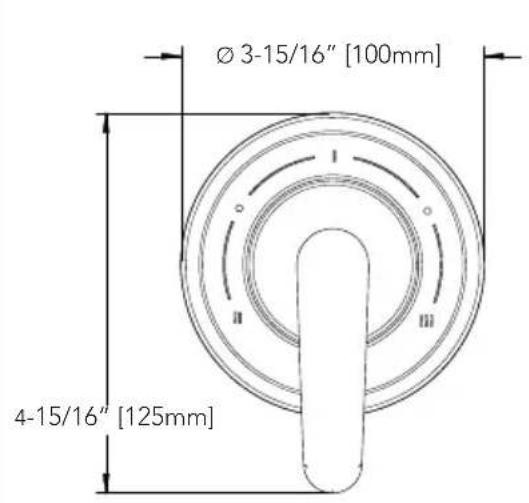

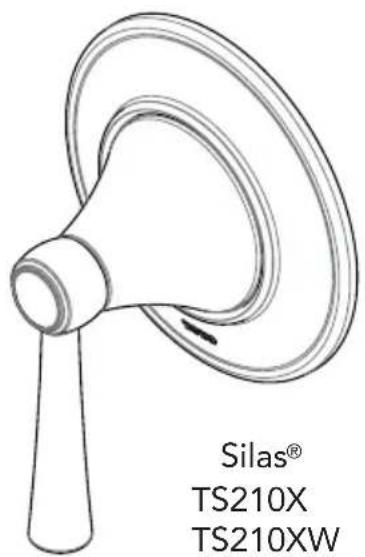

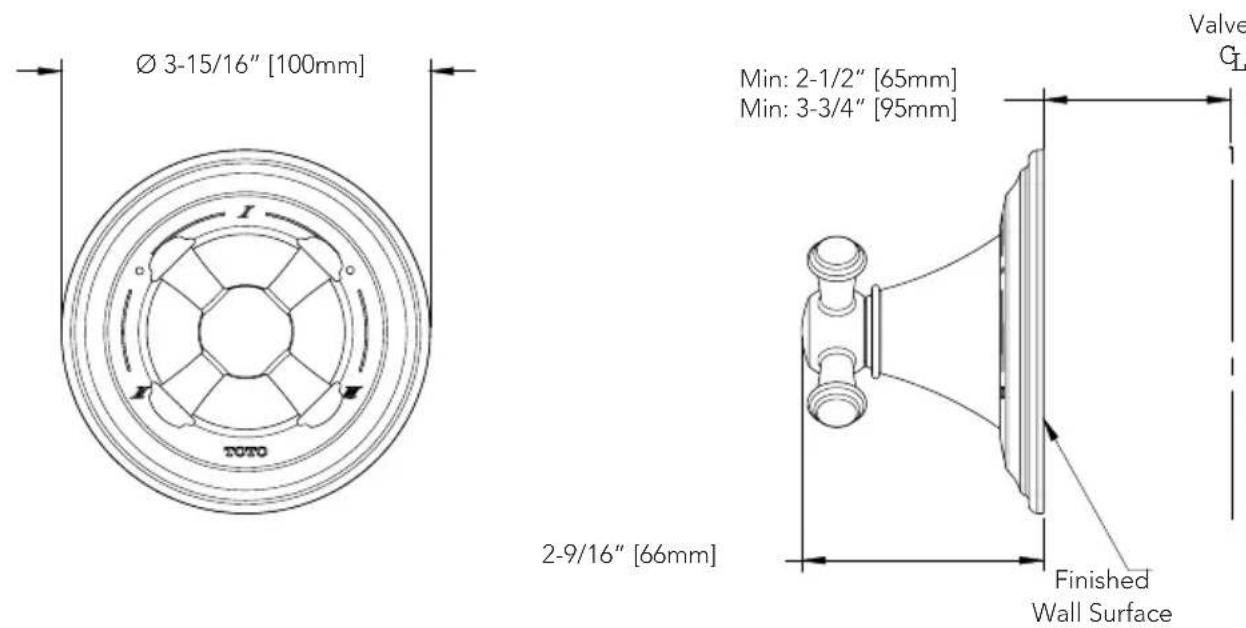

DIMENSIONS BRUTES TS210X TS210XW

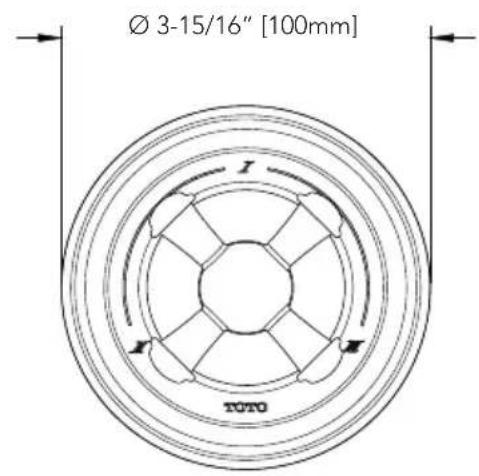

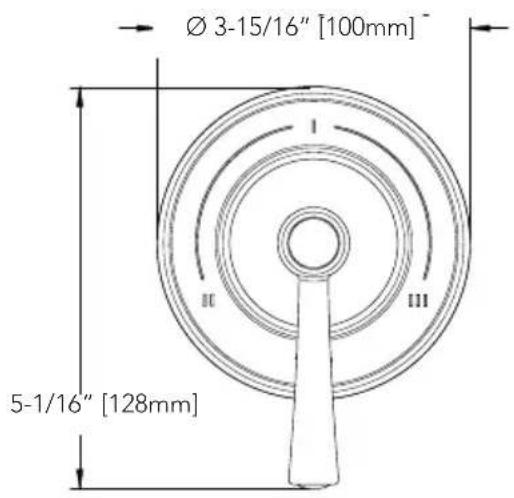

Ø 3-15/16” [100mm] Ø 3-15/16” [100mm] Min: 2-1/2” [65mm] Min: 3-3/4” [95mm] Finished Wall Surface 2-9/16” [66mm] 5-1/16” [128mm] 5-1/16” [128mm] Valve18

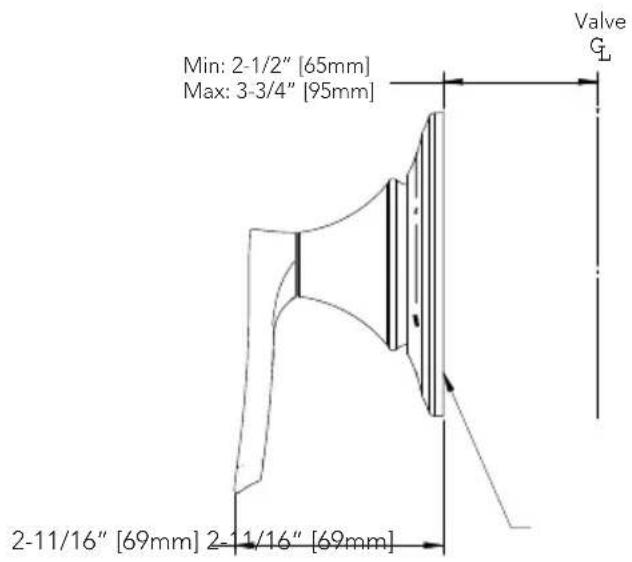

Ø 3-15/16” [100mm] Ø 3-15/16” [100mm] Min: 2-1/2” [65mm] Min: 3-3/4” [95mm] Finished Wall Surface 2-9/16” [66mm] Valve19

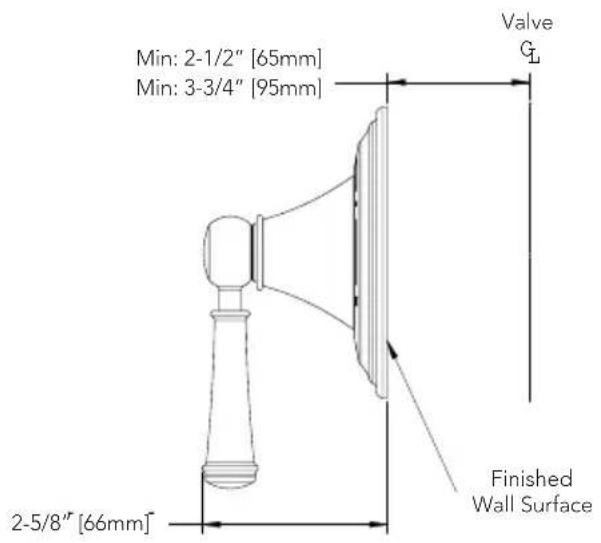

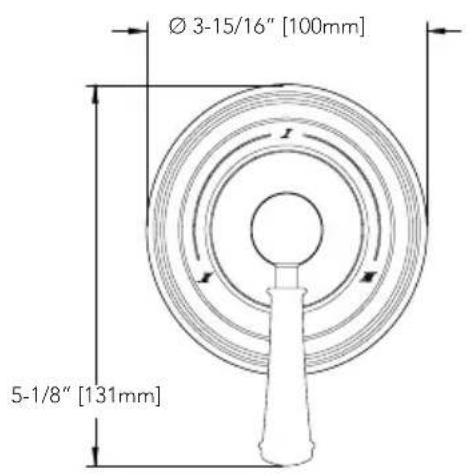

Ø 3-15/16” [100mm] Ø 3-15/16” [100mm] 5-1/8” [131mm] Min: 2-1/2” [65mm] Min: 3-3/4” [95mm] Finished Wall Surface Valve 5-1/8” [131mm] 2-5/8” [66mm]20

U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260 Tel: [phone] Fax: [phone] www.totousa.com 0GU4219 Rev D Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260 [phone] or [phone] when calling from outside of U.S.A.
