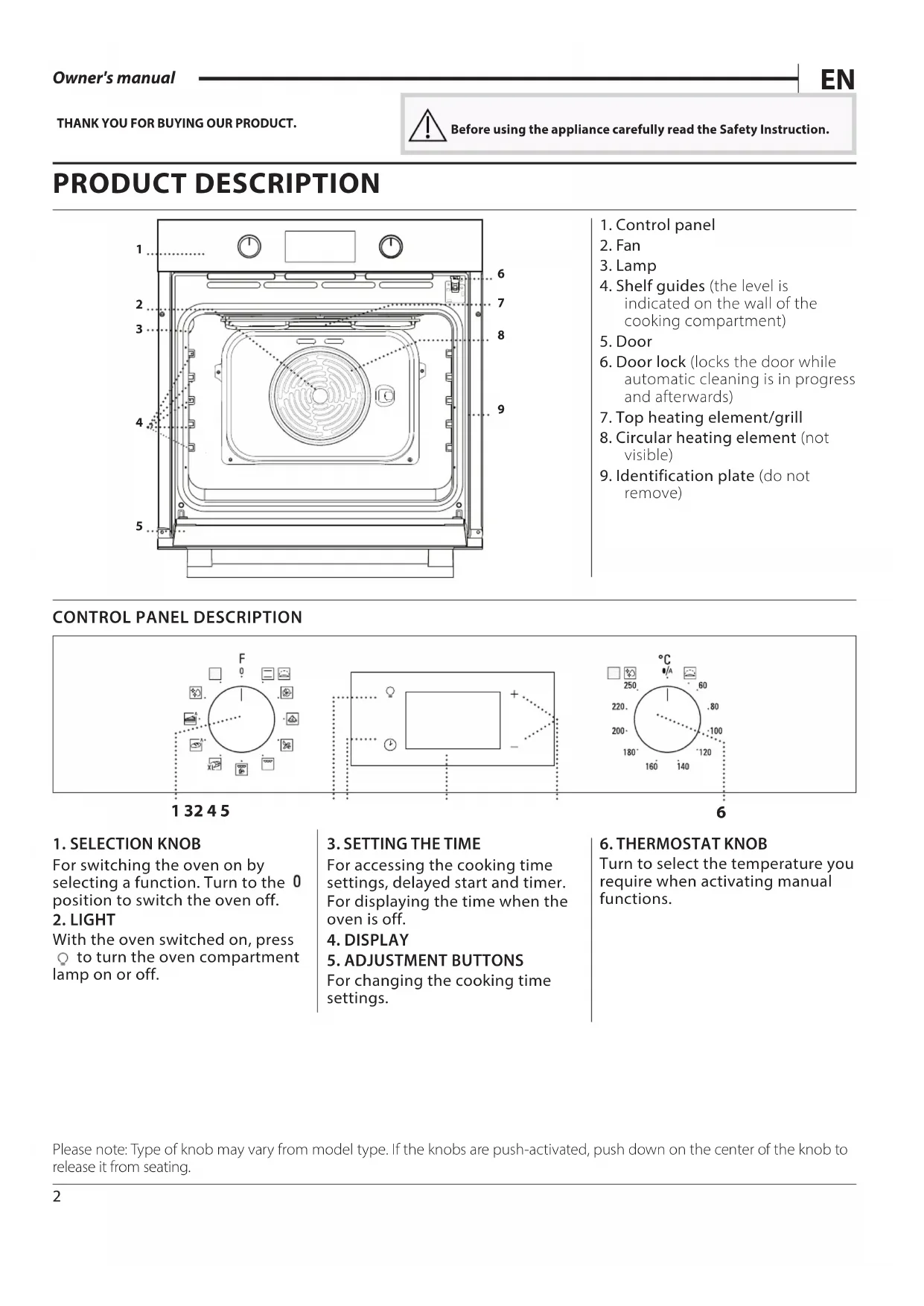

USER MANUAL 5B46P0260 BLAUPUNKT

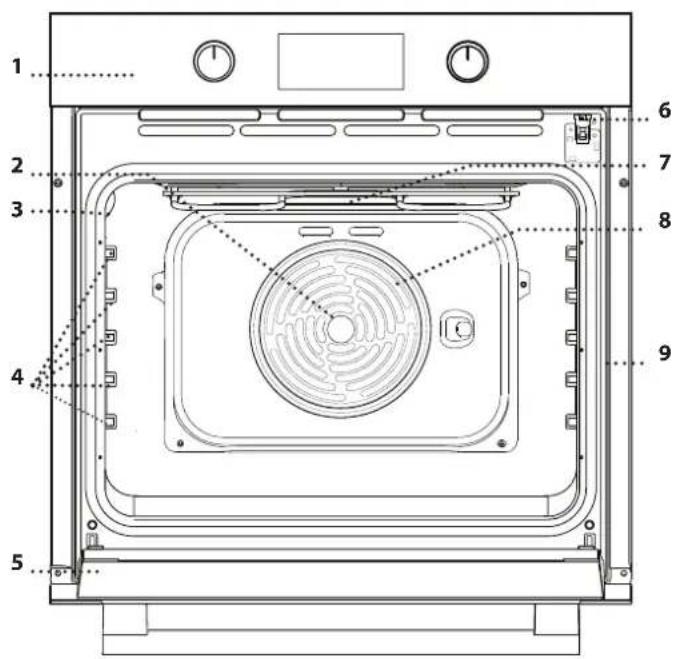

4. Shelf guides (the level is

indicated on the wall of the cooking compartment)

6. Door lock (locks the door while

automatic cleaning is in progress and afterwards)

7. Top heating element/grill

8. Circular heating element (not

For switching the oven on by selecting a function. Turn to the position to switch the oven off.

With the oven switched on, press to turn the oven compartment lamp on or off.

For accessing the cooking time settings, delayed start and timer. For displaying the time when the oven is off.

For changing the cooking time settings.

Turn to select the temperature you require when activating manual functions.

Please note: Type of knob may vary from model type. If the knobs are push-activated, push down on the center of the knob to release it from seating. THANK YOU FOR BUYING OUR PRODUCT. Before using the appliance carefully read the Safety Instruction. PRODUCT DESCRIPTION3 ACCESSORIES WIRE SHELF DRIP TRAY * BAKING TRAY * SLIDING RUNNERS *Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.Use as an oven tray for cooking meat, sh, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.Use for cooking all bread and pastry products, but also for roasts, sh en papillotte, etc.To facilitate inserting or removing accessories. * Availble only on certain modelsThe number and the type of accessories may vary depending on which model is purchased.Other accessories can be purchased separately from the After-sales Service.INSERTING THE WIRE SHELF AND OTHER ACCESSORIESInsert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first.Then slide it horizontally along the runners as far as possible.Other accessories, like the baking tray, are to be inserted horizontally, letting them slide on the runners.SLIDING SHELVES AND SHELF GUIDESBefore using the oven remove the protective tape [a] and then remove the protective foil [b] from thesliding runners.REMOVING THE SLIDING RUNNERS [c]Pull the lower part of the sliding runner to uncouple the lower hooks (1) and pull the the sliding runners upwards, removing them from the upper hooks (2).REFITTING THE SLIDING RUNNERS [d]Hook the upper hooks on the shelf guides (1) then press the lower part of the sliding runners against the shelf guides, until the lower hooks are clicking (2).

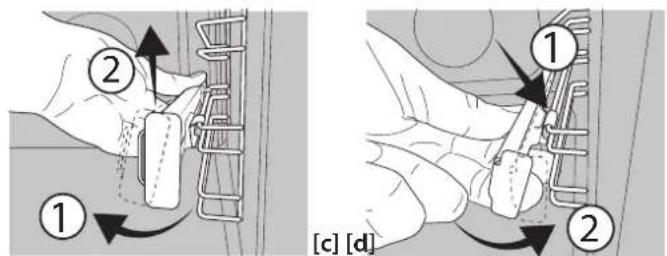

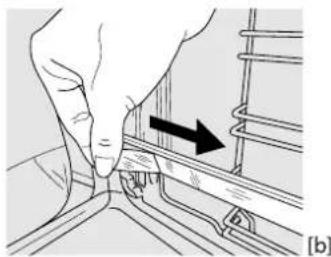

[c] [d]REMOVING AND REFITTING THE SHELF GUIDES1. To remove the shelf guides, firmly grip the externalpart of the guide, and pull it towards you toextract the support and the two internal pins fromthe lodging.2. To reposition the shelf guides, position them nearthe cavity and initially insert the two pins intotheir lodgings. Next, position the external partnear its lodging, insert the support, and firmlypress towards the wall of the cavity to make surethe shelf guide is properly secured.4 FUNCTIONS CONVENTIONAL For cooking any kind of dish on one shelf only. RISING For helping sweet or savoury dough to rise effectively. Turn the thermostat knob to the icon to activate this function. FORCED AIR For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another. PIZZA For baking different types and sizes of pizza and bread. It is a good idea to swap the position of the baking trays halfway through cooking.

For cooking roasts and stuffed roasting joints on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this ECO function is in use, the light will remain switched off during cooking but can be switched on again by pressing

GRILL For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a dripping pan to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water. TURBO GRILL For roasting large joints of meat (legs, roast beef, chicken). We recommend using a dripping pan to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water. MAXI COOKING For cooking large joints of meat (above 2.5kg). We recommend turning the meat over during cooking to ensure that both sides brown evenly. We also recommend basting the joint every so often to prevent it from drying out excessively. BREAD AUTO This function automatically selects the ideal temperature and baking time for bread. For best results, carefully follow the recipe. Activate the function when the oven is cold. Thermostat knob needs to remain in position as the temperature is set automatically by the function. PASTRY AUTO This function automatically selects the ideal temperature and baking time for cakes. Activate the function when the oven is cold. Thermostat knob needs to remain in position as the temperature is set automatically by the function.

SMARTCLEAN The action of the steam released during this special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. To activate the “Smart Clean” cleaning function pour 100-120ml of drinking water into the bottom of the oven then turn the selection knob and the thermostat knob to the icon. It is best to use the function for 35`. The position of the icon does not correspond to the temperature reached during the cleaning.

AUTOMATIC CLEANING - PYRO

For eliminating cooking spatters using a cycle at very high temperature. To activate this function move thermostat knob to

The position of the icon does not correspond to the real temperature reached during the cleaning cycle.

You will need to set the time when you switch on the appliance for the first time: Press until the icon and the two digits for the hour start flashing on the display. Use or to set the hour and press to confirm. The two digits for the minutes will start flashing. Use or to set the minutes and press to confirm. Please note: When the icon is ashing, for example following lengthy power outages, you will need to reset the time.

2. SET THE POWER CONSUMPTION

By default the oven is programmed to work at a power higher than 3kW (Hi). To operate the oven at a power that is compatible with a domestic power supply less than 2,9 kW (Lo), you will need to change the settings. To go to the change menu, turn the selection knob to , then turn it back to . Press and hold and for five seconds immediately afterwards. Use o to change the setting, then press and hold for at least two seconds to confirm.5

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 250 °C for about one hour. The oven must be empty during this time. Please note: It is advisable to air the room after using the appliance for the rst time. DAILY USE

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require: the display will light up and an audible signal will sound.

2. ACTIVATE A FUNCTION

MANUAL To start the function you have selected, turn the thermostat knob to set the temperature you require. Please note: During cooking you can change the function by turning the selection knob or adjust the temperature by turning the thermostat knob. The function will not start if the thermostat knob will be on position. You can set the cooking time, cooking end time (only if you set a cooking time) and a timer. RISING To start the “Rising” function, turn the thermostat knob to Rising position (40 deg) and put function knob in Conventional position; if the oven is set to a different temperature, the function will not start. Please note: You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

3. PREHEATING AND RESIDUAL HEAT

Once the function starts, an audible signal and a flashing icon on the display indicate that the preheating phase has been activated. At the end of this phase, an audible signal and the fixed icon on the display will indicate that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking. Please note: Placing the food in the oven before preheatinghas nished may have an adverse eect on the nal cookingresult. After cooking and with the function deactivated, the icon may continue to remain visible on the display even after the cooling fan has switched off to indicate that there is residual heat in the compartment. Please note: The time after which the icon switches o varies because it depends on a series of factors such as ambient temperature and function used. In any case, the product should be considered to be o when the pointer on the selection knob is at “0”.

4. PROGRAMMING COOKING

You will need to select a function before you can start programming cooking. DURATION Keep pressing until the icon and “00:00” start flashing on the display. Use or to set the cooking time you require, then press to confirm. Activate the function by turning the thermostat knob to the temperature you require: an audible signal will sound and the display will indicate that cooking is complete. Please note: To cancel the cooking time you have set, keep pressing until the icon starts flashing on the display, then use to reset the cooking time to “00:00”. This cooking time includes a preheating phase.

PROGRAMMING THE END COOKING TIME/

DELAYED START After a cooking time has been set, starting the function can be delayed by programming its end time: press until the icon and the current time start flashing on the display. Use or to set the time you want cooking to end and press to confirm. ctivate the function by turning the thermostat knob to the temperature you require: the function will remain paused until it starts automatically after the period of time that has been calculated in order forcooking to finish at the time you have set. Please note: To cancel the setting, switch the oven off by turning the selection knob to the position. Delay to start functionality is not available for Grill and Turbo Grill functions.6

An audible signal will sound and the display will indicate that the function has finished. Turn the selection knob to select a different function or to to switch the oven off. Please note: If the timer is active, the display will show “END” alternately with the remaining time.

5. SETTING THE TIMER

This option does not interrupt or program cooking but allows you to use the display as a timer, either during while a function is active or when the oven is off. Keep pressing until the and “00:00” icon and “00:00” start flashing on the display. Use or to set the time you require and press to confirm. An audible signal will sound once the timer has finished counting down the selected time. Notes: To cancel the timer, keep pressing until the icon starts ashing, then use to reset the time to “00:00”.

6. AUTOMATIC CLEANING FUNCTION – PYRO

Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after (until the room has finished airing) running the Pyro cycle. Remove all accessories - including shelf guides - from the oven before activating the function. If the oven is installed below a hob, make sure that all the burners or electric hotplates are switched off while running the selfcleaning cycle. For optimum cleaning results, remove the worst soiling with a damp sponge before using the Pyro function. Avoid activating the pyro cycle cleaning in the presence of limescale residues. We recommend only running the Pyro function if the appliance contains heavy soiling or gives off bad odours during cooking. To activate the automatic cleaning function, turn the selection knob and the thermostat knob to the icon. The function will be activated automatically, the door locked and the light inside the oven switched off: The display will show the time remaining to the end, alternating with “Pyro”. Once the cycle has been completed, the door remains locked until the temperature inside the oven has returned to a safe level. Air the room during and after running the Pyro cycle. NOTES

• Do not cover the inside of the oven with aluminium foil.

• Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.

• Do not place heavy weights on the door and do not hold on to the door.7 COOKING TABLE RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min) LEVEL AND ACCESSORIES Leavened cakes Yes 170 30 - 50

Filled cake (cheese cake, strudel, fruit pie) Yes 160 - 200 35 - 90

ACCESSORIES Wire shelf Baking dish on the wire shelf Baking tray/Drip tray or baking dish on the wire shelf Drip tray / Baking tray Drip tray / Baking tray with 200 ml of water FUNCTIONS Conventional Forced air Pizza Grill Turbo grill Eco forced air8 RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min) LEVEL AND ACCESSORIES Stuffed vegetables (tomatoes, courgettes, aubergines) Yes 180 - 200 50 - 70

Toasted bread 5' 250 2 - 6

Sausages / kebabs / spare ribs / hamburgers - 250 15 - 30 *

Lasagne and meat Yes 200 50 - 100 ***

Roast meat / stuffed roasting joints - 170 - 180 100 - 150

• Turn food halfway through cooking ** Turn food two thirds of the way through cooking (if necessary). *** Estimated length of time: dishes can be removed from the oven at dierent times depending on personal preference. ACCESSORIES Wire shelf Baking dish on the wire shelf Baking tray/Drip tray or baking dish on the wire shelf Drip tray / Baking tray Drip tray / Baking tray with 200 ml of water FUNCTIONS Conventional Forced air Pizza Grill Turbo grill Eco forced air9

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.Do not use steam cleaners.Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.Wear protective gloves.The oven must be disconnected from the mains before carrying out any kind of maintenance work. EXTERIOR SURFACES Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth. INTERIOR SURFACES

• After every use, leave the oven to cool and thenclean it, preferably while it is still warm, to removeany deposits or stains caused by food residues. Todry any condensation that has formed as a result ofcooking foods with a high water content, leave theoven to cool completely and then wipe it with a clothor sponge.• If there is stubborn dirt on the interior surfaces, werecommend running the automatic cleaning functionfor optimal cleaning results. Avoid activating thepyrolitic cycle cleaning in the presence of limescaleresidues. Before activating, perform limescalecleaning as described above.• The door can be easily removed and refitted tofacilitate cleaning of the glass.• Clean the glass in the door with a suitable liquiddetergent. ACCESSORIES Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the

catches until they are in the unlock position.

2. Close the door as much as you can.

Take a firm hold of the door with both hands – do nothold it by the handle.Simply remove the door by continuing to close itwhile pulling it upwards (a) at the same time until it isreleased from its seating (b).Put the door to one side, resting it on a soft surface.

3. Refit the door by moving it towards the oven,

aligning the hooks of the hinges with their seatingand securing the upper part onto its seating.

4. Lower the door and then open it fully.

Lower the catches into their original position: makesure that you lower them down completely.

5. Try closing the door and check to make sure that it

lines up with the control panel. If it does not, repeatthe steps above.

1. Disconnect the oven from the power supply.2. Unscrew the cover from the light, replace the bulband screw the cover back on the light.3. Reconnect the oven to the power supply.Please note: Use 25 W/230 V type G9, T300 °C halogen lamps. The bulb used in the product is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your ngerprints could damage them. Do not use the oven until the light cover has been retted. ~60°

1. After removing the door and resting it on a soft

surface with the handle downwards, simultaneously press the two retaining clips and remove the upper edge of the door by pulling it towards you.

2. Lift and firmly hold the inner glass with both

hands, remove it and place it on a soft surface before cleaning it.

3. Refit the intermediate pane (marked with “1R”)

before refitting the inside pane: To position the panes of glass correctly, make sure that the “R” mark can be seen in the left-hand corner. First insert the long side of the glass marked “R” into the support seats, then lower it into position. Repeat this procedure for both panes of glass.

4. Refit the upper edge: A click will indicate correct

positioning. Make sure the seal is secure before refitting the door. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

The oven is not working. Power cut. Disconnection from the mains. Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists. The display shows the letter “F” followed by a number or letter. Oven failure. Contact you nearest Client After-sales Service Centre and state the number following the letter “F”. The display is showing the message “Hot” and the selected function will not start. Temperature too high. Allow the oven to cool down before activating the function. Select a different function. The display shows unclear text and appears to be broken. Another language set. Contact your nearest Client After-sales Service Center. When contacting our Service Centre, please state the codes provided on your product's identication plate. XXXXXXXXXXXXXX Model: xxxXXXXxx SUPPORT11
