Product Type	Outdoor Gas Barbecue
Brand	CHAR BROIL
Model	Commercial 463657524
Fuel	Propane gas (LPG) – 20 lb (9 kg) tank max.
Number of Main Burners	2 stainless steel main burners
Side Burner	1 side burner (adjustable intensity)
Cooking Surface	Cooking grates with infrared emitters + removable griddle
Ignition	Electronic (AA 1.5V battery) and match ignition
Main Materials	Stainless steel, porcelain, heat-resistant plastic
Dimensions (approx.)	Height 112 cm, width 137 cm, depth 61 cm (estimated)
Weight (approx.)	Approximately 60 kg (estimated)
Main Functions	Direct and indirect grilling, griddle, charcoal option (kit sold separately)
Maximum Temperature	Approximately 290 °C (550 °F)
Storage	Foldable side shelves, cart door, removable grease tray
Maintenance	Regular cleaning of burners, firebox, and grease tray; check seals
Safety	Flame retardant device, manual gas shut-off, overfill protection
Warranty	Limited warranty: stainless steel burners 10 years, firebox/lid 3 years, other parts 1 year
Available Spare Parts	Burners, electrodes, regulator, grates, emitters, griddle, etc.
Usage	Outdoor only, sheltered from wind, minimum 1 m distance from walls
Included Accessories	Griddle, cleaning tool, assembly manual

Frequently Asked Questions - Commercial 463657524 CHAR BROIL

How to light the barbecue?

Open the lid, turn the burner knob to HIGH and press the electronic ignition button (AA battery) until lit. If not lit in 5 seconds, wait 5 minutes and try again.

What to do in case of gas odor?

Immediately turn off the gas supply at the tank. Extinguish any flames, open the lid. If odor persists, move away and call the fire department or gas supplier.

How to clean the burners?

Turn off gas and knobs. Remove grates and burner covers. Disassemble burners, clean tubes with a stiff wire hook or brush, and blow with compressed air. Reassemble checking for leaks.

What is the warranty on this barbecue?

Limited warranty: 10 years on stainless steel burners, 3 years on firebox/lid/grates/emitters, 1 year on other parts. Valid only for original purchaser, requires proof of purchase and registration.

Can I use charcoal?

Yes, with the optional accessory kit (ref. 3339889W04). Use a charcoal tray, ignite the gas burners for 15 minutes with lid closed, then turn off and wait 5 minutes before cooking. Never use alcohol or gasoline.

How to store the barbecue?

Clean it, turn off gas and disconnect the tank. Store the tank outdoors, away from children. Cover the barbecue if left outside. For indoor storage, the tank must be disconnected and stored outdoors.

What to do if flames are low?

Check gas level in tank. If the overfill valve has tripped, close knobs, wait 30 seconds, then relight. If problem persists, disconnect and reconnect the regulator.

How to check for gas leaks?

Use a soapy water solution (50% water, 50% mild soap). Apply to connections: valve, regulator, hose. If bubbles appear, immediately turn off gas and tighten connections. Never use an open flame.

Can I use a griddle?

Yes, a griddle is included. Place it on the grates after removing emitters and cooking grates. Ensure the grease tray is empty before each use to avoid grease fires.

How to change the igniter battery?

The battery is located in the electronic ignition module. Remove the module cover, replace the AA 1.5V battery respecting polarity. Use a new alkaline battery. Close the module.

USER MANUAL Commercial 463657524 CHAR BROIL

TOOLS REQUIRED FOR ASSEMBLY:

• Adjustable wrench (not provided)
• Screwdriver (not provided)
  7/16" Combination wrench (not provided)
• Caster pin (provided)

OUTILS REQUIS POUR L'ASSEMBLAGE:

For Your Safety. 2-4
Use and Care 4-12
Limited Warranty 13
Parts Diagram. 38
Parts List. 39
Hardware List 42
Assembly. 43-58
Troubleshooting. 59-60
Registration Card 67

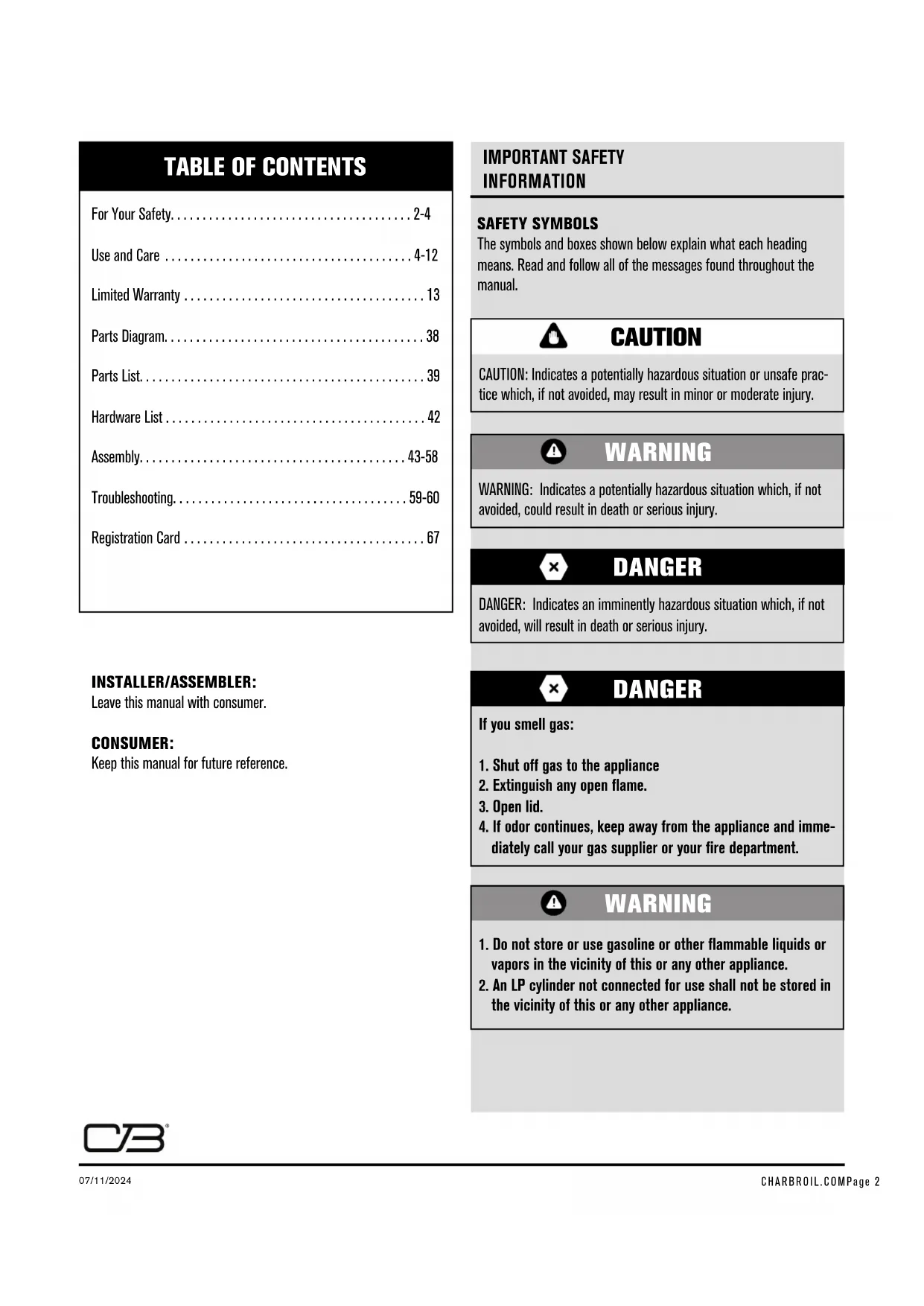

IMPORTANT SAFETY INFORMATION

SAFETY SYMBOLS

The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.

CAUTION

CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.

WARNING

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

DANGER

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

DANGER

If you smell gas:

1. Shut off gas to the appliance
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

FOR YOUR SAFETY - INSTALLING YOUR GRILL

CAUTION

For residential use only. Do not use for commercial cooking.

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

Some parts may contain sharp edges. Wear protective gloves if necessary.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP tank off.
• If grill has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop.
• The best way to prevent grease fires is regular cleaning of the grill following instructions on General Grill Cleaning and Cleaning The Burner Assembly.

Using pots larger than 6 quarts in capacity could exceed weight limit of the side burner shelf or side shelf, resulting in failure of grill cart components.

WARNING

Failure to follow all manufacturer's instructions could result in serious personal injury and/or property damage.

Do not attempt to repair or alter the hose/valve/ regulator for any "assumed" defect. Any modification to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by manufacturer.

Do not cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

OUTDOOR

• An appliance is considered to be outdoors if installed with shelter no more inclusive than with walls on three sides, but with no overhead cover; all openings must be permanently open; sliding doors, garage doors, windows, or screened openings are not considered as permanent openings;
• An appliance is considered to be outdoors if installed with shelter no more inclusive than within a partial enclosure that includes an overhead cover and no more than two sidewalls. The sidewalls may be parallel, as in a breezeway, or at right angles to each other; all openings must be permanently open; sliding doors, garage doors, windows, or screened openings are not considered as permanent openings; or
• An appliance is considered to be outdoors if installed with shelter no more inclusive than within a partial enclosure that includes an overhead cover and three sidewalls, as long as 30% or more of the horizontal periphery of the enclosure is permanently open. All openings must be permanently open; sliding doors, garage doors, windows, or screened openings are not considered as permanent openings.

DANGER

If during operation the flames go out (You smell gas or cannot see the flame)

1. Turn the burner controls OFF
2. Open lid.
3. Wait 5 minutes and repeat the lighting procedure.

If the burner goes out, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

• NEVER store a spare LP cylinder under or near the appliance or in an enclosed area.

• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a hazard due to possible gas release from the safety relief valve. This could cause an intense fire with risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately get away from the LP cylinder/appliance and call your fire department.

USE AND CARE

Installation Safety Precautions

• Use grill, as purchased, only with LP (propane) gas and the regulator/valve assembly supplied. If your grill is Dual Fuel ready, a conversion kit must be purchased for use with natural gas.
• Grill installation must conform with local codes, or in their absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
• All electrical accessories (such as rotisserie) must be electrically grounded in accordance with local codes, or National Electrical Code, ANSI / NFPA 70 or Canadian Electrical Code, CSA C22.1. Keep any electrical cords and/or fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or Canada only. Do not modify for use in any other location. Modification will result in a safety hazard.

LP Cylinder Removal, Transport and Storage

• Turn OFF all control knobs and LP cylinder valve. Turn coupling nut counterclockwise by hand only - do not use tools to disconnect. Loosen cylinder screw beneath bottom shelf or disconnect other retention means, then lift LP cylinder up and and out of cart. Install safety cap onto LP cylinder valve. Always use cap and strap supplied with valve. Failure to use safety cap as directed may result in serious personal injury and/or property damage.
• A disconnected LP cylinder in storage or being transported must have a safety cap installed (as shown). Do not store an LP cylinder in enclosed spaces such as a carport, garage, porch, covered patio or other building. Never leave an LP cylinder inside a vehicle which may become overheated by the sun.
• Do not store an LP cylinder in an area where children play.

LP Cylinder Valve

LP Cylinder

• The LP cylinder used with your grill must meet the following requirements:
• Use LP cylinders only with these required measurements: 12'' (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.

• LP cylinders must be constructed and marked in accordance with specifications for LP cylinders of the U.S. Department of Transportation (DOT) or for Canada, CAN/CSA-B339, cylinders, spheres and tubes for transportation of dangerous goods, Transport Canada (TC). See LP cylinder collar for marking.

• LP cylinder valve must have:

• Type 1 outlet compatible with regulator or grill.

• Safety relief valve.

• UL listed Overfill Protection Device (OPD). This OPD safety feature is identified by a unique triangular hand wheel. Use only LP cylinders equipped with this type of valve.

• LP cylinder must be upright for vapor withdrawal and include collar to protect LP cylinder valve. Always keep LP cylinders in upright position during use, transit or storage.

OPD Hand Wheel

LP cylinder in upright position for vapor withdrawal

LP (Liquefied Petroleum Gas)

• LP gas is nontoxic, odorless and colorless when produced. For Your Safety, LP gas has been given an odor (similar to rotten cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when mixed with air.

LP Cylinder Filling

• Use only licensed and experienced dealers.
• LP dealer must purge new cylinder before filling.
• Dealer should NEVER fill LP cylinder more than 80% of LP cylinder volume. Volume of propane in cylinder will vary by temperature.
• A frosty regulator indicates gas overfill. Immediately close LP cylinder valve and call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice.
• To remove gas from LP cylinder, contact an LP dealer or call a local fire department for assistance. Check the telephone directory under "Gas Companies" for nearest certified LP dealers.

USE AND CARE

LP Cylinder Exchange

• Many retailers that sell grills offer you the option of replacing your empty LP cylinder through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your cylinder only for an OPD safety feature-equipped cylinder as described in the "LP Cylinder" section of this manual.
• Always keep new and exchanged LP cylinders in upright position during use, transit or storage.
• Leak test new and exchanged LP cylinders BEFORE connecting to grill.
• Place safety cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of safety cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

LP Cylinder Leak Test

For your safety

• Leak test must be repeated each time LP cylinder is exchanged or refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances. During leak test, keep grill away from open flames or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water solution. Brush soapy solution onto areas indicated by arrows in figure below.
• Do not use household cleaning agents. Damage to gas train components can result.

WARNING

If "growing" bubbles appear, do not use or move the LP cylinder. Contact an LP gas supplier or your fire department!

DANGER

• Do not insert any tool or foreign object into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury, or death.

Connecting Regulator to the LP Cylinder

1. LP cylinder must be properly secured onto grill. (Refer to assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand-wheel clockwise to a full stop.
4. Remove the safety cap from LP cylinder valve. Always use cap and strap if supplied with valve.

Do not use a POL transport plug (plastic part with external threads)! It will defeat the safety feature of the valve.

1. Hold regulator and insert nipple into LP cylinder valve. Hand-tighten the coupling nut, holding regulator in a straight line with LP cylinder valve so as not to cross-thread the connection.

1. Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal on the back-check feature in the LP cylinder valve, resulting in some resistance. An additional one-half to three-quarters turn is required to complete the connection. Tighten by hand only - do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulator and repeat steps 5 and 6. If you are still unable to complete the connection, do not use this regulator!

USE AND CARE

WARNING

• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP! Turn off gas at source and correct leak.
• If you cannot stop a gas leak by closing the LP cylinder valve leave area and call your fire department!
• Outdoor gas appliance is not intended to be installed in or on a boat.
• Outdoor gas appliance is not intended to be installed in or on an RV.
• Never attempt to attach this grill to the self-contained LP gas system of a camper trailer or motor home.
• CHOKING HAZARD-Small parts. Not for children under 3 years.

Leak Testing Valves, Hose and Regulator

1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP cylinder.
3. Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.
4. Brush soapy solution onto areas circled below, or other similar fittings on your grill.

NOTE: Sideburner shelf fascia and other parts not shown for clarity.
NOTE: Your grill may NOT be equipped with a sideburner.

1. If "growing" bubbles appear, there is a leak. Close LP cylinder valve immediately and retighten connections. If leaks cannot be stopped do not try to repair. Call for replacement parts.
2. Always close LP cylinder valve after performing leak test by turning hand wheel clockwise.

Safety Tips

• Before opening LP cylinder valve, check the coupling nut for tightness.
• When grill is not in use, turn off all control knobs and LP cylinder valve.
• Never move grill while in operation or still hot.
• Some surfaces will be hot during use. Use long-handled barbecue utensils and oven mitts to avoid burns and splatters.
  Maximum load for sideburner and side shelf is 10 lbs.
• The grease tray or cup must be installed during use and emptied after each use. Do not remove grease tray or cup until grill has completely cooled.
• Clean grill often, preferably after each cookout. If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.
• If you notice grease or other hot material dripping from grill onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose and regulator before continuing. Perform a leak test.
• Keep ventilation openings in cylinder enclosure (grill cart) free and clear of debris.
• Do not store objects or materials inside the grill cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.
• The regulator may make a humming or whistling noise during operation. This will not affect safety or use of grill.
• If you have a grill problem see the "Troubleshooting" Section.
• If the regulator frosts, turn off grill and LP cylinder valve immediately. This indicates a problem with the cylinder and it should not be used on any product. Return to supplier!

Battery

a. Size of battery/ type/ designation: AA
b. Nominal Voltage: 1.5v
c. Number of battery required: 1 PC
d. Battery included or not: Yes

Non-rechargeable batteries are not to be recharged.

Batteries are to be inserted with the correct polarity.

Exhausted batteries are to be removed from the product.

Do not dispose of the batteries in fire. Batteries may explode or leak.

Do not swallow the battery.

USE AND CARE

WARNING

LP GAS CYLINDER RUBBER SEAL INSPECTION.

• Inspect the LP gas cylinder valve rubber seal for cracks, wear or deterioration prior to each use. A damaged rubber seal can cause a gas leak, possibly resulting in an explosion, fire, or severe bodily harm.
• It is recommended that you inspect the rubber seal each time the LP gas cylinder is connected to the appliance, each time it has been refilled, or if it has not been used for more than 60 days.
• DO NOT use a LP gas cylinder with a damaged rubber seal. The rubber seal CANNOT be repaired or replaced. Purchase a new cylinder or exchange the cylinder. You should inspect the seal before accepting a new or exchanged cylinder. DO NOT insert tools or foreign objects into the cylinder valve opening as this could damage the rubber seal.
• The leak check procedure outlined in the product guide/assembly manual MUST be followed each time the LP gas cylinder is connected to the appliance. Consult the product guide/assembly manual for the proper procedure and locations for leak checking.

Example of good rubber seal.

Example of damaged rubber seal.

WARNING

For Safe Use of Your Grill and to Avoid Serious Injury:

• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Do not block holes in sides or back of grill.
• Check burner flames regularly.
• Use grill only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas grill.
• Do not cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.
• Use grill at least 3 ft. from any wall or surface. Maintain 10 ft. clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

• NEVER attempt to light or re-light burner with lid closed. A buildup of non-ignited gas inside a closed grill is hazardous.
• Never operate grill with LP cylinder out of correct position specified in assembly instructions.
• Always close LP cylinder valve and remove coupling nut before moving LP cylinder from specified operation position.
• Apartment Dwellers:

Check with management to learn the requirements and fire codes for using an LP gas grill in your apartment complex. If allowed, use outside on the ground floor with a three (3) foot clearance from walls or rails. Do not use on or under balconies.

USE AND CARE

Ignitor Lighting

• Do not lean over grill while lighting.
• Turn gas burner control valves to O (off).
• Open lid during lighting or re-lighting.
• Turn ON gas at LP cylinder.
• To ignite, push and turn burner knob to HIGH. Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.
• If ignition does NOT occur in 5 seconds, turn the burner controls off O, wait 5 minutes and repeat the lighting procedure.
• Repeat steps 4 and 5 to light other main burners.

CAUTION

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP cylinder off.
• Do not leave grill unattended while preheating or burning off food residue on HI. If grill has not been regularly cleaned, a grease fire can occur that may damage the product.

WARNING

Turn controls and gas source or tank OFF when not in use.

CAUTION

If ignition does NOT occur in 5 seconds, turn the burner controls off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

Match-Lighting

• Do not lean over grill while lighting.
• Turn gas burner control valves to O(off).
• Open lid during lighting or re-lighting.
• Turn ON gas at LP cylinder.
• Place match into match holder (hanging from side panel of grill). Light match; then light burner by placing match through the match light hole on side of grill. Immediately push in and turn burner knob to the HIGH position. Be sure burner lights and stays lit.
• Light adjacent burners in sequence by pushing knobs in and turning to the HIGH position.

USE AND CARE

Griddle Installation and Storage

1. With a cold grill, remove cooking grates and emitters.
2. Place griddle in grill.

Remove cooking grates and emitters

Proper griddle placement and storage

Locate griddle on the griddle storage bracket while not in use.

CAUTION

Confirm grease cup has been emptied before each use. Use of the griddle encourages build up of excess grease and food debris in the grease cup. See Safety Tips on page 6 for more details.

Griddle Care

• First Time Use

Before using your griddle, wash it thoroughly with a mild dishwashing liquid to remove the protective coating applied for shipping. Rinse with hot water and dry completely with a soft cloth or paper towel. NEVER ALLOW TO DRAIN DRY. Now season the griddle to prevent rust and sticking.

• Seasoning

• A cooking oil with a high smoke point (such as avocado, olive, or canola oil) is recommended for the initial seasoning. Spread a thin coating of oil over the entire surface, including walls and corners, with a paper towel. Turn on the griddle and allow to heat on high for 20-30 minutes with the lid closed. Turn off the burners and allow the griddle to cool. Your griddle should have a smooth, glossy black surface. Your griddle is now ready to use.

To Prevent Rusting

• Re-season your griddle frequently, particularly when new. If rust occurs, it is an indication that the griddle has not been seasoned enough or the seasoning has been burned off. Scour the rust spot with a heavy brush or steel wool. Reapply a coating of your cooking oil, and season the griddle again.

• Maintenance

• Do not do a burn-off after you grill. For any excess food particles and oil, wipe/brush towards the grease drain. Leaving some oil on the griddle surface is okay, and will help to provide a protective coating on the griddle. The more you use your griddle, the easier maintenance will be. For the least amount of maintenance, store your unit in a dry place. If you store your griddle for an extended period of time, apply a thin coating of cooking oil to your griddle, and wipe dry with a paper towel.

USE AND CARE

Charcoal Lighting Instructions

• Do not lean over grill while lighting.
• With a cold grill, remove cooking grates and emitters.
• Place charcoal trays in grill.
• Place single layer of charcoal in tray, 3 lbs maximum.
• Replace cooking grates.
• With lid open, ignite burners using Gas Lighting Instructions.
• Operate gas burners on HIGH for 15 minutes with lid closed.
• Turn controls knobs to O (OFF).
• Open lid and wait 5 minutes, or until the charcoal turns white, before adding food.

WARNING

• Do not operate gas burners for more than 15 minutes when using charcoal.
• Never use lighter fluid, kerosene, gasoline or alcohol to light charcoal.
• Never use wood chunks, instant light or lump charcoal in your grill.
• Other fuels such as wood, wood pellets, paper or coal must not be used.
• Start charcoal ONLY with charcoal tray properly placed in the firebox. See figure.
• Remove charcoal tray from firebox and store when using as a gas only grill.
• Do not operate gas burner with charcoal tray installed in the firebox without charcoal.

Remove cooking grates and emitters

Proper Charcoal Tray Placement

Replace cooking grates

WARNING

CARBON MONOXIDE HAZARD

Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside homes, vehicles, or tents.

WARNING

After a charcoal fire appears extinguished, unconsumed embers can retain heat for up to 24 hours, and if exposed to fresh air, can burst into flame unexpectedly. Any such embers outside the firebox of the grill pose a fire hazard and can ignite combustible surfaces such as wooden decks.

Cleaning Recommendations

• Clean up of the grill after each charcoal use is required.
• Make sure coals are completely extinguished and the unit has adequately cooled before cleaning.
• Remove charcoal tray and clean out all ashes.

Note: After use, the charcoal tray may discolor. This is normal during use.

USE AND CARE

Burner Flame Check

• Remove cooking grates and heat tents. Light burners, rotate knobs from HIGH to LOW. You should see a smaller flame in LOW position than seen on HIGH. Perform burner flame check on side burner, also. Always check flame prior to each use. If only low flame is seen refer to "Sudden drop or low flame" in the Troubleshooting Section.

Turning Grill Off

• Turn all knobs to the off position. Turn LP cylinder off by turning hand-wheel clockwise to a full stop.

Ignitor Check

• Turn gas off at LP cylinder. Press and hold electronic ignitor button. "Click" should be heard and spark seen each time in each collector box or between burner and electrode. See "Troubleshooting" if no click or spark.

Valve Check

• Important: Make sure gas is off at LP cylinder before checking valves. Knobs lock in off position. To check valves, first push in knobs and release, knobs should spring back. If knobs do not spring back, replace valve assembly before using grill. Turn knobs to LOW position then turn back to off position. Valves should turn smoothly.

Hose Check

• Before each use, check to see if hoses are cut or worn or kinked. Replace damaged hoses before using grill. Use only valve/hose/regulator specified by manufacturer.

Storing Your Grill

• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by Char-Broil at charbroil.com.
• Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed from grill and stored outdoors.
• When removing grill from storage, follow "Cleaning the Burner Assembly" instructions before starting grill.

CAUTION

SPIDER ALERT!

SPIDER AND WEBS INSIDE BURNER

If your grill is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create "flashback" problems by building nests and laying eggs in the grill's venturi or burner, obstructing the flow of gas. The back-up gas can ignite behind the control panel. This flashback can damage your grill and cause injury. To prevent flashbacks and ensure good performance the burner and venturi tube assembly should be removed and cleaned when ever the grill has been idle for an extended period of time.

General Grill Cleaning

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas grills are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a grill cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to completely air dry. Do not apply a caustic grill/oven cleaner to painted surfaces.

• Plastic parts: Wash with warm soapy water and wipe dry.

• Do not use citrisol, abrasive cleaners, degreasers or a concentrated grill cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.
  Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is NOT recommended to clean cooking surfaces while grill is hot.

USE AND CARE

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill.

1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.
3. Remove carryover tubes and hardware securing burners.
4. Detach electrode from burner. NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.
5. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you. (A) Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

(B) Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.
(C) Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

1. Wire brush entire outer surface of burner to remove food residue and dirt.
2. Clean any blocked ports with a stiff wire such as an open paper clip.
3. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right.

Correct burner-to-valve engagement

1. Attach electrode to burner.
2. Carefully replace burners.
3. Attach burners to brackets on firebox.
4. Reposition carryover tubes and attach to burners. Replace heat tents and cooking grates.
5. Before cooking again on grill, perform a "Leak Test" and "Burner Flame Check".

LIMITED WARRANTY

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.

SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE

Stainless Burner 10 years from date of purchase* PER	ORATION, MANUFACTURING, AND MATERIAL	DEFECTS ONLY
Firebox, Lid, Cooking grate and Emitters 3 years from date of purchase*
All Other Parts 1 year from date of purchase*

*Note: A dated sales receipt WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.

This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Paint is not warranted and will require touch up. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.

ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts.
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood, acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTYES and LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the right to substitute like or similar parts that are equally functional.

Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREV- ER APPEARING IS WARRanteed BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMplied WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set forth herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should

write to:

Consumer Relations

P.0.Box 1240

Columbus, GA 31904-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.

TABLE DES MATIÈRES

If during operation the flames go out (You smell gas or cannot see the flame)

...1 PRODUCT GUIDE

...1 HARDWARE PACK

...1 CLEANING TOOL

...1 CASTER PIN

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model. However, the method of assembly remains the same.

LISTE DES PIECES

Réf. Q'te Description

1 1 COUVERCLE SUPérieUR

2 1 JAUGE DE TEMPERATURE

3 1 PLAQUE LOGO

4 1 POIGNEE POUR COUVERCLE SUPérieUR

5 1 FERRURES POUR COUVERCLE SUPérieUR

6 2 ARRÊT DE COUVERCLE

7 3 BUTÉE EN CAOUTCHOUÇ, AVEC TROU, POUR COUVERCLE SUPérieUR

8 1 FOYER

9 1 PANNEAU LATERAL GAUCHE, FOYER

10 1 PANNEAU LATERAL DROIT, FOYER

11 2 SUPPORT DU BRULEUR

12 2 BRULEUR PRINCIPAL

13 2 ÉLECTRODE, BRULEUR PRINCIPAL

14 1 TUBE DE TRANSFERT

15 1 PANNEAU DE CONTRÔL É SUPérieUR

16 1 PANNEAU DE CONTRÔL PRINCIPAL

17 1 MODULE INTERRUPTEUR POUR L'ALLUMAGE

18 2 LUNETTE POUR BOUTON DE CONTRÔL

19 2 BOUTON DE CONTRÔL

20 1 REGULATEUR ASSY DE LA VALVE DU TUYAU

21 1 ÉCRAN THERMIQUE, PANNEAU DE COMMANDE

22 1 TABLETTE LATERALE GAUCHE

23 1 BORDURE SUPérieUR, TABLETTE LATERALE GAUCHE

24 1 BORDURE INFÉRIÉUR, TABLETTE LATERALE GAUCHE

25 1 PORTE-SERVETES

26 1 SUPPORT AVANT, TABLETTE LATERALE DROITE

27 1 SUPPORT ARRIÈRE, TABLETTE LATERALE DROITE

28 1 TABLETTE LATERALE DROITE

29 1 BORDURE SUPérieUR, TABLETTE LATERALE DROITE

30 1 BORDURE INFÉRIÉUR, TABLETTE LATERALE DROITE

31 1 RENFORT, POUR MODULE D'ALLUMAGE ÉLECTRONIQUE

32 1 MODULE D'ALLUMAGE ÉLECTRONIQUE

33 1 CAPUCHON DU FIL DU MODULE D'ALLUMAGE ÉLECTRONIQUE

Réf. Q'té	Description
34	1 ÉCRAN THERMIQUE POUR MODULE D'ALLUMAGE ÉLECTRONIQUE
35 1 PANNEAU SUPérieUR ARRÊRE
36 1 PANNEAU LATÉRAL GAUCHE DU COMPARTIMENT
37 1 BUTÉE EN CAOUTCHOC, TABLETTE LATERALE DROITE
38 1 PANNEAU LATÉRAL DROIT DU COMPARTIMENT
39 1 ÉCRAN THERMIQUE POUR LE RÉSERVOIR
40 1 PORTE, SANS POIGNÉE
41 1 TIGE DE PORTE, FIXE
42 1 TIGE DE PORTE, PRINTEMPS
43 1 POIGNÉE DE PORTE
44 1 SUPPORT DE RANGEMENT POUR PLAQUE DE CUISSON
45 1 PANNEAU INFÉRIEUR ARRÊRE
46 1 ÉTAGÉRE INFÉRIEURE
47 1 VIS RÉSERVOIR
48 2 RENFORT POUR AIMANT
49 2 AMANT DE PORTE
50 2 ROULETTE, VERROUILLAGE
51 2 ROULETTE, FIXÉE
52 1 PORTE ALLUMETTES
53 2 RAIL, POUR PLATEAU À GRAISSE
54 1 PLATEAU À GRAISSE
55 2 BLOC DE POIDS
56 2 GRILLE DE CUISSON, ÉMETTEUR INFRAROUGE
57 2 GRILLE DE CUISSON
58 1 GRILLE CHAUFFANTE
59 1 PLAQUE DE CUISSON
60 1 TUYAU/ RÉGULATEUR, REMPLACEMENT SEULEMENT

NON illustré

...1 MANUEL D'ASSEMBLAGE

...1 S'AC DE FERRURES

...1 NETTOYAGE DE L'INSTRUMENT

...1 DISPOSITIF DE BLOCAGE POUR ROULETTES

IMPORTANT: Infrared emitters must be placed keeping both flat walls overlapped to prevent any flare-up.

Inspect your infrared emitter before each use to ensure that the openings are not covered with debris. See the Grilling Guide for detailed cleaning instructions.

OPTION/OPTION/OPCION-2

Failure to install grease tray will cause hot grease to drip from bottom of grill with risk of fire or property damage.

NOTE: Take out the griddle from the cabinet before placing LP Cylinder inside cart. After LP Cylinder is secured in place as shown, store griddle by hanging the griddle on the griddle storage bracket.

NOTE: Charcoal cooking available with purchase of accessory kit 3339889W04.

EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.

Emergencies Possible Cause Prevention/Solution
Gas leaking from cracked/cut/ burned hose.	Damaged hose.	Turn off gas at LP cylinder or at source on natural gas systems. Discontinue use of product and replace valve/hose/regulator. Once valve/hose/regulator replaced conduct complete leak check per manual.
Gas leaking from LP cylinder. Gas leaking from LP cylinder valve.	Mechanical failure due to rusting or mishandling.	Replace LP cylinder.
	Failure of cylinder valve from mishandling or mechanical failure.	Turn off LP cylinder valve. Return LP cylinder to gas supplier.
Gas leaking between LP cylinder and regulator connection.	Improper installation, connection not tight, and/or failure of rubber seal in cylinder valve.	Turn off LP cylinder valve. Remove regulator from cylinder and visually inspect rubber seal in cylinder valve for damage. If damage or cannot correct leak replace cylinder. See LP Cylinder Leak Test and Connecting Regulator to the LP Cylinder.
Fire coming through control panel.	Fire in burner tube section of burner due to blockage.	Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die down. After fire is cut and grill is cold, remove burner and inspect for spider nests or rust. See Natural Hazard and Cleaning the Burner Assembly pages.
Grease fire or continuous excessive flames above cooking surface.	Too much grease buildup in burner area.	Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die down. After cooling, clean food particles and excess grease from inside firebox area, grease tray, and other surfaces.

Troubleshooting

Problem Possible Cause Prevention/Solution
Burner(s) will not light using ignitor.(See Electronic Ignition Trouble-shooting also)Continued on next page.	GAS ISSUES:· Trying to light wrong burner.· Burner not engaged with control valve.· Obstruction in burner.· No gas flow.· Coupling nut and LP cylinder valve not fully connected.ELECTRICAL ISSUES:· Electrode cracked or broken; "sparks at crack."· Electrode tip not in proper position.(Does not apply to SUREFIRE.)· Wire and/or electrode covered with cooking residue.· Wires are loose or disconnected.· Wires are shorting (sparking) between ignitor and electrode.· Dead battery.ELECTRONIC IGNITION:· No spark, no ignition noise.· No spark, some ignition noise.· Sparks, but not at electrode or at full strength.	· See instructions on control panel and in Use and Care section.· Make sure valves are positioned inside of burner tubes.· Ensure burner tubes are not obstructed with spider webs or other matter. See cleaning section of Use and Care.· Make sure LP cylinder is not empty. If LP cylinder is not empty, refer to "Sudden drop in gas flow."· Turn the coupling nut approximately one-half to three-quarters additional turn until solid stop. Tighten by hand only - do not use tools.Replace electrode(s).Main Burners:· Tip of electrode should be pointing toward gas port opening on burner. The distance should be 1/8" to 1/4". Adjust if necessary.Sideburner:· Tip of electrode should be pointing toward gas port opening on burner. the distance should be 1/8" to 3/16". Adjust if necessary.Clean wire and/or electrode with rubbing alcohol and clean swab.Reconnect wires or replace electrode/wire assembly.Replace ignitor wire/electrode assembly.Replace with a new alkaline battery.See Section I of Electronic Ignition System.See Section II of Electronic Ignition System.See Section III of Electronic Ignition System.
Burner(s) will not match light.· See	GAS ISSUES:· Match will not reach.· Improper method of match-lighting.	· Use long-stem match (fireplace match).· See "Match-Lighting" section of Use and Care.
Sudden drop in gas flow or low flame.	• Out of gas. • Excess flow valve tripped. • Vapor lock at coupling nut/LP cylinder connection.	• Check for gas in LP cylinder. • Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off knobs and LP cylinder valve. Disconnect regulator. Reconnect regulator and leak test. Turn on LP cylinder valve, wait 30 seconds and then light grill. • Turn off knobs and LP cylinder valve. Disconnect coupling nut from cylinder. Reconnect and retry.
Flames blow out. • High or gusting winds. • Low on LP gas. • Excess flow valve tripped.		• Turn front of grill to face wind or increase flame height by turning gas valve to a higher position. • Refill LP cylinder. • Refer to "Sudden drop in gas flow" above.
Flare-up. • Grease buildup.	• Excessive fat in meat. • Excessive cooking temperature.	• Clean burners and inside of grill/firebox. • Trim fat from meat before grilling. • Adjust (lower) temperature accordingly.
Persistent grease fire.	• Grease trapped by food buildup around burner system.	• Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in position and let fire burn out. After grill cools, remove and clean all parts.
Flashback (fire in burner tube(s)).	• Burner and/or burner tubes are blocked.	• Turn knobs to OFF. Clean burner and/or burner tubes. See burner cleaning section of Use and Care.
One burner does not light from other burner(s).	• Grease buildup or food particles in end(s) of carryover tube(s).	• Clean carry-over tube(s) with wire brush.

Troubleshooting - Electronic Ignition

Problem (Ignition) Possible Cause Check Procedure		Prevention/Solution
SECTION I No sparks appear at any electrodes when Electronic Ignition Button is pressed; no noise can be heard from spark module.	·Battery not installed properly. ·Dead battery. ·Button assembly not installed properly. ·Faulty spark module.	·Check battery orientation. ·Has battery been used previously? ·Check to insure threads are properly engaged. Button should travel up and down without binding. ·If no sparks are generated with new battery and good wire connections, module is faulty.	·Install battery (make sure that "+" and "-" connectors are oriented correctly, with "+" on cap end.) ·Replace battery with new alkaline battery. ·Unscrew button cap assembly and reinstall, making sure threads are aligned and engaged fully. ·Replace spark module assembly.
SECTION II No sparks appear at any electrodes when Electronic Ignition Button is pressed; noise can be heard from spark module.	·Output lead connections not connected.	·Are output connections on and tight?	·Remove and reconnect all output connections at module and electrodes.
SECTION III Sparks are present but not at all electrodes and/or not at full strength	·Output lead connections not connected. ·Arcing to grill away from burner(s). ·Weak battery. ·Electrodes are wet. ·Electrodes cracked or broken "sparks at crack".	·Are output connections on and tight? ·If possible, observe grill in dark location. Operate ignition system and look for arcing between output wires and grill frame. ·All sparks present but weak or at slow rate. ·Has moisture accumulated on electrode and/or in burner ports? ·Inspect electrodes for cracks.	·Remove and reconnect all output connections at module and electrodes. ·If sparks are observed other than from burner(s), wire insulation may be damaged. Replace wires. ·Replace battery with a new alkaline battery. ·Use paper towel to remove moisture. ·Replace cracked or broken electrodes.

Two convenient ways to register your product:

www.charbroil.com/product-registration/

Please fill out this card and attach a copy of your sales receipt. Return it within 10 days of purchase for warranty service. Proof of purchase will be required. The warranty is not transferable.

If you prefer not to receive special offers and promotions from Char-Broil, please check here:

*5. Attach copy of your sales receipt here.

Mail to: / Envoyer à: / Correa a:

Char-Broil Warranty Registration

P.O.Box 1240

Columbus, Ga 31902-1240

Grill Purchased: Assembled? Boxed?

Thank you for completing this questionnaire | Merci d'avoir remplie ce questionnaire. | Gracias por completing este cuestionario

C E B

CHARBROIL

^ 念 2023 Char-Broil, LLC. Columbus, GA, 31904. Printed in China. Imprimé en China. Impreso en China.

^© 2023 Assembly instructions. © 2023 Assemblée des instructions. © 2023 Instrucciones de ensamblado.
