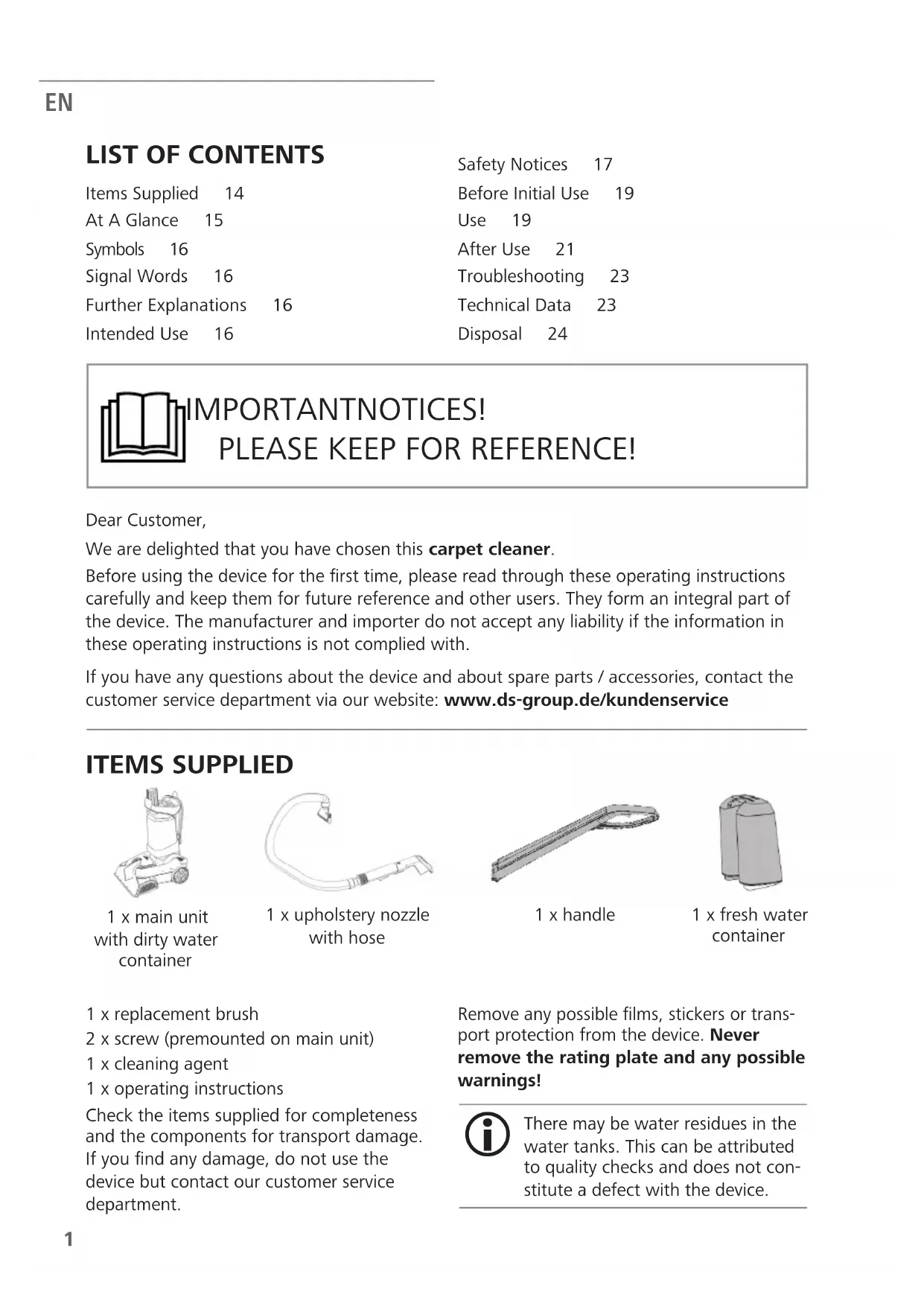

Items Supplied 14 At A Glance 15 Symbols 16 Signal Words 16 Further Explanations 16 Intended Use 16 Safety Notices 17 Before Initial Use 19 Use 19 After Use 21 Troubleshooting 23 Technical Data 23 Disposal 24 IMPORTANT NOTICES! PLEASE KEEP FOR REFERENCE! Dear Customer, We are delighted that you have chosen this carpet cleaner. Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with. If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website: www.ds-group.de/kundenservice ITEMS SUPPLIED 1 x main unit with dirty water container 1 x fresh water container 1 x handle 1 x upholstery nozzle withhose 1 x replacement brush 2 x screw (premounted on main unit) 1 x cleaning agent 1 x operating instructions Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department. Remove any possible films, stickers or trans- port protection from the device. Never remove the rating plate and any possible warnings!

There may be water residues in the water tanks. This can be attributed to quality checks and does not con- stitute a defect with the device.Carpet Cleaner

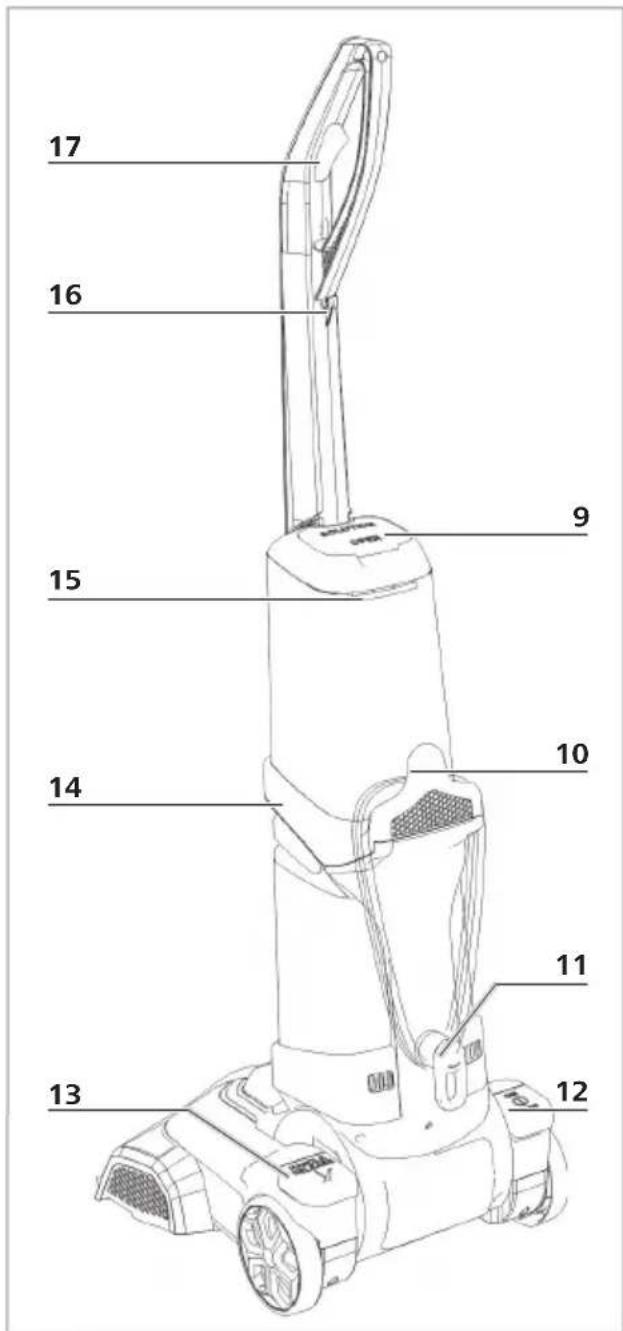

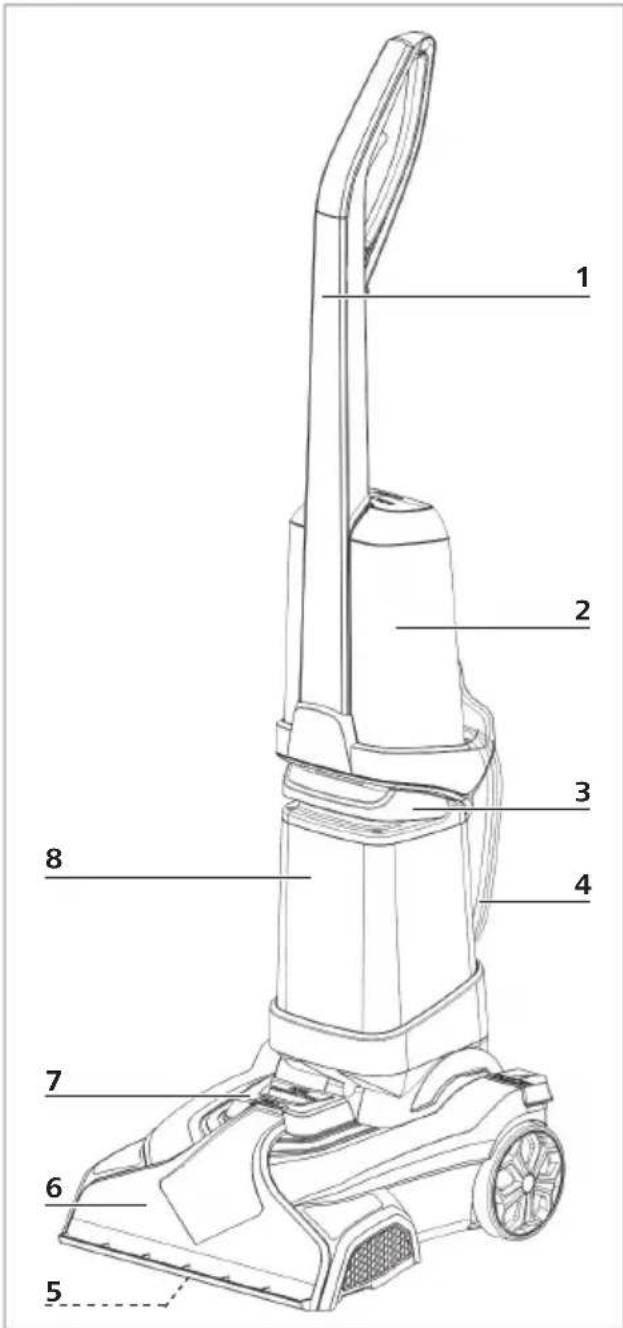

1 Handle 2 Fresh water container 3 Handle of the dirt container 4 Mains cable 5 Carpet brush (under the main unit) 6 Carpet suction nozzle 7 Closure cap of the hose connection 8 Dirty water container 9 Closure cap of the fresh water container 10 Upper hook for winding up the cable 11 Lower hook for winding up the cable 12 On / Off switch 13 Pedal for tipping the handle 14 Container support 15 Release lever for the fresh water container 16 Cable mount 17 Button for dispensing water or cleaning solutionEN

SYMBOLS Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them. Supplementary information Read the operating instructions before use! Alternating current Protection class II SIGNAL WORDS Signal words indicate hazards if the associ- ated notices are not followed. DANGER – high risk, results in serious injury or death WARNING – medium risk, may result in serious injury or death CAUTION – low risk, may result in minor or moderate injury NOTICE – may result in risk of damage to material FURTHER EXPLANATIONS Key numbers are shown as follows: (1) Picture references are shown as follows: (Picture A) INTENDED USE

• The device is designed to be used for removing light levels of dirt on carpets and upholstered furniture and for freshening up carpets and upholstered furniture. It is not a substitute for a con- ventional vacuum cleaner. Before using the device, the carpet or upholstered furniture which is to be treated must be thoroughly cleaned with a vacuum cleaner.

• The device is also suitable for use on tiles, stone floors and PVC. On no account should the device be used to suck up the following: ○ glowing ash, cigarette ends, matches, etc. ○ inflammable or explosive sub- stances ○ very fine dust (e.g. concrete dust), toner or sand ○ pointed, hard objects such as pieces of broken glass

• The device is for personal use only and is not intended for commercial applica- tions.

• The device should only be used as de- scribed in the operating instructions. Any other use is deemed to be improper.

• The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.Carpet Cleaner

WARNING: Note all safety notices, instructions, illustrations

and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries. ■ This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions. ■ Children must not play with the device. ■ Cleaning and user maintenance must not be carried out by chil- dren, unless they are older than 8 years of age and are supervised. ■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable. ■ The device must always be disconnected from the mains power when it is left unattended and before assembling, disassembling, filling or emptying the water tanks or before cleaning or mainte- nance. ■ Never immerse the main unit and the connecting cable in water or other liquids, and ensure that these components cannot fall into water or become wet. ■ Do not make any modifications to the device. Also do not replace the connecting cable yourself. If the device, the connecting cable or the accessories of the device are damaged, they must be replaced by the manufacturer, customer service department or aspecialist workshop in order to avoid any hazards. ■ The device must not run over its connecting cable to prevent hazards caused by the carpet brush. ■ Do not exceed the maximum capacity of the water tanks (MAX marking)!EN

DANGER – Danger of Electric Shock ■ Use and store the device only in closed rooms. ■ Do not use or store the device in rooms with high humidity. ■ If the main unit falls into water while it is connected to the mains power, switch off the power supply immediately! Only after this should you pull the main unit from the water. ■ Never touch the main unit and the con- necting cable with wet hands when they are connected to the mains power. WARNING – Danger of Injury! ■ Keep the packaging material away from children and animals. There is a danger of suffocation. ■ Make sure that the connecting cable is always kept out of the reach of small children and animals. There is a danger of strangulation. ■ Lay the connecting cable in such a way that it does not present a trip hazard. ■ Keep animals, hair, jewellery, wide clothing, fingers and all other body parts away from the carpet brush of the device. WARNING – Danger of Fire! ■ Do not use the device in the vicinity of highly flammable materials. ■ Do not cover the device during operation. Do not insert anything into the ventilation openings of the device and make sure that they do not become clogged. ■ Do not connect the device along with other consumers with a high wattage to a circuit in order to prevent overloading and a possible short circuit (fire). Make sure that the circuit is designed to handle the power of the device. ■ Do not use any multiple sockets, exten- sion cables more than 3 m long or cable extension reels. NOTICE – Risk of Damage to Material and Property ■ Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces. ■ Disconnect the device from the mains power if a fault occurs or in a thunder- storm. ■ When you disconnect the device from the mains power, always pull on the mains plug and never the mains cable. ■ Never pull or carry the device by the connecting cable. ■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage. ■ Do not use any sharp or pointed objects to remove foreign bodies from the device. These could damage the device. ■ Never fill the water containers beyond the maximum fill level. ■ Always test the cleaning at a small spot first to check the colourfastness. ■ Protect the device from heat, flames, direct sunlight, sub-zero temperatures, strong temperature fluctuations, persis- tent moisture and wet conditions. ■ Do not place any heavy objects on the device, the mains plug, the mains cable or the accessories. Do not subject the device to any collisions.Carpet Cleaner

A cross-head screwdriver is required for assembly.

1. Insert the handle (1) into the opening

of the container support (14) and align it so that the curved end of the handle points towards the back of the device. Fix the handle in place using the two screws that are supplied with the device.

2. Insert the fresh water container (2) into

the container support. When you do this, make sure that the locking lugs on the fresh water container fit in the recesses in the container support. Press the fresh water container against the handle until you hear it engage. The dirty water container (8) is already inserted in the main unit. USE Preparing the Carpet

1. Vacuum the carpet or upholstered furni-

ture which is to be cleaned thoroughly with a vacuum cleaner. If possible, use a brush attachment to do this.

2. If possible, remove all furniture from the

carpet. In the case of large items of furni- ture which cannot be moved to one side, place plastic film below or around the feet and only remove it once the carpet has completely dried after it has been cleaned. The feet could be damaged by the moisture from the carpet.

3. Check the colourfastness of the

carpet or upholstered furniture. Soak a piece of white fabric with the cleaning solution supplied (see the “Preparing the Device / Filling the Fresh Water Container” section) and rub it carefully on an inconspicuous spot on the carpet. If the white fabric does not become discoloured, the carpet or upholstered furniture can be cleaned with the device. In the case of carpets or upholstered furniture with several colours, test the fastness of each colour. Preparing the Device / Filling the Fresh Water Container Please Note! ■ Only ever pour the cleaning agent sup- plied with the device or standard carpet cleaning products for carpet cleaners into the fresh water container. ■ Do not use any cleaning products that produce a lot of foam as excessive foaming impedes the functioning of the device. ■ Never operate the device without water.

1. Press the release lever of the fresh water

container (15) upwards. The fresh water container (2) is released from the locking mechanism.

2. Remove the fresh water container from

3. Flip open the seal cap of the fresh water

container (9) and pour in carpet cleaning agent. Note the dosing instructions for the cleaning agent when you do this.

4. Fill the fresh water container up to the

Max mark with warm water (max. 40°C). Close the seal cap again.

5. Insert the fresh water container into the

container support (14) (see the “ Before Initial Use” chapter). Cleaning Please Note! ■ The device should only be used if it has been fully and correctly assembled! Both the dirty water tank and the fresh water tank must be firmly closed and inserted! ■ Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the rating plate of the device. ■ Always switch off the device first before the plug is pulled out of the plug socket. One exception is when the device has fallen into water or in the event of a fault. ■ Switch off the device before a water container is removed. ■ Make sure that the device does not tip over. The water from the water contain- ers could spill out. To park the device, move the handle to the vertical position in which it engages. ■ Do not wet the carpet or the upholstered furniture excessively. ■ If the device switches off during use, the built-in overheating protection has been activated. In this case, let the device cool down for approx. 60 minutes and then switch it on again using the On / Off switch. ■ After use, place the device down on a cloth as residual water may escape from the nozzles after it has been switched off. Cleaning the Carpet

1. Decide where cleaning should start

and where it should stop so that you do not step on the carpet which has already been cleaned. We recommend that right-handed people should start at the right-hand edge of the carpet, and left-handed people should start at the left-hand edge of the carpet.

2. Fully unwind the mains cable from the

hook for winding up the cable (10, 11), insert it into the cable holder (16) and connect it to a plug socket.

3. Step on the pedal for tipping the

handle(13) and tilt the handle(1) towards you.

4. Step on the On / Off switch (12) to

switch on the device.

5. Roll the device to a corner of the carpet.

6. Slide the device forwards along the

edge of the carpet and hold down the button for discharging the cleaning solution(17). This applies the solution to the carpet and brushes it in. Walk to the side of the device as you do this. Donot tread on the wet carpet! Once you have reached the other end ofthe carpet, let go of the button.

7. Pull the device backwards along the same

strip. The dirty water will be sucked up.

8. Start the next strip slightly overlapping

the strip of carpet that has just been cleaned. Work up to the other edge of the carpet with even movements for- wards and backwards. If you find moreCarpet Cleaner

stubborn patches of dirt, go over a strip several times if necessary.

9. When the dirty water container(8) is

filled to the Max marking, it must be emptied (see the “After Use” chapter, “Cleaning the Water Containers” section).

10. When the dirty water container is to be

emptied, the fresh water container(2) is to be topped up or the cleaning is to be finished, place the device on the towel or cloth provided. Switch off the device by stepping on the On / Off switch, and move the handle to a vertical position.

11. Remove the mains plug from the plug

socket. Cleaning Upholstered Furniture

1. Use the upholstery nozzle for cleaning

upholstered furniture. To do this, first flip up the closure cap of the hose connec- tion(7), place the end of the hose onto the connection and press this down firmly. You must feel it engage.

2. Step on the On / Off switch (12) to

switch on the device.

3. Pull the upholstery nozzle along the

edge of the upholstered furniture and hold down the button for dispensing the cleaning solution on the handle of the upholstery nozzle (A). Let go of the button (A) at the other end of the strip.

4. Pull the upholstery nozzle over the same

strip. The dirty water will be sucked up.

5. Continue in the same way as with

carpet cleaning (see the “Use” chapter, “ Cleaning the Carpet” section). AFTER USE

• Empty both water containers after each use.

• Allow the freshly cleaned surfaces to dry completely.

• If possible, do not tread on the carpet while it is still damp. If it has to be trod- den on, put down white or colourfast towels and tread on them.

• If cleaning solution has got onto wooden floors or furniture, wipe it away.

• Vacuum the dry carpet or upholstered furniture with a vacuum cleaner. If pos- sible, use a brush attachment to do this. Cleaning the Device Please Note! ■ Remove the mains plug from the plug socket before cleaning the article. ■ Do not use any chemical cleaning agents to clean the device. These may damage the device. ■ Before the device can be stored away, the water containers must be emptied and rinsed out. Cleaning the Water Containers

1. Make sure that the mains plug has been

do this, press down the handle of the dirty water container (3) and pull the dirty water container forwards out of the main unit.EN

3. Turn the plug of the dirty water

container(B) clockwise and remove.

4. Pour away the dirty water and rinse out

the dirty water container thoroughly with warm water.

5. Remove the fresh water container (2)

from the container support (14) (see the “Preparing the Device / Filling the Fresh Water Container” section) and pour away the rest of the cleaning solution. Rinse out the fresh water container thoroughly with warm water.

6. Allow all parts to dry completely before

into the device (see the “Before Initial Use” chapter).

8. Tighten the plug counterclockwise onto

the dirt container and insert the dirty water container into the main unit. When you do this, make sure that the recess on the dirty water container fits in the frame of the main unit. Press the dirty water container against the frame of the main unit until you hear it engage. Cleaning the Carpet Suction Nozzle

1. After cleaning a carpet, clean the carpet

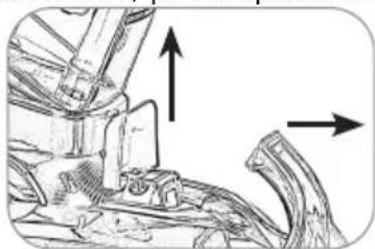

suction nozzle(6). To do this, flip up the closure cap of the hose connection(7). Grip hold of the upper end of the carpet suction nozzle, pull it up and remove.

2. Rinse out the carpet suction nozzle

thoroughly with warm water.

3. Allow the carpet suction nozzle to dry

completely and insert it back into the main unit. To do this, place the locking lugs of the carpet suction nozzle into the recesses on the main unit and press down the carpet suction nozzle. It must engage audibly. Cleaning the Carpet Brush

1. For cleaning the carpet brush (5) place

the device on the floor so that the bottom of the device is accessible. Attention! Make sure you empty the water containers prior to cleaning.

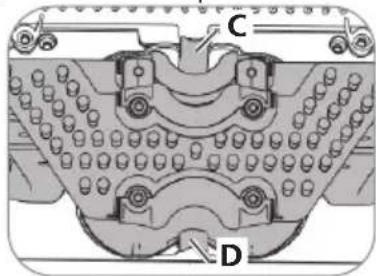

2. Press together the locking device (C,D)

and pull out the carpet brush.

3. Rinse out the carpet brush (6) thoroughly

under warm, running water.

4. Allow the carpet brush to dry completely

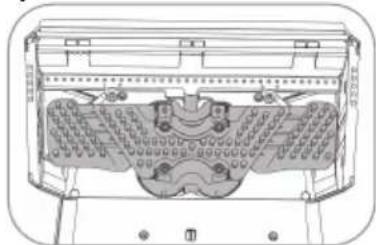

and insert it back into the main unit. Make sure it is in the correct position (see picture). Press together the locking device and press it into the recess on the bottom of the main unit. It must engage audibly.Carpet Cleaner

Cleaning the Upholstery Nozzle

1. Clean the upholstery nozzle. To do this,

press the button on the base of the upholstery nozzle (E) and detach the upholstery nozzle from the hose.

from the upholstery nozzle. To do this, press down the button on the bottom of the upholstery nozzle (F) and pull out the brush insert.

3. Rinse out the upholstery nozzle and

brush insert thoroughly with warm water.

4. Allow all parts to dry completely before

assembling them. TROUBLESHOOTING If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department. Do not attempt to repair an electrical device yourself! The device does not start. The mains plug is not inserted in the plug socket correctly. ► Correct the fit. The plug socket is defective. ► Try another plug socket. There is no mains voltage. ► Check the fuse of the electrical distributor (fuse box). The overheating protection has been triggered. ► Pull the mains plug out of the plug socket and allow the device to cool down completely. Then try again. The stain is not removed. The stain is too stubborn or too old. ► Treat the stain speci fically with a carpet cleaning product. TECHNICAL DATA Article number: 07948 (black / green), 19625 (grey / red) Model number: VC9391 Voltage supply: 220 – 240 V ~ 50 Hz Motor power: 800 W Mains cable length: approx. 6.5 m Suction hose length: approx. 2.5 m Protection class: II Capacity of fresh water container: max. 1.5 l Capacity of dirty water container: max. 1.4 l ID of operating instructions: Z 07948_ 19625 M DS V2.1 0825 fdEN

DISPOSAL Dispose of the packaging material in an environmentally friendly manner so that it can be recycled. The adjacent symbol (crossed-out bin underlined) means that used devices should not be disposed of in the domestic waste, but should instead be taken to special collection and return systems. Owners of used devices from private households can take them free of charge to the collection points of the public waste disposal authorities or the disposal points which are set up by manufacturers and distributors under the Electrical Equipment Act so that they can be disposed of in an environmentally friendly way and valuable raw materials can be recovered. If they are not disposed of properly, toxic ingredients may escape into the environment and cause harm to the health of humans, animals and plants. Businesses which market electrical and electronic devices are also obliged to take back used devices. Waste prevention makes an even more valuable contribution to protecting the envi- ronment. This means if possible, as well as continuing to use or repair, passing it on to another user also represents an ecologically beneficial alternative to disposal. All rights reserved.Nettoyeur de tapis
