Product type	Window cleaner and liquid vacuum
Brand	Cleanmaxx
Model	02304 (also compatible with 00332, 01147, 01599, 02930)
Use	Suction of wet dirt and small amounts of liquid on smooth surfaces
Power supply	Li-ion battery 3.7 V, 1500 mAh; AC adapter 100-240 V~ 50/60 Hz, output 5 V DC, 600 mA
Power	10 W
Runtime	Approximately 20 to 28 minutes
Charging time	Approximately 3 to 3.5 hours
Tank capacity	100 ml
Protection class (device)	III / IPX6
Protection class (adapter)	II / IP44
Package contents	Device body, recovery tank, rubber blade nozzle, adapter, spray bottle, cleaning attachment, 2 cleaning cloths, instruction manual
Functions	Two suction modes (normal and strong), charging and operation indicator light
Maintenance and cleaning	Empty and rinse the recovery tank after each use; clean the rubber blade nozzle; wash the cleaning cloths
Safety	Do not vacuum dry dust, ashes, flammable materials; keep out of reach of children; do not immerse; use only the provided adapter
Spare parts and repairability	Contact customer service via the manufacturer's website; do not attempt to repair yourself
General information	Weight and dimensions not specified; warranty excludes normal wear and tear and misuse

Frequently Asked Questions - 02304 Cleanmaxx

How to charge the device?

Turn off the device. Plug the female connector of the adapter into the device body, then plug the adapter into a wall outlet. The indicator light flashes blue during charging and stays solid when charging is complete. Charging time is approximately 3 to 3.5 hours.

What to do if suction is weak?

Check if the recovery tank is full; empty it if necessary. Make sure the suction inlet and the nozzle are not blocked. If the problem persists, recharge the battery.

Can I vacuum dry dust?

No, this device is designed only for vacuuming wet dirt and liquids. Never vacuum dry dust, ashes, or flammable materials.

How to clean the recovery tank?

Stop the device, remove the cap, and empty the water. Rinse the tank by vacuuming clean water, then empty again. Let all parts dry completely before reassembling.

The device does not turn on, what to do?

Check that the battery is charged. If the indicator does not light up when plugged in, make sure the adapter is properly connected to the outlet and the device. Try another outlet or check the fuse in the electrical panel.

How to use the spray bottle?

Fill the bottle with water and cleaning solution. Attach the cleaning attachment and the cloth. Spray the product on the surface, wipe with the cloth, then vacuum the liquid with the device.

What is the battery runtime?

The runtime is approximately 20 to 28 minutes depending on the suction mode used. For optimal performance, recharge the battery after each use.

Can I use the device while charging?

No, the device should not be used when plugged into the mains. Use it only on battery power.

How to detach the rubber blade nozzle?

Press the release button on the nozzle while pulling the nozzle out of the suction opening. Make sure the device is turned off before removing the nozzle.

What to do if the device emits a strange odor?

A new smell is normal during initial use. If the smell persists, check that the recovery tank is clean and that nothing is blocking the ventilation openings. If the problem continues, contact customer service.

USER MANUAL 02304 Cleanmaxx

Exterior view of a modern office building (no signage)

DE

Gebrauchsanleitung

ab Seite 3

EN

Instruction manual

starting on page 14

FR

Mode d'emploi

Close-up of a white robotic arm joint with a black cable and a black arrow pointing to a specific part (no text or symbols visible)

Close-up of a hand holding a white handheld vacuum cleaner with a black arrow indicating motion (no text or symbols visible)

Safety Instructions 15

Items Supplied 18

Device Overview 18

Before Initial Use 18

Charging Up the Battery 19

Assembling the Device 19

Use 20

Cleaning and Storage 21

Storage 21

Troubleshooting 22

Technical Data 23

Disposal 23

Removing the Battery 24

Explanation of the Symbols

Danger symbols: These symbols indicate a risk of injury.

Read through the associated safety notices carefully and follow them.

Supplementary information

Read operating instructions before use!

Protection class II

Protection class III

Only use indoors!

Energy efficiency class 5

Circuit symbol for DC voltage

Safe electrical isolation (transformer)

Polarity of the voltage supply

Explanation of the Signal Words

DANGER

warns of serious injuries and danger to life

warns of possible

WARNING

serious injuries and danger to life

CAUTION

warns of slight to moderate injuries

NOTICE

warns of material damage

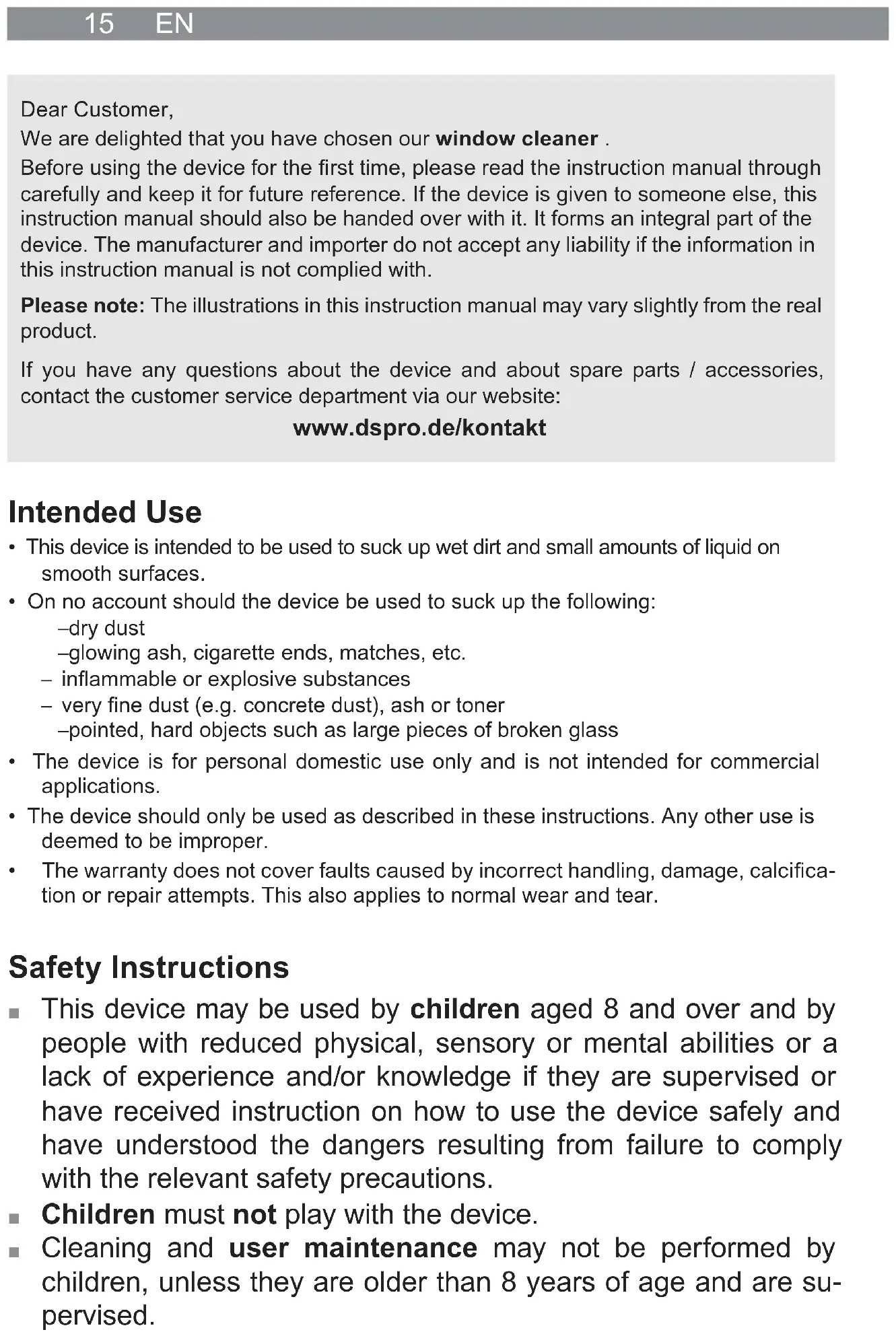

Dear Customer,

We are delighted that you have chosen our window cleaner.

Before using the device for the first time, please read the instruction manual through carefully and keep it for future reference. If the device is given to someone else, this instruction manual should also be handed over with it. It forms an integral part of the device. The manufacturer and importer do not accept any liability if the information in this instruction manual is not complied with.

Please note: The illustrations in this instruction manual may vary slightly from the real product.

If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website:

• This device is intended to be used to suck up wet dirt and small amounts of liquid on smooth surfaces.
• On no account should the device be used to suck up the following:
  -dry dust
  –glowing ash, cigarette ends, matches, etc.
  – inflammable or explosive substances
  – very fine dust (e.g. concrete dust), ash or toner
  -pointed, hard objects such as large pieces of broken glass
• The device is for personal domestic use only and is not intended for commercial applications.
• The device should only be used as described in these instructions. Any other use is deemed to be improper.
• The warranty does not cover faults caused by incorrect handling, damage, calcification or repair attempts. This also applies to normal wear and tear.

Safety Instructions

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.

■ Children must not play with the device.

- Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.

- This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions. - Children must not play with the device. - Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.

Children younger than 8 years of age and animals must be kept away from the device and the mains adapter. Improper use can lead to injuries and electric shock.
- The device must always be switched off and disconnected from the mains power when it is left unattended and before assembling, disassembling, filling or emptying the water tank or cleaning the device.
- Charge up the battery only with the adapter supplied with it. Do not use the adapter supplied with the device to charge up any other devices.
■ Always check the device and accessories for damage before putting them into operation. Do not use them if they are damaged!
- Do not take the device apart and do not make any modifications to the device. If the device or the connecting cable are damaged, these parts must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

DANGER – Risk of Electric Shock

■ Use and store the device only in closed spaces. Do not operate the device in rooms with high humidity.
- Do not immerse the main unit in water or other liquids in order to avoid electric shocks. Ensure that the main unit cannot fall into water or become wet while it is connected to the mains power.
If the main unit falls into water while it is connected to the mains power, switch off the power supply immediately. Do not attempt to retrieve the device from the water.
- Never touch the device and the connecting cable with wet hands when these components are connected to the mains power.
- Keep the motor unit and the connecting cable away from moisture or wet conditions!

WARNING – Danger of Injury!

• Danger of suffocation! Keep children and animals away from the packaging material.
• Danger of strangulation! Make sure that the mains cable is always kept out of the reach of small children and animals.

• Danger of becoming stuck! Keep animals, hair, jewellery, wide clothing, fingers and all other body parts away from the nozzles of the device. They could become stuck to the device. Should the vacuum cleaner become stuck, switch the device off immediately.

• Danger of burns from battery acid! If the battery has leaked, do not allow your skin, eyes and mucous membranes to come into contact with the battery acid. If you touch battery acid, rinse the affected sites with abundant fresh water immediately and contact a doctor as soon as possible.

• Danger of tripping! Make sure that the connected mains cable does not present a trip hazard.

WARNING – Danger of Fire!

• Do not use the device in rooms containing easily ignitable substances or poisonous and explosive fumes.
• Do not use the device in the vicinity of highly flammable materials (curtains, textiles, etc.).
• Do not cover the device during operation in order to prevent it from catching fire. Do not insert anything into the ventilation openings of the device and make sure that these do not become clogged.
• Only use suitable extension cables whose technical data is the same as that of the adapter.

NOTICE – Risk of Damage to Material and Property

• Only connect the adapter to a plug socket with safety contacts that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
  ■ Remove the adapter from the plug socket if a fault occurs during operation or before a thunderstorm.
• When you pull it out of the plug socket, always pull on the adapter and never the mains cable!

■ Never pull or carry the device by the connecting cable. !

The device should only be used if it has been completely and correctly assembled! If the dirt were to get inside the device, this could damage the motor.

- Do not use the device if it has malfunctioned or sharp foreign bodies (e.g. shards of glass) have been sucked up.

■ Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces. Do not wrap the mains cable around the device (danger of the cable breaking).

- Protect the device from heat, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.

■ Use only original spare parts from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid damage.

- Do not place or lay any heavy objects on the connecting cable.

Items Supplied

• 1 x main unit
• 1 x collecting container
  • 1 x nozzle with scraper lip
• 1 x mains adapter
• 1 x spray bottle
• 1 x wiping attachment
• 2 x wiping cloth
  • 1 x instruction manual

Check the items supplied for completeness and transport damage. If you find any damage to the components, do not use them (!), but contact our customer service department.

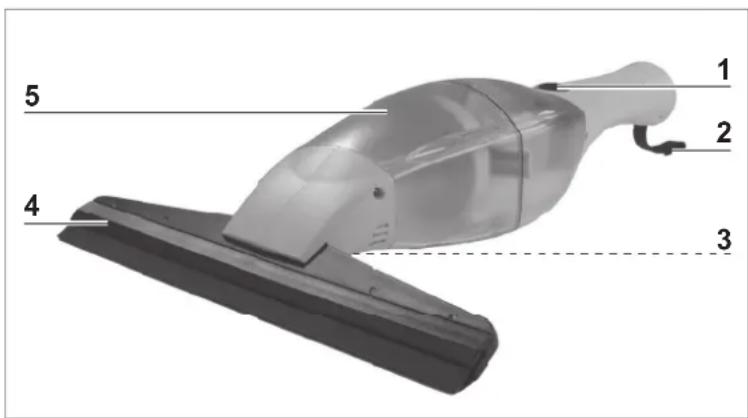

Device Overview

1 2 3 4 5

1 On/Off switch with operating lamp / control lamp (red and blue)
2 Mounting bracket
3 Release button for the nozzle with scraper lip
4 Nozzle with scraper lip
5 Collecting container

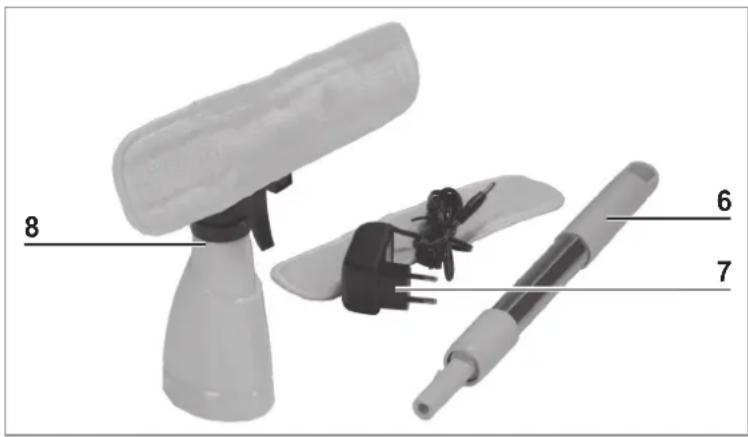

8 6 7

6 Telescopic rod
7 Mains adapter
8 Spray bottle with wiping attachment

Before Initial Use

• Before using the device, remove all packaging materials and any labels that may be on the device and are used for protection during transportation or for advertising. Never remove the rating plate and any possible warnings!

- Charge the battery (see the „Charging Up the Battery“ chapter).

Charging Up the Battery

PLEASE NOTE!

• The main unit must be switched off when the adapter is being connected or removed.
  ■ Always place the device on a dry, level, firm and heat-resistant surface for charging.
  Risk of short-circuits! Do not insert any conducting objects (e.g. screwdrivers or similar items) into the charging socket of the main unit.
  ■ Pull the adapter out of the plug socket if it is not used for a lengthy period of time.

• It is essential that you charge up the battery fully before you first use the device in order to achieve the maximum charging capacity. The first charging process will last for approx. 4 – 5 hours.
• If the battery is fully discharged during use, it will take approx. 3 – 3.5 hours for the battery to be recharged.

Close-up of a white robotic arm joint with a black cable and a black arrow pointing to a small component (no text or symbols visible)

1. Connect the barrel connector of the adapter (7) to the main unit.
2. Connect the adapter to a properly installed, easily accessible plug socket. The control lamp on the On / Off (1) switch then lights up blue and flashes while the device is charging.

3. Allow the battery of the device to charge up for around 3 – 3.5 hours. The control lampon the On / Off is lit up permanently in blue when the device is fully charged.

4. First disconnect the adapter from the mains power and then from the main unit.

5. When the battery has run out, the control lampon the On / Off alternates between red and blue and the device turns off.

Assembling the Device

1. If you have not already done so, place the nozzle with scraper lip (4) onto the device: - Plug the nozzle as far as it will go into the suction opening on the front of the collecting container (5) and check that it fits securely. The release button (3) must be heard to lock in place.

2. If you need to, plug the telescopic rod (6) into the opening on top of the device. The locking catch must be heard to lock in place.

3. Adjust the telescopic rod to the length you require:

4. Twist the top part of the extension rod anticlockwise to release the telescopic rod.

5. Extend the rod to the length you require.
6. Twist the top part clockwise to fix the telescopic rod in place.

When you want to remove the nozzle again, press the release button and at the same time pull the nozzle out of the suction opening.

Use

PLEASE NOTE!

■ Empty and clean the collecting container after each use or when the maximal fill level (MAX marking) is reached. Do not overfill the collecting container!
■ Test the wiping attachment on a non-visible spot before using it on sensitive (high-gloss) surfaces.
■ Never clean screens (televisions, computer monitors etc.) with the device. Electrical devices of this type are not resistant to moisture.
Do not insert anything into the ventilation openings of the device and make sure that these do not become clogged.
■ Switch on the device only once you have ensured that the suction nozzle has been inserted correctly.
■ Always switch the device off first before you remove the nozzle!
- Do not use the device when it is connected to the mains power supply.

1. Press the On / Off switch (1) to switch on the device. The operating lamp lights up blue. The normal suction mode is switched on.

2. Press the On / Off switch again to switch to strong suction mode. The operating lamp lights up red.

Close-up of a hand holding a white handheld vacuum cleaner with a black arrow indicating motion (no text or symbols visible)

1. Guide the nozzle (4) over the surface to be cleaned from top to bottom. During use, check whether the collecting container (5) is full. If this is the case, it needs to be emptied.
2. Hold down the On / Off switch for around 3-5 seconds to switch off the device.
3. To ensure optimum performance of the device, empty the collecting container after every use (see the "Cleaning and Storage" chapter) and charge up the battery (see the "Charging Up the Battery" chapter).

Use of the Spray Bottle with Wiping Attachment

1. Fill the spray bottle: Unscrew the spray head from the spray bottle and fill the bottle with cleaning agent and water in accordance with the manufacturer's specifications.

d a b c

1. Place the wiping attachment (a) onto the spray head (b): To do this, press together the locking lugs on the wiping attachment and plug them into the holder on the spray head. They must firmly engage.
2. Stretch the wiping cloth (d) onto the wiping attachment with the aid of the rubber loops and secure it in place with the Velcro fastener.
3. Close the bottle again.

4. Move the spray nozzle to SPRAY (spray mist) or STREAM.

5. Spray the cleaning product evenly onto the surface which is to be cleaned. To do this, press the spray lever (c) of the bottle.

6. Detach the dirt using the wiping cloth. Note: If necessary, rinse out the wiping cloth under running water!

7. Suck the cleaning liquid up from the surface using the device.

Cleaning and Storage

PLEASE NOTE!

• Switch off the device before you clean it and make sure that it is not connected to the mains power.
  ■ Accessories that are cleaned with water must be completely dry when they are inserted back into the device!

• Do not use any sharp or abrasive cleaning agents or cleaning pads. These could damage the surfaces.

• The collecting container (5) must be emptied at the latest when it is full, and after each use (see the "Emptying and Cleaning the Collecting Container" section).

• Clean the housing if necessary using a damp, soft cloth. Dry them with a soft cloth.
• Wash the wiping cloth after every use in accordance with the washing instructions.
• Check the mains adapter (7) and its mains cable for damage at regular intervals.
• Keep the device ready for operation. Charge up the battery after each use (see the "Charging Up the Battery" chapter).

Emptying and Cleaning the Collecting Container

1. Switch off the device.
2. Open the collecting container (5) carefully by pulling out the seal plug.
3. Pour the cleaning water which has been sucked up into a drain.
4. Rinse out the collecting container by sucking up clear water using the suction function (see the "Use" chapter) and then pouring it out again. Repeat this process several times if the collecting container is very dirty.
5. Let all parts dry completely in the air before you put them away.
6. Seal the collecting container again using the seal plug.

Storage

• For practical storage, you can use the mounting bracket (2) to hang the device on a hook or similar fastening.
• Store the device and all accessories in a cool, dry place which is protected from direct sunlight and is out of the reach of children and animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair an electrical device yourself!

Problem Possible cause Solution
The device works slowly or does not work at all.	The battery is empty.	Charge the battery (see the "Charging Up the Battery" chapter).
Low suction force.	The collecting container (5) is full.	Empty the collecting container (see the "Cleaning and Storage" chapter – "Emptying and Cleaning the Collecting Container").
	The suction opening or nozzle is blocked.	Switch off the device and remove the blockage.
The control lamp does not light up when the device is connected to the mains power.	The adapter is not inserted in the plug socket correctly or the barrel connector is not inserted in the connecting socket on the device correctly.	Correct the fi t.
	The plug socket is defective.	Try another plug socket.
	Check the fuse in the electrical distributor (fuse box).	Reduce the number of devices in the circuit.
Streaks are left when cleaning windows or smooth surfaces.	The scraper lip is dirty.	Clean the nozzle with scraper lip (see the "Cleaning and Storage" chapter).
	The cleaning agent has the wrong dosage.	Correct the dosage.
Unusual odour The device is new.		A new odour is normal when the device is used for the fi rst time; it disappears after a while.

Technical Data

Article numbers:

-00332 (limegreen)
-01147 (blue)
-01599 (turquoise-white)
-02304 (yellow)
-02930 (turquoise)

Manual ID: Z 00332_01147_01599_02304_02930 M DS V7 1118

Device

Model: HL-3202

Voltage supply: 3.7 V DC (1 x Li-ion battery,

18650 type), 1500 mAh

Power: 10 W

Battery charge time: approx. 3 - 3.5 hours

Battery operating time: approx. 20 - 28 minutes

Protection class: III / IPX6

Capacity: 100 ml

Mains adapter

Model: DK5-050-0600-EU

Voltage supply: 100 - 240 V \~ 50/60 Hz

Output: 5 V DC, 600 mA

Protection class: II / IP44

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

The battery should be removed prior to disposal of the device and disposed of separately from the device. To protect the environment, non-rechargeable and rechargeable batteries must not be disposed of with regular household waste, but must be taken to suitable collection points.

Removing the Battery

PLEASE NOTE!

■ The main unit may only be opened for the disposal of the battery.
The battery must not be taken apart, thrown into a fire, immersed in liquids or short-circuited.

This device contains a built-in battery, which must be removed prior to disposal of the used device.

1. The battery compartment is located in the main unit. Undo the screws.

2. Open the main unit, you may need to employ a little force or a tool (e.g. screwdriver).
   Take care when opening the main unit, short-circuits must be avoided.

3. Undo the clip on the connecting cable and take out the battery.

Contenu

Close-up of a mechanical component with a black arrow pointing to a hole (no text or symbols visible)

Close-up of a hand holding a small vacuum cleaner with a black arrow indicating motion (no text or symbols visible)

WAARSCHUWING – Verwondingsgevaar!

WAARSCHUWING – Brandgevaar!

Close-up of a white robotic arm joint with a black arrow pointing to a specific part (no text or symbols visible)

Close-up of a hand holding a small vacuum cleaner with a white top handle and black arrow indicating motion (no text or symbols visible)
