USER MANUAL 03807 Cleanmaxx

Operating instructions starting on page 13

Protection class II Only use indoors! Symbol for direct current Polarity of the barrel connector

Switching power supply Safe electrical isolation Supplementary information Read operating instructions before use! Explanation of the Signal Words DANGER warns of serious injuries and danger to life WARNING warns of possible serious injuries and danger to life CAUTION warns of slight to moderate injuries NOTICE warns of damage to property Contents Intended Use ______________________________________________________ 14 Safety Instructions _________________________________________________ 15 Items Supplied_____________________________________________________ 17 Device Overview ___________________________________________________ 17 Charging Up the Battery _____________________________________________ 18 Safety Devices ____________________________________________________ 18 Tips and Notes ____________________________________________________ 18 Use _____________________________________________________________ 19 Cleaning and Storage _______________________________________________ 19 Troubleshooting ____________________________________________________ 20 Technical Data ____________________________________________________ 21 Disposal__________________________________________________________ 21EN 14 Dear Customer, We are delighted that you have chosen this battery-operated dust mite vacuum cleaner. Before using the device for the fi rst time, please read the operating instructions care- fully and keep them for future reference. If the device is given to someone else, these operating instructions should also be handed over with it. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with. Please note: The illustrations in these operating instructions may vary slightly from the real device. If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website: www.dspro.de/kundenservice Intended Use

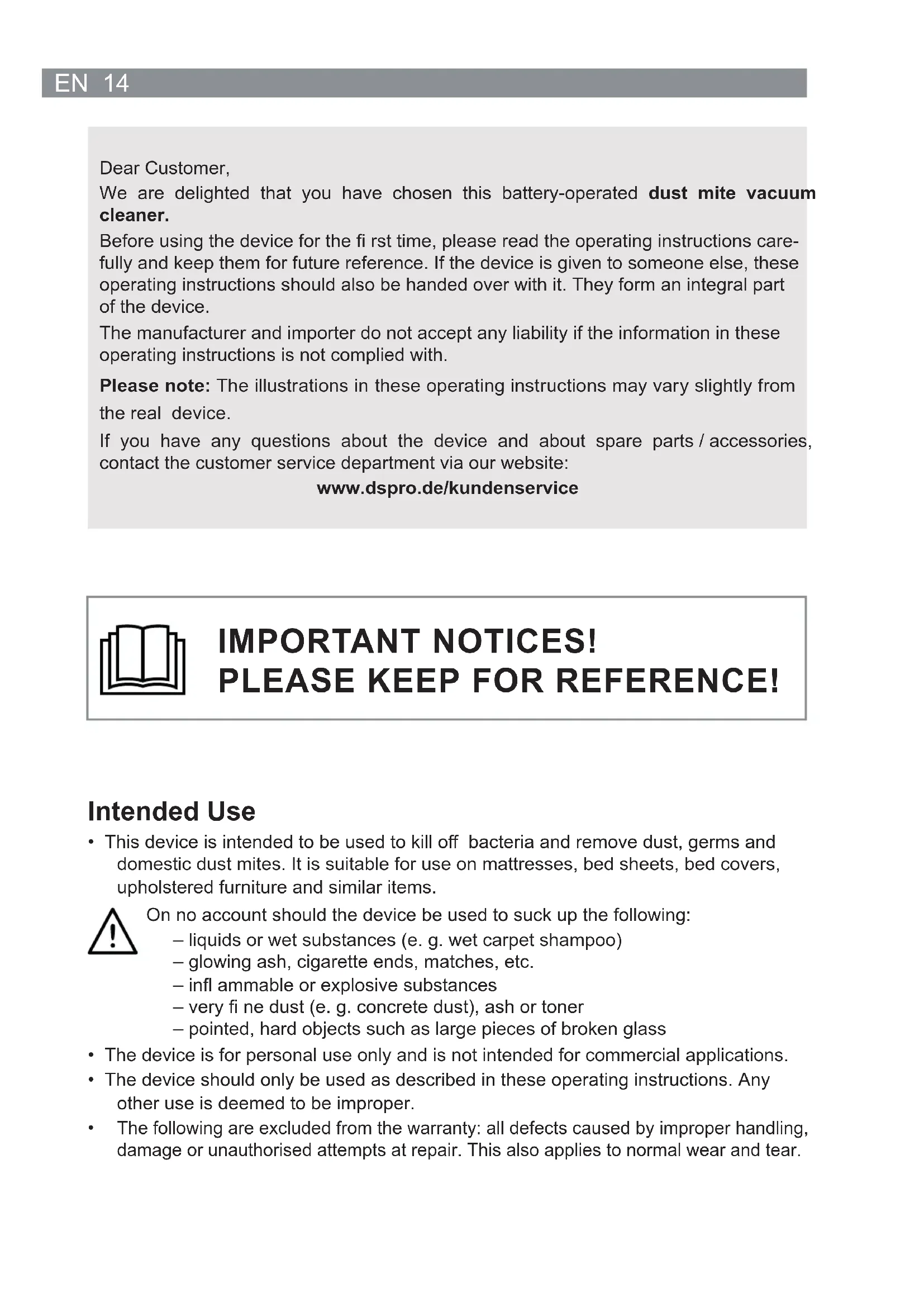

• This device is intended to be used to kill off bacteria and remove dust, germs and domestic dust mites. It is suitable for use on mattresses, bed sheets, bed covers, upholstered furniture and similar items. On no account should the device be used to suck up the following: – liquids or wet substances (e. g. wet carpet shampoo) – glowing ash, cigarette ends, matches, etc. – infl ammable or explosive substances – very fi ne dust (e. g. concrete dust), ash or toner – pointed, hard objects such as large pieces of broken glass

• The device is for personal use only and is not intended for commercial applications.

• The device should only be used as described in these operating instructions. Any other use is deemed to be improper.

• The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear. IMPORTANT NOTICES!

WARNING: Read all safety notices, instructions, illustra-

tions and technical data provided with this device. Fail- ure to follow the safety notices and instructions may result in electric shock, fi re and / or injuries. ■ This device must not be used by children. The device and the connection are to be kept away from children. ■ This device may be used by people with reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this. Children must not play with the device. ■ The device must always be switched off when it is left unat- tended and before assembling, disassembling or cleaning the device. ■ Charge the battery only with the mains adapter supplied with it. Do not use the mains adapter supplied with the device to charge up any other devices. ■ Never immerse the device or the connection in water or other liq- uids and ensure that they cannot fall into water or become wet. ■ In the interest of your own safety, you should inspect the device for damage each time before you use it. The device may only be used if it has no visible signs of damage! If the device or the connection of the device is damaged, it must be replaced by the manufacturer, customer service department or a similarly qualifi ed person (e. g. specialist workshop) in order to avoid any hazards. DANGER – Danger of Electric Shock! ■ Use and store only in closed rooms. ■ Do not use the device in rooms with high humidity. ■ Should the device fall into water while charging, switch off the power supply imme- diately. Do not attempt to pull the device out of the water while it is still connected to the mains power! ■ Never touch the device or the connection with wet hands when these components are connected to the mains power. ■ Never suck up liquids. Do not pour liquids into the dust container. Keep the motor unit away from moisture or wet conditions! ■ If the device is to be used as a hand-held vacuum cleaner for cleaning a car, ensure that the device is not exposed to rain or moisture.EN 16 WARNING – Danger of damage to the eyes and skin! ■ Germicidal ultraviolet rays are harmful to the eyes and skin. Never expose yourself or other people and animals to direct or refl ected rays! If you come into contact with the rays, consult a doctor immediately. ■ Make sure that the safety switches of the UV-C lamp are not blocked! WARNING – Danger of Injury! ■ Danger of suff ocation! Keep children and animals away from the packaging material. ■ Danger of strangulation! Make sure that the mains cable is always kept out of the reach of small children and animals. ■ Danger of burns! If the battery has leaked, do not allow your skin, eyes and mucous membranes to come into contact with the battery acid. If you touch battery acid, rinse the aff ected areas with abundant clear water straight away and seek medical assis- tance immediately. ■ Danger of becoming stuck! Keep animals, hair, jewellery, wide clothing, fi ngers and all other body parts away from the suction opening of the device. They could become stuck to the device. Should the vacuum become stuck, switch the device off immediately. ■ Danger of tripping! Make sure that the connected mains cable does not present a trip hazard. WARNING – Danger of Fire! ■ Do not use the device in rooms containing easily ignitable substances or poisonous and explosive fumes. ■ Do not charge up the device in the vicinity of highly fl ammable materials (curtains, textiles, etc.). ■ Do not cover the device during operation or charging in order to prevent it from catch- ing fi re. Do not insert anything into the ventilation openings of the device and make sure that these do not become clogged. NOTICE – Risk of Damage to Material and Property ■ Only connect the mains adapter to a socket that is properly installed and matches the technical data of the device. The socket must also be readily accessible after connec- tion so that the connection to the mains can quickly be isolated. ■ Make sure that the connection not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces. Do not wrap the connection around the device (danger of the cable breaking). ■ Remove the mains adapter from the plug socket if a fault occurs during charging or if a thunderstorm is expected. ■ When you pull it out of the plug socket, always pull on the mains adapter and never the mains cable! Never pull or carry the device by the mains cable. ■ Protect the device from heat, naked fl ames, sub-zero temperatures, persistent mois- ture, wet conditions and impacts. ■ Do not try to lubricate the rollers with lubricant or oil. This would cause dust and dirt to increasingly adhere to the rollers.17 EN ■ Use only original spare parts from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid damage. ■ Do not place or lay any heavy objects on the device or the connection. ■ The battery must not be taken apart, thrown into a fi re, immersed in liquids or short-circuited. Items Supplied

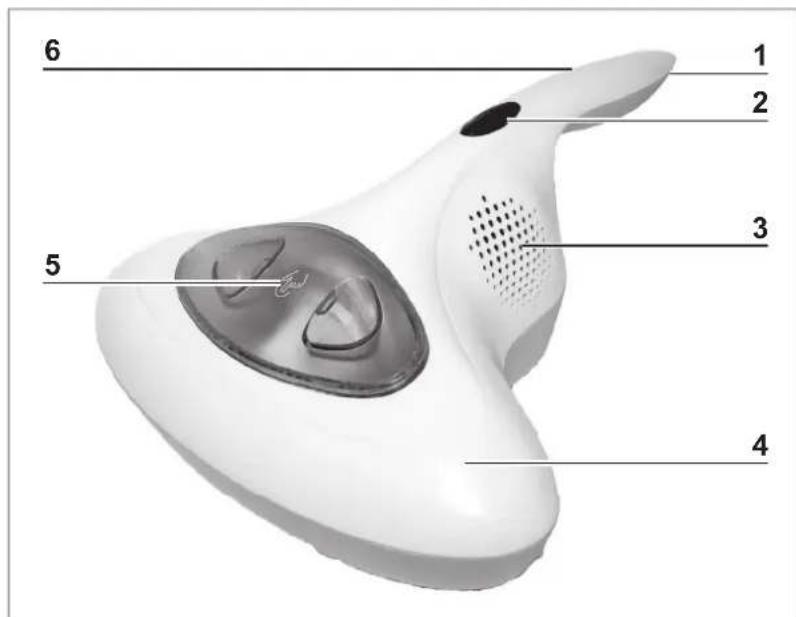

• Operating instructions Check the items supplied for completeness and any transport damage. If you fi nd any damage to the components, do not use them, but contact our customer service department. Possible dirt residues in the dust container can be attributed to quality checks and do not constitute a defect with the device. Device Overview 1 Connecting socket 2 On / Off switch with operating lamp 3 Ventilation slots 4 Motor unit 5 Dust container 6 Handle

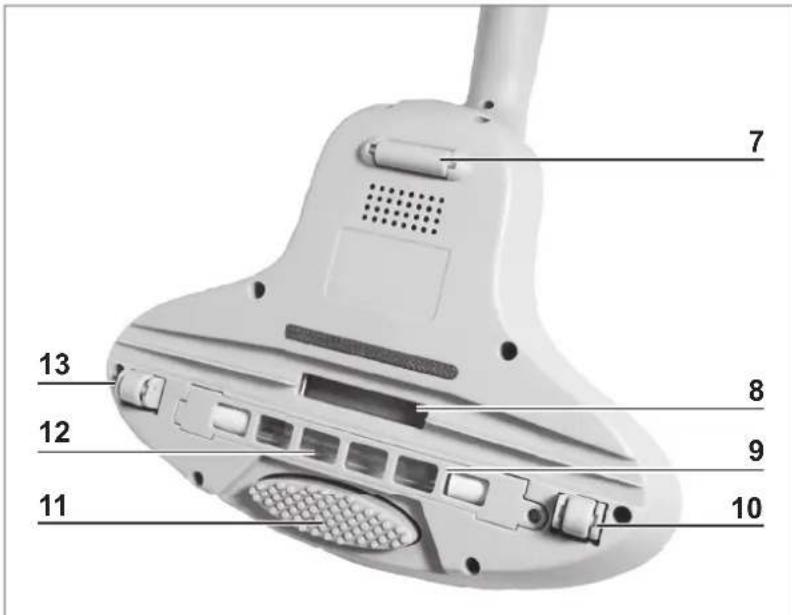

1EN 18 7 Roller 8 Suction opening 9 UV-C lamp cover 10 Safety switch, right 11 Vibration head 12 UV-C lamp (under the cover) 13 Safety switch, left

Charging Up the Battery PLEASE NOTE! ■ It is essential that you charge up the battery fully before you fi rst use the de- vice in order to achieve the maximum charging capacity. If the battery is fully discharged during use, it must be fully charged up again before it is next used.

• First plug the barrel connector of the mains adapter into the connecting socket (1) on the motor unit (4) and then connect the mains adapter to a plug socket. The operating lamp in the On / Off switch (2) fl ashes. The battery is being charged.

• If the operating lamp is permanently lit, the battery is fully charged.

• First disconnect the mains adapter from the mains power and then disconnect the barrel connector from the motor unit. Safety Devices The device has two safety switches (10, 13). The UV-C lamp (12) only switches on if both safety switches are pressed into the motor unit (4) (automatic switch-off function of the UV-C lamp deactivated). This happens automatically when the device is placed on a fl at surface. If the safety switches lose contact with the surface below, the automatic switch- off function is activated and the UV-C lamp stops being lit (automatic switch-off function of the UV-C lamp activated). Tips and Notes

• Always clean mattresses on both sides.

• We recommend cleaning new mattresses once a month. Older mattresses should initially be cleaned every day for a week. We then recommend cleaning them once a month.19 EN

• The fi lter should be replaced every 12 – 18 months; the UV-C lamp (12) should be replaced every 12 – 24 months. If you have any questions about spare parts, please contact the customer service department via our web- site: www.dspro.de/kundenservice Use PLEASE NOTE! ■ The device should only be used if it has been completely and correctly assembled! The dust container and the fi lter must be inserted and must not be damaged. If the dirt were to get inside the motor unit, this could damage the motor. ■ Make sure that the safety switches of the UV-C lamp are not blocked! ■ Switch the device off after each surface has been cleaned as this will considerably increase the operating time on each battery charge. Charge up the battery after use (see the “Charging Up the Battery” chapter).

1. Place the device down fl at on the surface which is to be cleaned.

2. Press the On / Off switch (2) to switch on the device. The device starts to vacuum and

the UV-C lamp (12) and the vibration head (11) switches on. The vibration shakes up the surface which is to be cleaned and the dust which is agitated is sucked in through the suction opening (8).

3. Guide the device very slowly and evenly over the surface to be cleaned.

4. After vacuuming, press the On / Off switch to switch off the device.

Cleaning and Storage PLEASE NOTE! ■ Empty the dust container each time after you use the device. The fi lter must also be regularly cleaned in order to prevent overloading of the motor. ■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the de- vice. These can damage the surface.

• As required, wipe down the motor unit (4) with a damp soft cloth. Then dry it with a soft cloth.

• Wipe out the recess for the dust container (5) with a duster.

• Store the device in a dry, cool place that is not accessible to children and animals. Cleaning the Dust Container and HEPA Filter

1. Press onto the dust container (5) to unlock it.

2. Reach into the recess in the dust container and pull it up and out of the motor unit (3).

3. Reach into the opening and pull the HEPA-fi lter out of the dust container.

6. Tap out the HEPA-fi lter and clean it with a soft brush if necessary. Please note: For

thorough cleaning the fi lter can be rinsed under cold (!) running water. NOTICE: Allow the HEPA-fi lter to dry completely before the device is reassembled.

7. Insert the HEPA-fi lter into the dust container.

8. Insert the dust container into the motor unit. It must audibly click into place.

Cleaning the UV-C Lamp PLEASE NOTE! ■ CAUTION – Danger of Burns! The UV-C lamp will become hot during use. Allow the UV-C lamp to cool suffi ciently after using the device.

1. Undo the two screws on the cover (9) of the UV-C lamp (12) and take off the cover.

2. Wipe down the UV-C lamp with a dry duster. NOTE: Make sure that you do not touch

the UV-C lamp with your fi ngers!

3. Place the cover back on and fi x it in place with the two screws.

For the disposal of the UV-C-lamp just take it out and dispose it in an environmen- tally friendly manner (see the “Disposal” chapter). Troubleshooting If the device does not work properly, fi rst check whether you are able to rectify the prob- lem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department. Do not attempt to repair a electrical device yourself! Problem Possible cause Solution The device only works slowly or does not start. The battery is empty. Charge up the battery. Low suction force. The battery is too weak. Charge up the battery. The dust container (5) is too full. Empty the dust container. The fi lter is dirty. Clean the fi lter. The suction opening (8) is blocked. Switch off the device and remove the blockage.21 EN Problem Possible cause Solution The operating lamp (2) does not light up when the device is connected to the mains power. The mains adapter is not inserted in the plug socket correctly or the barrel con- nector is not inserted in the connecting socket (1) on the device correctly. Correct the fi t. The plug socket is defec- tive. Try another plug socket. The UV-C lamp (12) does not light up. The automatic switch-off function of the UV-C lamp has been activated. Check the safety switches. Unusual odour The device is being used for the fi rst time. A new odour is normal when the device is used for the fi rst time; it disappears after a while. Technical Data Article number: 03416 (blue), 03807 (red) ID operating instructions: Z 03416_03807 M DS V1.2 1019 Device Model number: SV1801 Voltage supply: 14.8 V DC, 2200 mAh Power: 100 W Battery Charge time: approx. 4 – 5 hours Operating time: approx. 20 – 30 minutes (when battery is fully charged) Mains adapter Model number: TYGSDC1800500 Input: 100 – 240 V~ 50 / 60 Hz Output: 18 V DC, 500 mA Protection class: II Disposal PLEASE NOTE! ■ The UV-C lamp should be removed prior to disposal of the device and disposed of separately from the device. Notes on how to remove the UV-C lamp can be found in the “Cleaning and Storage” chapter – “Cleaning the UV-C Lamp”. Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.EN 22 This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device with built-in battery as normal domestic waste, but rather in an environmen- tally friendly manner via an offi cially approved waste disposal company. Customer Service / Importer: DS Produkte GmbH Am Heisterbusch 1, 19258 Gallin, Deutschland Tel.: [phone] (Calls to German landlines are subject to your provider’s charges.) All rights reserved.23 FR Explication des symboles Mentions de danger : ces symboles signalent des risques de blessure. Lisez et observez attentivement les consignes de sécurité correspondantes.
