CT2H120250 - Toaster Vollrath - Free user manual and instructions

Product Type	Conveyor Toaster
Brand	Vollrath
Model	CT2H-120250
Power Supply	120 V, 50/60 Hz, 15 A
Power	1500 W (estimated)
Maximum Capacity	Approximately 300 slices per hour
Conveyor Adjustment	Variable speed
Preheating	5 minutes before use
Sleep Function	Reduces electricity consumption by 75%
Crumb Tray	Removable, must be in place during operation
Cleaning	Soft cloth and soapy water; brush the belt
Safety	Reset button; overheat protection
Intended Use	Commercial (food service)
Heating Elements Warranty	1 year (labor included)
Parts Warranty	2 years (1 year labor)
Dimensions (L x W x H)	Not specified
Weight	Not specified

Frequently Asked Questions - CT2H120250 Vollrath

How to clean the toaster?

Unplug the appliance and let it cool down. Use a soft cloth dampened with soapy water for the exterior. Brush the conveyor belt and empty the crumb tray. Do not spray any liquid.

What to do if the toaster does not heat?

Check that the appliance is plugged in and the power switch is in the ON (I) position. Inspect the circuit breaker and the reset button located under the back panel. If the problem persists, contact technical support.

Can I toast frozen bread?

Frozen bread must be thawed before toasting. Do not put frozen bread directly into the toaster.

How to adjust the browning level?

Use the conveyor speed adjustment knob. For darker toast, reduce the speed (lower value). For lighter toast, increase the speed (higher value).

What types of bread are recommended?

The toaster is suitable for standard bread. Bagels, wheat or rye bread require a slow speed. Buttered or coated products (pastries) are not recommended.

Why is the toaster overheating?

Check that the crumb tray is properly inserted and that the fan blades are clean. If the problem persists, contact technical support.

How to reset the toaster after overheating?

Set the appliance to OFF (O), unplug it, wait 30 minutes, remove any obstruction from the fan, plug in, turn ON, then press the reset button under the back panel.

Where to find the serial and model number?

They are on the nameplate located on the side or back of the appliance. This information is required for any service request.

What is the warranty for the toaster?

Heating elements have a 1-year warranty (labor included at an authorized center). Other parts are warranted for 2 years, with 1 year of labor. The warranty does not cover damage due to misuse.

Can the toaster be used at home?

No, this appliance is intended for commercial use (food service). It is not designed for household use.

USER MANUAL CT2H120250 Vollrath

ConveyorBreadandBunToasters-250-500SlicesPerHour*

ModelsJT1,JT1H

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmenttifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicate the presence ofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcause minormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamagetotheequipment

• Plugonlyintogroundedelectricaloutletsmatchingthevoltage on theratingplate.
  -Usethisequipmentinaflat,levelposition.
• Unplugeequipmentandletitcoolbeforecleaningormoving. Equipmentremainshotafteritisturnedoff.
• Donotouchduringoperation.
  -Unplugwhennotinuse.
  -Keepequipmentandpowercordawayfromopenflames,electric burnersorexccessiveheat.
• Donotoperateunattended
  Closelysupervisequipmentoperatingpubliccareasand/or aroundchildren.
• Donotoperateifequipmenthasbeendamagedorsmalfunctioning inanyway.

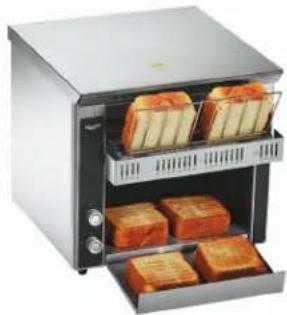

FUNCTIONANDPURPOSE

This equipment is intended to assist bread products. It is intended for use in commercial food service operations only. It is not intended for household, industrial or laboratory use. The JT1H modeltoasters are not recommended for toasting standardsizebread.

JT1Models

JT1HModels

ItemNo.ModelVoltage			SlicesPer Hour* (Upto)	Product Opening	Plug
CT2-120350	JT1 huko	12035C		13/8(3.2)	NEMA5-15P
CT2-23035003		220-2405	00		UK
CT2-23035002Sc
CT2H-120250	JT1H	12025C		1-21/8(2.5-7.6)	NEMA5-15P
CT2H-23025003		220-2405	00		UK
CT2H-23025002					Shuko

*Slicesperhourisbasedonmaximumconveyorspeed.Conveyorspeeddeterminedtoastingtimeandaffectscolorandtextureofthetoast.Resultsmayvarybasedupontypeofbread,colorandtexturepreference.

CLEARANCEANDENVIRONMENTREQUIREMENTS

Donotplaceonsurfacesornearwalls, partitionsorkitchenfurniture unlesstheyaremadeofnon-combustiblematerialorcladwithnoncombustibleheat-insulatingmaterial.Toastersmustnotbeusednear orbelowcurtainsandothercombustiblematerials.

Donotplatzehoasteradjacenttoaheatproducingappliance.

BEFOREFIRSTUSE

1.Cleanthetoaster.See"DailyCleaning"onpage2.
2. Placethefeedrampintheupposition.Ittisshippedfoldeddownn thecrumbtray.

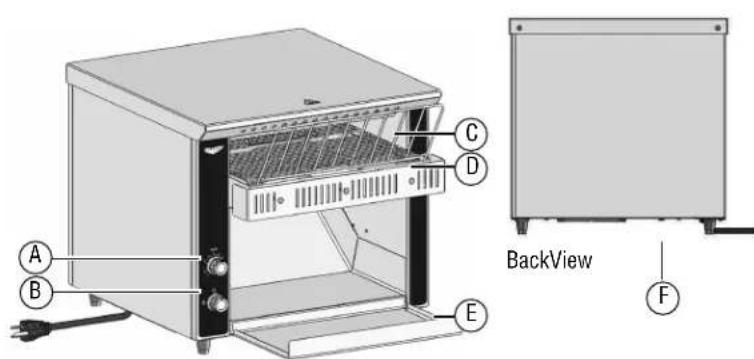

FEATURES

ACo n v e y o r S p e e d C o n trol K n o b

BPowerKnob

| FullPower-maximumheat
0ff
Standby-reduceselectricalconsumptionbyupto 75%

CFeedRamp

DCrumbTray

ECollectionPan

FResetButton

OPERATION

CAUTION

BurnHazard

Donottouchtheequipmentwhileitisheatingoroperating. Hotsurfacedanburnskin.

NOTICE: The crumbbraymustbeinstalled inthetohasterduring operation. Failuretoinstallthecrumbbraywillcause the toasterfoverheat.

Preheat

1.Plugthetoasterintoagroundedelectricaloutletthatmatchestheratingonthenameplatefoundonthebackofthetoaster.

NOTICE:Usingavoltageotherthannameplateratedvoltage willcausedamageltotheunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewararranty.

2.Rotatethepowerknobtothefullpowerposition(1).
3.Settheconveyorspeedcontrolknobto7.
4.Wait5minutesforthetoastertopreheat.

Test

1. Adjust the settings for the breadtobetoasted. Test the settings by placing asampleofthebreaditemstobetastedontothefeed ramp.
   2.Evaluatetheresults.

Tips

BreadProductSuggestions
Bagels, wheatyebreader productswithhighmoisture content.	Useaslowerconveyorspeed.
Butteredorcoated,suchas pastries	Notrecommended.
FrozenMustbethawedbeforetoasting.

Toast

1. Adjust the conveyorspeedes needed.

2. Toastlight: Rotatethespeedcontrolknobtoalowernumber toreducethespeedanddarkenthetoast.

3. Toastoodark: Rotatethespeedcontrolknobtoahighernumber toincreaseasthespeedcontrolandlightenthetoast.

2.Forbestperformedonotoverloadthetoaster.Waitafew secondsbeforeloadingasecondrowofbreadtothetoaster.

IfBreadBecomesStuck

1.RotatethepowerknobtotheOFFposition(O)andunplugthet oaster.
2.Letthetoastercoolcompletely.
3. Usetongstoremovethebreaditem.Takecaretonbumptheglass heatingelementsaboveandbelowtheconveyor.

CLEANING

WARNING

Electrical ShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Allowequipmentntocoolbeforemovingorcleaning

NOTICE: Donotuseabrasivematerials, scratchingcleansorsourgingpadstocleantheexteriorofthecquipment. Thesecandamagethefinish.

NOTICE: Heating elements don't need to be cleaned. Crumbs and food debris will burn off. Overtimethe heating elements may develop a chalky appearance, but this will not impact performance.

DailyCleaning

1. Beforeturningoffthequipmentandwiththeconveyorrotating, watchtheconveyorbelfofooddebris.
2. Whenthefooddebrisreachesthefrontoftheconveyor,rotatethe powerknobtotheOFFposition.
   3.Unplugtheequipment.
3. Let the equipment cool completely.
4. Whentheequipmentiscool,useabrushorscrubpadtotremovethe fooddebris.
5. Tocleantheexterior,useasoftclothdippedinhotsoapywaterto wipetheexteriorandfanairintakeunderthequipment.lfneeded, wipethefanintakeareawithdegreasertopreventionlongtermbuild up.
6. Empty and clean the crumb tray(s).

Contactanaauthorizedserviceagentforaprofessionalcleaningofthecomponents.

TROUBLESHOOTING

ProblemMightbeCausedByCourse	Action
Toasterdoesnotheatandthe conveyorbeltdoesnotmove.	Toasterisnotpluggedin.Pluginthetoaster.
	Powerknobsettingisincorrect.Rotatethep	powerknobtotheON()position.
	Thewallbreakermaybetripped.	1.Inspectfortrippedbreaker.2.Resetthebreaker.3.Ifthebreakerwasnottripped,inspectthetoastingchamberfor brokenheaterelements.4.ForbrokenelementscontactVollrathTechnicalServices.
	Theresetmaybetripped.Lookunderthetoastertoseifanobjectispreventingthefanbladesfromturning.1.RotatethepowerknobtotheOFF()position.2.Unplugthetoaster.3.Wait30minutesforthetoastertocool.4.Removetheobject.5.Pluginthetoaster.6.RotatethepowerknobtotheON()position.7.Presstheresetbutton,locatedbelowthebackpanel.You shouldhearandfeelthebuttonreset.Thetoastershouldstarttoperate.8.IftheproblempersistiscillVollrathTechnicalServices.
Toasterheatsandtheconveyorbelt doesnotmove.	Theremaybeproblemwiththemotor/speedcontrollordrivechain.	ContactVollrathTechnicalServices.
Toporbottomheatubesdonot heat.	Oneormoreelementsmayhaveburned out.	ContactVollrathTechnicalServices.
Toasterrepeatedlyoverheats.	Thecrumbtraymaynotbeinstalled.Verify	ecrumbrayisinstalled.
	Thefanmaybedirty.	Verifythefanbladesareclean.Seeinstructionsabovefor inspectingandcleaningthefanblades.
	Theremaybeproblemwiththefan.Contact	VollrathTechnicalServices.
Thefanisnotrunning.Theremaybeproblemwiththefan.Contact	blemwiththefan.ContactVollrathTechnical	Services.

SERVICEANDREPAIR

Whenunderwarranty,repairisavailableforththisproductviacarry-inservice.Tobegintheprocess:

1. Contact Vollrath Technical Services at 1-800-309-2250. Please be ready with the item number, model number and serial number. You can find this information on the nameplate located on the side or back of the equipment. Also please provide a proof of purchase indicating the date the equipment was purchased.
2. Atechnical services representative will help you troubleshoot the problem over the phone.
3. If the representative determines the issue require professional service, he or she will help you locate an authorized service center.
4. Contact the authorized service center and transport the equipment to the authorized service center. Vollrath will cover the cost to repair and/or replace defective parts within the equipment warranty period. The cost of transporting the equipment to and from the service center is not covered by the warranty.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

The warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warrantytopurchasersforsuchuses.

Heater Tubes: The warranty period is 1 year, including labor when performed at an authorized service center. Heater tube glass damage is not covered by this warranty. Customer is responsible for the cost of transporting the product to the authorized service center.

WarrantiedParts: Thewarrantyperiodis2yearsparts, 1yearlabor.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

TheVollrathCompany, L.L.C. Headquarters1236North 18thStreetSheboygan, Wisconsin53081-3201USAMainTel: 800-624-2051or920-457-4851MainFax: 800-752-5620or920-459-6573CanadaCustomerService: 800-695-8560TechServices:[e-mail]

PujadasCtra.deCastanyet,132P.O.Box12117430SantaColomadeFarmers(Girona)-SpainTel. [e-mail]

VollrathofChinaVollrathShanghaiTradingLimited23A,TimeSquarePlaza|500ZhangYangRoadPudong,Shanghai200122Tel:[phone]

VollrathdeMexicoS.deR.L.deC.V.PerifericoSurNo.7980Edificio4-ECol. SantaMariaTequepexpan45600Tlaquequepa, Jalisco|MexicoTel.:(52)333-133-6767Tel.:[phone]Fax:[phone]
