Product Type	Commercial Conveyor Toaster
Brand	Vollrath
Model	JT3H
Capacity	350 to 1000 slices per hour
Conveyor Settings	7 speed positions
Thermostats	Top and bottom independently adjustable
Heat Screen	Height adjustable to accommodate bread thickness
Power Button	Off (O), Full Power (I), Standby (reduces power consumption by 75%)
Reset Button	Protects against overheating (front accessible)
Crumb Tray	Removable for easy cleaning
Catch Tray	Installed at the rear to collect toasted products
Feet	Removable, necessary for air circulation
Power Supply	Connect to grounded outlet (voltage per rating plate)
Usage	Restaurants, institutions (not for home use)
Safety Precautions	Do not spray water, do not touch during operation, allow to cool before cleaning
Daily Cleaning	Brush off food particles, clean exterior with soft cloth and soapy water
Heating Elements	Do not clean; residue will carbonize without affecting performance
Parts Warranty	2 years
Labor Warranty	1 year
Heating Tube Warranty	1 year (parts and labor)
Technical Support	Contact Vollrath at 1-800-309-2250 or local support

Frequently Asked Questions - JT3H Vollrath

How to install the feet on the Vollrath JT3H toaster?

Place the toaster on its side, turn the bottom toward you, then install the feet. The feet are essential to allow sufficient air circulation and prevent overheating.

How to adjust the heat screen on the JT3H?

After cooling, use a screwdriver to loosen the screw on the heat screen. Grasp the screen and raise or lower it to adjust the opening according to product thickness. Tighten the screw.

What to do if the toaster does not heat and the conveyor belt does not move?

First check that the appliance is plugged in and the power button is in the On (I) position. Inspect the circuit breaker. If the reset button has tripped, wait 30 minutes for the appliance to cool, remove any obstruction, then press the reset button. If the problem persists, contact Vollrath technical support.

How to clean the Vollrath JT3H toaster?

Let the appliance cool completely. Use a brush or scouring pad to remove food particles from the conveyor belt. For the exterior, use a soft cloth dipped in warm soapy water. Never spray water or cleaning products. Empty and clean the crumb trays.

Can you toast bagels or frozen products?

For bagels, place them cut side up on the feed ramp. Frozen products must be thawed before toasting. Use a low conveyor speed for very moist products.

How to toast bread on one side only?

Turn the TOP thermostat to the desired setting and the BOTTOM thermostat to the Off position. This allows toasting only the top side.

What to do if a product gets stuck in the toaster?

Turn the power button to Off (O) and unplug the appliance. Let it cool completely then use tongs to remove the stuck product. Be careful not to knock the heating elements.

What is the warranty for the Vollrath JT3H toaster?

The warranty is 2 years for parts and 1 year for labor. The heating tubes are warranted for 1 year (parts and labor). Damage due to misuse or improper packaging is not covered.

Why does the toaster overheat frequently?

Check that the crumb tray is properly installed. Clean the fan blades and ensure they spin freely. If the problem persists, contact technical support.

The fan continues to run after the toaster is turned off. Is this normal?

Yes, this is normal. The fan turns on to cool the appliance after use. It will stop automatically after a few minutes.

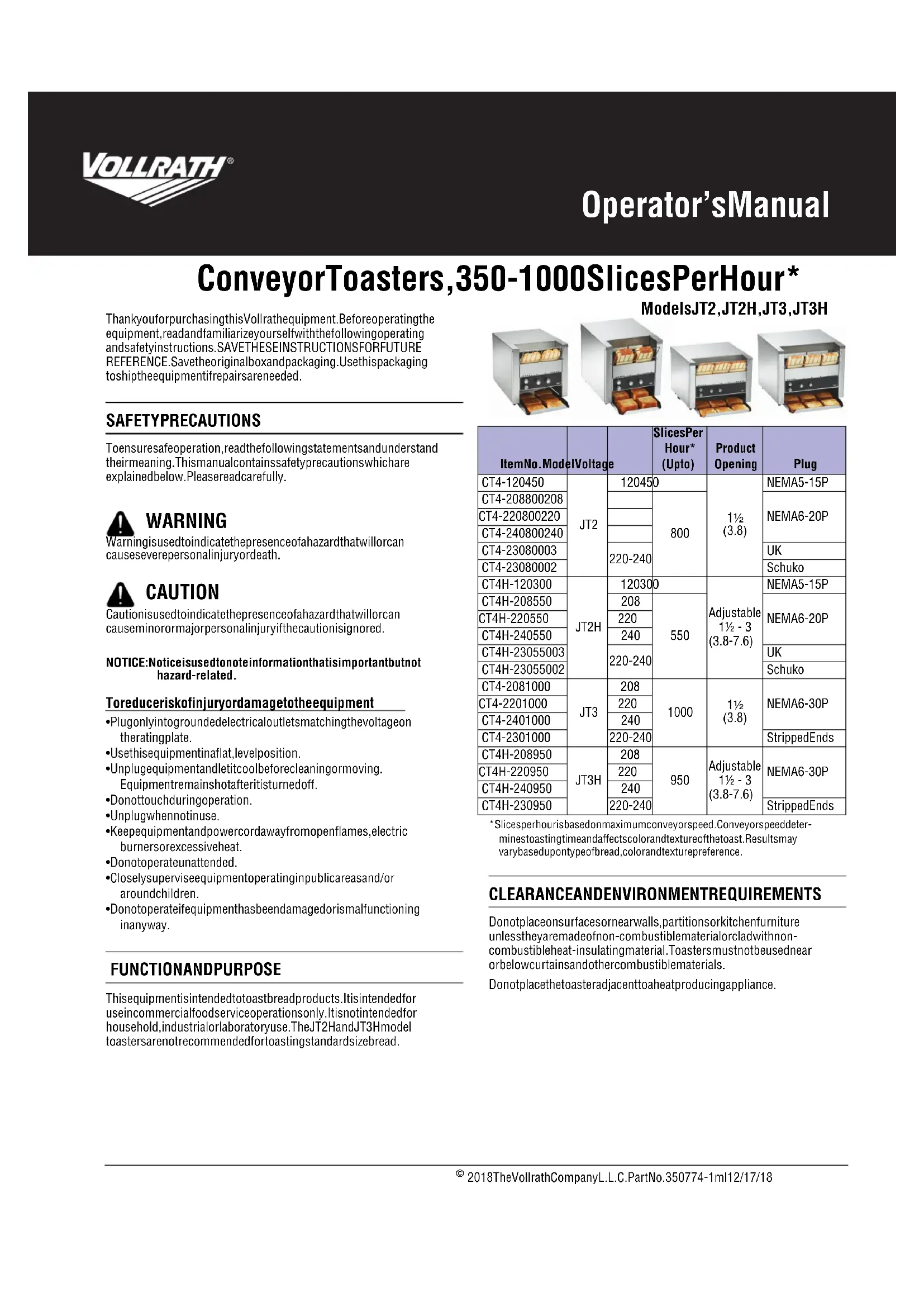

USER MANUAL JT3H Vollrath

ConveyorToasters,350-1000SlicesPerHour\*

ModelsJT2,JT2H,JT3,JT3H

Four identical stainless steel food blisters with open buns, arranged in a row (no text or symbols visible)

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleaseread carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment

• Plugonlyintogroundedelectricaloutletsmatchingthevoltageon theratingplate.
  •Usethisequipmentinaflat,levelposition.
• Unplugequipmentandletitcoolbeforecleaningormoving. Equipmentremainshotafteritisturnedoff.
• Donottouchduringoperation.
  •Unplugwhennotinuse.
• Keepequipmentandpowercordawayfromopenflames,electric burnersorexcessiveheat.
  •Donotoperateunattended.
  • Closelysuperviseequipmentoperatinginpublicareasand/or aroundchildren.
• Donotoperateifequipmenthasbeendamagedorismalfunctioning inanyway.

FUNCTIONANDPURPOSE

This equipment is intended to toast bread products. It is intended for use in commercial food service operations only. It is not intended for household, industrial or laboratory use. The JT2 Hand JT3 H model toasters are not recommended for toasting standardsize bread.

ItemNo.ModelVoltage			SlicesPer Hour* (Upto)	Product Opening	Plug
CT4-120450	JT2	120450		112 (3.8)	NEMA5-15P
CT4-208800208			800		NEMA6-20P
CT4-220800220
CT4-240800240
CT4-23080003		220-240			UK
CT4-23080002					Schuko
CT4H-120300	JT2H	120300		Adjustable 112-3 (3.8-7.6)	NEMA5-15P
CT4H-208550		208	550		NEMA6-20P
CT4H-220550		220
CT4H-240550		240
CT4H-23055003		220-240			UK
CT4H-23055002					Schuko
CT4-2081000	JT3	208	1000	112 (3.8)	NEMA6-30P
CT4-2201000		220
CT4-2401000		240
CT4-2301000		220-240			StrippedEnds
CT4H-208950	JT3H	208	950	Adjustable 112-3 (3.8-7.6)	NEMA6-30P
CT4H-220950		220
CT4H-240950		240
CT4H-230950		220-240			StrippedEnds

*Slicesperhourisbasedonmaximumconveyorspeed.Conveyorspeeddeterminestoastingtimeandaffectscolorandtextureofthetoast.Resultsmay varybasedupontypeofbread,colorandtexturepreference.

CLEARANCEANDENVIRONMENTREQUIREMENTS

Donotplaceonsurfacesornearwalls, partitionsorkitchenfurniture unlesstheyaremadeofnon-combustiblematerialorcladwithnon-combustibleheat-insulatingmaterial. Toastersmustnotbeusednear orbelowcurtainsandothercombustiblematerials.

Donotplacethetoasteradjacenttoaheatproducingappliance.

SETUP

1. Placethetoasteronahard, flat, stablesurface.
   2.Turnthetoasteronit'ssidewiththebottomfacingyou.

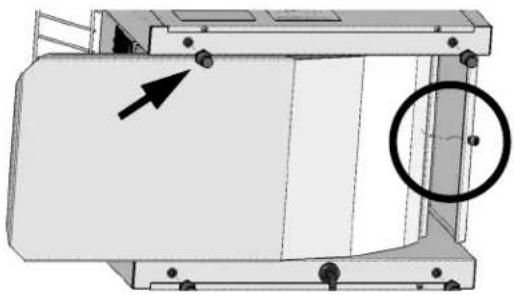

2. Installthefeet.

NOTICE:Feetmustbeinstalled.Failuretoinstallthefeetwill restrictairflowandcausethetoastertooverheat.

1. Install the collection pan by placing the backed edge of the pan on the lip at the back of the toaster. Line up the hole in the pan with the screw. Tightenthescrewtose secure the collection pan.

Technical diagram of a mechanical component with an arrow and a circled feature (no text or symbols)

FEATURES

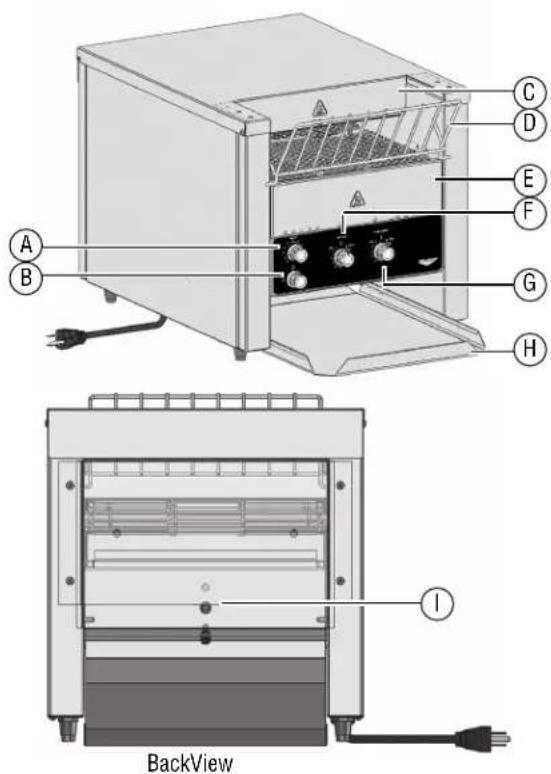

A B C D E F G H BackView

AConveyorSpeedControlKnobBPowerKnob

FullPower-maximumheat

○ Off

Standby-reduceselectricalconsumptionbyupto75%.

CHeatShield-Adjustableonthehigh-clearancetoasters

DFeedRampGBottomHeatControlKnob

ECrumbTrayHCollectionPan

FTopHeatControlKnoblResetButton(Reference

only.Accessisviathefront ofthetoasters.Seepage3.)

BEFOREFIRSTUSE

1.Cleanthetoaster.See"DailyCleaning"onpage3.

OPERATION

CAUTION

BurnHazard

Donottouchtheequipmentwhileitisheatingoroperating. Hotsurfacescanburnskin.

NOTICE: The crumb tray must be installed in the toaster during operation. Failure to install the crumb tray will cause the toasterto overheat.

AdjusttheHeatShield(ModelsJT2HandJT3H)

Excessspaceabovetheproductwillcreateheatlossandmayreduce performance.

1. Whentheequipmentiscooltothetouch, useascrewdriverto loosenthescrewontheheatshield.
2. Grasptheshieldandpullitupordowntoadjusttheopeningsothe tallestproductscanpassthrough.Re-tightenthescrew.

Preheat

Plugthetoasterintoagroundedelectricaloutletthatmatchestherating onthenameplatefoundonthesideofthetoaster.

NOTICE: Usingavoltageotherthanthenameplateratedvoltagewill causedamagetotheunit. Incorrect voltage, modification to the power cordorelectrical componentscandamage unit and will void the warranty.

1. Rotatethepowerknobtothefullpowerposition(I).
2. Settheconveyorspeedcontrolknobto7.
3. Rotatethetopandbottomheatcontrolknobstohigh.
4. Wait5minutesforthetoastertopreheat.

Test

1. Adjust the settings for the product to be toasted.

Tips

ProductSuggestions
Bagels,wheatorryebreador productswithhighmoisturecontent.	Useaslowerconveyorspeed.
Butteredorcoated,suchaspastries Not recommended.
Frozen	Mustbethawedbeforetoasting.

1. Testthesettingsbyplacingasampleofthefoodtobetoastedonto thefeedramp.Placebagelsorbunsontothefeedrampwiththecut sidefacingup.

ForOne-SidedToasting

TOPheatcontroltothedesiredsetting. BOTTOMheatcontroltotheOFFposition.

ToasttheBread

1. Adjust the top and bottom heat control settings and conveyors needed foreventoasting. Allow time for the toasterto adjust tonew heat settings before replacing breadors and wishes on the conveyor.
2. For best performed on to overload the toaster. Wait a few seconds before loading a second row of bread or sandwiches into the toaster.

IfanItemBecomesStuck

1. RotatethepowerknobtotheOFFposition(O)andunplugthe equipment.
2. Let the equipment cool completely. Usetong store movethe item. Take care tonot bump the heating elements above and below the conveyor.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

chiffithin.

CAUTION

BurnHazard

Allow equipment to cool before removing or cleaning.

NOTICE: Donotuseabrasivematerials, scratchingcleansersor scouringpadstocleantheexterioroftheequipment. These candamagethefinish.

NOTICE: Heatingelementsdonotneedtobecleaned. Crumbsand fooddebriswillburnoff. Overtimethe heatingelements maydevelopachalkyappearance, but this will not impact performance.

DailyCleaning

1. Before turning off the equipment and with the conveyor or rotating, watch the conveyor belt for food debris.
2. Whenthefooddebrisreachesthefrontoftheconveyor, rotatethe powerknobtotheOFFposition.
3. Waitforthefantostoprunning.Unplugtheequipment.
4. Lettheequipmentcoolcompletely.
5. Whentheequipmentiscool, useabrushorscrubpadtoremovethe fooddebris.
6. Tocleantheexterior, useasoftclothdippedinhotsoapywatertowipetheexteriorandfanairintakeundertheequipment. Ifneeded, wipethefanintakeareawithdegreasertopreventlongtermbuildup.
7. Empty and clean the crumb tray(s).

PREVENTATIVE MAINTENANCE

Contactanauthorized service agent for a professional cleaning of the components.

TROUBLESHOOTING

ProblemMightbeCausedByCourseof	Action
Toasterdoesnotheatandthe conveyorbeltdoesnotmove.	Toasterisnotpluggedin.Pluginthetoaster.
	Powerknobsettingisincorrect.RotatethepowerknobtotheON(())position.
	Thewallbreakermaybetripped.	1.Inspectfortrippedbreaker.2.Resetthebreaker.3.Ifthebreakerwasnottripped,inspectthetoastingchamberforbrokenheatelementtubes4.Forbrokentubes,contactVollrathTechnicalServices.

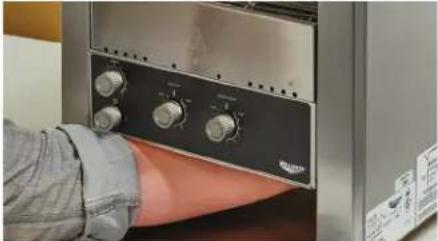

	Theresetmaybetripped.Lookunderthetostertoseeifanobjectispreventingthefan bladesfromturning.1.RotatetheheatcontrolknobstotheOFFposition.2.RotatethepowerknobtotheOFF(0)position.3.Unplugthetoaster.4.Wait30minutesforthetoastercool.5.Removetheobject.6.Pluginthetoaster.7.RotatethepowerknobtotheON(())position.8.Presstheresetbutton.Youshouldhearandfeelthebutton reset.Thetoastershouldstarttooperate.9.IftheproblempersistscallVollrathTechnicalServices.
Toasterdoesnotheatandthe conveyorbeltdoesnotmove.	Theresetmaybetripped.Inspectthefanblade	estoseeiftheyaredirty.1.RotatetheheatcontrolknobstotheOFFposition.2.RotatethepowerknobtotheOFF(O)position.3.Unplugthetoaster.4.Wait30minutesforthetoastercool.5.Cleanthefanblades.6.Pluginthetoaster.7.RotatethepowerknobtotheON(I)position.8.Presstheresetbutton.9.IftheproblempersistscallVollrathTechnicalServices.
Toasterheatsandtheconveyorbelt doesnotmove.	Theremaybeaproblemwiththemotor/speedcontrolordrivechain.	ContactVollrathTechnicalServices.
Toporbottomheatertubesdonot heat.	Oneormoreheatertubesmayhave burnedout.	ContactVollrathTechnicalServices.
	Heatcontrolswitchmaybebroken.
Toasterrepeatedlyoverheats.	Thecrumbtraymaynotbeinstalled.Verifythecrumbtrayisinstalled.
	Thefanmaybedirty.	Verifythefanbladesareclean.Seeinstructionsabovefor inspectingandcleaningthefanblades.
	Theremaybeaproblemwiththefan.	Runthetoasterfor10minutes.Ifthefandoesnotrun,contact VollrathTechnicalServices.
Thefanisnotrunning.	Theremaybeaproblemwiththefanor thefanswitch.	Runthetoasterfor10minutes.Ifthefandoesnotrun,contact VollrathTechnicalServices.
Thetoasteristurnedoffandthefan isrunning.	Normaloperation.Thefanturnsonas neededtocoolthetoaster.	-

SERVICEANDREPAIR

Whenunderwarranty,repairisavailableforthisproduct.Tobegintheprocess:

1. Contact Vollrath Technical Services at 1-800-309-2250. Please be ready with the item number, model number and serial number. You can find this information on the nameplate located on the side or back of the equipment. Also please provide a proof of purchase indicating the date the equipment was purchased.
2. A technical services representative will help you troubleshoot the problem over the phone.
3. If the representative determines the issue requires professional service, he or she will help you locate an authorized service center.
4. Contact the authorized service center to make arrangements for the repair. Vollrath will cover the cost to repair and/or replace defective parts withintheequipmentwarrantyperiod.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

The warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty topurchasersforsuchuses.

WarrantiedParts: The warranty period is 2 years parts, 1 year labor.

HeaterTubes: The warranty period is 1 year, including labor. Heatertubeglass damage is not covered by this warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncements,visitwww.vollrath.com.

TheVollrathCompany,L.L.C.Headquarters1236North18thStreetSheboygan,Wisconsin53081-3201USAMainTel:800-624-2051or920-457-4851MainFax:800-752-5620or920-459-6573CanadaCustomerService:800-695-8560TechServices:[e-mail]

PujadasCtra.deCastanyet,132P.O.Box12117430SantaColomadeFarners(Girona)[e-mail]

VollrathofChinaVollrathShanghaiTradingLimitedRoom201,BuildingAXinYiPlaza1618YiShanRoadShanghai,201103China,P.R.C.Tel:[phone]

VollrathdeMexicoS.deR.L.deC.V.PerifericoSurNo.7980Edificio4-ECol.SantaMariaTequepexpan45600Tlaquepaque,Jalisco|MexicoTel:(52)333-133-6767Tel:[phone]Fax:[phone]

Grille-painsconvoyeurs,350-1000tranchesparheure\*

Four identical image of a commercial toaster oven with open outlets and food compartments (no text or symbols visible)

Num.d'art.Modèle		Tension	Tranches par heure* (max.)	Ouverture produit	Fiche
CT4-120450	JT2	120450		112 (3,8)	NEMA5-15P
CT4-208800208			800		NEMA6-20PCT4-22080
CT4-240800240
CT4-23080003					R.-U
CT4-23080002Schuko		220-240
CT4H-120300	JT2H	120300		Réglable 112-3 (3,8-7,6)	NEMA5-15P
CT4H-208550		208	550		NEMA6-20PCT4H-2205
CT4H-240550		240
CT4H-23055003		220-240			R.-U
CT4H-23055002					Schuko
CT4-2081000	JT3	208	1000	112 (3,8)	NEMA6-30PCT4-22010
CT4-2401000		240
CT4-2301000		220-240			Extrémités dénudées
CT4H-208950	JT3H	208	950	Réglable 112-3 (3,8-7,6)	NEMA6-30PCT4H-2209
CT4H-240950		240
CT4H-230950		220-240			Extrémités dénudées

Technical diagram of a mechanical component with an arrow indicating direction and a circled detail (no text or symbols)

CARACTÉRISTIQUES

A B C D E F G H I Vuearrière

ABoutonderéglagedevitessedu convoyeur

Four identical stainless steel food blisters with various grates, arranged in a row (no text or symbols visible)

Núm.art.Modelo	Voltaje		Rebanadas porhora* (hasta)	Abertura del producto	Enchufe
CT4-120450	JT2	120450		112 (3,8)	NEMA5-15P
CT4-208800208			800		NEMA6-20PCT4-2208C
CT4-240800240
CT4-23080003		220-240			ReinoUnido
CT4-23080002Schuko
CT4H-120300	JT2H	120300		Ajustable 112 - 3 (3,8-7,6)	NEMA5-15P
CT4H-208550		208	550		NEMA6-20PCT4H-2205
CT4H-240550		240
CT4H-23055003		220-240			ReinoUnido
CT4H-23055002					Schuko
CT4-2081000	JT3	208	1000	112 (3,8)	NEMA6-30PCT4-2201C
CT4-2401000		240
CT4-2301000		220-240			Extremos descubiertos
CT4H-208950	JT3H	208	950	Ajustable 112 - 3 (3,8-7,6)	NEMA6-30PCT4H-2209
CT4H-240950		240
CT4H-230950		220-240			Extremos descubiertos

Technical diagram of a mechanical component with an arrow and a circled detail (no text or symbols)

CARACTERÍSTICAS

A B C D E F G H I Vistaposterior

APerillacontroladoradevelocidaddelacorreatransportadora

BPerillade encendido
