CT4240800 - Toaster Vollrath - Free user manual and instructions

Product Type	Professional Conveyor Toaster
Model	CT4240800 (JT2)
Rated Voltage	120 V
Power	450 W
Slices per hour (max.)	350 (at max. conveyor speed)
Product Opening	1½ in (3.8 cm)
Plug Type	NEMA 5-15P
Conveyor	Belt-driven, adjustable speed
Temperature Settings	Independent top and bottom thermostats
Heat Screen	Adjustable (on JT2H and JT3H models)
Power Button	Full power, off, standby (energy saving up to 75%)
Crumb Tray	Removable, easy to clean
Catch Tray	Included, attaches to rear
Material	Stainless Steel
Usage	Commercial food service use
Cleaning	Soft brush, damp cloth, no abrasive cleaners
Safety	Reset button, automatic shut-off in case of overheating
Parts Warranty	2 years (1 year for heating elements and labor)
Customer Service	Vollrath Technical Support at 1-800-309-2250

Frequently Asked Questions - CT4240800 Vollrath

How to preheat the CT4240800 toaster?

Plug in the appliance, turn the power button to full power (I), set the conveyor speed to 7 and the top and bottom thermostats to maximum. Wait 5 minutes before use.

What to do if the product gets stuck in the toaster?

Set the appliance to Off (O) and unplug it. Allow it to cool completely, then remove the product with tongs, being careful not to hit the heating elements.

How to clean the toaster?

Unplug and let it cool. Use a brush to remove particles. Clean the exterior with a soft cloth dipped in soapy water. Do not spray liquid. Clean the crumb trays.

The toaster is not heating up and the conveyor belt does not move. What to check?

Check that the appliance is plugged in and the power button is set to On (I). Inspect the circuit breaker and the reset button. If the problem persists, contact technical support.

How to adjust the heat screen?

On JT2H and JT3H models, loosen the heat screen screw with a screwdriver, adjust the height according to the product thickness, then retighten the screw.

Can frozen products be toasted?

It is recommended to thaw the product before toasting to achieve even results.

How to achieve even browning of bread?

Adjust the top and bottom thermostats as well as the conveyor speed. Wait for the toaster to adapt to the new settings before introducing the bread.

What to do if the fan does not run?

Preheat the toaster for 10 minutes. If the fan does not start, contact Vollrath technical support.

What is the power supply voltage of the CT4240800 model?

The CT4240800 model operates at 120 V, 450 W, with a NEMA 5-15P plug.

Where to find spare parts for this toaster?

Contact Vollrath technical support or an authorized repair center. Warranty parts are covered for 2 years (1 year for heating elements).

USER MANUAL CT4240800 Vollrath

ConveyorToasters,350- 1000SlicesPerHour*

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmenttifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcause minormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamagetotheequipment

• Plugonlyintogroundedelectricaloutletsmatchinghevoltageon theratingplate.
  -Usethisequipmentntinaflat,levelposition.
• Unplugequipmentandletitcoolbeforecleaningormoving. Equipmentremainshotafteritsturnedoff.
• Don'touchduringoperation.
• Unplugwhennotinuse.
  -Keepequipmentandpowercordawayfromopenflames,electric burnersorexccessiveheat.
• Donotoperateunattended
• Closelysupervisequipmentoperatingpubliccareasand/or aroundchildren.
• Donotoperateifequipmenthasbeendamagedorismalfunctioning inanyway.

FUNCTIONANDPURPOSE

Thisequipmentisintendedtotoastbreadproducts.Itisintendedfor useincommercialfoodserviceoperationsonly.Itisnotintendedfor household,industrialorlaboratoryuse.TheJT2HandJT3Hmodel toastersarenotrecommendedfortoastingstandardsizebread.

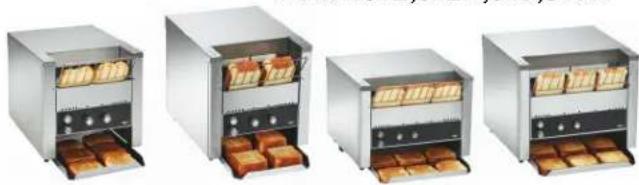

ModelsJT2,JT2H,JT3,JT3H

ItemNo.ModelVoltage			SlicesPer Hour* (Upto)	Product Opening	Plug
CT4-120450	JT2	120450		1½ (3.8)	NEMA5-15P
CT4-208800208			800		NEMA6-20P
CT4-220800220
CT4-240800240
CT4-23080003		220-240			UK
CT4-23080002					Schuko
CT4H-120300	JT2H	120300		Adjustable 1½ - 3 (3.8-7.6)	NEMA5-15P
CT4H-208550		208	550		NEMA6-20P
CT4H-220550		220
CT4H-240550		240
CT4H-23055003		220-240			UK
CT4H-23055002					Schuko
CT4-2081000	JT3	208	1000	1½ (3.8)	NEMA6-30P
CT4-2201000		220
CT4-2401000		240
CT4-2301000		220-240			StrippedEnds
CT4H-208950	JT3H	208	950	Adjustable 1½ - 3 (3.8-7.6)	NEMA6-30P
CT4H-220950		220
CT4H-240950		240
CT4H-230950		220-240			StrippedEnds

*Slicesperhourisbasedonmaximumconveyorspeed.Conveyorspeeddeterminedtoastingtimeandaffectscolorandtextureoffthetoast.Resultsmay varybasedupontypeofbread,colorandtexturepreference.

CLEARANCEANDENVIRONMENTREQUIREMENTS

Donotplaceonsurfacesornearwalls, partitionsorkitchenfurniture unlesstheyaremadeofnon-combustiblematerialorcladwithnoncombustibleheat-insulatingmaterial.Toastersmustnotbeusednear orbelowcurtainsandothercombustiblematerials.

Donot placethetoasteradjacenttoaheatproducingappliance.

SETUP

1.Placethetoasteronahard,flat,stablesurface.
2. Turnthetoasteronit'ssidewiththebottomfacingyou.
3.Installthefeet.

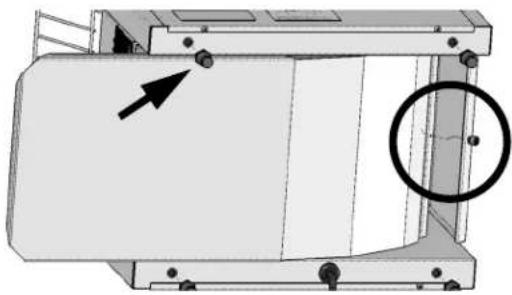

NOTICE:Feetmustbeinstalled. Failuretoinstallthefeetwill restrictairflowandcausethetoastertooverheat.

4.Installthecollectionpanbyplacingthebackedgeofthepanonthe lipatthebackofthetoaster.Lineuptheholeinthepanwith the screw.Tightentheshcrewtosecurethecollectionpan.

FEATURES

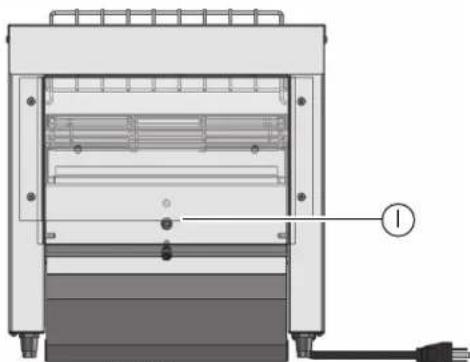

BackView

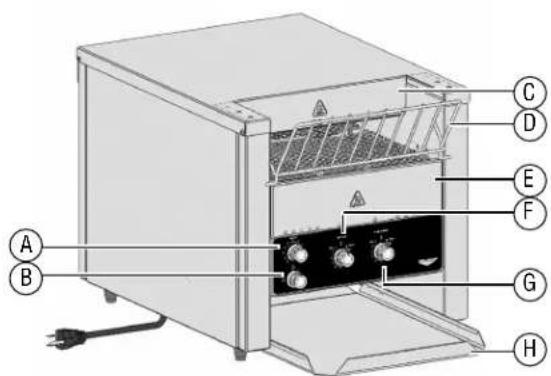

ACnveyorSpeedControlKnobBPowerKnob

| FullPower-maximumheat

Off

Standby-reduceselectricalconsumptionbyupto 75%

CHeatShield-Adjustableonthehigh-clearancetoasters

DFeedRampGBottomHeatControlKnob

ECrumbTrayHCollectionPan

FTopHeatControlKnobResetButton(Reference

only.Accessisviathefront ofthetooasters.Seepage3.)

BEFOREFIRSTUSE

1.Cleanthetoaster.See"DailyCleaning"onpage3.

OPERATION

CAUTION

BurnHazard Donnottouchthequipmentwhileitisheatingoroperating. Hotsurfacedburnskin.

NOTICE: Thecrumbbraymustbeinstalledinthetoasterduring operation. Failuretoinstallthecrumbbraywillcause the toastertooverheat.

AdjusttheHeatShield(ModelsJT2HandJT3H)

Excessspaceabovetheproductwillcreateheatlossandmayreduce performance.

1. Whentheequipmentiscooltotheotouch,useascrewdriverto loosenthescrewontheheatshield.
   2.Grasptheshieldandpullitupordowntoadjusttheopeningsoth tallestproductscanpassthrough.Re-tightenthescrew.

Preheat

Plugthetoasterintoagroundedelectricaloutletthatmatchstherating onthenameplatefoundonthesideofthetoaster.

NOTICE:Usingavoltageotherthanenameplateratedvoltagewill causedamage totheunit. Incorrect voltage, modification tothepowercordorelectricalcomponentscandamage unitandwillvoidthewararranty.

1.Rotatethepowerknobtothefullpowerposition(1).
2.Settheconveyorspeedcontrolknobto7.
3.Rotatethetopandbottomheatcontrolknobstohigh.
4.Wait5minutesforthetoastertopreheat.

Test

1. Adjust the settings for the product to beasted.

Tips

ProductSuggestions
Bagels, wheatorryebreader productswithhighmoisturecontent.	Useaslowerconveyorspeed.
Butteredorcoated,suchaspastries Not recommended.
Frozen	Mustbethawedbeforetoasting.

1. Testthesettingsbyplacingasampleofthefoodtobetoastedonto thefeedramp. Placebagelsorbunsontothefeedrampwiththecut sidefacingup.

ForOne-SidedToasting

TOPheatcontroltothedesiredsetting. BOTTOMheatcontroltotheOFFposition.

ToasttheBread

1. Adjust the top and bottom heat control settings and conveyor as needed for eventoasting. Allow time for the toasteroadjusttonew heat settings before replacing breadersandwiches on the conveyor.

2.Forbestperformedonotoverloadthetoaster.Waitafew secondsbeforeloadingasecondrowofbreadersandwichesinto thetoaster.

IfanItemBecomesStuck

1.RotatethepowerknobtotheOFFposition(O)andunplug the equipment.
2.Lettheequipmentcoolcompletely.Usetongstoremotetheitem. Takecaretonotbumptheheatingelementsaboveandbelow the conveyor.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoranelectricalshock.

CAUTION

BurnHazard

Allow equipment to cool before removing or cleaning.

NOTICE: Donotuseabrasivematerials, scratchingcleansorsor scouringpadstocleantheexteriorofthecquipment. These anecdamgethefinish.

NOTICE: Heating elements don't need to be cleaned. Crumbs and food debris will burn off. Overtimethe heating elements may develop a chalky appearance, but this will not impact performance.

DailyCleaning

1. Beforeturningoffthequipmentandwiththeconveyorrotating, watchtheconveyorbeltforfooddebris.
2. Whenthefooddebrisreachesthefrontoftheconveyor,rotatethe powerknobtotheOFFposition.
   3.Waitforthefantostoprunning.Unplugtheequipment.
   4.Lettheequipmentcoolcompletely.
3. Whentheequipmentiscool,useabrushorscrubpadtotremovethe fooddebris.
4. Tocleantheexterior,useasoftclothdippedinhotsoapywaterto wipetheexteriorandfanairintakeunderthequipment.lfneeded, wipethefanintakeareawithdegreasertopreventionlongtermbuildup.
5. Empty and clean the crumb tray(s).

PREVENTATIVEMAINANCE

Contactanaauthorizedserviceagentforaprofessionalcleaningofthe components.

TROUBLESHOOTING

ProblemMightbeCausedByCourse of Action
Toasterdoesnotheatandthe conveyorbeltdoesnotmove.	Toasterisnotpluggedin.Pluginthetoaster.
	Powerknobsettingisincorrect.RotatetepowerknobtotheON()position.
	Thewallbreakermaybetripped.	1.Inspectfortrippedbreaker. 2.Resetthebreaker. 3.Ifthebreakerwasnottripped,inspectthetoastingchamberfor brokenheatelementtubes 4.Forbrokentubes,contactVollrathTechnicalServices.
	Theresetmaybetripped.Lookunderthetoaster	teroseifanobjectispreventingthefan bladesfromturning. 1.RotatetheheatcontrolknobstotheOFFposition. 2.RotatethepowerknobtotheOFF(0)position. 3.Unplugthetoaster. 4.Wait30minutesforthoastercool. 5.Removetheobject. 6.Pluginthetoaster. 7.RotatethepowerknobtotheON()position. 8.Presstheresetbutton.Youshouldhearandfeelthetobutton reset.Thotoastersshouldstartloopoperate.
		9.IftheproblempersistscallVollrathTechnicalServices.
Toasterdoesnotheatandthe conveyorbeltdoesnnotmove.	Theresetmaybripped.Inspectthefanblace	estoseeiftheyaredirty.1.RotatetheheatcontrolknobstoteOFFposition.2.RotatepowerknobtotheOFF(0)position.3.Unplugthetoaster.4.Wait30minutesforthetoastercool.5.Cleanthefanblades.6.Pluginthetoaster.7.RotatepowerknobtotheON(1)position.8.Presstheresetbutton.9.IftheproblempersistscallVollrathTechnicalServices.
Toasterheatsandthe conveyorbelt doesnotmove.	Theremaybeproblemwiththemotor/speedcontrollordrivechain.	ContactVollrathTechnicalServices.
Toporbottomheaterubesdonot heat.	Oneormoreheaterubesmayhave burnedout.	ContactVollrathTechnicalServices.
	Heatcontrolswitchmaybebroken.
Toasterrepeatedlyoverheats.	Thecrumbtraymaynotbeinstalled.Verify the	ecrumbrayisinstalled.
	Thefanmaybedirty.	Verifythefanbladesareclean.Seeinstructionsabovefor inspectingandcleaningthefanblades.
	Theremaybeproblemwiththefan.	Runthetoasterfor10minutes.Ifthefandoesnotruncontact VollrathTechnicalServices.
Thefanisnotrunning.	Theremaybeproblemwiththefanor thefanswitch.	Runthetoasterfor10minutes.Ifthefandoesnotruncontact VollrathTechnicalServices.
Thetoasteristurnedoffandthefan isrunning.	Normaloperation.Thefanturnsonas neededtocoolthetoaster.	-

SERVICEANDREPAIR

Whenunderwarranty,repairisavailableforthioproduct.Tobegintheprocess:

1. Contact Vollrath Technical Services at 1-800-309-2250. Please be ready with the item number, model number and serial number. You can find this information on the nameplate located on the side or back of the equipment. Also please provide a proof of purchase indicating the date the equipment was purchased.
2. Atechnicalservicesrepresentativewillhelpyoutroubleshoottheproblemoverthephone.
3. If the representative determines the issue requires professional service, he or she will help you locate an authorized service center.
4. Contact the authorized service center to make arrangements for the repair. Vollrath will cover the cost to repair and/or replace defective parts within the equipment warranty period.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

The warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchaseersforsuchuses.

WarrantiedParts: The warranteryperiodis2yearsparts, 1yearlabor.

HeaterTubes:Thewarrtanyperiodis1year,includinglabor.Heatertubeglassdamageisnotcoveredbythiswarranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncements,visitwww.volrath.com.

TheVollrathCompany,L.L.C. Headquarters 1236North18thStreet Sheboygan, Wisconsin 53081-3201USA MainTel:800-624-2051or920-457-4851 MainFax:800-752-5620or920-459-6573 CanadaCustomerService:800-695-8560 TechServices:[e-mail] www.vollrath.com

Pujadas Ctra.deCastanyet, 132P.O.Box121 17430SantaColomadeFarmers (Girona)-Spain Tel.[phone] [e-mail]

VollrathofChina VollrathShanghaiTradingLimited Room201,BuildingA XinYiPlaza 1618YShanRoad Shanghai,201103 China,P.R.C. Tel:[phone]

VollrathdeMexicoS.deR.L.deC.V. PerifericoSurNo.7980Edificio4-E Col.SantaMariaTquepexpapan 45600Tlaquepaque,Jalisco|Mexico Tel:[phone] Tel:[phone] Fax:[phone]
