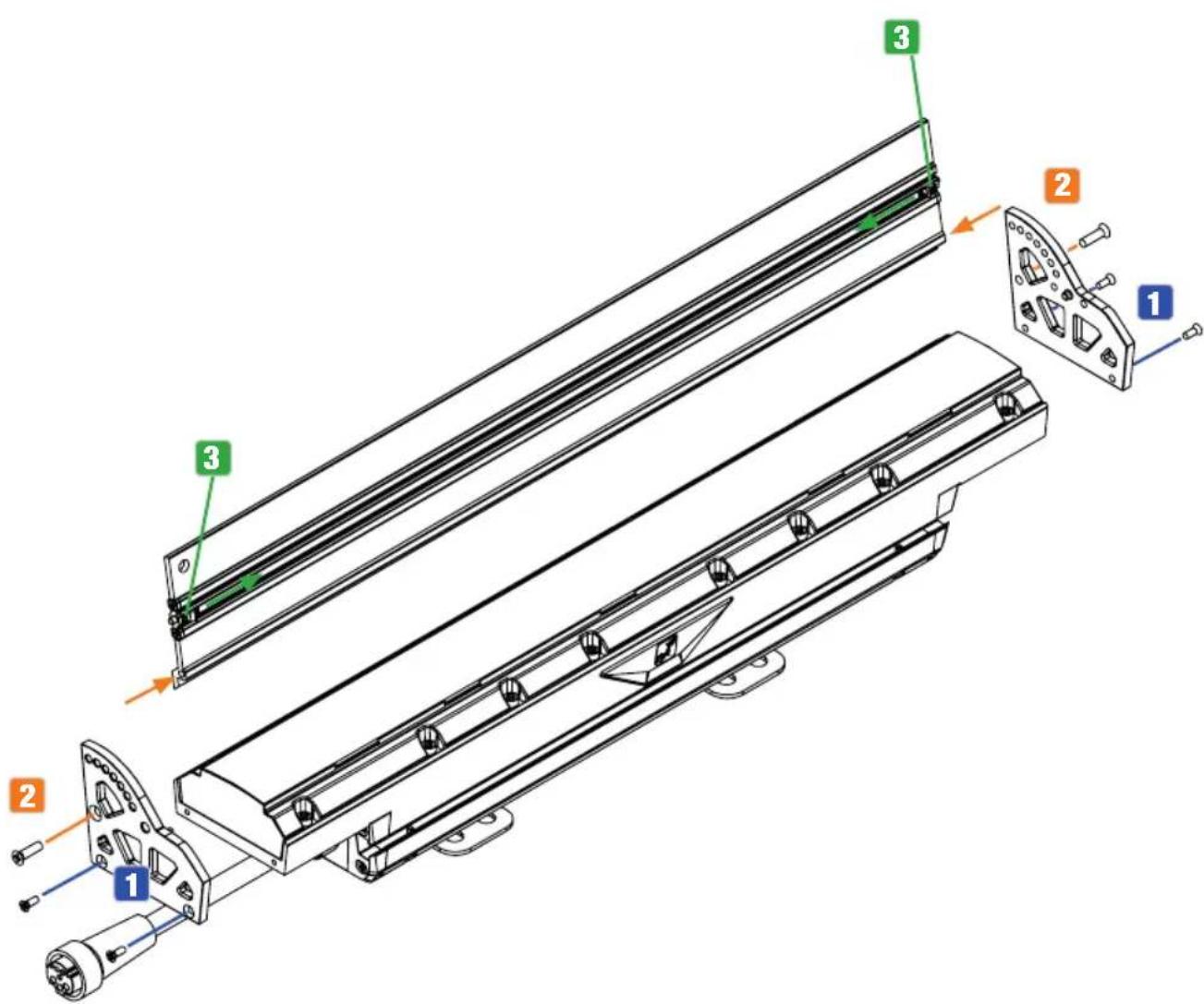

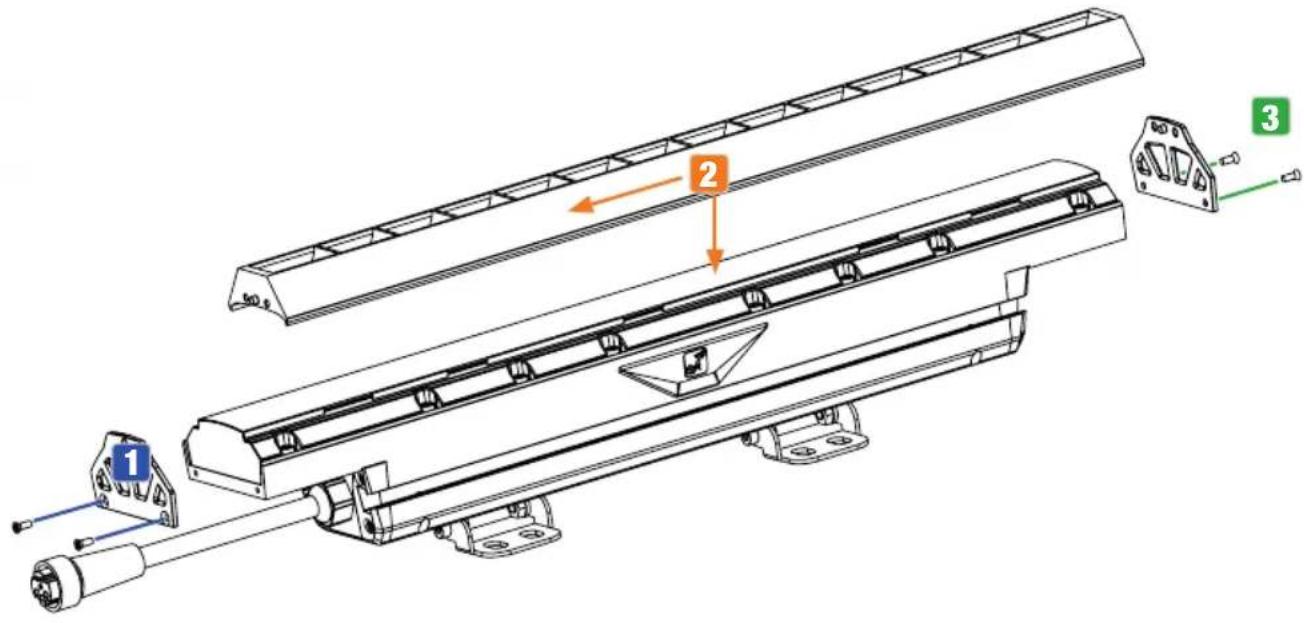

MOUNTING THE OPTIONAL LOUVRE 27

DIMENSIONS 29

TECHNICAL DATA 30

EXPLANATORY NOTES ON THE IP PROTECTION CLASS 32

EXPLANATORY NOTES ON THE IK IMPACT RESISTANCE RATING 32

MINIMUM DISTANCE TO ILLUMINATED SURFACE 33

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 33

DISPOSAL 33

MANUFACTURER'S DECLARATIONS 34

DEUTSCH

ACCESSIONS EN OPTION 83

MONTAGE DE LA GRILLE OPTIONNELLE 85

DIMENSIONS 86

CHARACTERISTIQUES TECHNIQUES 87

NOTES EXPLICATIVES SUR LA CLASSE DE PROTECTION IP 89

NOTES EXPLICATIVES SUR L'INDICE DE RÉSISTANCE AUX CHOCS IK 90

DISTANCE MINIMALE PAR RAPPORT A LA SURFACE ECLAIREE 91

DISTANCE MINIMALE PAR RAPPORT AUX MATERIAUX INFLAMMABLES ORDINAIREs 91

MISEAU REBUT 91

DECLARATIONS DU FABRICANT 92

ESPANOL

INFORMATION SOBRE Este MANUAL DE USUARIO 93

USO PREVIST0 93

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Read the safety instructions carefully and the entire manualbefore operating the device.
• Observe the warnings on the device and in the user manual.
  Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is an outdoor fixture for permanent installation!

This fixture is intended exclusively for professional users and is not suitable for private households or third parties!

Use of the product outside the specified technical data and operating conditions, as well as incorrect installation, is considered inappropriate!

Regardless of the IP classification, this product is not suitable for intended operation under water! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• Persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.
  Children (children must be instructed not to play with the device).

EXPLANATIONS OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that may lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates that you must avoid looking or staring at the light source.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device, and do not make any modifications to it.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised qualified personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's mains cable is damaged, the device may not be operated.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Switch on the device only when it has reached ambient temperature.

1. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable mains cables.
2. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the device.
3. Make sure that the fuse used corresponds to the type specified on the device.
4. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
5. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
6. Replace plug-in mains cables only with original cables.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3m
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. Devices with motor-driven components may result in injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class, as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be constantly further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information on the device always takes priority.
8. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level or higher.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.

2. Never look into the beam of light using optical devices such as a magnifying glass.

3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

4. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. In the event of a fault, please contact your distribution partner.

INSTRUCTIONS FOR OUTDOOR INSTALLATION EQUIPMENT

1. Units for installation applications are designed for continuous operation.
2. Equipment for outdoor installation is largely weather-resistant. Depending on the design, however, installed seals may be made of materials that deteriorate over time. These must be checked regularly and replaced if necessary.
3. The correct condition of the housing parts and connections must be checked regularly.
4. Surfaces and plastic parts can also weather in installation equipment, for example, due to UV irradiation. This generally does not impair functionality.
5. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (for example, scratches) must be promptly repaired by suitable measures.
6. Screw connections can be impaired in their freedom of movement (for example, due to oxidation or impurities). Here, appropriate measures for loosening are to be implemented.
7. Unless explicitly stated otherwise on the device or in the technical data, the devices are intended for installation heights of less than 5m

PACKAGING CONTENT

Remove the product from the packaging, and remove all packaging material.

Please check the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product CLDL50 includes:

1×DL50light
2× mounting bracket (pre-assembled)

Safety and compliance information (user manual as a download via QR code)

The packaging content for the product CLDL100 includes:

1×DL100light
2× mounting bracket (pre-assembled)

Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

Dura Line Outdoor Installation Light IP67

CLDL50 with 14 × 4 W 4in1 RGBW LEDs

CLDL100 with 28× 4 W 4in1 RGBW LEDs

CONTROL FUNCTIONS:

CLDL50

• 1-channel, 2-channel preset, 2-channel CCT, 3-channel RGB, 4-channel RGBW, 6-channel direct, 10-channel full access, 8-channel pixel, and 11-channel pixel + control DMX management
  RDM
• Control via CL UNICON remote unit (optionally available)
• Master/slave modes
• Stand-alone functions

CLDL100

• 1-channel, 2-channel preset, 2-channel CCT, 3-channel RGB, 4-channel RGBW, 6-channel direct, 10-channel full access, 16-channel pixel, and 19-channel pixel + control DMX management
  RDM
  Control via CL UNICON remote unit (optionally available)
• Master/slave modes
• Stand-alone functions

FEATURES:

IP67 protection class
- IK08 impact resistance rating.
- Convection cooling
- Operating voltage: 100–277 V AC

The optionally available hybrid connection box CLDLCONNECTIONBOX is required to supply the lights with a signal and power.

The lights feature the remote device management (RDM) standard. This remote device management enables the status query and configuration of RDM end devices via an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE). The Cameo UNICON also allows access to the entire light menu.

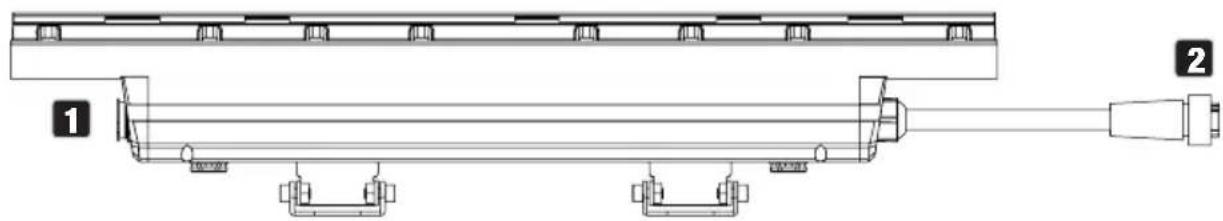

CONNECTIONS

• The DL 50 and DL 100 models have identical connections. Mixed assembly possible -

INPUT

Hybrid connection with special socket to control the light via DMX and to supply power. The optionally available hybrid connection box CLDLCONNECTIONBOX is required to supply the lights with a signal and power.

2 OUTPUT

Connection cable with IP68 special plug to relay the DMX control signal and to supply power to other DL 50 or DL 100 lights. Cover the plug with the optionally available CLDLALTWCABLEEND end cap when it is not in use.

PRESSURE EQUALISATION ELEMENT

The pressure equalisation element to prevent condensation forming inside the housing is located on the back of the light. In order to ensure its proper functioning, the element must be protected from dirt.

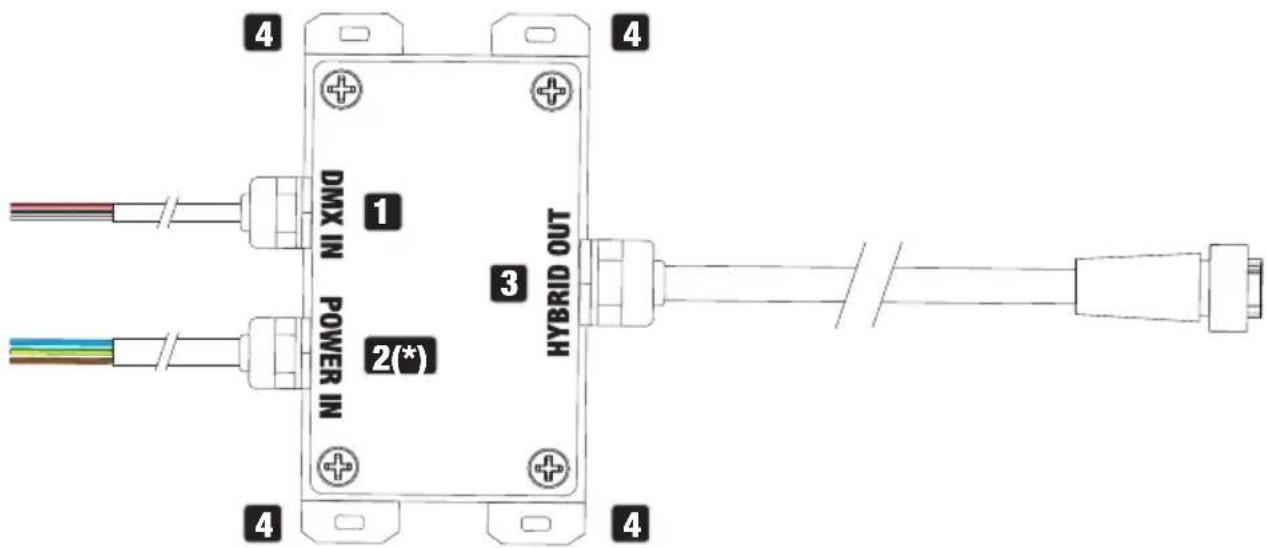

CLDLCONNECTIONBOX CONNECTION BOX (optionally available)

WARNING:

The cables for the DMX IN and POWER IN inputs are not supplied ex works with plugs. Connection box cabling requires specialist knowledge and may only be carried out by specially trained persons! If you do not have these qualifications, do not attempt to do the cabling yourself. Refer instead to a qualified professional.

Before cabling the connection box, make sure that the power supply intended for connection is not live!

The connections must have at least a IP67 waterproof rating!

The manufacturer shall not be liable for any damage to property or personal injury caused by improper handling.

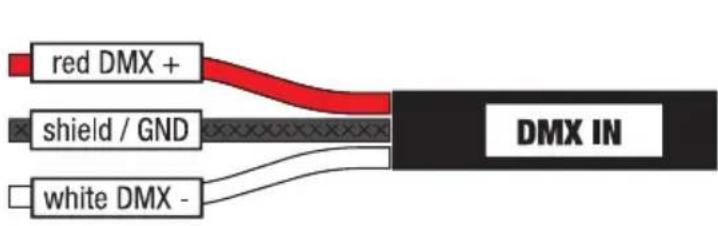

DMX IN

Cable to control the light and to relay the control signal. The connection box is supplied without a plug. Assignment:

DMX IN
Red	DMX +
Shield (heat shrink tubing insulation)	Shield / GRD
White	DMX -

DMX IN: The shield can be recognised by the fact that the wire mesh has been insulated with heat shrink tubing.

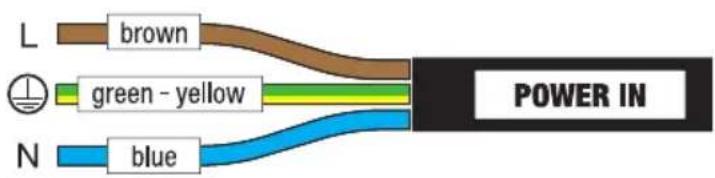

2 POWER IN

Permanently mounted cable to supply power to the connection box. The connection box is supplied without a plug.

Assignment:

POWER IN
Brown Phase (L)
Green - yellow	Protective conduc- tor ( ⊙ )
Blue Neutral conduc- tor ( N )

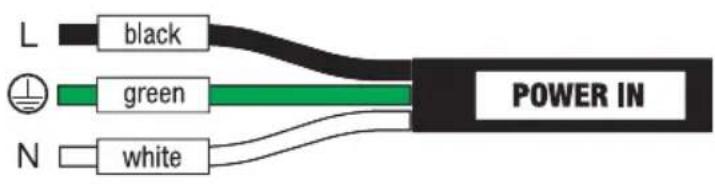

2* POWER IN - US

Permanently mounted cable to supply power to the connection box. The connection box is supplied without a plug.

Assignment:

POWER IN - US
Black	Live ( L )
Green	Protective earth ( ⋅ )
Blau	Neutral ( N )

3 HYBRID OUT

Hybrid connection cable with IP68 special plug to relay the DMX control signal and to supply power to other DL 50 or DL 100 lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A). Cover the plug connector with the optionally available CLDLALTWCABLEEND end cap when it is not in use.

Connect plug:

Disconnect the plug:

4 MOUNTING HOLES

The connection box has four mounting holes for permanent installation.

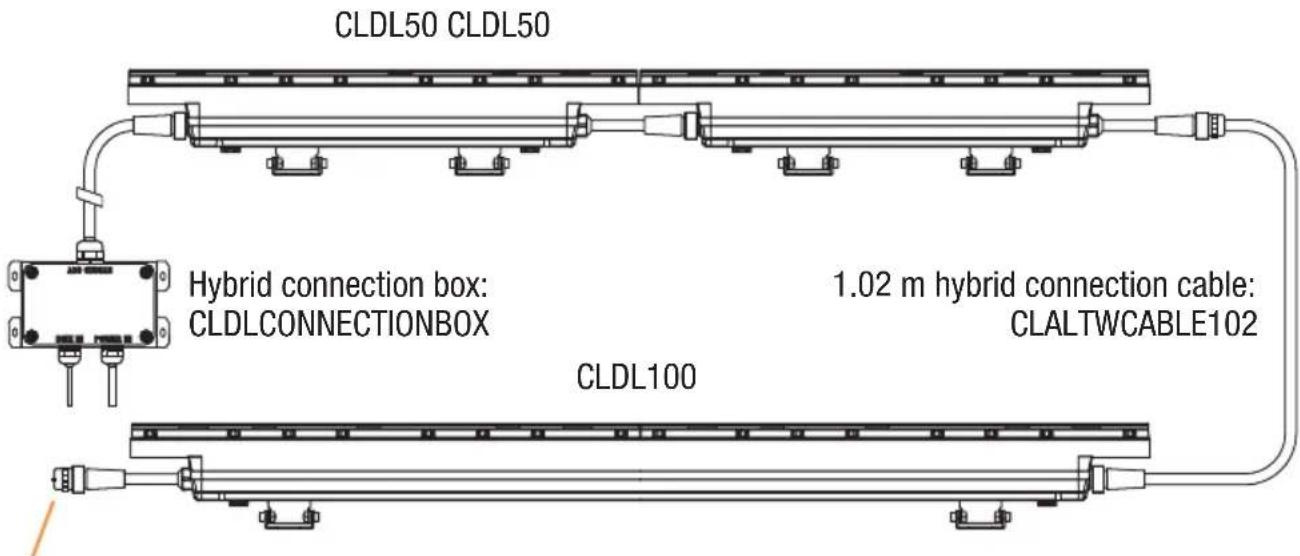

CABLING EXAMPLE

End cap: CLDLALTWCABLEEND

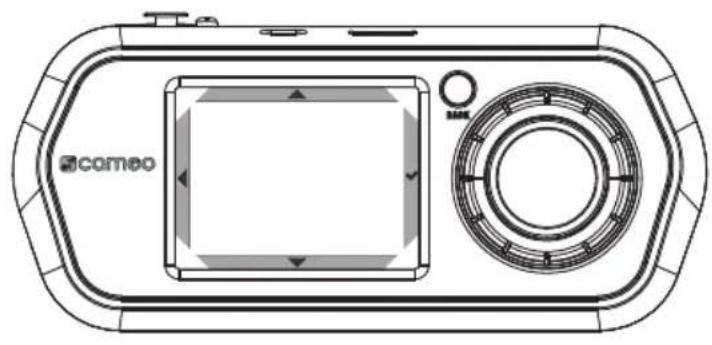

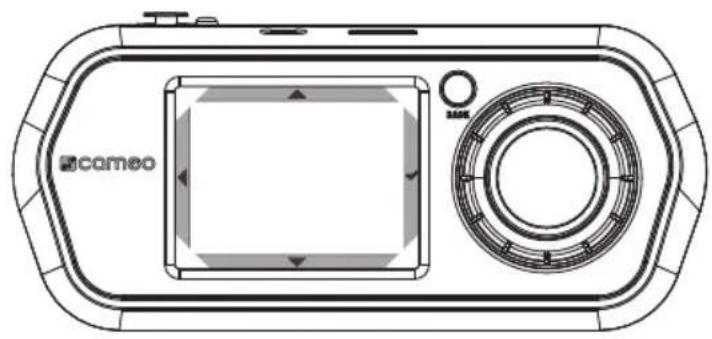

OPERATION VIA CL UNICON REMOTE UNIT (optionally available)

Display		Encoder + BACK
▲	Value up	○
▼	Value down	○
▲	Back	BACK
✓	Confirm	Encoder

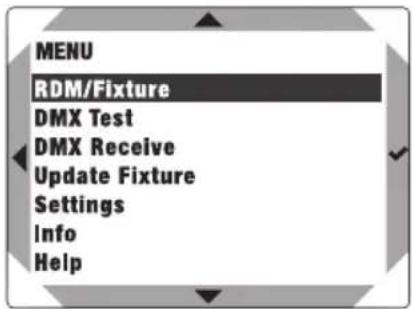

After you have switched on the CL UNICON remote unit (press BACK briefly to switch on), the display shows "Update, Please Wait" for a short time (for service purposes only) and then the main menu. Connect the remote unit to one or more RDM devices using DMX or network cables.

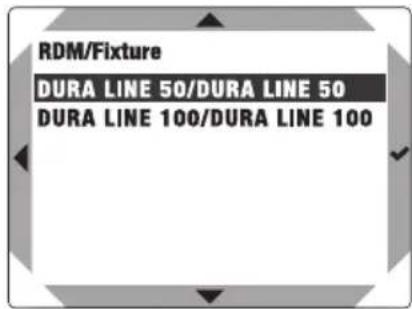

Select the menu item RDM/Fixture using the rotary-push encoder or by pressing the arrow symbols or in the display and confirm the selection by pressing the encoder or the check symbol in the display. A list of all connected RDM devices is then displayed (in the example, DURA LINE 50/DURA LINE 50, DURA LINE 100/DURA LINE 100; the first part of the displayed RDM device shows the device model, the second part after “/” is the designation that can be adapted in the Label menu item for easier identification). Select the desired model and confirm the selection (in the example, DURA LINE 50/DURA LINE 50).

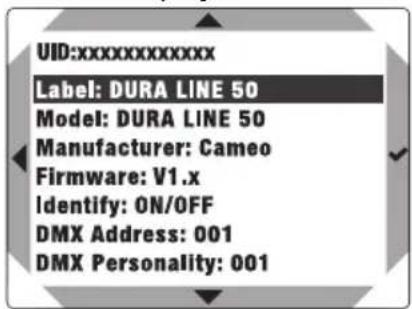

All information and configuration options for the fixture that can be retrieved and edited via RDM are now displayed.

List of information and configuration options with explanations:

UID:	Individual and unchangeable identification number of the selected RDM device (unique identifier)
Label:	Individually adjustable RDM device label
Model:	Device model
Manufacturer:	Device manufacturer
Firmware:	Device firmware
Identify:	ON Selected light flashes with approximately 1 Hz
	OFF Flashing deactivated
DMX Address:	Current DMX start address (can be edited in the menu item)
DMX Personality:	Current DMX mode (can be edited in the menu option)
DMX Slots:	Number of channels in current DMX mode
Sensor	LED temperature (press √ to display)
Fixture Individual Cameo device menu for editing settings Menu	(see DEVICE MENU (Fixture menu))

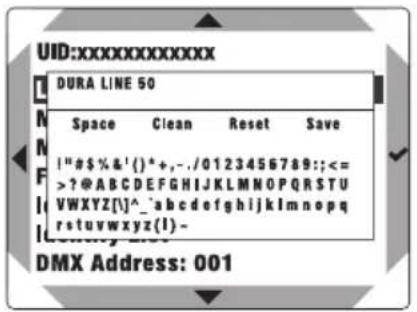

Label

In the "RDM/Fixture" menu, select Label and confirm the selection to individually name the RDM device.

Select character:	Turn ▲ or ▼ or the encoder
Delete all characters:	Reset
Insert space:	Space
Reset space:	Clean
Save labelling:	Save
Confirm command or character and select the next digit:	Press √ or encoder

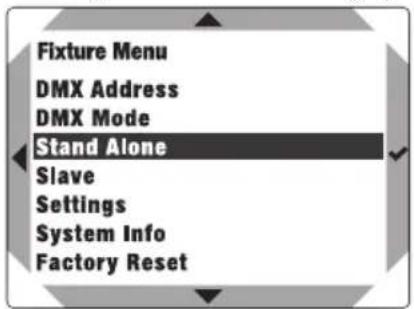

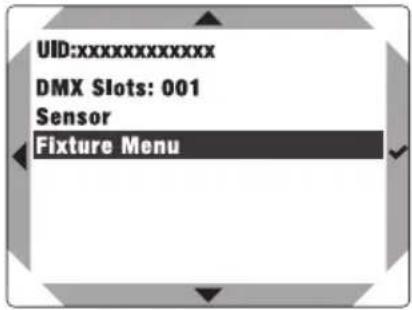

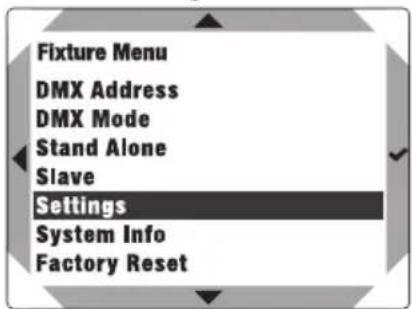

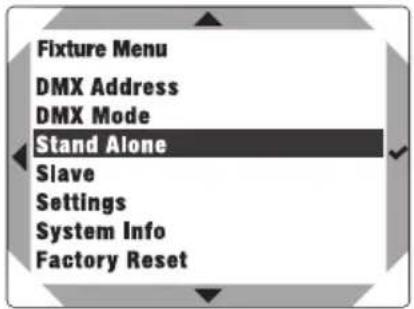

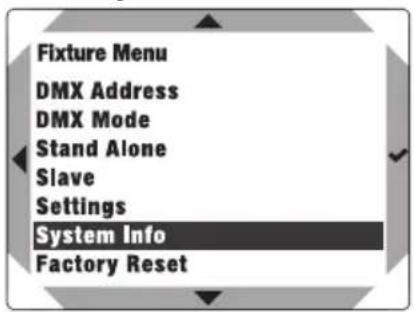

DEVICE MENU (Fixture menu):

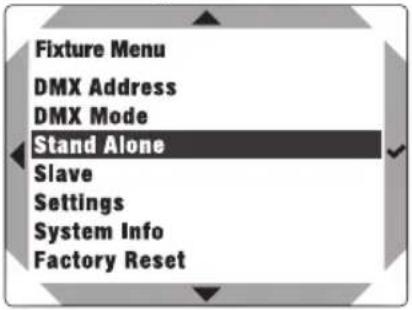

To access the device menu, select Fixture menu and confirm the selection.

Navigating in the device menu:

Select the desired menu item with or or by turning the encoder, confirm with or by pressing the encoder. Go back with or BACK.

Set the value or status with or or by turning the encoder, confirm with or by pressing the encoder. Go back with or BACK.

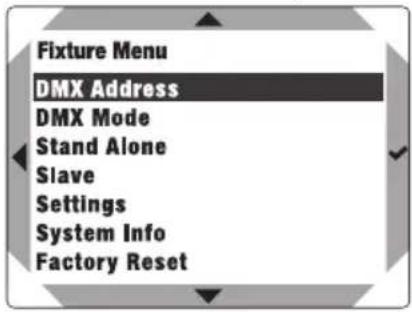

SETTING THE DMX START ADDRESS (DMX Address)

Select DMX Address, confirm the selection, set the desired DMX address, and confirm the input.

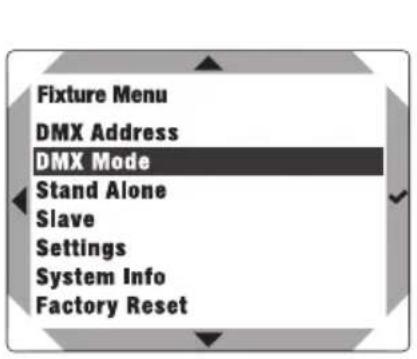

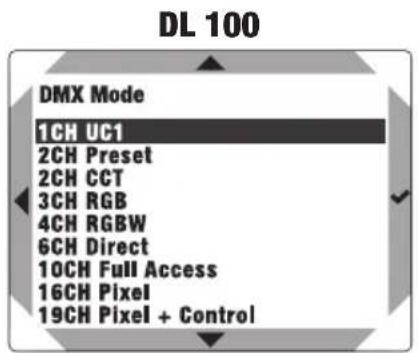

SELECTING THE DMX OPERATING MODE (DMX Mode)

Select DMX Mode, confirm the selection, then select the desired DMX operating mode, and confirm the selection.

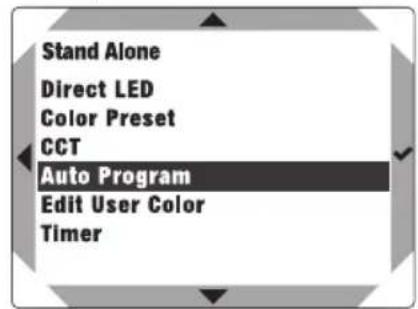

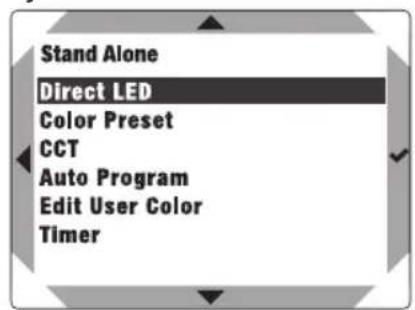

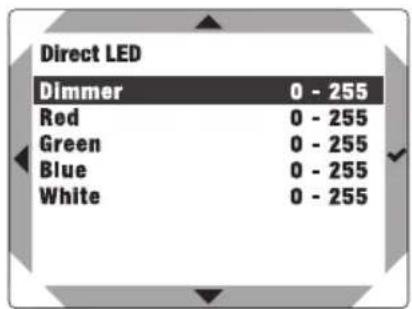

DIRECT LED STAND-ALONE OPERATING MODE (Direct LED)

Similar to the DMX control unit, the "Stand-alone" operating mode allows the dimmer and RGBW values to be set directly on the device with values between 0 and 255. In this way, an individual scene can be created without an additional DMX controller.

Select Stand Alone, confirm the selection, then select Direct LED, and confirm again. Now select the menu item you wish to edit and confirm the selection. In the selected menu item, set the desired value and confirm the entry.

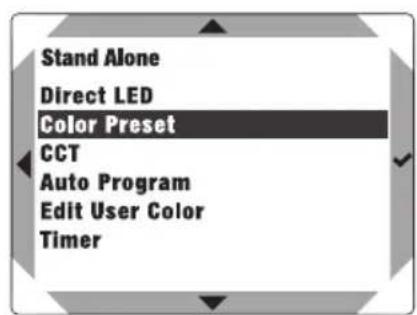

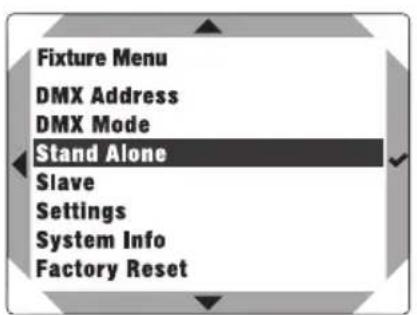

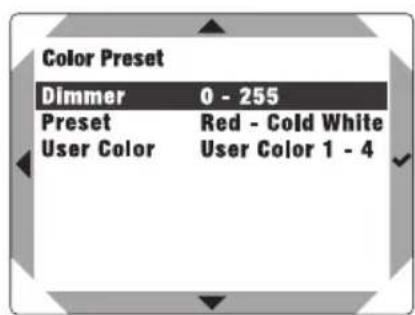

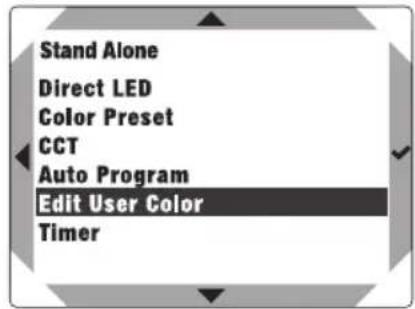

COLOUR PRESET STAND-ALONE OPERATING MODE (Color Preset)

15 preset colours plus 4 individual colours (UserID 1-4) are available as a preset.

Select Stand Alone, confirm the selection, then select Color Preset, confirm, select Preset or User Color, and confirm again. Now select the desired colour and confirm the selection. Set the brightness for all presets in the Dimmer menu item.

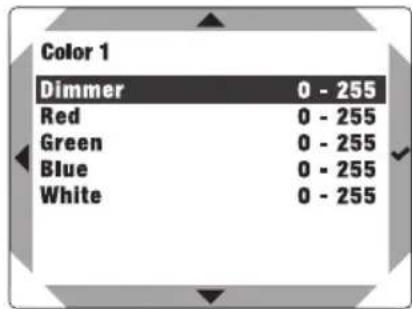

The individual colours "User Color 1-4" are created in menu item Edit User Color in the Stand Alone menu.

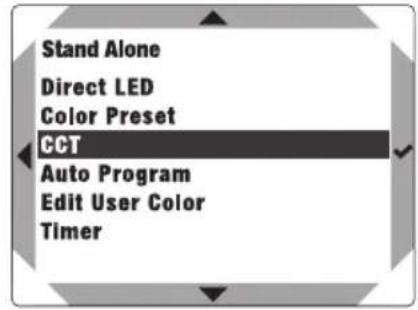

CCT STAND-ALONE OPERATING MODE (Correlated Color Temperature)

The stand-alone operating mode "CCT" allows you to adjust the colour temperature in 100K increments from 1800K to 6500K , as well as the brightness (dimmer).

Select Stand Alone, confirm the selection, then select CCT, and confirm again. Now select the menu item you wish to edit and confirm the selection. Set the desired value and confirm the entry.

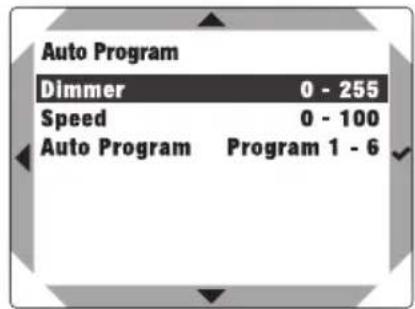

The six available auto-programmes each comprise non-editable colour-change sequences. Brightness (Dimmer) and running speed (Speed) are separately adjustable in each programme.

Select Stand Alone, confirm the selection, then select Auto, and confirm again. Now select Auto Program, Dimmer or Speed in the sub-menu, confirm, select the desired programme, and set the brightness and running speed as required. Confirm all entries.

EDIT USER COLOUR IN STAND-ALONE OPERATING MODE (Edit User Color)

In the "Edit User Color" menu item, you can save the brightness and a colour mix of R, G, B, and W directly in the device in four individual colour presets.

Select Stand Alone, confirm the selection, then select Edit User Color, and confirm again. Select the desired preset (Color 1-Color 4) and confirm the selection. Now select the menu item you wish to edit and confirm. Set the desired value from 0 to 255 and confirm again.

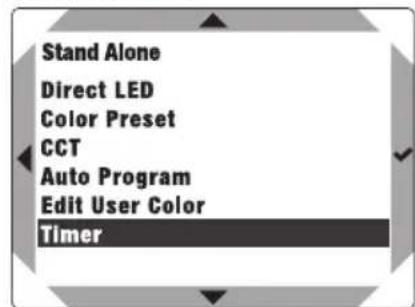

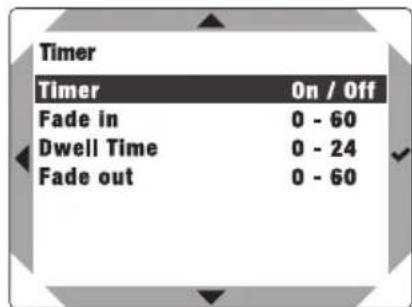

TIMER FUNCTION (Timer)

The timer function allows timed control of the "Direct LED", "Color Preset", and "CCT" standalone operating modes in such a way that the fade-in time (Fade In) can be set from 0 to 60 minutes, the dwell time from 0 to 24 hours, and the fade-out time from 0 to 60 minutes. After activation of the timer function, the timer control will be implemented upon the next system start.

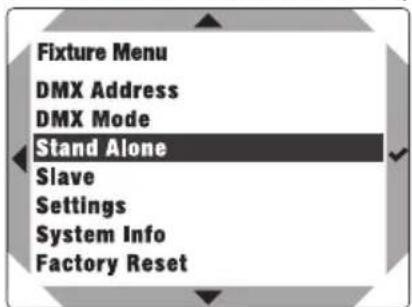

Select Stand Alone, confirm the selection, then select Timer, and confirm again. Under Timer, select the setting On and confirm. For custom timer settings, select Fade In, Dwell Time, or Fade Out and confirm. You can now adjust the respective value as desired. Confirm all entries. To deactivate the timer function, select Timer->Off and confirm the entry. Note: The timer function can be used in master/slave operation via cable.

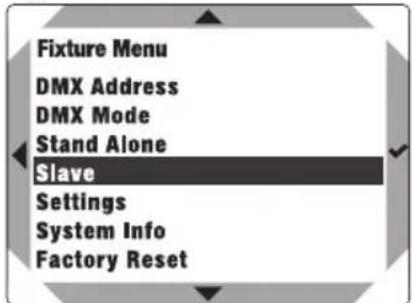

SLAVE MODE (Slave)

For the slave unit, select Slave in the main menu, confirm the selection, then select SLAVE, and confirm again. Connect the slave and the master units (same model, same software version) with a DMX cable, configure the master unit as MASTER, and activate one of the stand-alone operating modes on the master unit. The slave unit will now follow the master unit.

SYSTEM SETTINGS (Settings)

Select "Settings" and confirm.

This will take you to the sub-menu for configuring the sub-menu items (see table):

Settings
Dimmer Curve	=	Dimmer curve	Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
Dimmer Response	=	Dimmer response	LED	The light responds abruptly to changes in DMX value
			Halogen	The light behaves like a halogen light with smooth brightness changes
PWM Frequency	=	Configura-tion of PWM frequency	650Hz / 1530Hz / 3600Hz / 12000Hz / 18900Hz / 25000Hz
Colour Calibration	=	Colour calibration	RAW	R, G, B, and W with maximum value 255
			Factory	Factory calibration of R, G, B, and W (across all operating modes)
			User	Activate user calibration
			User Data	Set custom colour calibration. Cross-mode brightness setting of R, G, B, A, and L with values from 000–255.
Signal Fail	=	Operational status with DMX signal fault	Hold	Last command is retained
Signal Fail	=	Operational status with DMX signal fault	Last Stand Alone	Activates the last selected stand-alone operat-ing mode
			Fade to Black (10s)	10-second Fade Out
			Blackout	Activates blackout
			Full	All LEDs at 100% output
Power Mode	=	Operating mode	Constant	Constant brightness over long periods
			Maximum	Maximum brightness

SYSTEM INFORMATION (System Info)

Select System Info and confirm the selection.

This will take you to the sub-menu for accessing the system information (see table):

System info
Firmware	=	Displays device firmware	V1.x.x
Temperature	=	Displays temperature of LED unit	LED	xxx°C / xxx°F
			Tempera-ture Unit	°C (= display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Runtime	=	Displays operating time	Total Displayxx:xxH	ays total operating time in hours and minutes
			Operationxx:xxH	Usage time in hours and minutes
			LEDxx:xxH	Lamp operating time

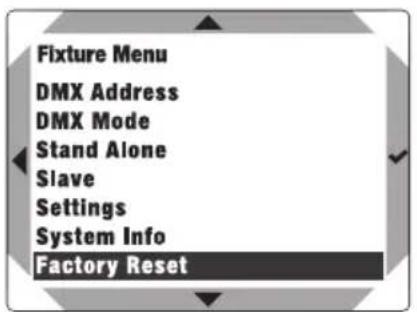

FACTORY RESET

To reset the light to the factory settings, select Factory Reset and confirm. Start the reset process by confirming Reset? now. To cancel the operation, press BACK.

INSTALLATION

DANGER: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and fixtures. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

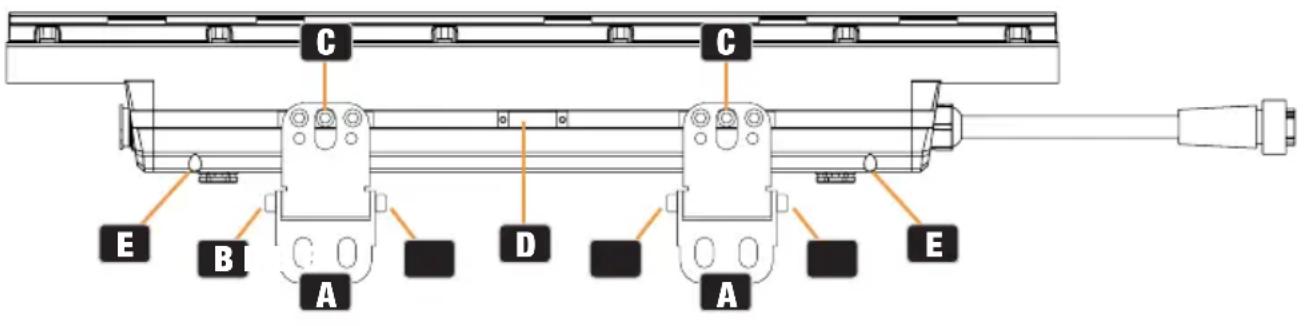

Both DL 50 and DL 100 models each have two mounting brackets and a safety eye bolt.

Use the mounting holes (A) for mounting on a wall, ceiling, or floor. Ensure that the connections are tight and that the fixture cannot come loose. Loosen the hexagon socket screws (B) to adjust the beam direction and then tighten them again. To move the brackets in the retaining rail, only slightly loosen the centre hexagon socket screw (C), slide the bracket into the desired position, and tighten the screw again. If desired or required for overhead mounting of the fixture, secure it with a suitable safety cable to the safety eye bolt (D) provided.

The brackets and the safety eye bolt can also be mounted on the other side of the fixture. To do this, loosen the stopper screws (E) at the end of the rail and the centre hexagon socket screws (C) of the brackets. Now slide the brackets and the safety eye bolt out of the rail and insert them into the rail on the other side of the fixture. The two stopper screws must now also be inserted into the corresponding threads of the rail on the other side of the fixture and screwed tight.

CARE, MAINTENANCE, AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The care and maintenance required depends on the intensity of use and the environment in which it is used.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (can be performed by the user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment of the device or even its destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case, as they could otherwise over-rev).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the enclosed installation instructions.

OPTIONAL ACCESSORIES

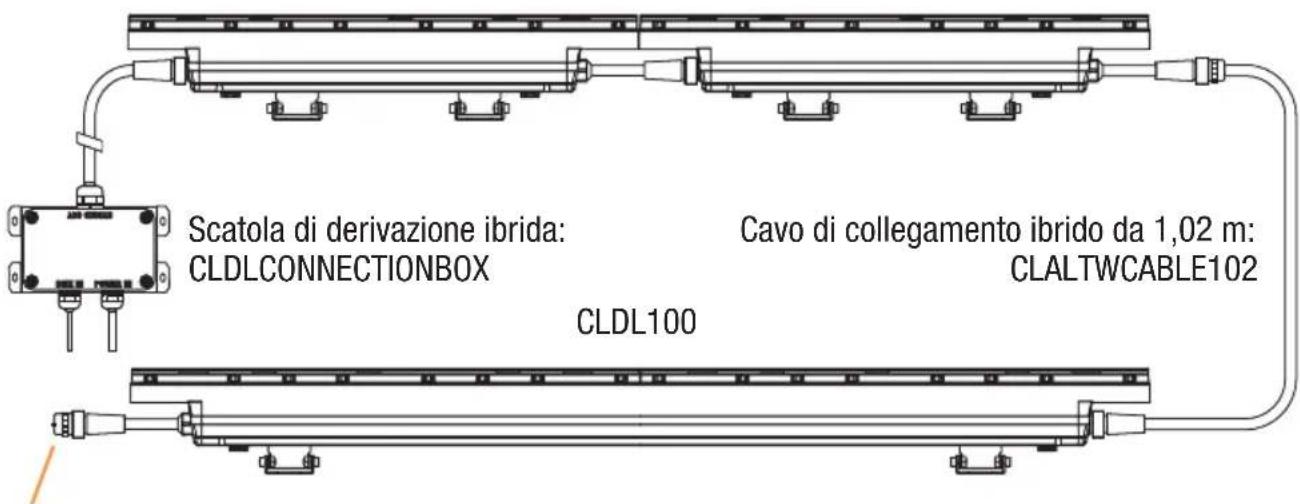

CLDLCONNECTIONBOX

Hybrid connection box for controlling Dura Line lights via DMX and for supplying power

CLIREMOTE

RDM-based remote unit with touch colour display, DMX, and RJ45 connector

CLDL50FULLGS CLDLFILTER20 CLDLALTWCABLE052

Glare shield for DL 5020^ diffuser

0.52 m hybrid connection cable

(2 pieces are required for DL 100)

CLDL100FULLGS CLDLFILTER40 CLDLALTWCABLE102

Glare shield for DL 100 40^ diffuser

1.02 m hybrid connection cable

(2 pieces are required for DL 100)

CLDL50LOUVERSET CLDLFILTER60 CLDLALTWCABLE300

Louvre for DL 50 60^ diffuser

3 m hybrid connection cable

(2 pieces are required for DL 100)

CLDL100LOUVERSET CLDS60FILTER601 CLDLALTWCABLE800

Louvre for DL 10060^× 1^ diffuser

8 m hybrid connection cable

(2 pieces are required for DL 100)

CLDLALTWCABLEEND

Cable end cap

MOUNTING THE OPTIONAL GLARE SHIELD

The glare shield for the DL 50 and DL 100 models is installed in the same way.
1. Mount the mounting plates to the fixture (countersunk hole on the outside, 2 × M3 screw each).
2. Mount the glare shield to the mounting plate (1× M4 screw each).
3. To adjust the angle, press both spring-loaded locking bolts simultaneously towards the centre of the device, set the desired angle, and let the locking bolts engage again (seven possible positions).

MOUNTING THE OPTIONAL LOUVRE

The louvre for the DL 50 and DL 100 models is mounted in the same way; however, for the DL 100 model, two louvres are inserted next to each other.

1. Mount the first mounting plate to one side of the fixture (countersunk hole on the outside, 2 × M3 screw each).
2. DL 50: Attach the louvre to the fixture and push it against the mounting plate (tongue-and-groove principle). Ensure that the louvre and the mounting plate interlock (rotate the louvre by 180^ if necessary).
3. DL 100: Attach the louvre to the fixture and push it against the mounting plate (tongue-and-groove principle). Ensure that the louvre and the mounting plate interlock (rotate the louvre by 180^ if necessary). Then put the second louvre on the fixture and push it against the first louvre. Ensure that the first and second louvre interlock (rotate the second louvre by 180^ if necessary).
4. Mount the second mounting plate to the other side of the fixture (countersunk hole on the outside, 2 × M3 screw each).

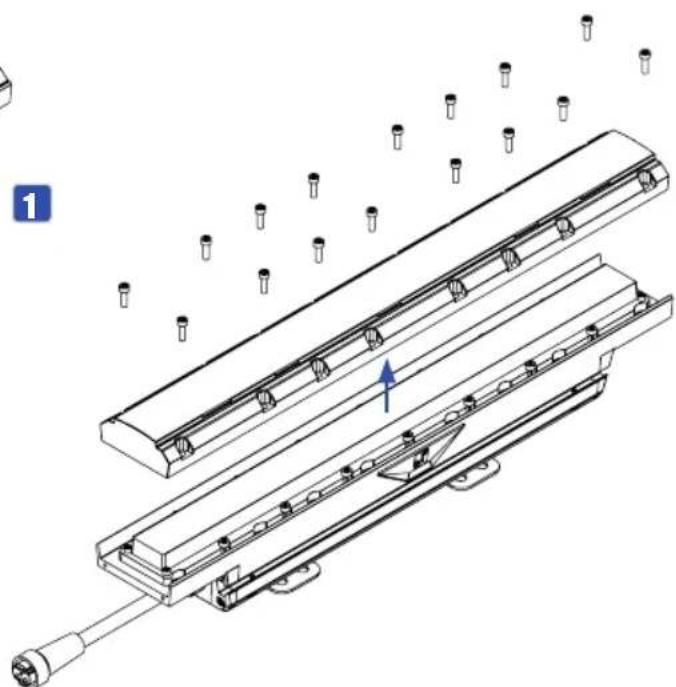

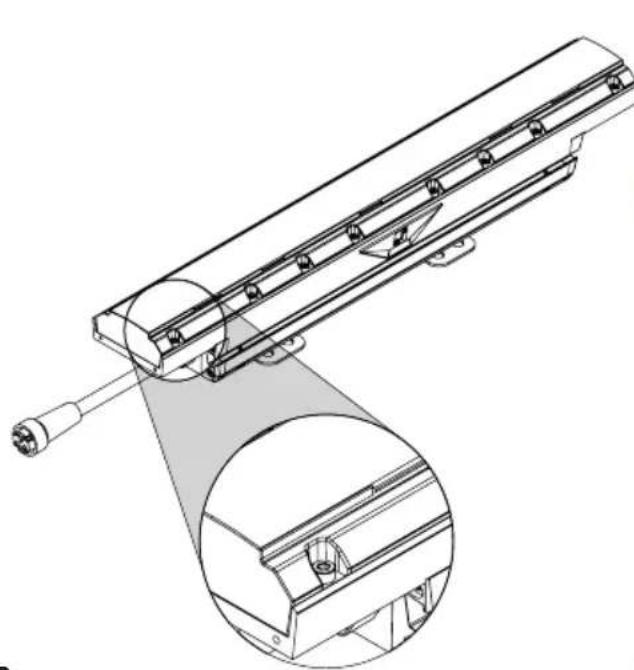

MOUNTING THE OPTIONAL DIFFUSER

The diffusers for the DL 50 and DL 100 models are mounted in the same way; however, for the DL 100 model, two louvres are used. The IP67 ingress protection rating is not affected by this and remains the same.

1. Remove the transparent cover(s) (DL 50: remove 16 hexagon socket screws from the cover; DL 100: remove 2 × 16 hexagon socket screws from the covers).

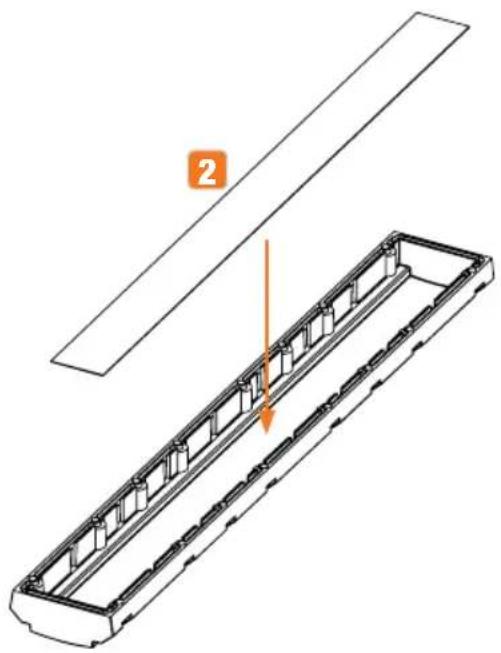

2. DL 50: Insert the diffuser into the transparent cover.
3. DL 100: Insert one diffuser into each of the transparent covers.

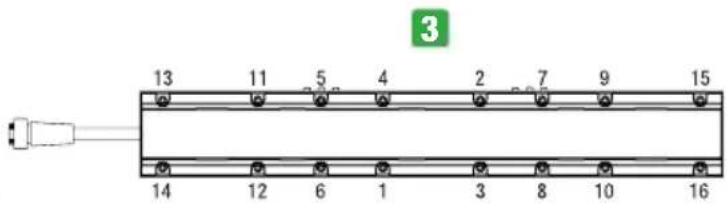

4. Mount the transparent cover(s) back on the fixture (first tighten the screws with half torque in the following sequence: 1-2-3-4-5-6-7-8-9-10-11-12-13-14-15-16; see illustration).

Then tighten in reverse order to the final torque of 7 - 7.5kgf / cm

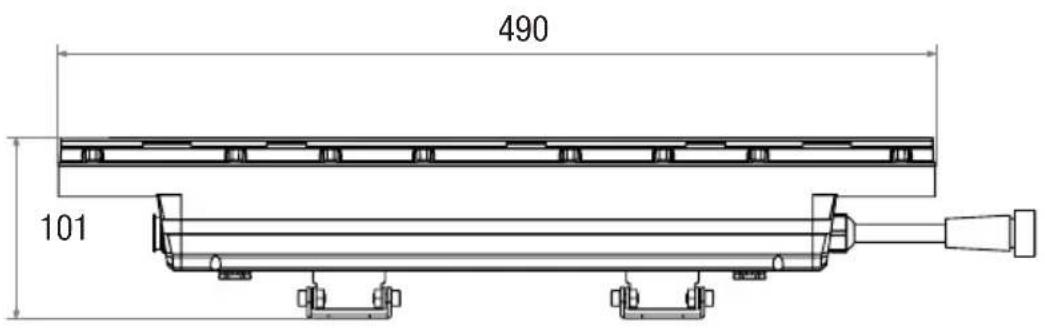

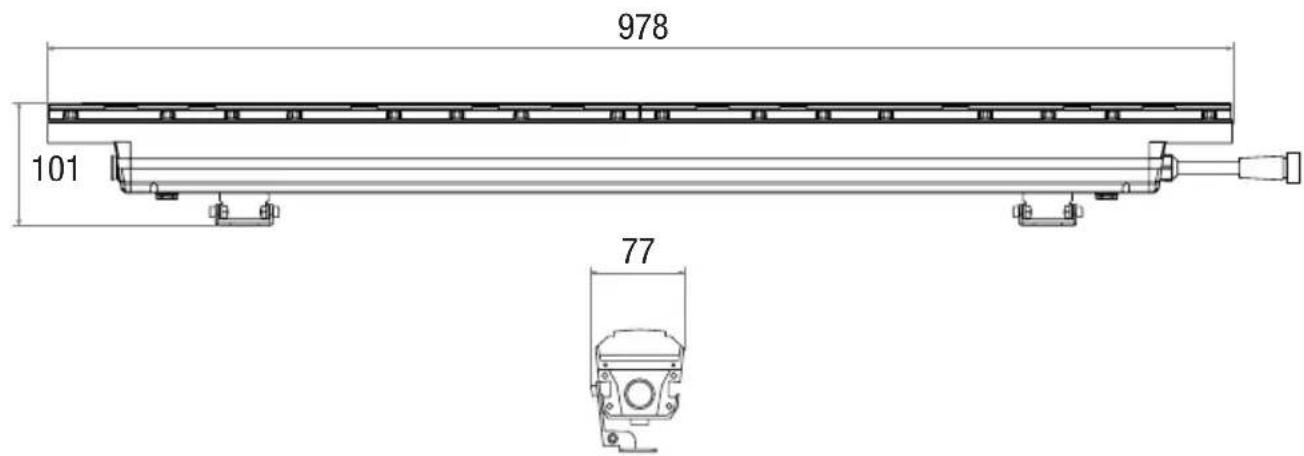

DIMENSIONS (MM)

TECHNICAL DATA

Item No:	CLDL50	CLDL100
Product type	DURA LINE 50	DURA LINE 100
Type:	IP67 Install Linear with RGBW LEDs	IP67 Install Linear with RGBW LEDs
Farbspektrum:	RGBW	RGBW
Number of LEDs	14	28
LED type	4in1 Chip
LED power	4W	4W
Luminous flux	1200lm	2400lm
LED PWM Frequency	650Hz, 1530Hz, 3600Hz, 12kHz, 18.9kHz, 25kHz (adjustable)
Beam angle	12°
Field angle	40°
DMX-In/Out:	Connects directly to line voltage and DMX/RDM - hybrid connector
DMX Functions	Dimmer 8bit/16bit, RGBW, Strobe, CCT, Color Preset, Device Settings (PWM, calibration, dimmer response, dimmer curve, record user color, factory reset)
Control	DMX512, RDM
Standalone Functions	Direct LED, Color preset, CCT, Auto Programm, Timer-function
Controls	External Control Remote (CAMEO UNICON)
Operating voltage	100 - 277 V AC / 50 - 60 Hz
Power consumption	30W	60W
Inrush current:	34A @ 0,0238 mSec. (first half cycle)	47A @ 0,0358 mSec. (first half cycle)
CRI:	>70 @6000K
Efficiency:	40lm/W	40lm/W
Power factor	>0,9 / 100-277V
Power connector	Power & DMX/RDM Box for Duraline + hybrid connector
Overvoltage protection (CLDLCON- NECTIONBOX)	4 KV
Ambient temperature (operating)	-20°C - 45°C
Housing colour	RAL 9017 Traffic black
Housing material	Aluminum die casting

Corrosion resistance		C5M
Protection class		IP67
Cable glands		IP68
Impact resistance level		IK08
Housing Cooling	Convection cooling
LED Lifetime	Minimum LED lifetime: 50,000 hours (to >70% luminous output)
Operating position:	Any
Maximale Montagehöhe:	Unlimited
Minimum distance from normally flammable materials:	0,1m	0,1m
Minimum distance to the illuminated surface:	0,1m	0,1m
Housing dimensions (W x H x D, inkl bracket):	490mm x 101mm x 77mm	978mm x 101mm x 77mm
Weight	2,7kg	5,6kg
Accessories (included)	90° Mountingbracket	90° Mountingbracket
Accessories (optional)	CLIREMOTE	CLIREMOTE
	CLDL50FULLGS	CLDL100FULLGS
	CLDL50LOUVERSET	CLDL100LOUVERSET
	CLDLALTWCABLE052	CLDLALTWCABLE052
	CLDLALTWCABLE102	CLDLALTWCABLE102
	CLDLALTWCABLE300	CLDLALTWCABLE300
	CLDLALTWCABLE800	CLDLALTWCABLE800
	CLDLALTWCABLEEND	CLDLALTWCABLEEND
	CLDLCONNECTIONBOX	CLDLCONNECTIONBOX
	CLDLFILTER20	CLDLFILTER20
	CLDLFILTER40	CLDLFILTER40
	CLDLFILTER60	CLDLFILTER60
	CLDLFILTER601	CLDLFILTER601

EXPLANATORY NOTES ON THE IP PROTECTION CLASS

1. An IP protection class only reflects protection against solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature.
2. The first identification digit indicates protection against dust, solid objects, and contact:

IP2X Protected against solid foreign objects ≥ 12.5 mm in diameter

IP3X Protected against solid foreign objects ≥ 2.5 mm in diameter

IP4X Protected against solid foreign objects ≥ 1.0 mm in diameter

IP5X Protected against dust in harmful quantities and completely protected against contact

IP6X Are dust-tight and completely protected against contact

1. The second digit indicates protection against water:

IPX0 No	protection
IPX1 Protection against dripping water
IPX2 Protection against dripping water when the device is tilted by up to 15°
IPX3 Protection against falling spray water up to 60° from the vertical
IPX4 Protection against splashing water on all sides
IPX5 Protection against water jets (nozzle) from any angle
IPX6 Protection against strong water jets
IPX7 Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (for example, protective caps on unused connections).

The product's IP protection class can be found in the technical data and is printed on the device.

EXPLANATORY NOTES ON THE IK IMPACT RESISTANCE RATING

The IK impact resistance rating is a measure of the resistance of a housing (in the case of electrical equipment) to impact stress. It is standardised according to CEI EN 50102 and describes how much impact energy (in Joules) the housing can withstand without breaking.

IK00 No	impact resistance
IK01 Impact resistance up to impact energy of 0.14 J
IK02 Impact resistance up to impact energy of 0.2 J
IK03 Impact resistance up to impact energy of 0.35 J
IK04 Impact resistance up to impact energy of 0.5 J
IK05 Impact resistance up to impact energy of 0.7 J
IK06 Impact resistance up to impact energy of 1.0 J
IK07 Impact resistance up to impact energy of 2.0 J
IK08 Impact resistance up to impact energy of 5.0 J
IK09 Impact resistance up to impact energy of 10.0 J

IK10 Impact resistance up to impact energy of 20.0 J

IK10+ Impact resistance up to impact energy of 50.0 J

The impact resistance rating of the product can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. In this example, the distance is 0.5m . The value valid for this device can be found in the technical specifications in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. In this example, the distance is 0.5m . The value valid for this device can be found in the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

Email: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines

(where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

MODE AUTONOME CCT (Correlated Color Temperature)

ACCESSIONS EN OPTION

CLDLCONNECTIONBOX

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

POWER IN - US
Black	Live ( L )
Green	Protective earth ( ⋅ )
Blau	Neutral ( N )

3 HYBRID OUT

Conector terminator: CLDLALTWCABLEEND

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

TRYB PRACY AUTONOMICZNEJ CCT (Correlated Color Temperature)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

Cappuccio: CLDLALTWCABLEEND

CONTROLLO TRAMITE UNITÀ REMOTA CLUNICON (disponibile come optional)

Display		Encoder + BACK
▲	Aumentare valore	ü
▼	Diminuire valore	ü
▲	Indietro	BACK
✓	Confermare	Encoder

DL 50 & DL 100
3CH 4CH
RGB RGBW
Channel Channel Function Values
1 1 Red 00	0 - 255 0%	to 100%
2 2 Green	000 - 255 0%	to 100%
3 3 Blue 00	00 - 255 0%	to 100%
	4 White 00	0 - 255 0%	to 100%

DL 50 & DL 100
6CH 10CH
Direct	Full Access
Channel Channel Function Values
1 1 Dimmer	000 - 255				0% to 100%
	2 Dimmer fine 000 - 255
	3 Strobe		000 - 005 Open
			006 - 255 Strobe slow to fast (<1Hz to 20Hz)
2 4 Red	000 - 255 0% to 1	100%
3 5 Green	000 - 255 0% to 1	100%
4 6 Blue	000 - 255 0% to 1	100%
5 7 White	000 - 255 0% to 1	100%
	8	Color Temperature (override Color Mixing)	000 - 005 Off
			006 - 006 Warm white
			007 - 046 Warm white to 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K to 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K to 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K to 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K to 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K to Cold white
			252 - 255 Cold white

	9	Color Presets(overrideColor Mixing& Color Temperature)	000 - 005 No function
			006 - 013 Red
			014 - 021 Amber
			022 - 029 Yellow warm
			030 - 037 Yellow
			038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093 Magenta
			094 - 101 Pink
			102 - 109 Warm White
			110 - 117 White
			118 - 125 Cold White
			126 - 127 Color Jumping/Fading Stop
			128 - 164 Color Jumping slow to fast
			165 - 201 Color Fading slow to fast
			202 - 207 User Color 1
			208 - 213 User Color 2
			214 - 219 User Color 3
			220 - 225 User Color 4
			226 - 255 No function
6	10	Device settings (all settings are executed after holding value for 3 seconds)(please read remark 1*)	000 - 024 No function
			025 - 026 Record User Color 1
			027 - 028 Record User Color 2
			029 - 030 Record User Color 3
			031 - 032 Record User Color 4
			033 - 057 No function
			058 - 057 Pixel Mirroring Off
			060 - 061 Pixel Mirroring On
			062 - 073 No function
			074 - 075 Dimmer Response LED
			076 - 077 Dimmer Response Halogen
			078 - 119 No function
			120 - 121 PWM 1 (650 Hz)
			122 - 123 PWM 2 (1530 Hz)
			124 - 125 PWM 3 (3600 Hz)
			126 - 127 PWM 4 (12000 Hz)
			128 - 129 PWM 5 (18900 Hz)
			130 - 131 PWM 6 (25000 Hz)
6	10	Device settings (all settings are executed after holding value for 3 seconds) (please read remark 1*)	132 - 133 RAW
			134 - 135 Factory Calibration
			136 - 137 User Calibration
			138 - 168 No function
			164 - 165 Dimmer Curve Linear
			166 - 167 Dimmer Curve Exponential
			168 - 169 Dimmer Curve Logarithmic
			170 - 171 Dimmer Curve S-Curve
			172 - 239 No function
			240 - 241 Load Factory Defaults
			242 - 255 No function

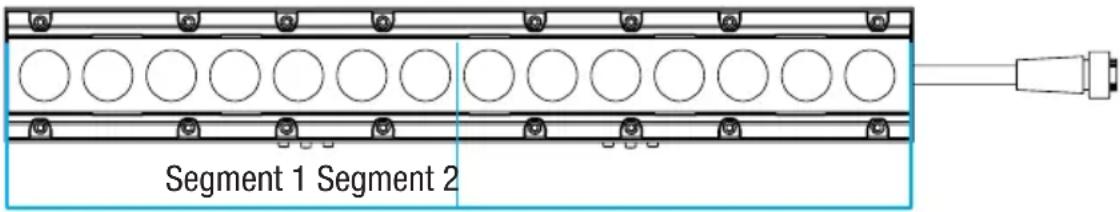

DL 50
8CH 11CH
Pixel	Pixel + Control

Channel	Channel Function Values
	1 Dimmer 000 - 255				0% to 100%
	2 Dimmer fine 000 - 255
	3	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	000 - 024 No function
			025 - 026 Record User Color 1
			027 - 028 Record User Color 2
			029 - 030 Record User Color 3
			031 - 032 Record User Color 4
			033 - 057 No function
			058 - 057 Pixel Mirroring Off
			060 - 061 Pixel Mirroring On
			062 - 073 No function
			074 - 075 Dimmer Response LED
			076 - 077 Dimmer Response Halogen
			078 - 119 No function
			120 - 121 PWM 1 (650 Hz)
			122 - 123 PWM 2 (1530 Hz)
			124 - 125 PWM 3 (3600 Hz)
			126 - 127 PWM 4 (12000 Hz)
			128 - 129 PWM 5 (18900 Hz)
			130 - 131 PWM 6 (25000 Hz)
			132 - 133 RAW
			134 - 135 Factory Calibration
			136 - 137 User Calibration
			138 - 163 No function

	3	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	164 - 165 Dimmer Curve Linear
			166 - 167 Dimmer Curve Exponential
			168 - 169 Dimmer Curve Logarithmic
			170 - 171 Dimmer Curve S-Curve
			172 - 239 No function
			240 - 241 Load Factory Defaults
			242 - 255 No function
1 4 Red 1	000 - 255 0% to 100%
2 5 Green	1 000 - 255 0% to 100%
3 6 Blue 1	000 - 255 0% to 100%
4 7 White	1 000 - 255 0% to 100%
5 8 Red 2	000 - 255 0% to 100%
6 9 Green	2 000 - 255 0% to 100%
7 10 Blue	2 000 - 255 0% to 100%
8 11 White	2 000 - 255 0% to 100%

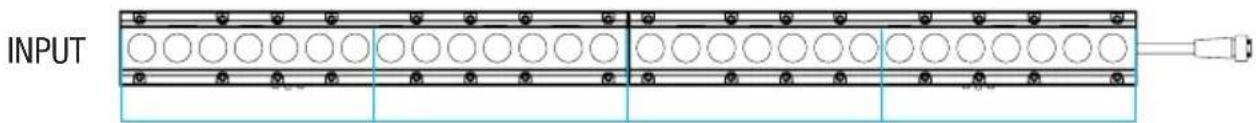

INPUT

DL 100
16CH 19CH
Pixel	Pixel + Control
Channel Channel Function Values
	1 Dimmer	000 - 255			0% to 100%
	2 Dimmer	fine 000 - 255
	3	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	000 - 024 No function
			025 - 026 Record User Color 1
			027 - 028 Record User Color 2
			029 - 030 Record User Color 3
			031 - 032 Record User Color 4
			033 - 057 No function
			058 - 057 Pixel Mirroring Off
			060 - 061 Pixel Mirroring On
			062 - 073 No function
			074 - 075 Dimmer Response LED
			076 - 077 Dimmer Response Halogen
			078 - 119 No function
	3	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	120 - 121 PWM 1 (650 Hz)
			122 - 123 PWM 2 (1530 Hz)
			124 - 125 PWM 3 (3600 Hz)
			126 - 127 PWM 4 (12000 Hz)
			128 - 129 PWM 5 (18900 Hz)
			130 - 131 PWM 6 (25000 Hz)
			132 - 133 RAW
			134 - 135 Factory Calibration
			136 - 137 User Calibration
			138 - 163 No function
			164 - 165 Dimmer Curve Linear
			166 - 167 Dimmer Curve Exponential
			168 - 169 Dimmer Curve Logarithmic
			170 - 171 Dimmer Curve S-Curve
			172 - 239 No function
			240 - 241 Load Factory Defaults
			242 - 255 No function
1 4 Red 1	000 - 255 0% to 100%
2 5 Green	1 000 - 255 0% to 100%
3 6 Blue 1	000 - 255 0% to 100%
4 7 White	1 000 - 255 0% to 100%
5 8 Red 2	000 - 255 0% to 100%
6 9 Green	2 000 - 255 0% to 100%
7 10 Blue	2 000 - 255 0% to 100%
8 11 White	2 000 - 255 0% to 100%
9 12 Red 3	000 - 255 0% to 100%
10 13 Green	3 000 - 255 0% to 100%
11 14 Blue	3 000 - 255 0% to 100%
12 15 White	3 000 - 255 0% to 100%
13 16 Red	4 000 - 255 0% to 100%
14 17 Green	4 000 - 255 0% to 100%
15 18 Blue	4 000 - 255 0% to 100%
16 19 White	4 000 - 255 0% to 100%

Segment 1 Segment 2 Segment 3 Segment 4

Remark 1*

EN: (1^) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
DE: (1^) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
FR: (1^) Une fois les ajustements effectués, reglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
ES: (1^) Después de realizar los ajustes, establezca el valor en 000 para evaporar perturbaciones mediante una llama de función sin fin.
PL: (1*) Po dokonaniu ustawien ustaw wartosc na 000, abyunikac zaklocen przyze niekończace sie wywołanie funkci.
IT: (1^) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.
