PWS 0167 - Fan Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	PWS 0167
Product type	Pedestal fan
Speeds	3 (low, medium, high)
Oscillation	Yes, adjustable (on/off)
Tilt	Adjustable (loosen the joint screw)
Adjustable height	Yes, by loosening the mast screw
Blade diameter	Approximately 40 cm (estimated)
Blade material	Metal
Protective grille	Front and rear, metal
Power supply	230 V ~ 50 Hz (standard mains plug)
Power	Approximately 45 W (estimated)
Net weight	Approximately 3.5 kg
Dimensions (H x W x D)	Approximately 130 x 40 x 40 cm (assembled)
Base	Round, plastic, stable
Mast	Metal, detachable
Usage	Household only
Maintenance	Clean with a damp cloth; unplug before
Safety	Protective grille, tip-over shut-off (not specified), do not use near water
Warranty	Legal, according to applicable legislation
Certifications	Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU

Frequently Asked Questions - PWS 0167 Orbegozo

How to assemble the Orbegozo PWS 0167 fan?

First, attach the mast to the base with the provided screw. Mount the motor on the motor support at the top of the mast and tighten the screw. Place the rear grille, then the blade onto the motor shaft while tightening the screw. Finally, attach the front grille by snapping the edges.

How to adjust the fan speed?

Use the rotary knob on the back of the motor. The positions are: 0 (off), 1 (low speed), 2 (medium speed), 3 (high speed).

How to activate oscillation?

Unscrew the screw located under the motor and push it to the desired position. To activate oscillation, place the screw on the corresponding symbol. You can also deactivate oscillation by turning the screw.

How to adjust the fan tilt?

Slightly loosen the screw on the joint between the motor head and the mast. Tilt the head to the desired angle, then retighten the screw.

How to adjust the fan height?

Loosen the screw perpendicular to the mast, slide the mast up or down to the desired height, then retighten the screw.

How to clean the fan?

Always unplug the appliance before cleaning. Use a damp cloth to wipe the grilles and blades. Do not use gasoline, solvents, or benzene. Avoid letting water enter the motor.

What to do if the fan stops working?

Check that the plug is properly inserted and the speed knob is not on 0. If the cord is damaged or the appliance malfunctions, contact an authorized technical service via https://orbegozo.com/asistencia-technica/.

Can I use the fan outdoors?

No, this fan is designed only for indoor household use. Do not use it near a window or in a damp place to avoid electrical hazards.

How to store the fan when not in use?

You can store it assembled or partially disassembled, in a dry and safe place. Cover the head to protect it from dust. If you disassemble it, keep the original packaging if possible.

Where can I find the manual or spare parts?

The manual is available for free at www.orbegozo.com or notice-facile.com. For spare parts, contact the technical service via the same website.

USER MANUAL PWS 0167 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or in dropped or damaged in any manner. Follow warranty instructions.

16. Place fan on a flat, level surface to avoid tapping.
17. Do not operate the fan without the front grille attached.
18. Never insert fingers, pencils or any other object through the grille when fan is running.
19. Disconnect the plug when moving from one location to another.
20. Disconnect plug when removing guards for cleaning.
21. Be sure fan is on a stable, even surface when operating to avoid overturning.
22. DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.
23. This product is only designed for use in living areas (and

is not suitable for places constantly exposed to humidity).

• Do not place the fan near flames, cookers or heaters.
• Do not obstruct the air flow.

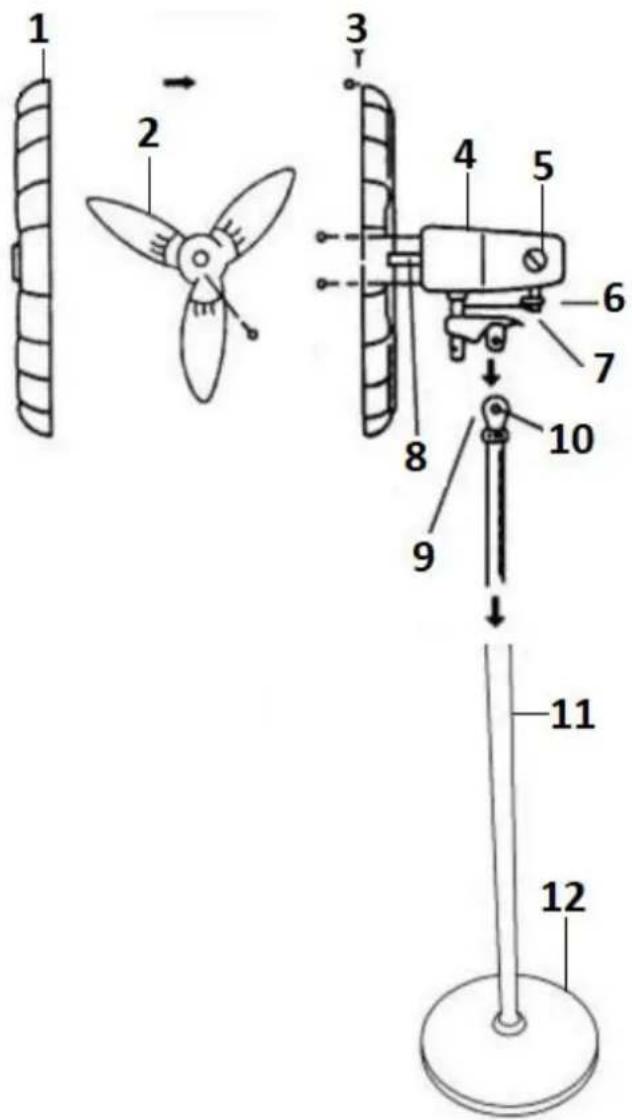

DESCRIPTION

1. Front grill.
2. Blade.
3. Rear grill.
4. Motor.
5. Speed control knob
6. Swing.
7. Swing selector.
8. Motor shaft.
9. Motor support.
10. Screw of motor adjust and tilt.
11. Mast.

12. Base.

13. Remove the screw from bottom side of mast. Place mast on base and screw it by bottom side of the base.

14. Put the fan motor on motor support of top of mast and fit it with the screw.
15. Place the rear grill in front of motor and screw it. Put the blade in the motor shaft and assure it tightening its screw. To fix the front grill it is just necessary placing in front of rear grill and adjusts it with flanges of the frame.
16. To amend the height of the fan just have to loosen up the screw which is perpendicular to mast and go up or go down until get the desired height. After that tighten the screw again.

OPERATING INSTRUCTIONS

• Step 1: Set the fan base on a level and stable surface.
• Step 2: Please make sure the Speed knob is in the 0 position. Plug cord into any standard AC outlet.
• Step 3: The speed is adjusted by moving the knob left or right to the desired setting (0-Off; 1-Low; 2-Medium; 3-High)

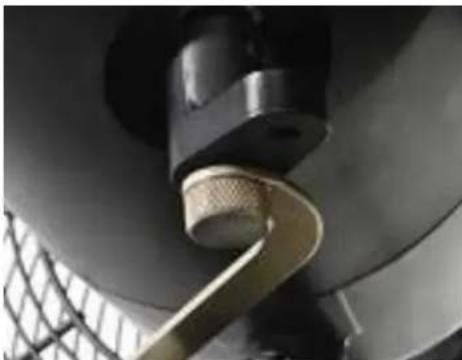

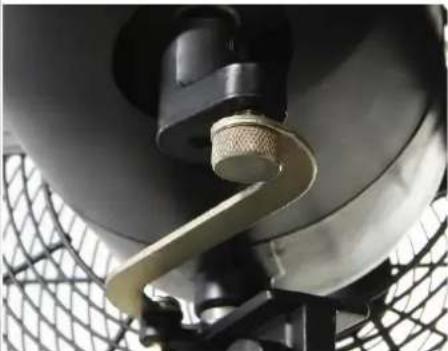

• Step 4: To connect swing function, unscrew the screw on bottom of motor and change of position as below pictures show.

No swing Swing

• If you want to amend the tilt of fan head, loosen up a bit the screw on joint of motor head and mast, move motor head to desired tilt and tight again the screw.

FAN STORAGE

The fan can be stored in the off-season completely assembled or partially disassembled. It is important that store place is dry and safe.

• If you store it disassembled, we recommend using original box, or at least a box with appropriated dimensions.
• If you store it assembled or partially disassembled, cover the fan head to protect from dust.
• You always must empty water tank if you aren't going to use the fan for more than a week.

CLEANING AND MAINTENANCE

Always unplug the fan before cleaning or disassembling.
- Use a damp cloth to clean the dust from the fan.
- Do not allow water to drip on or into the fan motor housing.
- Do not use any of the following as a cleaner: gasoline, thinner, or benzine.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin"

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/
