Lausanne - Fireplace Klarstein - Free user manual and instructions

Product type	Electric fireplace
Brand	Klarstein
Model	Lausanne
Product references	10012127, 10031843
Power supply	220-240 V ~ 50 Hz
Nominal heating power	2000 W
Minimum heating power	1000 W
Power levels	2 (1000 W / 2000 W)
Heat regulation type	Electronic control with weekly programming
Flame simulation	Yes, by LED
Backlight	7 adjustable colors
Remote control	Yes
Timer	Weekly timer, 10 settings
Adjustable temperature range	15-30 °C
Adaptive start function	Yes
Minimum installation height	30 cm above floor
Recommended height	60 cm
Overheating protection	Yes, automatic shutdown with manual reset
Child safety	Do not let children play, keep away
Standby consumption	0.48 W
Cleaning	Soft dry cloth; glass with damp cloth
Lighting system	Non-user-replaceable LED
Mounting type	Wall-mounted
Included accessories	Remote control, decorative stones, mounting brackets, screws, wall plugs
Manufacturer	Chal-Tec GmbH, Berlin, Germany

Frequently Asked Questions - Lausanne Klarstein

How to turn on the fireplace?

Plug in the appliance and set the toggle switch to ON. Press the [O/I] key or the [ON/OFF] key on the remote control to activate the flame simulation. For heating, press [POWER] or [1000W/2000W] on the remote control.

How to set the timer?

Press [TIMER SET] to select a setting number (1 to 10). Choose the day(s) of the week with the arrows and +/- keys. Set the start and end time, then the temperature. Confirm with [OK]. Activate the timer with [TIMER ON/OFF].

What is the maximum heating power?

The maximum heating power is 2000 W. You can also use the minimum power of 1000 W.

How to clean the glass?

Use a damp cloth only. Never use regular glass cleaner or abrasive products. Unplug the appliance and let it cool before cleaning.

What to do if the appliance overheats?

The overheating protection activates automatically. Unplug the appliance from the mains and let it cool for at least 15 minutes. Plug it back in and turn it on again. If the problem persists, check for air obstructions.

Can I use the fireplace as main heating?

No, the appliance is not suitable as a main heat source. It is designed for supplementary heating.

How to change the backlight color?

Press the [BACK LIGHT] key to cycle through the 7 colors available. You can press and hold the [O/I] key to adjust brightness (dimmer function).

The remote control does not work, what to do?

Check that the toggle switch is set to ON. Make sure no obstacles block the receiver. If the remote remains inactive, replace the batteries. If the problem persists, contact customer service.

How to set the temperature?

Press the [+ / -] keys to adjust the temperature between 15°C and 30°C. The default temperature is 22°C.

Is the appliance suitable for children?

Children under 3 years must be kept away. Children between 3 and 8 years may use the appliance only under supervision and after receiving safety instructions.

USER MANUAL Lausanne Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: The device is not suitable for use as a primary heat source.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

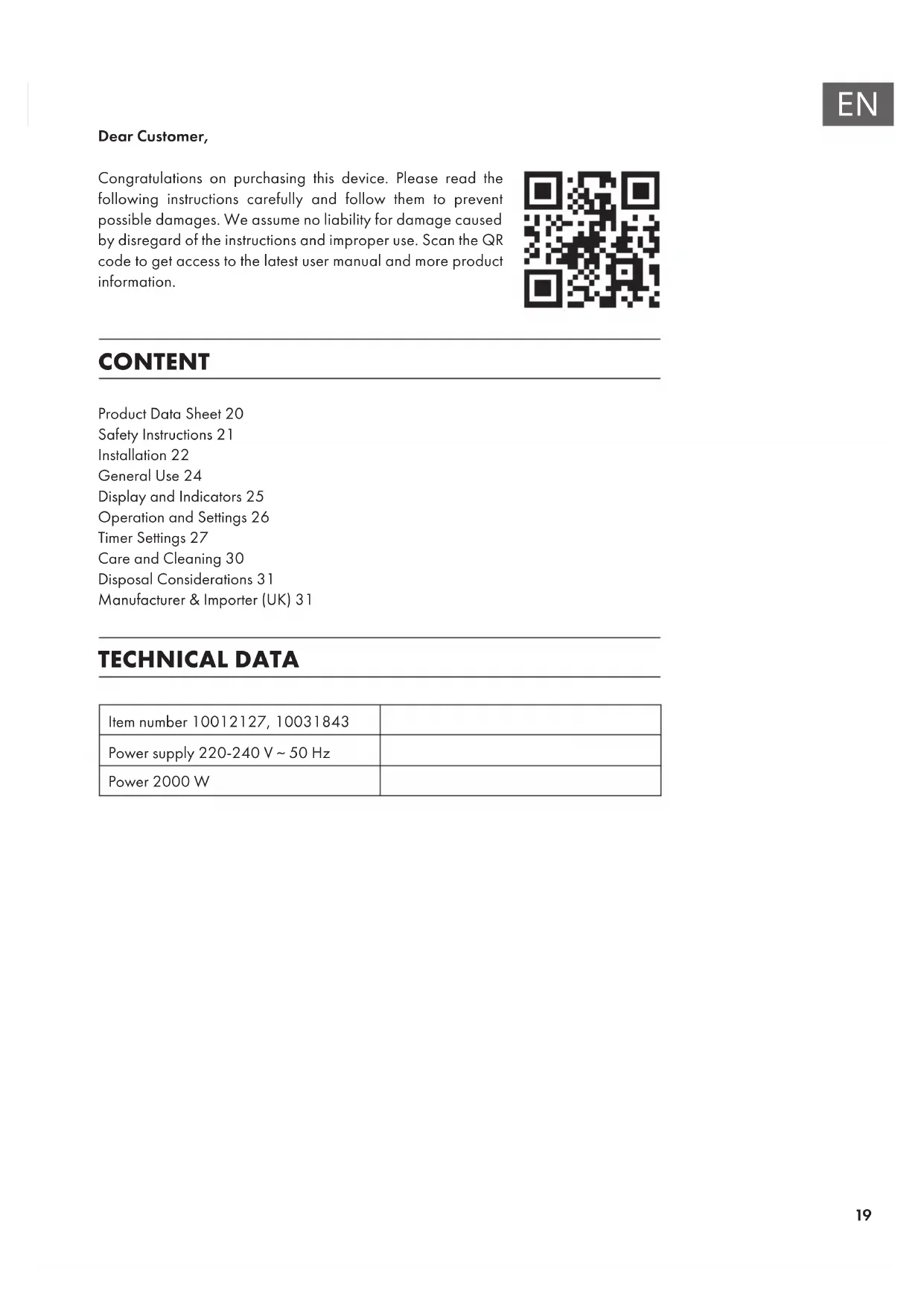

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Product Data Sheet 20

Safety Instructions 21

Installation 22

General Use 24

Display and Indicators 25

Operation and Settings 26

Timer Settings 27

Care and Cleaning 30

Disposal Considerations 31

Manufacturer & Importer (UK) 31

TECHNICAL DATA

Item number 10012127, 10031843
Power supply 220-240 V ~ 50 Hz
Power 2000 W

PRODUCT DATA SHEET

Model identifier(s): 10012127	10031843
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output	Pnom	2.0	kW		manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin 1.0 kW manual heat charge			control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	2.0	kW		electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption					fan assisted heat output	N/A
At nominal heat output (fan motor)	elmax	0.014	kW		Type of heat output/room temperature control (select one)
At minimum heat output (fan motor)	elmin	0.014	kW		single stage heat output and no room temperature control	no
In standby mode	eSB	0.48	W		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control yes
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

SAFETYINSTRUCTIONS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given to be given where children and vulnerable people are present.

• If the appliance or the supply cord is damaged, it must be repaired by manufacturer, its service agent or qualified person.
• This heater must be used on an AC supply only and the voltage marked on the heater must correspond to the supply voltage.
• Do not switch the appliance on until it properly installed as described in this manual.
• The heater must not be located immediately below a socket outlet.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance. Never closed to curtains and other combustible material, otherwise may cause risk
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• This appliance is intended for household use and should not be used for industrial purposes.
• From time to time, check the cord for damage. Never use the appliance if the cord or any part of the appliance shows signs of damage.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.
• Do not run the mains cable under carpets, rugs etc.

• Do not allow the mains cable to hang over sharp edges or come into contact with hot surfaces.

• In order to avoid overheating, do not cover or obstruct the heater in any way.
  Overheating will result if it is accidentally covered.

• Never immerse the product in water or any other liquids.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• Do not lift the appliance by the front panel.
• In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Note: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

INSTALLATION

The fire must not be used until it is securely fastened to the wall.
- Do not connect the appliance to the mains until properly fixed to the wall and the instructions are read fully.

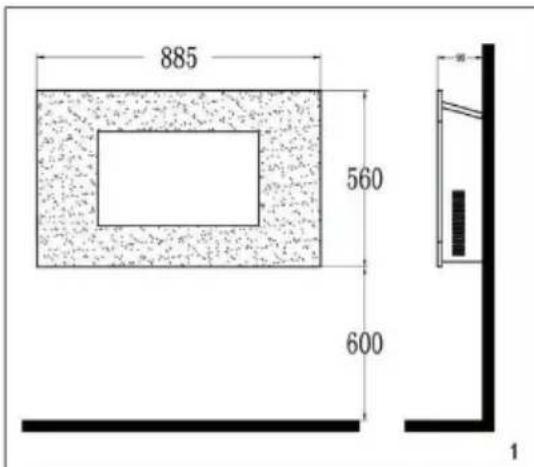

- The minimum distances must be observed in the diagrams below.
- For installation of the appliance, care must be taken not to damage concealed cables.
- Please be careful whilst drilling holes.

Note: This appliance is designed to be permanently fixed to a wall at a minimum height of 300mm . The wall bracket must be fitted horizontally and the cable routed to the bottom right of the heater.

A distance of 600mm from bottom of heater to floor is recommended for optimum viewing of fuel bed. See Fig.1 for recommend fixing dimensions. For optimum viewing, mark the top five screws fixing positions on wall in accordance with the recommend fixing dimensions (see Fig.2). Drill holes with a No. six drill bit.

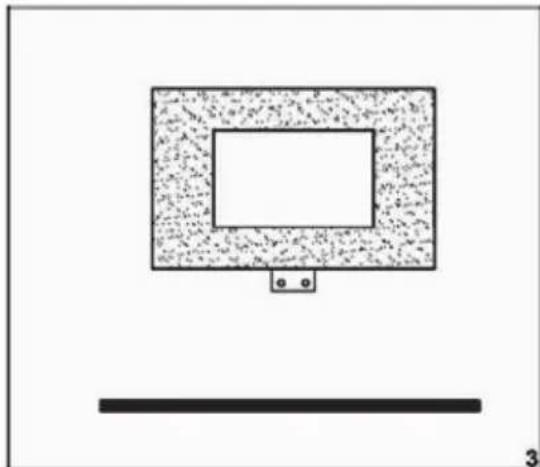

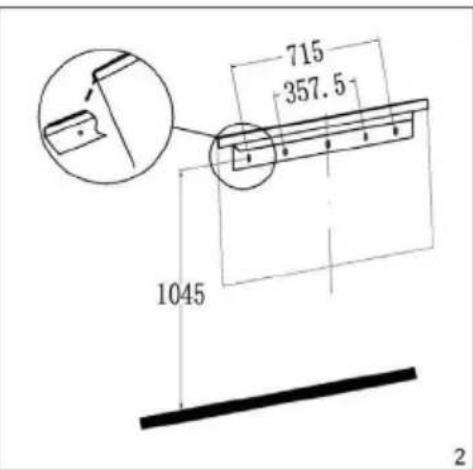

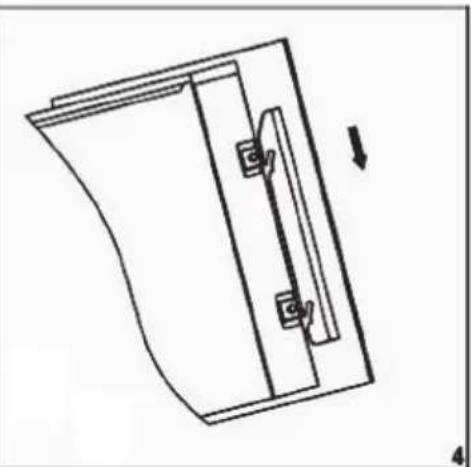

Fix the wall bracket using that the plug and screws provided. Attach the lower fixing bracket the base of the fire using the two small black screws supplied; ensure the bracket is fitted so that it is level with the back. Carefully lift the heater up ensuring that the top rear ledge of heater engages with the wall bracket (see Fig.2 in circle) and is sitting centrally. This process should be carried out by two people to avoid injury or damage. Mark the lower fixing bracket two fixing hole positions on the wall-see Fig.3, remove the heater. Drill the wall and insert the wall plugs. Refit the heater to the wall and fasten the bottom fixing bracket to the wall using the screws provided to permanently fix the heater in place. Unpack the pebbles from the bag and place them along the light unit in the desired position.

GENERALUSE

Note: The appliance can be operated either by the switches located on the top right hand side of the fire or by the supplied remote control.

Manual Operation

• This is done by operating the switches located at the top right hand side of the fire. The standby rocker switch must first be switched on, the fire will beep to indicate that it is powered up.
• Press the O/I button once to turn on the appliance and fire effect. A red indicator light will show to indicate that the fire is ON. Press the O/I button for 3 seconds this will operate the dimmer mode, hold the button down until the desired brightness is obtained.
• Press the POWER button once for the low heat setting 1000W; press twice for the high heat setting 2000W; press three to switch off the heat setting.
• Press the BACK LIGHT button to adjust the colors of LED decoration, 7 colors available.

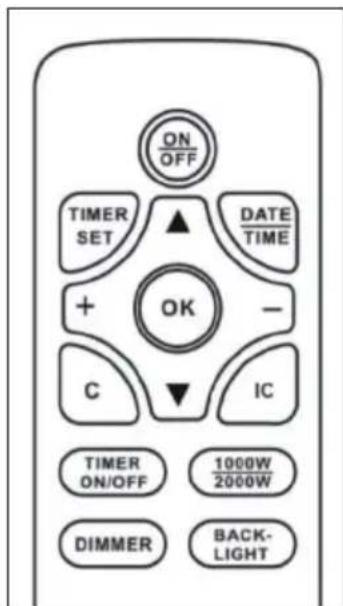

Remote Operation

The standby rocker switch located at the top right hand side of the fire must first be switched on; the fire will beep to indicate that it is powered up.

It takes a little time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for the fire to operate normally.

DISPLAY AND INDICATORS

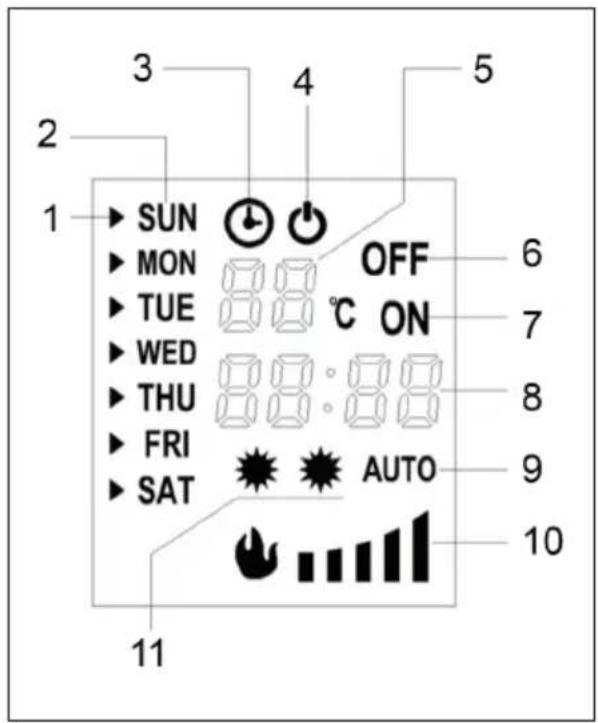

1 Cursor
2 Date
3 Timer
4 Standby
5 Temperature display/ serial number display
6 Timer off
7 Timer on
8 Time display
9 Automatic control of heating
10 Flame brightness
11 Heat position

Temperature and serial number display (5)

Normally it displays the room temperature; while setting the temperature, the setting temperature is displayed; When setting the timer, the serial number of the setting is displayed.

Time display (8)

Normally it is display the current time; while setting the timer, the setting time is displayed.

Timer starting and timer shutdown

While setting the timer, the setting time is displayed, and the timer is used in combination with serial number setting.

05 ON 23:40	E.g. Means the starting time of setting 5 is 23:40.
05 OFF 05:10	E.g. means the shutdown time of setting 5 is 6:10.

Flame brightness

It displays the current brightness of the flame, which ranges from one to five positions.

OPERATION AND SETTINGS

Boot steps

1 Connect the power.
2 Turn on the power switch.
3 Press the control switch or "ON/OFF" key of the remote controller to start up
4 Press the 1000W/2000W button once for the low heat setting 1000W; press twice for the high heat setting 2000W; press three to switch off the heat setting.
5 Press the DIMMER button to operate the dimmer mode, repeat pressing will raise and lower the brightness.
6 Press the BACK LIGHT button to adjust the colors of LED decoration, 7 colors available.

Adaptive start control function

Press "IC" button on the remote controller to start or close the adaptive start control function. When turned on this function, the fireplace can automatically change the heating mode, and this is depend on the setting temperature and the room temperature. When the timer is on, it is possible to start the heating ahead of the schedule.

Note: Adaptive start control function is only working when the week timer system is power on.

The date and time setting

1 Press "DATE TIME" button, then press the "A r " key to select the date
2 Press "DATE TIME" button again, then press the "+" or "-" to set the hour
3 Press "DATE TIME" button again, then press the "+" or "-" to set the minute
4 Press OK button to finish the setting.

Temperature setting

The default temperature setting is 22^ , press " + " or " - " on the remote controller to set the temperature, which ranges is from 15^ to 30^ .

TIMER SETTINGS

• There are up to 10 kinds of timer setting.
  Each setting has its date, power-on time, shutdown time and temperature setting.
  The max. time of each setting is 23 hours 50 minutes
• The setting date for each timer can be any day or more days of a week.
• The setting date is the date of power-on time. If the shutdown time is on the second day, it is unnecessary to set the date, you just set the shutdown time.

View the timer setting

1 Press the "TIME SET" button
2 Press the ^ + ^ or - to check the power-on time by one by one.
3 For checking the shutdown time, press the " u^ button
4 Press the ^ + ^ or · to continue viewing
5 For deleting the current item of setting, press C to delete this setting.

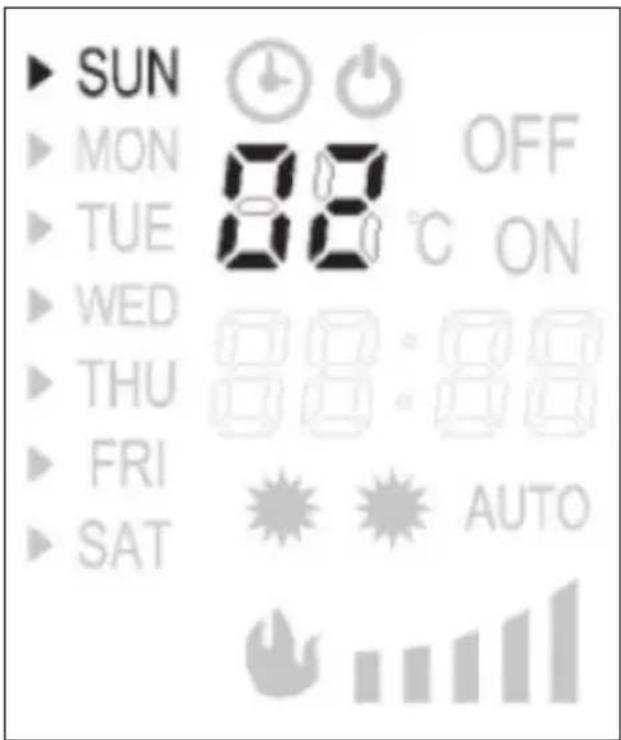

Timer setting

(1) Select the settings

Press the "TIME SET" button, and the serial number of setting starts blinking. Press the "+" or "-" to change the serial number of the setting. E.g., it is showing the setting of No.2.

(2) Select date

Press "TIME SET" button once again, and the cursor on the left side of date starts blinking Press the or ** keys to move the cursor to the corresponding date, press the ^ 喜 + ^ 喜 to add the corresponding date, or press - to delete the date until you have completed the selection of all dates

(3) Set the start time

1 Continue to press the "TIME SET" button, the hour starts blinking.
2 Press the ^ + ^ or 山 _ 山 ^ - to adjust the hour
3 Continue to press the "TIME SET" button, the minute starts blinking
4 Press the ^ + ^ or _ = to adjust minute

(4) Set the shutdown time

1 Press the "TIME SET" button, the display is off, and the hour starts blinking.
2 Press the ^ + ^ or - to adjust the hour.
3 Continue to press the "TIME SET" button, the minute starts blinking.
4 Press the ^ + ^ or - to adjust minute.

(5) Set temperature

Then press the "TIME SET" button, and the temperature setting starts blinking. Then you can adjust the temperature by pressing + or - . and + button will raise the temperature, and the - will lower the temperature.

Press "TIME SET" button to continue setting, and press "OK" complete the setting.

Important Notes on Timer

• TIME ON/OFF is to control the timer opening and closing
  Note 1: Restart the machine after the power is cut off, the original setting is kept, but the date and time must be reset.
• Note 2: When the week timer is power on, you should turn on the heating function, or else when the machine is working again as the timer, there will be only the flame effect working.

Safety Cut-Off

This appliance is fitted with a safety cut-off which will operate if the fire overheats (e.g. due to blocked air vents). For safety reasons, the fire will NOT automatically reset.

To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes. Reconnect to the mains supply and switch on the appliance.

Troubleshooting

Symptom Solution
No operation/no fan. Check fuse by replacemement.
	Check for safety cut-off operation.
No fire effect light. Check the bulb by a qualified electrician.

CARE AND CLEANING

Always disconnect from the mains supply before cleaning heater. For general cleaning use a soft clean duster - never use harsh abrasive or cleaners.

Note: The glass viewing screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.

This product does not use a standard bulb for its flame effect. The appliance uses an electronically controlled LED system to create the effect, therefor no parts need to be replaced. There are no user-serviceable parts on this appliance. Under no circumstances should the appliance be serviced be anyone other than a qualified electrician.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client,

FICHE DE DONNÉES PRODUIT

ÉCRAN ET INDICATIONS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

PRODUTTORE IMPORTATORE (UK)

Produtto:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Geachte klant,

INSTRUCTIES VOOR AFVOER

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
