10031572 - Fireplace Klarstein - Free user manual and instructions

Product Type	Electric Fireplace
Model	10031572
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1800 W
Nominal Heat Output	1.8 kW
Minimum Heat Output	0 kW
Maximum Continuous Heat Output	1.8 kW
Type of Heat Output Control	Electronic with week timer
Other Control Options	Open window detection
Remote Control	Included
Flame Effect	Adjustable brightness
Temperature Setting Range	10 °C to 30 °C
Timer	0-9 hours
Weekly Programming	Yes, up to 8 heating periods
Display	LED with clock and icons
Key Lock	Yes (except On/Off)
Safety Features	Overheat protection, automatic shut-off
Cleaning	Wipe with soft damp cloth; do not use chemicals
Installation	Freestanding; keep 1 m from flammable materials
Standby Power Consumption	Negligible (not specified)

Frequently Asked Questions - 10031572 Klarstein

How do I set the timer on my Klarstein fireplace?

Press the MENU button repeatedly until Hour appears. Press OK, then use + or - to set the desired runtime from 0 to 9 hours. Press OK to confirm.

How do I use the remote control?

Remove the plastic strap from the battery before first use. All remote buttons function the same as the control panel. Ensure the main switch (A) on the unit is set to ON for remote operation.

Why is my fireplace not heating?

Check that the set temperature is higher than the room temperature. If the room temperature exceeds the set temperature, heating will not start. Also ensure the thermostat is set correctly and the weekly timer is not preventing heating.

How do I clean the fireplace?

Always unplug the unit and let it cool completely. Wipe the exterior with a soft, damp cloth. Do not use detergent or chemical agents. Clean the air inlet and outlet vents regularly.

What safety distance should I keep?

Keep furniture, curtains, and other flammable materials at least 1 meter away from the appliance. Do not place the fireplace directly under a power socket.

What is the Open Window Detection mode?

When enabled, the unit automatically turns off the heater if it detects a room temperature drop of more than 4 °C within 10 minutes. The heater will remain off for 20 minutes. To reset, adjust the temperature and press OK.

How do I program the weekly timer?

First set the current weekday and time via ModE > TIME. Then go to ModE > ProG and select ON to enable preset programs or MANU for custom settings. Follow the on-screen steps to set days, heating level, temperature, start time, and duration.

How do I change between Celsius and Fahrenheit?

Press the MENU button for 3 seconds, then press + or - to switch between Celsius and Fahrenheit.

How do I adjust the flame brightness?

Press the MENU button repeatedly until bri shows on the display. Press OK, then use + or - to select your desired brightness level.

What should I do if the clock symbol is flashing?

The flashing clock symbol indicates no timer has been set. This can happen after a power failure. Follow the steps in the manual to set the current weekday and time via ModE > TIME.

USER MANUAL 10031572 Klarstein

Note: This product is only suitable for well insulated spaces or occasional use.

INHALTSVERZEICHNIS

Produktdatenblatt 4

Line drawing of a bedroom layout with two labeled sections (1 and 2), no text or symbols present.

Technical line drawing of a rectangular electronic device with a diagonal line and label '4' pointing to it (no text or symbols on the device itself)

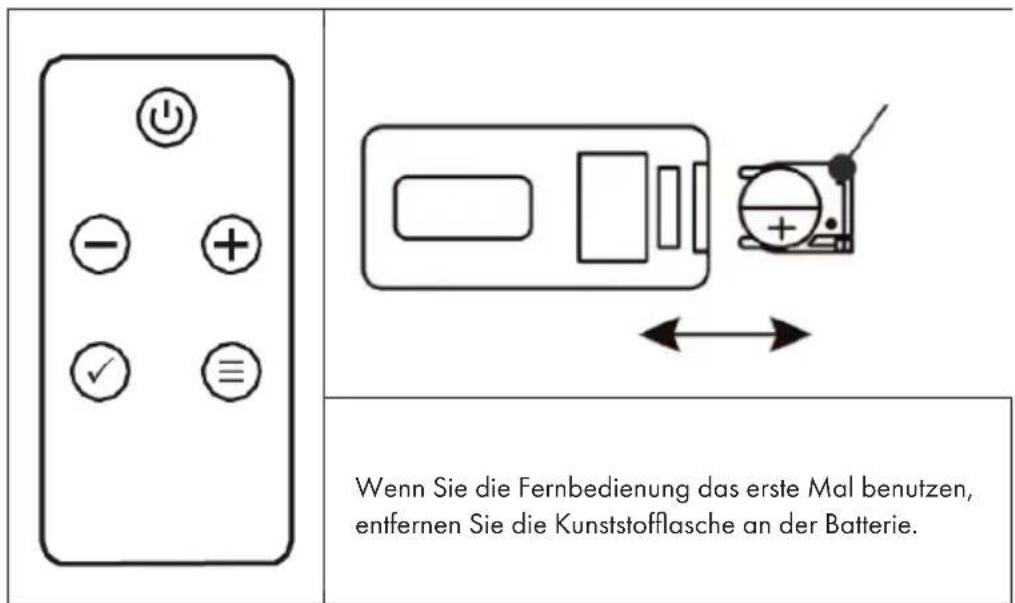

Fernbedienung

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Product Data Sheet 18

Safety Instructions 19

Control Panel and Remote Control 20

Functions and Settings 22

Operating Modes 25

Program Weekly Timer 26

Cleaning and Care 29

Hints on Disposal 30

TECHNICAL DATA

Item number 10031572, 10031573
Power supply 220-240 V ~ 50/60 Hz
Power 1800 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

PRODUCT DATA SHEET

Model identifier(s): 10031572, 10031573
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	1.8 kW	manual heat control	charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	0 kW	manual heat control	charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	1.8 kW	electronic heat control	charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW			Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A kW	single stage heat output and no room temperature control			no
In standby mode	elsB	N/A	W		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

SAFETYINSTRUCTIONS

• Do not use the appliance until it is securely fixed as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
• The fi replace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being damaged in any way.
  • Repairs to electrical appliances should only be performed by a qualified electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
  • In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CONTROL PANEL AND REMOTE CONTROL

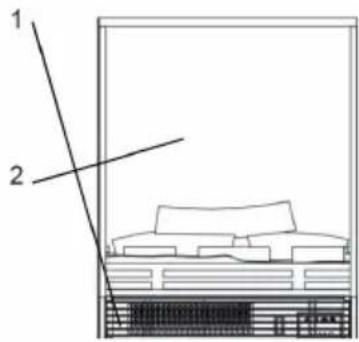

1 Grille
2 Main body
3 Remote control
4 Control Panel

Line drawing of a bedroom layout with two labeled sections (1 and 2), no text or symbols present.

Technical line drawing of a rectangular device with a diagonal line and label '4' pointing to it (no text or symbols on the device itself)

A

OK

On / Off button

Menu button

Remote Control

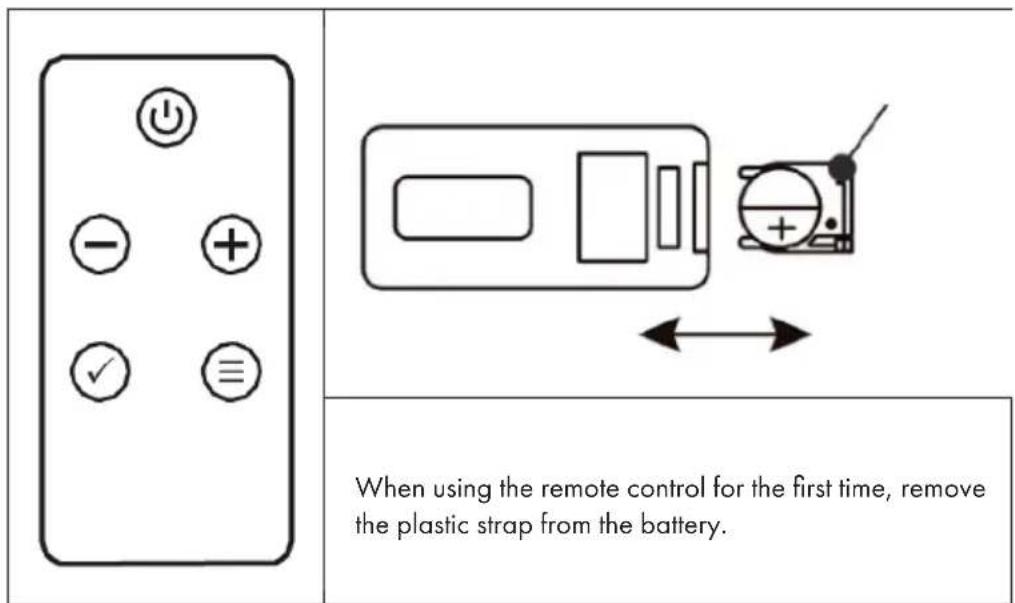

Note: This heater comes with a remote control. To operate the device with the remote control, the main switch (A) must be in the ON position. All buttons on the remote control have the same functions as the buttons on the control panel.

FUNCTIONS AND SETTINGS

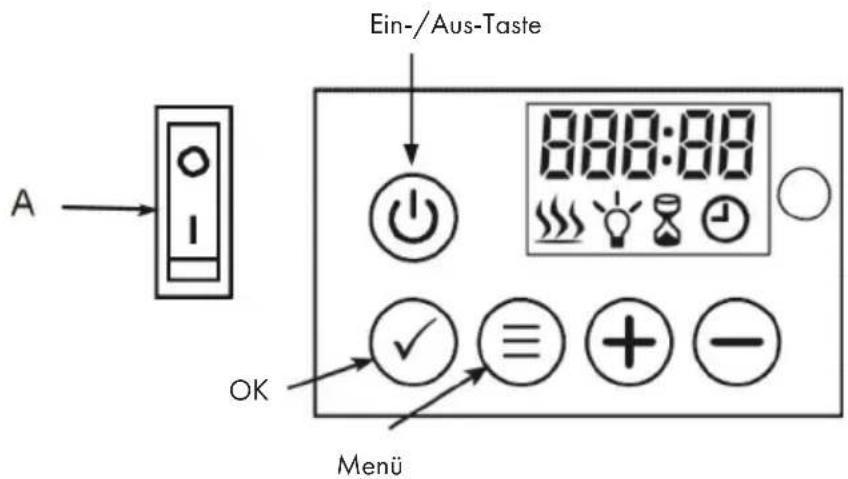

Main switch (A)

Open the cover on the bottom of the unit and press button A down to the ON position.

On / Off button

Press the on / off button to start the flame effect. The following will appear on the display:

• The heating symbol will be displayed and the appliance will start to heat if the room temperature is below the standard setting (10 °C). If the temperature is higher than 10 °C, the icon will not be displayed and the unit will not heat up.
• The clock symbol will flash to indicate that no timer has yet been set. Follow the steps described in the „Operating Modes“ section under „Timer Mode“ to set the timer.

When the unit is switched on, two short beeps will sound, increasing in tone. When it is switched off, three beeps will sound, which will decrease in tone. When switching on, the heating level, the setpoint temperature and the clock symbol will be displayed. The display disappears after 60 seconds unless you press a key. Press any key to return to the display.

Key lock

Press and hold the OK button for more than 6 seconds to lock or unlock the keys. As soon as the keys are locked, [LOC] flashes on the display for 6 seconds and then disappears. Press any key and [LOC] will flash again. Press the OK button for 6 seconds to unlock the keys.

Note: The On / Off button (B) is never locked.

Switch heating on / off / quick start

H10

Press the (+) or (-) button to start the heat setting directly (even if a weekly program is set).Press either the (+) or (-) button to see the current temperature on the screen.Press the (+) or (-) button to set the desired temperature. Press the OK button to confirm the setting. If the set temperature is higher than the room temperature detected by the device, the heating will start. The heater will not start if the set temperature is lower than the room temperature.

Note: The temperature can be set between 10\~30 °C. Select OFF to turn the heater off.

Set high heat output

H	Press the MENU button on the control panel, the display will show H and the flashing heating symbol.
H 10	Press the OK button to set the temperature. The default temperature is 10 °C (50 °F). The image at left will appear on the display.

Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.

Set low heat output

L	Press the MENU button twice, the display will show L and the flashing heating symbol.
L10	Press the OK button to set the temperature. The default temperature is 10 °C (50 °F). The image at left will appear on the display.

Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.

Switch between Celsius and Fahrenheit

The default temperature display is Celsius. Press the D (MENU) button for 3 seconds, then press the (+) or (-) button to change the temperature display from Celsius to Fahrenheit.

Adjust brightness

The brightness control is used to select the desired flame brightness.

	Press the MENU button repeatedly to enter the brightness setting. The display will show [bri] and the flashing light bulb icon.
	Press the OK button to start the brightness adjustment. Press the (+) or (-) button to select the desired brightness level.

Set runtime

Hour	Press the MENU button repeatedly to enter the timer setting. The display will show [Hour] and the flashing timer icon.
	Press the OK button to start the timer setting. Press the (+) or (-) button to set the desired time between 0-9 hours. The display will show the set time.

OPERATING MODES

Select mode

Press the MENU button repeatedly to enter the operating modes. The display will show [ModE]. Press OK to enter the mode setting and use the (+) or (-) button to select the desired mode.

Open window mode

Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the open window mode. The display will show [OPEN].

Press OK to confirm and use the (+) or (-) button to select ON or OFF:

After activating the open window detection, the unit automatically turns off the heater when it detects that the room temperature has dropped more than 4^ C within 10 minutes. The heater will turn off for 20 minutes.

To restart the heater, reset the desired temperature and press the OK button to confirm the setting. After resetting the temperature, open window detection is set to OFF.

Setting the Current Weekday and Time

TIME	Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the timer setting and use the (+) or (-) button to select the timer mode. The display will show [TIME].
d1	Press OK to enter the timer setting and use the (+) or (-) button to select the desired day for which you want to set a timer. D1 = Monday, D2 = Tuesday, D3 = Wednesday, D4 = Thursday, D5 = Friday, D6 = Saturday, D7 = Sunday.
10.00	Press OK and use the (+) or (-) button to set the hour.
10.30	Press OK and use the (+) or (-) button to set the minute. Then press OK again to save the setting.

Note: You can exit the timer setting at any time by pressing MENU. In the event of a power failure, the timer icon (clock) will blink continuously, signaling that no timer has been set. In this case, you must reprogram the timer.

PROGRAM WEEKLY TIMER

Note: Before you can program the week timer, you must first set the current weekday and time (see Setting the Current Weekday and Time).

There are 3 pre-set programs available. Each program includes one period or several periods of time in which the fireplace will heat. Outside of these periods of time, the fireplace will not heat. The period of one program may overlap with the period of another program.

Preset programs

P1 (program 1)

Monday to Friday from 05:15 for 4 hours high heating.

P2 (program 2)

Saturday to Sunday from 06:20 for 4 hours low heating.

P3 (program 3)

Monday to Friday from 17:45 for 4 hours high heating.

P4 (Programm 4)

Saturday to Sunday from 16:30 for 4 hours low heating.

Select preset program

Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the program mode. The display will show [ProG].

Press button + or - to select "ON" or "OFF" to turn on or turn off the weekly program. Press OK to validate. To exit the setting during operation, press button MENU.

00

OFF

Manual Setting for Weekly Programming

Press button MENU to select "ModE" menu. Press OK to validate, then button + or - to access Manual Setting MANU. Press OK to validate.

• Press button [+] or [-] to select the first activation day. Press OK to validate.
• Press [+) or [-] to select the last activation day. Press OK to validate.

Example of a manually set weekly timer

Note: Several programmed heating periods can be used for one day. A programmed heating period can also be used for several days.

d1.d7	For selecting "d1" (Monday) as first activation day, and "d7" (Sunday) as last activation day.
H	Press the (+) or (-) button to select the heating level: H = high heat output, L = low heat output. Press OK to confirm the selection
L
H 10	Press the (+) or (-) button to set the desired temperature. Press OK to confirm the selection.
10.00	Press the (+) or (-) button to select the hour at which to start the heating. Press OK to confirm the selection.
10:30	Press the (+) or (-) button to select the minute at which to start the heating. Each press of the button increases the minute display by 5 minutes. Press OK to confirm the selection.
01:30	Press the (+) or (-) button to set how long the heater will run. Each press of the button increases the display by 30 minutes. Press OK to confirm the selection.
CON	Now the setting of the first heating period of the program is completed. The display will show [CON] (confirmed).
	Note: The program cannot run until the next day. The maximum duration may not exceed midnight. That is, if the start time is 20:30 and you set 4 hours for the duration, the program ends after 3:30 because that is when midnight is.
	To set a second heating period, press OK. If you have set the second heating period, press OK again and the display will return to the day selection for the second heating period.
FINSH	To complete the setting, press the (+) or (-) button until [FINSH] appears in the display. Then press OK to complete the programming.

Note: To save the settings made, always press the OK button. A maximum of 8 heating periods can be programmed for one program.

After the manual setting for the weekly timer is completed, the selected program will overwrite the default preset values.

CLEANING AND CARE

Note: Always disconnect from the power supply before cleaning or maintenance.

• Never use detergent, chemical agents or solvents as they could damage plastic parts.
• Let the appliance cool down completely before handling or cleaning.
• To prevent risk of fire or electrocution, do not pour water or any other liquid inside the appliance.
• Clean the outside wall of the appliance by rubbing it gently with a soft, damp cloth, either with or without soap.
  • Regularly clean the air inlet and outlet vents of the fan.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

KLARSTEIN NIEI SRA T EIN NIEI SRA T K LARS KLARSTEIN NIEI SRA T EIN NIEI SRA T K LARS KLARSTEIN NIEI SRA T EIN NIEI SRA T K LARS KLARSTEIN NIEI SRA T
