Product type	Cordless pole pruner
Brand	Einhell
Model	GCLC 1820 Li TSolo
Battery system	Power X-Change (Li-ion, 18 V)
Battery included	No (sold separately)
Charger included	No
Bar length	200 mm
Max cutting length	195 mm
Chain pitch	3/8" (33 teeth)
Chain thickness	1.1 mm (0.043")
Chain sprocket	5 teeth, 3/8"
Nominal cutting speed	5.5 m/s
Oil tank capacity	70 cm³
Net weight (without accessories)	3.4 kg
Protection class	III
Sound pressure level LpA	75.9 dB(A) (K=3 dB)
Sound power level LWA	91.3 dB(A) (K=3 dB)
Vibration (handle under load)	a_h=1.969 m/s² (K=1.5 m/s²)
Wear parts	Bar, saw chain, battery pack
Warranty	24 months (conditions per manual)

Frequently Asked Questions - GCLC 1820 Li TSolo EINHELL

How to install the bar and saw chain?

Remove the fixing screw of the chain sprocket cover using the multifunction tool. Place the chain in the bar groove, insert the assembly onto the pruner guiding the chain around the sprocket and hooking the bar onto the tensioning bolt. Replace the cover and tighten the screw by hand. Then adjust the chain tension.

How to adjust the chain tension?

Loosen the cover fixing screw, then turn the chain tensioning screw with the 4 mm multifunction tool. Turning clockwise increases tension, counterclockwise decreases it. The tension is correct when the chain can be lifted about 2 mm from the middle of the bar. Retighten the fixing screw.

What oil to use for the chain?

Use a special chain oil for saw chains. Adjust the viscosity to ambient temperature: thin oil in winter, thicker in summer. Never operate the saw without oil.

How to check the automatic chain lubrication?

Point the bar tip towards a flat surface (board or trunk) and run the saw. If an oil trace appears, lubrication is working. Otherwise, clean the oil tank cap and the oil discharge channel.

Can I use any Power X-Change battery?

Yes, the device is compatible with all Li-ion batteries of the Einhell Power X-Change series. Use only the Power-X charger to recharge them.

How to interpret the battery charge indicator?

Press the indicator button. 3 LEDs on: battery full; 2 or 1 LED: sufficient remaining charge; 1 LED flashing: battery empty, needs charging; all LEDs flashing: temperature too low, let rest for 24 h at room temperature.

What is the safety distance from power lines?

Maintain a minimum distance of 10 meters from current-carrying lines. Danger of death from electrocution.

How to prevent kickback?

Never saw with the tip of the bar. Hold the saw with both hands, use a well-sharpened and properly tensioned chain. Always saw with the bar horizontal as much as possible.

What to do if the chain burns or smokes?

First check the oil level in the tank. If the tank is full, clean the oil tank cap and the oil discharge channel. Ensure the chain is not blunt or too tight.

How to store the pruner for winter?

Clean the device, empty the oil tank. Briefly place the bar and chain in an oil bath, then wrap them in oiled paper. Store in a dark, dry, frost-free place out of reach of children, between 5 and 30 °C.

USER MANUAL GCLC 1820 Li TSolo EINHELL

GB Original operating instructions Pole-mounted cordless pruner

9 E E E 6 11 7

Simple line drawing of a handheld device with three black buttons and a lever, labeled '10' in the top-left corner (no other text or symbols)

11 10 6 11

Black-and-white photo of a long, elongated object resembling a pole or tool, with no visible text or symbols.

13 MAX H MIN

H 9

15 K Klick

Close-up of a black electronic device with a power adapter and an arrow indicating rotation (no visible text or symbols)

17 L K M

Person wearing a dark work uniform with a black safety harness strap (no visible text or symbols)

Close-up of a person's belt buckle being adjusted, showing two white arrows indicating the buckle detail (no text or symbols present)

20 5 2 N 1

21 max. 60°

Diagram showing a wooden plank with a downward arrow indicating force or direction (no text or symbols present)

23 b a

24 1 2 3 5 4 6 7 111098 12

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols (see Fig. 24):

1. Warning!

1. Wear safety goggles, a face guard and ear protection.
2. Protect the equipment from rain and damp.
3. Maximum cutting length of the pole-mounted pruner.
4. Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables.
5. Read the directions for use before operating the equipment.
6. Wear sturdy, non-slip footwear.
7. Watch out for falling and catapulting parts.
8. Keep your distance.
9. Direction of the chain movement and teeth of the pole-mounted pruner.
10. Wear safety gloves.
11. Never place batteries in your household refuse!

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on

or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. On/Off switch
2. Switch lock

3. Shoulder strap

4. Shoulder strap attachment

5. Grip area
6. Lock nut
7. Tube with motor housing
8. Chain wheel cover
9. Oil tank cap
10. Tube with handle
11. Extension tube
12. Cutter rail
13. Saw chain
14. Cutter rail guard
15. Multifunction tool SW13 / 4mm

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Original Operating Instructions
• Safety information
• Cordless pole-mounted pruner
- Accessories

3. Intended use

The cordless pole-mounted pruner is designed for cutting off branches from trees. It is not suitable for extensive sawing work, cutting down trees or sawing any materials other than wood.

GB

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

• Cut injuries if no safety clothing is used.
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
- Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Danger!

The electric power tool generates an electromagnetic fi eld during operation. Under certain circumstances this fi eld may actively or passively impede medical implants. To reduce the risk of serious or fatal injuries, we recommend persons with medical implants to consult their doctor and the manufacturer of the medical implant prior to using the equipment.

4. Technical data

Pole-mounted pruner

Cutter bar length: 200 mm
Max. cutting length: 195 mm
Chain pitch: 3/8", 33 teeth
Chain thickness: (0.043") 1.1 mm
Sprocket wheel: 5 teeth, 3/8"
at rated rpm: 5.5 m/s
Oil tank capacity: 70 cm ^3
Net weight without accessories: ....3.4 kg

Cutting speed

Saw chain: ...... Oregon/90PX033X
Cutter bar: ...... Oregon 084LNEA041
Protection class: ....III

Important!

The equipment is supplied without batteries and without a charger is allowed to be used only with the lithium-ion batteries of the Power X-Change series!

The lithium-ion batteries of the Power X-Change series are allowed to be charged only with the Power-X charger.

Danger!

Sound and vibration

L_pA sound pressure level ..... 75.9 dB(A)
K_nA uncertainty 3 dB
L_WA sound power level 91.3 dB(A)
K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with ISO 22867.

Handle under load

Vibration emission value a_n = 1.969 m/s^2

K uncertainty = 1.5 m/s ^2

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Take appropriate measures to protect yourself against vibration stress. Take the entire work sequence into consideration including times at which the device is not working under load or is switched off. Appropriate measures include among other things regular care and maintenance of the device and tool attachments, keeping your

GB

hands warm, taking regular breaks and good work sequence planning.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
  • Wear protective gloves.

5. Before starting the equipment

Warning!

Always remove the battery pack before making adjustments to the equipment.

Danger! Do not fit the battery until the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury.

Use the cutter rail guard (Fig. 2/ Item 14)

5.1 Fitting the shoulder strap

Fig. 3: Attach the carabiner hooks (Item A) of the shoulder strap to the shoulder strap attachments (Item 4/4a).

5.2 Fitting the cutter rail and the saw chain

1. (Fig. 4) Use the SW 13 multifunction tool (Item 15) to remove the fastening screw for the chain wheel cover (Item 8).
2. Remove the chain wheel cover.
3. (Fig. 5) Lay the saw chain (Item 13) in the groove which runs around the cutter rail (Item 12).
4. (Fig. 6) Insert the cutter rail (Item 12) and the saw chain (Item 13) into the mount of the pole-mounted pruner. At the same time guide the saw chain around the chain wheel (Item B) and hook the cutter rail into the chain tensioning bolt (Item C).
5. Fit the chain wheel cover and tighten the fastening screw hand-tight.

Note: Do not fully tighten the fastening screw until after you have adjusted the chain tension (see section 5.3).

5.3 Tensioning the saw chain

1. Slacken the fastening screw for the chain wheel cover slightly (use the SW 13 multifunction tool).
2. (Fig. 7) Adjust the tension of the saw chain by using the 4mm multifunction tool (Item 15) to turn the chain tensioning screw (Item D). Turning the screw clockwise increases the chain tension, turning it counter-clockwise decreases the chain tension. The chain tension is correct when the chain can be lifted by about 2 mm at the center of the cutter bar (Fig. 8).
3. Tighten the fastening screw for the chain wheel cover (use the SW 13 multifunction tool).
   Danger! All the chain links must lie properly in the guide groove of the cutter bar.

Notes on tensioning the chain:

The saw chain must be properly tensioned to ensure safe operation. You can tell that the chain tension is perfect if the saw chain can be lifted by around 2 mm in the middle of the cutter rail (Fig. 8). As the saw chain heats up during cutting and thus changes in length, check the chain tension no less than every 10 minutes and adjust it again as required. This applies in particular to new saw chains. When you have fi nished working slacken the chain again, as the chain will shorten when it cools down. This will prevent the chain from being damaged.

5.4 Extension tube

The cordless pole-mounted pruner can be assembled either with or without the extension tube (Fig. 2 / Item 11).

5.4.1 Assembly with the extension tube

1. (Fig. 9, 10) Make sure that the mounting screws (Item E) are on the same side and insert the tube with motor housing (Item 7) into the extension tube (Item 11). Screw the two tubes together with the lock nut (Item 6)
2. (Fig. 11) Insert the extension tube (Item 11) into the tube with the handle (Item 10) and screw the two tubes together with the lock nut (Item 6).
   (Fig. 12) The pole-mounted pruner has now been screwed together.

GB

5.4.2 Assembly without the extension tube Insert the tube with the motor housing (Fig. 2 / Item 7) into the tube with the handle (Fig. 2 / Item 10) and screw the two tubes together with the union nut. The pole-mounted pruner has now been screwed together (Fig. 1).

5.5 Saw chain lubrication

Warning! Always remove the battery from the device before inspection and adjustment. Always wear protective gloves when working on the chainsaw to protect yourself against injury.

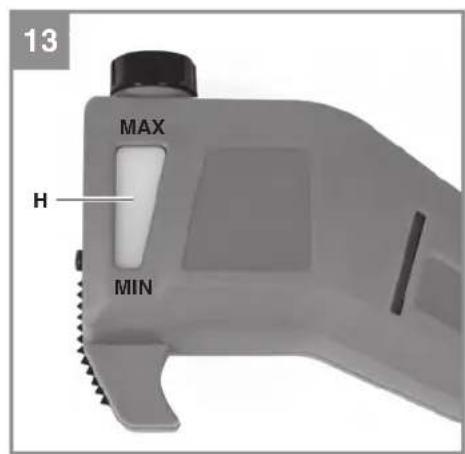

Important! (Fig. 13) Never operate the chain if it is not lubricated with saw chain oil. Use of the chainsaw without saw chain oil or if the oil level is below the viewing window will result in damage to the chainsaw!

Important! Be aware of the temperature conditions: different lubricants with completely different viscosities are required at different ambient temperatures. At lower temperatures you will need low viscosity oils in order to achieve a sufficient lubricating fi Im. However, if the same low viscosity oil is used during the summer it will become even thinner due to the ambient temperatures alone, and as a result the lubricating fi Im could break down, causing the chain to overheat and become damaged. In addition, the chain oil would burn and produce unnecessary pollutants.

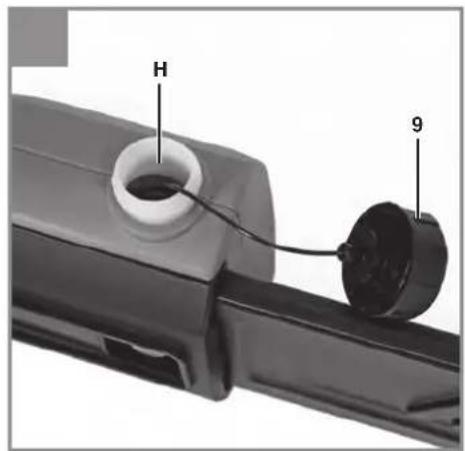

Filling the oil tank (Fig. 14)

Warning! Fill in the oil outdoors and do not smoke while fi lling.

1. Place the chainsaw on a flat surface.
2. Clean the area around the oil tank cover (Item 9) and then clean the oil tank cover.
3. Fill the tank (Item H) with saw chain oil. In the process, make sure that no dirt enters the tank, as this could cause the oil nozzle to become blocked.
4. Close the oil tank cover (Item 9).

5.6 Installing the battery

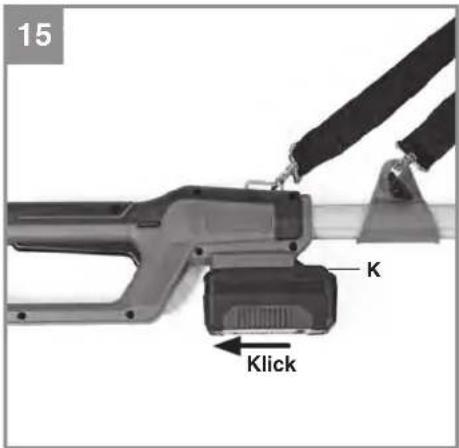

Push the battery into the battery mount provided (Fig. 15). When the battery is pushed in fully it will engage audibly. To remove the battery, press the pushlock button (Item K) and pull out the battery.

5.7 Charging the battery (Fig. 16)

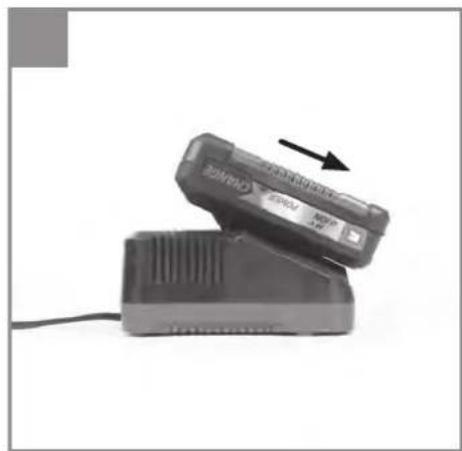

1. Take the battery pack out of the equipment. Do this by pressing the pushlock button.
2. Check that your mains voltage is the same as that marked on the rating plate of the battery

charger. Insert the power plug of the charger into the mains socket outlet. The green LED will then begin to flash.

1. Insert the battery pack into the battery charger.
2. In the section entitled „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:
- whether there is voltage at the socket outlet - whether there is good contact at the chargin contacts.

If the battery pack still fails to charge, send

• the charging unit

• and the battery pack

to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

5.8 Battery capacity indicator (Fig. 17)

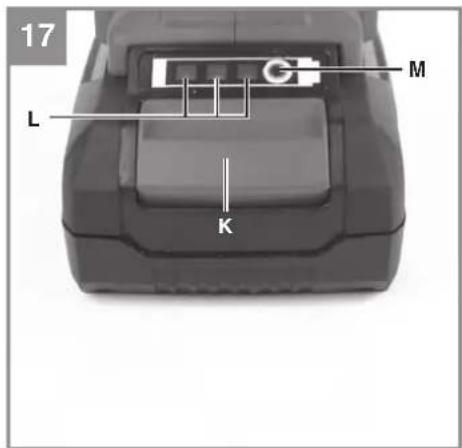

Press the button for the battery capacity indicator (M). The battery capacity indicator (L) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED fl ashes:

The battery is empty, recharge the battery.

GB

All LEDs blink:

The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

6. Operation

Please note that the statutory regulations governing noise abatement may differ from one location to another.

6.1 Using the shoulder strap

Caution! Always use the shoulder strap when working with the equipment. Always switch off the equipment before you take off the shoulder strap. Otherwise there is a risk of injury.

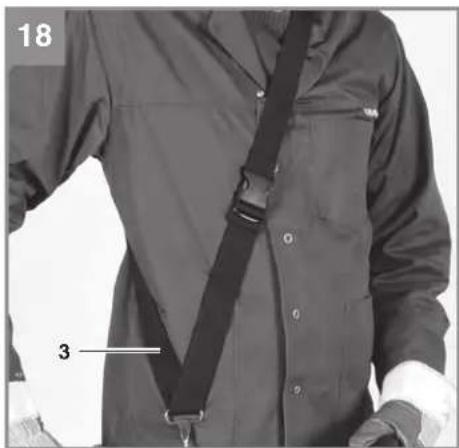

1. (Fig. 18) Slip the shoulder strap (Item 3) over your shoulder.
2. (Fig. 18) Adjust the length of the shoulder strap so that the strap attachment is at waist level.

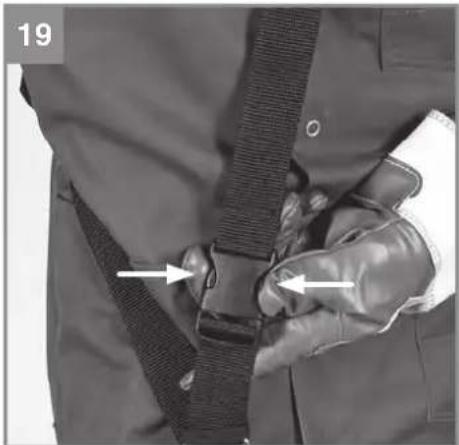

3. (Fig. 19) The shoulder strap is equipped with a buckle. Press the hooks together if you need to put down the equipment quickly.

6.2 Switching on/off

Switching on (Fig. 20)

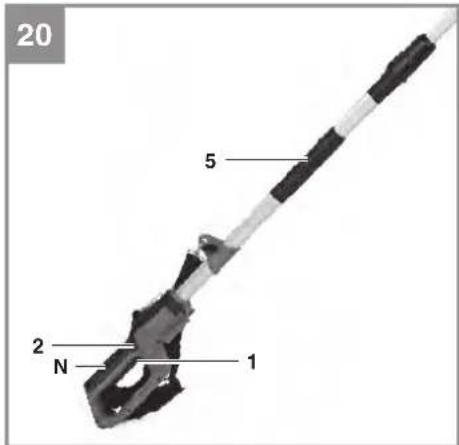

• Hold the pole-mounted pruner firmly with one hand on the handle (Item N) and the other hand on the grip area (Item 5).
• Press the switch lock (Item 2) and then press the On/ Off switch (Item 1).

Switching off (Fig. 20)

Release the On/Off switch (1).

7. Working with the pole-mounted pruner

Preparations

To ensure that you can work safely, check the following points before every use:

Condition of the chainsaw

Inspect the chainsaw before the start of work for damage to the housing, the power cable, the saw chain and the cutter rail. Never use a chainsaw which is obviously damaged.

Oil container

Fill level of the oil container. Even while working, keep checking that sufficient oil is in the system. To avoid damaging the chainsaw, never run the saw if there is no oil in the system or if the oil drops below the "min" mark. On average, a single filing will last around 15 minutes depending on the number of pauses in cutting and the loads involved.

Saw chain

Tension of the saw chain, condition of the cutting elements. The sharper the chainsaw, the easier and more controllable it is to operate the chainsaw. The same also applies to the chain tension. Also while working you should check the chain tension no less than every 10 minutes in order to increase your safety. New saw chains in particular often tend to expand more.

Safety clothing

Always wear appropriate tight-fi tting safety clothing like special trousers which protect against cuts, protective gloves and safety shoes.

Hearing protection and protective goggles.

Wear a protective helmet with integral face and hearing protection. This will offer protection against falling branches and any branches if they spring back.

Safe working

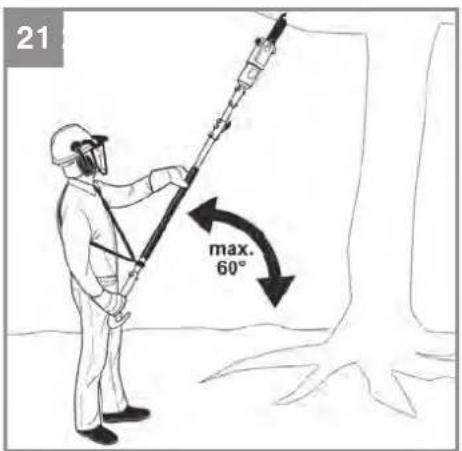

• To ensure that you can work in safety you must use the equipment at a working angle of max. 60°.
• Never stand under the branch you want to saw.
  • Use special caution when working with branches under tension and splintered wood.
• Possible risk of injury caused by falling branches and catapulting pieces of wood.
• When the equipment is in operation keep other persons and animals away from the danger zone.
• The equipment is not protected from electric shock through contact with high-voltage cables. Keep a minimum distance of 10 m from live cables. Electric shock can cause fatal injury.

GB

• When working on slopes always stand to the upper or left or right side of the branch you wish to cut.
• Hold the equipment as close as possible to your body. This will help you to keep your balance.

Cutting techniques

• When removing branches, hold the equipment at an angle of max. 60° to the horizontal to avoid being hit by a falling branch (Fig. 21).
• Start with the bottom branches on the tree. This will make it easier for the cut branches to drop.
• After completing a cut, the weight of the saw will abruptly increase for the operator as the saw is no longer supported by the branch. This can result in you losing control over the saw.
• Remove the saw from the cut only with the saw chain still running. This will prevent the saw from getting jammed.
  • Never cut with the tip of the saw.
• Never cut into the bulging branch collar. This will prevent the tree from healing.

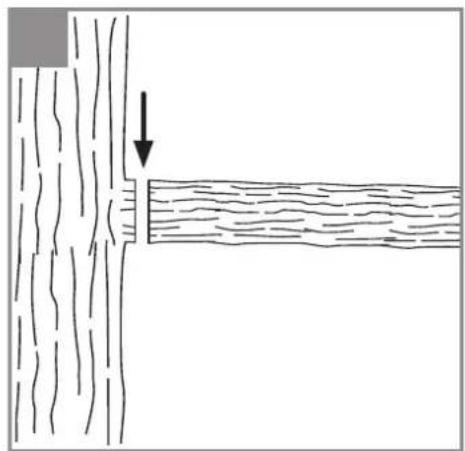

Sawing off smaller branches (Fig. 22):

Place the contact surface of the saw onto the branch. This will prevent the saw from making jerky movements when you begin a cut. Exerting slight pressure, guide the saw from the top to the bottom through the branch.

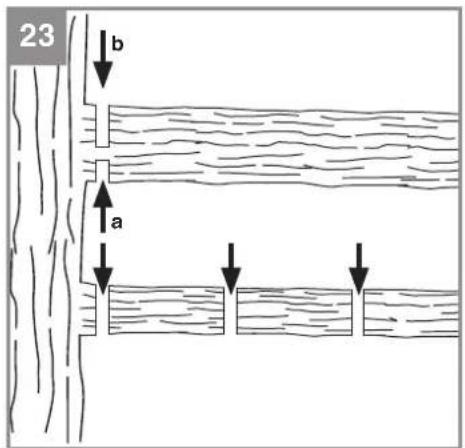

Sawing off larger and longer branches (Fig. 23):

Carry out a relief cut when working on larger branches.

Start by sawing through 1/3 of the branch diameter (a) from the bottom to the top with the top side of the cutter rail. Then saw towards the first cut (b) from the top to the bottom with the bottom side of the cutter rail.

Saw off longer branches in several steps to keep control over the impact location.

Kick-back!

The term “kickback” describes what happens when the running chainsaw suddenly kicks upward and backward. Usually, this is caused by contact between the tip of the cutter rail and the workpiece or the saw chain becoming trapped. In the event of kickback, large forces occur suddenly and violently. As a result, the chainsaw usually reacts uncontrollably. This can often result in very serious injuries to the worker or persons in the vicinity. The risk of kickback is at its greatest when the saw is positioned for a cut in the region of the tip of the cutter rail, as the leverage effect is greatest there. It is therefore safest to position the saw as flat as possible.

Warning!

• Make sure that the chain tension is always correctly adjusted.
- Only use a chainsaw if it is in perfect working order.
- Only work with a saw chain that has been properly sharpened in accordance with the instructions.
- Never cut with the upper edge or the tip of the cutter rail.
• Always hold the chainsaw firmly with both hands.

Cutting wood which is under tension

Special care is required when cutting wood which is under tension. Wood which is under tension from which it is released by cutting may in some cases react completely unpredictably and uncontrollably. In the worst case this could result in extremely severe or even fatal injuries. This type of work must only be performed by persons who have been specially trained.

8. Cleaning, maintenance and ordering of spare parts

Danger!

• Remove the battery pack before doing any cleaning and maintenance work.
• Never immerse the equipment in water or other liquids in order to clean it.

8.1 Cleaning

• Regularly clean the clamping mechanism by blowing it out with compressed air or cleaning it with a brush. Do not use tools for cleaning.
- Keep the handles free of grease so that you can maintain a firm grip.
- Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid.

8.2 Maintenance

Use only saw chains and cutter rails approved by the manufacturer. These are listed in section 4 "Technical data" or are available as accessories (see section 8.3 "Ordering spare parts"). The use of spare parts which are not approved by the ma-

GB

nufacturer could result in very serious injuries.

Replacing the saw chain and cutter rail

The cutter rail needs to be replaced if the guide groove of the cutter rail is worn; Proceed as described in the section "Assembly of the cutter rail and the saw chain".

Checking the automatic chain lubrication

You should check the operation of the automatic chain lubrication system on a regular basis in order to guard against overheating and the associated damage to the cutter rail and the saw chain. To do this, point the tip of the cutter rail towards a smooth surface (board, section of a cut tree) and allow the chainsaw to run. If an increasing oil trace becomes evident during this process then the automatic chain lubrication system is working properly. If no clear oil trace is evident then please refer to the corresponding instructions in "Troubleshooting". If the information contained there still fails to remedy the situation then please contact our service department or another similarly qualified workshop.

Notice! Do not actually touch the surface with the tip of the cutter rail when performing this test. Keep a safe distance (approx. 20 cm).

Sharpening the saw chain

Eff ective working with the chainsaw is only possible if the saw chain is in good condition and sharp. This also reduces the risk of kickback. The saw chain can be re-sharpened by any dealer. Do not attempt to sharpen the saw chain yourself unless you have the necessary special tools and experience.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.Einhell-Service.com

Spare cutter rail: 45.001.17

Spare chain: 45.001.87

9. Storage

• Clean the pole-mounted pruner and carry out its maintenance before you put it into storage.
• If you are not going to use the cordless pole-mounted pruner for an extended period of time, remove the chain oil from the tank. Briefly immerse the saw chain and the cutter bar into an oil bath and then wrap them in oil paper.
• Store the equipment and its accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ .
  • Use the cutter rail guard.

10. Transport

Secure the equipment during transportation in order to prevent damage or injuries. Use the cutter rail guard.

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

12. Troubleshooting guide

Caution!

Before troubleshooting, switch off the equipment and remove the battery.

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
The equipment does not work	-Batteryempty- Battery is not correctly inserted	-Chargebattery- Remove battery and insert again
Equipment operates intermittently	- Loose connection (external)- Loose connection (internal)- ON/OFF switch defective	- Consult a specialist workshop.- Consult a specialist workshop.- Consult a specialist workshop.
Saw chain is dry - No oil in the tank- Vent in the oil tank cap is blocked- Oil outlet is blocked	- Top up with oil- Clean the oil tank cap- Clear the oil outlet
Chain/guide bar is hot	- No oil in the tank- Vent in the oil tank cap is blocked- Oil outlet is blocked- Chain is blunt- Chain is overtensioned	- Top up with oil- Clean the oil tank cap- Clear the oil outlet- Re-sharpen or replace the chain- Check the chain tension
Chainsaw judders, vibrates or does not saw properly	- Chain is undertensioned- Chain is blunt- Chain is worn- Saw teeth point in the wrong direction	- Adjust the chain tension- Re-sharpen or replace the chain- Replace the chain- Refit the chain with the teeth facing in the correct direction

GB

13. Charger indicator

Indicator status Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger.Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge.
Off	On	The battery is charged and ready for use. (READY TO GO)The unit then changes over to gentle charging mode until the battery is fully charged.To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer.Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more time. The reasons can be:- The rechargeable battery has not been used for a very long time.- The battery temperature is outside the ideal range.Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ ).Action:Remove the battery pack and keep it at room temperature (approx. 20^ ) for one day .

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is disposed of.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Cutter bar, Battery
Consumables* Saw chain
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Zaagketting: ...... Oregon/90PX033X

Zwaard: ...... Oregon 084LNEA041

Bescherming klasse: ....III

Opgelet!

Negotovost K _WA ......3 dB

Lanac pile: ...... Oregon/90PX033X

Sablja:....Oregon 084LNEA041

Klasa zaštite: ....III

Pozor!

Uređaj se isporučuje bez baterije i punjača i smije se koristiti samo s Li-lon baterijama serije Power X-Change!

Li-Ion baterije serije Power X-Change smiju se puniti samo s Power-X punjačem.

Opasnost!

Buka i vibracije

Razina zvučnog tlaka L _pA 75,9 dB (A)

Nesigurnost K_nA 3 dB

Intenzitet buke L_WA ..... 91,3 dB (A)

Nesigurnost K_WA .....3 dB

Nosite zaštitu za sluh.

Sapma K _WA ....3dB

Kulaklık takın.

Subject to change without notice

Archive-File/Record: NAPR027426

Documents registrar: Josef Landauer

Wiesenweg 22, D-94405 Landau/Isar

* SH Pole-mounted cordless ruber - P Porche-tieleguosa se senti - PL - Potatore telescopio a biotera - OK/AKI-Keet-sangas - 5 Batterlertrden stemkristare - CZ Akumulatorniato protezavede plc - SK Akumulatorosi ovetovrakta plc - NL Axca hooqansojor - 6 Portige de posar con betaria - FIN Akkulyttitinen pyystkarsintassna - SLO Akumulatorski obvejvelnim - H Akics-magassagi agryssa - RO Föristirlu cu brat telescopic u acumulator. GR Khaokohöftrino jyväny klativin, μt unipoma. P Podotora-desamadora de haste som fima. HR/HII Akumulatoriska teleskopica pila za rozgriz granad drivesa - SP Akumulatoriska teleskopica restera a rezanja grana drivesa. PL Akumulatoruva planka na wayesignku - TI AKuli yuksek da busitla. NOS Akumulatornortii biyostropore - EE teleskoopaviranga sku-keessag - LY Ar akumulatori daribinna zegrielze - LT Stiebrie skumulatorinis genetivus - BG Akumulatoren triptan kina as sionos konju - UKR Akumistorinii viscosopia - MK Brixonoul anterat za cuneyle rankoni na deterrini - NO Bacteridewal kjaedong - IS Hielski-kejougou

EH 03/2022 (02)
