USER MANUAL SLK10ABT IBIZA SOUND

https://ibizashop.eu/

WITH USB, BLUETOOTH, SD & TWS

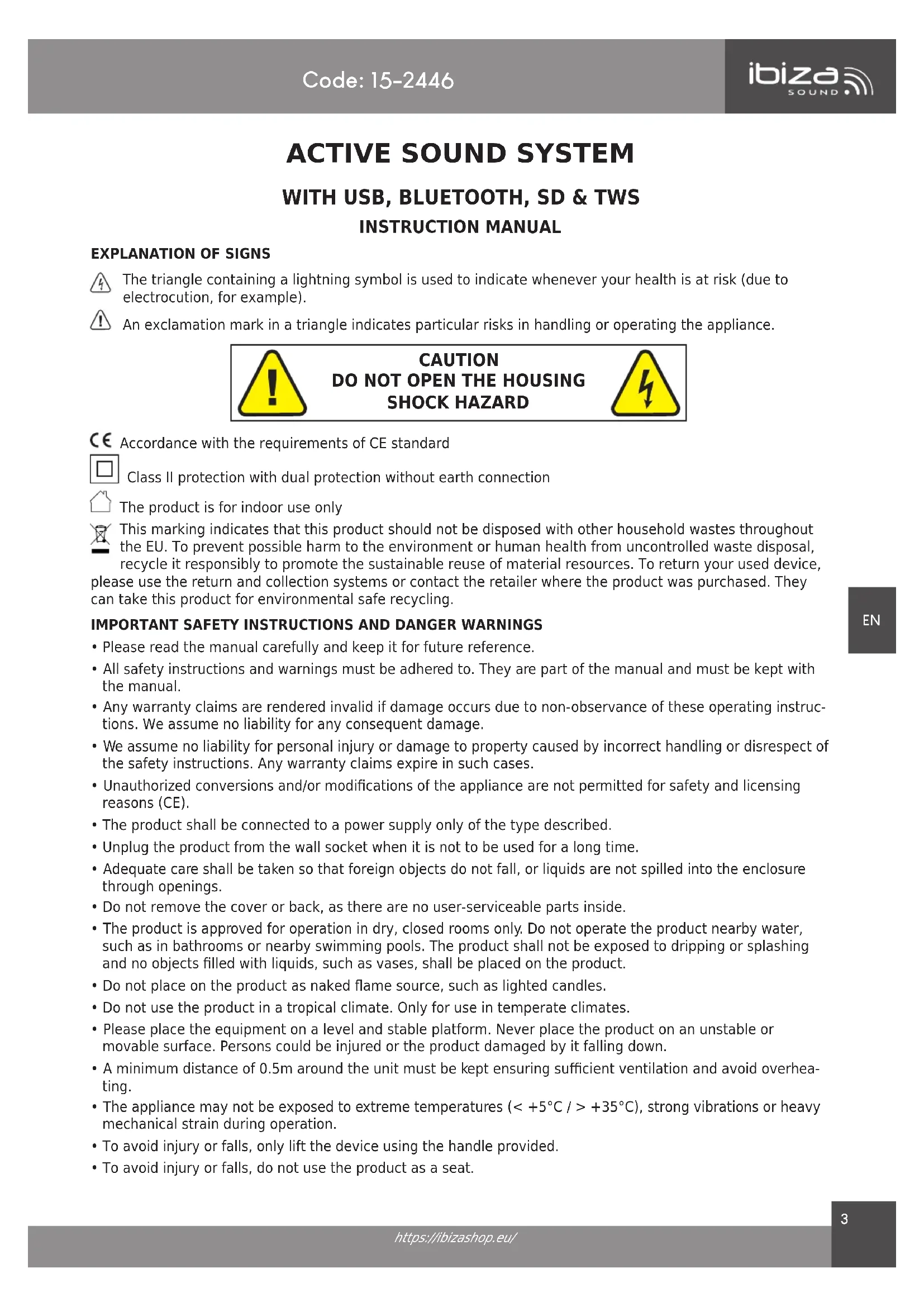

INSTRUCTION MANUAL EXPLANATION OF SIGNSThe triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.Accordance with the requirements of CE standardClass II protection with dual protection without earth connectionThe product is for indoor use onlyThis marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS • Please read the manual carefully and keep it for future reference.

• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any warranty claims are rendered invalid if damage occurs due to non-observance of these operating instruc- tions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any warranty claims expire in such cases.
• Unauthorized conversions and/or modi󰊟cations of the appliance are not permitted for safety and licensing reasons (CE).• The product shall be connected to a power supply only of the type described.• Unplug the product from the wall socket when it is not to be used for a long time.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.• Do not remove the cover or back, as there are no user-serviceable parts inside.
• The product is approved for operation in dry, closed rooms only. Do not operate the product nearby water, such as in bathrooms or nearby swimming pools. The product shall not be exposed to dripping or splashing and no objects 󰊟lled with liquids, such as vases, shall be placed on the product. • Do not place on the product as naked 󰊠ame source, such as lighted candles.• Do not use the product in a tropical climate. Only for use in temperate climates.
• Please place the equipment on a level and stable platform. Never place the product on an unstable or movable surface. Persons could be injured or the product damaged by it falling down.
• A minimum distance of 0.5m around the unit must be kept ensuring su󰊡cient ventilation and avoid overhea- ting.
• The appliance may not be exposed to extreme temperatures (< +5°C / > +35°C), strong vibrations or heavy mechanical strain during operation.• To avoid injury or falls, only lift the device using the handle provided.• To avoid injury or falls, do not use the product as a seat. CAUTION

• To avoid hearing loss, do not expose yourself to high volume levels for long periods of time.

• The device complies with current European legislation regarding human exposure to electromagnetic 󰊟elds. DISCONNECT DEVICE: The power outlet must be installed near the equipment and be easily accessible. SONIC GUARD The boxes of the SLKA-BT series contain Sonic Guard circuitry that protects the tweeter against damages due to exceptional power peaks from the system. Sonic Guard compresses slightly the signal en deviates the excess power from the compression driver. OPERATION Prior to switching the unit on, turn down the volume to the minimum. Plug the supplied mains lead into the AC input socket on the rear side. Make sure that the supplied mains vol- tage is 220-240V~50Hz/60Hz. Set the I/O switch on the rear panel to “I”. The switch and the blue LED on the front panel light up. Insert an SD card or USB stick in the appropriate slot. The LCD lights up. Make the settings according to your requirements via the controls on the rear panel or the supplied remote control.

1. Switch on power. The LED indicator (19) lights up. 2. Insert a USB stick (2) or an SD card (3) into the relevant input 3. Select USB via the MODE button (4) 4. Select a title via the or (5) buttons and press ▶ǁ (7)

TO PLAY LINE IN MUSIC

1. Insert an RCA plug into the LINE IN sockets (14) or a jack plug into the LINE/MIC inputs (13). 2. Switch the LINE/MIC selector switch (20) to LINE if you use the LINE inputs, or to MIC if you use the MIC inputs 3. Adjust the volume (8 & 12) MIC INPUTS If you connect one or two microphones to the MIC inputs (13), set the selector switch (20) to MIC. Control the microphone volume with mic volume control (12). REC FUNCTION Disconnect the speakerbox from your Bluetooth device. Insert a USB stick or SD card. The speaker will automa- tically switch into USB/SD mode. Connect now the speakerbox to your Bluetooth device and start playing your music. Short press the REC button to record your voice and the music on the inserted USB stick or SD card. Press again to stop recording. Keep the REC button pressed to play the recorded 󰊟le.

USE OF THE BLUETOOTH FUNCTION

1. Press the MODE button until BLUETOOTH displays. The BLUETOOTH function is now activated. 2. Activate the Bluetooth function on your smartphone or any other tablet PC. 3. The product appears under the name « IBIZA-PORT » and is ready to be connected to your equipment. 4. Now play your music via the portable sound system. Set the volume via the Master volume button. 5. Don’t set the volume of pour smartphone or tablet PC too high. Do not exceed ¾ of the total volume to avoid distortion.

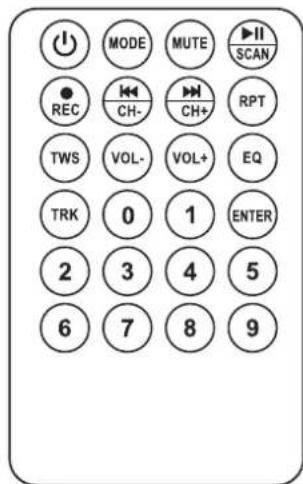

https://ibizashop.eu/ 16. ON/OFF switch 17. Speaker output 18. Mains input 19. Power indicator 20. Line / Mic input selector REMOTE CONTROL ON/OFF button MODE: Press until the desired operating mode is displayed MUTE: Sound stop ▶ǁ Play/pause: Press to play a track, press to pause. In FM mode: Search for radio stations REC: Press to start, stop and play a recorded 󰊟le /CH-: back to the previous track. In FM mode: back to the previous radio station /CH+: Go to the next track. In FM mode: Go to the next radio station RPT: Repeat one/repeat all tracks VOL-: Reduce the volume Vol+: Increase the volume EQ: Select among several sound modes (Rock, Pop, Jazz, Classic, Flat) TRK: Track selection. Press the TRK button, select a track via the number keys (0-9) and press ENTER to con󰊟rm Number buttons: Press the number of the desired track ENTER: Once you have made your selection, press ENTER to con󰊟rm. RECOMMENDATIONS FOR THE BATTERY IN THE REMOTE CONTROL This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate collection points for recycling. ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

WARNING: Do not swallow the battery. Danger of chemical burns.
