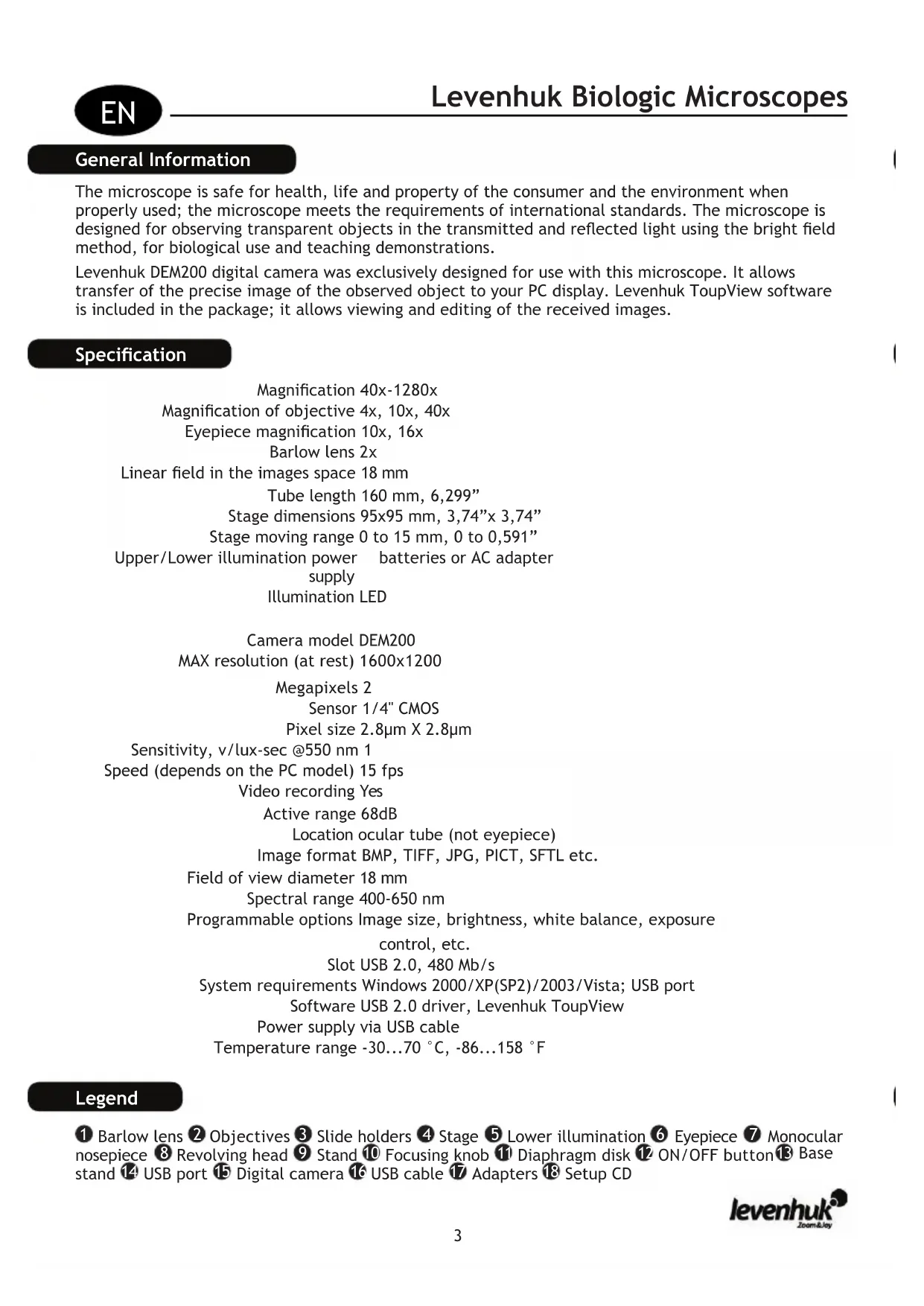

General Information The microscope is safe for health, life and property of the consumer and the environment when properly used; the microscope meets the requirements of international standards. The microscope is designed for observing transparent objects in the transmitted and reected light using the bright eld method, for biological use and teaching demonstrations. Levenhuk DEM200 digital camera was exclusively designed for use with this microscope. It allows transfer of the precise image of the observed object to your PC display. Levenhuk ToupView software is included in the package; it allows viewing and editing of the received images. Specication Magnication 40x-1280x Magnication of objective 4x, 10x, 40x Eyepiece magnication 10x, 16х Barlow lens 2x Linear eld in the images space 18 mm Tube length 160 mm, 6,299” Stage dimensions 95x95 mm, 3,74”x 3,74” Stage moving range 0 to 15 mm, 0 to 0,591” Upper/Lower illumination power supply batteries or AC adapter Illumination LED Camera model DEM200 MAX resolution (at rest) 1600x1200 Megapixels 2 Sensor 1/4" CMOS Pixel size 2.8μm X 2.8μm Sensitivity, v/lux-sec @550 nm 1 Speed (depends on the PC model) 15 fps Video recording Yes Active range 68dB Location ocular tube (not eyepiece) Image format BMP, TIFF, JPG, PICT, SFTL etc. Field of view diameter 18 mm Spectral range 400-650 nm Programmable options Image size, brightness, white balance, exposure control, etc. Slot USB 2.0, 480 Mb/s System requirements Windows 2000/XP(SP2)/2003/Vista; USB port Software USB 2.0 driver, Levenhuk ToupView Power supply via USB cable Temperature range -30...70 °C, -86...158 °F

Setup CD Legend4 Package Levenhuk 40L NG Microscope unit with stage, revolving head for three objectives, focusing mechanism, condenser lens and illumination 1 Pc Monocular nosepiece 1 Pc Objectives: 4x, 10x and 40x 1 Pc each Eyepieces: 10x; 16x 1 Pc each Barlow lens 1 Pc Removable illumination 1 Pc AC adapter 1 Pc Carrying case 1 Pc User manual and warranty slip 1 Pc each Levenhuk 50L NG In addition to Levenhuk 40L NG: Levenhuk K50 experiments kit: Prepared slides 5 Pcs Clean slides 5 Pcs Flasks: with pitch, sea salt, yeast, brine shrimp 1 Pc each Brine shrimp hatchery 1 Pc Microtome 1 Pc Forceps 1 Pc "Attractive microscope. Scrutinizing the microcosm" user guide 1 Pc Levenhuk D50L NG In addition to Levenhuk 50L NG: Levenhuk DEM200 digital camera: Digital camera 1 Pc USB cable 1 Pc 2 adapters for dierent microscopes 1 Pc SETUP CD Levenhuk ToupView (auto setup guide, drivers, soft- ware for image visualization, xation and processing) 1 Pc Focusing mechanism located on the stand allows vertical movement of the stage. The stage is moved by focusing knob. The total focusing value is at least 15 mm. Slide holders are xed on the stage surface. Diaphragm disk is attached to the lower part of the stage. Revolving head holds the objectives; the objectives can be replaced by rotating the ring until it reach- es the xed position. The objectives included in the package are designed for tube length 160 mm. Objectives: Linear magnication Numerical aperture 4 0,1 10 0,25 40 0,65 The 40x objective is equipped with a spring casing, which protects the frontal lens from contacting the specimen during the focus adjusting. Modules description and usage5 Camera The digital camera was exclusively designed for use with this microscope. The object image can be transferred to your PC display in its actual colors and stored in the PC mem- ory. Levenhuk ToupView software is included in the package; it allows viewing and editing of the received images. Supported le formats: *.bmp, *.jpg, *.jpeg, *.png, *.tif, *.ti, *.gif, *.psd, *.ico, *.emf, etc. The USB cable is used as camera power supply and for connection with PC. Compatible OS: Windows 2000/XP/2003/Vista. Maintenance and care Using the microscope Unpacking and getting started

Unpack the microscope.

Make sure all the parts are present.

Move the stage to the lowermost position using the focusing knob.

Press the ON/OFF button located on the back side of the microscope base next to the power cord to turn the microscope on. Focusing

Place an object on the stage and x it with the slide holders.

Rotating the revolving head, switch magnication to the 4x objective.

Move the object to x its thickest part exactly under the objective.

Rotate the focusing knob to raise the stage until the objective is close to the specimen; keep check- ing the distance between the objective and the object to avoid their contact.

Look through the eyepiece installed in the monocular head and lower the stage slowly rotating the focusing knob until you see the object image. Such adjustment protects the frontal lens from contacting the object when you use objectives of other magnications; though, slight refocusing might be required. Selecting the objective We recommend that you start your observations with the lowest power objective; it helps to select a segment for the detailed research. Once the segment is selected, you should center its image in the microscope’s eld of view. This operation should be performed as precisely as possible, otherwise the required segment might fail to appear in the eld of view of the higher power objectives.

The microscope is designed for use in macroclimatic conditions with temperate or frigid climate, in the laboratories at temperatures from 10 to 35 °C (50 to 95 °F) and the relative air humidity up to 80% at 25 °C (77 °F).

The room should be free from dust, acid or alkali vapors, evaporations of other active substances.

The microscope should be used in the room protected from shocks or vibrations.

High temperatures and humidity may cause formation of mold or moisture condensation on the optical and mechanical parts of the microscope, which can negatively aect its operation.

When not in use the microscope should be covered with a special case.

The microscope is designed for use in macroclimatic conditions with temperate or frigid climate, in the laboratories at temperatures from 10 to 35 °C (50 to 95 °F) and the relative air humidity up to 80% at 25 °C (77 °F).6

The room should be free from dust, acid or alkali vapors, evaporations of other active substances.

The microscope should be used in the room protected from shocks or vibrations.

High temperatures and humidity may cause formation of mold or moisture condensation on the optical and mechanical parts of the microscope, which can negatively aect its operation.

When not in use the microscope should be covered with a special case.

Metallic parts should be kept clean. Special attention should be paid to maintaining cleanliness of the optics (especially objectives and eyepieces).

To maintain the microscope, regularly remove dust o it, then clean it with a special Levenhuk cleaning cloth slightly moistened with Levenhuk cleaning spray, and afterwards wipe it with a dry soft clean tissue or cloth.

When dust is on the objective lens, which is deep in the casing, carefully wipe the lens with a clean Q-tip slightly moistened with ether or spirits mixture.

If you noticed dust inside the objective or lm on the inside of the lenses, you should send the objective for repair.

The noncontact Levenhuk compressed air duster for optics ensures the best cleaning results; it removes dust and dirt with air blast.

It is prohibited to disassemble objectives and eyepieces.

Never look at the sources of bright light or laser through the microscope: it will cause DAMAGE TO YOUR EYES!

Do not disassemble the microscope or camera on your own.

Keep the microscope and camera away from condensation; do not use them in rainy weather.

Keep the microscope away from shock or excessive pressure.

Do not overtighten the locking screws.

Keep the microscope and camera away from hostile environment, home and car heaters, incan- descent lamps or open ame.

When cleaning any optical surfaces, rst blow dust or loose particles o the surface or wipe them o with a soft brush. Then wipe the lens with a soft clean tissue slightly moistened with spirits or ether.
