Product type	Vacuum cleaner
Brand	Rowenta
Model	City Space Cyclonic RO2522
Separation technology	Cyclonic
Floor types	All floors (carpets, rugs, parquet, hard floors)
Adjustable power	Yes, mechanical slider on the handle
Filtration system	HEPA filter, microfilter, black foam filter (washable)
Included accessories	All-floor nozzle, crevice tool convertible to brush, hose with handle, telescopic tube or two tubes, upholstery nozzle*, turbo brush*
Storage	Vertical and horizontal parking, carrying handle
Cord rewinder	Yes, pedal
Foam filter maintenance	Wash with clean water after each emptying, dry for 12 hours
HEPA filter maintenance	Clean monthly under lukewarm water, dry for 24 hours
HEPA cassette replacement	Every 6 months (ref. ZR0056 01)
Microfilter replacement	Every 6 months (ref. ZR0056 01)
Safety	Thermal protection, automatic shutdown in case of overheating
Usage	Household only
After-sales service	Rowenta Authorized Service Centers

Frequently Asked Questions - City Space Cyclonic RO2522 ROWENTA

How to assemble the vacuum cleaner?

Firmly push the hose into the suction opening and turn until it locks. If your vacuum cleaner is equipped with the telescopic tube, push the adjustment button forward to adjust the length. Attach the desired accessory to the end of the tube or handle.

How to adjust the suction power?

Use the mechanical power slider on the handle: open the flap to reduce power on delicate surfaces.

How to empty the dust container?

Turn off and unplug the vacuum cleaner. Remove the hose, take out the dust container by pulling the handle. Press the opening lever and remove the cover. Empty the container over a trash can. Replace the cover by aligning the tabs into the slots, close and reinsert the container.

How to clean the black foam filter?

After each emptying, remove the HEPA cassette from the dust container by pulling the clips. Separate the black foam filter from the HEPA filter. Wash the foam filter under clean water, wring it out like a sponge and let it dry for 12 hours before reassembling.

How to clean the HEPA filter?

Every month, separate the HEPA filter from the foam filter. Tap it over a trash can, then rinse it under lukewarm water. Let it dry completely for 24 hours before reassembling and replacing.

When to replace the HEPA cassette and microfilter?

Replace the HEPA cassette (ref. ZR0056 01) every 6 months. Also replace the microfilter (same reference) every 6 months. Use only genuine Rowenta parts.

What to do if the vacuum cleaner does not suck well or makes noise?

Check if an accessory or the hose is blocked and unblock it. The dust container may be full: empty it. The filtration system may be saturated: clean the HEPA cassette. Make sure the dust container is properly positioned and the power slider is closed.

What to do if the vacuum cleaner stops during use?

The thermal safety has activated. Check that the tube and hose are not blocked and that the filters are not saturated. Let the appliance cool down for 30 minutes before restarting. If the problem persists, contact a Rowenta Authorized Service Center.

How to store the vacuum cleaner?

After use, turn off and unplug the vacuum cleaner. Wind the cord by pressing the rewinder pedal. Place the nozzle in storage position: vertically under the appliance or horizontally at the back. Use the carrying handle to move it.

Where to buy replacement filters?

Replacement filters (HEPA cassette and microfilter, ref. ZR0056 01) are available from your usual retailer or at Rowenta Authorized Service Centers. Use only original accessories.

USER MANUAL City Space Cyclonic RO2522 ROWENTA

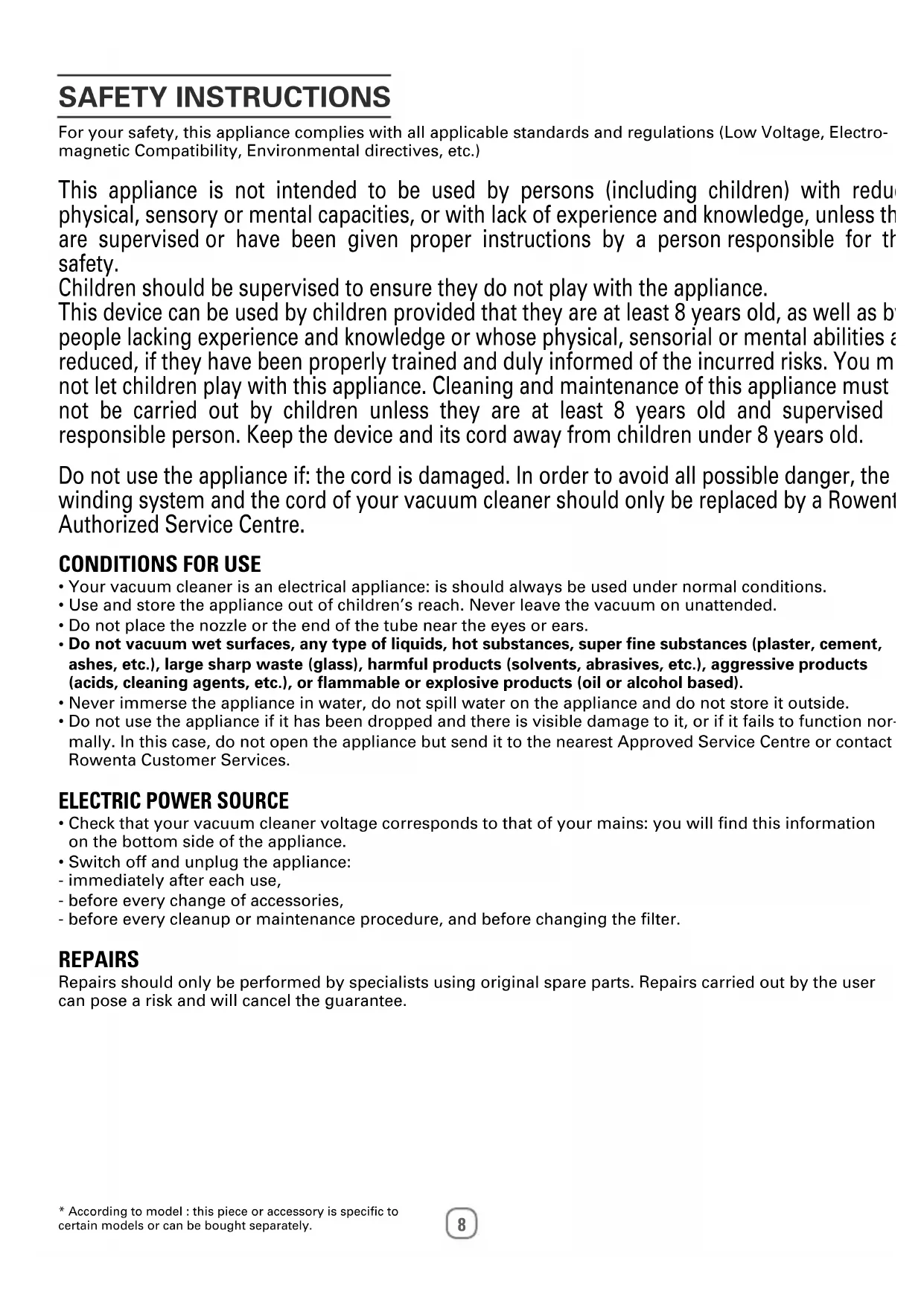

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives, etc.)

This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities, or with lack of experience and knowledge, unless they are supervised or have been given proper instructions by a person responsible for the safety.

Children should be supervised to ensure they do not play with the appliance.

This device can be used by children provided that they are at least 8 years old, as well as by people lacking experience and knowledge or whose physical, sensorial or mental abilities are reduced, if they have been properly trained and duly informed of the incurred risks. You may not let children play with this appliance. Cleaning and maintenance of this appliance must not be carried out by children unless they are at least 8 years old and supervised responsible person. Keep the device and its cord away from children under 8 years old.

Do not use the appliance if: the cord is damaged. In order to avoid all possible danger, the winding system and the cord of your vacuum cleaner should only be replaced by a Rowent Authorized Service Centre.

CONDITIONS FOR USE

• Your vacuum cleaner is an electrical appliance: is should always be used under normal conditions.
• Use and store the appliance out of children's reach. Never leave the vacuum on unattended.
• Do not place the nozzle or the end of the tube near the eyes or ears.
• Do not vacuum wet surfaces, any type of liquids, hot substances, super fine substances (plaster, cement, ashes, etc.), large sharp waste (glass), harmful products (solvents, abrasives, etc.), aggressive products (acids, cleaning agents, etc.), or flammable or explosive products (oil or alcohol based).
• Never immerse the appliance in water, do not spill water on the appliance and do not store it outside.
• Do not use the appliance if it has been dropped and there is visible damage to it, or if it fails to function normally. In this case, do not open the appliance but send it to the nearest Approved Service Centre or contact Rowenta Customer Services.

ELECTRIC POWER SOURCE

• Check that your vacuum cleaner voltage corresponds to that of your mains: you will find this information on the bottom side of the appliance.
• Switch off and unplug the appliance:
• immediately after each use,
• before every change of accessories,
• before every cleanup or maintenance procedure, and before changing the filter.

REPAIRS

Repairs should only be performed by specialists using original spare parts. Repairs carried out by the user can pose a risk and will cancel the guarantee.

2.DESCRIPTION

1. a - Horizontal parking

b - Vertical parking

1. ON/OFF pedal

2. Cord winding pedal

3. a - Wheel

b - Multidirectional wheel

1. Air outlet grill

2. Transport handle

3. Dust tray compartment

4. a - Microfilter (ref ZR0056 01)

b - Motor protection grill

1. Microfilter compartment

2. Vacuum opening

3. Storage compartment for crevice/brush nozzle

4. Power cord

5. Dust tray

a - Dust tray handle

b-Lid

c-Lid opening lever

d - Extraction clips for the HEPA filter case

1. HEPA filter case (ref. ZR0056 01):

a - Black foam filter (14a bis : replacement black foam filter)

b - HEPA filter

1. Air/dust separator

2. Air/dust separator base

3. Air/dust separator base bolt

18.3 in 1 accessory* (ref. ZR0056 01):

a - Air/dust separator cleaning brush

b - HEPA filter scraper + unscrewing accessory for the air/dust separator

Standard accessories :

1. Tube with grip and mechanical power control
2. Telescopic tube*
3. Tubes*
4. Tube extension*
5. Multi-surface nozzle
6. Parquet nozzle*
7. Unholstery nozzle*
8. Crevice/brush nozzle
9. Turbobrush*
10. Mini turbobrush*

3. BEFORE FIRST USE

UNPACKING

• Unpack your appliance and remove all possible labels.
• Keep your guarantee form and read the instructions carefully before using your appliance for the first time.

SAFETY PRECAUTIONS

Each time before use, unwind the power cord completely.
- Do not jam it or allow it to rub against sharp edges.

• If you need to use an extension cord, make sure that it is in perfect condition and that it corresponds to your mains voltage.
• Your vacuum cleaner is fitted with a safety device which prevents the motor from overheating. In certain cases (when used on chairs, sofas, etc.) the safety device may be tripped and the appliance may make an unusual noise that is not serious.
• Do not move the vacuum cleaner by pulling on the power cord, the appliance must only be moved using its transport handle.
• Do not use the power cord to lift the appliance.
• Never unplug the appliance by pulling on the power cord.
• Never activate the vacuum cleaner without its dust tray (13) or without its HEPA filter case (14) (black foam filter (14a) and HEPA filter (14b)).
• Use original Rowenta filters only.
• Use original Rowenta accessories only.
• If you have any difficulties in finding accessories or filters for this vacuum cleaner, contact the Rowenta Customer Service.
• Switch off and unplug your vacuum cleaner each time after use.
• Always switch off and unplug your vacuum cleaner before maintenance or cleaning.

4. USE

ASSEMBLING THE APPLIANCE

• Firmly place the tube (19) in the vacuum opening (10) and turn to screw on - fig.1. To withdraw the tube, turn in the opposite sense and pull - fig.2.
• If your vacuum cleaner is equipped with a telescopic tube (20): push the adjustment button forward, pull out the tube as much as necessary and then release the button to block it - fig. 3. Otherwise, assemble both tubes (21) by turning them slightly - fig. 4.
• Attach the tube extension* (22) if necessary.
• Fit the corresponding accessory to the end of the tube or butt:

WARNING: Always switch off and unplug your vacuum cleaner before changing any accessories.

• For rugs and carpets: use the multi-surface nozzle (23) in the retracted brush position (fig. 5) or the Turbo-brush (fibers and animal hairs) (27^ or 28^*)
• For wood and hard floors: use the multi-surface nozzle (23) in the exterior brush position (fig. 6) or, for best results, use the parquet nozzle* (24).
• For corners and hard to reach spots: use the crevice/brush nozzle (26) in the flat position.
• For upholstery and delicate surfaces: use the brush side of the crevice/brush nozzle (26) or the upholstery nozzle* (25).

PLUGING IN THE POWER CORD AND STARTING THE APPLIANCE

• Unwind the power cord completely, plug in your vacuum cleaner (fig. 7) and press the ON/OFF pedal. On/Off (2) - fig. 8.
• Set the suction power using the manual power control located on the grip: increase the control opening in order to manually diminish the vacuuming power, for example on fragile surfaces... - fig. 9.

STORING AND TRANSPORTING THE APPLIANCE

After use, switch off your vacuum cleaner by pressing the ON/OFF pedal (2) -fig. 8- and unplug it (fig. 10).
- Rewind the power cord by pressing the power cord rewind pedal (3) - fig. 11.
- In the vertical position, place the nozzle (23) in its compartment under the appliance (1b) - fig. 12.
- In the horizontal position, place the nozzle (23) in its compartment at the back of the appliance (1b) - fig. 13.
- Transport your vacuum cleaner easily thanks to its transport handle (6).

5. CLEANING AND MAINTENANCE

Important: Always switch off and unplug your vacuum cleaner before maintenance or cleaning.

REMOVE THE DUST TRAY (13)

• Withdraw the tube (19) from the vacuum opening (10) - Fig.2.
• Remove the dust tray (13) from its housing (7): take the tray handle (13a) and remove the tray - fig. 14.

1. EMPTY THE DUST TRAY

Important: Empty the dust tray (13) after each use.

• Press on the opening lever (13c) - fig. 15a—and then remove the lid - fig. 15b.
• Empty the tray over a bin - Fig. 16.
• Make sure that no dust remains inside the tray.
• Place the lid back: place the stops in their slots - fig. 17a - and close the lid - fig. 17b.
• Replace the tray (13) in its compartment (7) - Fig. 18.

2. CLEANING THE BLACK FOAM FILTER (14A)

Important! To optimise the performance of your vacuum cleaner, make sure you clean the foam (14a) each time you empty the dust tray (13).

• Pull simultaneously on the opening clips (13d) of the HEPA filter case - Fig.19.
• Separate the black foam filter (14a) from the HEPA filter (14b) - Fig. 20.
• Wash the black foam filter (14a) under the tap, squeeze it out like a sponge and leave to dry for 12 hours - fig. 21.
• Once the foam is completely dry, assemble the HEPA filter case (14): black foam filter (14a) and HEPA filter (14b) under the dust tray (13) - Fig. 22, then replace the dust tray inside its compartment (7) - Fig. 18.

Warning!

The black foam filter (14a) should only be put back into the appliance when it is completely dry. You can use your vacuum cleaner while the black foam filter (14a) is drying by using the replacement black foam filter (14abis).

3. CLEAN THE DUST TRAY (13) AND THE AIR/DUST SEPARATOR (15)

Important: Clean the dust tray (13) and the dust separator (15) every month.

• Press on the opening lever (13c) - fig. 15a-and then remove the lid - fig. 15b.
• Empty the tray over a bin - Fig. 23.
• Unlock the HEPA filter case (14) by simultaneously pulling on the opening clips (13d) located at either end of the dust tray - Fig. 24.
• Remove the HEPA filter case (14) - Fig. 25.
• Turn the compartment over and place the accessory (18b) into the lock slot of the air/dust separator base (17) - fig 26.
• Open, making sure to turn in the proper sense for unlocking ( Fig.27.
• Remove the dust separator base (16) - Fig. 28.
• Unclip then remove the air/dust separator (15) by turning it in the unlocking direction ( Fig.29.
• Then rinse the dust tray (13), the air/dust separator base (16) and the air/dust separator (15) with soapy water - Fig. 30.
• Dry them with a cloth - Fig. 31.
• Once dry, replace then clip the air/dust separator (15) on the air/dust separator base (16), following the right sense for locking ( - Fig.32.
• Place them back on the dust tray (13) - fig 33.
• Place the accessory (18b) into the lock slot of the air/dust separator base (16) - fig 34.
• Close, making sure to turn in the proper sense for locking (Fig.35.
• Clip the HEPA filter case (14) (black foam filter (14a) + HEPA filter (14b)) onto the tray - Fig. 36.
• Replace the tray (13) in its compartment (7) - Fig. 18.

4. CLEANING THE HEPA FILTER (14B)

The air we breathe contains particles that can be allergenic: larva and dust mite faeces, mould, pollen, smoke, and animal waste (hair, skin, saliva, urine). The finest of these particles penetrate deeply into the respiratory system, where they can cause inflammation and alter the respiratory function as a whole. (H)EPA ([High] Efficiency Air Particle Filter) filters retain even the smallest particles. Thanks to the (H)EPA filter, the air that is expelled back into the room is cleaner than the air vacuumed.

Important!

Remember to clean the HEPA filter case (14) [black foam filter (14a) and HEPA filter (14b)] every month.

• Pull simultaneously on the opening clips (13d) of the HEPA filter case - Fig.19.
• Separate the black foam filter (14a) from the HEPA filter (14b) - Fig. 20.
• Turn the HEPA filter (14b) over and tap the dust into a dustbin - fig. 37.
• Then scrape the HEPA filter under warm water using the accessory (18b), then leave the HEPA filter to dry for 24h - Fig. 38.
• Once the foam is completely dry, assemble the HEPA filter case (14): black foam filter (14a) and HEPA filter (14b) under the dust tray (13) - Fig. 22, then replace the dust tray inside its compartment (7) - Fig. 18.
• Ensure that the HEPA filter (14b) is completely dry before you put it back in the appliance.

Warning! Make sure that the whole filter system is well placed before starting your appliance again.

5. REPLACE THE FILTERING SYSTEM

5.1. HEPA FILTER CASE (14) - Ref. ZR0056 01

Important: Change the HEPA filter case (14) every 6 months.

The HEPA filter case (ref. ZR0056 01 is available at your local retail store or at one of our Authorized Service Centres.

• Pull simultaneously on the opening clips (13d) of the HEPA filter case - Fig.19.
• Separate the black foam filter (14a) from the HEPA filter (14b) - Fig. 20.
• If the HEPA filter case (14) (black foam filter (14a) and HEPA filter (14b)) is damaged, throw it in the bin - Fig. 39 - and replace it with a new HEPA filter case (ref. ZR0056 01).
• Assemble the HEPA filter case (14): black foam filter (14a) and HEPA filter (14b) under the dust tray (13) - Fig. 22, then replace the dust tray inside its compartment (7) - Fig. 18.

5.2.MICROFILTER (8A)-Ref.ZR0056 01

Important: Change the microfilter* every 6 months.

The microfilter ref. ZR0056 01 is available at your local retail store or at one of our Authorized Service Centres.

• Remove the motor protection grill (8b) - Fig. 40.
• Remove the microfilter (8a) - Fig. 41 - and keep the motor protection grill (8b).
• Throw the microfilter (8a) in the bin - Fig. 42.
• Place a new microfilter (8a) on the motor protection grill (8b) - Fig. 43.
• Slide the ledges into the slots - fig. 44.
• Screw on the motor protection grill (8b) - Fig. 45.
• Before placing back the dust tray, make sure that the motor protection grill is placed properly.

CLEANING THE VACUUM CLEANER

• Wipe the body of the vacuum cleaner and accessories with a soft damp cloth, then dry.
  Wipe the lid with a dry cloth - fig. 46.
• Do not use any detergents, or corrosive or abrasive products.

6. TROUBLESHOOTING

Important: If you notice that your vacuum cleaner is not operating well, switch it off using the ON/OFF pedal before carrying out any checks.

If your vacuum cleaner will not start

• The appliance is not plugged in : check that the appliance is correctly plugged in.

If your vacuum cleaner has no suction power

• Either an accessory or the hose tube is partially blocked: unblock the accessory or the hose.
• Check that the dust tray is placed properly inside its compartment.

If your vacuum cleaner is not working properly, makes noise or whistles

• Either an accessory or the hose tube is partially blocked: unblock the accessory or the hose.
• The dust tray is full: empty it (see chapter on CLEANING AND MAINTENANCE).
• The filtration system is saturated: clean the HEPA filter case (14) (see chapter on CLEANING AND MAIN-TENANCE). If the problem persists, change the filtration system (see chapter on CLEANING AND MAIN-TENANCE).
• Make sure that the dust tray (13) is well positioned in the dust tray compartment (7).
• The manual vacuum power regulator on the grip is open: close it.

If it is difficult to move the nozzle

• Open the regulator on the handle in order to decrease suction power.
• Make sure that the position of the all-surface nozzle (23) corresponds to the floor being vacuumed:
• for rugs and carpets, use the nozzle in the retracted brush position,
• for parquets and smooth grounds, use the nozzle in the exterior brush position.

If the power cord does not wind completely

• The cord slowed down as it was winding up: pull the power cord out again and press the power cord wind button.

If your vacuum cleaner stops during vacuuming

• The thermal security system has been activated. Make sure that the hose or tube are not blocked and that the filters are not saturated. Let cool for 30 minutes before restarting the vacuum cleaner.

If a problem persists, take your vacuum cleaner to your local Rowenta Approved Service Centre or contact a Rowenta customer service office.

GUARANTEE

This appliance is for domestic use only; any misuse or use that does not conform to the instructions will release the brand from all liability and the guarantee will be cancelled.
- Always read the instructions carefully before using your appliance for the first time: use that does not conform to the instructions will release Rowenta from all liability.

7. ACCESSORIES*

ACCESSORIES*	USE	PLACING THE ACCESSORY	WHERE TO BUY
Upholstery nozzle	To clean upholstery	Fit the upholstery nozzle to the end of the tube.
Crevice/brush nozzle	To access corners and hard to reach places.	Fit the crevice/brush nozzle to the end of the tube.
Parquet nozzle	For fragile floors.	Fit the parquet nozzle to the end of the tube.	Rowenta Authorized Service Centre
Mini turbobrush	To clean upholstery fabrics tho- roughly.	Fit the mini turbobrush to the end of the tube.
Turbobrush	To vacuum threads and animal hairs stuck to rugs and carpets.	Fit the turbobrush to the end of the tube.

8. ENVIRONMENT

According to current regulations, every device that is out of use must be made definitively unusable: unplug and cut the cord before throwing away the appliance.

Think of the environment!

① Your appliance contains many materials which can be recovered or recycled.
Leave it at a local civic waste collection point, where it will be disposed of properly.

b - Parking vertical

HET APPARAAT OPBERGEN EN VERPLAATSEN

3.KhONka cMaTbIBaHnIshHypa

4.a-Koneco

b-KoIecnKo, BpaaIoueecB pa3HbIX HappaBJeHnJx

1. Pewetka Дяг Вьхда BOZdya

2. Pучka Для поски

3. OTeCk IIbIeSc6OpHnKa

8.a-MukpoounbTp(ref ZR0056 01)

b-3aunTHnapewETkaDburatela

9.Гнэздо MИкpoфиьтpa

1. BcacbIbAIOoee OTBepCTne
   11.Отделене наcaКн дя сelen co sTeKoN
2. UHyp nHaHn
   13.Пылесборнк

a-Pyuka nblnc60npHnka
b-Kpbilka
c-KhONKa ynpaBHeHnO tKpbITnEM KpbIiKN
d-KhONKn OTKpbITn KaCCTeHOro 0nIbTpHa HEPA

1. KaccetHbIy nIbTp HEPA (ref. ZR0056 01):

a - YepHbI ΦnIbTp-ry6Ka (14a bis :3anacHOJyepHbI ΦnIbTp-ry6Ka)
b-ФильтгHEPA

15.Bo3nyxo-/nbIneoTdeInteIb
16.ДерхаTeNb nbJeoteNteJIe
17.ФнкcatopдрхаTeЯ nbileOTdennTeia
18. Akceccyap 3 B 1* (ref. ZR0056 01):

a-TeTka dIy ouNCTKn nbJeoteDennteIa
b-Ckpe6ok dny fynbtpa HEPA + akceccyap nya pa36nokpobAHn yepkaTe nblneotdienlTe

CtaHapThbIe akceccyapbl:

19.Шанс руковский Perynatopom Mochocn
20. Teneckonučka Tpy6ka
21. Tpy6kn
22. yДиняюца Тубka
23. HacaKa yHnBepcaIbHa
24. HacaKaДЯnapKeTa
25. Hacaika Дя Me6eni
26. Κεπεναγ hαςκα co Κετκοι
27. Typ6oIeTka
28. Мнн-Турбошткa*

Ecn nblnecoC He BkIouaetc

• Pnp6op He nodknloyen K cetn nntaHna: y6eDntecb, yTO nbIeCoc npabunbHO noDKnOeyen K cetn nntaHna.

Ecn He pa6oTaet yHKcna BcacbBaHn

3a6nIcOINH3akceccyapOBnnIuHaR: npoucnTe akceccyap nnIuHaHr.
- y6eIuTcB, yTO nbIeSc6OpHnK npaBnIbHo yCTaHOBneH CBOeM OTceKe.

Ecn yMeHbUnlaC TaRa BCaCbIBaHn, NOBUNcShyM, CBNC

• YactnHIO 3a6nIcra OIN H3 akceccyapOB IIn IJNaHr: npOuNCTnTe akceccyap IIn IJNaHr.
• IepenonHe nIbIe6OpHnK: onopokhnte erO (cm. pa3dien YNCTKA N YXOD).
  3a6nacb nIbTpauOnHna CnCTema: ouhctnte kaccetnb nnbtp HEPA (14) (cm. pa3den YNCTKA U YXOД). Ecnn npo6ne He nCye3He, 3ameHnTe nnbTpauOnHnyu CnCTemy (cm. pa3den YNCTKA U YXOД).
• y6eunTecb, yTO nbIe6OpHnK (13) npaBnIbHo yCTaHOBJIeH B CBOEm OTceKe (7)
• OTKpbT MexaHueckn nepeKJIouaTeNb MOUHOCTN Ha pyKOaTke: 3aKpOte MexaHueckn peyIaTOP MOUHOCTN.

Ecn 3aTpynHeNo nepemueHne BCacbIbAIOUeHnAcdkn

To6bI yMeHbUnTb CnIy BCaCbIBaHn, OTKpoTe peryJrTOp Ha pyKoRrKe.
- y6eHntecb, cyTO noLoXKeHne yHnBepcAibHOH HacaIKN (23) COOTBeTCTByET Tnny NOBepxHOCTN, KOTOpYIO Bbl NJIIEcOCNTe:
-ДЯ KMBOBи KOBPOBbIX NOKpbITn, INCNoJIb3yIte HaCaIky B NOLOXKeHm C y6paHHoI cTeKoI
-Дя napKeTa n rIaKnx NOBepXHocTeN, nCNoJIb3yIeTc b HacAnky B NIOJoxeHN C BbIDBuHyToI eTkoI

EcnHyp nHTaHnHe cMaTbIbAeTcNoJIHOCTbIO

3aMeIeNo CMaTbIBaHnE 1Hypa: eue pa3 n3BnKeNte 1Hyp n HaxMnTe Ha KHOkny CMaTbIBaHnE 1Hypa.

Ecn np60p Bbiklouaetc BO BpeMa nCNoB3OBaHn

Cpa6oTana cncTeMa TepMo3aunTbI. Y6eHntecb UTo He 3a6IOKnpObaHb Tpy6Ka NnN IlaHr, NnN He 3aqr3HeHbI OCTaBBte nbJNEcOC OCTbITb Ha 30 MN. Nepei NOBTOpHbIM BKNIUoyehm.

Ecn npo6nema He nCye3HET, OTHeCnTe nbIeCoc B 6JnxKaIshn aKKpeIITOBaHHbI cepBnCHbI cHTp Rowenta nn CBAKIn-TEcb c cHTpOM o6cnykBaHnN KIneHTOB Rowenta.

TAPAHTR

-Даньпnp60рnpedha3haeH nckIIOHTeBHO nla 6bITOBORO nCNoIb3OBAHn. B cnyae ero HeHaJIexkaeJ EKcIIpyaTucnn ININ NCNOJB3OBAHn He NO Ha3HaueHIO KOMNaHn OCBO6OJaETcR OT IIO6OJ OTBeTCTBeHHOCtN, a rapaHTn aHHyIpyeTc.
- Npeed nepBbIM nCNOJb3OBAHnEM yCTPOINCTBa, NOXaIyInCTa, BHIMATEJbHO npOHTaTe INHCTpyKcIIO NO 3KcNJIyatauIN: KOM naHnra Rowenta He HecET HnKaOK OTBeTCTBeHHOCHe CnIy yCTPOINCTBO nCNOJb3OBAIocb He B COOTBeTCTBm C INHCTpyKcUeIe

7. AKCECCYAPbl*

AKCECCYAPbl*	ИСПОЛьЗОВАНЕ	UCTAHOBKA AKCECCYAPOВ	ПУнКтbl ППОБРЕНИЯ
Hасадka дя мeбелi	Для оочстkn Meбелi	3akpenite hacaikу дя napkeTa ha konuce trpyбkn.
Шелевая hacaia co шet- коi	Для уборкВ углaxи Trpyndno-do- Stупьх мectax.	3akpenite шelевую hacaikу co шetКоj Ha konuce rykoTkn Илtn Trpyбkn.	Аkkpeintobahnbie cepBic-hble ceHTpbI Rowenta
Hасадka дя napkeTa	Для уборкДеликathbix noberpx-HocTei.	3akpenite hacaikу дя napkeTa ha konuce trpyбkn.
Мини-тубошетka	Для Trlyбokой oочstkn Tkaheи Me- sieьно obuBkn.	3akpenite мини-тубошету Ha konuce trpyбkn.
Турбошетka	Для уборкПLOTTHO priStabushxBOLOKOHи ШерстиЖИВOTbIXС КOBрOBи КOBрOBbIX ПОррытii.	3akpenite мини-тубошету Ha konuce trpyбkn.

8. OKPYKAIOU A CPEA

B COOTBETCTBUN C DeIcTBYIOUIM 3aKOHODaTeNbCTBOM BCE npn6Opbl, BbiueJHne N3 EKcnNyaTaUHN, DOnXHbI 6bITb npINBeJeHb I B COCTOAHNE NOHON HENpNIroHOCTN DJIY NCNOJb3OBAHN: NepeD TeM, KaK Bbl6pocNTb npn6Op, BblKNIOHTe erO n3 PO3eTKN IOpeXkTe shHyp.

3aunTm Okpykaioyucpey!

6. YCYHEHRA HECPABHOCTEi

Baxnbo: Pnp noripseHhi p6oTo nopoxotra Ta nepe 6ydb-akmnepeBipkam, BmKHiTb Ioro, HATNCHyBn Ha KhoNky Bk./Bumk.

JaKo Baw npoxotr He BMnkaetbca

-Прилад He ni'd' endaHо Do Mepeksi XnBHeHHa: nepekoHaTecb, lo npoxoTg HalexHm YHOM nIqKluOeHn do elektpuHoi Mepeksi.

Akuo Baw npoxotr He npoxotkntb

• Hacaika a6o ⅢaHaT 3acMitunncr: npouncitb Tpy6y a6o Hacaiky.
• IpekoHaTeC, 10 nnlo36ipHnK npabunbHO BCTaHOBJeHO B iDineHHI dny nilo36ipHnKa.

Akuo npoxotar noaB ripse BtarybTu 6pyd, Buiae CTOpOHHi 3Bykn a6o CBnCT

5.1. Kazetovy filter HEPA (14) - Ref. c. ZR0056 01

Dolezite: Vymienejte kazetovy filter HEPA (14) každych 6 mesiacov.

Kazetovy filter HEPA ref. c. ZR0056 01 sa da zakupit' u vasho predajcu alebo v autorizovanych servisnych strediskach.

• Potiahnite sučasne otváracie klipsne (13d) kazetového filtra HEPA - Fig.19.
• Oddelte cierny penovy filter (14a) od filtrha HEPA (14b)-Fig.20.
• Ak je kazetovy filter HEPA (14) (cierny penovy filter (14a) a filter HEPA (14b)) poskodeny, vyhodte ho do smetného koša - Fig. 39 a vložte novy kazetovy filter HEPA (ref. c. ZR0056 01).
• Poskladajte kazetovy filter HEPA (14): cierny penovy filter (14a) a filter HEPA (14b) dajte pod nádobku na prach (13) - Fig. 22, potom vložte nádobku na prach spa't do jej oddelenia (7) - Fig.18.

5.2.MIKROFILTER (8a)-Ref. c.ZR0056 01

Dólezite: Mikrofilter* vymieñajte každych 6 mesiacov.

Mikrofilter ref. c. ZR0056 01 sa da zakupit'u vasho predajcu alebo v autorizovanych servisnych strediskach.

• Odoberte ochrannú mriežku motora (8b) - fig. 40.
• Odoberte mikrofilter (8a) - fig.41 a odložte nabok ochrannú mriežku motora (8b).
• Vyhod'te mikrofilter (8a) do smetného kosa - fig. 42.
  Vlozte novy mikrofilter (8a) do ochrannej mriežky motora (8b)-fig.43.
  Vlozte kolíky do dražok - fig. 44.
• Uzamknite ochrannú mriežku motora (8b) - fig. 45.
  Pred vratenim nadobky na prach na miesto sa ubezpecte, ze ste ochrannu mriezku motora umiestnili spravne.

CistEni VYsÁVac

• Utrite telo vysávača a prislušenstvo mäkkou, vlhkou handričkou, potom ho vysušte.
• Utrite kryt suchou handričkou - fig. 46.
  Nepouzivajte rozpustadla, agresivne ani drsne cistiace latky.

6. ODSTRUANOVANIE PORUCH

CbBETN 3A B3O3ONACHOCT

3a Baawata 6e30nacnoct, To3n ypeI e CbBMeCTnM C BCNUKn npNIOXIMN CTaHdapTu n Hape6n (HNCbK BONTaJx, eNeKTPOMaRHTHa CbBMeCTmOcT, dUpeKTHuN 3a ONa3BaHe Ha OKoHHaTa cpea n,...).

To3n ypei He Tp86Ba Da Ce 3no3Ba OT Xopa (BkIIOUHTeHNO n Deca) C HamaJIeHN I3NueCKn, CeH3OpHN IIN YMCTBeHn CnOCO6HOCTn IIN C HeIOCTaTbueH ONIT IN PO3HaHHa, OCBEN B CInyau, Ye 6bDaT BHNMaTeHNO Ha6IoHaBAHN IIN Ca 6IIIN O6- yueHn OT CTpaHa Ha IInce, OTROBOPHO 3a TExHaTa 6e3OnacHOCT. UnpaxHJaBaiTe Na3Op HaI DeCaTa, 3a Da Ce yBepnte, Ye He CN IrpaarT C ypeda.

To3n ypeJ moKe da ce n3noJ3Ba OT deca, npn ycNoBne ye Te ca NaD OCemro- DnshA Bb3pact, KaKTO N OT IINca C HamaJIeH N OIN3NueCKN, ceH3OpHN IIN yMCTBeHn CNOCO6HOCTN, INI TaKNBa C HeIOCTaTbUeH ONIT N PO3HaHnA, aKO Te 6bDaT BHIMATEJNO Ha6NJIOdaBAHn, INI aKO NOLyuaT Heo6XODIMTe IHCTpyKcN IN BvB Bpb3Ka C yIpOTpe6bata Ha ypeJa n aKO Te pa36epaT HApBlnHO pNCKOBete, C KOnTO TOBa e CBbp3aHo. DeuTa He Tp86Ba Da nIgpaT C ypeJa. PoUNCBaHeto IN POnd- dPbXkKaTa Ha ypeJa He Tp86Ba Da ce n3BbPShBa OT deca, OCBen aKO Te He Ca NaD OCemroDnSHA Bb3pact n Ca Ha6NJIOdaBAHn. CbXpaHЯBaIte ypeJa n HerOBnA 3aXpaHbAs KabeHn Ha MeCTa, HeIOCTbPHN 3a deCa NOD OCemroDnSHA Bb3pact.

He n3no13BaIte ypeDa, ako: Ka6eIbTe e nobpeDeH. 3a da n36eHHeTe BCnUKn Bb3MOxHN ONaCHOCTN, CNCTeMaTa 3a npi6bpaHe Ha Ka6eJa, KaKTo i CamnT Ka6eJHa BaShaTa npaxOcMyKaUka Tp8Ba 3aIbJIkITeJHo Da ce IOpMeHrT cMo OT OToPn3InpaH cepBn3eH ueHTbp Ha Rowenta.

YCIOBnA 3A IIOJI3BAHE

• Baśaṭa npaxocmykačka e eenektpručecko ypei; ToT trp6Ba da ce n3no13Ba cAmO npn HopmaJIHn ycNoBn.
  -ИЗползBAи Te u CBxpaHЯВaIte ypeHa Ha HeIoCTbПн 3a Deua MeCTa. HNKOra He OCTaBraIte BKIOUeHaTa npaxOcMyKauchka 6e3 NaI3Op.
• He do6nkaBai Te hakpaHnKa nn Kpa H Ta oOHTe nn yuTe.
  He nouchBaIte NOBbpxHOCTn, Bbpy KOnTO mMa BOa nN KaKBATO n da e npyra TeuHocT; ropeun noBbpxHOCTn; CBpbXΦHH cy6ctAHm (rnnc, uImeHT, neen...); rOlemn octpn OTnaDbu (CTbKnlo), onachn Be-ueCTBa (pa3TBOpHTe nn, a6pa3NBn...); arpecNBn npodykTN (KNCeHNn, nouchTaun npenapatn...); 3anaHMMn nnn ekcnno3NBn BeueCTBa (Ha oCHObata Ha 6eH3NH nnn ankoXoN).
• Hinkora He notanayte ypea BbB BOda; He n3nBaTe BOda Bbpxu ypea n He ro cbxpaHraBaTe Ha OKpnto.
• He u3noJ3BaIte ypeDa, aKo e 6nI u3nyChaT n e BvDnMo NOBpeDeH nn aKO He pa6OTn HopMaJIHo. B To3n clyaH, He OTbApRyTe ypeDa, a ro 3aHeceTe B Hau-6n3Knra Odo6peH cepBn3eH ueHTbp, nn Ce CbByKeTe C Rowenta ueHTbp 3a o6cnykBaHe Ha KIneHTn.

EJEKTP03AXPAHBAHE

• YBepete ce, ye BOITaKbT Ha BaIaTa npaxocMyKaUka CbOTBeTCTBa Ha To3n Ha IOMaHHaTa eJeKTpuecka MpeJa: Ta3n HhOpMaun e 06o3NaeHa Bbpx ypeJa.
  -ИЗкlioуeteуpedaOT6yToHaиOT3axpaHbAheTo:
• BeDHa rA cIeN BCaKa yNoTpe6a,
  -преши и след зарекдану на akceccoapnte,
• npeiBcKa npoceDpya, Cbbp3aHa c NouHCTBaHeTo n POndpkKaTa, KaKTo i n pei cmHa Ha nnTba.

ПОПРABKA

NonpaBkata cIeBa da ce n3BbPbBa cAmO OT CneuaHnCTn, KaTO ce n3NoJ3BaT opuHaHn pe3epBn qactn. N3BbPbBaHeTo Ha nonpaBkAOT noTpE6ntela MoKe da 6bJe pNcKOBaHO IN BODn DO aHyInpaeHa rapaHnzraTa.

2.ОПИСАНЕ

1.a-Xopn3oHTaJIHo napKnpaHe b-BePTnKaJIHo napKnpaHe
2.пелдзаВКЛIOчBaHe/U3KЛIOчBaHe
3.Пелдалза HabиВане Ha 3axpaHbAunя Ka6eI
4.a-KoIeNo b-MHoronocuHo KoJeIe
5. PeWetka Ha Bb3dyuHnI n3XoD
6.Дрьжka 3a ТрансорТираHe
7.Отденине Ha kytnya 3a npax
8.a-MakpooHnTbppeΦ.No ZR0056 01) b-npedna3Ha peweTka 3a MoTopa
9. OTdeneHne 3a MmKpOΦnTbpa
10.CmyKaTeJIeH OTBOP
11. Otdeene 3a cbxpanen He nakpaHnka 3a noocTbaHe Ha npoe
12.3axpaHbau Ka6eI
13. Kytnya npax a-Дрьжka Ha Kytnya 3a npax b-Kanak c-JocT 3a OTbapЯHe Ha KaNaKa d-uznkn 3a n3BaJdaHe Ha HEPA fntbp kaceTaTa
14. HEPA ΦιπΤβρΚαςτα (peφ. N° ZR0056 01):

a-Yepeh 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 尼 14a bis: pe3epBeH uepeh fNITbP ot nHa)
b-HEPAΦnntbp

1. Pa3dieniTeN Bb3dyx/npax
2. NocTabka Ha pa3delenTeNa Bb3dyx/npax
3. UcpoctBO 3a fHKcapaHe Ha NOCTaKata Ha pa3dJeNTeRb3dyx/npax
4. Akcecoap 3 B 1* (peφ. N° ZR0056 01): a - Yetka 3a nouCTBaHe Ha pa3dienTeIЯ Bb3dyx/npax

b-CpeIcTBo 3a n3cTbprBaHe Ha HEPA nITbpa + akcecoap 3a ocBO6OJaBAHe Ha noCTaBkata Ha pa3dienTeJy Bb3dyx/npax

CTaHdapTHn akcecoapn :

1. MapkycdpbKKa mExaHn3bM 3a KOHTpOHa MoUHOCTTa
2. TeileckonuHa Tpb6a*
3. Tpb6n*
   22.УдьnxнтелнаТрб6a*
4. HαkpαHnK 3a BCαKaBb BVn Poi
5. HαkpαHnK 3a napKeT*
6. HakpaHnK 3a Ta nHcepuH*
7. YeTka HaKpaHnK 3a npoceHn
8. Typ6o ueTka*
9. Мнн Турбо четka*

Ako Baata npaxocmykaHa He MoKe da 3acMykBa

• Hяко ot akcecoapnte nii MapkybT ca 6nokupaH: ocbo6oTe cboTBetHna akcecoap nii Mapkya ot 6nokupaHETO.
  -Поверете Далу Ктугая за прах e правино постаьа В сьотбтно OTделен.

Ako Baata npaxocmykaKa He 3acmykBa do6pe nnnn3daBa 3ByK, Hano06raaCbnphe

• Hякол ot akcecoapnte nii MapkybT ca qactuHNO 6JIOKupaHn: OcBO6OJeTe cBOTBeTHnA kCEcoap nii Mapkya ot 6JIOkupaHeto.
• Kytnya 3a npax e nblHa : n3npa3Hete r (Bx. pa3dien: IOUHCTBAHE IN OIDPbXKA).
• Φиntpupaata cnctema e npenbHeHa : nouCTeHEPA φиntbp kaceTa (14) (Bx. pa3d: IOnUCTBAH E I NOДДРbKKA). Ako npo6IeMbT npoDbIgkaBa da ce nOaRbA, cmeHete φиntpupaata cnctema (Bx. pa3d: IOnUCTBAH E I NOДДPbKKA).
• YBepeTe ce, ue KytnaTa 3a npax (13) e npabuHnO noCTaBeHa B CbOTBeTHoTo OTJeHeHne(7)
• MexaHnUHnIr peYnAToP 3a MoUHocTtHa Ha dpbXkKaTa e OTBOpEn : 3aTBOpTe MexaHnUHnIpeYnAToP 3a MoUHocTtA.

Ako 3acmyKbauata npncTaBka ce npudBnKBa Tpydno

• O'TbOpTe perynatopa Ha npbxxkata, Taka ye da ce HamaJIi cnilaTa Ha 3acMyKbaHe .
• YBepTe ce, Ye NOCTaBeHaTa npNCtBaKka 3a BCaKaBb BnD NOBbpxHocT (23) e cbo6pa3eHa C BnDa Ha NOUcTBaHaTaNOBbpxHOCT:
• 3a KINIMM IN MOKeTn, IN3NoI3BaIte HaKpaHnKa C ueTkaTa npN6paHa HABbTpe
  -3a IbpeHn N TBpNIOOBn HaCTnIKN, INON3BaIte HAcpaHnKa C YeTKaTa INBaIeHa HABhN

Ako 3axpaHbauT Ka6e He ce HaBbHaHbIHO

Ka6eBbT n3BeDnBx Cnpra da ce HABNBa: n3DbpnaTe 3axpaHbaunr Ka6eH HABbH nHaTnCHte neJaTa HABuBaHe Ha Ka6eNa.

Ako npaxocmykaukata cnpe da pa60n no BpeMe Ha nouCTBaHe

• Φυнкцята 3a 3aцита OT npereряbahe ce e 3aedcTBana. Проверете дani Трьбата и Маркуа He ca 3anyuши Ипнлгпгte -npeNBHHeH. Octabete npaxocmykauchkata da ce oxlaudn 3a 30 mHyTu npedn daЯ BKNIOUHTe OTHOB..

Ako daen npo6nem npo4bnx na ce no8ra, 3ahece Te npaxocmykaKaTa B ha-6n3kn Oo6peH ot Rowenta cepBn3eH ueHTbp nll ce CbprKeTe c ueHTbp 3a o6cnykBaHe Ha KIneHTn Ha Rowenta.

TAPAHUN

To3n ypeE npedHa3HaueH cmo 3a domaunHa ynoTpe6a; B cnuya, ye 6bJe n3non3BaH HenpaBnH0 nn no Naun, KOJTO He cbOTBeTc7Ba Ha IHCTpyKUnTe 3a ynoTpe6a, npoN3BOOnTeIaT Ce OCBO6OJaBA OT BCRAKaBA OTROBOPHOCT I rapaHnraTa ce anynpa.
- Пюочete Инстукципг вимаелно пешд Дд Илольагусяда 3а nbрвпьт: уnotpe6a, каято He e cbo6pa-3eha с Истукципг, ще освобODи Rowenta ot BCЯкбВо OTROBOPHocT.

1. AKCECOAPN*

aalalalalalalalalalalalalalalalalalalal

i 1

-ENTA 1

aROW

y j 1111111111111111111111111111111111111111111111111111

1 1

19J-HEPA (13b)

.20K- (14b) HEPA jisjgssjil

.37 J- yagall aLg g q 14b) HEPA

.38 Jk- aclw Y 2dol Iolai jy jy (18b) qalll Jlaaay bai dall HePA jilhe

1. _K^d - (7) 22J-（13）(14b)

14b)HEPA 5

y

5

ZR0056 01 - (14)HEPA JgJ.5.1

(14b) HEPA jds

aee aee eae ee eee 00000000000000000000000000000000000000000000000

19J-HEPA (13b)

.20J-（14b）HEPAjLgJy

Lolai piaa a b 1000 aaaa aalaa aalaa aalaa aalaa aalaa

1. Jus - 1sJus Jus Jus Jus Jus Jus Jus

ailll j 1 no g a rla 1 1 1 1 1 1 1 1 1 1 1 1

(13)

2.（10）（19）

1. K - a 13a) (13a) (7) jc (13)

1

Jaaal Jd jyjll

15b. 15a. (13c)

16.

J 1

17b. 1-17a J-14 a

18.（7）

(14a)

(14a) 1111111111111111111111111111111

19K-HEPA (13b)

.20K-（14b）HEPA jj

21K-4cLwYsJgSdRgAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAeAee (14a) 88

HEPA (14a) 15000000000000000000000000000000000000000000000000000000

1. - (7) 4322 K-（13）Jr

1 1

J.3

J5s (15) Jlal (13) jll

15b. -15a. (13c)

23.

1. 13d) (14) HEPA

2. (14) HEPA

3. • (17) "Jc/og" Jolal jolal jolal jolal 18b

4. -（）

5. (16)

29K-（）j（15)J/

aRRRnrrnrnnrnnn rnrnnn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

Jaa yI bgr

J 1

（）

alg.（...）.

JgI Jg-1j gJgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJLgJL

（4.5

Jzai 2g.Lally aji y. Lally jaiil J

J 1

ROWENTA 1e 1s

a

.

-1y

JLaxu! J5 1g

J 1

a

1
