Product type	Convertible high chair (high chair mode and chair mode)
Brand	Cosatto
Model	Waffle 2
Recommended age (high chair mode)	From 6 months (child sitting unaided) to 3 years
Maximum weight (high chair mode)	15 kg
Recommended age (chair mode)	From 3 years
Maximum weight (chair mode)	100 kg (including adult)
Materials	Plastic, wood, fabric
Main features	5-point harness, removable tray (wood and plastic), seat and back inserts, adjustable footrest, foldable
Power supply	None (manual product)
Care and cleaning	Fabrics: follow washing labels. Inner tray: dishwasher safe (eco cycle). Do not use spray lubricants.
Safety	Complies with standards BS EN 14988:2017+A1:2020 and BS EN 17191:2021. Always use the harness. Never leave child unattended. Do not place near a heat source.
Spare parts and repairability	Parts available on cosatto.com (UK and Ireland) or via local distributor. Customer service: [e-mail]
Package contents	Chassis parts, seat, footrest, trays, harness, crotch pad, screws, tools (screwdriver, Allen key)
Folding	Yes, with locking system
Height adjustment	Multiple positions for seat and footrest

Frequently Asked Questions - Waffle 2 COSATTO

At what age can my child use the Cosatto Waffle 2 high chair?

In high chair mode, from 6 months (when sitting unaided) up to 3 years or 15 kg. Then the product converts to chair mode for children from 3 years or adults up to 100 kg.

How to clean the fabric parts of the high chair?

Cleaning instructions are indicated on the respective washing labels of the fabric items. Follow these instructions to preserve the materials.

Is the plastic tray dishwasher safe?

Yes, the inner tray (plastic) is dishwasher safe, preferably on ECO cycle.

Can I use the high chair without the harness?

No, it is essential to always use the harness to restrain the child in high chair mode. The product comes with a 5-point harness and a waist bar. In chair mode, the restraint must be removed.

How to convert the high chair into chair mode?

Refer to the instruction diagrams (pages 27-43). The conversion steps are illustrated to remove the crotch pad and adjust the seat and footrest. Chair mode is suitable for children from 3 years or adults up to 100 kg.

Where to buy spare parts for the Waffle 2?

For UK and Ireland, order at cosatto.com/service-centre/spares. Elsewhere, check the list of distributors at cosatto.com/stockists. You can also contact customer service at [e-mail].

What is the safety standard for this high chair?

The product complies with European standards BS EN 14988:2017+A1:2020 and BS EN 17191:2021. It is recommended to regularly check the proper functioning of the locks.

Can I use the high chair as an adult seat?

Yes, after conversion to chair mode, the product can support a maximum weight of 100 kg. The inserts (back and seat) are optional in this mode.

Do I need to lubricate the folding mechanisms?

No, do not use spray lubricants. Simply clean after use to maintain proper functioning.

How to assemble the high chair upon receipt?

Follow the provided instruction diagrams (pages 27-43). The assembly steps are detailed for the chassis, seat, footrest, trays and harness. All necessary bolts and tools are included.

USER MANUAL Waffle 2 COSATTO

clever stuff for happy babies

The ABCs

Waffle 2

Highchair

NEVER LEAVE THE CHILD UNATTENDED

ALWAYS FOLLOW THE INSTRUCTIONS PROVIDED

NEVER ALLOW THE CHILD TO ROCK IN THE HIGHCHAIR

NEVER ALLOW ANY CHILD TO HANG OR CLIMB ON THE HIGHCHAIR

ENSURE THE HARNESS IS CORRECTLY FITTED WHEN USED IN CONJUNCTION WITH THE HARNESS

NEVER MOVE OR ADJUST THE HIGHCHAIR WITH THE CHILD IN IT

(EN) Instruction 1 - 24

(EN) Spare part list diagram 26

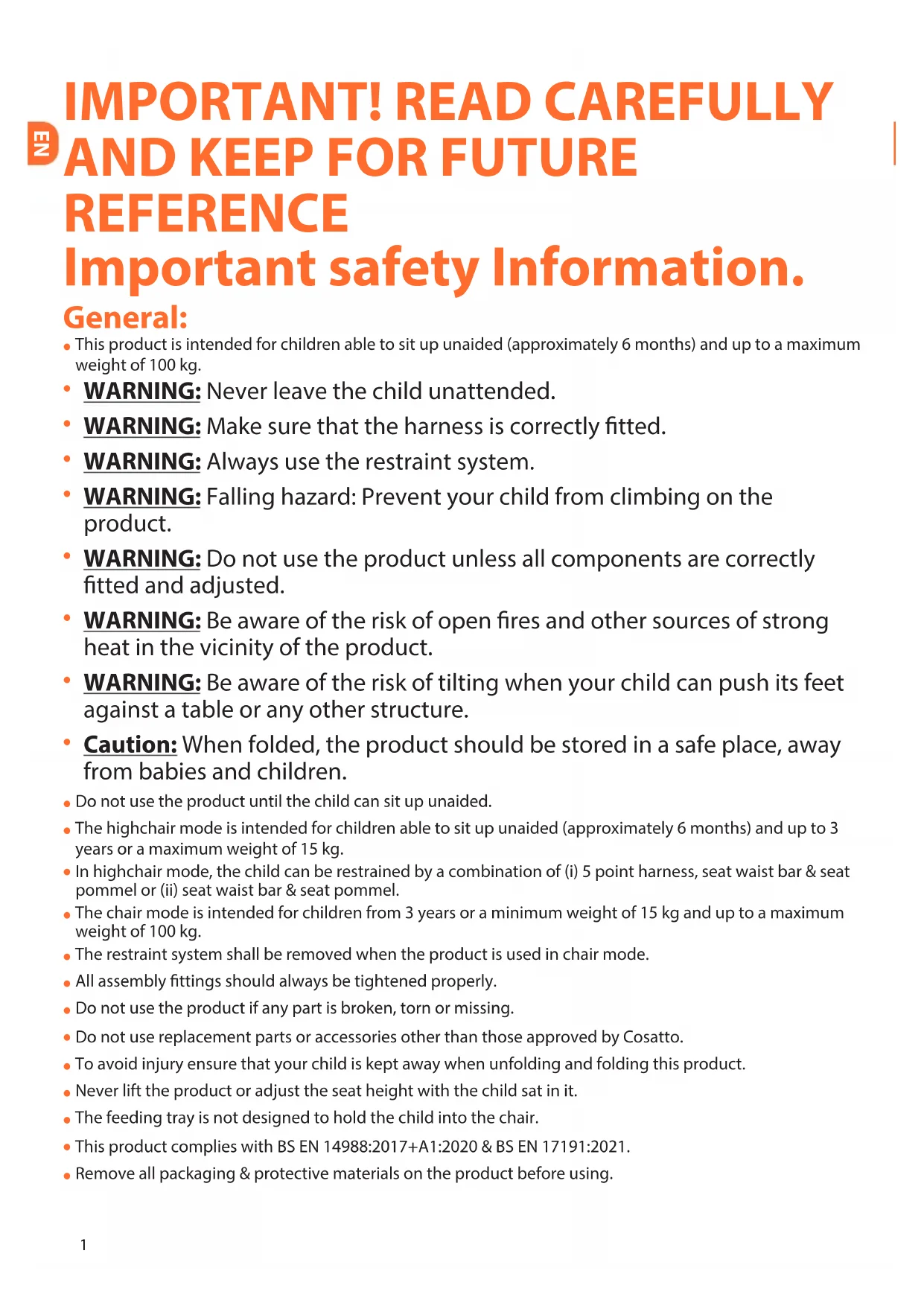

Important safety Information.

General:

• This product is intended for children able to sit up unaided (approximately 6 months) and up to a maximum weight of 100kg .
  WARNING: Never leave the child unattended.
  WARNING: Make sure that the harness is correctly fitted.
  WARNING: Always use the restraint system.
  WARNING: Falling hazard: Prevent your child from climbing on the product.
  WARNING: Do not use the product unless all components are correctly fitted and adjusted.
  WARNING: Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
  WARNING: Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Caution: When folded, the product should be stored in a safe place, away from babies and children.
• Do not use the product until the child can sit up unaided.
• The highchair mode is intended for children able to sit up unaided (approximately 6 months) and up to 3 years or a maximum weight of 15kg .
• In highchair mode, the child can be restrained by a combination of (i) 5 point harness, seat waist bar & seat pommel or (ii) seat waist bar & seat pommel.
• The chair mode is intended for children from 3 years or a minimum weight of 15kg and up to a maximum weight of 100kg .
• The restraint system shall be removed when the product is used in chair mode.
• All assembly fittings should always be tightened properly.
• Do not use the product if any part is broken, torn or missing.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Never lift the product or adjust the seat height with the child sat in it.
  The feeding tray is not designed to hold the child into the chair.
  This product complies with BS EN 14988:2017+A1:2020 & BS EN 17191:2021.
• Remove all packaging & protective materials on the product before using.

Care & maintenance:

• Ensure all locking devices work correctly & regularly check the locks, screws & fittings for security.
  DO NOT use spray lubricants, simply wipe clean after use.
  Refer to the wash care label on soft goods for cleaning instructions.
• The inner tray is dishwasher safe on the (ECO) economy cycle setting.

Part list:

Please refer to diagrams:

A Backrest liner K Seat board
B Seat liner L Support bar
C Outer tray M Foot board
D Inner tray N Footrest
E Rear leg assembly O Harness

F Right side frame P Seat pommel

G Left side frame

Q Right hinge cover

H Upper backrest

R Left hinge cover

Lower backrest

S Right tray mount

J Seat waist bar

T Left tray mount

Fixing pack:

Long bolt (50mm)× 6

VI Seat pommel bolt x 2

II Medium bolt (35mm)× 4

VII Hinge screw x 2

III Short bolt (30mm) x 4

VIII Nyloc nut x 4

IV Tray mount bolt x 4

IX screwdriver

V Barrel nut x 8

X Allen key

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

A Backrest liner K Seat board

B Seat liner L Support bar

C Outer tray M Foot board

D Inner tray N Footrest

E Rear leg assembly O Harness

F Right side frame P Seat pommel

G Left side frame

Q Hinge cover (set)

H Upper backrest

R Tray mount (set)

Lower backrest

S Fixing pack

J Seat waist bar

Assembly & operation information:

Please refer to the instruction diagrams (P. 27 - 43):

Highchair mode:

Frame

1-Assembling the product -1
2-Assembling the product - 2
3-Assembling the product -3
4-Assembling the product -4
5- Opening the frame
6- Closing the frame

Seat board

7-Fitting the seat board
8-Fitting the seat pommel

Seat liners

9- Fitting the seat liners

Foot board

10- Storing the foot board
11- Satisfactory positions for the seat and foot boards (highchair mode)
12- Unsatisfactory positions for the seat board (highchair mode)

Harness

13-5 point harness mode (highchair mode)
14- Adjusting the harness
15- Open the harness
16- Close the harness

Inner tray

17-Fitting the inner tray
18 Adjusting the inner tray
19- Storing the inner tray

Foot board

20- Storing the foot board
21-Fitting the outer tray
22- Removing the outer tray

Chair mode:

Frame

23- Converting from the highchair mode to the chair mode - 1
24- Converting from the highchair mode to the chair mode - 2
25- Converting from the highchair mode to the chair mode - 3
26- Satisfactory positions for the seat and foot boards In chair mode, the use of seat liners are optional.

IMPORTANT! À LIRE ATTENTIVEMENT ET À CONSERVER POUR RÉFÉRENCE ULTÉRIEURE. Informations importantes de sécURITY

Généralités:

http://www.cosatto.com/service-centre/spares

UdHHeHHbBnHT (50 MM)-6 uT.

VI BnHTynopa cndeHb-2wT.

II CpeHnBnT (35 MM)-4 wT.

VII Camope3 nIy nTeIb-2 wT.

III Kopotkni BnHT (30 MM)-4 wt.

VIII KoHTprAaKa C HeJIOHOBbIM KOJIbCuM-4 UT.

IV BoNTbI KpePHeHn JIoTka-4 1T.

IX OTBeptKa

V LInnHdpnueckraRka-8uT.

X XecnturpaHbI KJIou

3aNachbiele yactn:

LHnke yka3aHbI 3anaChbI yeactn, KOToPbIe Bbl MoKeTe npNo6peCTn dIy 3TOrO yCTpoiCtBa. EcIn Bbl HaxoIndecB BeJIko6pntAHnn nII B InpaHdnn, CdeJaTe 3aKa3 chepe3 haw Be6-caNT: http://www.cosatto.com/service-centre/spares

EcnBbHaxoItecb 3a npedeamn BeNko6pTaHnn nn NpnaHnn, o6paTtecb K BaWemy MeCTHMy
Inctpn6bIoTOPy. KOHTaKTNbIe daHHbIe nCtpr6bIoTOPa DoCTynHbI no aDpecy
http://www.cosatto.com/stockists

Ecn y BaC octaInc BOpocbl, HannuHte Ham Ha aDpec [e-mail]

A BknaDbIw cnnHKn K Onopa cnDeHb

B BknaDbIa ABtOKpeCna LOnopHbI cTepxHeh

C BheuHn noHoc M NoctabKa dna Hor

D BHyTpEnHn noDnoc N Onopa Ira Hor

E 3aHЯ cToKa b c6ope O yIepKnaIOuOne peMHn

F PpaBaaactb paMbI P Ynp cnDeneBb

GJeBaYcaTbpaMbI

Q Kpbiuka nettn (KomnneKT)

H BepxHЯ qactb cHKn

R Kpeenenne nla noHoca (komnneKT)

HxKHa YaCTb CnHKn

S PaKeT C KpeNexKoM

J ΦнкcaTOp Ha ypoBHe noЯCa

Информация по установке и Исторьан积极作用:

Cm. cIeJyUoJIue cxEmbl K INHCTpyKcunn (P. 27 - 43):

Pexim Ctylbuka Дд Кормени:

Pambi

1-C6opka n3dennna-1
2-C6opka n3denna-2
3-C6opka n3dennna-3
4-C6opka n3dennna-4
5-PackpbITne pambi
6-3aKpbTne paMbI

OnopacndeHb

7- yctaHOBka onOpbI cnDeHbJ
8- YctahOBka ynopa cndeHbA

Bknaabiiwei

9- YctahOBka BklaDbIwei

NodctabKaIJaHor

10-XpaheHne onopbln Hor

11-Правиьные поожени onopbl сиденяи onopbl дяHor (peхимстунчка дя Кормлени)
12- HenpaBnIbHO noLoXeHna onOpbl cndHb (peKm CtyIbUka nKopMneHna)

ydepxnbauoune peMHN

13-PexKIM 5-ToueuHOcNCTeMbIpeMHei (peXm CTyJbUHKa dJa KOpMJIeHnA)
14-PerynnpOBka ydePKBaOuX pemHei
15-PaccTerHyTb ydepeKnBaIOuIe peMHn
16-3acTeHyTb ydepxNBAIOUne peMHN

BnytpeHHn IoHoc

17- YctaHOBka BHyTpeHHeRo IIOdHoca
18 PerynipoBka BHyTpeHero noDnoca
19-XpaHeHne BHyTpEHHero nOHaHoca

NoctabKa JnHor

20-XpaheHne onopbln Hor
21- yctaHOBka BHeUHero noJHOca
22- ChTne BHeuHero noDnoca

Pexm cTyna:

Pambi

*calls from BT landlines are free but calls from mobiles

and other networks may vary.

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street,

Farnworth, Bolton, Lancs, BL4 7EP, England.

All the design and trademarks contained herein are the property

of Cosatto Limited. No part of this document may be reproduced

without the permission of Cosatto Limited.

www.cosatto.com
