USER MANUAL Pip 0+ COSATTO

clever stuff for happy babies

The ABCs

Pip 0+

Highchair

Traffic warning sign with pictograms showing a person assisting another, indicating danger or hazard

NEVER LEAVE THE CHILD UN ATTENDED

Red triangular warning sign with an open book symbol (no text inside)

ALWAYS FOLLOW THE INSTRUCTIONS PROVIDED

Warning sign depicting a person falling from a pole inside a red triangle, indicating collision or hazard.

NEVER ALLOW THE CHILD TO ROCK IN THE HIGHCHAIR

Warning sign depicting a person climbing a pole, indicating workplace hazard or collision risk

NEVER ALLOW ANY CHILD TO HANG OR CLIMB ON THE HIGHCHAIR

Warning symbol of a seatbelt with two hands and a belt, enclosed in a red triangle (no text or numbers)

ALWAYS USE A CORRECT LY FITTED SAFETY HARNESS

Traffic warning sign indicating a person inside a vehicle, with height and width symbols

NEVER MOVE OR ADJUST THE HIGHCHAIR WITH THE CHILD IN IT

(EN) Instruction 1 - 31

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni, (PT) Instrução, (RU) Инструкция, (ZH) 说明, (ES) Instrucciones

(EN) Part list diagram

32

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung, (IT) Diagramma della lista delle parti, (PT) Diagrama de lista de peças, (RU) Схема к спецификации деталей, (ZH) 零件清单图, (ES) Diagrama de lista de piezas

(EN) Spare part list diagram

33

(EN) Instruction diagram

34 - 40

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni,

(PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE

REFERENCE

Important safety Information.

General:

• The highchair mode is intended for children able to sit up unaided (approximately 6 months) and up to 36 months or a maximum weight of 15kg .
  • WARNING: Never leave the child unattended.
• WARNING: Make sure that the harness is correctly fitted.
• WARNING: Always use the restraint system.
• WARNING: Falling hazard: Prevent your child from climbing on the product.
• WARNING: Do not use the product unless all components are correctly fitted and adjusted.
• WARNING: Be aware of the risk of open fire and other sources of strong heat in the vicinity of the product.
• WARNING: Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
  • WARNING: Do not move or lift this product with the baby inside it.
• Do not use the product until the child can sit up unaided.
• Do not use the product if any part is broken, torn or missing.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• D-rings are provided on the existing harness for the attachment of a separate safety harness approved to BS EN 13210-1:2020 should this be required.
  • To avoid injury ensure that your child is kept away when unfolding and folding this product.
• The feeding tray is not designed to hold the child into the chair.
• Remove all packaging & protective materials on the product before using.

Reclined cradle mode:

- The reclined cradle mode is intended for children from birth before they are able to sit up unaided (approximately 6 months) or a maximum weight of 9kg .

- WARNING: Stop using the product when the child starts trying to sit up.

- Never let the child sleep in this product. This product does not replace a cot or a crib. Should the child fall asleep, then it should be placed in a suitable cot or crib.

Care & maintenance:

• Ensure all locking devices work correctly & regularly check the locks, screws & fittings for security.
  • DO NOT use spray lubricants, simply wipe clean after use.
  • Refer to the wash care label on soft goods for cleaning instructions.
  • The inner tray is dishwasher safe on the (ECO) economy cycle setting.
  • To help prevent staining it is recommended that the product is wiped clean after use.

Visual language key:

!xx	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Seat unit P7: Calf support nut (x2)

P2: LH leg P8: Calf support bolt (x2)

P3: RH leg P9: Inner tray

P4: Front foot P10: Outer tray

P5: Rear foot P11: Leg stopper screw (x2)

P6: Calf support P12: Leg stopper (x2)

*A phillips-head screwdriver is required for assembly (not include).

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat cover S7: Rear foot

S2: Seat unit S8: Calf support

S3: Harness S9: Inner tray

S4: LH leg S10: Outer tray

S5: RH leg S11: Calf support fixings (set)

S6: Front foot S12: Leg stopper & screw (set)

Assembly & operation information:

Please refer to the instruction diagrams (P. 34 - 40):

Highchair
Preparation:

Leg	1- Fitting:

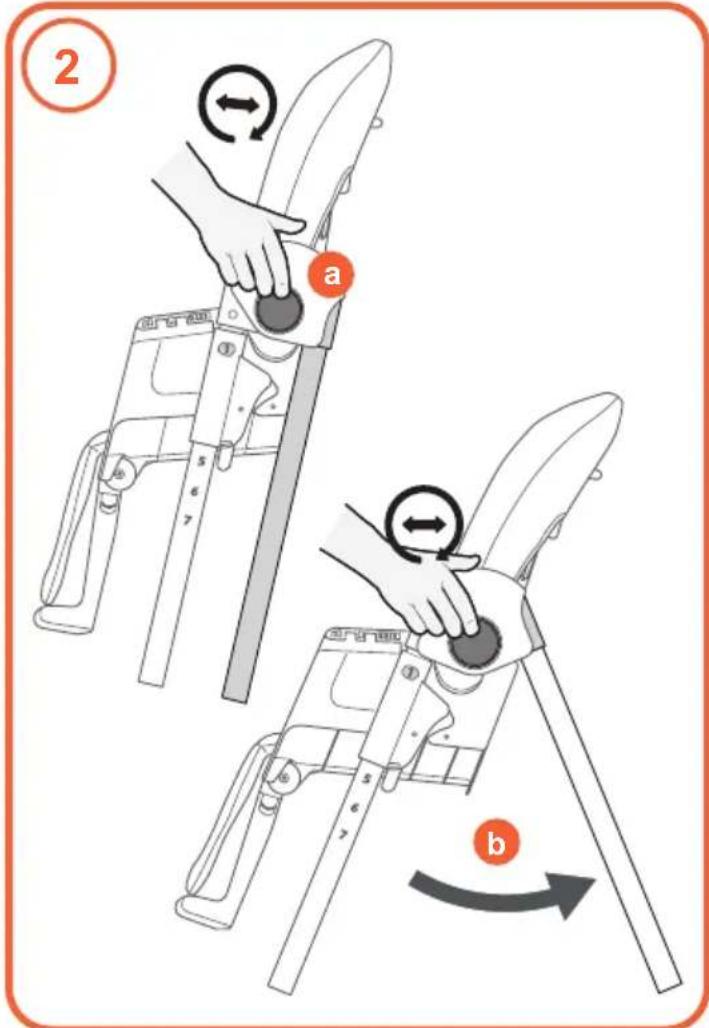

	2- Opening:

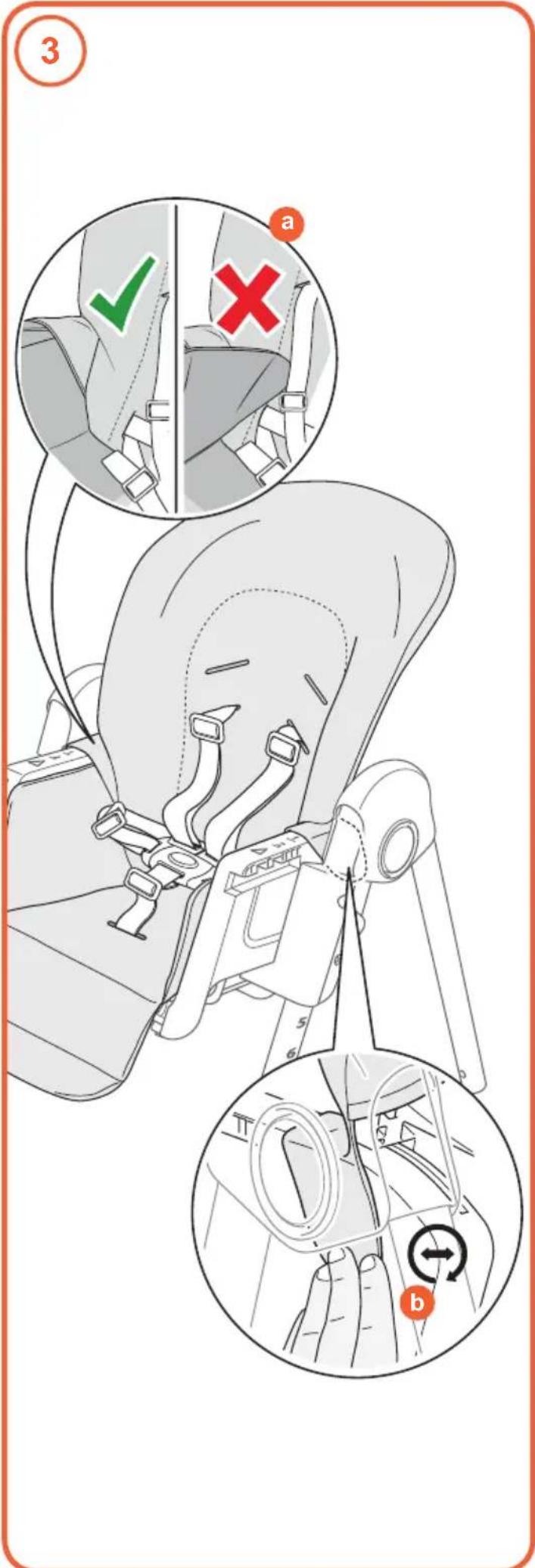

Seat cover	3- Fitting:

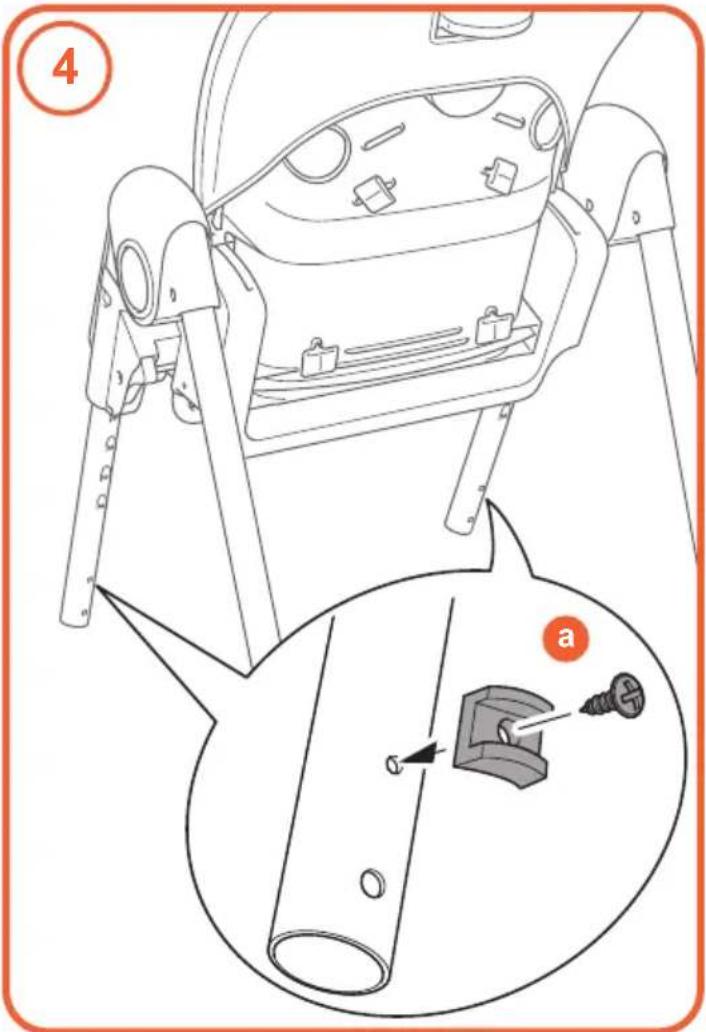

Leg stopper	4- Fitting:

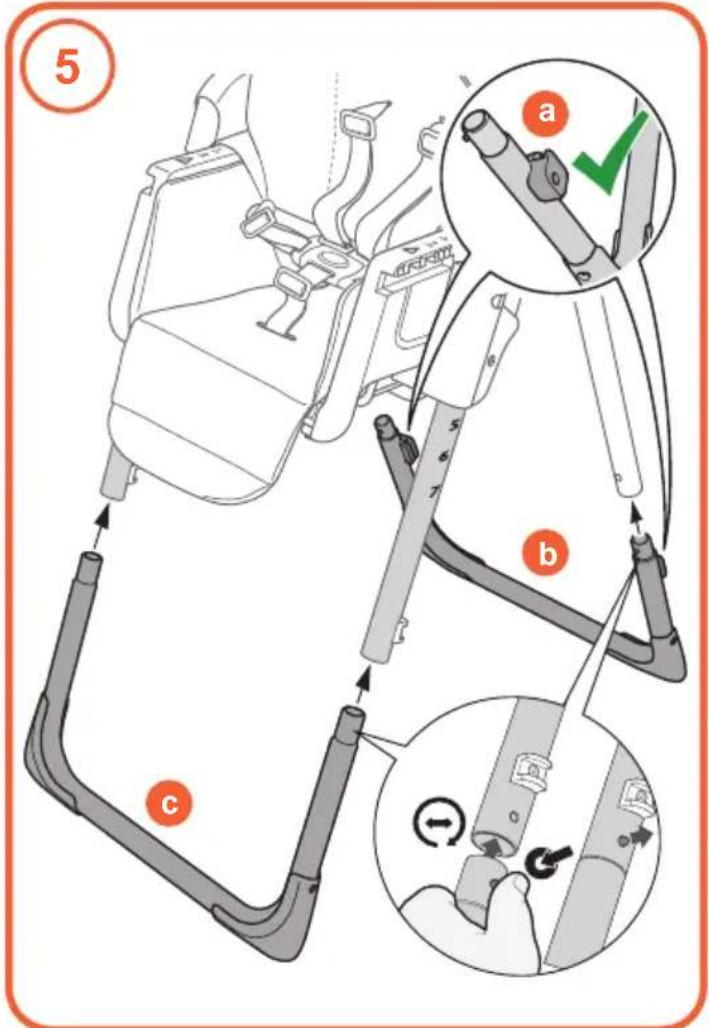

Foot	5- Fitting:

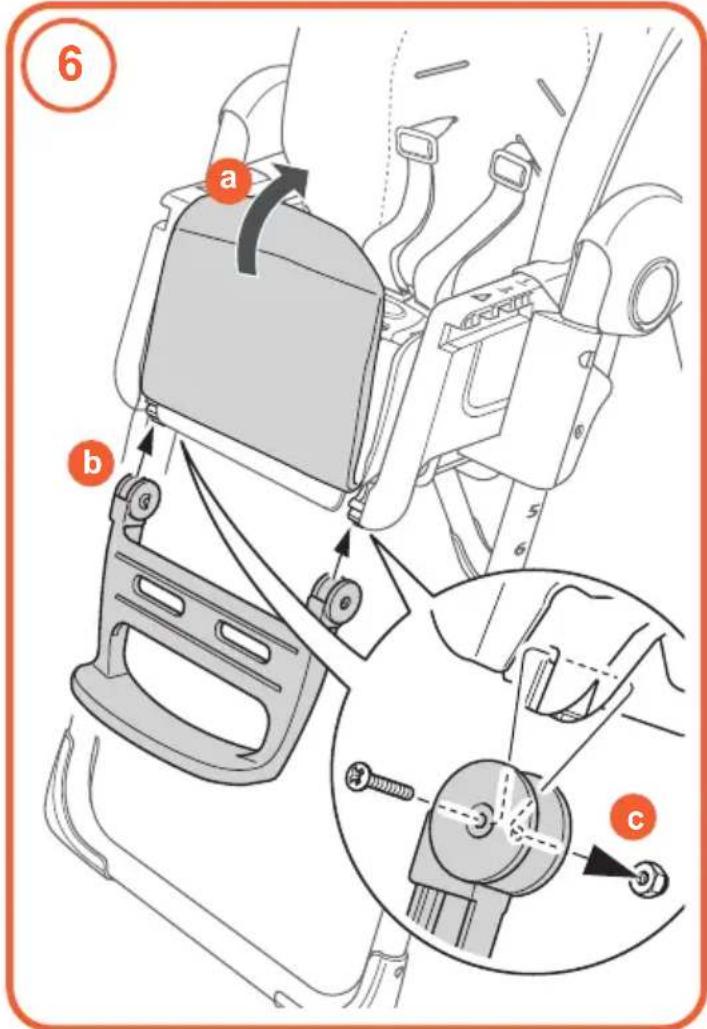

Calf support	6- Fitting:

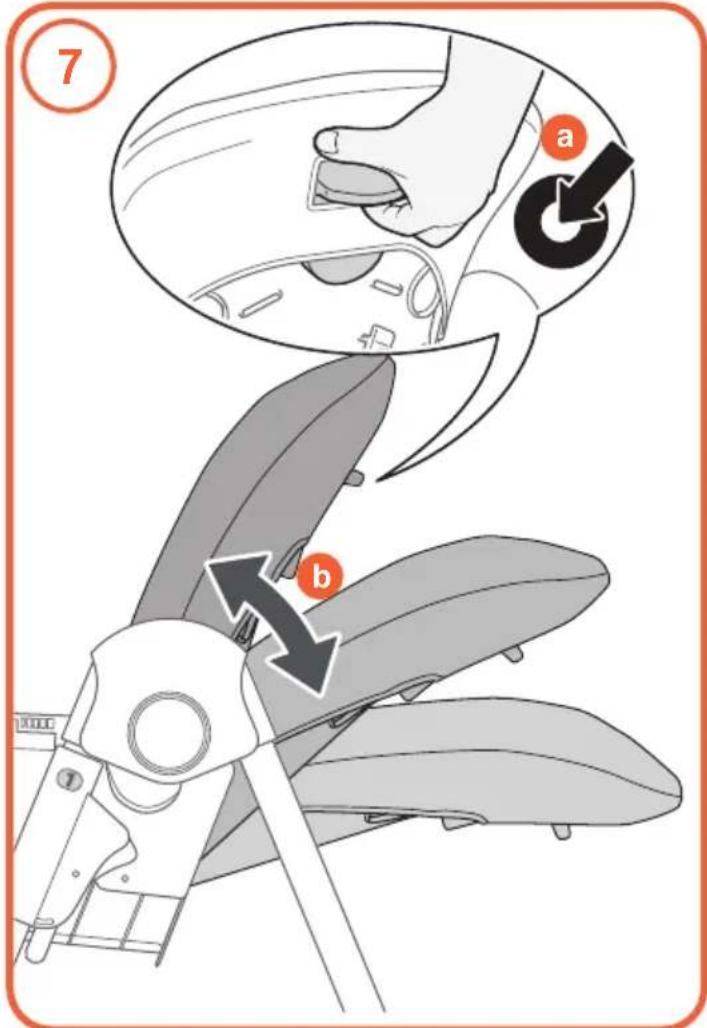

Backrest	7- Adjusting:
Calf support	8- Raising:

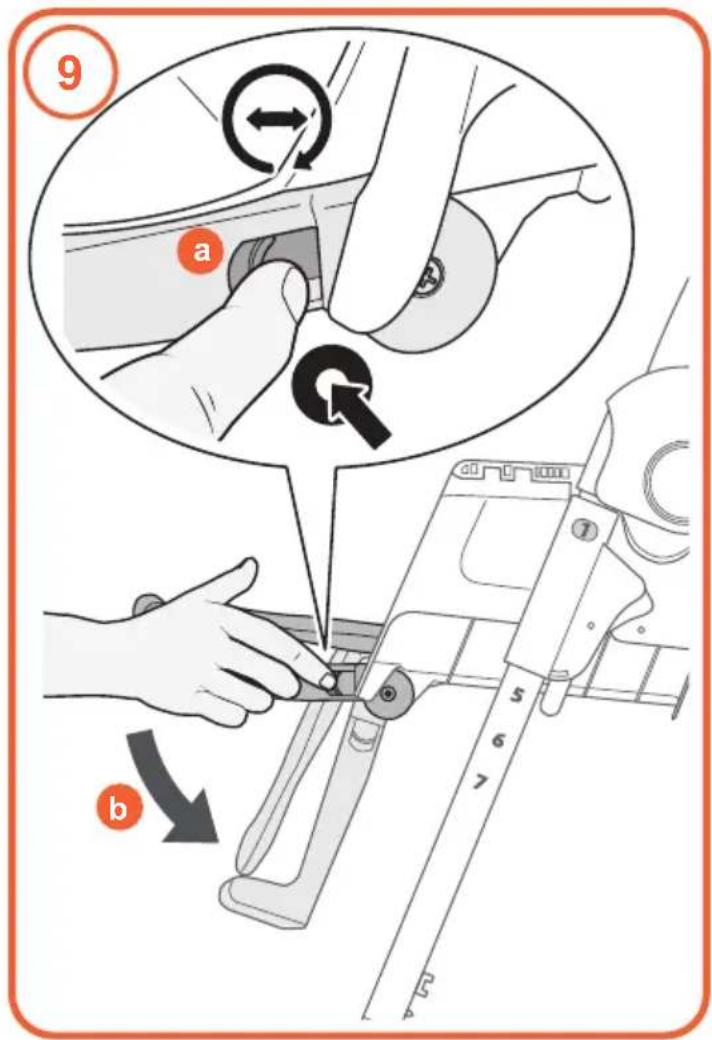

	9- Lowering:

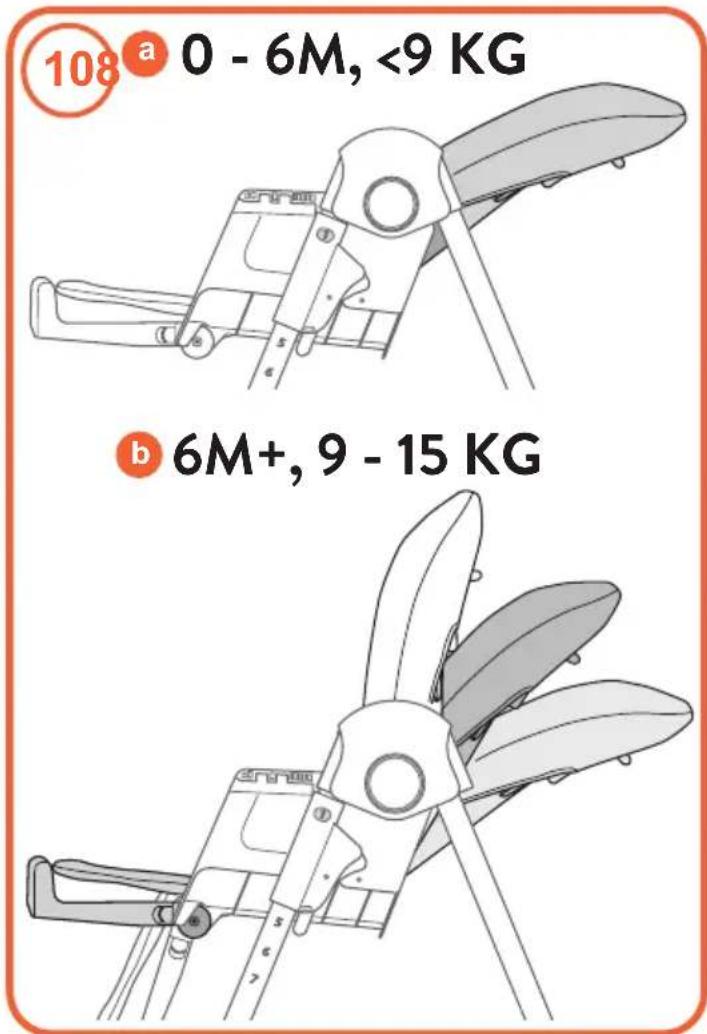

Seat unit	10- Highchair modes:

The highchair can be used in two modes:

(a) Reclined cradle mode:

The reclined cradle mode is intended for children from birth before they are able to sit up unaided (approximately 6 months) or a maximum weight of 9 kg.

The backrest must be kept in the most reclined position (See step 7) and the calf support must be raised to its highest position (See step 8).

(b) Highchair mode:

The highchair mode is intended for children able to sit up unaided (approximately 6 months) and up to 36 months or a maximum weight of 15 kg.

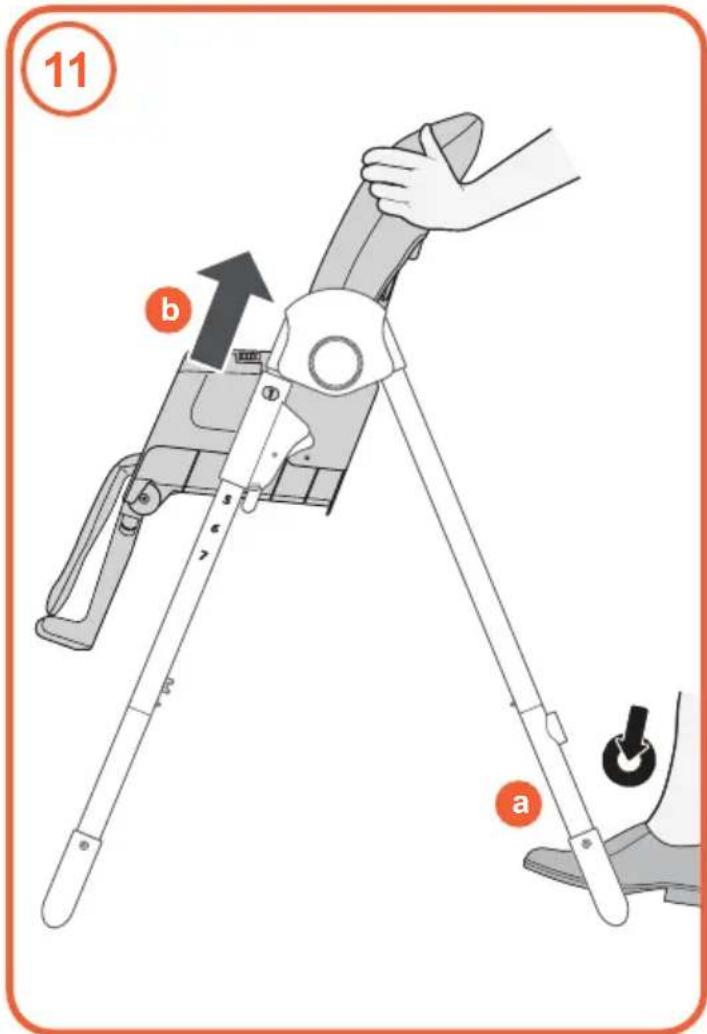

11- Raising:

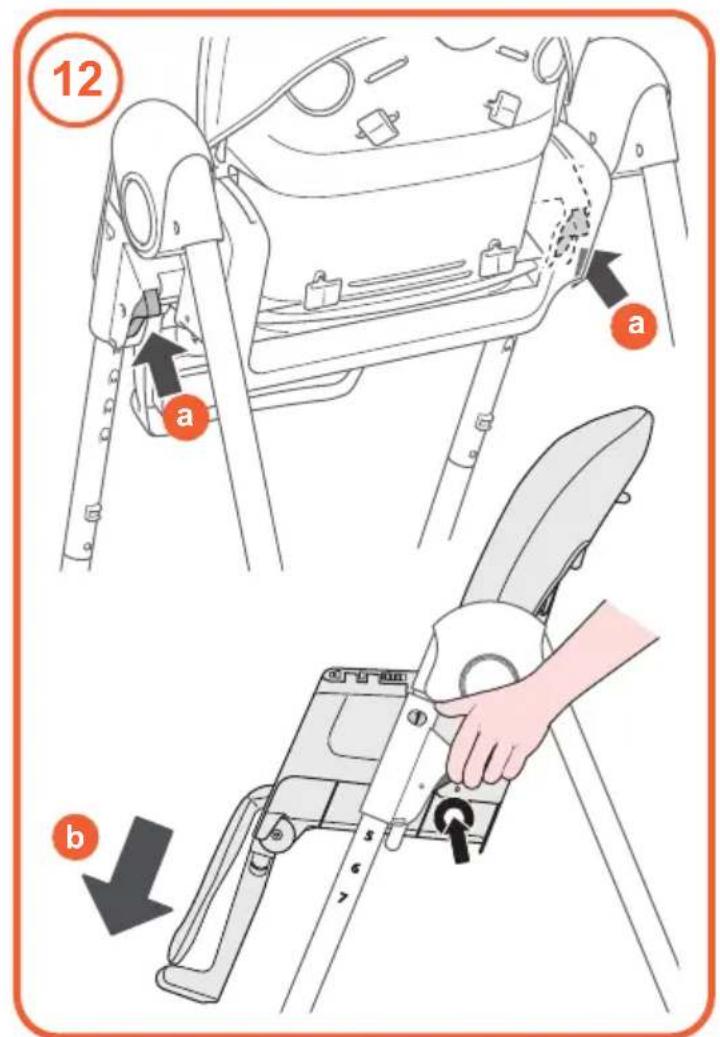

12- Lowering:

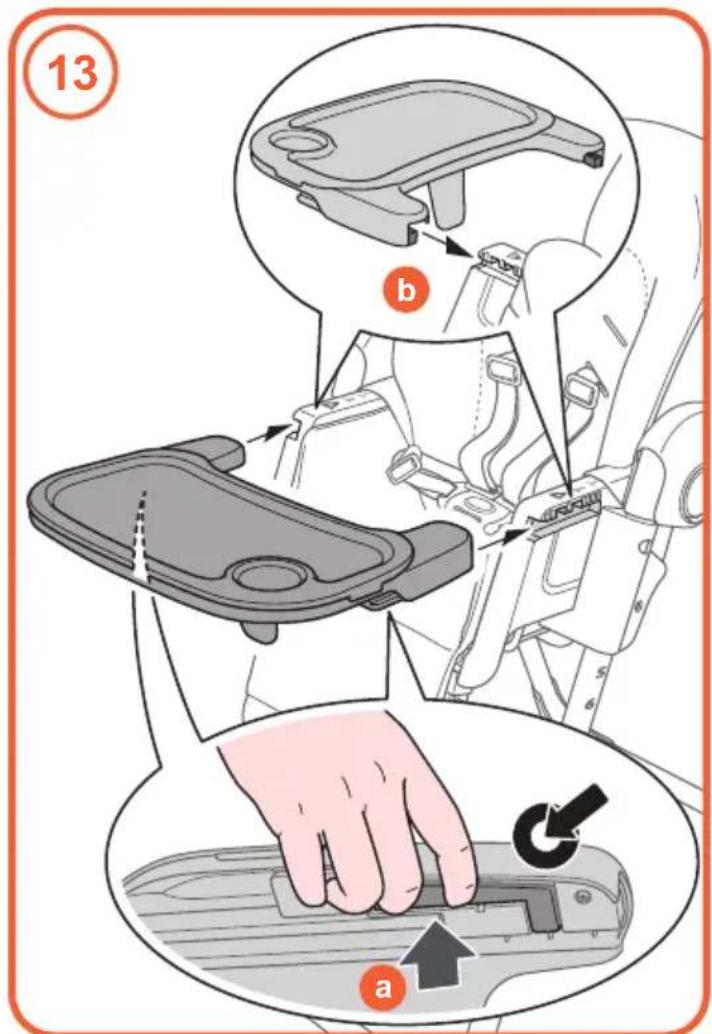

13- Fitting:

Removal is a reversal of this procedure.

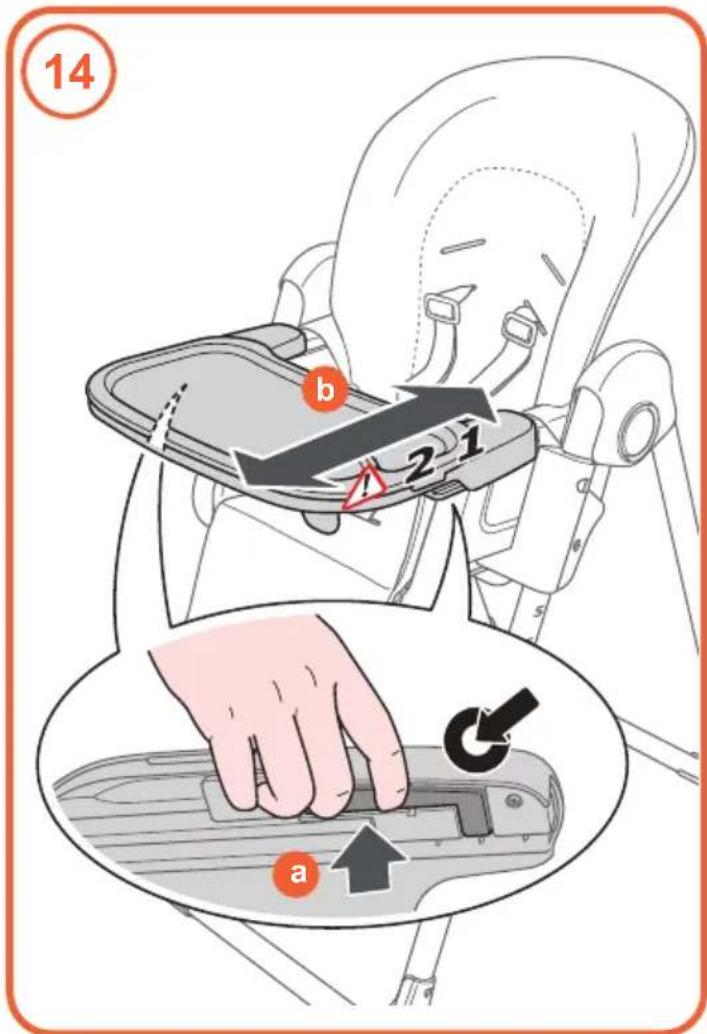

14-Adjusting:

NEVER use the tray if the symbol ( ⚠️ ) is visible.

Inner tray

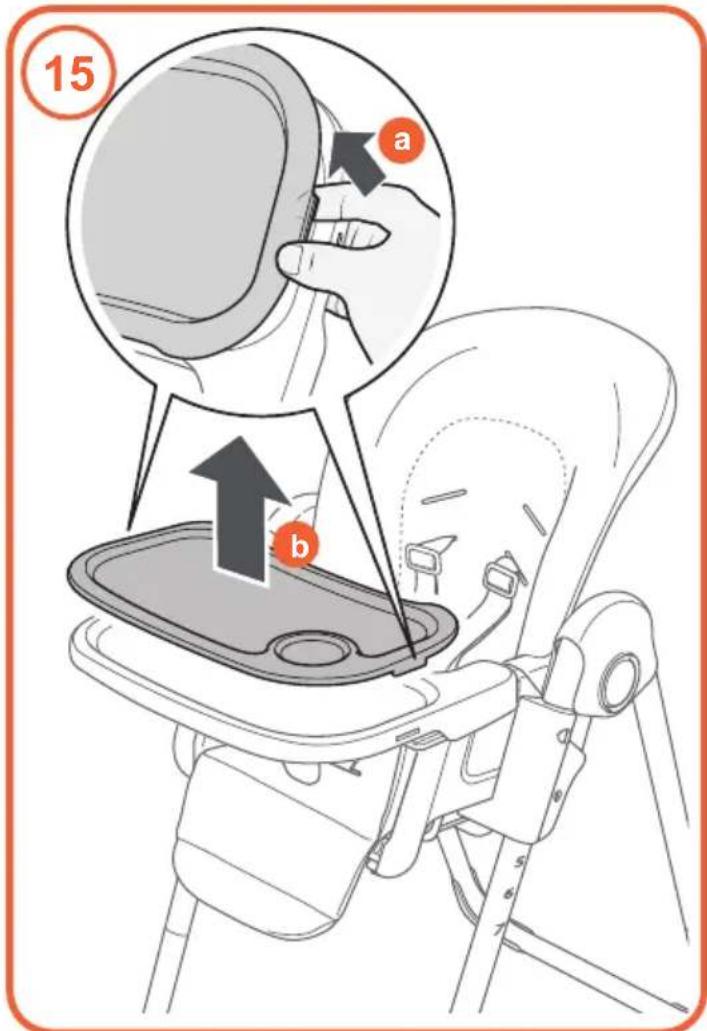

15- Remove:

Feeding tray

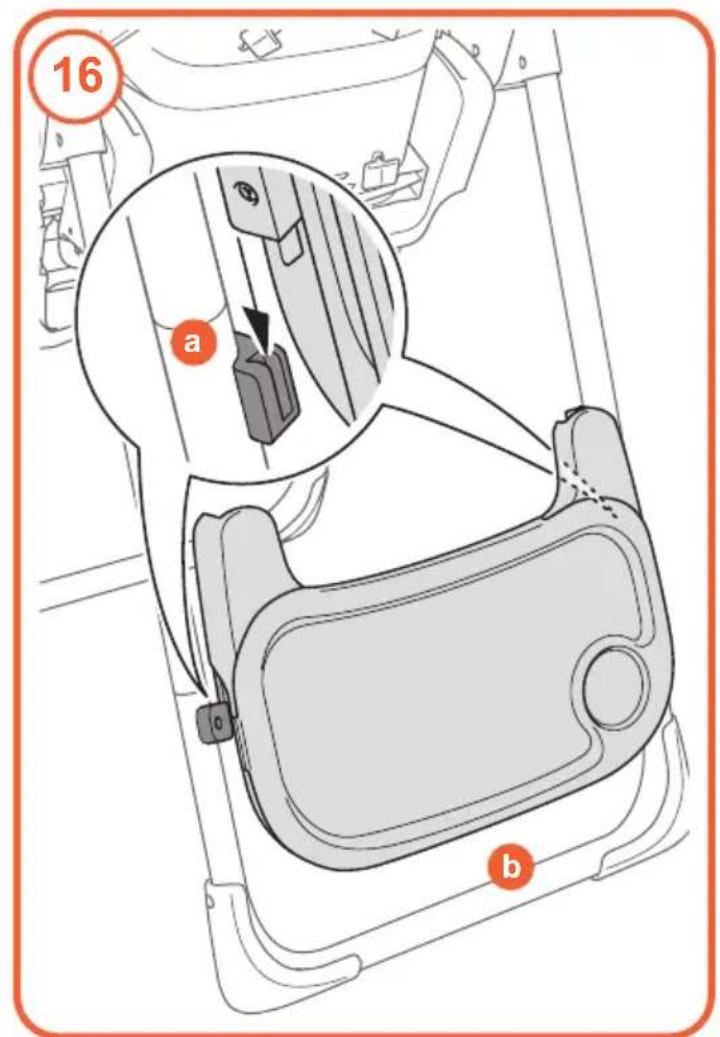

16- Storage:

Harness

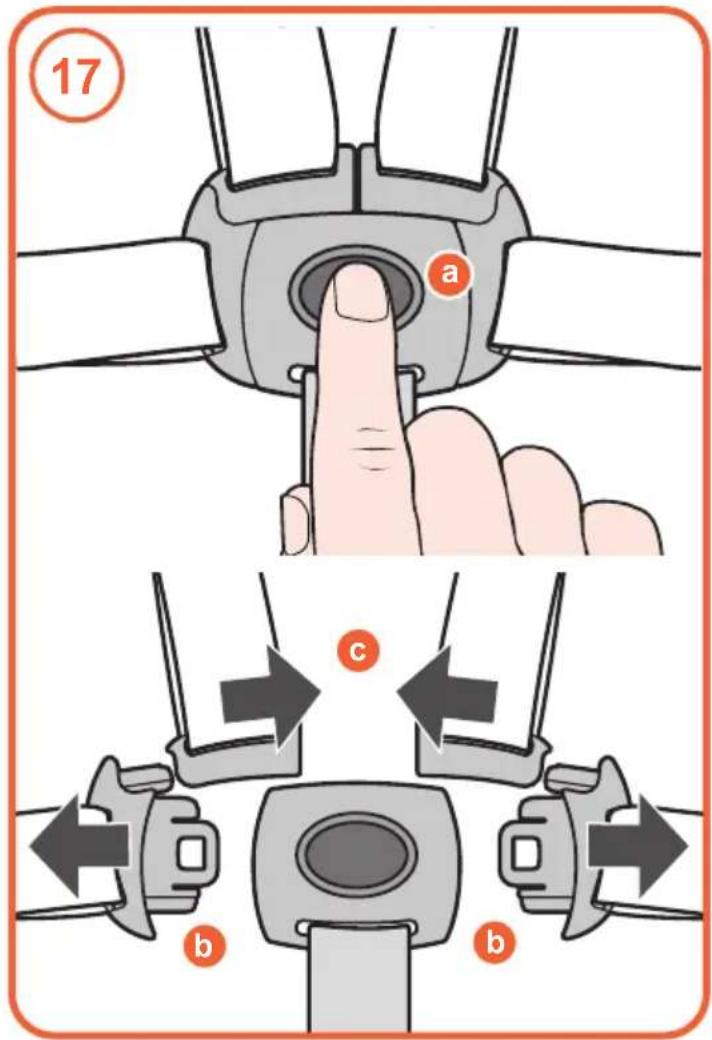

17- Opening:

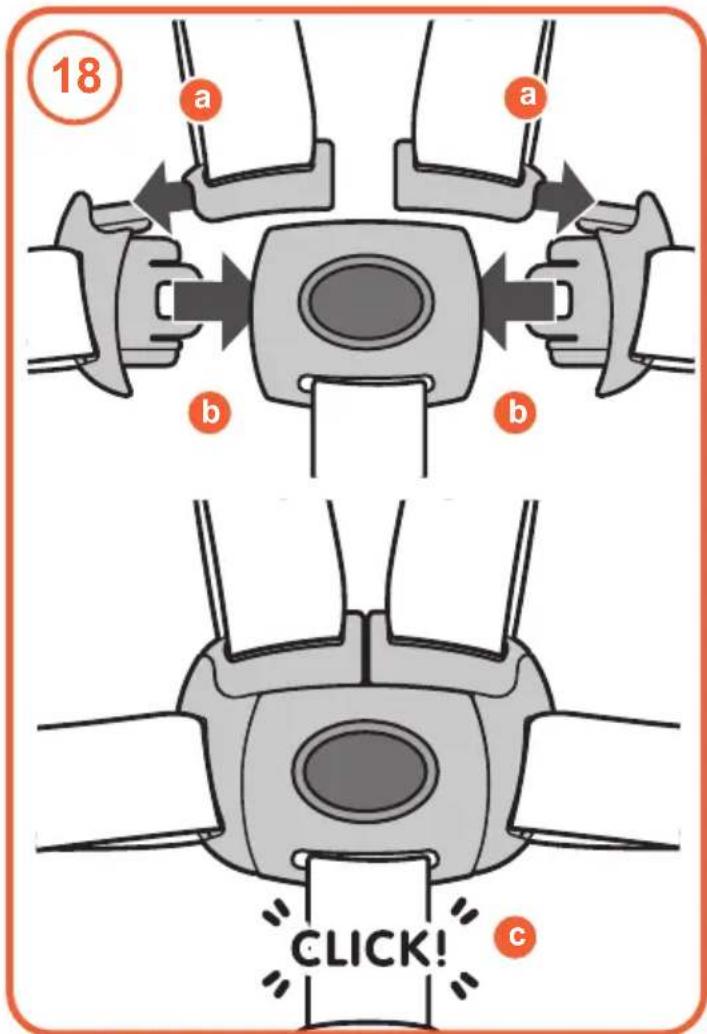

18- Closing:

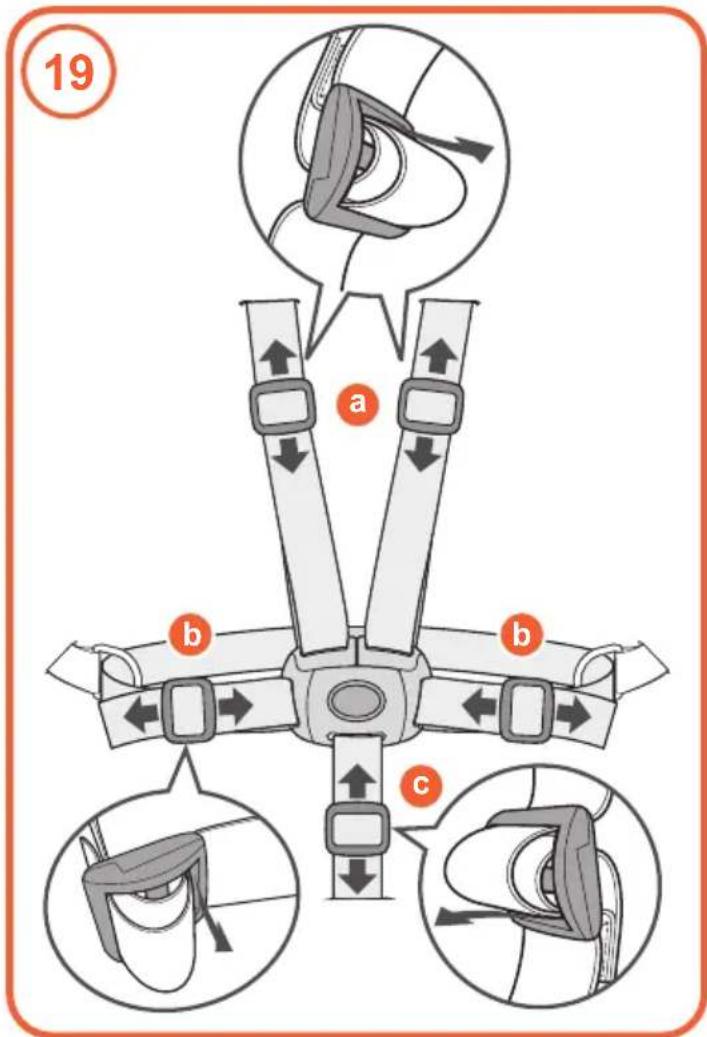

19- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

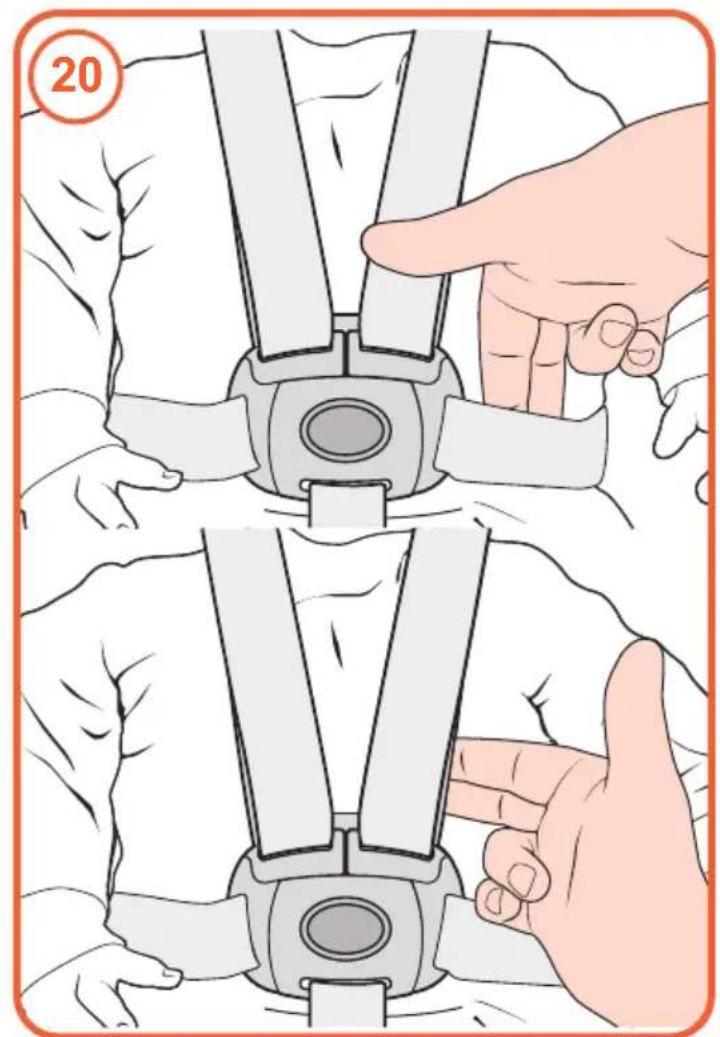

20- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

21- Adjusting the shoulder strap position:

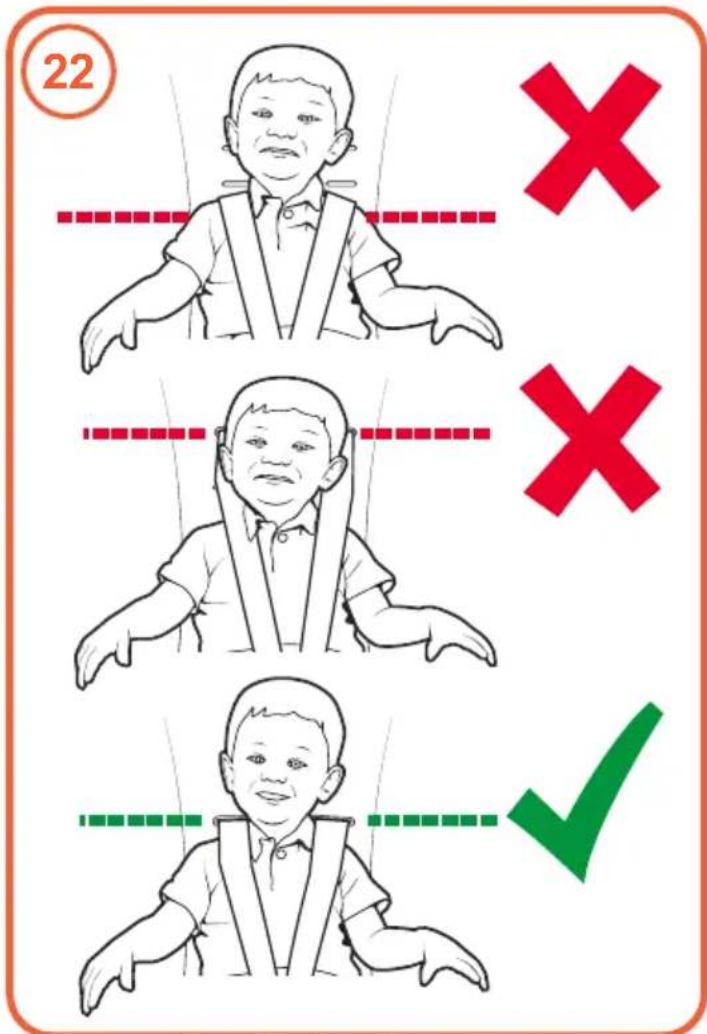

22- Satisfactory shoulder strap position:

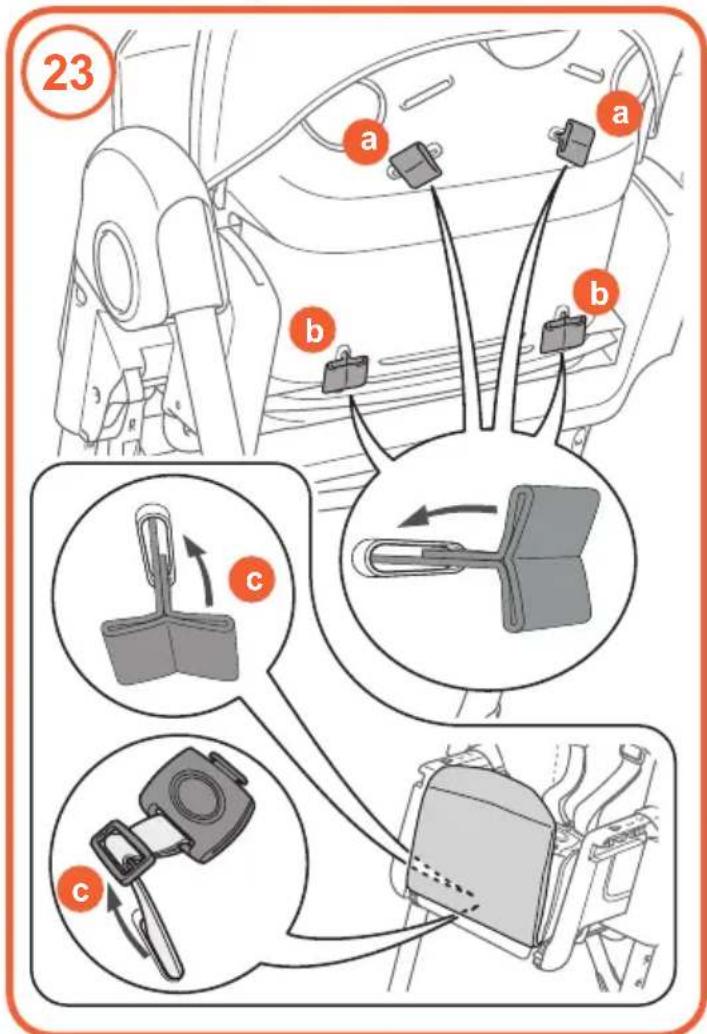

23- Removing:

Push the shoulder strap retainers through the backrest (a).

Push the waist strap retainers through the backrest (b).

Push the crotch strap retainer through the seat unit slots (c).

Highchair

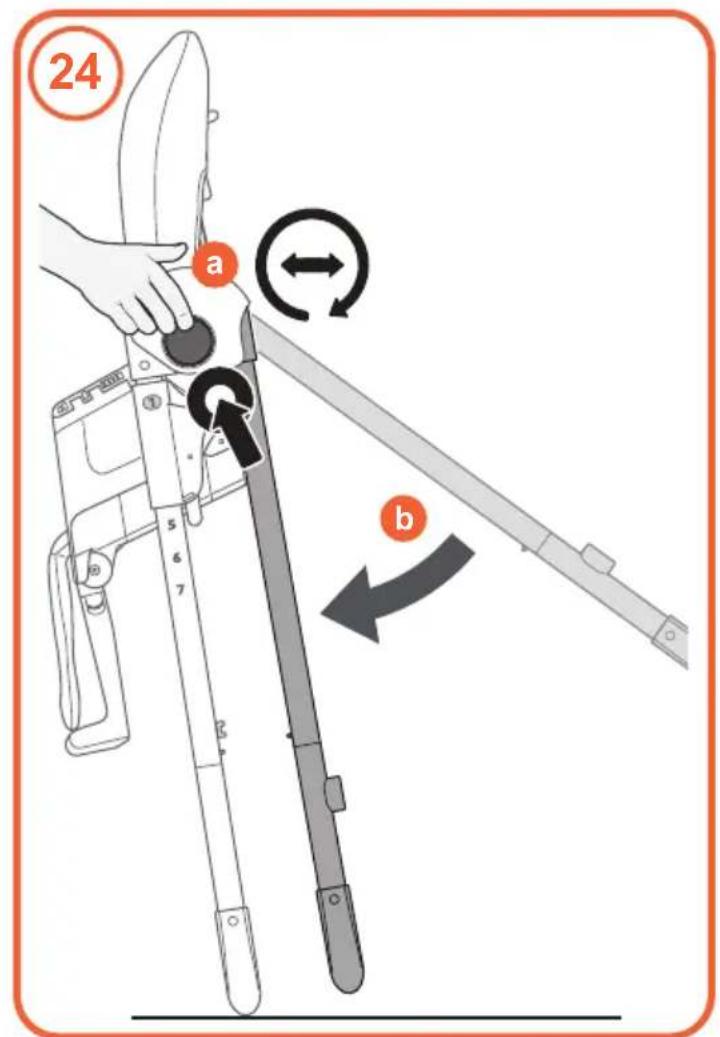

24- Folding:

For the most compact fold, put the backrest in the most upright position (refer to step 7) and adjust the seat height to the lowest position (refer to step 12).

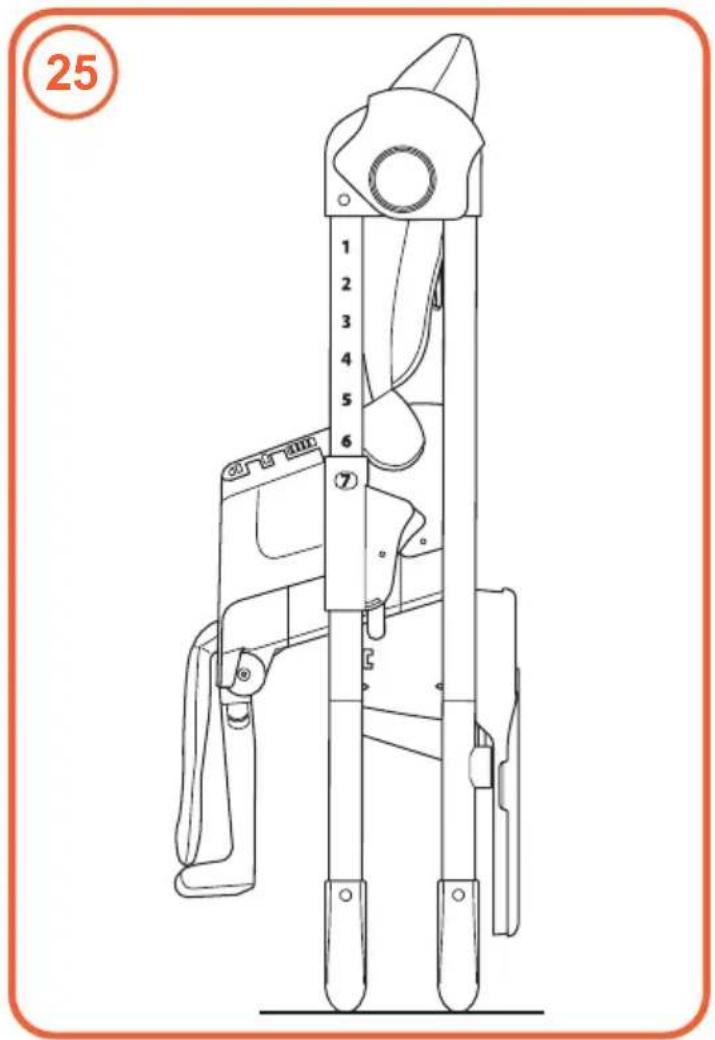

25- Storage:

Softgoods

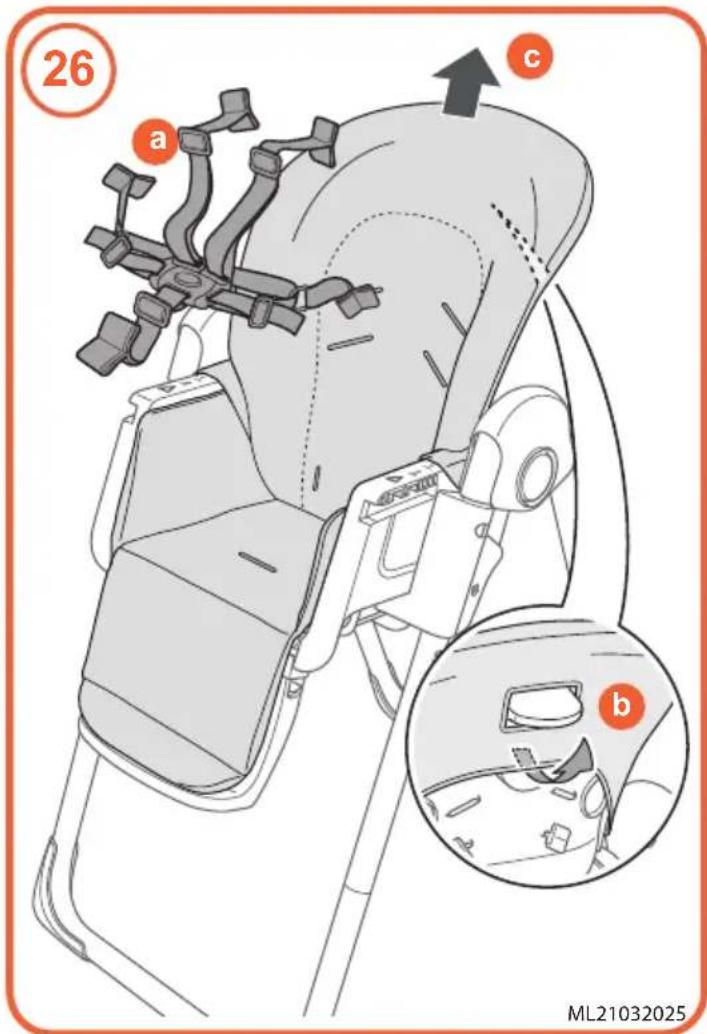

26- Removing:

Remove harness (refer to step 23) (a).

Remove the seat cover (b & c).

Refitting is a reversal of this procedure.

S5: Jambes droites S11: Attache de repose mollets (lot)

S6: Arceau frontal S12: Stop-jambe et vis (lot)

Wiege in Rücklehnposition:

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

*A phillips-head screwdriver is required for assembly (not include).

Pièces de rechange:

Diagram of a car seatbelt with numbered parts and a magnified detail showing a checkmark on the seatbelt.

2 a b

3 a ✓ × 5 6 b

Technical diagram showing a mechanical assembly with labeled parts and a close-up of a component being inserted into a housing.

6 a b c

5 a b c

7 a b

Technical diagram showing a hand operating a mechanical device with labeled parts and an arrow indicating motion direction.

108 a 0 - 6M, <9 KG b 6M+, 9 - 15 KG

9 a b

11 b a

12 a b

14 b 2 i a

13 b a

15 a b

16 a b

18 a a b b CLICK!

17 a b c b

19 a b c b b

20

22 X X ✓

21 a b

23 a a b b c c

24 a b

26 a c b ML21032025

25 1 2 3 4 5 6 7
