Product type	Convertible high chair with reclined cradle mode
Brand	Cosatto
Model	Noodle 0+
Recommended age	From birth to 36 months
Maximum weight (high chair mode)	15 kg
Maximum weight (reclined cradle mode)	9 kg
Safety harness	5-point, height adjustable
Feeding tray	Removable, dishwasher safe (eco cycle)
Seat reducer	Included for newborns
Leg rest	Adjustable
Seat height adjustment	Yes, multiple positions
Folding	Compact for transport
Spare parts available	Yes, via Cosatto service
Cover maintenance	Removable, washable (follow labels)
Safety	5-point harness, leg rest stop, locks
Materials	Plastic, fabric

Frequently Asked Questions - Noodle 0+ COSATTO

How to install the Cosatto Noodle 0+ high chair?

Follow the steps in the manual: attach the legs, install the front hoop (marked with a red dot), then the back hoop, the leg rest and the leg strap stop. Use a Phillips screwdriver (not supplied).

From what age can I use the reclined cradle mode?

The reclined cradle mode is suitable from birth until the child can sit up alone (around 6 months) or up to 9 kg. Do not use this mode for extended naps.

How to clean the feeding tray?

The inner tray is dishwasher safe on the eco cycle. Other fabric parts should be cleaned according to washing labels.

Can I order spare parts?

Yes, spare parts (cover, harness, hoops, etc.) are available on the Cosatto website for the UK and Ireland. Elsewhere, contact your distributor via cosatto.com/stockists.

Is the harness height adjustable?

Yes, the shoulder strap height can be adjusted. Make sure you can only insert two fingers between the straps and your child.

How to fold the high chair for storage?

Raise the backrest to the maximum and lower the seat to the maximum before folding. Follow the instructions in the manual for compact folding.

Can I use the high chair without the tray?

Yes, the tray is removable. You can place the child directly against a table, but ensure they cannot push off to tip over.

What safety risks should I be aware of?

Never leave the child unattended, always use the harness, prevent the child from climbing, and do not place the chair near a heat source or a table where their feet can push.

How to maintain the fabric parts?

The seat cover is removable. Follow the instructions on the washing label. Do not use spray lubricants on the mechanisms.

Is the product compliant with safety standards?

Yes, D-rings are provided to attach a BS EN 13210 harness if necessary. The product complies with the safety warnings listed in the manual.

USER MANUAL Noodle 0+ COSATTO

clever stuff for happy babies

the ABCs

noodle 0+

Highchair

Traffic warning sign with pictograms showing a person assisting another, indicating danger or hazard

NEVER LEAVE THE CHILD UN ATTENDED

Red triangular warning sign with an open book symbol (no text inside)

ALWAYS FOLLOW THE INSTRUCTIONS PROVIDED

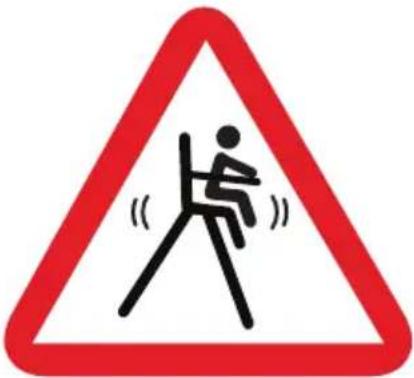

Warning sign depicting a person falling from a pole, indicating collision or hazard

NEVER ALLOW THE CHILD TO ROCK IN THE HIGHCHAIR

Warning sign depicting a person climbing a pole with text indicating safety hazard

NEVER ALLOW ANY CHILD TO HANG OR CLIMB ON THE HIGHCHAIR

Warning symbol of a seatbelt with two hands and a belt, enclosed in a red triangle (no text or numbers)

ALWAYS USE A CORRECT LY FITTED SAFETY HARNESS

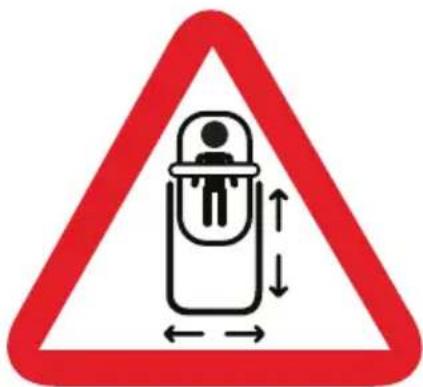

Traffic warning sign indicating a person inside a vehicle, with height and width symbols

NEVER MOVE OR ADJUST THE HIGHCHAIR WITH THE CHILD IN IT

(EN) Instruction 1 - 31

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni, (PT) Instrução, (RU) Инструкция, (ZH) 说明, (ES) Instrucciones

(EN) Part list diagram

32

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung, (IT) Diagramma della lista delle parti, (PT) Diagrama de lista de peças, (RU) Схема к спецификации деталей, (ZH) 零件清单图, (ES) Diagrama de lista de piezas

(EN) Spare part list diagram

33

(EN) Instruction diagram

34 - 40

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni,

(PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Important safety Information.

General:

• The highchair mode is intended for children able to sit up unaided (approximately 6 months) and up to 36 months or a maximum weight of 15kg .
• WARNING: Never leave the child unattended.
• WARNING: Always use the restraint system.
• WARNING: Falling hazard: Prevent your child from climbing on the product.
• WARNING: Do not use the product unless all components are correctly fitted and adjusted.
• WARNING: Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• WARNING: Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Do not use the product if any part is broken, torn or missing.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• D-rings are provided on the existing harness for the attachment of a separate safety harness approved to BS EN 13210 should this be required.
  • To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Never lift the product or adjust the seat height with the child sat in it.
• The feeding tray is not designed to hold the child into the chair.

Reclined cradle mode:

- The reclined cradle mode is intended for children from birth before they are able to sit up unaided (approximately 6 months) or a maximum weight of 9kg .

- WARNING: Do not use the reclined cradle once your child can sit unaided.

- WARNING: This reclined cradle is not intended for prolonged periods of sleeping.

- WARNING: It is dangerous to use the reclined cradle on an elevated surface, e.g. a table.

- This reclined cradle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.

Care & maintenance:

• Ensure all locking devices work correctly & regularly check the locks, screws & fittings for security.
  • DO NOT use spray lubricants, simply wipe clean after use.
  • Refer to the wash care label on soft goods for cleaning instructions.
  • The inner tray is dishwasher safe on the (ECO) economy cycle setting.

Visual language key:

!XX	Refer to warning XX
	Correct action
	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Seat unit P7: Calf support nut (x2)

P2: LH leg P8: Calf support bolt (x2)

P3: RH leg P9: Inner tray

P4: Front foot - The front foot has a red dot sticker at P10: Outer tray the rear (a).

P5: Rear foot P11: Leg stopper screw (x2)

P6: Calf support P12: Leg stopper (x2)

*A phillips-head screwdriver is required for assembly (not include).

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat cover S8: Rear foot

S2: Seat liner S9: Calf support

S3: Seat unit S10: Inner tray

S4: Harness S11: Outer tray

S5: LH leg S12: Calf support fixings (set)

S6: RH leg S13: Leg stopper & screw (set)

S7: Front foot

Assembly & operation information:

Please refer to the instruction diagrams (P. 34 - 40):

Highchair	Preparation:
Seat cover	1- Fitting:
Leg	2- Fitting:
	3- Opening:
Leg stopper	4- Fitting:
Foot	5- Fitting:
	Front foot - The front foot has a red dot sticker at the rear.
Calf support	6- Fitting:
Backrest	7- Adjusting:
Calf support	8- Raising:
	9- Lowering:
Seat unit	10- Highchair modes:
	The highchair can be used in two modes:
	(a) Reclined cradle mode:
	The reclined cradle mode is intended for children from birth before they are able to sit up unaided (approximately 6 months) or a maximum weight of 9 kg.
	The backrest must be kept in the most reclined position (See step 7) and the calf support must be raised to its highest position (See step 8).
	The seat liner most be used in this mode.
	(b) Highchair mode:
	The highchair mode is intended for children able to sit up unaided (approximately 6 months) and up to 36 months or a maximum weight of 15 kg.
	Seat unit height:
	11- Lowering:
	12- Raising:
Feeding tray	13- Fitting:
	Removal is a reversal of this procedure.
	14- Adjusting:
	NEVER use the tray if the symbol ( ⚠ ) is visible.
Inner tray	15- Remove:
Feeding tray	16- Storage:
Harness	17- Opening:
	18- Closing:
	19- Adjusting the strap length:
	Slide the strap adjustor to suitable length (a, b & c).
	20- Harness tension:
	Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

21- Adjusting the shoulder strap position:

22- Satisfactory shoulder strap position:

23- Removing:

Push the shoulder strap retainers through the backrest (a).

Push the waist strap retainers through the backrest (b).

Push the crotch strap retainer through the seat unit slots (c).

Highchair

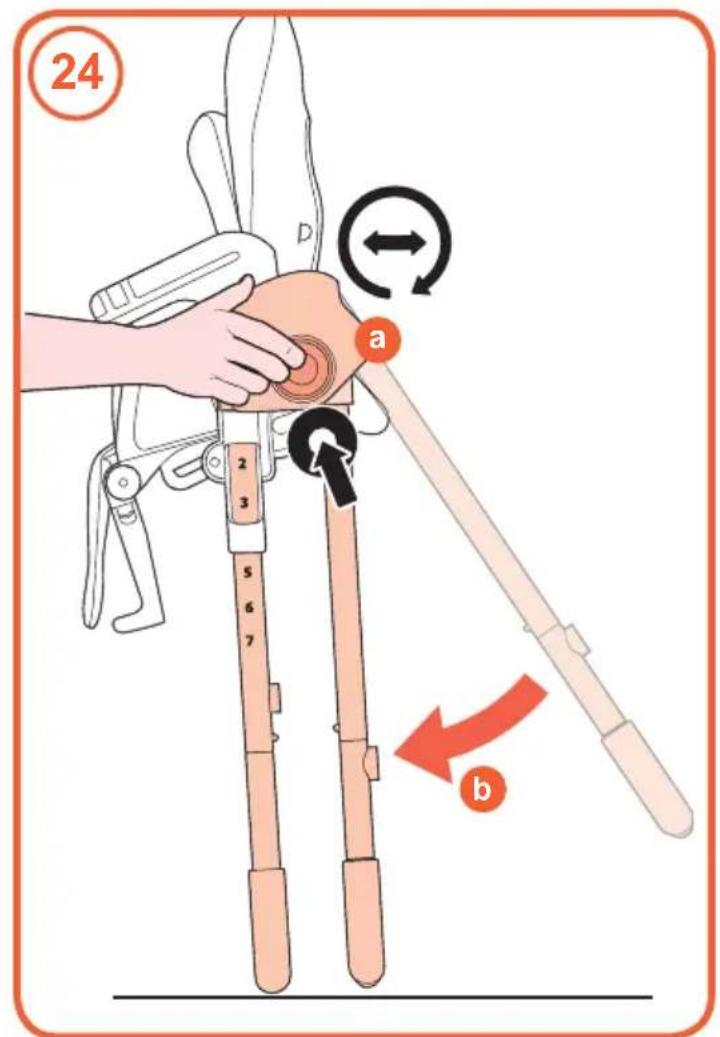

24- Folding:

For the most compact fold, put the backrest in the most upright position (refer to step 7) and adjust the seat height to the lowest position (refer to step 11).

Softgoods

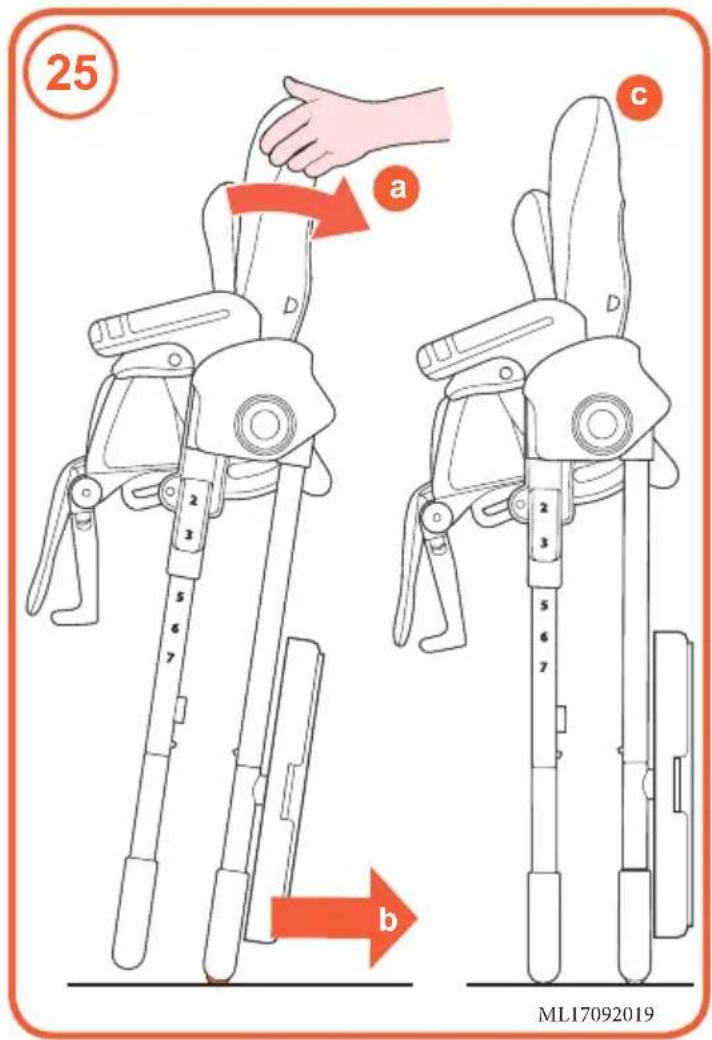

25- Transporting:

Removing:

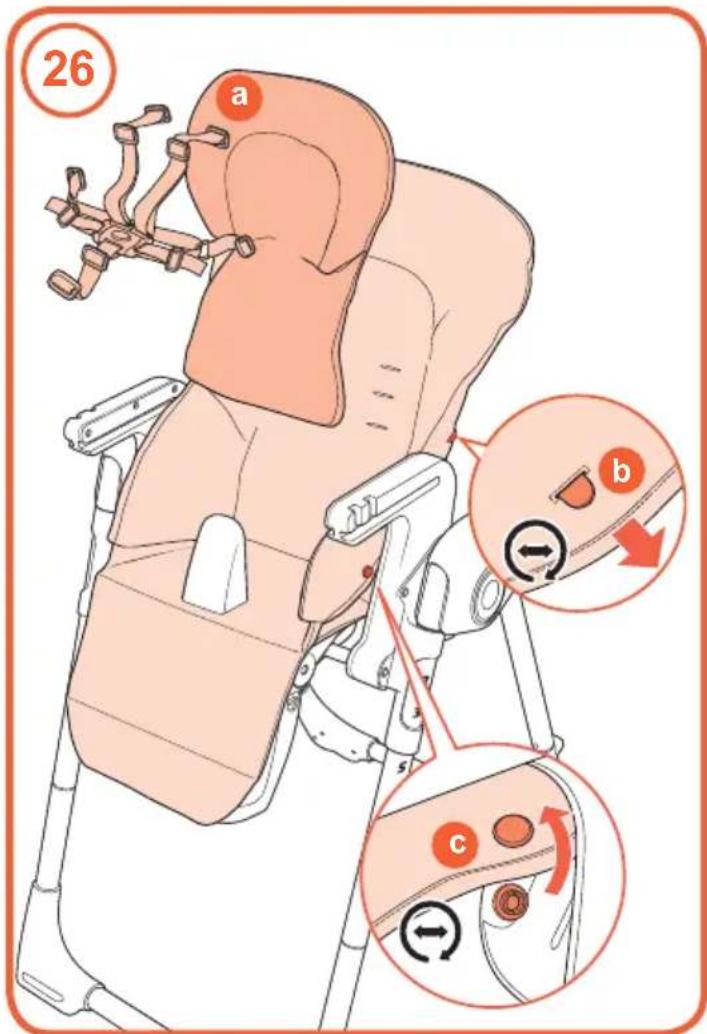

26- Remove harness (refer to step 23) and seat liner (a).

Disconnect the tab (b) and the popper (c) from both sides of the seat cover.

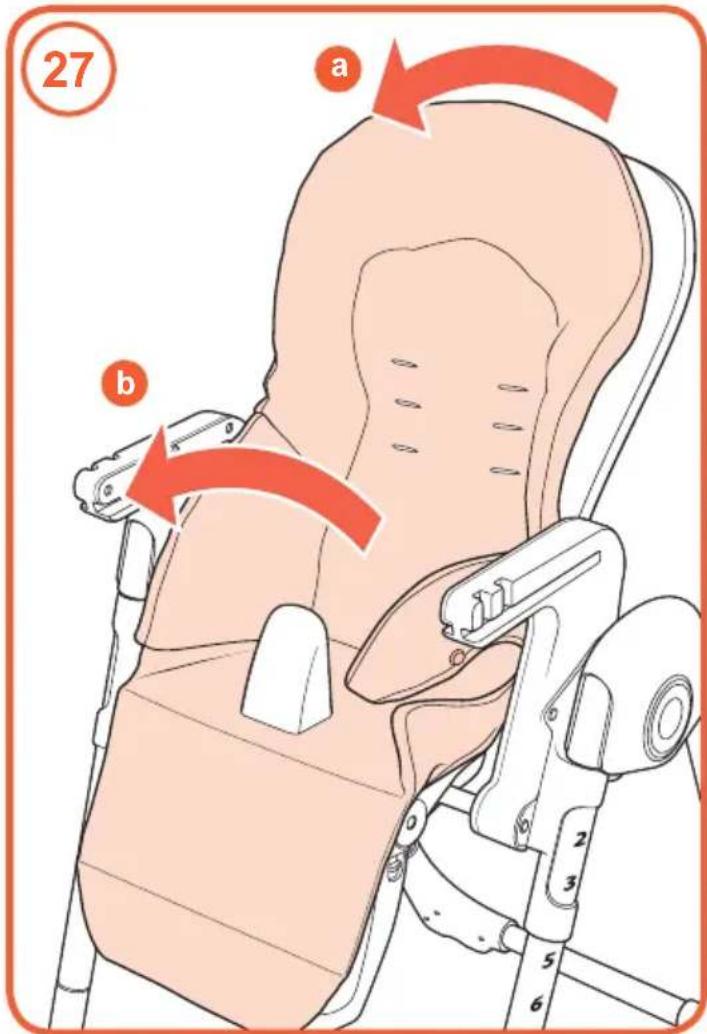

27- Remove the seat cover.

Refitting is a reversal of this procedure.

Wiege in Rücklehnposition:

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

http://www.cosatto.com/service-centre/spares

*A phillips-head screwdriver is required for assembly (not include).

Pièces de rechange:

Diagram illustrating car seatbelt buckle adjustment steps with labeled parts a, b, c and directional arrows indicating movement.

24 a b 2 3 5 6 7

26 a b c

25 a b c ML17092019

27 a b 2 3 5 6
