Product type	Automatic coffee machine
Brand	Siemens
Model	EQ.300 TF305E04
Dimensions (H x W x D)	38.3 cm x 25.1 cm x 43.3 cm
Weight (empty)	Approx. 8-9 kg
Power supply	220-240 V ~, 50/60 Hz, 1300 W
Maximum pump pressure	15 bar
Water tank capacity	1.3 L (without filter)
Coffee bean container capacity	Approx. 250 g
Grinder type	Ceramic / steel
Power cord length	100 cm
Beverages that can be prepared	Espresso, Café Crème, Cappuccino, Latte Macchiato, frothed milk
Double cup function	Yes (for Espresso and Café Crème)
Coffee intensity setting	5 levels (very mild to very strong + aromatic intense)
Grind level adjustment	Continuously adjustable during grinding
Cup warmer	Yes, can be activated/deactivated
Water filter	Yes (optional, Siemens TZ70003)
Maintenance programs	Calc'nClean (descaling + cleaning), automatic rinsing
Safety	Automatic shut-off, frost protection, child safety, permanent magnets
Spare parts / repairability	Parts available from customer service for 7 years; E-Nr and FD number on rating plate
Included accessories	Milk frother, cleaning and descaling tablets, water filter (depending on model)

Frequently Asked Questions - EQ.300 TF305E04 SIEMENS

How to descale and clean the Siemens EQ.300 TF305E04 machine?

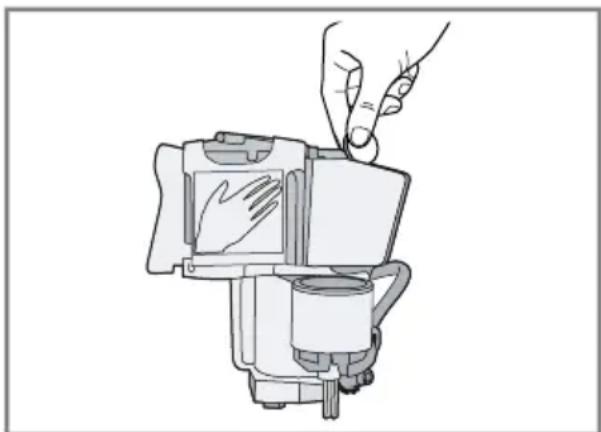

Use the Calc'nClean program. Press and hold the Calc'nClean button for at least 5 seconds, follow the on-screen instructions: remove and clean the brewing unit, place a cleaning tablet and a descaling tablet in the water tank, then let the program run (approx. 40 minutes).

How to clean the milk frother?

After each use, place a glass of water under the dispensing system, lower the frother, press the Milk button to rinse. Let it cool, then remove the frother and clean it by hand or in the dishwasher (gentle cycle).

How to adjust the coffee intensity?

Before preparing a beverage, press the ∅ (intensity) button repeatedly to switch from very mild to very strong, or select the aromatic intense mode (depending on the model).

Why is the coffee dripping slowly?

This may be due to a too fine grind setting. Adjust to a coarser setting using the selector while the grinder is running. If the problem persists, descale the appliance or clean the brewing unit.

How to activate automatic shut-off?

In the basic settings (press and hold the 0 and Calc'nClean buttons simultaneously for 3 seconds), select Auto stand-by and choose the desired time.

Can I use ground coffee?

No. This machine is designed only for roasted coffee beans (for espresso or drip coffee). Do not use ground coffee, or frozen or caramelized beans.

How to install a water filter?

Immerse the filter in a glass of water until no more bubbles appear. Set the water hardness on the ring, then push it into the empty water tank. Fill the tank and follow the on-screen instructions to activate it.

What to do if the message 'Fill water tank' appears even though the tank is full?

Check that the tank is properly seated and that the water is not carbonated. Clean the float in the tank. If a water filter is installed, make sure it is properly rinsed and contains no air.

How to prepare two cups at once?

Press the double cup button (symbol 2 cups), then place two cups under the dispensing system and select Espresso or Café Crème. The machine grinds and prepares in two steps.

Where to find the serial number (E-Nr) and the manufacturing number (FD)?

They are located on the rating plate inside the brewing unit door or on the back of the appliance. Note them down to contact customer service.

USER MANUAL EQ.300 TF305E04 SIEMENS

Further information and explanations are available online:

Table of contents

1 Safety 36

1.1 General information 36
1.2 Intended use 36
1.3 Restriction on user group.... 36
1.4 Safety information.. 36

2 Environmental protection and saving energy 40

2.1 Disposing of packaging 40
2.2 Tips for saving energy 40

3 Installation and connection.... 40

3.1 Scope of delivery 40
3.2 Installing and connecting the appliance 40

4 Familiarising yourself with your appliance. 41

4.1 Appliance 41
4.2 Control panel 41
4.3 Display 42

5 Accessories 42

6 Before using for the first time .. 43

6.1 Preparing and cleaning the appliance 43
6.2 Performing initial start-up 43
6.3 General information 43
6.4 Water filter 44

7 Basic operation 45

7.1 Switching the appliance on or off 45
7.2 Dispensing beverages 45
7.3 Dispensing a coffee drink made from fresh beans 45

7.4 Dispensing drinks with milk ... 45
7.5 Dispensing a coffee drink with milk 46
7.6 Frothing up milk 46
7.7 Drink settings 46

8Grinder 47
8.1 Adjusting the grinding level.... 48

9 Cup heater 48
9.1 Activating and deactivating the cup heater¹ 48

10 Basic settings. 48

10.1 Changing the basic settings. 48
10.2 Overview of basic settings 49

11 Cleaning and servicing. 49

11.1 Dishwasher-safe components 50
11.2 Cleaning agent 50
11.3 Cleaning the appliance 51
11.4 Cleaning the drip tray and coffee dregs container 51
11.5 Cleaning the milk frother..... 51
11.6 Cleaning the brewing unit .... 52
11.7 Service programmes 52

12 Troubleshooting 54

13 Transportation, storage and disposal 59

13.1 Activating frost protection .... 59
13.2 Disposing of old appliance ... 59

14 Customer Service. 59
14.1 Product number (E-Nr.) and production number (FD) 60
15 Technical specifications 60

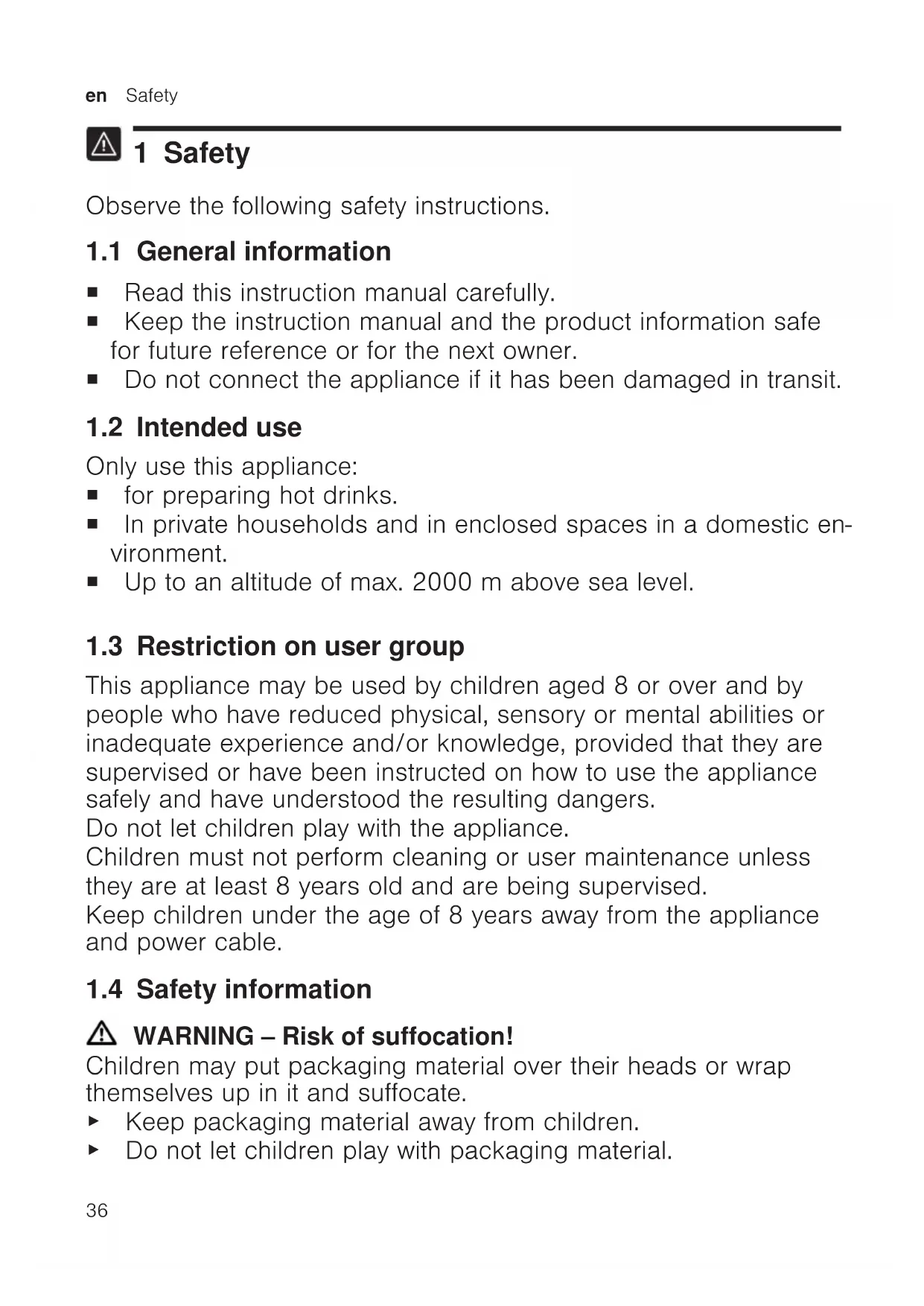

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

for preparing hot drinks.
In private households and in enclosed spaces in a domestic environment.
Up to an altitude of max. 2000m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  Do not let children play with small parts.

WARNING - Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
  The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

• Never operate a damaged appliance.
• Never operate an appliance with a cracked or fractured surface.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Call customer services. Page 59

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

• Never immerse the appliance or the power cord in water.
• Liquids must not be spilled on the appliance plug connection.
  Only use the appliance in enclosed spaces.
• Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING - Risk of fire!

The appliance will become hot.

• Ventilate the appliance adequately.
• Never operate the appliance in a cupboard.

It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
• Only use adapters and power cords approved by the manufacturer.
  If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

WARNING - Risk of burns!

Some parts of the appliance become very hot.

• Never touch hot appliance parts.
• Allow hot appliance parts to cool down before touching.

WARNING - Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

WARNING - Risk of injury!

Improper use of the appliance may endanger the user.

• To avoid injuries, only use the appliance for its intended purpose.
  Trapped fingers when closing the appliance door.
• Be careful of your fingers when closing the appliance door. The grinder rotates.
• Never reach into the grinder.

WARNING - Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps.

• People with electronic implants must stand at least 10cm away from the appliance.

• This minimum distance of 10cm must also be observed for the water tank when removed.

WARNING - Risk of harm to health!

Soiling on the appliance may be harmful to health.

To ensure hygiene, follow the cleaning instructions for the appliance.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less power.

Set the interval for automatic switchoff to the smallest value.

If the appliance is not being used, it will switch itself off earlier.

"Basic settings", Page 48

Do not interrupt the dispensing process prematurely.

• The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

Fig. 1

A	Fully automatic coffee machine
B	Milk frother
C	User manual
D	Cleaning tablet1
E	Descaling tablet1
F	Water filter1

1 Depending on the appliance specifications

3.2 Installing and connecting the appliance

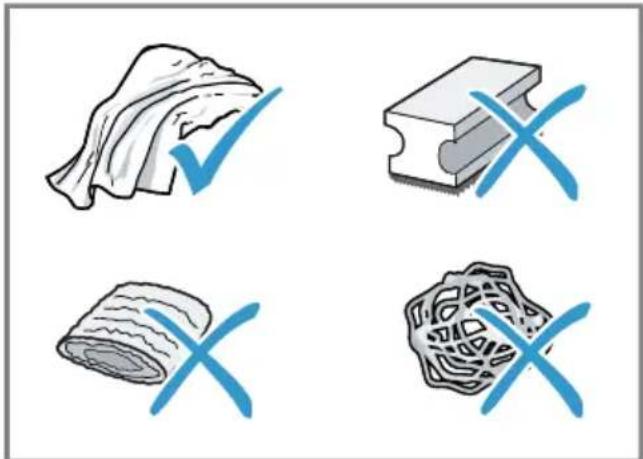

ATTENTION!

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

Use the appliance in frost-free rooms only.
If the appliance has been transported or stored below 0^ , wait 3 hours at room temperature before starting it up.
After plugging in, always wait approx. 5 seconds.

1. Place the appliance on a level, water-resistant surface that is capable of bearing its weight.

2. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

Fig. 2

1 Water tank
2 Cover for water tank
3 Cup heater
4 Display
5 Rotary selector for grinder setting
6 On/off button

1 Depending on the appliance specifications

4.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

(1)	Switch the appliance on or off.
Espresso	Dispense espresso.
Caffe Crema	Dispense caffecremaDisplay navigation"<<" back withoutsaving

1 Depending on the appliance specifications

7	Aroma lid
8	Bean container
9	Control panel
10	Milk frother holder
11	Brewing unit
12	Rating plate
13	Milk frother
14	Outlet system
15	Brewing chamber door
16	Drip tray
17	Drip pan
18	Filling state indicator, mechanical
19	Drip grate
20	Coffee dregs container

Depending on the appliance specifications

Cappuccino	Dispense cap-puccino Display navigation ↓ down
Latte Macchiato	Dispense lattemacchiato Display navigation"ok" confirm andsave
Milk	Froth milk.
∅	Strength → "Adjusting the coffeestrength", Page 46
1 Depending on the appliance specifications

en Accessories

calc'n Clean Start service pro- gramme. → Page 52	Simultaneously dis- pense 2 cups of es- presso or caffe crema. → Page 47
Depending on the appliance spe- cifications	Switch the cup heater¹ on or off.
	1 Depending on the appliance spe- cifications

Display

Lights up and display shows message	Fill the water tank Water tank missing Change the water filter
■ is lit ■ is flashing	Empty trays Close the brewing chamber door
LEDs are lit	ready for use dispensing underway waiting for operation, e.g. with Calc'nClean not available

4.3 Display

The display shows the selected drinks, settings and setting options, as well as messages about the appliance's operating status.

The display shows additional information and action steps. The information is hidden after a short period, or by pressing a button. The action steps are hidden when they have been completed.

5 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service
Cleaning tablets TZ80001A	TZ80001B	00312097 00312098
Descaling tablets TZ80002A	TZ80002B	00312094 00312095
Water filter TZ70003 00575491
Water filter pack of 3 TZ70033A -
Microfibre cloth - 00460770
Care set TZ80004A 00312105

Accessories Retail Customer service

TZ80004B 00312106

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION!

Unsuitable beans can block up the grinder.

Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
Do not use glazed coffee beans.
Do not use caramelised coffee beans.
- Do not use coffee beans that have been treated with additives containing sugar.
Do not add ground coffee.

Fig. 3 - 10

Note: Fill the water tank each day with fresh, cold, non-carbonated water.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for the language selection. The language selection step only appears when the machine is switched on for the first time.

1. Press to switch on the appliance.
   The display will show the language that is preset.
2. Press button cappuccino peatedly until the display shows the required language.
3. To confirm that you want to use these settings, press "ok" button Latte Macchiato
4. The appliance is rinsed. When the display shows "Choose beverage", the appliance is ready for use.

Tip: You can change the language at any time.

"Basic settings", Page 48

6.3 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

The appliance has been programmed at the factory with standard settings for optimum operation.
The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running. "Adjusting the grinding level", Page 48

en first time

During operation water droplets may form at the ventilation slits.
If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings.
- For technical reasons steam can escape from the appliance.

If you press a button, a signal tone sounds. You can deactivate the signal tone in the basic settings.

Tip: Check and set the water hardness before using your appliance.

Note

The first beverage will not yet have its full aroma if:

• You are using the appliance for the first time.
• You have run a service programme.
  You have not used the appliance for a long time.

Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

6.4 Water filter

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

Inserting or replacing a water filter

If you have to change the inserted water filter, rights up on the display.

ATTENTION!

Possible damage to the appliance due to limescale build-up.

Change the water filter in good time.
Change the water filter after 2 months at the latest.
Observe the display messages.

Requirement: The appliance is switched on.

1. Press and hold buttons and calc'n Clean simultaneously for at least 3 seconds.
2. Press button Gappeneino display shows "W. hardness".
3. Confirm with "ok" button Latte Macchiato
4. Press button Gappeneo display shows "Water filter".
5. Confirm with "ok" button Latte Macchiato

The display shows "Filter act."

1. Immerse the water filter in a glass of water with the opening facing up and press the sides together lightly until no more air bubbles rise to the surface.

$$ \rightarrow \text {F i g .} \boxed {7} $$

1. Set the water hardness on the aroma ring of the water filter.

2. Press the water filter firmly into the empty water tank.

$$ \rightarrow \text {F i g .} \quad 8 $$

You can find out the water hardness from your local water supplier.

1. Press the water filter firmly into the empty water tank.
2. Fill the water tank with water up to the max mark.
   10.Insert water tank into the appliance.
3. Place a container with a capacity of at least 1.0 l under the outlet.
4. Press the "ok" button Latte Macchiato to save the setting and start rinsing.

Water will now flow through the filter.

1. Press "<" button Caffecemama the menu.
2. Empty the container.

The appliance is ready to use.

Removing the water filter

You can also operate your appliance without a water filter.

1. Remove the water filter.
2. Set the water hardness. "Basic settings", Page 48

Tips

• You should also change your water filter for reasons of hygiene.
• With a water filter you need to descale your appliance less frequently.
  If you use a water filter, your coffee will be more flavoursome.
  The water filter can be purchased from retailers or customer service. "Accessories", Page 42

7 Basic operation

7.1 Switching the appliance on or off

Press

When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

7.3 Dispensing a coffee drink made from fresh beans

1. Place a cup under the outlet system.

2. To set the coffee strength, press the button repeatedly.

3. Press button Esecco Caffe Crema

The coffee is brewed and then dispensed into the cup.

Tip: To stop the current dispensing step early, press the Caffe Crema button.

7.4 Dispensing drinks with milk

You can make coffee drinks with milk or froth up milk.

#

WARNING

Risk of burns!

The milk frother gets very hot.

Let the milk frother cool down before you touch it.

ATTENTION!

Milk residues can dry on surfaces and are difficult to remove.

Clean the milk frother after each use.

Tips

You can also use plant-based alternatives to milk, e.g. soya milk.
The quality of the milk froth depends on the type of milk or plant-based alternative used.

7.5 Dispensing a coffee drink with milk

You can choose between cappuccino and latte macchiato.

1. Check the position of the milk frother.

Cappuccino

Latte macchiato

1. Fill a large cup or a large glass with approx. 100 ml milk for cappuccino or approx. 150 ml milk for latte macchiato.
2. Place the cup or glass under the outlet system.
3. Slide the outlet system and milk frother right down.

4. To set the coffee strength, press the button repeatedly.

5. Press button Cappuccino Latte Macchiato.

The milk is first frothed up in the cup or glass. The coffee is then brewed and dispensed into the cup or the glass.

Tip: To stop the current dispensing step early, press the Cappuccino Latte Macchiato button.

7.6 Frothing up milk

1. Fill a large cup or a large glass with approx. 100ml milk.
2. Place the cup or glass under the outlet system.
3. Slide the outlet system and milk frother right down.
4. Press the button.

The milk is frothed up.

Note: To stop the dispensing process early, press the Mblk button.

7.7 Drink settings

Prepare a drink according to your taste.

Adjusting the coffee strength

Before making a drink, you can adjust the coffee strength.

To adjust the coffee strength, press the button repeatedly.

0	Very mild
100	Mild
1000	Normal
1000	Strong
1000	Very strong
1000	aromalntense1
1	Depending on the model

Note: The coffee strength selected is then active for all drinks made with coffee.

Adjusting the filling level

You can adjust the filling level of your drinks.

1. Place a cup under the outlet system.
2. Press and hold button Caffe Crema for 3 seconds.
   Dispensing takes place, with the button selected flashing.
   The display shows the progress. Fig. 11
3. Once the required filling level is reached, press the button selected to stop.

Notes

The new filling level is only apparent when the next drink is dispensed.
- You can set the filling level between 25-60 ml for espresso or 80-200 ml for caffe crema.
The appliance always brews a minimum quantity of approx. 25ml for espresso and approx. 80ml for caffe crema.

Adjusting the frothing time

You can adjust the frothing time of your drinks.

1. Fill a large cup or a large glass with approx. 100ml milk for cappuccino or approx. 150ml milk for latte macchiato.
2. Place the cup or glass under the outlet system.
3. Slide the outlet system and milk frother right down.
4. Press and hold button Cappuccino Latte Macchiato or Mif 3 seconds.

The milk is frothed up, and the button selected flashes.
The display shows the progress. Fig. 11

1. Once the required frothing time is reached, press the button selected to stop.

Notes

• You can set a limited time depending on the drink.
• Setting the frothing time has no impact on the filling level.

Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

1. Press the button.
   The display shows "Double cup on" for 5 seconds.
2. Place two cups on the left and right under the outlet system.
3. Press button Esecco Caffe Crema

The LED in the button pulses.
- The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.
The drink is brewed and then runs into the cup.

1. Wait until the process is complete.
2. To switch off the double cup function, press the button.

Notes

You can set the double cup function for expressly. Caffe Crema
If you have set the double cup function, you cannot dispense other drinks.
If you do not press any other button within 90 seconds, the appliance automatically switches to the "Double cup off" setting.

8Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

8.1 Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.

• Never reach into the grinder.

ATTENTION!

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

• Only set the grinding level when the grinder is running.
• Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for lightly roasted beans

Turn rotary selector anticlockwise.

Coarse grinding level for dark-roasted beans

Turn rotary selector clockwise.

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is too thin with too little crema, set a finer grinding level.

9 Cup heater¹

You can use the cup heater to preheat your cups.

9.1 Activating and deactivat ing the cup heater

WARNING

Risk of burns!

The cup heater can become very hot.

• Never touch the cup heater while hot.
• Allow the hot cup heater to cool down before touching it.

Tip: Place the cups with their base on the cup heater to warm them to optimum effect¹.

To activate or deactivate the cup heater, press the button.

10 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

10.1 Changing the basic settings

1. Press and hold buttons and calc'n Clean simultaneously for at least 3 seconds.
2. Press button reppuccino peatedly until the display shows the required setting.
3. Confirm with "ok" button Latte Macchiato.

4. Press the button fappuccino change the setting.

5. Confirm with "ok" button Latte Macchiato.
   The display shows "Settings saved".

6. Press "<" button Caffextema the menu.

Note: If you do not press any other button within 90 seconds, the appliance switches to the select beverage setting without saving.

Tip: You can change the settings at any time.

"Basic settings", Page 48

10.2 Overview of basic settings

You can find an overview of the basic settings here.

Setting Selection Description
Language See selection on the appliance		Set menu language. Changes are immediately displayed.
Factory reset Select the required language.		Restore settings to the factory settings. Note: The appliance rinses and deletes all individual settings.
W. hardness ▪ "W. hardness" 1, 2, 3, 4 ■ Water filter ■ H2O-Softener		Set the appliance to the local water hardness. Tip: Ask your local water supplier about the water hardness. Note: If a water softening system is installed in your house, select "H2O-Softener".
Auto Stand-by See selection on the appliance		Set how long the appliance should wait after preparing the last beverage before automatically switching itself off.
Sound ▪ Sound on ■ Sound off		Switch the tones on or off.

11 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

11.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION!

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

• Follow the operating instructions of the dishwasher.

• Only clean dishwasher-safe components in the dishwasher.
  Only use programmes that do not heat the components above 60^

Suitable:

Drip plate
Drip grate
- Coffee dregs container
Mechanical fill level indicator
Milk frother

Not suitable:

Water tank
Water tank lid
Aroma lid
Brewing unit
Drip tray

11.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appliance.

Do not use harsh or abrasive detergents.
- Do not use cleaning agents containing alcohol or spirits.
- Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to descale the appliance.
• Do not use descending agent with phosphoric acid.
  Only use cleaning tablets and descaling tablets that have been specially developed for the appliance. "Accessories", Page 42

Tips

• Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
  Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

11.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

• Never immerse the appliance or the power cord in water.
• Liquids must not be spilled on the appliance plug connection.
• Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

• Never touch hot appliance parts.

• Allow hot appliance parts to cool down before touching.

• Disconnect the appliance from the mains power supply.

• Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.
• Clean the outlet system with a soft, damp cloth after beverages have been dispensed.
• Rinse the water tank with fresh, clean water.
• If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

11.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual.

Fig. 12 - 16

11.5 Cleaning the milk frother

Clean the milk frother after each use to remove residues and ensure its proper function.

WARNING

Risk of burns!

The milk frother gets very hot.

• Let the milk frother cool down before you touch it.

• Fill a glass half-full with water and place under the outlet system.

• Push the milk frother right down.
• Press the Moutton.

Milk system is cleaned.

1. Push the milk frother right up and allow it to cool down.
2. Remove the milk frother and clean it thoroughly.
3. Attach the milk frother again.

Note: To stop the process early, press the M button.

Tip: You can clean the milk frother in the dishwasher. After rinsing, remove the detergent residues thoroughly from the milk frother.

11.6 Cleaning the brewing unit

In addition to automatic rinsing, also remove and clean the brewing unit regularly. Follow the illustrated instructions at the beginning of the manual.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

• Never touch hot appliance parts.
• Allow hot appliance parts to cool down before touching.

ATTENTION!

The brewing unit may be damaged by improper cleaning.

Do not use washing-up liquid.
- Do not use cleaning agents containing vinegar or acids.
Do not clean in the dishwasher.

Fig. 17 - 26

Note: The door can only be closed if the brewing unit and drip tray are inserted correctly.

11.7 Service programmes

The cabotcights up and the display shows "Calc'nClean required!" depending on the water hardness and use of your appliance. Use the programme to descale and clean your appliance.

ATTENTION!

Improper cleaning and descaling or a delay in doing so may damage the appliance.

Perform Calc'nClean according to the instructions immediately.
- Only put cleaning tablets in the duct of the brewing unit.

• Do not put descending tablets or other products in the duct of the brewing unit.

Notes

If you do not descale and clean the appliance in good time, the appliance is locked and the display shows "Device locked".
- To unlock the appliance, run the service programme.

Tip: Before you start the service programme, remove, clean and re-insert the brewing unit. Clean the milk frother.

Start Calc'nClean

The process takes approx. 40 minutes.

1. Press and hold the clean ton for at least 5 seconds.
   symbol lights up.

2. Open the door.

3. Remove and empty the drip tray and coffee dregs container.

4. Remove and clean the brewing unit.
5. Put a cleaning tablet into the duct of the brewing unit and re-insert the brewing unit.

1. Insert the drip tray and coffee dregs container again and close the door.
   symbol lights up.

2. If there is a water filter, remove it.

3. Fill the empty water tank with lukewarm water up to the 0.5 I mark and dissolve one Siemens descal-ing tablet in it.

4. Re-insert the water tank and place a container with approx. 1 l capacity under the outlet system.
   10.Whencaflashes,press the calc'n Clean button.

The programme starts, cleans and descales the appliance.
√ calpuiisiean
The process takes approximately 20 minutes minutes.
symbol lights up.

1. Empty the container and open the door.
2. Empty the drip tray and re-insert.
   13.Close the door and place the container under the outlet system again.
   symbol lights up.
3. Clean the water tank. If you have removed the water filter, re-insert the water filter.
4. Fill the water tank with fresh, cold, non-carbonated water up to the max mark.
   16.When caIashes,press the calc'n Clean button.
5. The programme starts, cleans and rinses the appliance.

calpinSean
symbol lights up.

17.Remove and empty the drip tray and coffee dregs container.
18. Clean the drip tray and the coffee dregs container and re-insert them in the appliance.

The programme has ended and the appliance is ready for operation again.

Resetting a service programme

If the service programme is interrupted, e.g. by a power cut, calc'n Clean and will light up.

1. Clean the water tank.
   If you have removed the water filter, re-insert the water filter.
2. Fill the water tank with fresh, cold, non-carbonated water up to the max mark.

3. Press the calcncrean

4. The service programme starts and rinses the appliance. The process takes approximately 2 minutes.

5. Empty the drip tray, clean it and re-insert.
6. Close the door.
   The programme has ended and the appliance is ready for operation again.

12 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Appliance no longer responds.	Appliance has a fault. 1. Pull out the mains plug and wait 60 seconds. 2. Re-insert the mains plug.
Appliance only dis-penses water, not cof-fee.	Empty bean container is not detected by the appli- ance. ► Pour in coffee beans.
	Beans are too oily and are not falling into the grinder. ► Gently tap the bean container. ► Change the coffee variety. ► Do not use oily beans. ► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly. ► Slide the brewing unit right back.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance. ► Descale the appliance.
Coffee is not dis-pensed or has slowed to a trickle.	Grinding level is set too fine. ► Set a coarser grinding level. → "Adjusting the grinding level", Page 48
Set quantity is not reached.	Heavy build-up of limescale in the appliance. ► Descale the appliance.
	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Appliance is soiled.
Fault Cause and troubleshooting
Coffee is not dis-pensed or has slowed to a trickle.	Clean the brewing unit.
	Descale and clean the appliance.
Set quantity is not reached.	Residues of limescale remover are blocking the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
	Coffee strength is set too high.Reduce the coffee strength.
Milk or milk-based drinks are too hot.Milk froth is too thin, and there is a loud suction noise.	There is too little milk in the glass or cup.1. Use more milk.2. Change the frothing time.
Milk or milk-based drinks are too cold.	There is too much milk in the glass or cup.1. Use less milk.2. Change the frothing time.
	Milk in the glass or cup is too cold.Use lukewarm milk.
Coffee has no crema.Type of coffee is not optimal.Use a coffee variety with a higher proportion of Robusta beans.Use beans with a darker roast.Beans are no longer fresh.Use fresh beans.Grinding level is not appropriate for coffee beans.Adjust the grinder to a finer setting.\( \rightarrow "Adjusting the grinding level" \), Page 48
Coffee is too acidic.Grinding level is set too coarse.Adjust the grinder to a finer setting.\( \rightarrow "Adjusting the grinding level" \), Page 48Type of coffee is not optimal.Use a coffee variety with a higher proportion of Robusta beans.Use beans with a darker roast.
Coffee is too bitter.Grinding level is set too fine.Set a coarser grinding level.\( \rightarrow "Adjusting the grinding level" \), Page 48Type of coffee is not optimal.Change the coffee variety.

Fault Cause and troubleshooting

Coffee tastes burnt. Grinding level is set too fine. → "Adjusting the grinding level", Page 48
	Type of coffee is not optimal. → Change the coffee variety.
Milk froth quality var- ies widely.	Milk froth quality depends on the type of milk or plant- based alternative used. → Optimise the result through the selection of the milk or vegetable-based drink type.
Appliance is not dis- pensing milk froth.	Heavy build-up of limescale in the appliance. → Descale the appliance.
	Milk frother is soiled. → Clean the milk frother in the dishwasher.
	Milk frother is not inserted in the milk. 1. Use more milk. 2. Check whether the milk frother is inserted in the milk. 3. Slide the outlet system down completely.
Appliance is not dis- pensing drinks.	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. → Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
There is dripping wa- ter on the inner floor of the appliance.	Drip tray was removed too soon. → Wait a few seconds after the last drink was dis- pensed before removing the drip tray.
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed. → Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot. → Disconnect the appliance from the mains. 2. Wait 1 hour so the appliance can cool down.
Fault Cause and troubleshooting
Display shows "Fill water tank" despite the water tank being full.	Water tank is wrongly inserted. ► Insert the water tank correctly.
	Carbonated water is in the water tank. ► Fill the water tank with fresh tap water.
	Float is stuck in the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2. Place the water filter into operation.
	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Water filter is old. ► Insert a new water filter.
	Limescale deposits in the water tank are blocking the system. 1. Clean the water tank thoroughly. 2. Start the Calc'nClean service programme.
Display shows "Clean brewing unit".	Brewing unit is soiled. ► Clean the brewing unit.
	Mechanism of brewing unit is stiff. ► Clean the brewing unit.
Display shows "Incorrect voltage".	There are problems with the power supply. ► Only operate the appliance at 220 - 240 V.
Display shows "Calc'nClean required!" very frequently.	Decalcified water still contains small amounts of lime. 1. Insert a new water filter. 2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used. ► When descaling, only use suitable tablets.
Appliance cannot be operated. Change displays.	Appliance is in demo mode. 1. To deactivate demo mode, press and hold the Ⓞ button for at least 5 seconds. 2. Remove the water tank. 3. Fill the water tank with fresh water. 4. Re-insert the water tank.
Display shows "Close door" despite the fact that the door is closed.	Door is not properly closed. Press the door firmly shut.
	Appliance is too hot. 1. Disconnect the appliance from the mains. 2. Wait 1 hour so the appliance can cool down.
Display shows "Empty trays" despite the fact that the drip tray is empty.	Appliance is switched off and does not detect emptying. 1. Switch the appliance on, and remove the drip tray. 2. Re-insert the drip tray.
Display shows "Fill water tank" and LEDs flashing.	Water tank is missing or wrongly inserted. Insert the water tank correctly.
	Pipe system in the appliance is dry. Fill the water tank with fresh, cold, non-carbonated water.
	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
Display shows "Device too cold".	Ambient temperature is too cold. Operate the appliance at temperatures over 5 °C.
Display shows "Restart appliance". LEDs flashing.	Brewing unit is heavily soiled or cannot be removed. Restart the appliance. Clean the brewing unit.
Display shows "Restart appliance". No LED is lit.	Appliance has a fault. Restart the appliance.
Display shows "Clean/ fill water tank"; calc'n Clean and light up.	Descaling process has been interrupted. Proceed as described in section → "Resetting a service programme", Page 53.

13 Transportation, storage and disposal

13.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION!

Residues of liquid in the appliance may damage it during transport or storage.

• Empty the pipe system before transport or storage.

Requirements

The appliance is ready to use.
The water tank has been filled.

1. Place a large container under the outlet system and push the milk frother down.
2. Press and hold the Mollton for at least 5 seconds.
3. The LED in the button flashes, and the appliance heats up.
4. When steam escapes from the milk frother, remove the water tank.
5. Allow the appliance to cool down and wait until the display shows "Water tank empty".
6. Use to switch the appliance off.
7. Empty the water tank and the drip tray and thoroughly clean the appliance.
8. Disconnect the appliance from the mains power supply.

You can now transport or store the appliance.

Note: The brewing unit is now secured and you cannot remove it.

13.2 Disposing of old appliance

Valuable raw materials can be reused by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

14 Customer Service

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

en Technical specifications

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

14.1 Product number (E-Nr.) and production number (FD)

You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

15 Technical specifications

Voltage 220-	240 V ~
Frequency 50 / 60 Hz
Connection rating 1300 W
Maximum static pump pressure	15 bar
Maximum capacity of water tank (without filter)	1,3 l
Maximum capacity of bean container	≈250 g
Length of the power cable	100 cm
Appliance height 38,3 cm
Appliance width 25,1 cm
Appliance depth 43,3 cm
Weight, empty ≈8-9 kg
Type of grinder Ceramic/steel

WAARSCHUWING Kans op letsel!

siemens-home.bsh-group.com

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK125PT

United Kingdom
