Product type	Flush-mounted wireless ON/OFF switch
Brand	Brennenstuhl
Model	BrematicPRO ONOFF UPOS 868 01 W1000 (ref. 1294720)
Radio frequency	868.3 MHz (band 868.1 - 868.5 MHz)
Max. transmission power	< 20 mW
Duty Cycle	< 1% per hour
Supply voltage	230 V / AC, 50 Hz
Max. switching power	1000 W
Power consumption	< 1 W
Dimensions (L × W × H)	52.1 × 52.1 × 25.5 mm
Weight	42 g
Protection rating	IP00 (dry indoor use)
Ambient temperature	0 °C to 35 °C
Range in open area	approx. 100 m
Compatibility	Brennenstuhl Home Automation BrematicPRO system (Gateway, remote control)
Main functions	Switch consumers on/off, pairing with remote control or Gateway, timer/scene/astro functions via software
Mounting	In flush or surface-mounted box (60 mm pitch)
Connection	Screw terminals: phase (L) and neutral (N) input and output
Programming	Long press (3 s) on programming button, flashing LED
Factory reset	Long press (6 s) on programming button
Cleaning	Dry, lint-free cloth; no solvents or immersion
Safety	Installation by electrician with power off; do not open; avoid overload; do not use with dangerous appliances unattended
Disposal	Respect the environment: do not dispose of with household waste, local recycling center
Service	Toll-free tel. [phone], website www.brematic.com/en/service

Frequently Asked Questions - BrematicPRO ONOFF UPOS 868 01 W1000 BRENNENSTUHL

How to program the switch with the BrematicPRO radio remote control?

Press the programming button on the switch for 3 seconds until the LED flashes red. While flashing, press the desired button on the remote control. The LED lights up green to confirm pairing.

How to remove pairing with a remote control?

Press the programming button for 3 seconds (LED flashes red). While flashing, press the remote control button you want to unpair. Unpairing is immediate.

How to integrate the switch into the BrematicPRO Gateway system?

Open the BrematicPRO app or PC software, go to 'Settings' > 'Add device', select 'Switch/Socket', follow the on-screen instructions. Hold the switch's programming button for 3 seconds to make it recognized. A minimum distance of 50 cm between the device and the Gateway is recommended.

What is the maximum power this device can switch?

The maximum switching power is 1000 W. Do not connect devices exceeding this limit to avoid risk of fire or damage.

How to restore factory settings?

Press the programming button for at least 6 seconds. The LED flashes quickly and then turns off after about 3 seconds. The device returns to its initial state.

Can this switch be used with dangerous appliances like an iron?

No, it is forbidden to connect devices whose unattended operation may cause fire (irons, heaters, etc.). The device is intended for supervised use.

What are the cleaning precautions?

Before any cleaning, disconnect the device from the mains. Use a dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth. Never use solvents and do not immerse the device in water.

What does the 1% 'Duty Cycle' mean?

The Duty Cycle is a legal limitation for 868 MHz radio devices. It means that transmission is limited to 36 seconds per hour (1% of the time). After this period, transmission is blocked until the next hour.

Which cables to connect to the terminals?

The terminals are marked: L and N for input (phase and neutral 230 V), and the two center terminals for the consumer (switched phase and neutral). Observe polarity and disconnect power before any connection.

Where to find additional information or a compatibility list?

Visit the website www.brematic.com/en/service. You will find compatibility lists, the app, PC software, and detailed declaration of conformity.

USER MANUAL BrematicPRO ONOFF UPOS 868 01 W1000 BRENNENSTUHL

Instructions for use

List of pictograms used

Safety instructions

Intended use

Information about Wireless Operation

Duty Cycle.. Page 11

Included in delivery

Technical data

Device overview

Front. 11

Back... Page 11

Function

Installation 12

Download app / PC software BrematicPRO

Pairing the Wireless flush-mount ON / OFF actuator with the BrematicPRO

Wireless Remote Control

Unpair...Page 13

Factory Reset

Cleaning the Device

Action.. 14

Disposal

Service

Manufacturer

Declaration of conformity

List of pictograms used

i	Please read the instructions for use! Caution! Fire hazard!
!	Observe the warnings and safety instructions!		Dispose of the packaging and device in an environmentally friendly manner!
	Caution! Danger of electric shock!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instruc-tions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
- Only operate this device in a dry, dust-free environment.
- Only operate this device indoors.
Do not expose the device to adverse conditions, such as moisture,
- continuous sunlight,
heat radiation,

cold,
vibrations.

CAUTION! RISK OF INJURY!

We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty/guarantee!

Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.

DANGER OF ELECTRIC SHOCK!

Do not open the housing. This device has no parts which require maintenance. In the event of a malfunction, please contact Service.
Work on the mains must be performed by an electrician whilst de-energised.
If you do not have any expertise in this area, do not perform the installation of the product yourself. Commission a trained electrician.
Do not use the device if it is visibly damaged.

FIRE HAZARD!

Installation of the device may only be carried out by a qualified professional (e.g. an electrician), who is familiar with the relevant specifications (e.g. VDE).

Do not connect any terminal devices to the device which could cause a fire or other damage when switched on unattended (e.g. iron).
Do not switch the device unsupervised or whilst unattended.
Do not overload the device.
Overloads may result in fire hazards or product damage. The maximum load is max. 1000 W.

Intended use

The wireless flush-mount ON / OFF actuator is solely intended to switch consumers connected to the wireless actuator on and off in dry indoor locations.

Information about Wireless Operation

This product uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.

The range in buildings may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• wood, gypsum, concrete, reinforced concrete walls
• proximity to metal and conductive objects
• broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
• proximity to electric motors, transformers, mains adapters, computers

Duty Cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds / hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless flush-mount ON / OFF actuator
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: UPOS 868 01 W1000 3726

Item no.: 1294720

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz

Max. transmitting power: < 20mW

Duty cycle: < 1% per h

Supply voltage: 230V / AC, 50 Hz

Max. switching capacity: 1000 W

Power input: < 1 W

Ambient temperature: 0^ C to 35^ C

Protection type: IP00

Open area range: approx. 100m

Dimensions (W× H× D) 52.1× 52.1× 25.5mm

Weight: 42 g

Subject to technical changes without notice.

Device overview

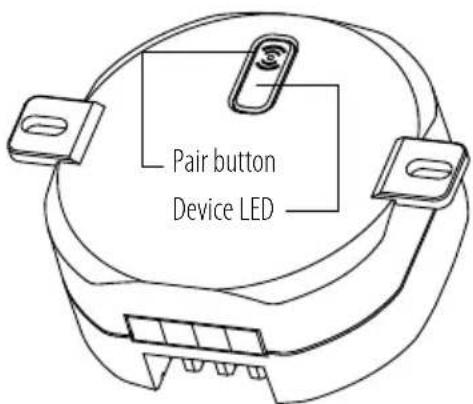

Front

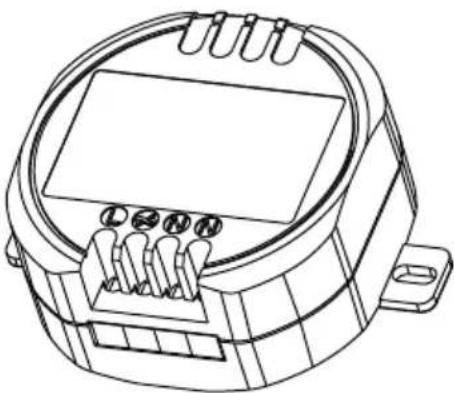

Back

External conductor connection L1 230 V phase input

N Neutral conductor connection N 230 V (consumer)

Switched external conductor L1 230 V phase (consumer)

N Neutral conductor connection N 230 V input

Function

The wireless flush-mount ON / OFF actuator is part of the Brennenstuhl Home Automation Systems BrematicPRO, which is controlled via app or the BrematicPRO PC software. The wireless flush-mount ON / OFF actuator can be directly connected and controlled with the BrematicPRO wireless remote control. It can be directly linked with the Brennenstuhl Home Automation Systems BrematicPRO via the BrematicPRO Gateway to use other software-based functions (e.g. timer control, theme control, astro function).

For information on which components are compatible with the wireless flush-mount ON / OFF actuator, please visit: www.brematic.com/gb/service.

For additional information on components, please refer to the for use of the respective BrematicPRO wireless component.

Installation

Note: Check before installation whether the product is located within the range of the Gateway.

CAUTION! DANGER OF ELECTRIC SHOCK!

Only install the device in a de-energised state! Disconnect the electrical mains supply line by switching off the circuit breakers connected to it or unscrewing the fuse. Prevent this from being unintentionally re-started e.g. with a warning sign.
Before installation, check the mains supply line with a suitable measuring device to see that it is de-energised.
The mains voltage on site must correspond with the technical data of the device (see "Technical data").
Check the power input of the consumer you intend to connect to the device prior to installation. The maximum load is max. 1000 W.
The device must be operated in a suitable flush-mounted box or surface mount box or assembled in another suitable casing to guarantee the necessary electric shock protection.
Only operate the device when it is stationary.

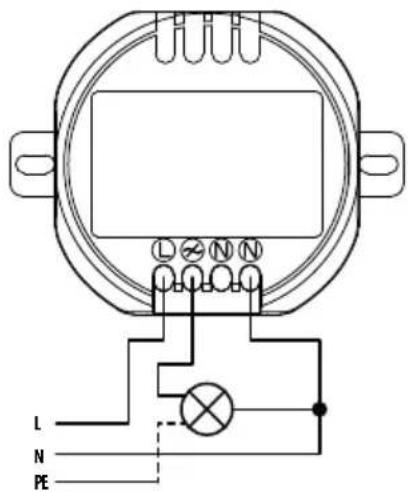

Connect the supply voltage cable to the screw terminals L and N ( = neutral conductor, L = phase) (see Fig.).
- Connect the consumer to both of the centre screw terminals (see Fig.).
For consumers with a PE / ground conductor connection, the ground conductor must be connected.
Attach the wireless flush-mount ON / OFF actuator to the flush-mounted box using screws (hole spacing for mounting eyes = 60~mm
Ensure during installation that the pair button on the housing front is not covered and that it is not pressed by accident.

Download app / PC software BrematicPRO

The Brennenstuhl Home Automation Systems BrematicPRO is controlled via the BrematicPRO app / PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.

Please follow the on-screen instructions for download and installation.

For more information about the app and how to use it, please visit www.brematic.com/gb/service.

Pairing the Wireless flush-mount ON / OFF actuator with the BrematicPRO Wireless Remote Control

The wireless flush-mount ON / OFF actuator can be paired directly with the BrematicPRO wireless remote control. For further options, see the compatibility list at: www.brematic.com/gb/service.

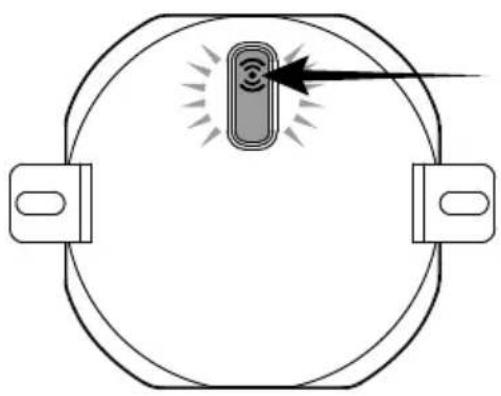

Press and hold the pair button for 3 seconds. The LED will flash red.

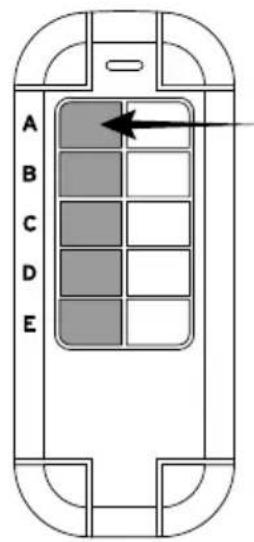

Whilst the LED is flashing, press a button on the left of the BrematicPRO wireless remote control you wish to programme for the device. Once both the devices have been paired, the LED will light up green and the wireless actuator will be switched on. This completes the pairing process.

Unpair

Press and hold the pair button for 3 seconds. The LED will flash red.

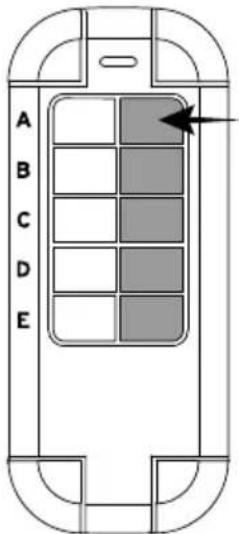

Whilst the LED is flashing, press the respective button on the right of the BrematicPRO wireless remote control you wish to unpair. This completes the unpairing process.

Pairing the Wireless flush-mount ON / OFF actuator with the BrematicPRO Gateway

When linked with the Home Automation Systems BrematicPRO via the BrematicPRO Gateway, you can use the app / BrematicPRO PC software to use additional software-based functions, e.g. timer control, theme control, astro function (dawn/dusk control).

The app or BrematicPRO PC software is installed and open.

The BrematicPRO Gateway is ready for use.

Keep the device at least 50~cm from the Gateway.
Open the "Settings" menu.
Select the room where you wish to use the device.
Select the frequency "868 MHz".
Select"Add Device".
Under "New Device", select "Switch / Socket" and click "Continue" to confirm your selection.
Follow the on-screen instructions.

Press and hold the pair button on the device for 3 seconds.
Enter a device name, e.g. "Living Room Lamp".
Select "Add" to assign the device to the room.
- First tap "Back" to leave the room, then "Done" to complete the pairing process. The wireless flush-mount ON / OFF actuator is now connected to the Home Automation Systems BrematicPRO.
Use "Test Device" to switch the consumer on and off to ensure the wireless on/off actuator is working properly. In this submenu you can also add the wireless flush-mount ON / OFF actuator to your favourites.

For more information about the app and how to use it, please visit: www.brematic.com/gb/service.

Factory Reset

The device can be restored to the factory settings at any time. A reset will be required if malfunctions occur.

Press the pair button for at least 6 seconds.

The LED will flash rapidly and go out after approx. 3 seconds.

The device has been reset.

Cleaning the Device

DANGER! RISK OF ELECTRIC SHOCK!

Disconnect the device from the mains before cleaning.

Do not allow liquids to enter the device. Liquids entering can result in a short circuit.

Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
- Never immerse the device in water or other liquids. The product may otherwise be damaged.
Ensure the device is completely dry before using it again.

Action

Problem Possible cause Action
LED doesn't flash. Device has not been installed correctly. The circuit breaker is not switched on.	Have installation carried out correctly. Switch on the circuit breaker. Check whether voltage has been applied to the input.
Device not detected.	The device is out-side the Gateway range.	Reduce the distance to the Gateway.

Disposal

kaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Service

For questions related to the product, please contact us at www.brematic.com/gb/service. Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model UPOS 868 01 W1000 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294720.pdf

This device complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.
