USER MANUAL 35.1136.02 TFA
www.lfa-dostmann.de/en/service/downloadsa/instruction-manuals
Kat. Nr. 35.1136
PRIMAVERA - Wireless weather station
Thank you for choosing this instrument from TFA.
1. Before you start using it
- Please make sure to read the instruction manual carefully.
This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction. - Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
- We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
- Please take particular note of the safety advice!
- Please keep this instruction manual for future reference.
2. Delivery content
- Wireless weather station (base station)
- AC/DC power adaptor
- Outdoor transmitter (Cat.-No.: 30.3215.02)
- Instruction manual
3. Field of operation and all the benefits of your new instrument at a glance
- Outdoor temperature and humidity wireless (433 MHz), distance range of up to 60 m (free field)
- Expandable up to 3 outdoor transmitters, also for the climate control of remote rooms, e.g. children's room, wine-cellar etc.
- Indoor temperature and humidity
Daily maximum and minimum values - Weather forecast with symbols
Dew point and heat index - Radio-controlled clock with weekday and date
- Alarm and snooze function
Colour display
4. For your safety
- This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
- Unauthorized repairs, modifications or changes to the product are prohibited.
Caution!
Risk of electrocution!
- Plug the device only into a mains socket installed within your country's electrical safety regulations and with a correct mains voltage (see nameplate).
The mains socket must be installed near the equipment and it must be easily accessible.

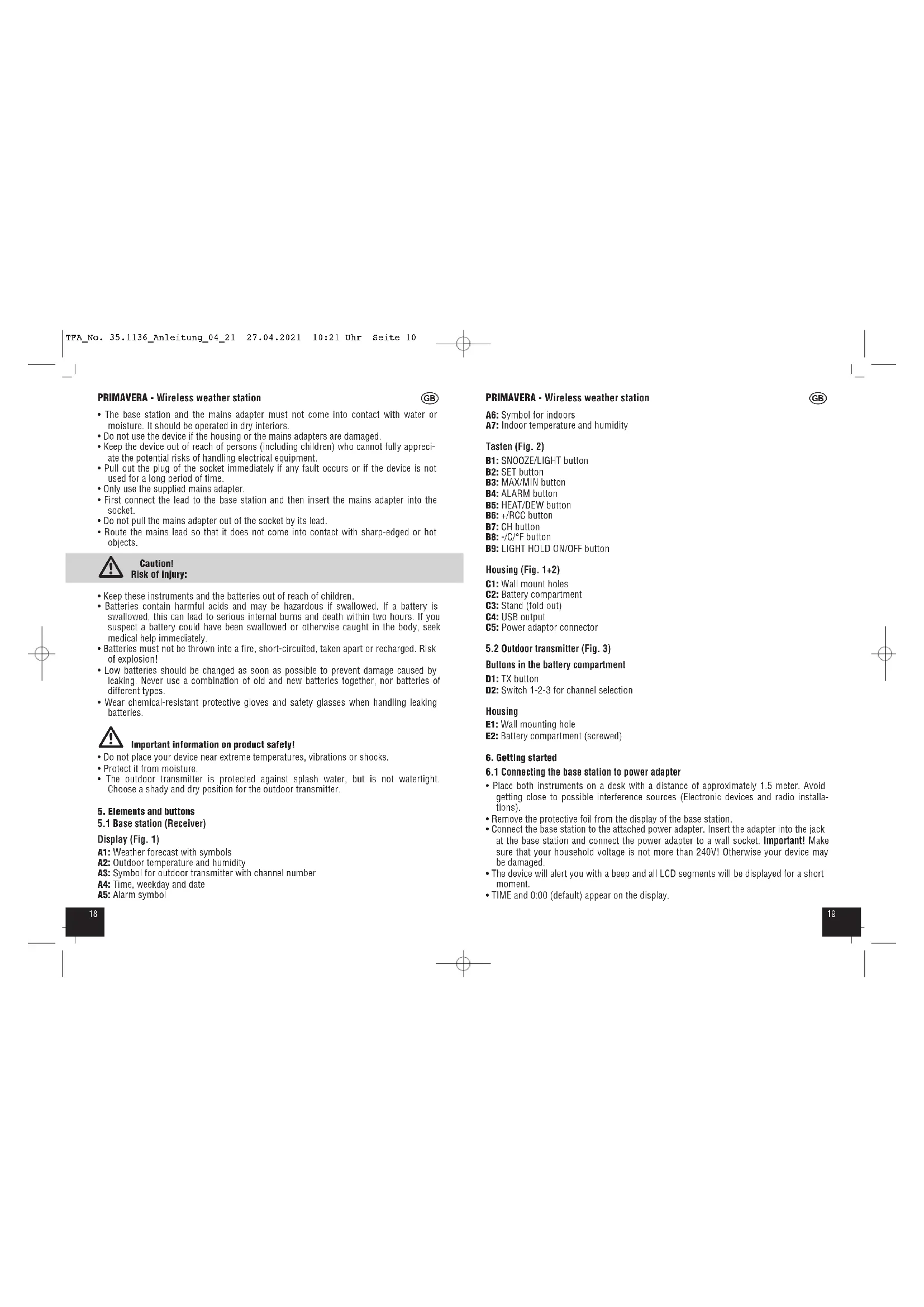

PRIMAVERA - Wireless weather station
- The base station and the mains adapter must not come into contact with water or moisture. It should be operated in dry interiors.
- Do not use the device if the housing or the mains adapters are damaged.
- Keep the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
- Pull out the plug of the socket immediately if any fault occurs or if the device is not used for a long period of time.
- Only use the supplied mains adapter.
- First connect the lead to the base station and then insert the mains adapter into the socket.
- Do not pull the mains adapter out of the socket by its lead.
- Route the mains lead so that it does not come into contact with sharp-edged or hot objects.
Caution! Isk of Injury:
- Keep these instruments and the batteries out of reach of children.
- Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
- Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
- Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
- Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.
Important information on product safety!
- Do not place your device near extreme temperatures, vibrations or shocks.
- Protect it from moisture.
- The outdoor transmitter is protected against splash water, but is not watertight. Choose a shady and dry position for the outdoor transmitter.
5. Elements and buttons
5.1 Base station (Receiver)
Display (Fig. 1)
A1: Weather forecast with symbols
A2: Outdoor temperature and humidity
A3: Symbol for outdoor transmitter with channel number
A4: Time, weekday and date
A5: Alarm symbol
PRIMAVERA - Wireless weather station
A6: Symbol for indoors
A7: Indoor temperature and humidity
Tasten (Fig. 2)
B1:SNOOZE/LIGHT button
B2: SET button
B3: MAX/MIN button
B4:ALARM button
B5:HEAT/DEW button
B6：/RCC button
B7:CH button
BB:-/C/°F button
B9:LIGHT HOLD ON/OFF button
Housing (Fig. 1+2)
C1: Wall mount holes
C2: Battery compartment
C3: Stand (fold out)
C4: USB output
C5: Power adaptor connector
5.2 Outdoor transmitter (Fig. 3)
Buttons in the battery compartment
D1: TX button
D2: Switch 1-2-3 for channel selection
Housing
E1: Wall mounting hole
E2: Battery compartment (screwed)
6. Getting started
6.1 Connecting the base station to power adapter
- Place both instruments on a desk with a distance of approximately 1.5 meter. Avoid getting close to possible interference sources (Electronic devices and radio installations).
- Remove the protective foil from the display of the base station.
- Connect the base station to the attached power adapter. Insert the adapter into the jack at the base station and connect the power adapter to a wall socket. Important! Make sure that your household voltage is not more than 240V! Otherwise your device may be damaged.
- The device will alert you with a beep and all LCD segments will be displayed for a short moment.
- TIME and 0:00 (default) appear on the display.
PRIMAVERA - Wireless weather station
6.2 Inserting the batteries in the outdoor transmitter
- Open the screwed battery compartment of the outdoor transmitter.
The slide switch for channel selection is at position 1 (default). - Insert two new batteries 1,5 V AAA, polarity as illustrated.
- Close the battery compartment again.
6.2.1 Reception of the outdoor values
- The outdoor values of the outdoor transmitter will be transmitted to the base station.
The displays of the outdoor values are flashing "---". - On the display of the base station appear the channel number, the outdoor humidity and the outdoor temperature in ^ C (default).
- If the reception of the outdoor values fails within three minutes, "--" appears on the display. Check the power adapter and the batteries of the transmitter and try it again. Check if there is any source of interference.
- You can also start the outdoor transmitter search manually later on (for example when the outdoor transmitter is lost or the batteries are changed).
- Hold the CH button on the base station for three seconds.
- "..." appears on the display
- Press the TX button in the battery compartment of the outdoor transmitter.
- The device will alert you with a beep and the base station receives the values from the outdoor transmitter.
After successful installation close the battery compartment of the outdoor transmitter carefully.
6.3 Reception of the DCF Frequency signal
- After the reception of the outdoor values, the device will now scan the DCF frequency signal and the DCF symbol will be flashing on the display.
- To avoid interference, the backlight (and the USB output) turns off during the reception of the radio controlled clock.
- When the time code is received successfully after 2-12 minutes, the radio-controlled time and the DCF symbol are displayed steadily in the display. The backlight is activated permanently.
- You can start the initialization manually.
- Press and hold the + / button.
The DCF symbol will be flashing.
The continuous backlight will turn off automatically. - Interrupt the reception by pressing the + / RCC button again for three seconds. The DCF symbol disappears.
- The DCF reception always takes place hourly between 2:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 2:00 o'clock in the morning.
There are three different reception symbols:
flashing - reception is active
stays - reception is very good
no symbol - no reception / time is manually set
PRIMAVERA - Wireless weather station
- If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).
6.3.1 Note for radio-controlled time DCF
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time "DST" is shown on the LCD. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within in a 1,500 km radius around Frankfurt.
Please take note of the following
- The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
- Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
- During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.
6.4 Inserting the batteries in the base station
The batteries will operate as a backup power source in case of power failure.
- For a permanent backlight use the supplied power adapter
- Open the battery compartment at the back of the base station.
- Insert two new batteries 1.5 V AAA into the battery compartment. Make sure the polar
ity is correct.
- Close the battery compartment again.
7. Operation
- During the operation, all successful settings will be confirmed by a brief beep tone.
The device will automatically quit the setting mode if no button is pressed for a long period of time. - Press and hold the + / RCC or - /^ C/^ F button in the setting mode for fast running.
7.1 Manual settings
- Press and hold the SET button in normal mode for two seconds, to enter the setting mode.
The continuous backlight will turn on automatically. - TIME ZONE and 0 (default) will be flashing on the display.
- Press the + / RCC or - / C/^ F button to make the time zone correction
- Press the SET button again.
TIME appears on the display.
PRIMAVERA - Wireless weather station
- The setting sequence is shown as follows: 12 or 24 hours system (24H default), the hours, the minutes, the year (YEAR appears on the display), the month and the day. Press the + / RCC or -^^ to adjust it.
The weekday (MON, TUE, WED, THU, FRI, SAT or SUN appears on the display) will be calculated automatically after setting the date. - Confirm the setting with the SET button.
- The manually set time will be overwritten by the DCF time when the signal is received successfully.
7.1.1 Setting of the time zone
In the setting mode you can make the time zone correction (-12 / + 12)
The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time (e.g. +1 = one hour later).
7.1.2 Setting of the 12 and 24 hours display
In the setting mode you can choose between the 12 - and 24 hour system.
In the 12 HR system AM or PM (after 12 o'clock) appears on the display.
7.2 Setting of the alarm time
- Press and hold the ALARM button.
- ALARM. the alarm symbol and 00:00 (default) or the last adjusted alarm time appear on the display.
The hour digit will be flashing - Press the + / RCC or -/^ C /^ F button to adjust the hours.
- Press the ALARM button again and you can adjust the minutes with the + / RCC or - / ^ / ^ button.
- Confirm the setting with the ALARM button.
- TIME, the current time and the alarm symbol appear on the display. The alarm function is activated.
- When the adjusted alarm time is reached, the alarm will ring.
The alarm symbol will be flashing. - Press any button and the alarm will stop.
- If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes and will be reactivated at the same time.
- When the alarm rings, press the SNOOZE/LIGHT button and the snooze function will be activated.
- Once the snooze function is activated, Zz will be flashing on the display.
The alarm will be interrupted for 10 minutes
7.2.1 Activate and deactivate the alarm function
- Press the ALARM button in normal mode.
- ALARM and the last adjusted alarm time appear on the display.
- Press the ALARM button again, to deactivate or activate the alarm function.
The alarm symbol disappears or appears on the display. - Press the SET button to return to normal mode.
- TIME and the current time appear on the display.
PRIMAVERA - Wireless weather station
7.3 Backlight
- Attention: Backlight in continuous operation only works with power adapter.
- Press and hold the LIGHT HOLD ON/OFF button for three seconds until a beep tone is heard to deactivate or activate the backlight.
- Press the LIGHT HOLD ON/OFF button once to dim the backlight.
- Press the SNOOZE/LIGHT button or any button to activate the backlight for a few seconds.
8. USB output
- With the USB output you can charge your mobile phone or other USB enabled devices. The output power is 5 Volts - 1 Ampere. The weather station cannot be operated via the USB output.
9. Weather forecast symbols (Fig. 4)
- The weather station has five different weather symbols (sunny, slightly cloudy, cloudy, rainy and stormy).
- The weather forecast relates to a range of 12 hours and indicates only a general weather trend. The accuracy is about 70% .
- For example, if the current weather is cloudy and the rain symbol is displayed, it does not mean the product is faulty because it is not raining. It simply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rainy. The accuracy is about 70 to 75% .
The sun symbol also appears at night if there is a starry night.
Note:
Please note that the forecast symbol will become more defined in the course of operation. The forecast symbol is active right from the start, however, the reliability of the forecasts increases with the amount of data collected. The sensor must adapt initially to the reference level at the site.
10. Thermometer and hygrometer
10.1 Maximum/Minimum function
The maximum and minimum values are automatically reset at midnight.
- Press the MAX/MIN button in normal mode.
MAX appears on the display.
- You can now get the highest values for the indoor and outdoor temperature and humidity since the last reset.
- Press the MAX/MIN button again.
MIN appears on the display.
- You can now get the lowest values for the indoor and outdoor temperature and humidity since the last reset.
- Press the MAX/MIN button once more, to go back to the present values display.
The device will automatically quit the MAX/MIN mode if no button is pressed.
- Press and hold the MAX/MIN button for two seconds while the maximum or minimum values are displayed to clear the recorded readings.
PRIMAVERA - Wireless weather station
10.2 Setting of the temperature unit
- In the normal mode you can change between ^ C (Celsius) or ^ F (Fahrenheit) as temperature unit.
- Press the -1^ / 10 button.
10.3 Heat index
The heat index is the temperature perception in conjunction with humidity.
- Press the HEAT/DEW button in normal mode, to show the current heat index temperature.
- HEATINDEX and the temperature appear on the display.
The indoor and outdoor humidity values disappear.
- The display automatically switches back to the current display of temperature and humidity.
10.4 Dew point
- The interdependency of temperature and relative humidity is expressed by means of the dew-point: If the air is cooled continuously at constant absolute humidity, then the relative humidity will steadily increase up to a maximum of 100% . If the air is cooled further, then the excess water vapour is separated out in the form of water droplets.
- Press the HEAT/DEW button, to show the current dew point.
- DEWPOINT and the temperature appear on the display.
The indoor and outdoor humidity values disappear - The display automatically switches back to the current display of temperature and humidity.
11. Additional outdoor transmitters
- For having more than one additional outdoor transmitter select with the 1/2/3 switch in the battery compartment of the outdoor transmitter for each single outdoor transmitter a different channel. The reception of the new transmitter will be transmitted automatically to the base station. Press and hold the CH button on the base station or restart the base station according to the manual.
- The outdoor values will be shown on the display of the base station. If you have installed more than one outdoor transmitter, press the CH button on the base station to change between the channels 1 to 3.
- You can also choose an alternating channel display. After the third channel, press the CH button again, AUTO appears for an alternating channel.
- Press the CH button again to deactivate the alternating channel and the first outdoor transmitter will be shown permanently.
- Once registered outdoor transmitters (channels), which are no longer needed, can be deleted manually by pressing the CH button for three seconds. Once a new outdoor transmitter is received, there will be another indicator.
12. Positioning and fixing of base station and the outdoor transmitter
- With the foldable leg at the back of the base station, the base station can be placed onto any flat surface or wall mounted at the respective location by the hanging holes at the back of the unit. Avoid the vicinity of any interfering field like computer monitors or TV sets and solid metal objects.
PRIMAVERA - Wireless weather station
- With the hanging hole at the back of the outdoor transmitter, the transmitter can be wall mounted at the respective location. Choose a shady and dry position for the outdoor transmitter. (Direct sunshine falsifies the measurement and continuous humidity strains the electronic components needlessly).
- Check the transmission of the signal from the outdoor transmitter to the base station (transmission range of up to 60m free field). Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened.
- If necessary choose another position for the outdoor transmitter and/or receiver.
13. Care and maintenance
Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.
- Remove the batteries and pull out the power adapter of the socket, if you do not use the products for a long period of time.
- Store the devices in a dry place.
13.1 Battery replacement
- Change the batteries of the outdoor transmitter, when the battery symbol appears on the display of the outdoor values.
- Change the batteries of the base station, when the battery symbol appears on the display of the indoor values.
- Please note: When the batteries are changed, the contact between outdoor transmitter and base station must be restored - so always insert new batteries into both devices or start a manual transmitter search.
14. Troubleshooting
Problems Solution
No indication at the base station Operation with mains adapter:
Connect the base station to mains adapter
Activate backlight permanently
Control the power adapter
Operation with batteries:
Ensure that the batteries polarity are correct
Press any button to activate the backlight briefly
Change the batteries
No DCF reception Press and hold the + / RCC button for three
seconds and start the initialization manually
Wait for attempted reception during the night
Choose another place for your product
Manual setting of the clock
Check if there is any source of interference
Restart the base station according to the manual
PRIMAVERA - Wireless weather station
GB
No reception of the No outdoor transmitter is installed
outdoor transmitter
Indication "---"
for channel 1/2/3
Check batteries of external transmitter
(do not use rechargeable batteries!)
Restart the outdoor transmitter and the base station according to the manual
Start the outdoor transmitter search manually according to the manual
Choose another place for the outdoor transmitter and/or the base station
Reduce the distance between the outdoor transmitter and the base station
Check if there is any source of interference
Incorrect indication
Change the batteries
15. Waste disposal
This product has been manufactured using high-grade materials and components which can be recycled and reused.
Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the heavy metals contained are:
Cd=cadmium, Hg = mercury, Pb=lead
This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.
16. Specifications
Base station
Measuring range indoors
Temperature 0^ +50^(+32^ +122^)
Humidity 1 ... 99%
Power consumption Power supply (included)
Input: 100-240V AC 50/60Hz
Output: 5.0 V DC 1.0A, 5.0W
PRIMAVERA - Wireless weather station
GB
Average active efficiency: ≥73,62%
No-load power consumption: ≤ 0.10W
Backup batteries 3 x 1,5 V AAA (not included)
Use alkaline batteries
Charging output USB Port (1A)
Dimensions 175× 26 (58) × 125mm
Weight 290 g (instrument only)
Outdoor transmitter
Measuring range outdoors
Temperature -40°C... +60°C (-40°F...+140°F)
Humidity 1 ... 99%
Range max. 60 m (free field)
Transmission frequency 433 MHz
Maximum radio-frequency power < 10mW
Transmission time 50 seconds
Power consumption Batteries: 2 × 1.5V AAA (not included)
Dimensions 45× 20× 108mm
Weight 45 g (instrument only)
No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.
EU declaration of conformity
Herby, TFA Dostmann declares that the radio equipment type 35.1136 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/cce
www.tfa-dostmann.de
E-Mail: info@ta-fostmann.de
B1:Touche SNOOZE/LIGHT
B2:Touche SET
B3:Touche MAX/MIN
B4:ToucheALARM
B5:Touche HEAT/DEW
B6:Touche+/RCC
B7:Touche CH
B8:Touche- /^ / ^
B9:Touche LIGHT HOLD ON/OFF
