USER MANUAL IAN 279274 Livarno Lux

PDF online www.lidl-service.com

LED-FEUCHTRAUMLEUCHTE 25 W / LED DAMP ROOM LIGHT 25 W / ÉCLAIRAGE À LED POUR PIÈCE HUMIDE 25 W

DE AT CH

LED-FEUCHTRAUMLEUCHTE25W

Assembly, operating and safety instructions

NL BE

LED-LAMP VOOR VOCHTIGE RUIMTEN 25 W

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

EDI Light Service Center

Heiligkreuz 22

AT-6136 Pill

ÖSTERREICH

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

CH-6032 Emmen

SCHWEIZ

E-Mail: [e-mail]

Telefon: [phone]

IAN 288477

Serviceadresse

Deutschland

EDI Light Service Center

c / o RTS Service Solutions

Halle 17-1

Intended use......Page 12

Scope of delivery....Page 12

Parts Description......Page 13

Technical Data Page 13

Safety Page 13

Safety Notices......Page 13

Preparation......Page 14

Required tools and material....Page 14

Prior to installation Page 14

Initial use Page 14

Mounting the light....Page 14

Switching the light on/off......Page 14

Maintenance and Cleaning......Page 14

Disposal Page 15

Declaration of Conformity Page 15

Warranty / Service centre Page 15

Warranty Page 15

Service address....Page 15

Warranty card......Page 16

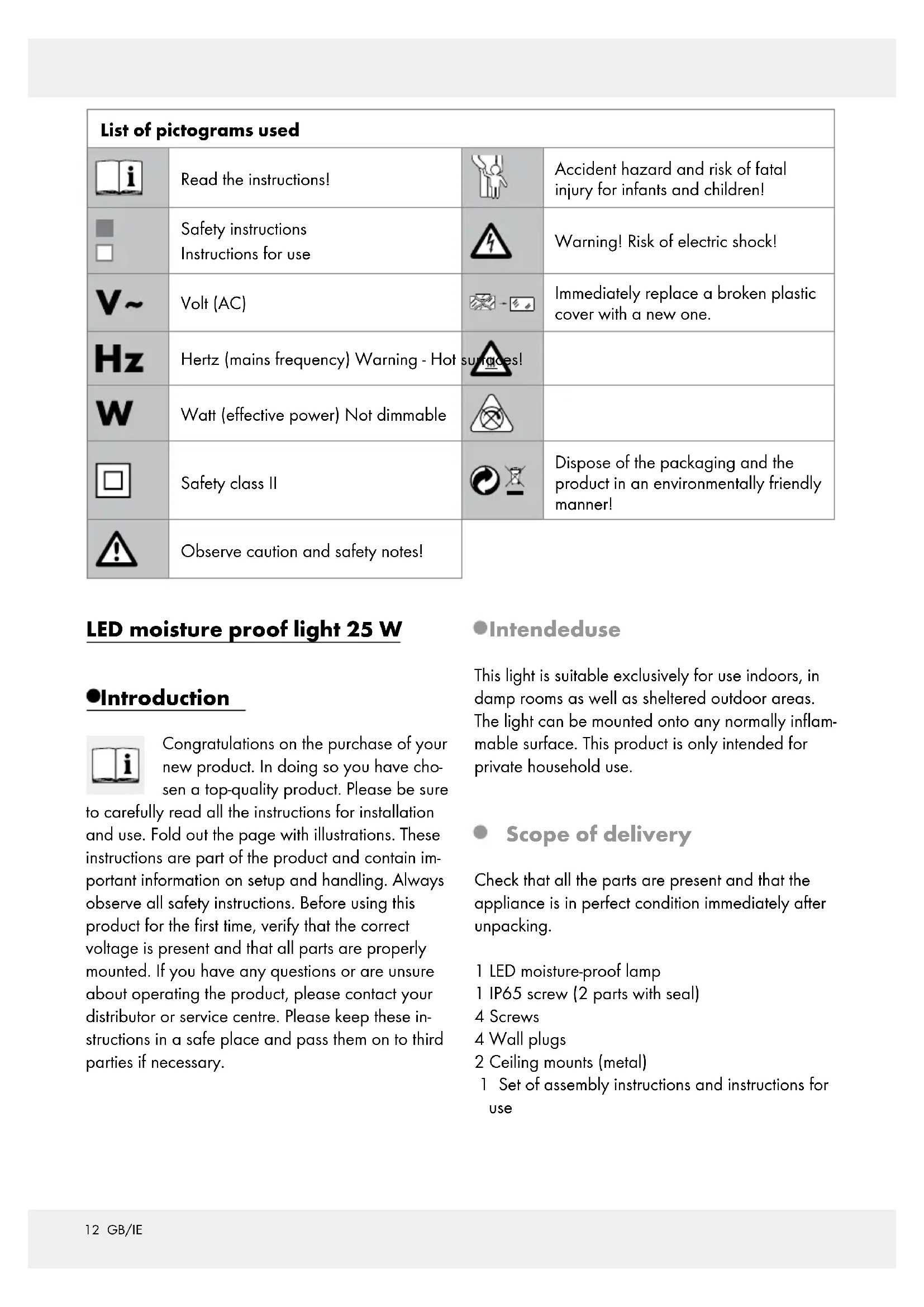

List of pictograms used
	Read the instructions!		Accident hazard and risk of fatal injury for infants and children!
	Safety instructionsInstructions for use		Warning! Risk of electric shock!
	Volt (AC)		Immediately replace a broken plastic cover with a new one.
	Hertz (mains frequency) Warning - Hot s!	s!
	Watt (effective power) Not dimmable
	Safety class II		Dispose of the packaging and the product in an environmentally friendly manner!
	Observe caution and safety notes!

LED moisture proof light 25 W

Introduction

Congratulations on the purchase of your new product. In doing so you have chosen a top-quality product. Please be sure

to carefully read all the instructions for installation and use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is suitable exclusively for use indoors, in damp rooms as well as sheltered outdoor areas. The light can be mounted onto any normally inflammable surface. This product is only intended for private household use.

- Scope of delivery

Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.

1 LED moisture-proof lamp
1 IP65 screw (2 parts with seal)
4 Screws
4 Wall plugs
2 Ceiling mounts (metal)

1 Set of assembly instructions and instructions for use

PartsDescription

1 Wall plug
2 Ceiling mount
3 Screw
4 Seal
5 IP65 screw
6 LED moisture-proof lamp

●TechnicalData

Item number: 54739

Operating voltage: 220-240V\~ 50/60Hz

Illuminant: LED module (not replaceable)

Rated power max.: 25W

Protection type: IP65 (dust/splash-proof)

Protection class: II/

Dimensions: 1250 x 65 x 65 mm

Distributor:

EDI Light GmbH, Heiligkreuz 22, A-6136 Pill

●Safety

Safety Notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

WARNING! RISK OF ACCIDENT AND DANGER TO LIFE FOR INFANTS AND

CHILDREN!

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not

allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

• Have the electrical installation carried out by a trained electrician.
  We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
  ■ Never use the light if any defects have been identified.
  ■ Always check the light for any damage before connecting it to the mains. Never use the light if it shows any signs of damage.
  Prior to installation, remove the fuse or switch off the circuit breaker (O setting) in the fuse box (see Fig. A).
  Before assembly, ensure that the mains voltage available corresponds to the operating voltage required by the light (220-240 V \~).
  ■ Never touch the high-voltage circuit board if the plastic cover or lamp housing are damaged.
  ■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
  Do not install the light on a wet or conductive surface!

Preventing fire and injury hazards

• Check each lamp and each plastic cover for damage immediately after unpacking.
  Immediately replace a broken plastic cover with a new one.

Contact the service centre or an electrician.

The LED light is not dimmable.

Safety/Preparation/Prior to installation/Initial use/Maintenance and Cleaning

Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).

■The light bulb is not replaceable.

If the light bulb has reached the end of its life, the entire light needs to be replaced.

●Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil/marking tool
• Voltage tester
• Screwdriver
• Electric drill
• Bit (ø approx. 0.6 cm)
• Side cutting pliers
• Ladder

- Prior to installation

Important: The electrical connection must be established by a qualified electrician. This person must be familiar with the properties of the light and the connection regulations.

• Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
  ■ Make careful preparations for mounting and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
  ■ Always be attentive! Always pay attention to what you are doing and proceed with caution

at all times. Never install the light if you are having difficulty concentrating or do not feel well.

Before installation ensure that the circuit to which the light will be connected is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0) (see Fig. A).
- Verify that the components are not energised using a voltage tester.
■ Ensure that you do not damage any electrical cables, gas or water pipes when you drill into the wall.
- Please refer to the instructions for use for your power drill.

- Initialuse

- Mounting the light

☐ Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box (see Fig. A).
☐ Mount the lights as depicted in Fig. B-D.
☐ Replace the fuse or switch on the circuit breaker in the fuse box (I position) (see Fig. E).

Your light is now ready to use.

- Switching the light on/off

☐ Use the wall switch to switch the light on or off.

● Maintenance and Cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety reasons do not clean the lamp with harsh detergents and never immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the light to cool down completely.

• Do not use solvents such as petrol and the like, as they could damage the lamp.
  ☐ Only use a dry, lint-free cloth for cleaning.
  ☐ Replace the fuse or switch on the circuit breaker in the fuse box (I position) (see Fig. E).

●Disposal

The packaging is made of entirely recyclable materials, which you may dispose of at local recycling facilities. Contact your local community or municipal administration for more details on how to dispose of your worn-out product.

The symbol of the wheelie bin with a line through it means that the product has to be disposed of in a separate re-

fuse collection within the European Union. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them to be recycled at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

- Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and

documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty / Service centre

Warranty

We provide a 3 year warranty from the date of purchase.

Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge.

Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.

The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this address.

For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.

Serviceaddress

Great Britain / Irland

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton, NN3 6UR

Warranty / Service centre

E-Mail: [e-mail]

Phone: [phone]

IAN 288477

Please have your receipt and item number (e.g.

IAN 12345) ready as your proof of purchase

when enquiring about the product.

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone:

Item number/Description:

Purchase date/Point of purchase:

Description of the defect:

Date/Signature:

Non-warranty cases:

Please return the unrepaired item, carriage paid.

Please provide pricing. Repair the product against charge.
