USER MANUAL HG00625A MIOMARE
DE AT CH
THERMOSTAT-WANNEN-ARMATUR/ THERMOSTAT-BRAUSE-ARMATUR
Assembly, operating and safety instructions
NL BE
A


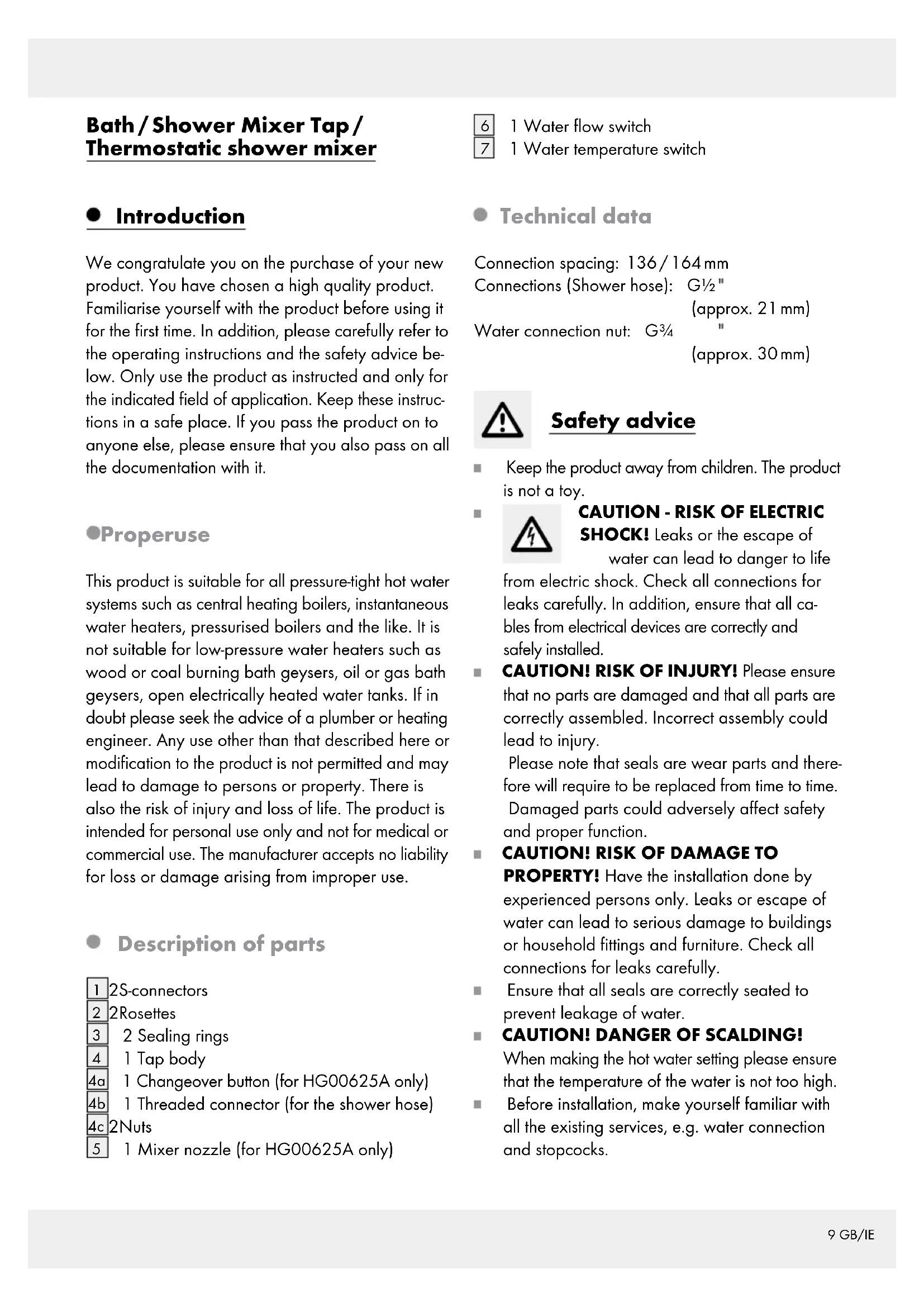

4aThermostat-Wannen-Armatur / Thermostat-Brause-Armatur
- Einleitung
Bath / Shower Mixer Tap / Thermostatic shower mixer
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Properuse
This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. Any use other than that described here or modification to the product is not permitted and may lead to damage to persons or property. There is also the risk of injury and loss of life. The product is intended for personal use only and not for medical or commercial use. The manufacturer accepts no liability for loss or damage arising from improper use.
• Description of parts
12S-connectors
2 2Rosettes
3 2 Sealing rings
4 1 Tap body
4a 1 Changeover button (for HG00625A only)
4b 1 Threaded connector (for the shower hose)
4c2Nuts
5 1 Mixer nozzle (for HG00625A only)
6 1 Water flow switch
7 1 Water temperature switch
- Technical data
Connection spacing: 136/164mm
Connections (Shower hose): G ^1/2
(approx. 21 mm)
Water connection nut: G ^3/4
(approx. 30 mm)
Safety advice
- Keep the product away from children. The product is not a toy.
CAUTION - RISK OF ELECTRIC SHOCK! Leaks or the escape of water can lead to danger to life
SHOCK! Leaks or the escape of water can lead to danger to life
CAUTION - RISK OF ELECTRIC
from electric shock. Check all connections for leaks carefully. In addition, ensure that all cables from electrical devices are correctly and safely installed.
■ CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury.
Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.
■ CAUTION! RISK OF DAMAGE TO
PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully.
■ Ensure that all seals are correctly seated to prevent leakage of water.
■ CAUTION! DANGER OF SCALDING!
When making the hot water setting please ensure that the temperature of the water is not too high.
Before installation, make yourself familiar with all the existing services, e.g. water connection and stopcocks.
- Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!
●Installation
- Installing the tap
Note: To protect the parts from scratches while being screwed together cover them with a damp cloth or use plastic clamps.
■ Before you start installation turn off the main water supply to prevent serious leakage of water.

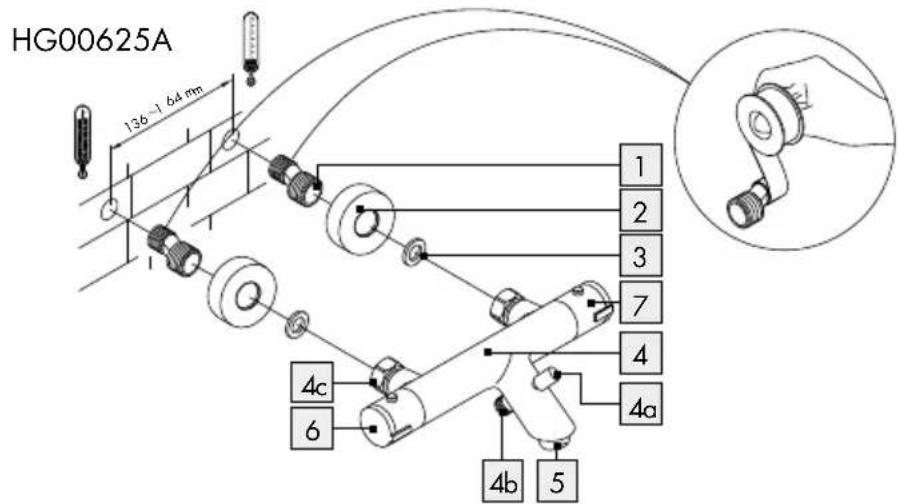

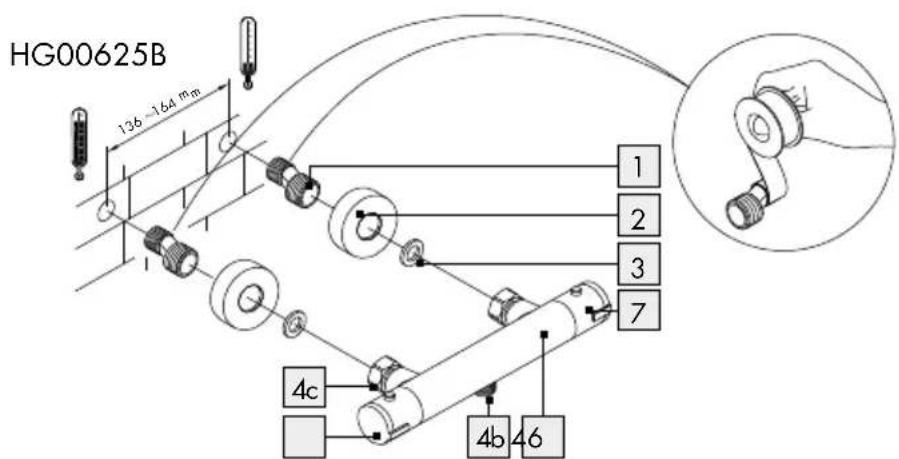

☐ Install the tap at the wall connection as shown in Figure A.
Connecting the accessories (shower head and shower hose)\*:
Note: So that the parts do not get scratched while being screwed together, protect them with a damp cloth or use plastic clamps.
☐ Screw an ordinary shower hose* firmly on to the thread 4b.
☐ Attach an ordinary shower head* to the shower hose*.
☐ Observe the installation instructions for the accessories.
* (not included)
- Flushing the tap

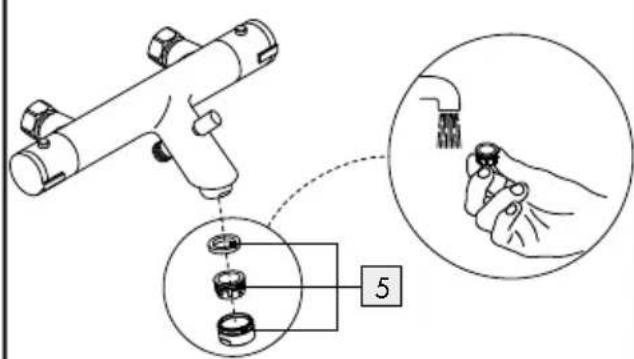

☐ The tap must be flushed through before first use to remove any dirt. To do this, follow these steps (see Fig. B):
☐ Screw the mixer nozzle 5 off.
Before using the tap for the first time, open the main water supply and allow the water to run for two minutes so that any residues are dissolved away.
☐ Then screw the mixer nozzle on again.
Operation
- Bringing into use
Note: If the tap has not been used for a long period flush the pipes through thoroughly in order to avoid stagnation and build-up of residues in the drinking water supply.
- Adjusting the flow
☐ Turn the water flow switch 6 to adjust the water flow.
Increase:
☐ Turn the water flow switch upward.
Reduce:
☐ Turn the water flow switch downward.
- Adjusting the water temperature
☐ Turn the temperature control switch 7 to adjust the water temperature.
To raise:
☐ Turn the temperature control switch downward.
To lower:
☐ Turn the temperature control switch upward.
• Temperature limit
Limiting the water temperature prevents accidentally setting the water temperature above 38 °C . For a higher water temperature press the push button on the temperature control knob whilst turning the temperature control knob downward until the desired temperature is reached.
- Eco-stop function
This fitting features Eco-stop function limiting the water-flow. Press the push button on the water flow switch 6 whilst turning the water flow switch upwards to increase the water flow rate.
- Changeover knob water inlet bath / shower head (for HG00625A only)

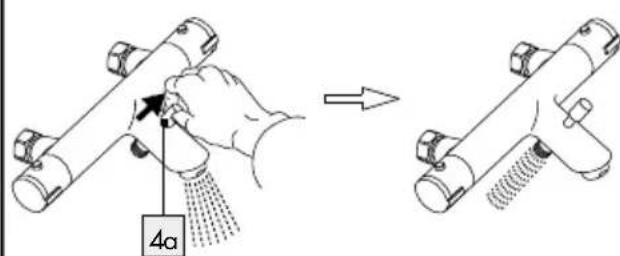

□ Please see Fig. C.
Note: If you turn off the water flow using the water flow switch 6 then the fitting automatically switches to bath filling.
● Maintenance and cleaning
Tap care and cleaning
Please note that sanitary fittings require special care and attention. Therefore you should follow the following advice:
■ Never use corrosive or alcohol-based materials for cleaning, as these could damage the product.
☐ Clean your fittings with clean water, mild detergent and a soft cloth or leather only.
☐ Screw out the mixer nozzle 5 at regular intervals and remove lime deposits or foreign bodies.
Non-observance of the above care advice can be expected to result in damage to the surface of the fittings. In this event your rights under the warranty may be invalidated.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
Information
- Potability of mains water
☐ Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.
The following general recommendations apply to the potability of the water from your pipework:
- Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.
Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.
Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales
receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
- Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.
You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.:1800200736
E-Mail: owim@lidl.ie
