USER MANUAL HG05792 FLORABEST

AMPELSCHIRM SOLAR LED / SOLAR LED SUNSHADE / PARASOL DÉPORTÉ À LED SOLAIRE

DE AT CH

AMPELSCHIRM SOLAR LED

Assembly and safety advice

FR BE

PARASOL DÉPORTÉ À LED SOLAIRE

Warnings and symbols used ...... Page 13

Introduction Page 13

Intended use.... Page 13

Scope of delivery.... Page 13

Technical data Page 13

Safety instructions.... Page 14

Safety instructions for batteries / rechargeable batteries Page 15

Assembly/disassembly Page 16

Assembling the paving stand Page 16

Installing the batteries Page 16

Charging the batteries Page 16

Installing the solar panel Page 17

Installing the main parasol body Page 17

Opening the product Page 17

Turning the product Page 17

Switching the LED light on/off Page 17

Inclining the product. Page 17

Closing the product Page 17

Attaching/removing the crank Page 18

Cleaning and maintenance Page 18

Disposal Page 18

Warranty Page 19

Warnings and symbols usedThe following warnings are used in this user manualand on the packaging:
---	Direct current/voltage
IP44	Protection against solid foreign objects(≥ 1 mm)Spray resistant
CE	CE markingThis product fulfils all CE conformity, relevant norms and standards requirements.
III	Protection class IIIThis product operates with safety extra low voltage (SELV).

SOLAR LED SUNSHADE

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for providing protection from the sun. Any other use or any product modification is prohibited and can lead to injuries and/or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.

- Scope of delivery

Check if the delivery is complete and all parts are in perfect condition. Do not assemble the product if the delivery is incomplete.

1	1x Cross member (cross base)
2	1x Cross member (cross base)
3	1x Bottom pole section
4	4x Bolt (M10 x 25 mm)
5	4x Bolt (M10 x 20 mm)
6	8x Washer (∅ 10 mm)
7	1x Rotation mechanism
8	1x Lid (for rotation mechanism)
9	1x Cover cap (for rotation mechanism)
10	1x Main parasol body
11	1x Cover sleeve (for bottom pole)
12	1x Bolt (M6 x 15 mm)
13	1x Crank
14	1x Hex key - small
15	1x Hex key - large
16	1x Solar panel
17	1x Extension rods
18	1x Cover

- Technical data

Dimensions

Sunshade: Approx. 300 x 260 cm (∅ x H)

Paving stand: Approx. 90 x 90 cm (L x W)

LED: 28 (14 on short ribs /

14 on long ribs)

Operation voltage: 3.6 V

Colour temperature: 6000 K

Rechargeable 3 × 1.2 ~V = 1600 mAh

batteries: Ni-MH (AA)

IP rating: IP44 (splash-proof)

Safety instructions

PLEASE READ ALL SAFETY AND ASSEMBLY INSTRUCTIONS BEFORE USE! PLEASE KEEP THIS DOCUMENT IN A SAFE PLACE!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS TO INFANTS AND CHILDREN!

Never leave children alone and unsupervised with packaging material and the product. The packaging material constitutes a risk to life through suffocation and strangulation. Children often underestimate the risks. Always keep children away from the product. The product is not a toy.

• Keep small cells and batteries which are considered swallowable out of the reach of children.
  ■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 h of ingestion.
  In case of ingestion of a cell or battery, seek medical assistance promptly.

⚠CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if the product is assembled incorrectly. Damaged parts can affect the product's safety and function.

⚠CAUTION! RISK OF INJURY! Do not leave children unattended with the product. The product is not a climbing frame or toy. Make sure that nobody climbs on or leans against the product, particularly children. The product could become imbalanced and tip over. This can also lead to property damage.

⚠CAUTION! RISK OF INJURY! Ensure that the product stands in stable equilibrium on a firm surface. Before using the product: Place weights of at least 110 kg on the cross base 1 2 as a counterweight. Always use the product together with 4 paving slabs of approx. 50 x 50 x 4 cm (not included). Otherwise the product may tip over. This can also lead to property damage.

⚠CAUTION! RISK OF INJURY! Never move the product when it is open. Always close the main parasol body 10 and retract the arm. Otherwise the product could become unbalanced and tip over. This can also lead to property damage.

⚠CAUTION! FIRE HAZARD! Never place the product near an open fire or radiant heaters.

Place the product on a solid, level surface.
- Check before each use if the product is stable.

⚠️CAUTION! RISK OF INJURY! Before opening and closing the product, make sure that there are no people in the vicinity.

⚠️CAUTION! RISK OF INJURY! Be careful when opening and closing the product. Otherwise your fingers may be squeezed or crushed.

Check before each use, if the main parasol body 10 is attached firmly to the bottom pole section 3 on the paving stand.

Close the product if the wind shows signs of increasing in speed or on the approach of squally showers.

• Never use the product as protection against bad weather.
• Never leave the product unattended when it is open. Damage could occur if strong winds arise unexpectedly.
• Close the product during windy, snowy or rainy weather.
• Do not hang any objects (e.g. clothing) from the product.

Safety instructions for batteries / rechargeable batteries

⚠️DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

• Never throw batteries / rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin.

Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (−) on the battery / rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.

Replacing light sources

The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

● Assembly/disassembly

Note: For assembly you will need a working space of at least 16 m^2 in area and 4 m in diameter.

Note: If possible, ask a second person to assist you during assembly.

- Assembling the paving stand

Description Fig.

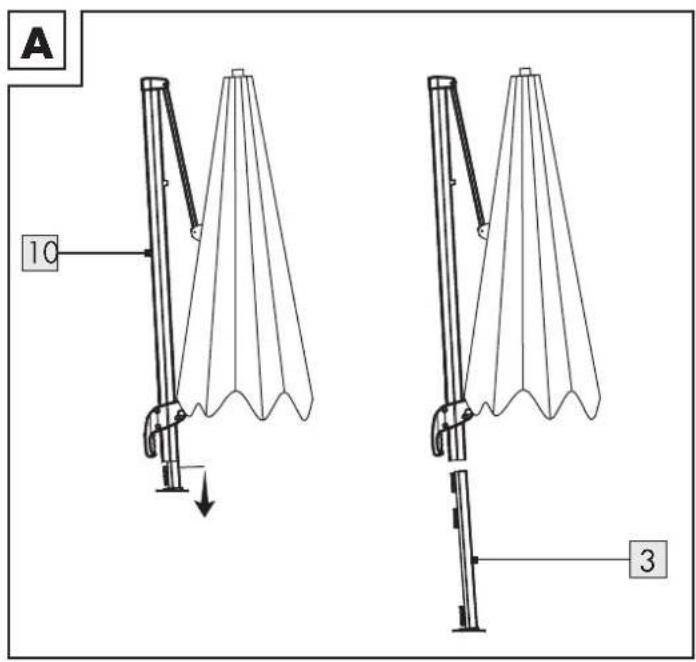

Remove the bottom pole section from the main parasol body 10.	A

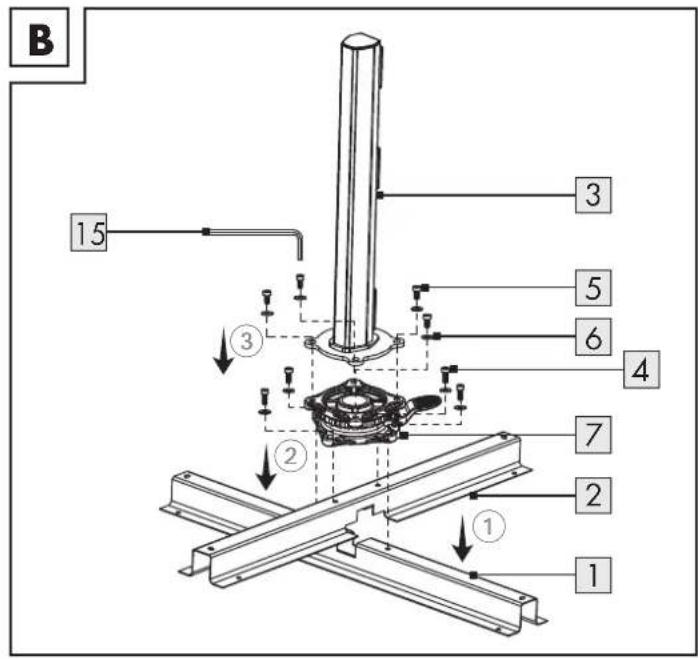

Place the cross member on top of the other cross member 1.	B
Mount the rotation mechanism on the cross members 1 2. Insert the bolts 4 and the washers 6. Use the large hex key 15 to tighten the bolts 4.	B

Description Fig.

Mount the bottom pole section on the rotation mechanism 7. Insert the bolts 5 and the washers 6. Use the large hex key 15 to tighten the bolts 5.	B

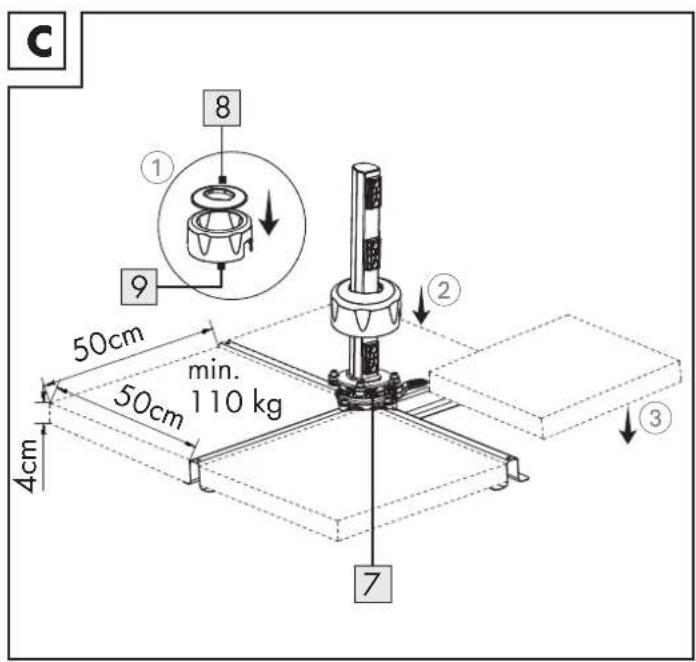

Place the 8d over the cover cap 9. Place the combined parts 8 9 on the rotation mechanism 7.	C
Place the paving slabs (not included) evenly on the cross members 1 2.	C

- Installing the batteries

Required tool: Screwdriver (not included)

Description Fig.

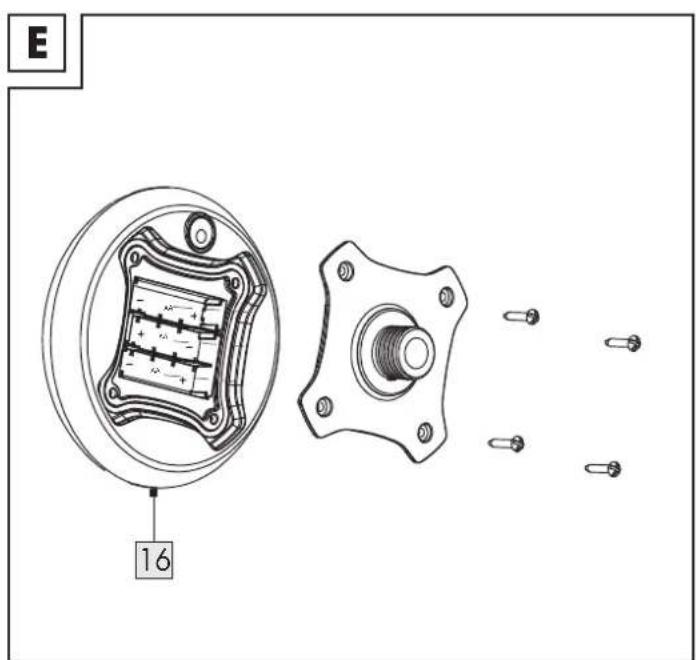

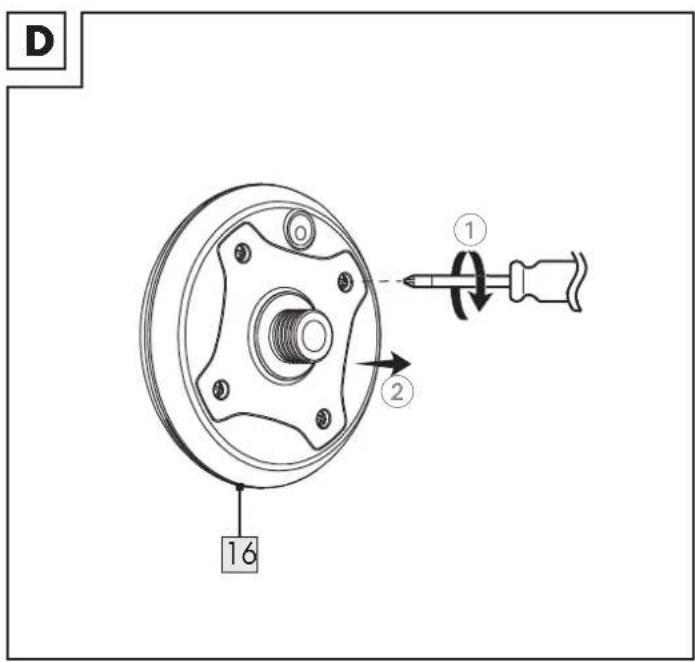

Remove the screws of the battery compartment cover (back side of the solar panel 16).	D
Remove the battery compartment cover. E

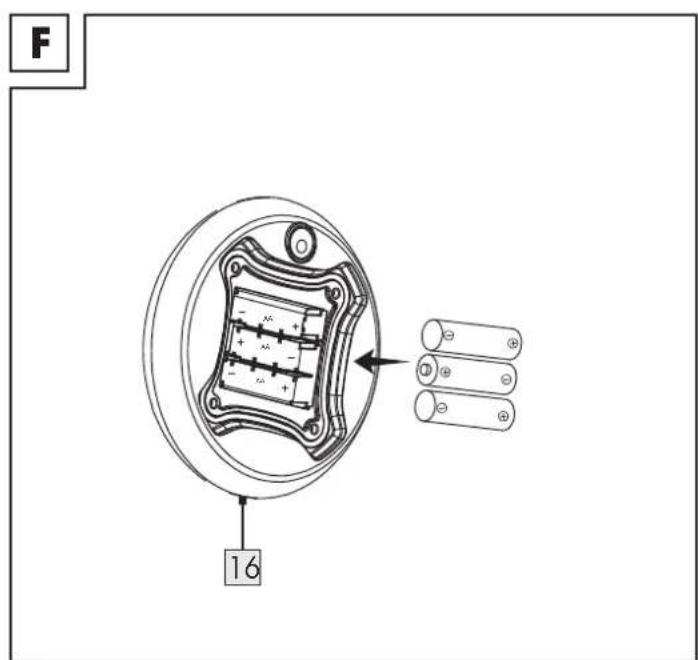

Insert 3 rechargeable batteries (1.2 V, 1600 mAh Ni-MH, AA) into the battery compartment.	F

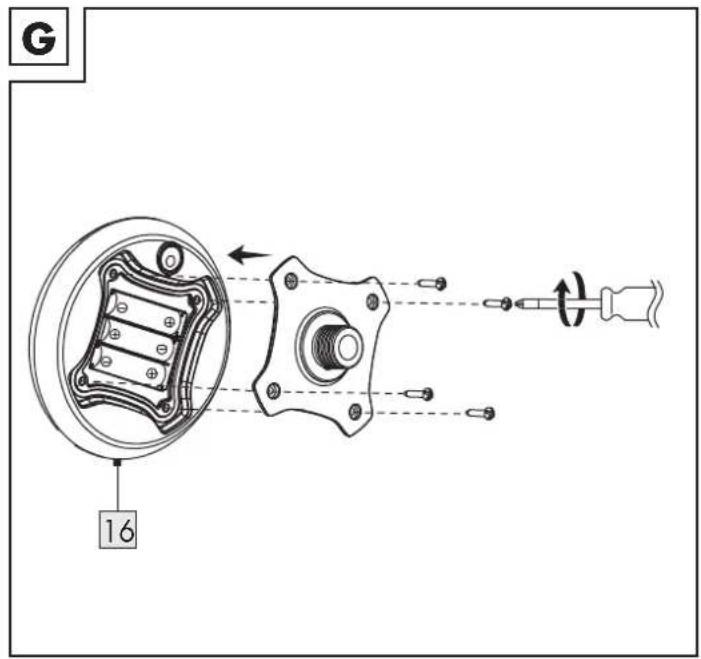

Place the battery compartment cover on the back side of the solar panel 16.	G

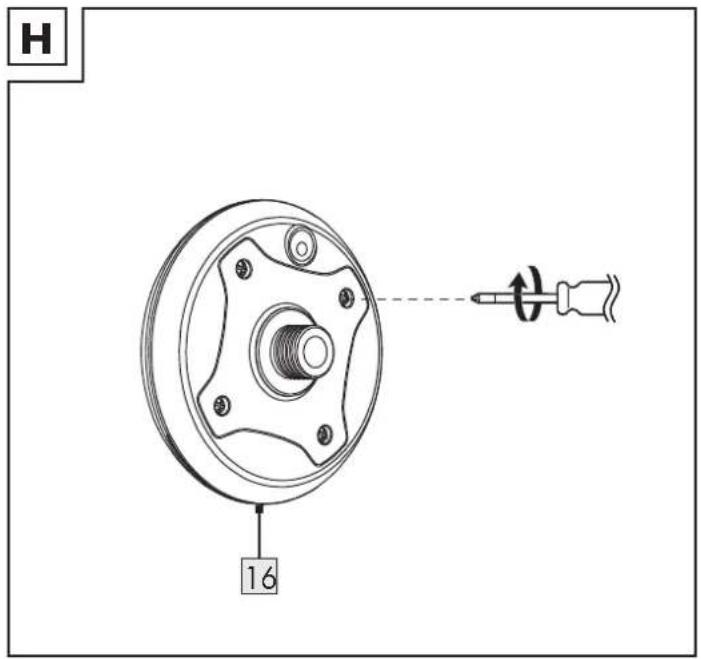

Tighten the screws to close the battery compartment. (not included screw driver)	H
Charging the batteries

Description Fig.

Place the solar pahe in direct sunlight for approximately 12 hours to charge the batteries.

- Installing the solar panel

Description Fig.

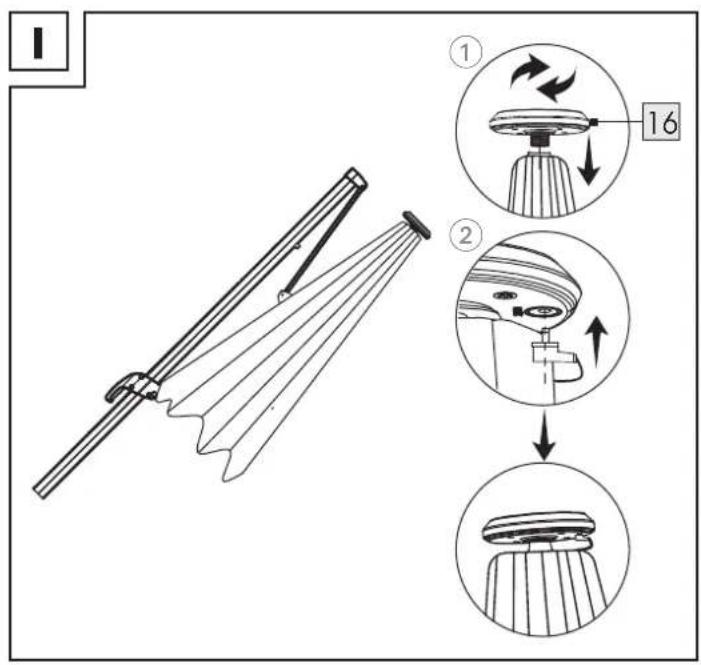

Screw the solar panel into the mount on the top of the main parasol body 10. Attach the plug of the supply cord to the socket at the solar panel 16.

- Installing the main parasol body

Description Fig.

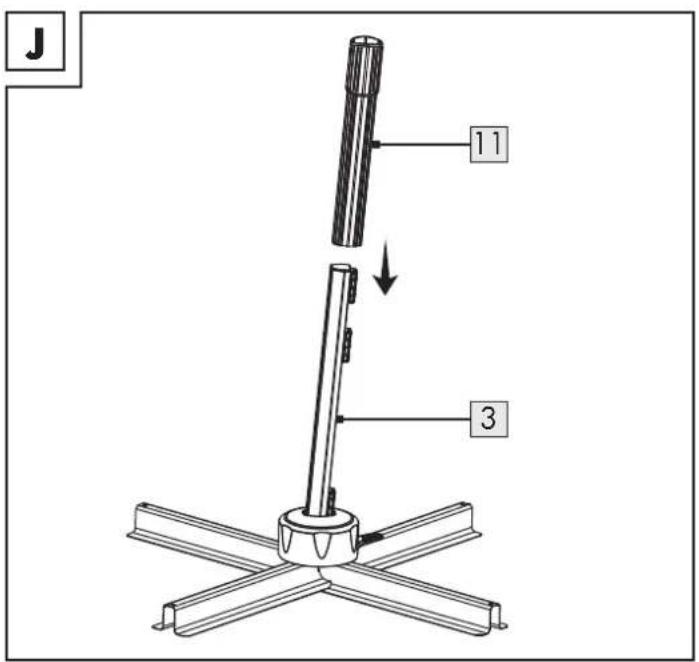

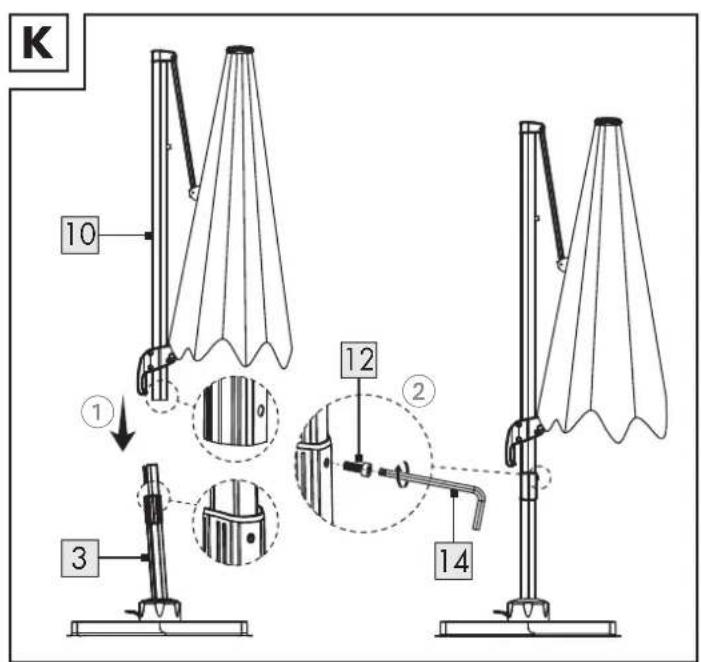

Place the cover sleeve on the bottom pole section 3

Insert the main parasol body into the bottom pole section 3. Insert the bolt 12. Use the small hex key 14 to tighten the bolt 12.

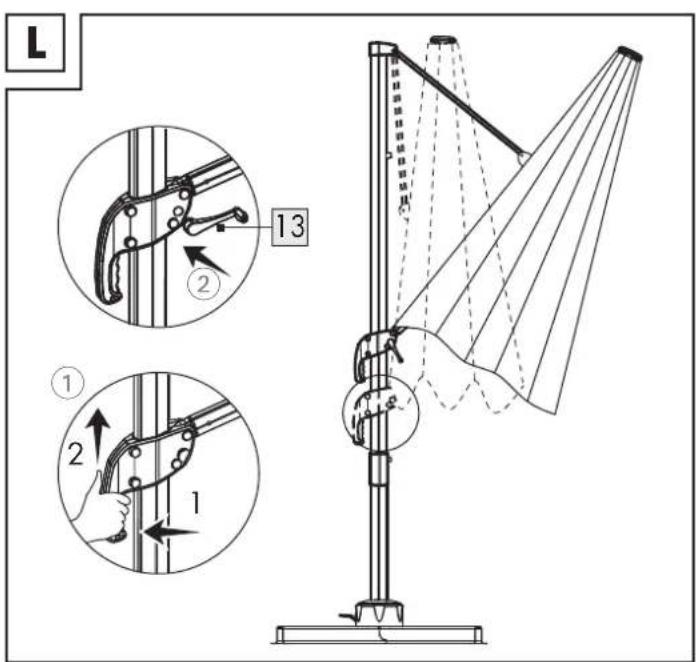

- Opening the product

Description Fig.

■ Unlock the height adjustment lever by pressing it. Move the height adjustment lever upwards and lock it in the last position by releasing it.

- Insert the crank into the height adjustment lever.

- Open the hook-and-loop fastener and slightly pull the ribs apart at the beginning. The fabric might stick together.

■ Turn the crank in a clockwise direction until the top is completely open. M

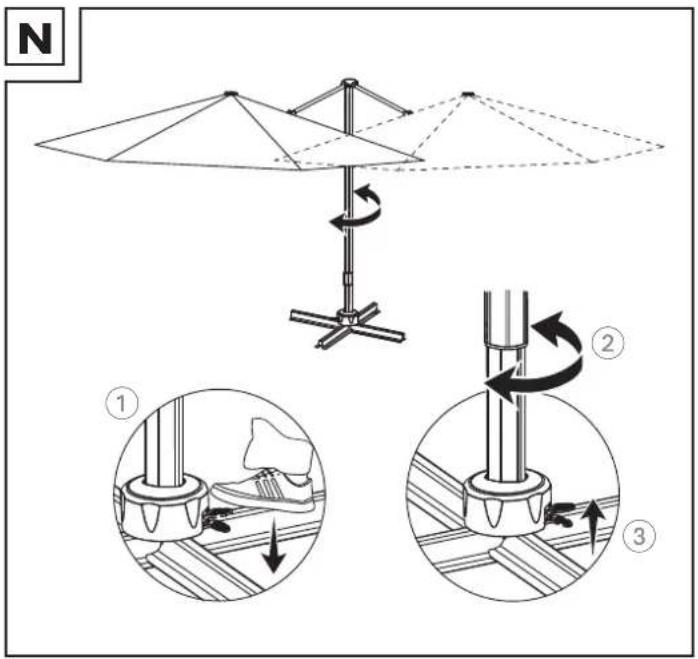

Turning the product

Description Fig.

Press the foot pedal (on the rotation mechanism 7).

■ Swivel the product and move it to the desired position. N

■ Release the foot pedal to lock the position. N

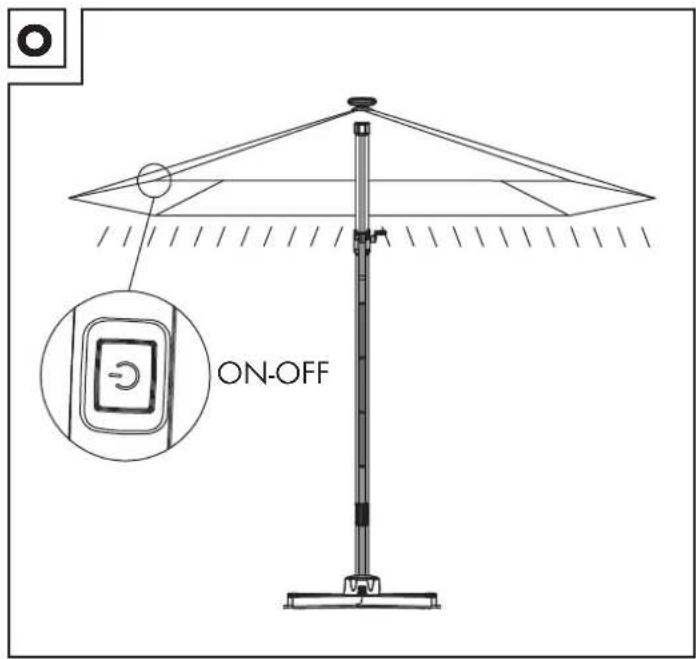

- Switching the LED light on/off

Description Fig.

Press the on/off switch at the main parasol body 10.

Note: The LED lights are not suitable for ordinary lighting in household room illumination.

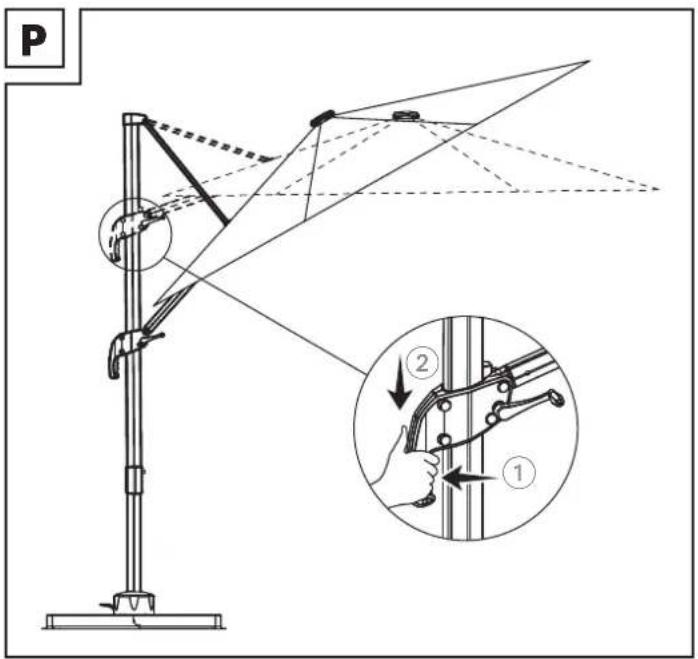

Inclining the product

Description Fig.

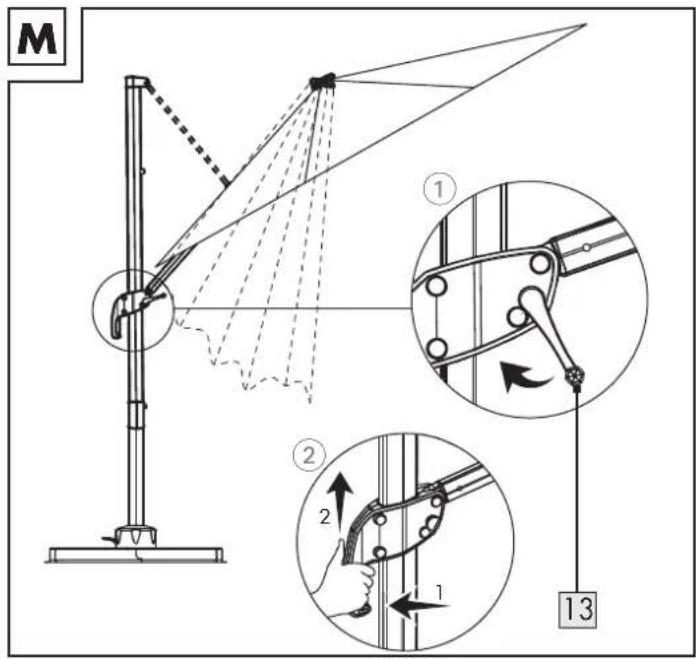

■ Release the height adjustment lever and move it downwards until you reach the P desired angle.

⚠️CAUTION! RISK OF INJURY! Do not incline the product during strong wind. The product might tip over. This can also lead to property damage.

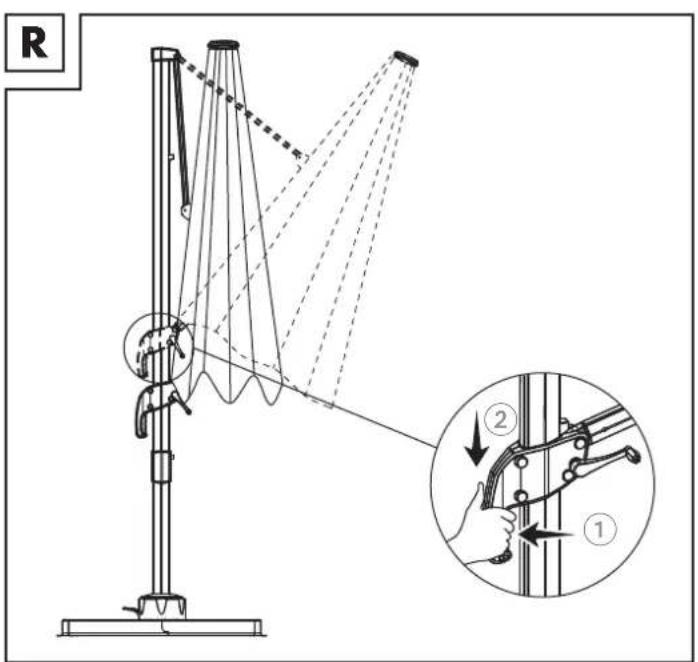

- Closing the product

Description Fig.

■ Unlock the height adjustment lever by pressing it. Move the height adjustment lever downwards and lock it in the last position by releasing it.

■ Turn the crook in a counter-clockwise direction until the product is completely closed.

Description Fig.

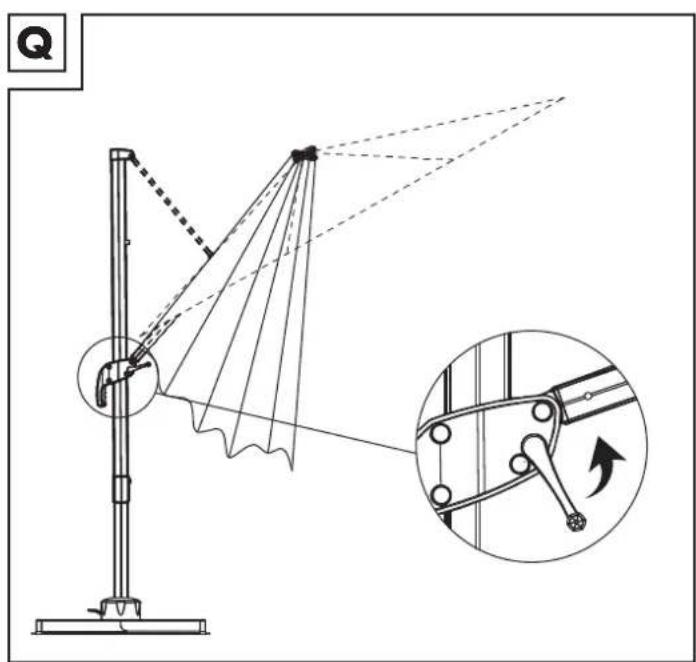

Press the height adjustment lever to release it. Move the height adjustment lever completely downwards. Release R the height adjustment lever to lock the product.

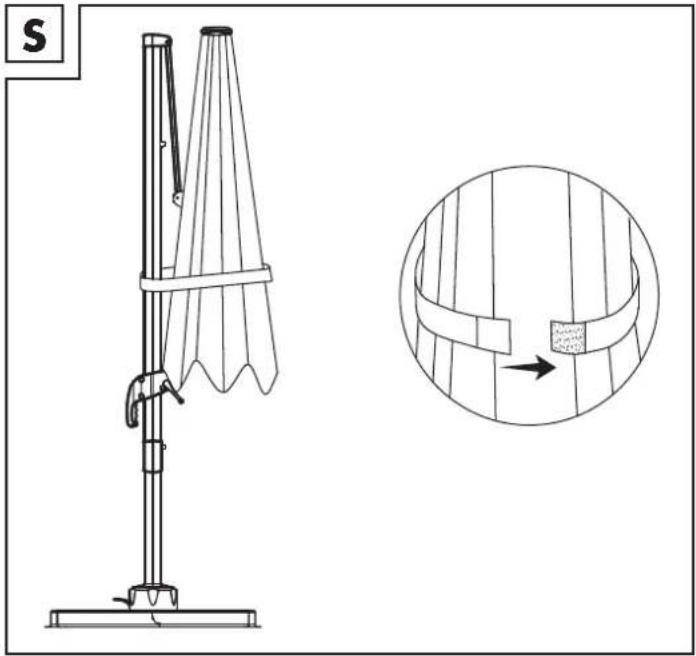

- Secure the product with the hook-and-loop fastener.
Use the cover to protect the product.
Use the extension rads to install the cover 18.

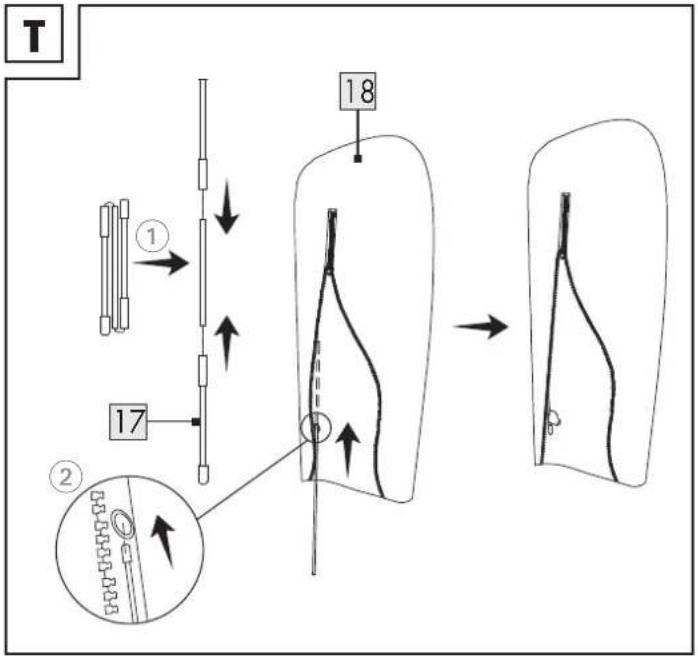

Put the extension rods together. T
Open the zipper of the cover: T

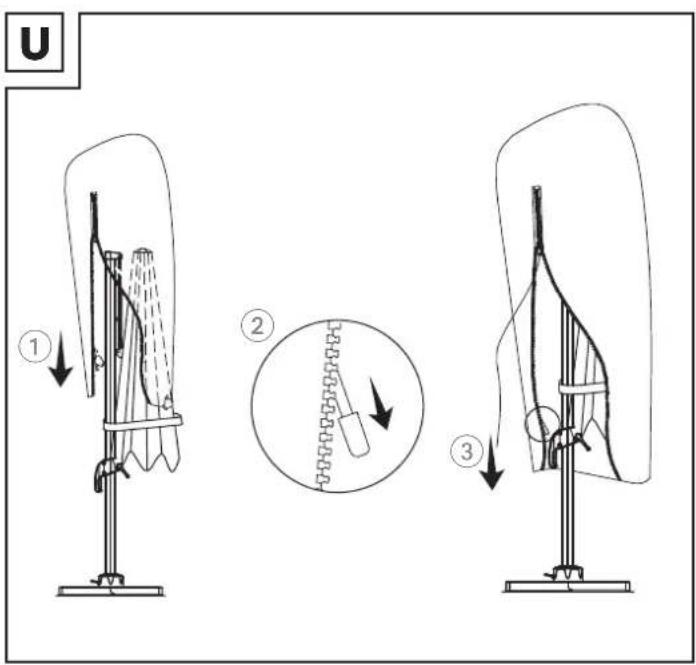

Insert the extension rods and lift the cover 18 over the main parasol body 10.
■ Close the zipper of the cover. U

Removing the cover

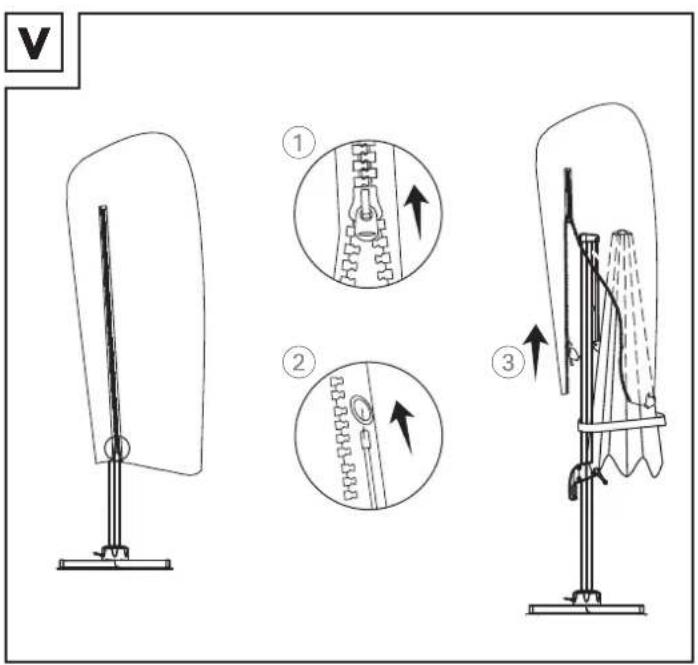

Open the zipper of the cover. Use the extension rods 17 to remove the cover 18.
- Attaching/removing the crank

Description Fig.

Match the opening at the crank with the pin at the crank mount. Slide the crank 13 onto the mount until the pin locks with the opening.
Use a pointy tool (screwdriver or pen) to press the pin and unlock the crank 13.

● Cleaning and maintenance

• Clean the product with a slightly dampened, lintbatteries at a local collection point. free cloth.
  ■ Store the product in winter in a cool, dry place. Avoid storing the product in a heated room.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

NOSIĆ RĘKAWICE OCHRONNE!

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKAVICE!

Montering/demontering Side 73

Monter plade-parasolfoden. Side 73

● Montering/demontering

Montering of parasol

Beskrivelse Fig.

Anbring afdækningshylseh på den nederste stangdel 3.

Simple line drawing of a mechanical component with a labeled section (no text or symbols)

Simple line drawing of a mechanical part with a labeled section '2' and dimension 'x' (no text or symbols beyond basic lines)

M10×25 mm

M10×20mm

∅ 10 mm

Technical line drawing of a beach umbrella with a magnified inset showing the blade structure (no text or symbols)

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG05792

Version: 11/2020

IAN 353208_2007
