USER MANUAL IAN 315459 Livarno Lux

Assembly, operating and safety instructions

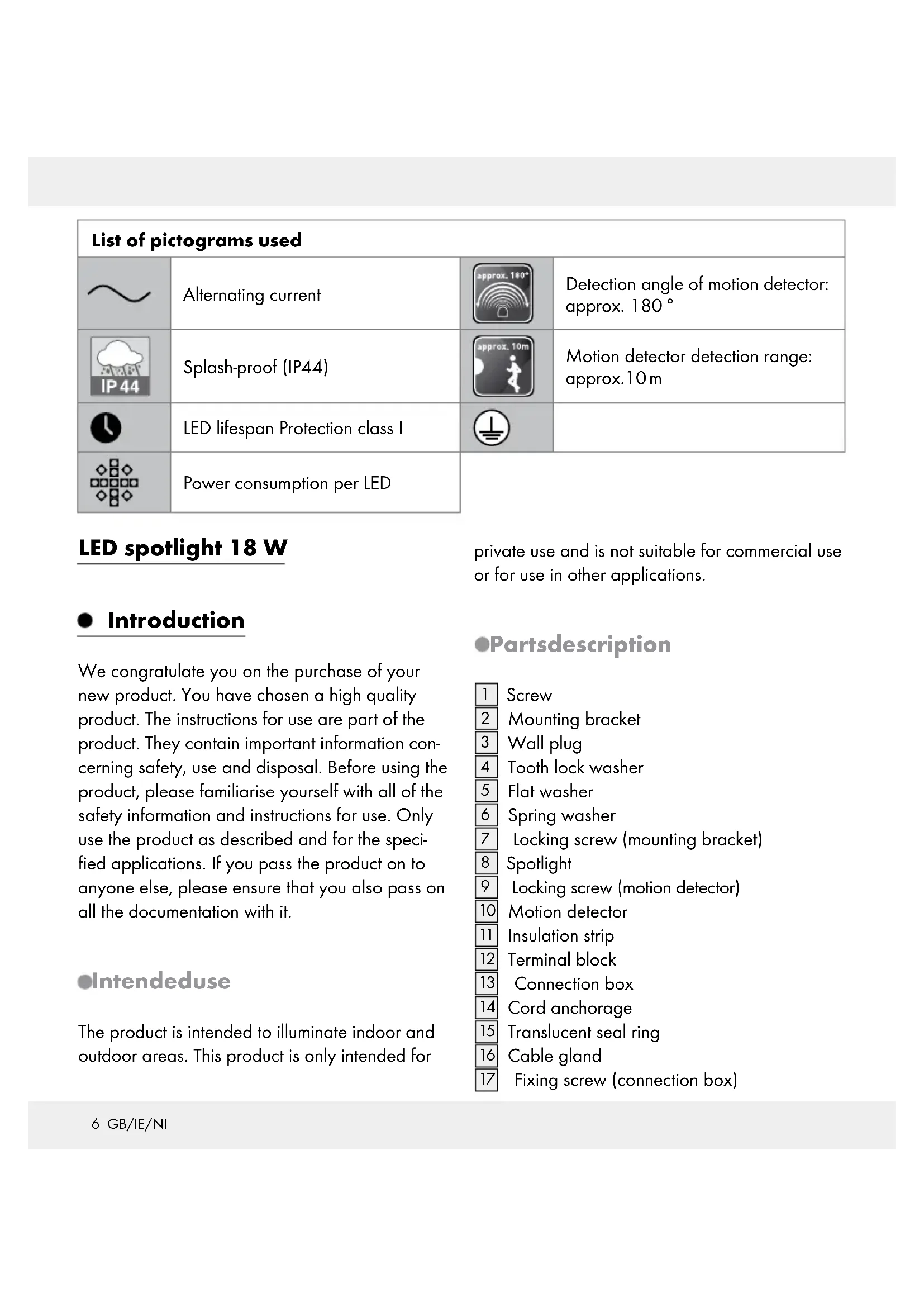

Locking screw (mounting bracket)

Locking screw (motion detector)

Translucent seal ring

LUX rotary control Technical data Operating voltage: 230 V∼ 50 Hz Total power consumption: 18 W Illuminant: 30 x 0.5 W LED Twilight-switch: adjustable between 10 lx – 20,000 lx Lighting duration: adjustable between approx. 10s +/- 5s – 5 min +/- 1min Coverage angle of motion detector: approx.180° horizontal Reach of the motion detector: maximum 10 m Protection class: I Degree of protection: IP44 (splash-proof) Overall dimension: 15.5 x 17.5 x 14.5 cm Weight: approx. 460g (includes accessories) Projected area: max. 15.5 x 17.5 cm Mounting height: approx. 1.8–2.5 m TÜV SÜD / GS certified. Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 LED spotlight with motion detector 2 Wall plugs (Ø 8 mm) 2 Screws (Ø 5 mm x 50 mm) 1 Mounting bracket 1 Cord anchorage 2 Tooth lock washers 2 Flat washers 2 Spring washers 2 Locking screws 1 Instructions for use General safety instructions

SAFETY INFORMATION AND INSTRUCTIONS

FOR USE! WHEN PASSING THIS PRODUCT

CHILDREN! Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dan- gers. Please keep the product out of the reach of children at all times. This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capaci- ties, or lacking experience and/or knowledge, so long as they are supervised or instructed8 GB/IE/NI in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be per- formed by children without supervision. DANGER OF SUFFOCATION! Children could swallow and choke on small included parts (e.g. screws). Keep children away from the work area during assembly. The LEDs are not replaceable. If the LEDs fail at the end of their lives, the entire product must be replaced. Danger to life by electric shock Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage. Prior to installation, verify that the mains volt- age on site corresponds with the operating voltage required for the product (230 V∼ 50 Hz). Otherwise do not install the product.

CAUTION! DANGER OF BURN INJU-

RIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot. 1 .0 m FIRE HAZARD! Fit the product so that it is at least 1.0 m away from the material to be illuminated. Excessive heat can result in a fire. The product is only suited for use with the built-in LED control gear. The product continues to draw a small amount of power even if the product is off as long as product is connected to supply mains. To switch the device off completely, the mains switch should be switched off. Before installation Note: Remove all packaging materials from the product. Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This per- son must be familiar with the properties of the product and the connection regulations. Before installation ensure that the circuit, to which the product will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 posi- tion). Use a voltage tester to verify the de-ener- gised status. The included mounting material (screws

) is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice. Installation Make sure you will not be drilling into electrical, gas or water lines inside the wall. Use a power drill to drill the holes into the brick wall. Always observe all safety instructions for the power drill9 GB/IE/NI in the ma nual for the power drill. Death or injury due to electric shock may otherwise result. When selecting the mounting location, pay atten- tion to the following: Make sure that the spotlight

illuminates the desired area. You can move the spotlight

vertically. Make sure the motion detector

covers the desired area. The motion detector

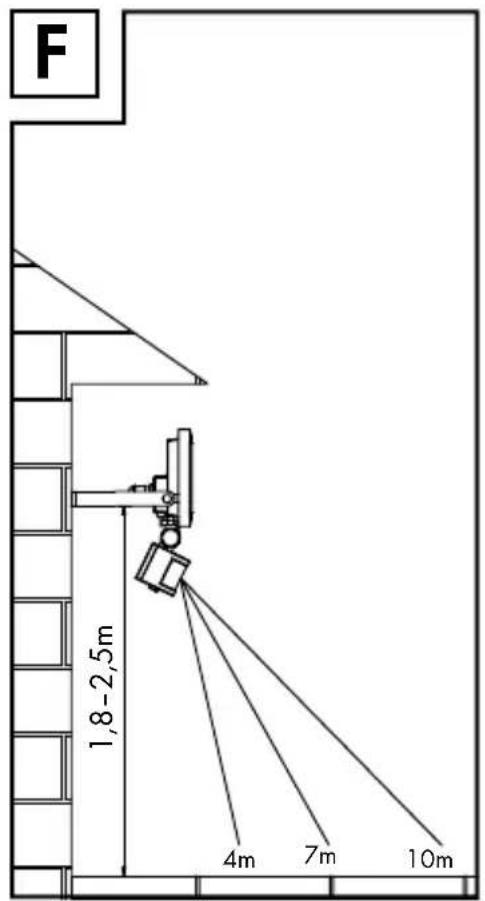

has a maximum coverage range of max. 10 m, with a coverage angle of about 180° (depending on the mounting height – a height of 1.80–2.50 m is ideal) (Fig. D, E, F). Make sure the motion detector

is not illu- minated at night by street lighting. This can influence its functioning. Use the mounting bracket

as a pattern to mark the drilling holes onto the wall. Ensure that there are no cables or wires in this area in the wall. Drill two holes (Ø 8 mm) and in- sert the wall plugs

. Screw the mounting bracket

with the help of the screws

and check the tight fit. Open the connection box

by using a crosshead screw driver to loosen the fixing screws

of the connection box

, through the cable gland

and into the connection box

by using a slot head screw driver to loosen the screws. Attach ferrules to the wires of the supply line. Also attach the cord anchorage

to the supply line and use pliers to tighten it on the supply line (Fig. B). Connect them with the terminal block

in the connection box

Pay attention to the markings on the terminal block

(L for live, N for neutral and for the earth wire) (Fig. B). Close the terminal block

again by fastening the screws. Important: if the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard. Close the connection box

again by fasten- ing the fixing screws

Now attach the spotlight

to the mounting bracket

using the included locking screws

and tooth lock washers

(Fig. A). Re-install the fuse for this circuit or switch on at the circuit breaker (I position) in the fuse box. Start-up Adjusting the motion detector Depending on the pre-adjustments of the motion detector

, the product will switch itself on for a certain period of time as soon as the motion de- tector

detects movement. These pre-adjust- ments are made using the two controllers on the underside of the motion detector

(Fig. C).10 GB/IE/NI Setting the lighting duration Turn the TIME rotary control

on the bot- tom side of the motion detector

clockwise to increase the duration of illumination. The lighting duration can be adjusted within a time window of approx. 10s +/- 5s – 5 min +/- 1min. Setting the daylight level Turn the LUX rotary control

on the bottom side of the motion detector

clockwise to increase the daylight level: In the position, the motion detector only reacts at night (at approx. 20 lx). In the position, the motion detector also responds at daylight levels, as long as about 20,000lx are not exceeded. Aligning the motion detector Note: Perform this adjustment at twilight. Loosen the locking screw (motion detector)

Turn the LUX rotary control

into the central region of the desired coverage area. Move about through the coverage area until you are satisfied with the response characteris- tics of the motion detector

. To find the proper orientation, change the orientation of the motion detector

When you have aligned the motion detector

satisfactorily, re-tighten the locking screw

to fix the adjustment. Cleaning and Care Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box. Never immerse the product in water or other liquids. Otherwise the product can be damaged. Clean the product with a lint-free, slightly moist cloth and mild cleaning agent. Re-install the fuse for this circuit or switch on at the circuit breaker (I position) in the fuse box. Disposal The packaging is made entirely of recyclable ma- terials, which you may dispose of at local recy- cling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre- board / 80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.11 GB/IE/NI Contact your local refuse disposal au- thority for more details of how to dis- pose of your worn-out product. To help protect the environment, please dispose of the product properly when it has reached the end of its use- ful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the
