USER MANUAL SBL D6 A1 SILVERCREST

Operation and safety notes

FR BE

RADIO DAB+ AVEC BLUETOOTH

Warnings and symbols used 47

Introduction 49

Intended use. 50

Trademark notices 50

Scope of delivery. 51

Description of parts 51

Technical data 52

Safety instructions. 54

Safety instructions for built-in rechargeable batteries. 59

Before use 60

Unpacking 60

Charging the battery 60

Switching the product on/off 61

Mode selection 61

System settings 61

FM operation. 64

Searching stations 64

Scanning functions 65

FM display modes 66

DAB + operation. 67

Full scan 67

Manual tuning 68

Deleting unavailable stations 69

DAB display modes 69

Presetting currently active station 71

Recalling a preset station... 72

Bluetooth operation. 72

Disconnecting the product from a Bluetooth playback device 74

Button functions 75

AUX-In operation 76

Cleaning 77

Storage during non-use. 77

Troubleshooting 78

Glossary 79

Simplified EU declaration of conformity 80

Disposal. 80

Warranty 82

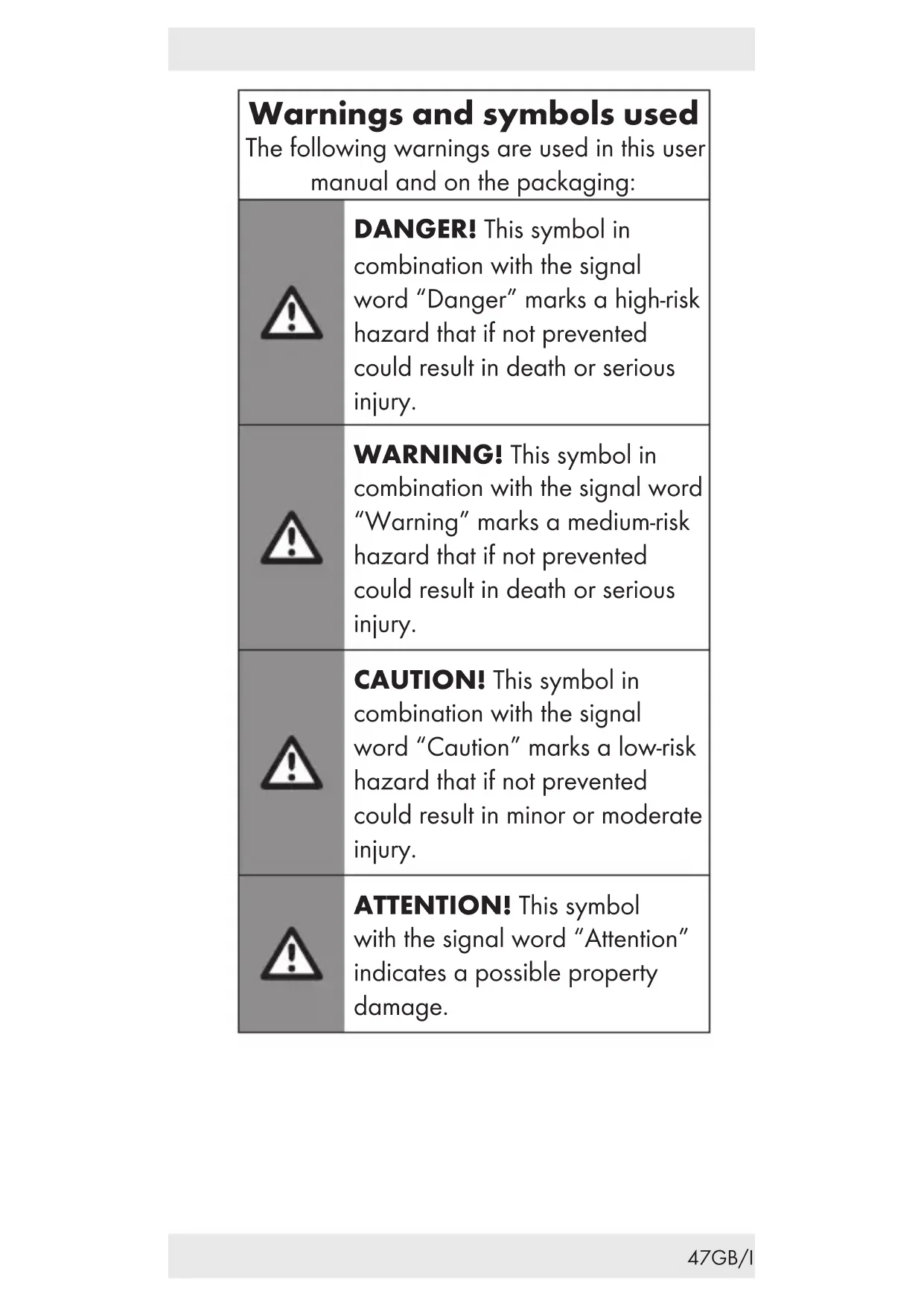

Warnings and symbols used The following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.
This mandatory sign indicates to wear suitable protective gloves! Follow the instructions of this warning to avoid hand injuries caused by objects or contact with hot or chemical materials.
NOTE: This symbol in combination with “Note” provides additional useful information.
This symbol means that the operating instructions must be observed before using the product.

DAB+ RADIO WITH

BLUETOOTH®

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The DAB+ radio with Bluetooth (hereinafter called "product") is a consumer electronics device. It is used for the reception and playback of analogue and digital radio programs. The product is also intended to render audio transmitted via Bluetooth or jack lead. This product may only be used privately and not for industrial or commercial purposes. This product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorized modification of the product will be considered un-warranted. Any such use is at your own risk.

Trademark notices

USB® is a registered trademark of USB Implementers Forum, Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.

The SilverCrest trademark and tradename is the property of their respective owners.
Any other names and products are trademarks or registered trademarks of their respective owners.

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1x DAB+ radio with Bluetooth
1xChargingcable (Micro-USB / USB type A)
1x 3.5 mm jack cable
1x Instructions for use
1x Quick start guide

Description of parts

1 Display
2 i-MENU button
3 SCAN·按钮
4 PRESET button
5 MODE button
6 cki按钮
7 < button
8 > button
9 - button
10 + button

11 Telescopic antenna
12 Speaker
13 3.5 mm jack socket
14 Battery charge indicator
15 Micro-USB socket
16Chargingcable (Micro-USB/USB type A)
17 3.5 mm jack cable
18 Instructions for use
19 Quick start guide

Technical data

Power supply:

• Micro-USB socket: 5 ~V = 1.0 ~A
• Battery: 1 × 3.7V

rechargeable

Lithium-lon battery

with 2000 mAh (not

replaceable)

Battery power: 7.4 Wh

Music output: max. 6 W RMS

Wireless standard: Bluetooth 5.0

Bluetooth frequency 2400 to

band: 2483.5 MHz

Max. transmitted

power: 1 mW

DAB reception

range: 174 to 240 MHz

FM reception range:	87.5 to 108 MHz
Preset stations	30 (DAB)
(stORAGE):	30 (FM)
AUX jack: Stereo jack plug (3.5 mm)
Dimensions: approx. 17.5 x 7 x 7.5 cm (W x D x H)
Weight: approx. 420 g
Operating conditions:	+5 to +35 °C, 40 t 85 % rel. humidity
Storage temperature:	0 to +40 °C
Bluetooth protocols:	AVRCP (remotely controls key audio functions via mobile phone), A2DP (wireless audio transmission)
Operation time: approx. 9 hours music playback (at medium volume)

Charging time: approx. 3.5 hours

Safety instructions

This chapter provides important safety

information for handling the product.

Improper use can result in personal injury and property damage.

Before using the product, familiarise

yourself with all of the safety instructions

and instructions for use! When passing this

product on to others, also include all the

documents!

DANGER! DANGER TO LIFE AND

RISK OF ACCIDENT FOR INFANTS

AND CHILDREN!

DANGER!

RISK OF SUFFOCATION!

Packaging materials are not a toy.

Never leave children unsupervised

with the packaging material. The

packaging material represents a danger

of suffocation. Children frequently

underestimate the dangers. Always

keep children away from the packaging

material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the product. The product is not a toy.

WARNING!

• Never open the housing of the product! It has no internal parts requiring maintenance.

Do not throw the product into fire and do not expose it to high temperatures.

RISK OF DAMAGE!

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.

Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!

If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch the product off immediately and disconnect all cables. Do not use the product anymore.
Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again!
- Do not place burning candles or open fire on or near the product.
Do not use the product near heat sources such as radiators or other devices emitting heat!
Only use/charge the product in a dry environment as it is not protected from drip and splash water.
Do not place the product on treated surfaces. Otherwise the rubber feet and/or the surface may be damaged.

Never charge the product via the USB port of a PC/notebook.

Only charge the product using a USB power adaptor (not included). The output current of the USB power adaptor must be at least 1 A.

WARNING! Wireless interface

• Switch the product off on airplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics. Keep the product at least 20~cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers. The radio waves transmitted could cause interference in hearing aids.

Do not place the product near flammable gases or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.

ATTENTION!

The range of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded. OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. OWIM GmbH & Co KG further assumes no liability for using or replacing cables and devices not distributed by OWIM. The user of the product is fully responsible for correcting interference caused by such unauthorised modification of the product, as well as replacement of such devices.

- Safety instructions for built-in rechargeable batteries

Never open the product, repairs may only be carried out by qualified personnel.

CAUTION! RISK OF

EXPLOSION! Do not throw the

product into fire.

• Avoid extreme environmental conditions and temperatures, which could affect rechargeable batteries, e.g. radiators / direct sunlight.

If rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

Do not cover the product during operation or charging. Otherwise the product can be overheated

This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application.

Before use

Unpacking

Remove all packaging materials (including foils).
Verify the package contents are complete and undamaged!
Place the product on a level, even surface.

- Charging the battery

Charge the integrated rechargeable battery prior to first use.

NOTE: Never charge the product via the USB port of a PC/notebook.

Only charge the product using a USB power adaptor (not included). The output current of the USB power adaptor must be at least 1 A.

When the battery is drained, is flashing in the display 1. In this case, charge the battery as soon as possible.
Insert the Micro-USB plug of the charging cable [16] into the Micro-USB socket [15]. Insert the USB type A plug into a USB port on a USB power adaptor (not included).

1 NOTES:

The battery charge indicator 14 lights up red during charging. It turns green once charging is completed. Charging a drained battery takes approx. 3.5 hours.

You may use the product during charging. However, doing so will at least double the charging time.

Once charging is complete, unplug the Micro-USB plug.

- Switching the product on/off

Switching on: Briefly press

OK

Switching off: Press and hold

OK 6 for 2 seconds.

Mode selection

Select from the modes DAB, FM,

Bluetooth or Auxiliary Input:

Press MODE 5.

System settings

Display the menu: Press and hold

i·MENU 2.

Select menu point: Press < 7 or >8 .

NOTE: Select the menu item System.

The menu starts with a different menu item depending on the set mode.

Change values: Press < 7 or ≥ 8 .

Confirm value/selection: Press

OK 6

Return to previous level: Press

i·MENU 2

System settings

1. Time

Set Time/Date
Set time

L00:00

Set date
Auto Update

(Automatic time update)

No Update

(No automatic time update)

Update from FM

Automatic time update from FM)

Update from DAB

Automatic time update from DAB)

Update from Any

Automatic time update from FM or DAB)

Set 12 / 24 hour

(12 or 24 hour display)

Set 24 hour

(24 hour display)

Set 12 hour

(12 hour display)

Set date format

DD-MM-YYYY

("Day-Month-Year")

一 M M - D D - Y Y Y

("Month-Day-Year")

1. LCD backlight setting

Timeout

On (always on)

10,20,30,45,60,90,

120, 180 seconds

On level

High - Medium - Low

1. Language

2. Factory Reset

English, German, Italian, French, Dutch, Spanish, Portuguese, Swedish, Danish, Norwegian, Finnish, Polish
NO
YES

NOTE: All previously saved

stations will be lost after factory reset.

1. SW version

Version number

Volume adjustment

Increase volume: Briefly press
+ button 10 or press and hold for fast increase.
Reduce volume: Briefly press
- button 9 or press and hold for fast reduction.

FM operation

Press MODE 5 repeatedly, until FM is shown in the display 1.

NOTE: The antenna 11 must be fully extended for FM operation.

- Searching stations

Press and hold i-MENU 2 for 2 seconds.

Select Scan setting: Press 7 or > 8.
Confirm selection: Press OK 6.
Select setting: Press < 7 or ≥ 8 .

Setting Function

Strong stations Search for stations only with strong signal only.

All stations Search for all stations.

Confirm selection: Press OK 6.

Scanning functions

Choose from 3 scanning functions to select a radio station.

Setting Function

Auto scan

Start scanning in the desired direction: Press and hold < 7 or >8 . The scan stops automatically at the next station received.

Manual scan

Search for FM stations manually: Briefly press < 7 or ≥ 8 (each press changes the frequency by 0.05MHz

Setting Function

AMS

Full automatic scan: Press and hold SCAN · 8 3. All detected stations are automatically assigned to the 30 station slots. The search starts at the lowest frequency. Depending on the reception quality, not all station slots might be assigned.

FM display modes

Choose FM display mode: Briefly press i·MENU 2.

Display mode Function

Program Type Displays the genre of the broadcast programme.

Frequency

Displays the station's frequency.

Display mode Function
Time	Displays the current time (provided by the broadcaster).
Date	Displays the current date (provided by the broadcaster).
Radio text	Displays a scrolling message giving real-time information, e.g. song title, news headlines, etc.

Each time you press i·MENU 2, the next item is displayed.

DAB+ operation

Press MODE 5 repeatedly, until DAB is shown in the display 1.

Full scan

Perform a complete station search in the

DAB frequency range:

Press and hold i· MENU 2 for 2 seconds.

Select Full scan: Press < 7 or >8 .

Confirm selection: Press OK 6.
All detected stations are stored automatically.
Select station: Press < 7 or >8 . The displayed station will be played back after approx. 2 seconds.
NOTE: The scan also starts when you press SCAN · 8 3 in playback mode.

Manual tuning

The signal strength is displayed. No sound is emitted by the product while manually tuning. The newly tuned station can be found in the Station list.

Press and hold i·MENU 2 for 2 seconds.
Select Manual tune: Press 7 or > 8.
Confirm selection: Press OK 6.
Select channel: Press < 7 or >8
Confirm selection: Press OK 6.

- Deleting unavailable stations

Press and hold i-MENU 2.

Select Prune: Press < 7 or >8 .
Confirm selection: Press OK 6.
Select YES: Press < 7 or ≥ 8 .
Confirm selection: Press OK 6.

NOTE: Unavailable stations can only be detected after another complete search (e.g. at a different location). In this case, the affected station is preceded by ?. After the Prune function has been performed, the correspondingly marked stations are no longer available in the station list.

DAB display modes

Choose DAB display mode: Press i·MENU 2.

Display mode Function

Signal strength

Displays a bar indicating the signal strength.

Display mode Function

Program Type	Displays the genre of the broadcast programme.
Ensemble	Displays the name of the multiplex containing the station you are listening to.
Frequency	Displays the station's frequency.
Signal error	Displays the signal error rate.
Bitrate and Codec	Displays the radio mode and the received audio bit rate.
Time	Displays the current time (provided by the broadcaster).
Date	Displays the current date (provided by the broadcaster).
Display mode Function
Radio text	Displays a scrolling message giving real-time information, e.g. song title, news headlines, etc.
Title	Displays the title of the broadcast programme.
Artist	Displays the artist of the broadcast programme.

Each time you press i·MENU 2, the next item is displayed.

- Presetting currently active station

You can store up to 60 stations (30 FM and 30 DAB).

Press and hold PRESET 4 for about 2 seconds.
- Preset store<#: (Empty)> appears on the display 1.
Select a desired station number: Press 7 or >8 .
Confirm selection: Press OK 6.
The station is stored. Preset # stored appears on the display 1.

NOTE: Station numbers under which stations are already stored will be overwritten.

Recalling a preset station

Recall a previously saved station: Briefly press PRESET 4.

Select the desired preset station number: Press < 7 or ≥ 8 .

Confirm selection: Press OK 6.

NOTE: Preset Empty is displayed if the preset number is unoccupied.

- Bluetooth operation

Select Bluetooth mode: Press MODE 5 repeatedly, until Bluetooth is shown in the display 1. The product attempts to connect to the playback device (e.g. smartphone or computer).

Establishing a Bluetooth connection

Turn on the playback device (e.g. smartphone or computer). Turn on the search for Bluetooth devices. Note the instruction manual of the playback device. Connecting is flashing in the display 1.
Connect your playback device with the product via Bluetooth. Refer to the instructions for your playback device. Select the entry SBL D6 A1 from the device list on your playback device. Once the connection has been established, the display 1 shows Connected. When the product is successfully paired, you can use it for wireless playback of your favourite music.
The maximum reception range is approx. 10m The range may be reduced due to the geometry of the space (obstructing furniture, walls, etc.).
The playback device must support Bluetooth standard 5.0. Otherwise you may not be able to use all button functions.

If you exceed the reception range, Connecting is flashing in the display 1. If the connection is not restored within 15 minutes, the product switches off.
If you enter the reception range with the product switched on in Bluetooth mode, the Bluetooth connection will be established automatically.
You may need to approve the connection on the playback device.

- Disconnecting the product from a Bluetooth playback device

In Bluetooth mode, press and hold SCAN · 8 3 for approx. 2 seconds. Connecting is flashing in the display 1.
The product is in pairing mode and allows for another playback device to be connected.

- Button functions

Start a playlist on your playback device. You can adjust the volume on the product as described in the following table. Music is played back through the speaker 12.
The product offers 6 buttons for Bluetooth operation:

Switch product on or off:

Press and hold for approx.

2 seconds.

Pause or continue playback:

Press briefly.

Increase volume: Press briefly

during playback or press and

hold for fast increase.

Skip to next song in the

album: Press during playback.

Reduce volume: Press briefly

during playback or press and

hold for fast reduction.

Skip to previous song in the

album: Press during playback.

SCAN

3

Enable/disable Bluetooth connection: Press and hold for approx. 2 seconds.

AUX-In operation

Switch off the product and the playback device.

Plug the 3.5 mm jack cable [17] into the 3.5 mm jack socket [13].

Plug the other end of the 3.5mm jack cable [17] into a suitable output socket (e.g. headphone socket) on the playback device.
- Switch on the product and the playback device.
Start playback. Set the playback device's volume to the highest level.
Adjust the volume on the product to your preferred level.

Cleaning

Before cleaning: Unplug the product from the power supply.

ATTENTION! Never immerse the

product in water or other liquids. Never hold the product under running water.

Do not allow any water or other liquids enter the product's interior.
Do not use solvent-based cleaning agents, abrasives, harsh cleaning solutions or hard brushes for cleaning.
Clean the product with a slightly moistened cloth.
Allow the product to dry.

Storage during non-use

Store the product in its original packaging.
Store the product in a dry, secure location away from children.
The rechargeable battery needs to be charged regularly.

Troubleshooting

= Fault
= Possible cause
O = Action
= No function
= Battery drained
O = Recharge the battery (see "Charging the battery").
= No Bluetooth connection
= Product error
O = Switch the product off and on again.
= Playback device error
O = Check if the product can be detected by the playback device.
O = Check if the playback device detects other devices with Bluetooth standard 5.0.
= No music playback via Bluetooth
= Product error
O = Switch the product off and on again.
O = Press SCAN · 8 3 to start a new connection process. You need to rebuild the Bluetooth connection to your playback device.
O = Press + 10 to increase the volume.
= Playback device error
O = Increase the volume on the playback device.

= No music playback via cable connection
= Product error
O = Reconnect the cable to the playback device.
O = Increase the volume of the playback device or the product.
= FM station not found
= Weak signal
O = Search manually.
= DAB station not found
= No DAB coverage in your area or poor reception
= Adjust the position of the telescopic antenna 11.

Glossary

Multiplex: In DAB and DAB+ several radio programmes can be transmitted on each frequency. These radio stations are combined in a so-called multiplex. In this multiplex, additional services, such as pictures and text information, can also be transmitted.

Signal error: The greater the number of signal errors, the more distorted the audio signal arrives at the product. The built-in error protection can compensate for this to a certain extent without deteriorating the audio quality. Displaying the number of signal errors can be helpful in finding a better location to place the product.

Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY, declares that the product DAB+ RADIO WITH BLUETOOTH, HG06840A, HG06840B is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

-Akumulator: 1x Akumulator

litowo-jonowy

3,7V,2000mAh

(niewymienny)

Moc akumulatora: 7,4 Wh

WYPADKU DLA MAŁYCH DZIECI I

NIEMOWLAT!

! NIEBEZPIECZENSTWO!

NIEBEZPIECZENSTWO

ZADŁAWIENIA! Materialy

DD-MM-RRRR

(dzien-miesiqc-rok")

MM-DD-RRRR

(miesiqc-dzien-rok")

Update from Any

(Zobrazenie 24-hodinovym

formátom)

Set 12 hour (Nastavit'

hodiny 12)

(Zobrazenie 12-hodinovym

formátom)

Set date format (Nastavit'

format datumu)

DD-MM-YYYY (DD-MM-

RRR)

(“den-mesiac-rok”)

MM-DD-YYYY (MM-DD-

RRR)

(“mesiac-den-rok”)

1. Nastavenie LCD osvetlenia

Timeout (Načasovanie)

Zapnuté (stale zapnuté)

10,20,30,45,60,90,

120, 180 sekünd

1. SW version (Verzia SW)

Cislo verzie

Nastavenie hlasitosti

Potvrdf'vyber:Stlache OK 6.
