USER MANUAL SMG 33 A2 SILVERCREST

White silver refrigerator with 'SILVERCREST' branding on front panel (no other text or symbols visible)

PDF ONLINE www.lidl-service.com

MINI-GEFRIERSCHRANK / MINI FREEZER / MINI-CONGÉLATEUR SMG 33 A2

DE AT CH

MINI-GEFRIERSCHRANK

Bedienungsanleitung

FR BE

MINI-CONGÉLATEUR

Mode d'emploi

PL

MINI ZAMRAŽARKA

Instrukcja obstugi

SK

MINIMRAZNIČKA

Návod na obsluhu

DK

MINIFRYSER

Operating instructions

NL BE

MINI-DIEPVRIEZER

Gebruiksaanwijzing

CZ

MINI CHLADNIČKA

Návod k obsluze

ES

MINI CONGELADOR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating Instruction Page 37

Diagram of a mechanical lever system with a lever and fulcrum, showing a downward force arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with a cylindrical rod and mounting bracket (no text or symbols)

Pure mechanical diagram showing a bracket with pivot points and motion arrows, no text or symbols present

Inhaltsverzeichnis

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

10. Gerät bedienen

Symbol of a trash bin crossed with no visible text or labels

Gerät

1. Information about these operating instructions ....39

1.1. Key to symbols 39

2. Proper use 4

3. Safety information 41

3.1. General safety instructions.... 42
3.2. Transport....43
3.3. Installation and electrical connection 44
3.4. Use of the appliance 46
3.5. Cleaning and maintenance 47
3.6. Faults....48
3.7. Disposal....49

4. Description of components....49

5. Package contents ....50

6. Technical specifications....50

6.1. Product data sheet 50

7. Declaration of Conformity ....52

8. Information on the appliance....53

8.1. Information regarding refrigerant R-600a 53

9. Before operation....53

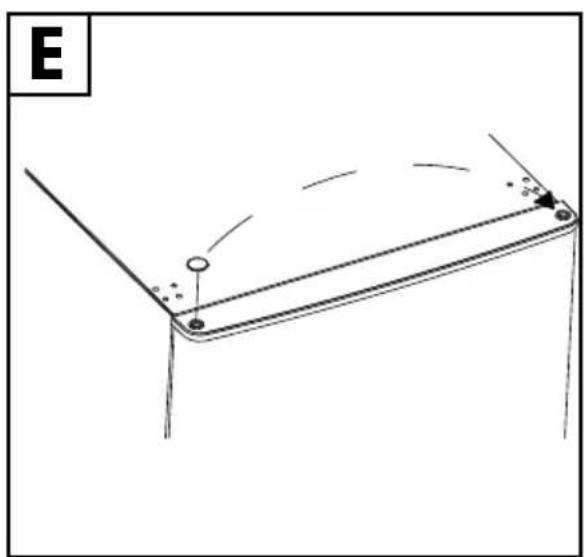

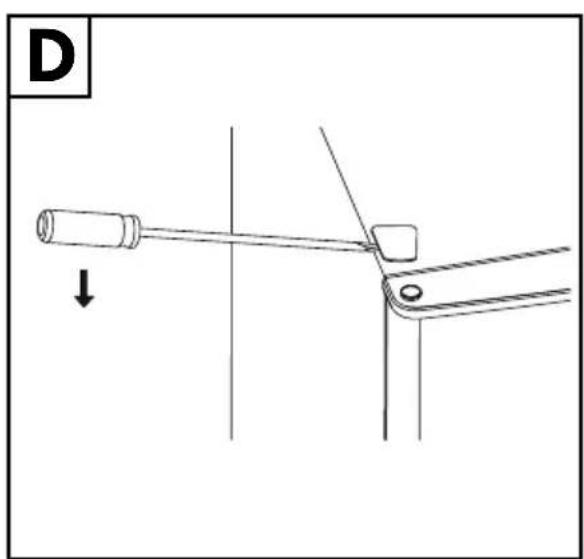

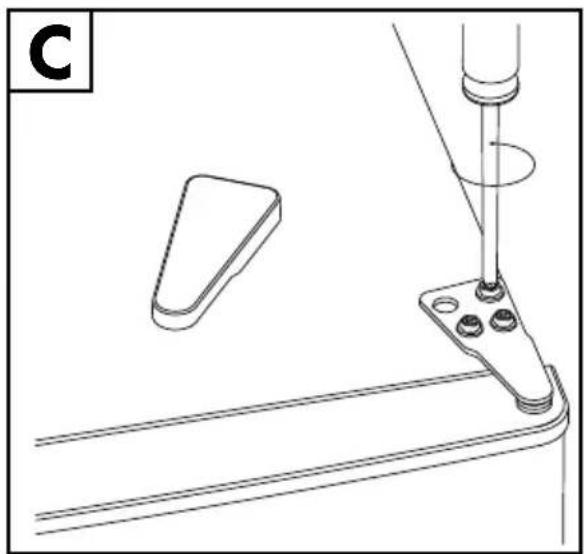

9.1. Changing the door hinge over to the opposite side 54
9.2. Setting up the appliance 55

10. Operating the appliance....56

10.1. Switching the appliance on 56
10.2. Temperature control....56
10.3. Switching off the appliance 56
10.4. Tips on saving energy 57
10.5. Deep-freezing food.... 57
10.6. Using ice cube trays....58

11. Cleaning and defrosting 59

11.1. Defrosting the freezer 60
11.2. Cleaning the freezer compartment and external surfaces....61

12. Measures in case of power failure 61

13. Transport 61

14. Troubleshooting 61

15. End of operation....63

SILVERCREST®

1. Spare parts 63
2. Disposal 63
3. Legal notice 64

18.1. Information on trademarks 64

1. MLAP GmbH Warranty 64

19.1. Conditions of warranty 64
19.2. Warranty period and legal claims for defects 65
19.3. Scope of warranty 65
19.4. Processing of warranty claims 65

1. Service 65
2. Privacy statement......66
3. Supplier/Producer/Importer 67

1. Information about these operating instructions

Thank you for choosing our product. We hope you enjoy using this appliance. Please read the safety instructions and all other instructions carefully before using the appliance for the first time. Note the warnings on the appliance and in the operating instructions.

Always keep the operating instructions close to hand. If you sell the appliance or give it away, please ensure that you also pass on these operating instructions. They are an essential component of the product.

1.1. Key to symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

■ Follow the instructions to avoid situations that will lead to fatal or serious injuries.

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

■ Follow the instructions to avoid situations that may lead to fatal or serious injuries.

CAUTION!

Warning: risk of minor and/or moderate injuries!

■ Follow the instructions to avoid situations that may lead to moderate or minor injuries.

NOTICE!

Follow the instructions to avoid property damage.

■ Follow the instructions to avoid situations that may damage the appliance.

More detailed information about using the appliance!

SILVERCREST®

Follow the instructions in the operating instructions!

WARNING!

Warning: risk of electric shock!

WARNING!

Warning: danger due to combustible and/or highly flammable substances!

• Bullet point/information on steps during operation

▶ Instruction to be carried out

■ Instruction to be carried out to prevent hazards

Declaration of Conformity (see "Declaration of Conformity" section): Products that feature this symbol meet the requirements of the EC directives.

Tested Safety

Products labelled with this symbol meet the requirements of the German Product Safety Act.

Dispose of the packaging in compliance with environmental regulations (see "17. Disposal" on page 63)

Dispose of the appliance in compliance with environmental regulations (see "17. Disposal" on page 63)

Indicates the correct upright position of the transport package.

Packaging material label regarding waste separation. Label includes abbreviations (a) and numbers (b) with the following meaning: 1–7: plastics/20–22: paper and cardboard/80–98: composite materials.

2. Proper use

This appliance is intended to be used for freezing foodstuffs. This appliance is designed for use in private households and similar household applications, such as:

• Staff kitchens in shops, offices and other workplaces
• In agriculture and by guests in hotels, motels and other types of accommodation
• Bed-and-breakfast establishments
• Catering establishments and wholesale use

Please note that we shall not be liable in cases of improper use:

■ Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
■ Only use replacement parts or accessories that we have supplied or approved.
■ Comply with all the information in these operating instructions, especially the safety information. Any other use is considered improper and can cause personal injury or property damage.

3. Safety information

WARNING!

Risk of injury!

Risk of injury to persons with limited physical, sensory or mental abilities (for example, partially disabled people or older people with limited physical or mental abilities) or to those without experience and knowledge (such as older children).

This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those with limited experience and/or knowledge, provided that

SILVERCREST®

they are supervised or have been instructed in the safe use of the appliance and have understood the associated risks. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

■ Children between the ages of 3 and 8 are allowed to load and remove items from freezers.

■ Children younger than 8 must be kept away from the power cable.

DANGER!

Risk of choking and suffocation!

Risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

■ Do not store any of the packaging material used (bags, polystyrene, etc.) within the reach of children.

■ Children must not be allowed to play with the packaging materials.

If the door is left open, there is a risk of suffocation for children that may climb inside the appliance.

- Keep children away from the appliance inner.

3.1. General safety instructions

WARNING!

Risk of injury!

The appliance's refrigeration system contains R-600a refrigerant. If the refrigerant escapes, there is a risk of injuries.

■ Do not store or transport the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.

■ WARNING! Do not damage the refrigerant circuit.

If the cooling system has nevertheless become damaged, ventilate the room. Avoid open flames and ignition sources. Have the appliance repaired by a qualified technician before using it again.

SILVERCREST®

If refrigerant comes into contact with the skin or eyes, this can lead to injuries. If necessary, rinse the eyes with clean water and consult a doctor.

■ WARNING! Do not operate electrical appliances inside the freezer that do not conform to the design recommended by the manufacturer.

■ WARNING! Do not use any mechanical devices or means to accelerate defrosting other than those recommended by the manufacturer.

- Keep away from open flames.

■ Tampering with the refrigerant circuit is prohibited and invalidates the warranty.

WARNING!

Risk of fire!

There are flammable liquids in the coolant circuit and the compressor.

■ Note the fire hazard warning signs on the back of the appliance or the compressor.

■ Avoid open flames and ignition sources when using, maintaining and disposing of the appliance.

3.2. Transport

NOTICE!

Possible material damage!

Risk of damage to the appliance if transported incorrectly.

■ Ensure that no part of the refrigerant circuit is damaged when transporting and installing the appliance.

■ Where possible, always transport the appliance upright. If tilted to an angle of more than 40^ during transport, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to settle after transport.

■ Do not place the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.

SILVERCREST®

■ Do not expose the appliance to rain or spray water.

3.3. Installation and electrical connection

3.3.1. Location

NOTICE!

Possible material damage!

Risk of damage to the appliance due to improper handling.

■ Set up the freezer in a dry and ventilated room. The room should be around 4 m^2 , so there will be sufficient air volume available if the cooling system becomes damaged.

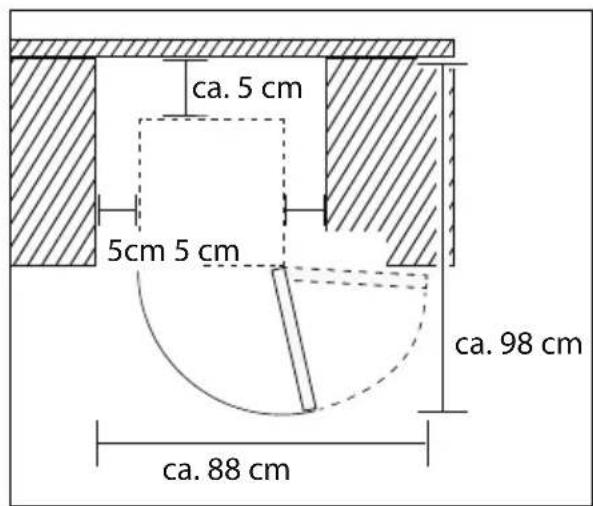

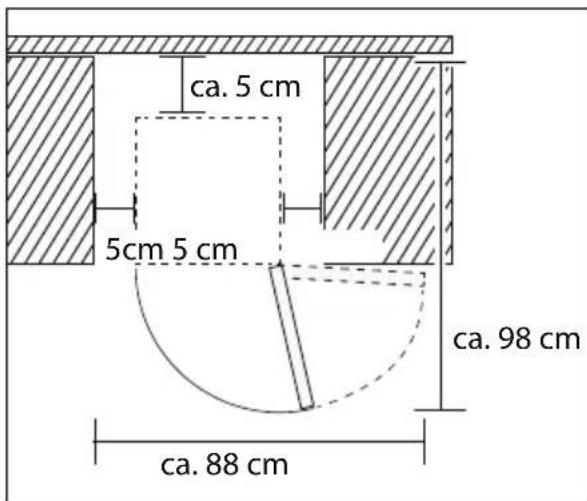

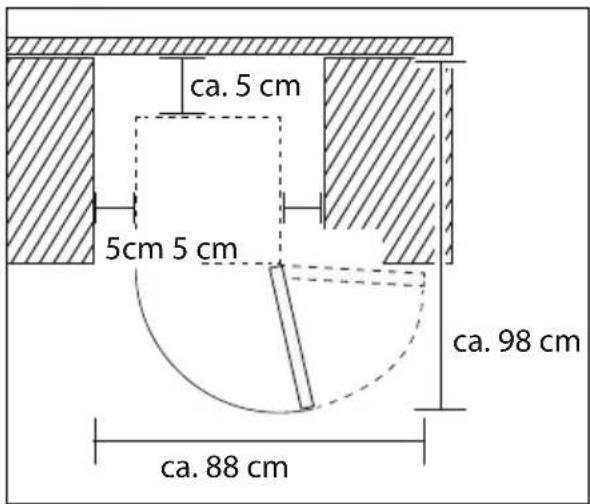

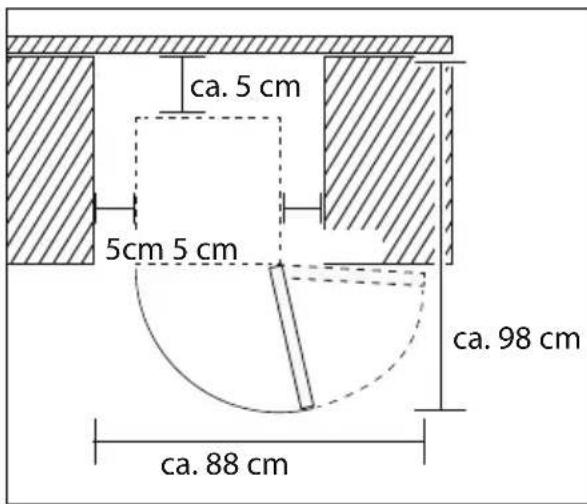

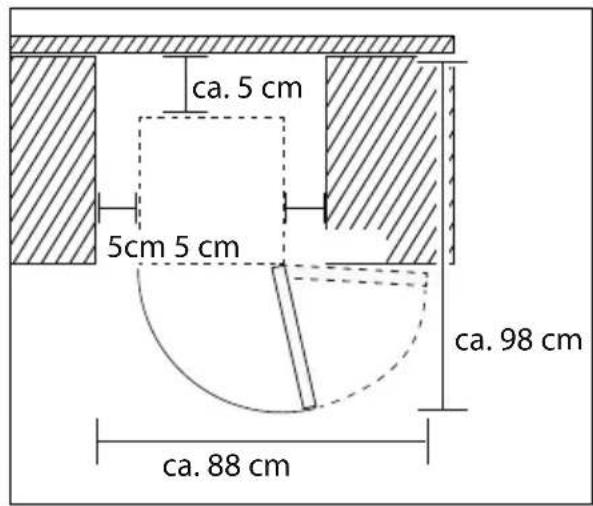

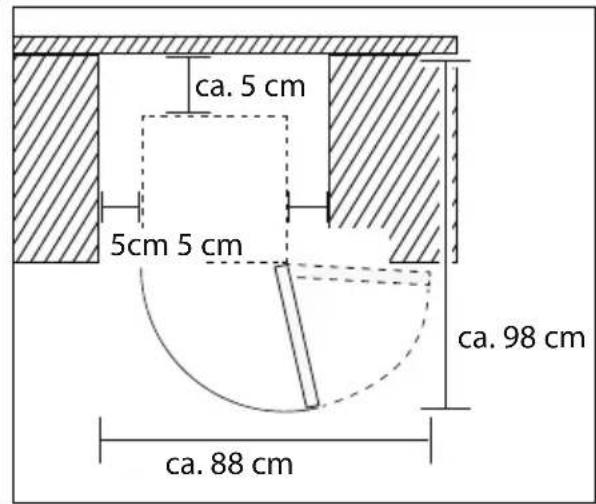

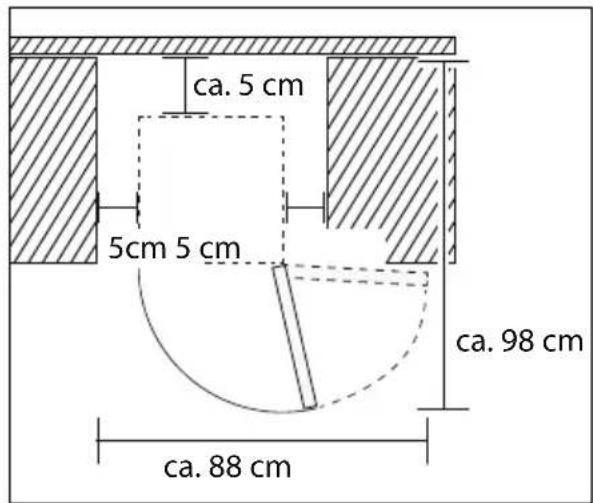

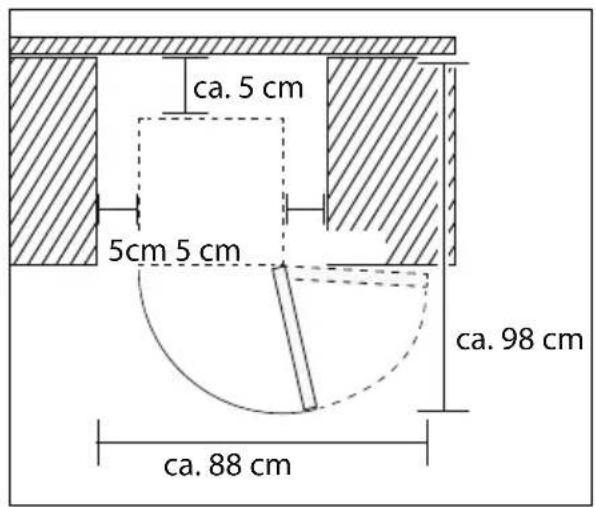

Take the space requirements into consideration when setting up the appliance (see "9.2. Setting up the appliance" on page 55).

The appliance is suitable for climate classes N and ST (see the type plate). The cooling performance of the appliance is guaranteed at ambient temperatures from 16 °C to 38 °C. If temperatures deviate from this range, the appliance performance may be reduced.

■ Do not expose the appliance to extreme conditions. Avoid:

– High humidity or wet conditions
- extremely high or low temperatures
- direct sunlight
- open flames.

WARNING!

Risk of fire!

Insufficient air circulation can lead to heat accumulation.

■ Make sure that the ventilation openings in the housing, around the appliance and in the installation niche are not blocked.

■ The appliance is not designed to be an integrated appliance.

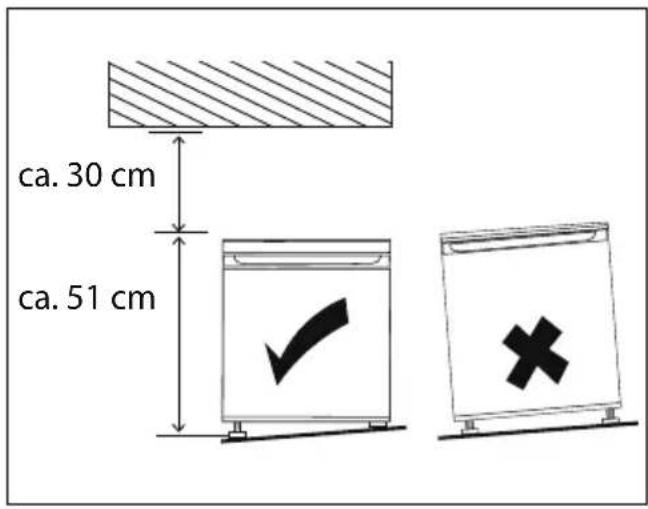

■ To ensure adequate ventilation, a minimum clearance of 30 cm to the top, 5 cm to the sides and 5 cm to the back must be observed.

SILVERCREST®

■ Do not install near heat sources such as hobs, radiators, underfloor heating etc. If installation near a heat source cannot be avoided, use an appropriate insulation panel or maintain the following minimum clearances to the heat source:

- To electric or gas ovens or similar: approx. 5 cm

- To oil or coal-fired ovens: approx. 30 cm

- If installed next to another cooling appliance, a distance to the side of 5 cm is required.

3.3.2. Before connection

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ After installing the appliance, check that the mains connection cable is not squashed or damaged.

■ Do not operate the appliance if it has been visibly damaged or the mains cable or plug is defective.

In the event of damage, contact our Service Centre.

3.3.3. Mains connection

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Connect the appliance to a properly installed safety socket which is easily accessible and close to the place of installation. The local mains voltage must correspond to the technical specifications for the appliance.

■ The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.

■ WARNING! Ensure the mains cable is out of harm's way and will not trip people up. Do not use an extension cable.

■ WARNING! Do not allow the mains cable to become trapped or damaged during installation.

SILVERCREST®

■ WARNING! Do not connect portable multiple sockets or power supplies to the back of the appliance.

In order to de-energise the appliance completely, pull the mains plug out of the socket.

3.4. Use of the appliance

WARNING! Risk of explosion!

Flammable gases and liquids can cause explosions if stored in the appliance.

■ Do not store explosive substances or spray cans containing flammable propellants in the appliance.

■ Do not freeze any carbonated beverages. Expanding water can break the container.

■ Only freeze high-proof alcohol in a tightly closed container that is standing upright.

■ Do not store glass or metal containers filled with liquid in the freezer compartment.

WARNING! Risk of injury/risk to health!

Improper handling of the appliance can lead to injuries.

■ Do not touch the freezer compartment's frozen inner walls or frozen foodstuffs with your hands. Do not put ice cubes or ice lollies directly from the freezer into your mouth, this can lead to burns resulting from the low temperatures.

■ Do not use the holder, drawer compartments, doors etc. as a step or support.

The appliance may not work properly (possibility of stored goods defrosting or the temperature in the freezer compartment increasing), if the appliance is exposed to temperatures that fall below the specified intended temperature range for a prolonged period of time (below 16 °C).

SILVERCREST®

In case of power failure or a switched off appliance, stored foodstuffs may start to thaw or defrost completely. There is a risk of food poisoning.

If there has been a power failure, check that the food which is stored in the appliance still looks and smells safe to eat.

■ If there has been a power failure, dispose of any frozen food which has visibly started to thaw.

■ Do not refreeze food that has thawed or defrosted.

In the event of disconnection, even of a temporary nature only, take the frozen food out of the appliance and keep it in sufficiently cold storage.

3.5. Cleaning and maintenance

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

Before starting any cleaning or maintenance work, pull the mains plug out of the earthed mains socket (pull on the plug, not the mains cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.

DANGER!

RISK OF EXPLOSION AND FIRE!

An accumulation of gas can lead to explosions.

■ Do not use any flammable liquids to clean the appliance or any part of the appliance.

■ Do not use de-icer sprays. They may produce explosive gases.

SILVERCREST®

NOTICE!

Possible material damage!

Risk of damage to the appliance due to improper use of the appliance.

■ Do not use any mechanical equipment or synthetic agents to accelerate the defrosting process, e.g. electric heaters, hot air blowers or hair-dryers or pointed or hard objects. The heat insulation and appliance interior are sensitive to scratches and heat and can melt.

■ Do not operate any electrical appliances inside the appliance. Both appliances may be damaged irreparably.

Sensitive surfaces:

■ Do not use any abrasive or harsh cleaning agents on the inside, door or housing of the appliance as these could damage the surfaces.

■ Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.

3.6. Faults

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Never try to open and/or repair an appliance component yourself. There is a risk of electric shock.

■ To prevent unnecessary risks, damaged mains cables may only be replaced by authorised workshops or the technical customer service.

In the event of a fault, contact our Service Centre or another suitable professional repair workshop.

3.7. Disposal

DANGER!

Risk of choking and suffocation! Risk of injury!

To avoid risks to children, proceed as follows before disposing of the appliance:

■ Remove the door and seal or tape the door closed.

■ Leave the wire shelves in the appliance so that no-one, for example a child, can climb into the appliance.

■ Unplug the mains plug and cut the mains cable.

4. Description of components

See Fig. A

1) Upper hinge
2) Freezer door
3) Feet
4) Mains cable with plug (on the back, not shown)
5) Freezer compartment, divided into sections A and B (see below)
6) Thermostat (at rear, not shown)
7) Wire shelf

The appliance's type plate is on the left of the freezer compartment.

Recommended food storage in the freezer compartment:

Seafood (fish, prawns, shellfish), freshwater fish and meat products (recommended for 3 months, the longer the storage time, the more likely it is that the taste and nutritional value will deteriorate in quality), suitable for frozen fresh foods. Store the food in appropriate containers as follows:

– Freezer compartment section A: ice cream, frozen fruit, frozen foods, baked goods
– Freezer compartment section B; frozen vegetables, chips, raw meat, poultry, fish

SILVERCREST®

5. Package contents

DANGER!

Risk of choking and suffocation!

Risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

- Keep the plastic packaging out of the reach of children.

Remove the product from the packaging and remove all packaging material.
▶ Please check your purchase to ensure that all items are included and in perfect condition. If anything is missing, please contact us within 14 days of purchase.

The following items are supplied with your product:

• Freezer, incl.
• 1 wire shelf

6. Technical specifications

Rated voltage: 220–240 V \~

Rated frequency: 50 Hz

Rated current: 0.70 A

Refrigerant: R-600a

Refrigerant quantity: 18 g

Insulation gas: Cyclopentane

Net weight 15 kg

Protection class I

Freezing capacity 2.4 kg / 24 h

Storage time during malfunction 7.5 h

6.1. Product data sheet

* kWh/year energy consumption calculated on the basis of conformity testing results over 24 hours. The actual consumption will depend on the use and location of the appliance.

Supplier's name or trademark:		SilverCrest®
Supplier's address (b):		MLAP GmbHMeitnerstr. 970563 StuttgartGERMANY
Model identifier: SMG 33		A2
Type of refrigerating appliance:
Low-noise appliance: No		Design type: Free-standing
Wine cooler: No Other			refrigerating appliance:	Yes
General product parameters:
Parameter Value		Parameter Value
Overall dimensions (in mm)	Height 510	Total volume (in	dm ^3 or l)	33
	Width	440
	Depth	480
EEI		100	Energy efficiency class	E
Airborne noise emissions (in dB(A) re 1 pW)		40	Airborne noise emission class	C
Annual energy consumption (kWh/a)*		148	Climate class:	N, ST
Minimum ambient temperature (°C) for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C) for which the refrigerating appliance is suitable	38
Winter mode		No

SILVERCREST®

Compartment parameters:
Compartment type		Compartment parameters and values
		Compartment volume (in dm3 or l)	Recommended temperature setting for optimal food storage (in °C).	Freezing capacity (in kg/24 h)	Defrost type*
4-star compartment	Yes 3	3.0 ≤ -18.0 2.4 M

* Automatic defrost = A, manual defrost = M

Minimum duration of the warranty offered by the manufacturer:	36 months from date of purchase
Additional information:	Scan the QR Code on the energy label to download the complete product data sheet.

7. Declaration of Conformity

CE

MLAP GmbH GmbH hereby declares that the product SMG 33 A2 conforms to the following European requirements:

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• Regulation (EC) No. 1935/2004

8. Information on the appliance

• The appliance uses refrigerant R-600a (HCFC- and CFC-free) in the refrigerant circuit.
- The refrigerant circuit has been checked for leaks. This complies with the relevant safety regulations for electrical appliances.
• Energy efficiency class E
• Climate class N, ST

The different climate classes are explained in the following table.

Climate class Meaning Ambient temperature
SN Appliances for subnormal climate +10 °C to +32 °C
N Appliances for normal climate +16 °C to +32 °C
ST Appliances for subtropicalclimate		+16 °C to +38 °C
T Appliances for tropical climate +16 °C to +43 °C

8.1. Information regarding refrigerant R-600a

R-600a and cyclopentane are used as 100% HCFC-free refrigerant and insulating materials in this appliance. This helps to protect the ozone layer and reduces the so-called greenhouse effect.

These appliances can be identified by the "Refrigerant R-600a" notice on the type plate.

▶ Ensure that the refrigerant circuit is not damaged, as small quantities of R-600a can contribute to the greenhouse effect if released.
This applies both when transporting the appliance and throughout its service life. Also ensure that you dispose of this appliance correctly according to local regulations.

9. Before operation

▶ Unpack the appliance and remove the adhesive tape.
Use a mild cleaning agent to remove any adhesive residues.
▶ Dispose of the expanded polystyrene padding separately from the other packaging.
- Rinse the inside of the appliance and the fittings with lukewarm water and mild cleaning agent and allow to dry (see section "11. Cleaning and defrosting" on page 59).

SILVERCREST®

9.1. Changing the door hinge over to the opposite side

The freezer is supplied with a door hinged on the right-hand side. If you would like to change the door hinge over to the opposite side, proceed as follows.

Required tools:

• Wrenches (width across flat of 8 mm and 10 mm)
• Small flat-head screwdriver
• Phillips screwdriver

The mains plug has been unplugged.

▶ Empty the freezer.

Remove the hinge cover on the right-hand side, for example using a flat-head screwdriver (see Fig. B).
▶ Use a Phillips screwdriver to loosen the three screws on the upper hinge (1) (see Fig. C).
Remove the screw hole cover on the left-hand side, for example using a flat-head screwdriver (see Fig. D).
Remove the dummy plug for the hinge pin from the left-hand side of the appliance door (2) and insert it in the hole on the right-hand side (see Fig. E).

▶ Place the freezer on its back.

▶ Unscrew the lower hinge and then unscrew the adjustable foot (3) (see Fig. F).
Remove the screws from the side housing on the left-hand side and place them on the opposite side.
Place the two white washers and the locking washer from the lower hinge safely to one side. They will be required when reinstalling the door.
▶ Use a wrench (width across of 10 mm) to unscrew the pins on the lower hinge and when doing so hold in place with a flat-head screwdriver to remove the pins (see Fig. G).

▶ Turn over the hinge and reinsert the pins and locking washer.

▶ Screw the lower hinge on the left-hand side again. Screw in the adjustable foot (3) on the right-hand side (see Fig. H).
▶ Stand the appliance upright again. While doing so, hold the appliance door (2) quite firmly in place.
Before screwing the upper hinge back on, ensure that the door closes flush with the appliance housing horizontally and vertically so that all seals close.
Then put the upper hinge back in place and screw on the hinge with the three screws. Use a wrench to tighten the screws (see Fig. I).

Then place the hinge cover and screw covers back into position (see Fig. J).

Please note: The door seal adapts to the new door hinge after a few hours.

If tilted to an angle of more than 40^ during transport or when changing the door fittings, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to settle.

9.2. Setting up the appliance

Place the appliance in an appropriate location (see also section "3.3.1. Location" on page 44).

▶ Ensure that the appliance is level, compensate for any unevenness in the floor by screwing in the adjustable feet.

▶ Level the freezer with a spirit level.

To fully open the door, the room dimensions stated below must be available.

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

SILVERCREST®

10. Operating the appliance

10.1. Switching the appliance on

Connect the appliance to an earthed mains socket.

The local mains voltage must correspond to the technical specifications for the appliance.

10.2. Temperature control

The thermostat setting automatically adjusts the temperature in the freezer.

There is a choice of 3 basic settings on the thermostat; the temperature can also be set to any level between MIN and MAX:

MIN Lowest level of cooling(warmest)	Short-term storage of frozen products
NORMAL Intermediate position Medium-term storage of frozen products
MAX Highest level of cooling (coldest)	Long-term storage of frozen products

Before storing fresh foods, set the thermostat to MAX. After 2 hours, set to NORMAL, for example, depending on the intended storage period.

Check the temperatures in the freezer compartment with a thermometer. The ideal temperature and standard setting is -18 °C in the freezer compartment when set to NORMAL. Once the freezer temperature is reached, you can load it with food.

The internal temperatures can be influenced by factors such as the installation location, ambient temperature and the number of times the door is opened. Take these factors into account when setting the temperature.

10.3. Switching off the appliance

To de-energise the appliance, set the thermostatic control to MIN and pull the mains plug out of the socket.

▶ Wait approx. 10 minutes before switching on the appliance again.

10.4. Tips on saving energy

The energy consumption will be lowest if the wire shelf is left inside the appliance when it is in use.

Do not position the appliance near a heat source (radiator or cooker etc.).

▶ Ensure that air can circulate freely around the freezer.

▶ Only open the door briefly when loading and removing foodstuffs.

If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly. Only open the door briefly when loading and removing foodstuffs. Less cold can escape if the door is left open for only a short time; the appliance requires less energy and less ice is deposited on the freezer walls.

▶ Select the temperature setting according to how full the appliance is.

▶ Allow warm foods to cool to room temperature before putting them in the freezer.

▶ Ensure that the door seal is undamaged and that the door closes properly.

If a layer of ice has formed, defrost the appliance. A thick coating of ice will adversely affect the energy consumption.

If the freezer is left empty for an extended period of time, switch it off. Defrost and clean the appliance and allow it to dry. Leave the door open to prevent mould from forming in the appliance.

10.5. Deep-freezing food

NOTICE!

Risk of damage to the appliance.

Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.

■ Do not allow oil or grease to come into contact with the plastic parts.

Almost all types of food are suitable for freezing, except vegetables which are eaten raw, e.g. lettuce.

Only high-quality food is suitable to be frozen.

Freeze food in portions for single use and do not refreeze any products that have defrosted.

Set the temperature control to MAX 2 to 3 hours before putting fresh food in the freezer. After putting fresh food in the freezer, set the temperature control to NORMAL, for example, depending on the intended storage period (see "10.2. Temperature control" on page 56).

To avoid food from becoming contaminated, please observe the following instructions:

If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly.

SILVERCREST®

▶ Regularly clean surfaces that may come into contact with food and accessible drain systems.
▶ Food to be frozen must not come into contact with food that has already been frozen. It may be necessary to reduce the quantity of food to be frozen if you intend to freeze food each day.
▶ Store food in the correct freezer zone according to its type and sensitivity, see Fig. A.
Do not exceed the storage times recommended by the food manufacturers. If no specification is given, food is not to be stored for more than three months.
To avoid cross-contamination, place the food in odourless, airtight, moisture-free, greaseproof and leach-resistant packaging.

— Polythene bags and aluminium foil are the most suitable materials.
— The food must be closely wrapped in airtight packaging.
— Do not use glass packaging as the glass may break.

▶ Fruit can be frozen in the freezer compartment and ice cubes can be made.
Take care not to overload the freezer compartment as otherwise optimal performance cannot be guaranteed and energy consumption will increase.
▶ Signs of moisture or swelling of deep-freeze packaging indicates that the food has not been stored/transported correctly and may be spoiled. Check the condition of food before eating.

10.6. Using ice cube trays

▶ Clean the ice cube tray (not supplied) thoroughly before using for the first time.
▶ Fill the container with drinking water.
Place the ice cube tray upright in the lowermost freezer compartment.
As soon as the ice cubes are frozen and you require ice cubes, remove the ice cube tray from the freeze and press the ice cubes out of the mould.

10.6.1. Defrosting food

Depending on the type and use, food can be defrosted in the appliance, in a container filled with lukewarm water, in a microwave, at room temperature or in the oven. Fruit and vegetables which are going to be cooked do not need to be defrosted.

Once defrosted, food is preferably to be eaten on the same day or stored in the refrigerator until the next day at the latest. Food must not be refrozen, even if it has not fully defrosted.

11. Cleaning and defrosting

▶ Regularly clean surfaces that may come into contact with food and accessible drain systems.

WARNING!

Risk of electric shock!

There is a risk of electric shock from electrified parts.

■ Before starting any cleaning work, pull the mains plug out of the socket (pull on the plug, not the cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.

■ Do not touch the mains plug with wet hands.

DANGER!

RISK OF EXPLOSION AND FIRE!

An accumulation of gas can lead to explosions.

■ Do not use any flammable liquids to clean the appliance or any part of the appliance.

WARNING!

Risk of injury!

This can lead to burns resulting from the low temperatures.

■ Do not touch the freezer compartment's frozen inner walls or frozen foodstuffs with your hands. Use a dry cloth, for example, to hold the frozen products.

SILVERCREST®

NOTICE! Risk of damage!

Equipment damage due to improper handling of the sensitive surfaces of the appliance.

■ Never use acidic, abrasive or granular, acetic-acid-, soda- or solvent-based cleaning agents. These may damage the surfaces of your appliance.
■ Do not operate any electrical appliances inside the appliance. Both appliances may be damaged irreparably.

NOTICE! Risk of damage!

Damage to the appliance caused by improper handling.

■ Do not use any other mechanical equipment or synthetic agents to accelerate the defrosting process, e.g. electric heaters, hot air blowers or hair-dryers or pointed or hard objects.

11.1. Defrosting the freezer

Thick deposits of ice on the freezer surfaces reduce the efficiency of the appliance and increase the energy consumption.

Before defrosting the appliance, set the temperature control to MAX a few hours in advance. The frozen products can then be stored at room temperature for a longer period of time.

A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning can shorten the storage life of the frozen products.

It is advisable to defrost the appliance at least once a year.

Take the frozen product out of the freezer compartment, wrap in a few layers of paper and possibly a blanket and store it in a cool location.

▶ Turn the thermostat to MIN.

▶ Unplug the mains plug.

Remove the freezer drawers from the freezer compartment.

▶ After approx. 30 minutes any coating of frost on the cooling ribs above the freezer drawers can be easily removed using a plastic or wooden spatula.

11.2. Cleaning the freezer compartment and external surfaces

▶ Wipe down the freezer compartment with a mild cleaning agent (e.g. washing-up liquid) and allow to dry.

▶ Carefully clean and dry all fittings.

▶ Clean the appliance surfaces, except the door seal, with a mild cleaning agent.

▶ Clean the door seal with clean water, wipe it off and allow to dry.

▶ Plug the mains plug back into the socket.

As soon as the appliance has reached the required temperature, you can put the food back into the appliance. Do not use any sharp plastic or wooden spatulas.

12. Measures in case of power failure

Food must not be refrozen, even if it has not fully defrosted.

In case of a power failure, check the condition of food before eating (see also "3.4. Use of the appliance" on page 46).

13. Transport

▶ Pull the plug out of the earthed mains socket.

Remove all objects and inserts from the freezer compartment.

▶ Screw in the adjustable feet.

▶ Tape the door shut.

▶ Where possible, always transport the appliance upright. If tilted to an angle of more than 40^ during transport, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to settle after transport.

14. Troubleshooting

Faults may occur during operation.

▶ Use the following table to check whether you can resolve the problem yourself. All other repairs are prohibited and invalidate the warranty.

Therefore, in the event of a fault, contact our Service Centre or another suitable professional repair workshop.

SILVERCREST®

Fault Cause Solution
The appliance is not working.	Interruption in the electrical circuit.	▸ Check whether the mains plug is plugged in.▸ Check whether the mains socket is live by plugging in another electrical appliance (e.g. a bedside lamp).▸ Check the fuse.▸ Check the mains cable for damage.
	The compressor is very rarely activated.	▸ Check whether the ambient temperature is not below 16 °C.
The internal temperature is not low enough.	The door does not seal properly or is opened too often.	▸ Arrange food so that it does not prevent the door from closing properly.▸ Open the door for less time.
The internal temperature is not low enough.	The ambient temperature is above +38 °C.	▸ The appliance is designed to work in a temperature range from +16 °C bis +38 °C.
	The air circulation is insufficient.	▸ Move the appliance away from the wall.
	The appliance has been set up in a location exposed to direct sunlight or next to a heat source.	▸ Place the appliance in a different position.
The appliance makes too much noise.	The appliance has not been set up properly.	▸ Level with a spirit level.
	The appliance is touching furniture or other objects.	▸ Position the appliance as a free standing unit and ensure that it does not touch any other objects.

15. End of operation

If the freezer is not to be used for a long time, the following activities must be carried out:

▶ First set the temperature control to MIN and then remove the plug from the mains socket.

▶ Clear out the appliance.

▶ Wipe out the inside of the freezer and allow to dry.

▶ Clean all the fittings carefully.

Leave the door open to avoid unpleasant odours and to prevent mould from forming.

16. Spare parts

To order any spare parts you need, contact the Service Centre.

17. Disposal

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Appliance

Old appliances that carry the symbol illustrated may not be disposed of in ordinary household waste.

In accordance with Directive 2012/19/EU, these appliances must be disposed of correctly at the end of their service life.

This involves separating the materials in the appliances for the purpose of recycling and minimising the environmental impact.

Take old appliances to a collection point for electrical scrap or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

▶ Cut the cable before disposal.

Remove the door and seal or tape the door closed so that children cannot become trapped inside.

During disposal, please note that the appliance/insulation contains cyclopentane (a flammable expanded gas for insulation).

The appliance/insulation must be disposed of correctly.

Packaging

Your appliance has been packaged to protect it from damage in transit. Packaging materials are raw materials and can therefore be reused or recycled.

SILVERCREST®

18. Legal notice

Copyright © 2021

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MLAP GmbH

Meitnerstr. 9

70563 Stuttgart

GERMANY

18.1. Information on trademarks

SilverCrest ^® is a registered trademark of Lidl Stiftung & Co. KG, 74167 Neckarsulm, Germany.

All other names and products are trademarks or registered trademarks of their respective owners.

19. MLAP GmbH Warranty

Dear customer,

The warranty on this product is 3 years from the date of purchase. In the event of defects in this product, you have legal rights against the product vendor. These legal rights are in no way limited by the warranty described below.

19.1. Conditions of warranty

The warranty period begins on the date of purchase. Please take care to keep the original purchase receipt. This document will serve as a proof of purchase.

If, within three years of the date of purchase of this product, any defect in material or manufacture should become evident, the product will – as we choose – be repaired free of charge or replaced. This warranty is subject to presentation, within the three-year term, of the defective product and the proof of purchase (receipt) and a brief, written description of what constitutes the defect and when it became evident.

If the defect is covered by our warranty, you will receive back the repaired product or a new replacement. Repair or exchange of the product does not lead to a renewed warranty period.

19.2. Warranty period and legal claims for defects

The warranty period is not prolonged by the above fulfilment. This also applies for replaced and repaired parts. Any damage or defects present at the time of purchase must be notified immediately after unpacking. Repairs that are carried out after the expiration of the warranty period are subject to a charge.

19.3. Scope of warranty

The product is manufactured in accordance with strict quality guidelines and thoroughly tested before dispatch.

The warranty applies for defects in materials or manufacture. This warranty does not extend to product parts that are subject to normal wear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, batteries or parts made of glass.

This warranty is void if the product has been damaged or not properly used or serviced. For proper use of the product, exact compliance with all instructions listed in the user manual is required. It is essential to avoid procedures and use for purposes against which the user manual advises or warns.

The product is intended for private use only and not for industrial/commercial use. Improper handling and usage not in accordance with the intended purpose, use of force and any interventions that are not carried out by our authorised service centre will render the warranty null and void.

19.4. Processing of warranty claims

For speedy processing of your request, please observe the following instructions:

• For all enquiries, please keep the receipt and the article number (e.g. IAN 12345) to hand as proof of purchase.
• The article number is to be found on the type plate, an engraving, on the title page of your instructions (bottom left) or on an adhesive label on the rear or underside.
• If functional or other defects occur, first contact the service department named below by telephone or via our contact form.

20. Service

PDF ONLINE www.lidl-service.com

At www.lidl-service.com, you can download this and many other handbooks, product videos and software.

SILVERCREST®

GB	Service United KingdomHotline1 [phone]Mon - Fri: 09:00 - 17:00Please use the contact form at www.mlap.info/contact
IE	Service IrelandHotline1 [phone]Mon - Fri: 09:00 - 17:00Please use the contact form at www.mlap.info/contact
	IAN 360837_2007

21. Privacy statement

Dear Customer,

We wish to inform you that we, MLAP GmbH, Meitnerstr. 9, 70563 Stuttgart, Germany, process your personal data as a data controller.

For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MLAP GmbH, Datenschutz, Meitnerstr. 9, 70563

Stuttgart, Germany, [e-mail]. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and therefore rely on processing your data for the sales contract concluded with us.

Your data will be provided to repair service providers contracted by us for the purpose of warranty processing and associated processes (e.g. repairs). We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.

You have the right to be informed of the personal data concerned as well as the right to rectification, deletion, restriction of processing, the right to object to processing and the right to data portability.

In case of access and cancellation rights, restrictions apply according to paragraphs 34 and 35 of the BDSG (Federal Data Protection Act) (Art. 23 GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 GDPR in conjunction with paragraph 19 BDSG). For MLAP, this is the Landesbeauftragte für Datenschutz und Informationsfreiheit Baden-Württemberg, Postfach 10 29 32, 70025 Stuttgart, Germany. www.baden-wuerttemberg.datenschutz.de.

The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.

22. Supplier/Producer/Importer

Please note that you cannot use the address below for returns. Please contact the Service Centre mentioned above.

MLAP GmbH

Meitnerstr. 9

70563 Stuttgart

GERMANY

Sommaire

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

WAARSCHUWING! Brandgevaar!

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

10. Apparaat bedienen

10.1. Apparaat inschakelen

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

SILVERCREST®

10. Obsluha zariadenia

10.1. Zapnutie zariadenia

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

ADVARSEL! Brandfare!

ca. 30 cm ca. 51 cm

ca. 5 cm 5cm 5 cm ca. 98 cm ca. 88 cm

SILVERCREST®

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Enhed
