0917 - Oven ARIETE - Free user manual and instructions

Product type	Electric pizza oven
Brand	Ariete
Model	0917
Power supply	Electric, standard grounded power outlet
Power	Not specified in the manual, but typical for this type of appliance (approximately 1200-1500 W)
Dimensions (approximate)	Approximately 35 x 35 x 25 cm (reasonable estimate from photos)
Weight (approximate)	Approximately 5 kg (reasonable estimate)
Cooking material	Refractory stone plate
Heating element	Top heating element
Temperature adjustment	Variable, with temperature knob (E) and indicator light (F)
Timer	Mechanical timer (G) with end-of-cycle bell; does not turn the oven on or off
Main functions	Cooking frozen, boxed, homemade pizzas; reheating; pyrolytic cleaning
Recommended preheating	10 minutes at maximum temperature
Cooking time for frozen pizza	2-3 minutes (follow package instructions)
Cooking time for fresh pizza	4-5 minutes
Cleaning	Damp cloth for the exterior and stone; brush for residues; pyrolytic cleaning recommended for stubborn stains
Pyrolytic cleaning	Heat at maximum temperature for at least 30 minutes in a ventilated area
Safety	Do not immerse; mandatory grounding; hot surface; do not leave unattended; do not use if cable damaged
Spare parts	Heating element, refractory stone plate, handles, timer, spatula (H); contact customer service for replacement
Repairability	Contact authorized after-sales service; do not modify the appliance
Use	Household use only
Standards	Compliant with directives 2014/35/EU, 2014/30/EU and regulation (EC) No 1935/2004

Frequently Asked Questions - 0917 ARIETE

Why is there smoke during first use?

Smoke production during the first cycles is normal. It is due to the heating of new components and disappears after a few uses.

How to clean the refractory stone?

Clean the stone with a damp cloth after complete cooling. For stubborn stains, use pyrolytic cleaning: heat the oven at maximum temperature for at least 30 minutes in a ventilated area, then wipe off residues once cooled.

Do I need to preheat the oven before baking a pizza?

Yes, it is recommended to preheat the oven at maximum temperature for about 10 minutes for optimal cooking.

Does the timer turn off the oven?

No, the timer only rings at the end of the cycle. To turn off the oven, you must manually turn the temperature knob to '0' and unplug the power cord.

Can I cook other foods besides pizza?

Yes, the oven can be used to reheat or cook other foods, but it is designed mainly for pizza. Follow appropriate cooking times.

How to prevent the pizza from sticking to the stone?

Lightly flour the surface of the dough before placing it on the stone. Avoid letting toppings (oil, tomato) drip directly onto the stone.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a qualified technician to avoid any hazard.

Can I build the oven into a cabinet?

No, the oven must never be built-in or inserted into a kitchen cabinet. It must be placed on a stable, heat-resistant surface.

How to know when the oven is ready?

The indicator light (F) turns on during heating and goes off when the temperature is reached. You can then open and place the food.

Why does the refractory stone darken over time?

This is normal. The stone may darken and develop stains or small cracks without affecting operation or cooking quality.

USER MANUAL 0917 ARIETE

Technical line drawing of a mechanical component with mounting flanges and a central dome (no text or symbols)

Forno per pizza

Pizza maker

Four à pizza

Pizzaofen

Horno de pizza

Forno de pizza

Pizza oven

Pizza ovn

Φούρνος για πίτσα

Piec do pizzy

МИНИ-печь

H G F E D C A B

Fig. 1

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO

The necessary precautions must be taken when using electrical appliances, and these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of 1. the mains electricity.

Never leave the appliance unattended when connected to the power supply; 2. unplug it after every use.

Never place the appliance on or close to sources of heat.3.

Always place the appliance on a flat, level surface during use.4.

Never leave the appliance exposed to the elements (rain, sun, etc....).5.

Make sure that the power cord does not come into contact with hot surfaces.6.

This appliance can be used by children aged from 8 years and above and persons 7. with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall be made by children aged from 8 years and under surveillance.

Keep the appliance and the power cord out of reach of children under 8 years of 8. age.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER 9. OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS 10. BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

Always make sure that your hands are thoroughly dry before using or adjusting the 11. switches on the appliance, or before touching the power plug or power connections.

To unplug the appliance, grip the plug and remove it directly from the power 12. socket. Never pull the power cord to unplug the appliance.

For safety reasons, your appliance must be connected to an earthed socket 13. according to the electrical regulations in force. AVOID THE USE OF ANY ELECTRICAL DEVICES THAT DO NOT CONFORM TO THE NORMS.

1. Do not move the appliance while it is operating.

Do not let the electrical cord hang over the edge of a table or work surface. Avoid 15. contact with hot surfaces.

Do not touch the cooking surface when the oven is in use and as long as it 16.

remains hot after being switched off.

During the initial operating cycles the oven will smoke. This is absolutely normal 17.

and will disappear after it has been used for some time.

Do not place the appliance on/near to sources of heat or electrical parts. Do not 18.

position it on other appliances.

Do not cover the insides of the oven with aluminium foil.19.

Only use the oven to cook or heat foods.20.

Do not place cloths or plates on the appliance.21.

Do not use the oven in kitchen units or built into furniture.22.

Do not use the appliance near to walls or curtains.23.

After use, switch off, before moving or cleaning it.24.

1. The outer surfaces of the appliance can become very hot while it is operating.

2. WARNING – Place the oven on a work top capable of withstanding temperatures of at least 90^ C, taking care that there is nothing on it to prevent the passage of air.

WARNING – Danger of burns. Do not touch the hot surfaces while 27. the oven is in use.

This product is not to be intended to operate by means of an external timer or 28.

separate remote-control system.

Never use the appliance if the power cord or plug are damaged or if the appliance 29.

itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

To prevent any risks, if the power cord is damaged, it must be replaced by the 30.

manufacturer, its Technical Assistance Service or a similarly qualified person.

This appliance is designed for HOME USE ONLY and may not be used for com-31.

mercial or industrial purposes.

This appliance conforms to the directives 2014/35/EU and EMC 2014/30/EU, 32.

and to the regulations (EC) No. 1935/2004 of 27/10/2004 regarding material in

contact with foods.

Any changes to this product, including the thermostat setting modification, may 33.

compromise the safety use of the product and lead to the user's guarantee being

rendered null.

In the event that you decide to dispose of the appliance, we advise you to make 34.

it inoperative by cutting off the power cord. We also recommend that any parts

that could be dangerous be rendered harmless, especially for children, who may

play with the appliance or its parts.

Packaging must never be left within the reach of children since it is potentially 35. dangerous.

This appliance is intended to be attended during the usage. In case of fault of the 36. appliance, switch off the power plug.

Do not use extension cords but plug the appliance always directly to the power 37. socket.

1. To dispose of product correctly according to European Directive 2012/19/EU, please refer to and read the provided leaflet enclosed with the product.

DO NOT THROW AWAY THESE INSTRUCTIONS

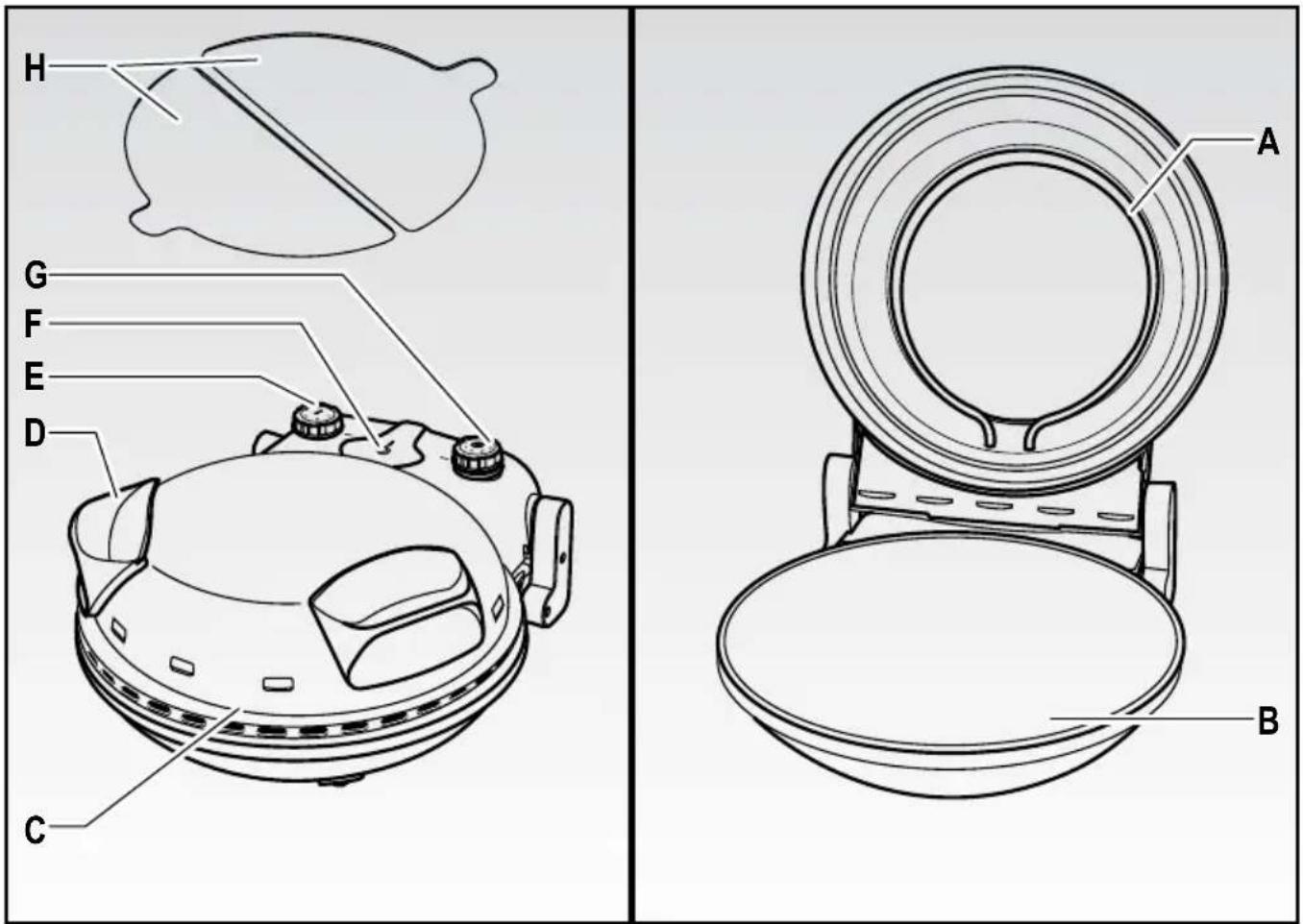

APPLIANCE DESCRIPTION (Picture 1)

A Heater
B Baking stone plate
C Appliance body
D Handles
E Power on and temperature dial
F Temperature light
G Timer dial
H Spatula

HOW TO OPERATE

WARNING:

Before use, check the baking plate is clean and free of dust streaks. If need be, clean using a damp cloth.

It is recommended to clean the heating element and the base before starting heating up and proceed with cooking to remove any small dust residues that have formed in the cooling and rest stage of the product.

While using for the first time, a very small amount of smoke may come out; this is just caused by the warming up of some components.

• Plug in appliance.
• Switch the pizza oven on and set the required temperature level, according to your needs, using the dial (E): The related light (F) goes on indicating starting of the pre-heating phase.
• Set baking time by rotating the timer dial (G).
• After few minutes, the light turns off and the appliance is ready for use.

• Raise then the upper part of the appliance using both hands with both handles (D) and place the pizza or any other food to be baked on the baking stone plate (B) by using also suitable oven gloves.

• Close appliance upper part.

• “Timer” sends out a signal after every baking cycle. Rotate the temperature dial (E) to “0” and disconnect the plug from the socket.

WARNING:

THE TIMER DOES NOT SWITCH ON AND OFF THE OVEN! It is therefore important to check the appliance after the time set has elapsed. To switch the appliance off, set the temperature dial to "0" and unplug it.

Make sure appliance is properly closed during baking phase and that food inside isn't in contact with the upper heater.

DO not open lid during baking to avoid heat dispersion and a probable lengthening of baking time.

Prevent the condiment used for pizza (oil, cheese, tomato, mozzarella, etc.) from falling onto the baking stone (B), in order to avoid absorption as well as unpleasant smoke emissions and smells.

In case fresh pasta is used for pizza making, cover in flour the surface where pasta is made to prevent it from sticking to the baking stone during baking phase.

On the baking stone plate there is a special treatment that ensures an easy washability. Owing use, the surface treatment might tend to change its colour into a darker hue and to show cracks. This does not jeopardize the operation of the oven or the cooking quality.

PREPARATION AND BAKING TIME

WARNING:

For the best pizza baking results, it is recommended to pre-heat the oven at the highest temperature for about 10 minutes.

FROZEN PIZZA

• Bake for 2-3 minutes (anyhow, follow times indicated on package).
• It is recommended to take pizza out of freezer 20-30 minutes before putting it in the oven (anyhow, follow instructions on package).

BOXED PIZZA (TO BE KNEADED)

• Bake for 4-5 minutes.
  • Refer to instructions on package.

PIZZA MADE WITH RECIPE

• Refer to instructions of the recipe.

CLEANING AND MAINTENANCE

WARNING:

Only clean the oven after first making sure that it is unplugged from the power mains and that it has cooled down completely.

• Remove cooking residues with a spatula.
• Avoid the use of abrasive products or any other detergents.
• The baking stone plate tends to change its colour into a darker hue, to show spots and small cracks owing use. This does not jeopardize the operation of the oven or the cooking quality.
• Wipe the outer surfaces of the appliance with a damp cloth. The baking stone plate (B) can also be cleaned with a damp cloth.

CLEANING PROCESS THROUGH PYROLYSIS

In case of big dark spots hard to remove on the baking stone, it is advisable to carry out cleaning through pyrolysis. Pyrolysis is a process, which, thanks to the high temperature of the pizza oven, burns food residues, that are reduced to ash detaching from the baking surface. In our case, if we turn the oven on at the highest temperature for at least 30 minutes, the spots will turn white and the residues will be reduced to ash, thanks to the pyrolysis action. During the pyrolysis process, some smoke may be emitted. This is normal.

Therefore, it is advisable to carry out cleaning in a ventilated place or under an extractor hood. Then, allow the baking stone to cool down and remove the residues with a damp cloth or a brush.
