Product type	Range hood
Brand	Amica
Model	OKC6212RM
Width	60 cm (estimate)
Operating modes	External extraction and recirculation (with charcoal filter)
Fan speeds	3 speeds (1 low, 2 medium, 3 high)
Lighting	Independent, LED bulbs/modules (same specifications as original lamps)
Grease filter	Aluminum, dishwasher safe or hand washable, monthly cleaning
Charcoal filter	Active, not washable, replace every 3-4 months (more often with intensive use)
Exhaust duct diameter	120 mm or 150 mm
Power supply	220-240 V / 50 Hz (standard)
Minimum mounting height (above electric hob)	Refer to the technical sheet (usual distance 65-75 cm)
Minimum mounting height (above gas hob)	Refer to the gas hob manual (greater distance if specified)
Installation type	Wall mounting (vertical wall) above the cooking surface
Control panel	Isostatic keys (speeds + lighting)
Child safety	Can be used by children over 8 years old under supervision
External cleaning	Damp cloth and mild detergent, avoid solvents and abrasives
Warranty	According to warranty card (minimum period stated on the card)
Repairability	Repairs by authorized service only, warranty void if non-compliant intervention
Packaging materials	100% recyclable (polyethylene, polystyrene)

Frequently Asked Questions - OKC6212RM AMICA

What is the recommended mounting height for the Amica OKC6212RM hood?

The mounting height above the electric hob is indicated on the technical sheet. For gas hobs, follow the distance specified by the hob manufacturer if it is greater. In general, a height of 65 to 75 cm is recommended.

How to clean the grease filter?

The aluminum grease filter must be cleaned at least once a month. You can wash it in the dishwasher or by hand with a mild detergent. After several dishwasher cycles, its color may change, but this does not affect its efficiency.

When should I replace the charcoal filter?

The active charcoal filter must be replaced every 3 to 4 months, or more frequently in case of intensive use. It is neither washable nor regenerable.

Can I use the hood without the grease filter?

No, it is forbidden to use the hood without the aluminum grease filter. The grease filter protects the motor and reduces the risk of fire.

How to change the light bulbs or LED modules?

Use bulbs/halogen lamps/LED modules identical to the original ones (specifications indicated on the device). The replacement is shown in figure 7 of the manual. If the drawing is not present, the lighting module must be replaced by an authorized service.

Can the hood operate in recirculation mode without an external duct?

Yes, in recirculation mode, the filtered air is returned into the room. An active charcoal filter is required. For built-in and telescopic hoods, an exhaust hose must be installed to return the air to the kitchen.

What diameter of exhaust duct should I use?

The duct must have a diameter of 120 mm or 150 mm. The total length should not exceed 4 to 5 meters for optimal efficiency.

What to do if the power cord is damaged?

The power cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any danger.

Can I leave an open flame under the hood?

No, it is forbidden to leave an open flame under the hood. Always remove the cooking vessel and adjust to a low flame. Constantly monitor frying.

How to dispose of the hood at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for waste electrical and electronic equipment, in accordance with European directive 2012/19/EC.

USER MANUAL OKC6212RM AMICA

Kitchen extractor hood / kaminhaube /

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING

DISPOSAL OF OLD APPLIANCE 10

OPERATION

10

KITCHEN HOOD CONTROLS 11

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 12

CLEANING AND MAINTENANCE 13

MAINTENANCE

13

GREASE FILTER 13

ACTIVATED CHARCOAL FILTER 13

LIGHT

13

WARRANTY AND AFTER SALES SERVICE 14

WARRANTY

14

GARANTIE, NACHVERKAUF-SERVICE 24

GARANTIE

24

CS- Obsah

BEZPEČNOSTNÍ POKNY

26

VYBALENI

29

LIKVIDACE OPOTREBOVANYCH ZARIZENI

OBSLUHA

30

OVLADANI ODSAVACE

30

JINE DULEZITE INFORMACE O OBSLUZE ODSAVACE

CISTENIA UDRZBA

32

UDRZBA

32

PROTITUKOVY FILTR

32

UHLIKOVY FILTR

32

OSVETLENI

32

ZÁRUKA, POPRODEJNÍ SERVIS

33

ZARUKA

33

SK- Obsah

BEZPEČNOSTNÉ POKNYPOUŽÍVANIA 35

ROZBALENIE 39

LIKVIDÁCIA ZARIADENI 39

OBSLUHA

OVLADANIE ODSAVACA 40

INE DOLEZITE INFORMACIE TYKAJUCE SA POUZIVANIA ODSAVACA 41

CISTENIE A UDRZBA 42

KONZERVÁCIA 42

PROTITUKOVY FILTER 42

UHLIKOVY FILTER 42

OSVETLENIE 42

ZÁRUKA, POPREDAJNY SERVIS 43

ZARUKA 43

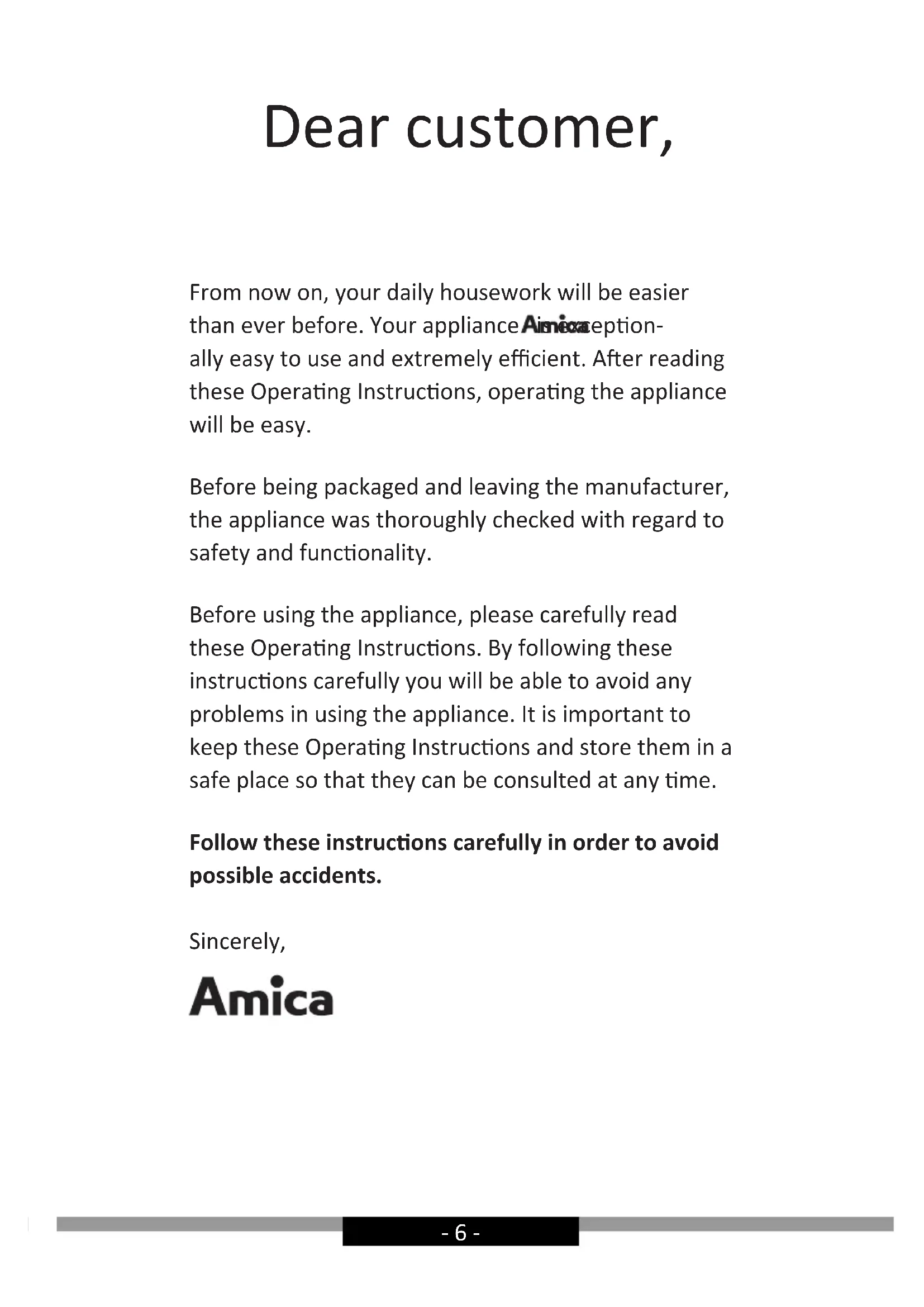

From now on, your daily housework will be easier than ever before. Your appliance Air-conditionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of 120 or 150~mm ) should not be longer than 4 - 5m . An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter).
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)...Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste

after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

The control panel is equipped with buttons (isostat switch).

To turn on the kitchen hood, press one of the button to select the desired speed:

1- Low speed. Use this speed when cooking a little food with hardly any fumes.
2- Medium speed. Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
3- High speed. Use this speed when frying or grilling, with large amount of fumes.
0- Turn off the appliance

Press to turn the lighting on/off. The lighting operates independently of hood fan.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120mm , and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

Dismantling of grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every 2 months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every 3-4 months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

Low Voltage Directive 2014/35/EC
- Electromagnetic Compatibility (EMC) Directive 2014/30/EC
ErP Directive 2009/125/EC
- Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
