Product Type	Closed professional headset
Brand	Beyerdynamic
Model	DT 297 PV MK II
Microphone transducer type	Condenser / electret
Microphone polar pattern	Cardioid
Headphones frequency response	10 - 30,000 Hz
Microphone frequency response	40 - 20,000 Hz
Nominal impedance (headphones)	80 Ω or 250 Ω depending on version
Microphone output impedance	300 Ω
Microphone sensitivity (at 5 cm)	5.5 mV
Phantom power	12 - 48 V
Microphone power consumption	approx. 3.5 mA
Nominal sound pressure level (at 1 kHz, 1 mW)	100 dB SPL
Harmonic distortion	< 0.2 %
Ambient noise attenuation	approx. 16 dBA
Weight (without cable)	240 g
Headband pressure	4.5 N
Microphone attachment	Adjustable, can be used on left or right
Connector	Plug-in cable (not included with headset) – see accessories
Maintenance	Clean with damp cloth and mild detergent; ear pads and windscreen washable
Available replacement parts	Ear pads, windscreen, headband cushion

Frequently Asked Questions - DT 297 PV MK II BEYERDYNAMIC

What is the impedance of the DT 297 PV MK II headphones?

The DT 297 PV MK II is available in two versions: 80 Ω and 250 Ω. Check the reference (701.467 for 80 Ω, 721.042 for 250 Ω).

Does the microphone require phantom power?

Yes, the electret condenser microphone requires 12 to 48 V phantom power. Use a compatible balanced microphone input.

How to clean the ear pads and windscreen?

The ear pads and windscreen (WS 97 AZ) can be washed in lukewarm water with mild soap. Make sure they are completely dry before reinstalling.

Can I replace the ear pads myself?

Yes, the ear pads are replaceable. Remove the old one by releasing it at the plastic ring, then place the new one aligning the tabs and pressing until it clicks.

What type of cable should I use for the DT 297 PV MK II?

The headset is delivered without a cable. Use a cable from the K 190 series, for example the K 190.40 with XLR 3-pin connector and 6.35 mm stereo jack. Refer to the accessories chapter of the manual.

Is the headset suitable for outdoor use?

The DT 297 PV MK II is a closed professional headset offering good sound isolation (approx. 16 dBA). It can be used outdoors, but protect the microphone from wind using the windscreen.

What is the difference between the DT 297 and DT 290?

The DT 297 uses a cardioid condenser (electret) microphone with phantom power, while the DT 290 uses a hypercardioid dynamic microphone. The DT 297 offers better high-frequency response and requires external power.

How to adjust the headband for better comfort?

Adjust the headband to the size of your head. The microphone cable is protected by the headband. Comfort is optimized for long listening sessions thanks to the replaceable soft ear pads.

Can the volume be limited to protect hearing?

Yes, LTD versions with passive limiter are available. The limiting threshold can be customized. These versions are identified by the 'LTD' suffix in the reference.

Where to find replacement parts for the DT 297 PV MK II?

Replacement parts (ear pads EDT 250 V or EDT 250 S, windscreen WS 97 AZ, headband BN 59-59/A) are available from authorized Beyerdynamic dealers or on the manufacturer's website.

USER MANUAL DT 297 PV MK II BEYERDYNAMIC

Technical line drawing of a mechanical valve or pump component with no visible text or symbols

5. Limiter - LTD Versionen

• Special model 250 ohm system available

DT 280 / DT 290

Mikrofon

* Special model 250 ohm system available

Richtdiagramm

1. Safety 14
2. Design Features 14
3. Connection 15
4. Operation 15
5. Limiter – LTD Versions ..... 16
6. Maintenance 16
7. Models ..... 16
8. Spares 17
9. Optional Accessories 17
10. Disposal.... 17
11. Technical Specifications ..... 18

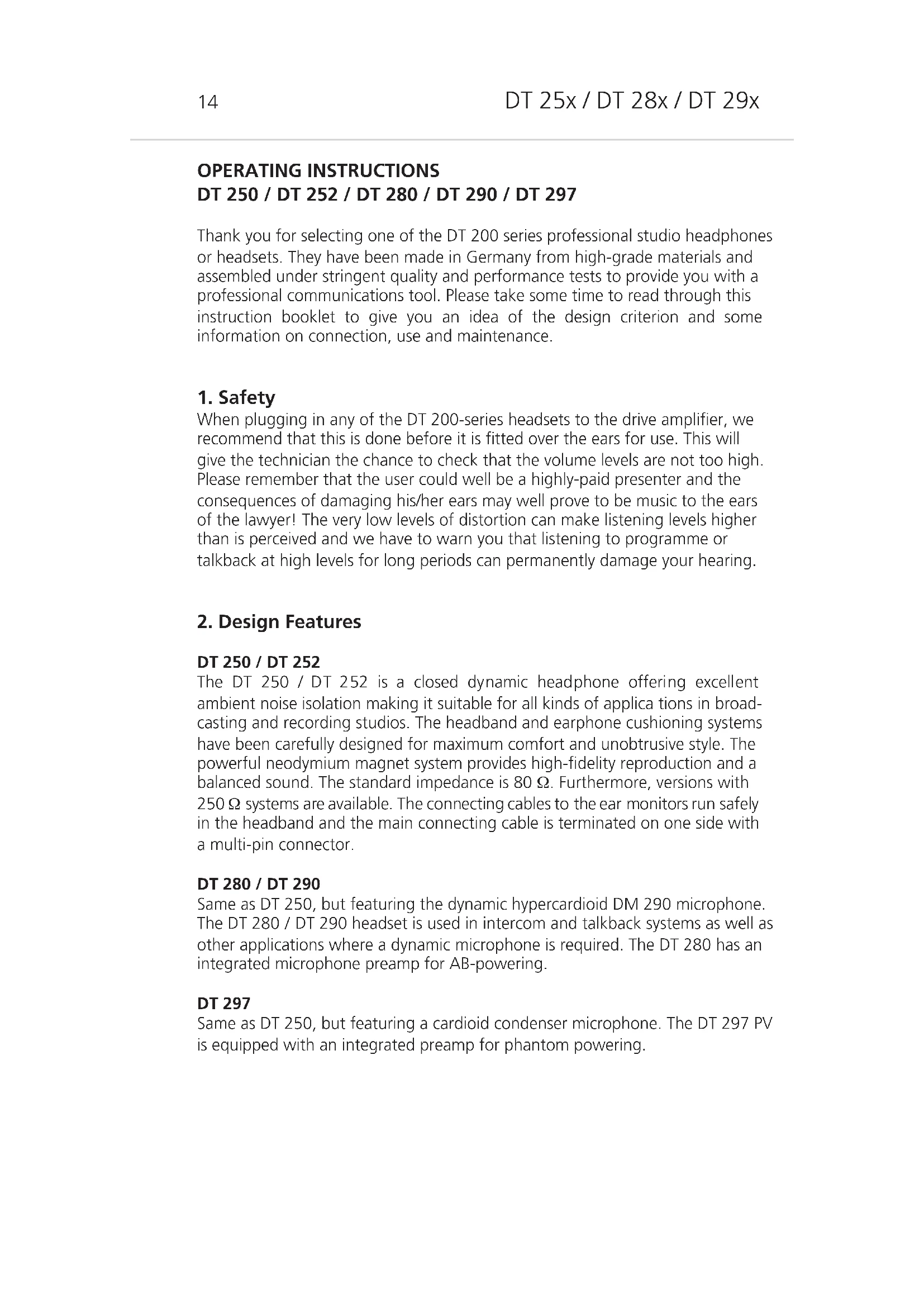

OPERATING INSTRUCTIONS DT 250 / DT 252 / DT 280 / DT 290 / DT 297

Thank you for selecting one of the DT 200 series professional studio headphones or headsets. They have been made in Germany from high-grade materials and assembled under stringent quality and performance tests to provide you with a professional communications tool. Please take some time to read through this instruction booklet to give you an idea of the design criterion and some information on connection, use and maintenance.

1. Safety

When plugging in any of the DT 200-series headsets to the drive amplifier, we recommend that this is done before it is fitted over the ears for use. This will give the technician the chance to check that the volume levels are not too high. Please remember that the user could well be a highly-paid presenter and the consequences of damaging his/her ears may well prove to be music to the ears of the lawyer! The very low levels of distortion can make listening levels higher than is perceived and we have to warn you that listening to programme or talkback at high levels for long periods can permanently damage your hearing.

2. Design Features

DT 250 / DT 252

The DT 250 / DT 252 is a closed dynamic headphone offering excellent ambient noise isolation making it suitable for all kinds of applications in broadcasting and recording studios. The headband and earphone cushioning systems have been carefully designed for maximum comfort and unobtrusive style. The powerful neodymium magnet system provides high-fidelity reproduction and a balanced sound. The standard impedance is 80 Ω. Furthermore, versions with 250 Ω systems are available. The connecting cables to the ear monitors run safely in the headband and the main connecting cable is terminated on one side with a multi-pin connector.

DT 280 / DT 290

Same as DT 250, but featuring the dynamic hypercardioid DM 290 microphone. The DT 280 / DT 290 headset is used in intercom and talkback systems as well as other applications where a dynamic microphone is required. The DT 280 has an integrated microphone preamp for AB-powering.

DT 297

Same as DT 250, but featuring a cardioid condenser microphone. The DT 297 PV is equipped with an integrated preamp for phantom powering.

3. Connection

The DT 250 / DT 252 headphones are supplied with an appropriate connecting cable. The the DT 280 / DT 290 / DT 297 headsets are supplied without connecting cable. For appropriate connecting cables, please refer to "Optional Accessories". Direct solder connections can be made to all cables with free ends (for cable connection refer to "Block Diagram"). Upon request the required plugs can be connected at the factory.

It is important that the external equipment the studio headphones or the headsets will be connected to are of good quality and of the correct impedance and power ratings to get the best performance from them. Please refer to the "Technical Specifications" for detailed information.

The microphone of the DT 280 / DT 290 headset is designed for balanced connection. But it can be also connected to unbalanced microphone inputs.

The DT 297 PV headset is suitable for the connection to balanced microphone inputs with phantom power. At a distance of 5 cm the microphone level is 13 mV or 250 mV.

Use the DT 280 headset with integrated preamp for connecting to TV cameras with a microphone input for AB-powering. At a distance of 5 cm the microphone level can be adjusted between 52 mV and 1.3 V at normal speech volumes.

4. Operation

The head phones are fully adjustable and should be positioned for the best fit over the ears. This will give maximum long-term comfort and will minimise sound leakage or spill.

The microphone should be positioned to the side of the mouth, about 20 - 30 mm forward. This will keep it within the direct sound path but out of breath stream, therefore minimising any 'pop' sounds.

All versions:

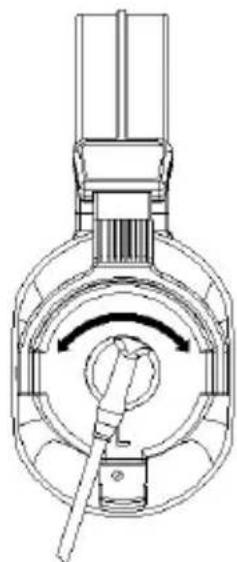

The microphone boom is rotatable so that the microphone can be placed over the left or right ear.

Technical line drawing of a mechanical valve or pump component (no text or symbols)

5. Limiter - LTD Versions

Headphones of the DT 200 series can also be ordered with an integrated limiter. This option ensures that the hearing of the user is protected at any time while using the product. In order to meet the important health and safety criteria the passive circuitry has been designed to achieve a similar sound impression as a complex VCA limiter. It is a two-phase limiting concept which incorporates a smooth decrease of the audio signal by 6 dB after which a hard, protective brick-wall limiter limits the audio signal when the input volume is still increased. The advantage of this concept is the soft, compressor-like transition between the unlimited audio signal and the brick-wall limiter. This area still sounds very good, but signalises the user without producing immediate distortion that the limiter threshold is reached. The headphones and headsets include the addition "LTD" and can be found in chapter 7. "Models". All models can be ordered with any preferred limiter threshold.

6. Maintenance

As with any equipment which will be used in close proximity to sensitive parts of the body, it is essential that the ear pads, the headband and the microphone pop-shield are kept clean. Use a damp cloth for cleaning the ear-pads and headband using only gentle cleansing agents (such as washing-up liquid). Take care not to allow any water drops into the transducer elements and do not use any solvent cleaners. The microphone pop-shield of the headsets can be easily removed and washed in warm water. Please take care that the pop shield is completely dry when it is replaced. The ear-pads can wear out due to effects of skin moisture, cosmetics and mechanical strains while wearing the headphones. From time to time you will need to replace the ear-pads:

1. Remove the ear-pad from the housing part.
2. Put the new ear-pad on the housing so that the drop-in pins can lock in the corresponding holes.
3. Press the new ear-pad with the thumbs of both hands to the housing until you hear a clear "click" noise.

The modular design of the headphone allows easy servicing as all part can easily be exchanged.

7. Models

DT 250 Studio headphone, 80 Ω, black, with WK 250.07 coiled cable, plug-in type (stereo mini jack plug with 1/4" adapter) .. Order # 442.844

DT 250 Studio headphone, 250 Ω, black, with WK 250.07 coiled cable, plug-in type (stereo mini jack plug with 1/4" adapter) .. Order # 443.530

DT 252 Single-ear studio headphone, 80 Ω, black, with WK 250.07 coiled cable, plug-in type (stereo mini jack plug with 1/4" adapter)....Order # 445.177

DT 280 MK II Single-ear headset, 200/80 Ω....Order # 701.599

DT 280 MK II Single-ear headset, 200/250 Ω....Order # 701.602

DT 290 MK II Headset, 200/80 Ω .... . Order # 701.610

DT 290 MK II Headset, 200/250 Ω .... . Order # 701.629

DT 297 PV MK II Headset, 80 Ω, condenser microphone (cardioid), for 12 - 48 V phantom power ..... Order # 701.467

DT 297 PV MK II same as above, but 250 Ω . . . . . . . . . . . Order # 721.042

DT 250 LTD Studio headphone, 80 Ω, black, with limiter and cable.... Order # 497.924

DT 250 LTD Studio headphone, 250 Ω, black, with limiter and cable.... Order # 497.142

8. Spares

BN 59-59/A Headband cushion .... ... Order # 503.886

EDT 250 V Ear cushions pair (cloth), for DT 25*/28*/29* .... . Order # 942.704

EDT 250 S Ear cushions pair (soft PVC), for DT 25*/28*/29* . . . . . . . . Order # 943.549

WS 97 AZ Wind screen, charcoal-grey. . . . . . . . . . . . . Order # 465.313

9. Optional Accessories

WK 250.07 Coiled cable for DT 25* stereo mini jack plug with 1/4" adapter .. Order # 442.070

K 190.00 Straight cable for DT 28*/DT29*, 1.5 m, free ends. Order # 431.575

K 190.28 Straight cable for DT 28*/DT29*, 1.5 m, with 4-pin XLR socket .... . Order # 445.304

K 190.40 Straight cable for DT 28*/DT29 ^* , 1.5 m, with 3-pin XLR plug and 1/4" stereo jack plug .... . Order # 445.894

K 190.41 Straight cable for DT 28*/DT29*, 1.5 m, with 5-pin XLR plug.... Order # 445.312

10. Disposal

This symbol on the product, in the instructions or on the packaging means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

11. Technical Specifications

DT 250 / DT 252

DT 280 / DT 290 / DT 297

Headphone

Frequency response	10 - 30,000 Hz(for headsets optimised for highest intelligibility of speech)
Nominal impedance	80 Ω / 250 Ω
Nominal sound pressurelevel at1 kHz	100 dB SPL at 1 mW = 0.28 V at 80 Ω100 dB SPL at 1 mW = 0.5 V at 250 Ω
Input power rating	100 mW = 120 dB = 2.8 V at 80 Ω100 mW = 120 dB = 5 V at 250 Ω
T.H.D.	< 0.2%
Ambient noise attenuation	approx. 16 dBA
Headband pressure	4.5 N
Weight (without cable)
DT 250 / DT 290 / DT 297	240 g
DT 252 / DT 280	170 g

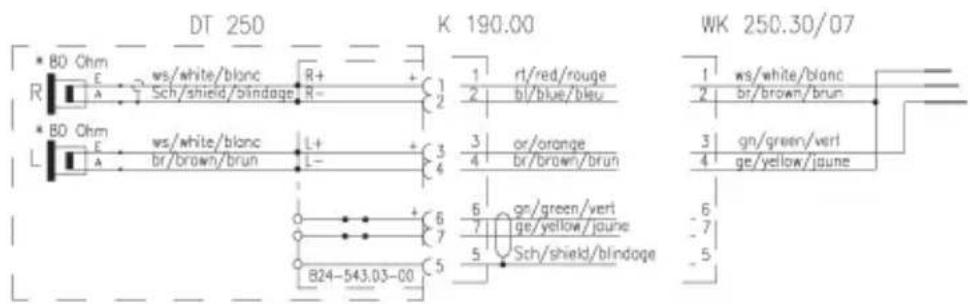

Wiring Diagram DT 250

DT 250 K 190.00 WK 250.30/07 * BO Ohm E ws/white/blanc R+ R- 1 rt/red/rouge 2 bl/blue/bleu 1 ws/white/blanc 2 br/brown/brun * BO Ohm E ws/white/blanc L+ L- 3 or/orange 4 br/brown/brun 3 gn/green/vert 4 ge/yellow/jaune 6 gr/green/vert 7 ge/yellow/jaune 5 Sch/shield/blindage B24-543.03-00 6 5

• Special model 250 ohm system available

DT 280 / DT 290

Microphone

Transducer type. . . . . . . . . . . . . dynamic

Frequency response. 40 - 12,000 Hz

Polar pattern.... hypercardioid

Interference discharging ..... 30 dB

Output voltage at a distance

of 5 cm .... approx. 1.3 mV/Pa

Nominal impedance .... approx. 200 Ω

Outer diameter .... approx. 23.2 mm

Weight approx. 45 g

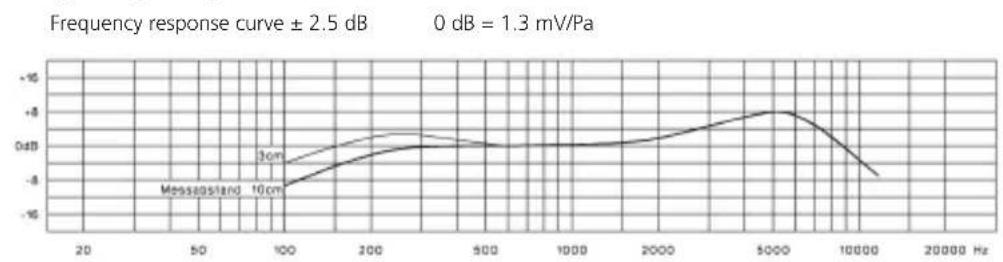

Frequency Response Curve

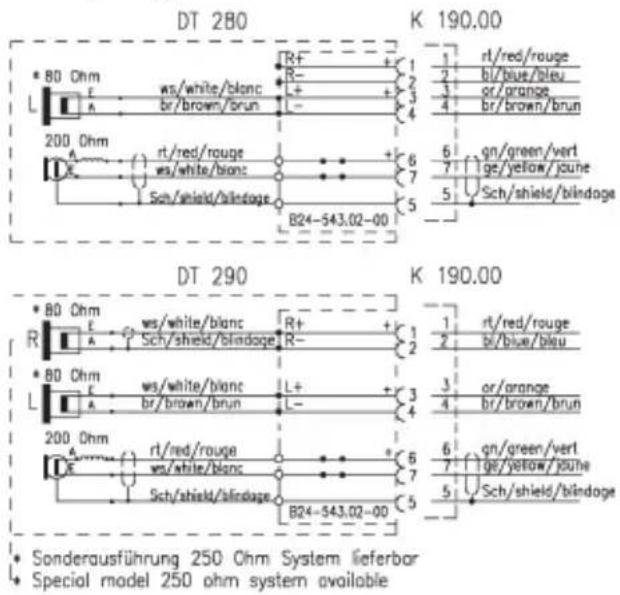

Wiring Diagram

DT 280 K 190.00 80 Ohm L A ws/white/blanc br/brown/brun R+ R- L+ L- + 1 2 3 4 rt/red/rouge bl/blue/bleu or/orange br/brown/brun 200 Ohm L A rt/red/rouge ws/white/blanc Sch/shield/blindage B24-543.02-00 6 7 5 gn/green/vert ge/yellow/jouhe Sch/shield/blindage DT 290 K 190.00 80 Ohm R A ws/white/blanc Sch/shield/blindage R+ R- + 1 2 3 4 rt/red/rouge bl/blue/bleu or/orange br/brown/brun 80 Ohm L A ws/white/blanc br/brown/brun L+ L- + 1 3 4 6 7 5 gn/green/vert ge/yellow/jouhe Sch/shield/blindage 200 Ohm L A rt/red/rouge ws/white/blanc Sch/shield/blindage B24-543.02-00 Sonderausführung 250 Ohm System lieferbar Special model 250 ohm system available

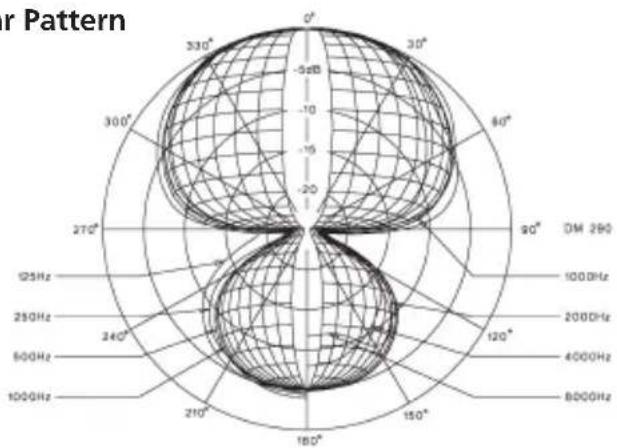

Polar Pattern

ar Pattern 330° 30° 60° 90° DM 280 125Hz 250Hz 600Hz 1000Hz 270° 240° 210° 180° 150° 120° 2000Hz 4000Hz 8000Hz

DT 297 PV

Microphone

Transducer type. . . . . . . . . . . . condenser (back electret)

Frequency response. 40 - 20,000 Hz

Polar pattern....cardioid

Output voltage at a distance

of 5 cm. 5.5 mV

Nominal impedance .... 300 Ω

Load impedance ≥ 1000

Max. SPL....132 dB

S/N ratio 62 dB

Current consumption .... approx. 3.5 mA

Phantom powering .... 12 - 48 V

Weight ..... approx. 30 g

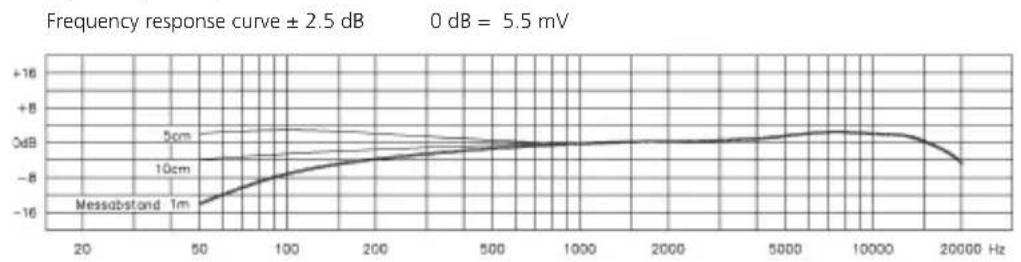

Frequency Response Curve

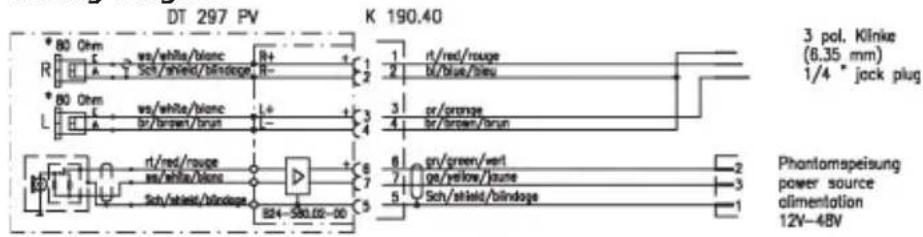

Wiring Diagram

DT 297 PV K 190.40 3 pol. Klinke (6,35 mm) 1/4 * jock plug * 80 Ohm R L * 80 Ohm R L RT/red/rouge vs/white/blanc Sch/shield/blindage R+ + - 1 2 rt/red/rouge br/blue/bleu 3 or/orange br/brown/brun 6 grn/green/vert ge/yellow/laume 7 Sch/shield/blindage 8 5 Phantomspeisung power source alimentation 12V-48V

* Special model 250 ohm system available

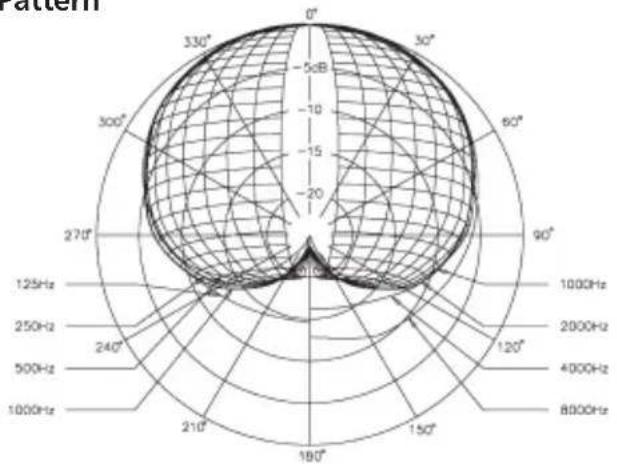

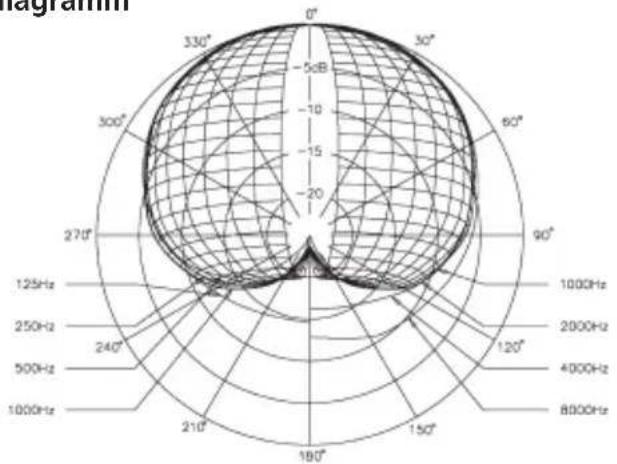

Polar Pattern

Technical line drawing of a mechanical valve or pump component (no text or symbols)

* Special model 250 ohm system available

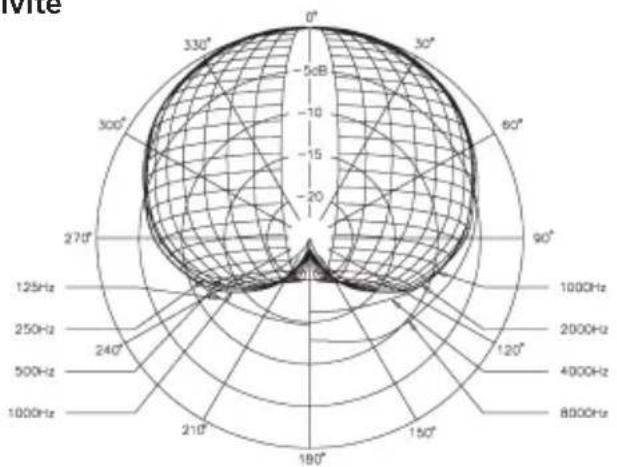

Directivité
