USER MANUAL AU386899 BIGBEN
AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.
Technical line drawing of a mechanical component with a dashed line and numbered label (4), no readable text or symbols present.- Bluetooth
- Batterie rechargeable
- Lecture/Pause
BELGIQUE, customerservice@bigben-interactive.be
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
BLUETOOTH SPEAKER WITH LIGHT
PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE
Getting strated 10
Safety Warning and Notice 10
What's in the box 12
Description of Part 12
Charging
Pairing Two Speakers
(TWS: True Wireless Stereo) 13
Product Specifications 13
Functions
13
Care for the environment 15
Additional information 15
12 Declaration of conformity 15
Getting started
• Take the device out of the box.
- Remove any package from the product.
- Place the package inside the box or dispose of it safely with recycling waste.
Safety Warning and Notice
Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

- Do not sleep near the product.
- The product must be at a minimal distance of 20 cm from the human body when in operation.
- Never remove the casing from this device.
- Never place this device on other electrical equipment.
- Protect the power cord from being walked on or pinched, particularly near plugs, convenience receptacles, and the device output point. Make sure that the power voltage corresponds to the voltage printed on the rear label. When you unplug the AC power cord always pull the plug out of the socket. Never pull the cord. Before connecting the AC power cord, ensure you have completed all other connections
-
Only use attachments/accessories specified by the manufacturer.
-
Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such asnotamment :
-
damaged power-supply cord,
- spilled liquid or objects inserted into the device,
- the device has been exposed to rain or moisture,
- the device does not operate normally,
-
or the device has been dropped.
-
The rating label is positioned underneath the device.
-
Make sure there is enough space around the product for ventilation.
-
Do not block any ventilation openings
-
This device must be used in moderate climates, away from direct sunlight, naked flames, heat, heat registers, stoves, or other devices (including amplifiers) that produce heat. Do not install near any heat sources.
-
Batteries (battery pack or installed batteries) must not be exposed to excessive heat such as sunshine, fire, etc.
-
Unplug before cleaning. Never lubricate any part of this device. Clean the device with a soft cloth. Do not use abrasives or harsh cleaners. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this device from the power if necessary.
- Do not use this device near water. It must not be exposed to dripping or splashing. Do not use this unit in wet or damp conditions.
- Unplug this device during lightning storms or when unused for long periods of time.
- This device can be used by children aged 8 years and over and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the device in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and maintenance must not be carried out by children without supervision.
- This device must only be supplied at extra low safety voltage corresponding to the marking on the device.
- The battery must be removed from the device before it is scrapped. The device must be disconnected from the supply mains when removing the battery.
The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.
| Class II material | ![]() |
| Direct current | ![]() |
| Alternating current | ![]() |
| For indoor use only | ![]() |
What's in the box?
Check and identify the contents of your package:
• 1 Speaker
• 1 USB Charging Cable
1 Power ON/OFF Switch
Long press 2\~3 seconds to turn the speaker on/off, long press for 10 seconds to restart the default settings.
② LED Light Button & Light mode switch
Long press to switch the LED Light on/off
Short press to switch between 3 LED light models
③ Play/Pause
Short press for play and pause
Double press for TWS connection, long press 2-3 seconds to disconnect TWS or Bluetooth
4 USB Type C charging input: 5 V, 1 A
Charging:
Plug the charging cable into the speaker and connect to another USB power source such as a PC/MAC,USB AC adaptor etc.
When the battery is low, please do not play music while charging.
Bluetooth Connection:
Long press 2\~3 seconds to turn on the speaker.
Search for "PARTYBTIPNANO" on your mobile device and select it. Once found a tone will be produced after the speaker has successfully connected to the device.
When pairing, the LED light indicators will flash in a cyclical motion. When paired they will turn
solid blue for a few seconds and then revert to the normal lighting mode.
Disconnecting Bluetooth:
To manually disconnect Bluetooth on the speaker, long press the play button for 2-3 seconds.
N.B.: If there is an incoming call while the PARTYBTIPNANO system is connected to your mobile phone to play music, the music is immediately paused while you answer the call and play will resume once the call is ended (depending on the type of mobile phone, play may sometimes remain paused after the end of the call).
Pairing Two Speakers (TWS: True Wireless Stereo):
- Power on any two speakers at the same time (same model, same Bluetooth name). Ensure that both speakers are in pairing mode.
- Double-click one of the speaker's play/pause key. When you hear a BEEP tone, it means that two speakers are connected successfully. Then use the external Bluetooth device to search for "PARTYBTIPNANO" and connect to play together. The two speakers will now act as separate left and right stereo channels.
TWS disconnect : to manually disconnect TWS mode, long press the play button for 2-3 seconds.
Full reset : If you ever experience any disconnection or the speaker is not responding as you expect, press and hold the power button for 10+ seconds
Product Specifications
• Power output: 5W (RMS 3.5W)
- Input: DC 5V
- Driver: 2" 4Ohms speaker
- Battery capacity: 1200mAh
• Transmission Distance: 10M
• Product Dimensions: 120*120*45mm
- Bluetooth Pair Name: PARTYBTIPNANO
NB : The maximum connection distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to avoid connection disruptions.
Functions
- IP54 (splash proof)
• TWS - BLUETOOTH
- RECHARGEABLE BATTERY
- PLAY/PAUSE
Technical specifications
| Type Specifications Type Specifications | |||
| Speaker 2” (5W) | Charging Time 3-4 hours | ||
| Peak Speaker 20W | Playing Time | 100% Volume for approximately 1-1.5 hours, 50% Volume for approx. 3 hours | |
| RMS Power 3.5W | Bluetooth Version | 5.0 | |
| EIRP - 0.68dBm(0.86mW) | |||
| Power Consumptions | 0.18W (lights off)/0.8W (lights on) | Bluetooth Frequency | 2,402 - 2,480 GHz |
| Power Input | USB 5V, 1A | Speaker Frequency 80 Hz | - 20 kHz |
| Speaker Impedance | 4Ω Input DC 5V | ||
| S/N Ratio ≥55dB | Driver 2” 4Ohms speaker | ||
| Battery Type | 1200mAh -Lithium Battery | Transmission Distance | 10m |
| Output (V,A) | 3.7V. 1,2Ah. 4.44Wh | Dimension | 120 x 120 x 45mm |
In an environment with electrostatic discharge, the device may be power off. (EUT could not operate properly). This requires the user to reset the device by turning it on to select the appropriate mode.

Your product is designed and manufactured with high-quality materials and components which can be recycled and reused.
Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please find outabout the separate local collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
Additional information
- In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.
- The word Bluetooth ^® , the mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
Declaration of conformity
- The undersigned, Bigben Interactive declares that the household device of the PARTYBTIPNANO complies with the 2014/35/EU and 2014/30/EU directives. The complete text is available at https://www.bigben-interactive.co.uk/support/
Fabricant : Bigben Interactive FRANCE
396, Rue de la Voyette, C.R.T. 2, Fretin,
CS90414 - 59814 Lesquin Cedex, France
BELGIQUE, customerservice@bigben-interactive.be
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
ALTAVOZ BLUETOOTH LUMINOSO
Technical line drawing of a mechanical component with a dashed line and numbered label (4), no readable text or symbols present.BELGIQUE, customerservice@bigben-interactive.be
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
IT
PARTYBTIPNANO
ALTOPARLANTE BLUETOOTH LUMINOSO

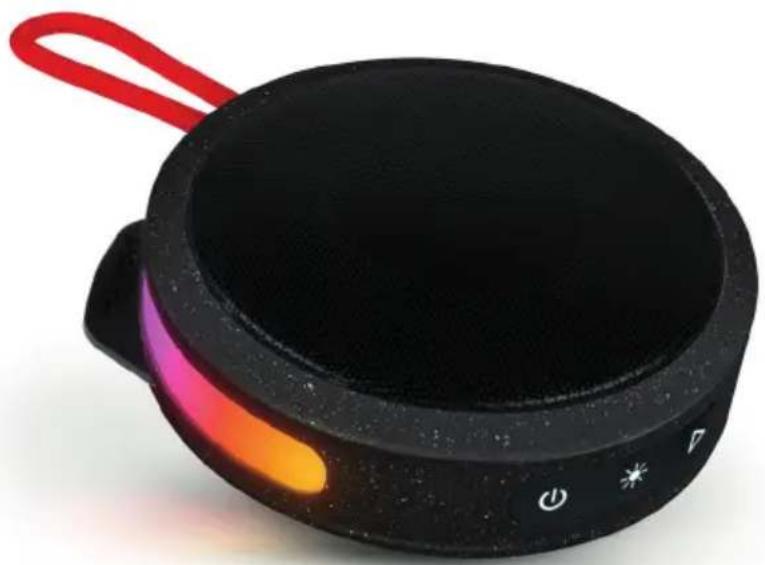

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE ATTENTAMENTE LE ISTRUZIONI PER L'USO E CONSERVARLE PER UN'EVENTUALE CONSULTAZIONE FUTURA.
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
COLUNA BLUETOOTH LUMINOSA
ANTES DE UTILIZAR ESTE APARELHO, LEIA ATENTAMENTE ESTE MANUAL DE INSTRUÇÕES E GUARDE-O PARA CONSULTA POSTERIOR.
BELGIQUE, customerservice@bigben-interactive.be
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
BLUETOOTH-LAUTSPRECHER MIT LICHTEFFEKTEN
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
GŁOŚNIK BLUETOOTH Z OŚWIETLENIEM
PRZED UŻYCIEM URZĄDZENIA NALEŻY DOKŁADNIE PRZECZYTAĆ TE INSTRUKCJĘ OBSŁUGI I ZACHOWAĆ JĄ DO WYKORZYSTANIA W PRZYSZŁOŚCI.
BELGIQUE, customerservice@bigben-interactive.be
NEDERLAND, customerservice@bigben-interactive.nl
ESPANA, sat@bigbenespana.es
ITALIA, support@bigbeninteractive.it
www.bigben.eu
BIGBEN PARTY
PARTYBTIPNANO
SVIJETLEĆI BLUETOOTH ZVUČNIK
PRIJE UPORABE OVOG APARATA PAŽLJIVO PROČITAJTE OVE UPUTE I SAČUVAJTE IH ZA BUDUĆE UORABE
| Pokretanje | 66 |
| Upozorenja i sigurnosne upute | 66 |
| Sadržaj pakiranja | 68 |
| Opis dijelova | 68 |
| Punjenje | 68 |
| Uparite dva zvučnika (TWS: Bežično povezivanje dva audio uređaja) | 69 |
| Tehničke karakteristike uređaja | 69 |
| Funkcije | 69 |
| Tehničke specifikacije | 70 |
| Zaštita okoliša | 71 |
| Dodatne informacije | 71 |
| Izjava o sukladnosti | 71 |
Pokretanje
- Izvadite uređaj iz kutije.
- Uklonite sav materijal za pakiranje s proizvoda.
- Stavite materijale za pakiranje u kutiju ili ih odložite na siguran način prema uputama za recikliranje naznačenim na pakiranju uređaja.
Upozorenja i sigurnosne upute
| Class II material | |
| Direct current | |
| Alternating current | |
| For indoor use only |
Sadržaj pakiranja

